1,361 Sq Ft Traditional L-Shaped Single-Story House Plan with 3 Bedrooms, 1 Bathroom and 1-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

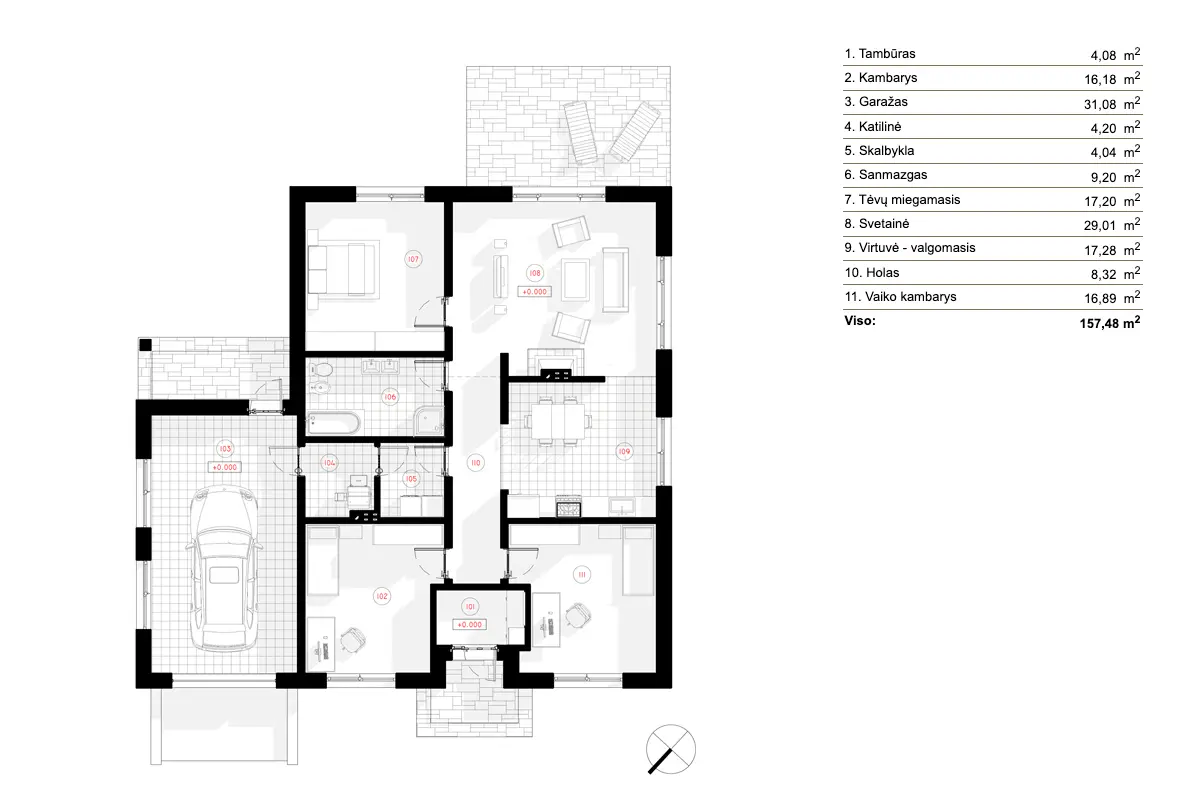

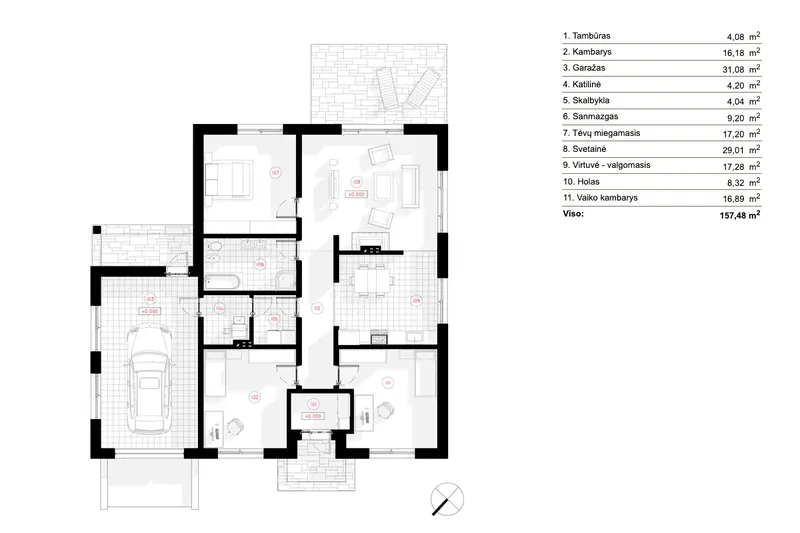

Traditional digital house design concept 48610R, available for purchase, describes an L-shaped single-story home with Total Heated 1,361 Sq Ft, 3 bedrooms, 1 bathroom and a 1-car garage, designed for 3-4 people. The entry leads into a closed floor plan in which every room keeps its own function. The large family room is centered on a fireplace, and vaulted ceilings give it extra volume. The large kitchen sits apart from the living space, so cooking noise stays out of the family room, while its breakfast nook serves everyday meals.
Split bedrooms place the primary bedroom away from the two secondary bedrooms, giving parents privacy from the children's rooms. One full bathroom serves the household, and the laundry and utility room on the main floor keep household chores on the same level as the bedrooms.
Outside, the deck offers room for outdoor meals and relaxing. The front-entry 1-car garage faces the street, which keeps the driveway short. The exterior combines stone/brick veneer with stucco, and the double shed roof with a 2/12 (9.5°) pitch and a ridge perpendicular to the street gives the L-shaped volume a low profile. The house is 46'6" wide and 43'4" deep. The main foundation is a bored pile foundation, with slab, strip footing or block foundation as options. The exterior walls are built of sand-lime block, optionally of aerated concrete, ceramic block or frame construction. In total, the project offers Total Heated 1,361 Sq Ft, 3 bedrooms, 1 bathroom and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
