1,949 Sq Ft Traditional L-Shaped 2-Story House Plan with 3 Bedrooms, 2 Bathrooms and 2-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

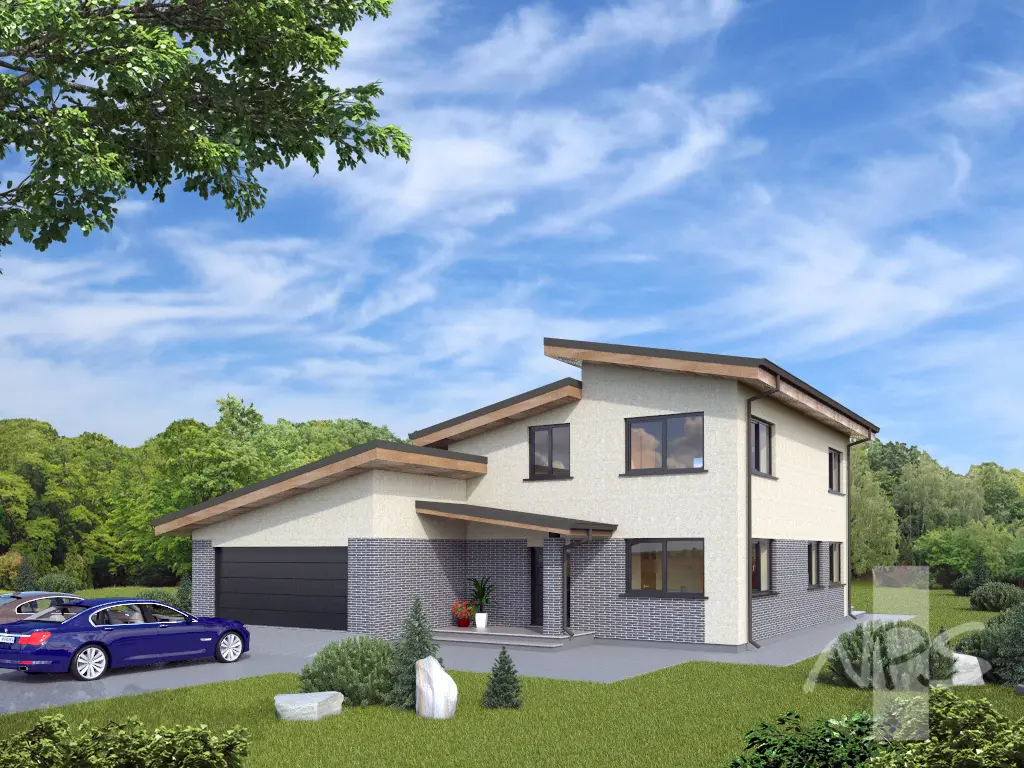

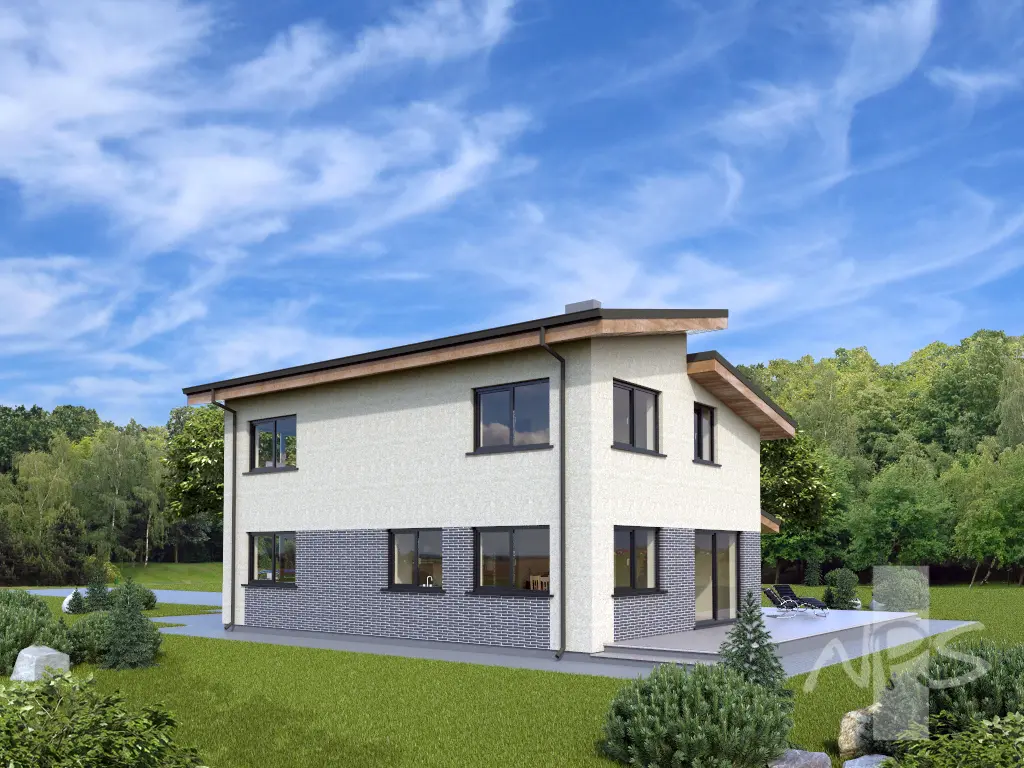

House design concept 96016R is a Traditional L-shaped 2-story single-family home with a total heated 1,949 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car garage. Designed for 3-4 people, the house combines stone/brick veneer and stucco walls with shed and double shed roofs pitched at 3/12 (14°), the ridge perpendicular to the street.

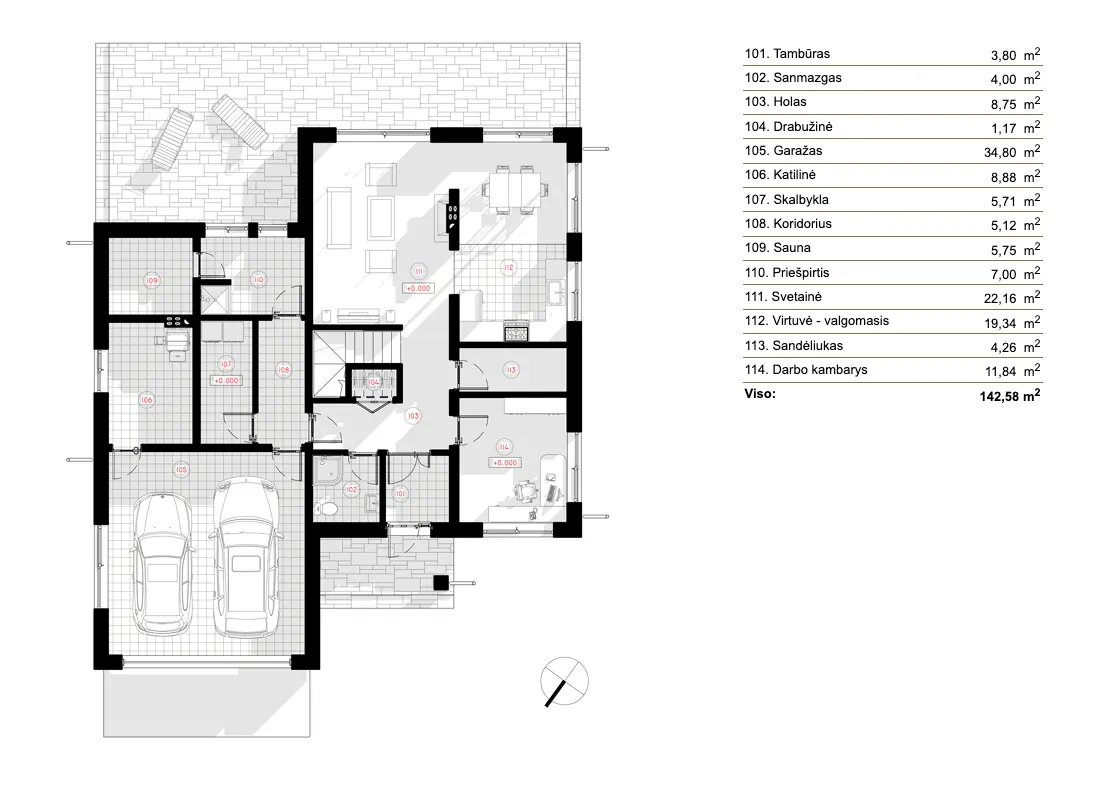

The entry opens to a closed floor plan that keeps every room quiet and defined. A fireplace anchors the family room, and the large kitchen adds a breakfast nook for quick meals and a walk-in pantry for bulk storage. A home office gives a dedicated workplace, the main-floor laundry keeps chores downstairs, and a sauna offers a private place to relax.

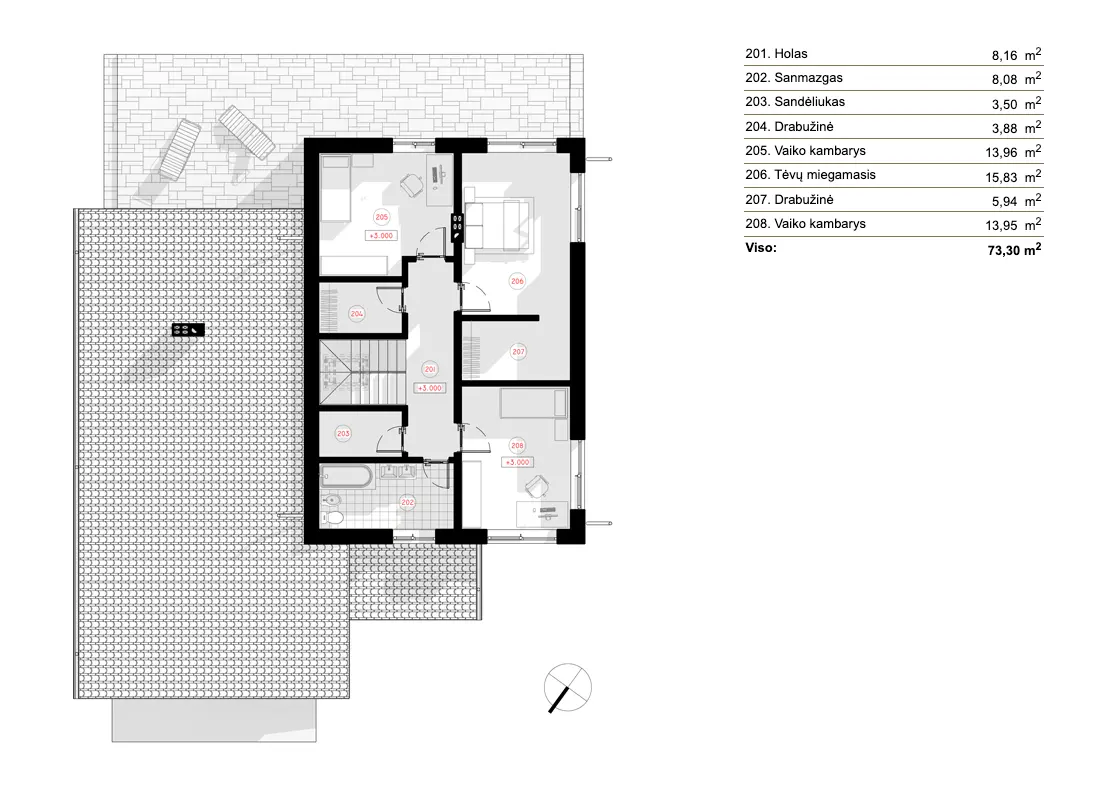

Upstairs, the clustered bedrooms keep the family close. The primary bedroom has a walk-in closet, and the second bathroom serves the other bedrooms. A storage room and a utility room keep household items out of sight.

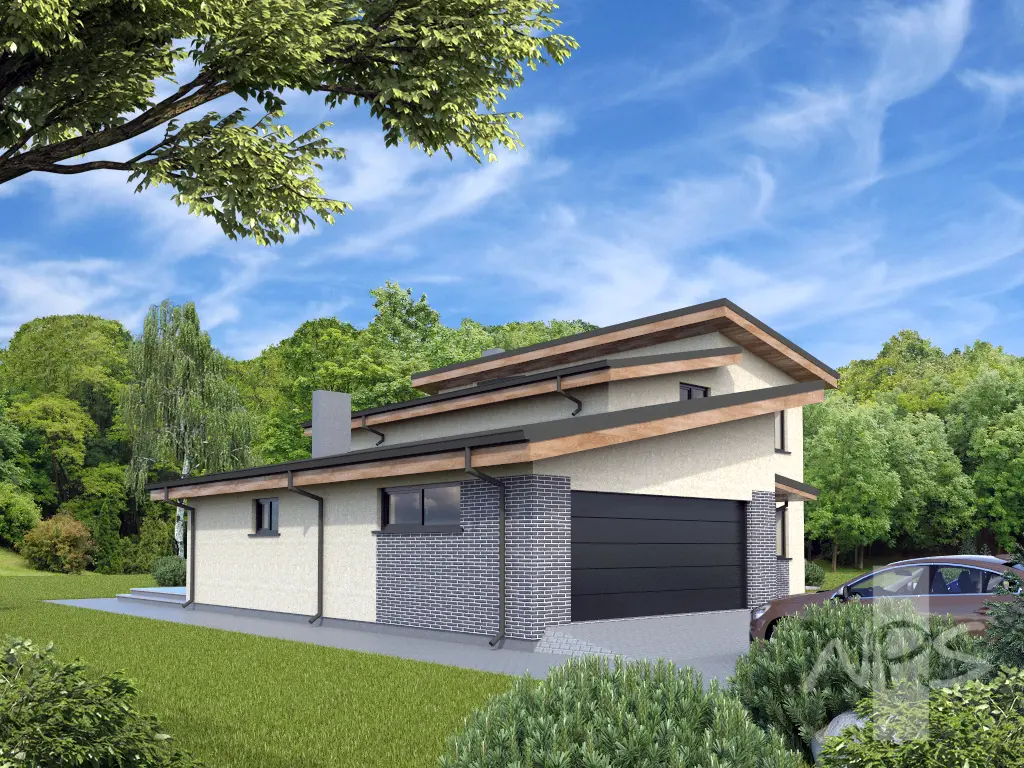

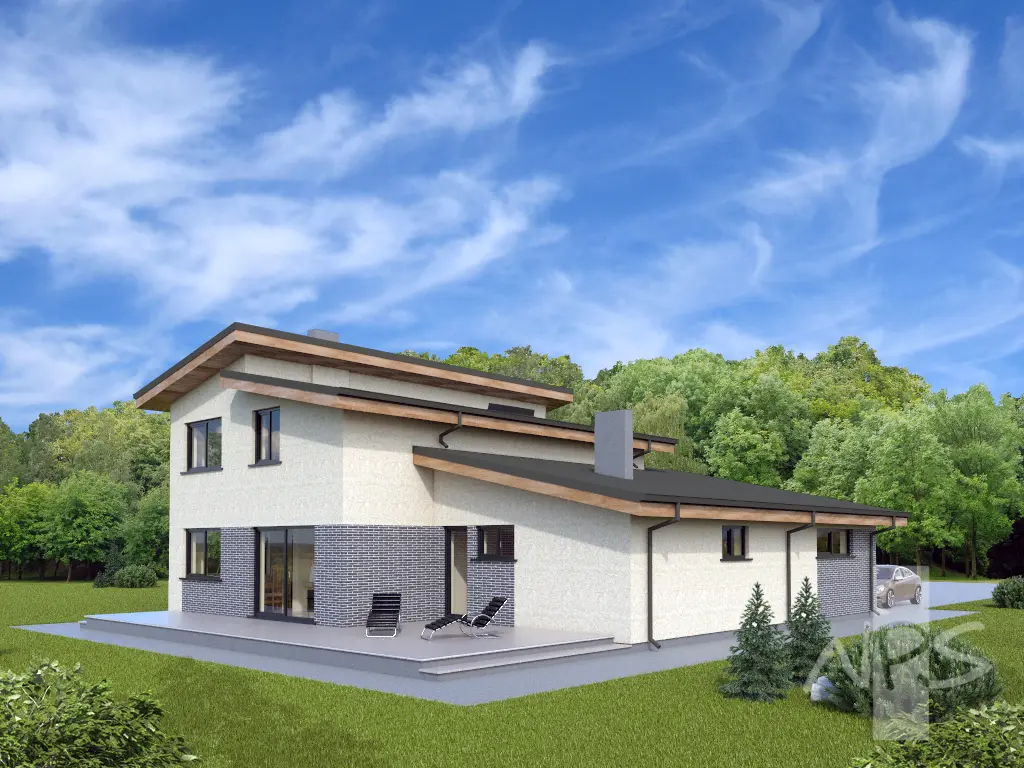

A deck extends living outdoors. The attached front-entry garage for 2 cars projects forward, with direct access from the driveway. Bored piles form the main foundation, with slab, strip or block options; the walls are sand-lime block, or aerated concrete, ceramic block or timber frame. The footprint measures 43'6" wide by 48'5" deep. Altogether: 1,949 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
