European House Plan with Bay Window in Living Room
European House Plan with Bay Window in Living Room European House Plan with Bay Window in Living Room
7
Construction documents are prepared for the following countries:

European House Plan with Bay Window in Living Room

Plan
77220R
Complete
Signed & Sealed
DC None
Key Specs
136
Total Heated m²
2 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
1
Cars
Rysunki architektoniczne, konstrukcyjne i instalacyjne:

rzut fundamentów

rzuty parteru i kolejnych kondygnacji

rzut stropów i nadproży

rzut więźby dachowej

rzut dachu

przekroje

zestawienie stolarki drzwiowej i okiennej

detale konstrukcji

projekty instalacji

Opisy techniczne architektoniczno-konstrukcyjne oraz opisy wewnętrznych instalacji sanitarnych i elektrycznych:

opis techniczny części architektonicznej projektu

opis techniczny konstrukcji

opisy instalacji

Opisy i dokumentacja zawierają:

charakterystykę energetyczną budynku

charakterystykę ekologiczną

informację o planie b.i o.z.

analizę porównawczą dwóch źródeł energii

oświadczenia projektantów

liczne informacje formalno-prawne

Materiały pomocnicze:

obliczenia konstrukcyjne

zestawienie elementów więźby dachowej

zestawienie materiałów do podstawowych instalacji sanitarnych, grzewczych i gazowych

zestawienie stali do zbrojenia elementów żelbetowych

widoki więźby i stropów w 3D

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

If you would like to modify this house plan, you have two options:

1. Modifications by the Original Architect: Work directly with the original architect to purchase a modified digital concept, then forward it to your local architect to order the construction documents.

2. Modifications by Your Local Architect: Purchase the digital concept as-is, work with your local architect to make changes, and then proceed with ordering the construction documents.

Floor Plans
First Floor

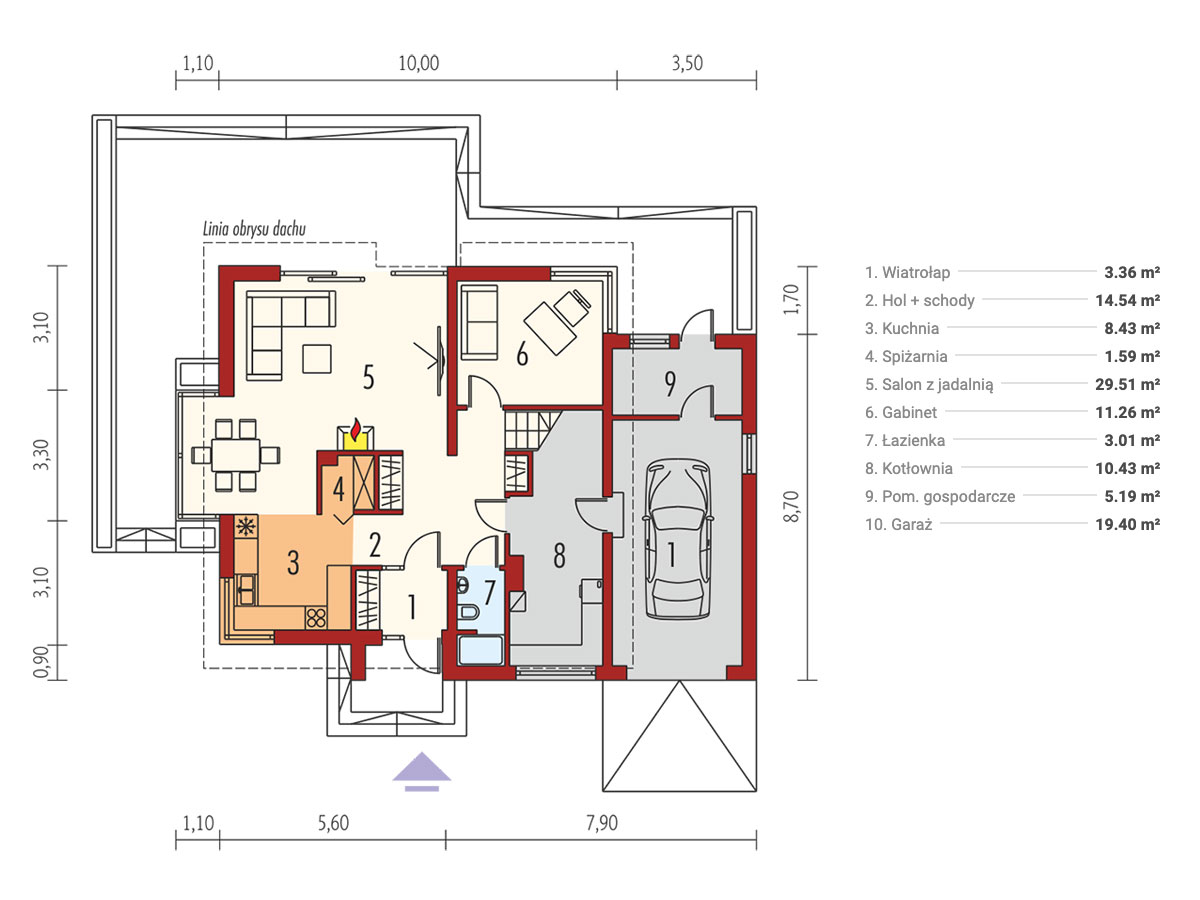

77220R - First Floor
Second Floor

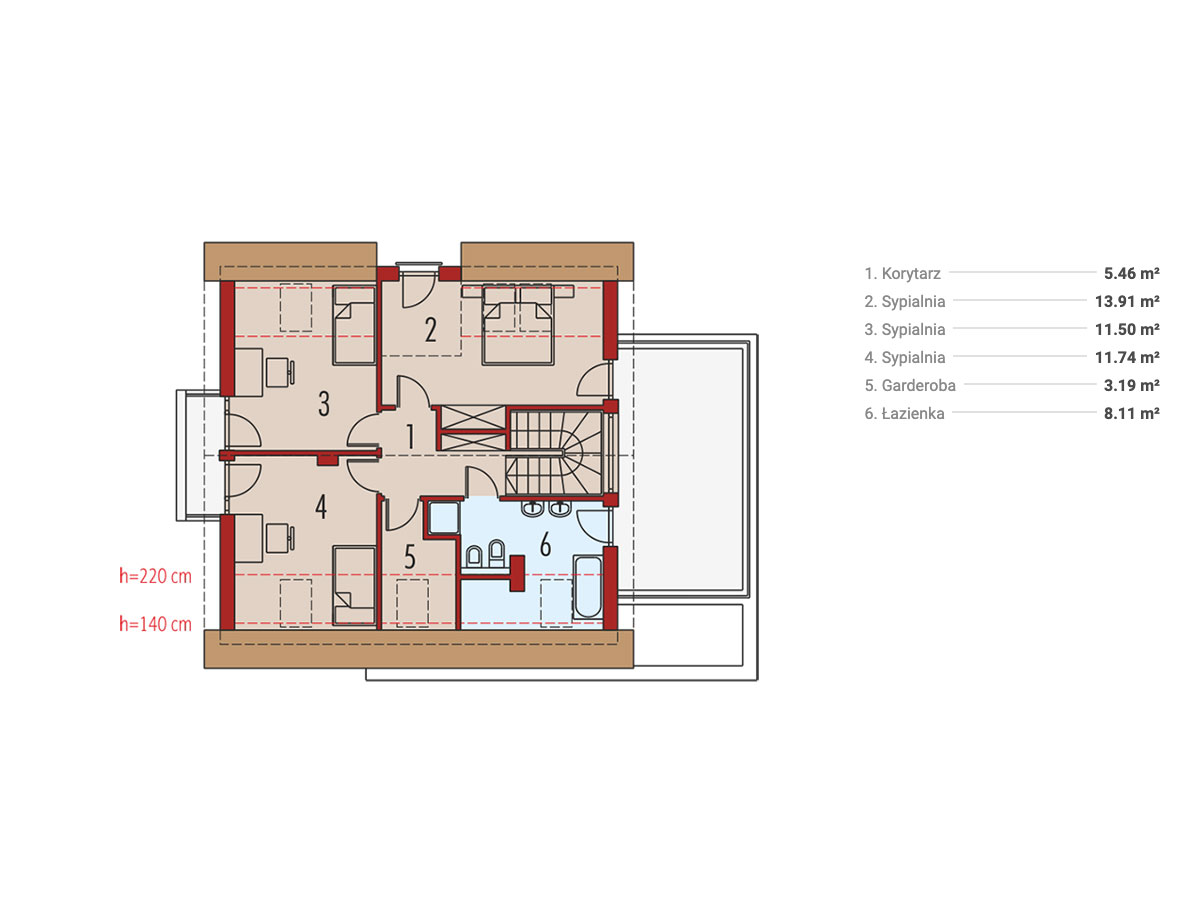

77220R - Second Floor
Full Specs & Features
Area
Total Heated: 136 m²
Total Unheated: 25 m²
Basement: 0 m²
Bonus: 0 m²
Dimensions
Depth 10.40 m
Width 14.60 m
Height 8.83 m
Exterior Wall Framing
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms : 2
Half bathrooms : 0
Bedrooms : 3
Furnace room
Entry
Home Office
Storage
Foundation
Slab
Concrete Stem Wall
Architectural Style
European
Traditional
Transitional
Exterior Features
Balcony
Deck
Bay Window
Corner Window
Garage rooftop deck
Large Windows
Floor-to-Ceiling Windows
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Corner Window
Garage
9: 25 m²
Cars: 1
Attached
Front Entry
Roof
Roof Area: 1528.48m²
Gable
Skylight
Dormer
Ridge parallel to street
Roof Pitch : 11/12 (42°)
Architect
ARCHIPELAG ARCHIPELAG Architecture Firm country with code pl Poland
country with code pl Poland
Lower Silesian Voivodeship, Wrocław, ul. Mariana Smoluchowskiego 56/3
+48717983800
https://www.archipelag.pl/
