4,820 Sq Ft Tuscan L-Shaped 2-Story Mansion Plan with 5 Bedrooms, 4 Bathrooms and 3-Car Garage
Cover Sheet (Includes Front Perspective & Project Data)
General Construction Notes (Specifications & Standards)
Index of Drawings (Sheet List)

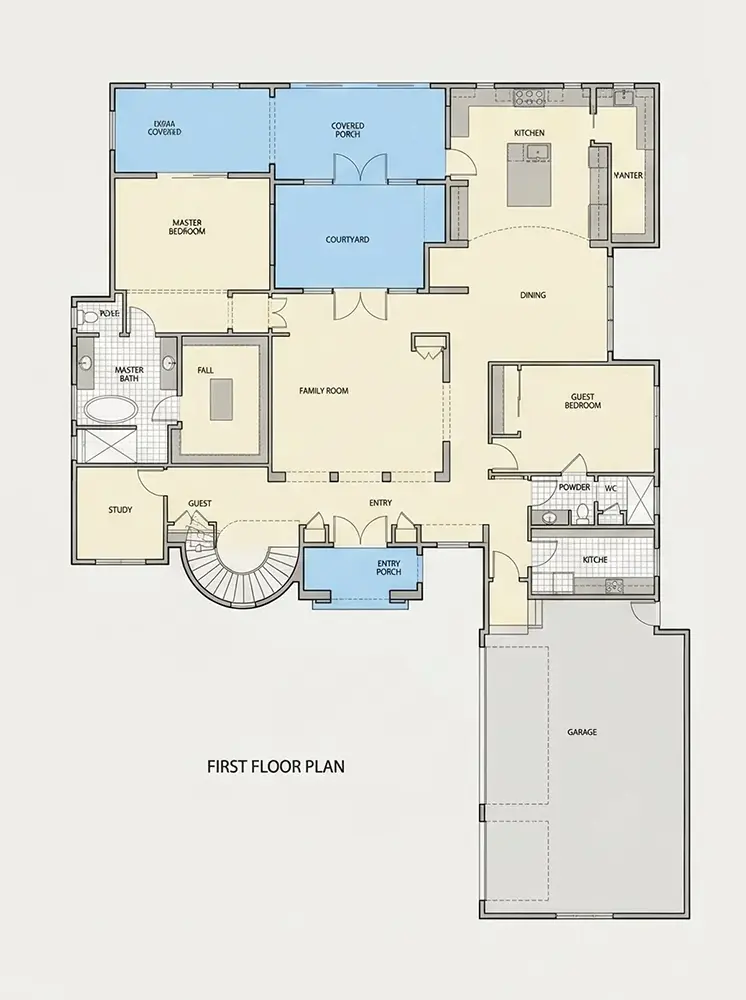

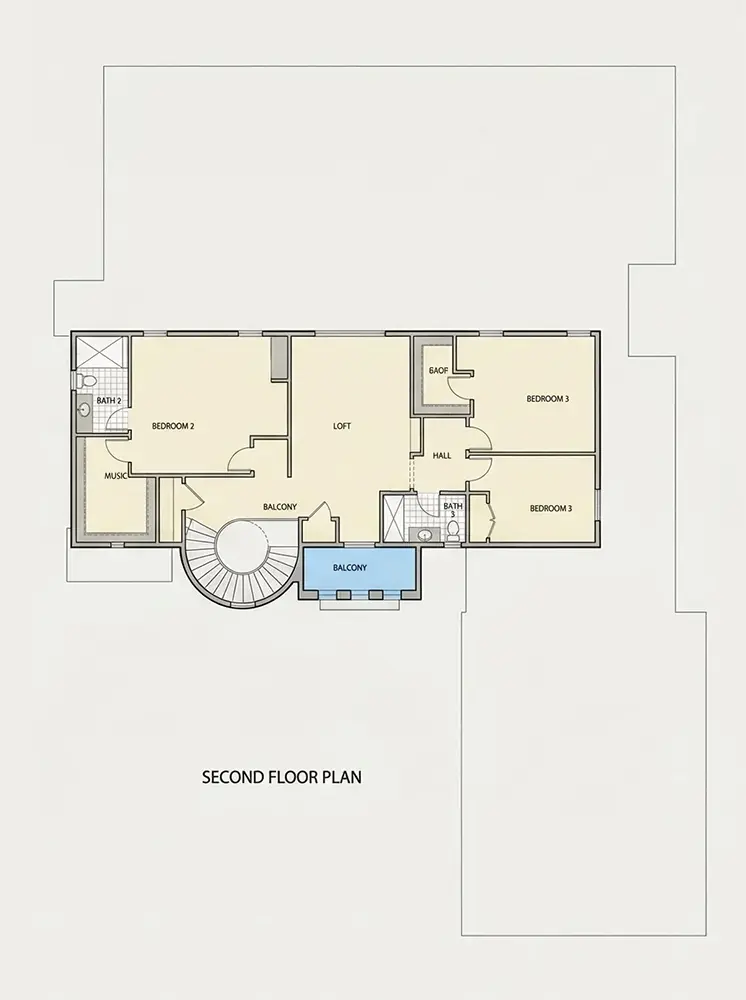

Floor Plans

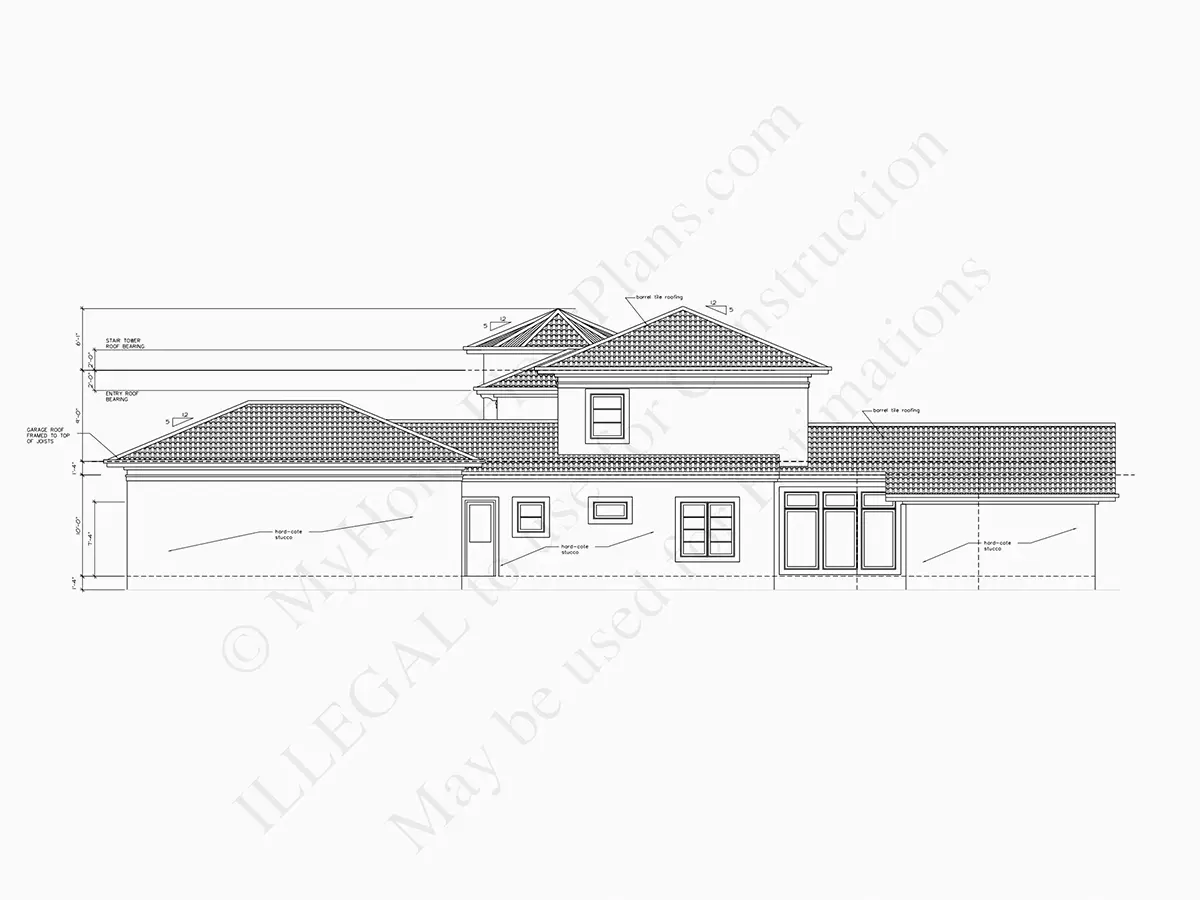

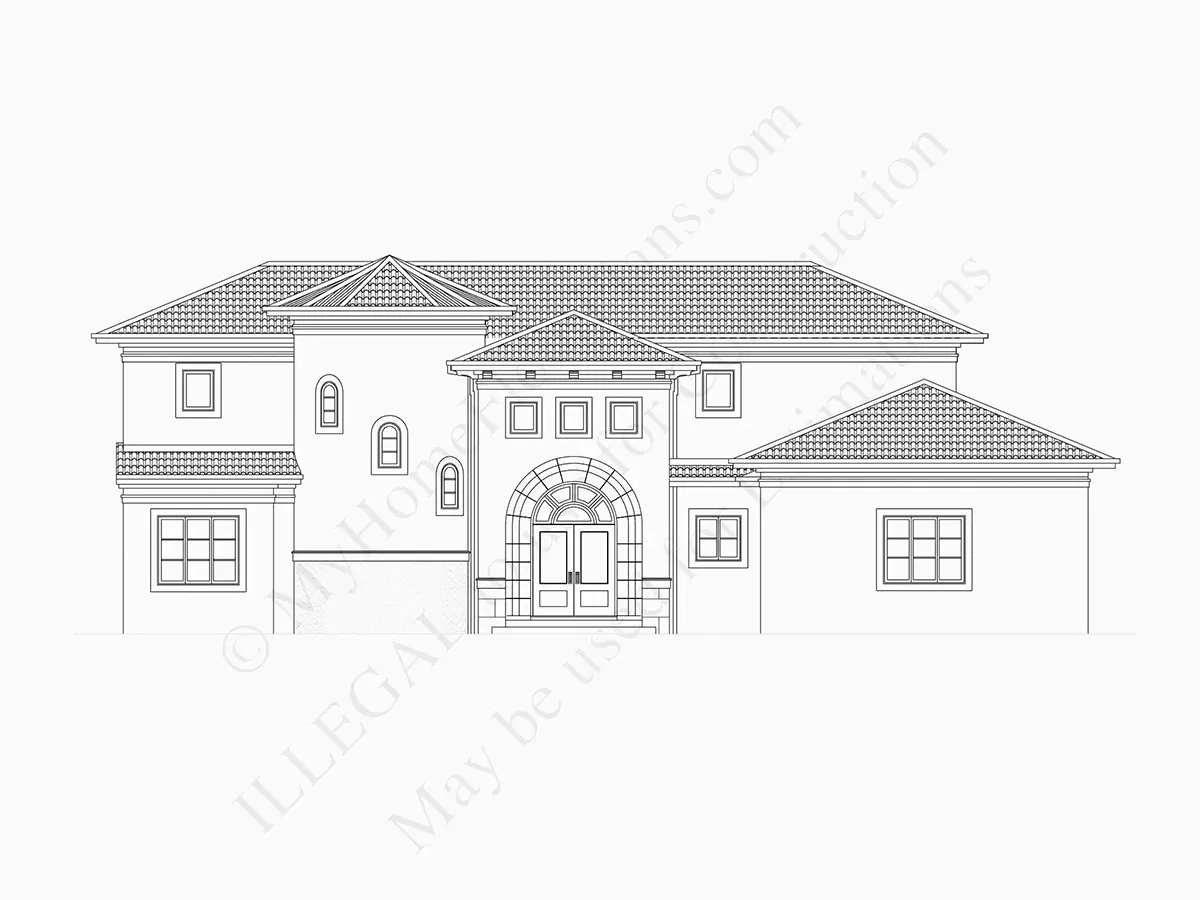

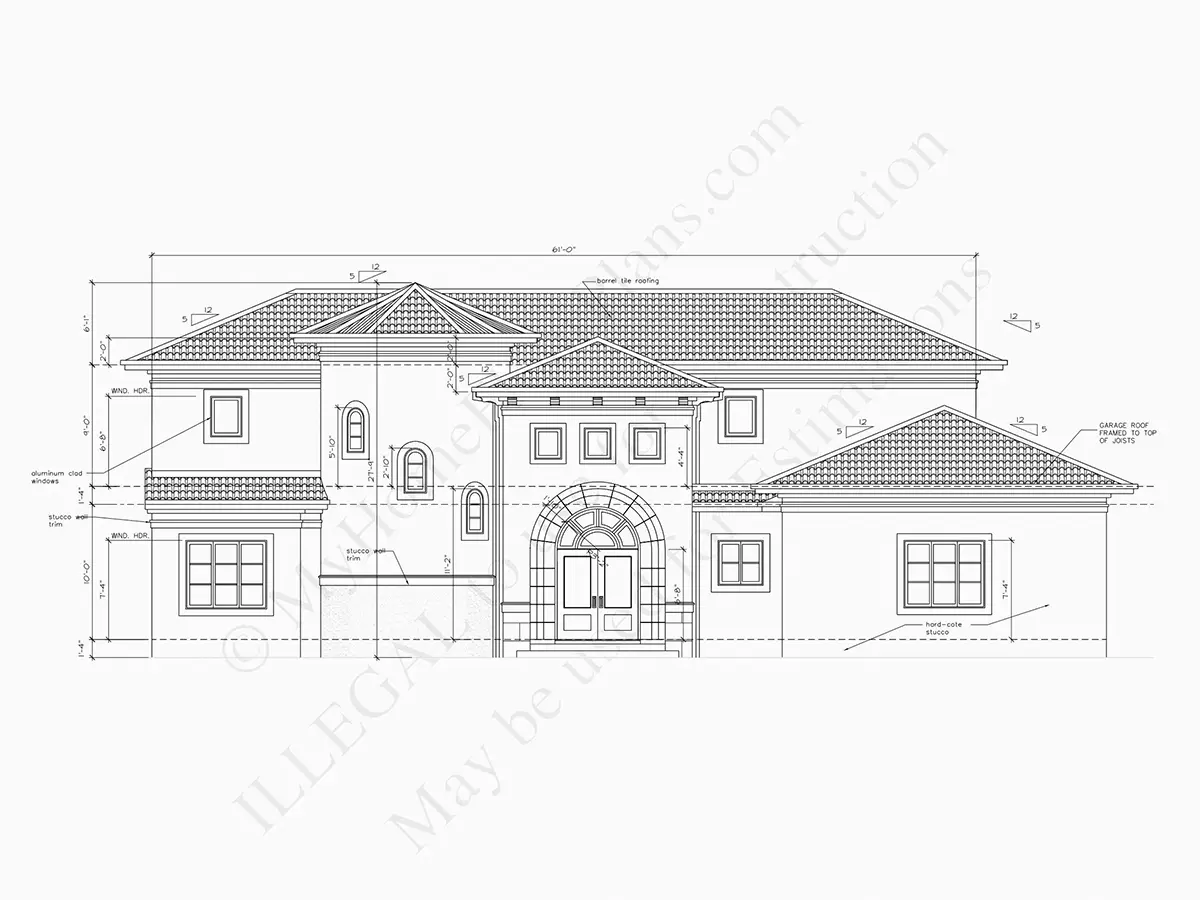

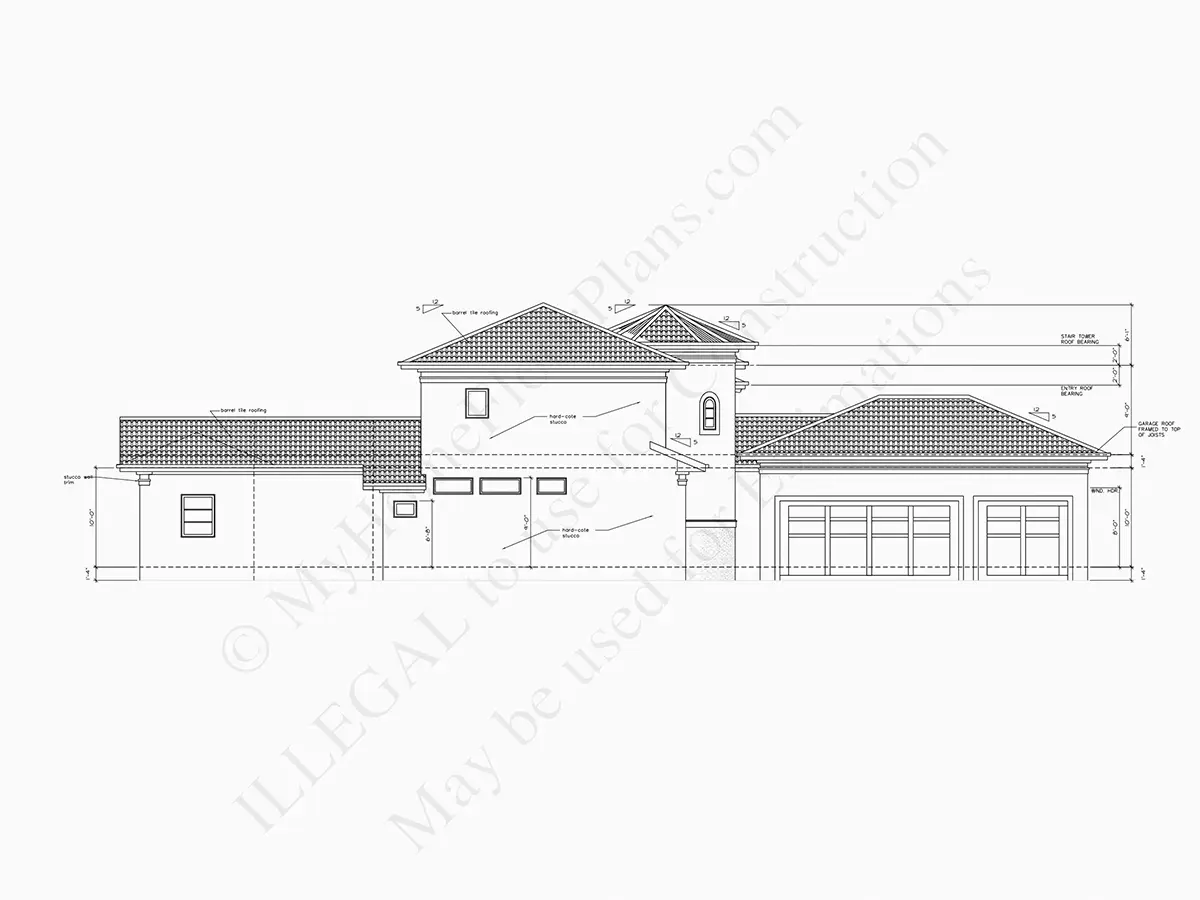

Exterior Elevations
Overhead Roof Plan
Cross Sections
Stair Details
Miscellaneous Details
Foundation/Basement Plan
Electrical Plans
Cover Sheet (Includes Front Perspective & Project Data)
General Construction Notes (Specifications & Standards)
Index of Drawings (Sheet List)
Floor Plans
Foundation/Basement Plan
Electrical Plans
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
Plan 64737R is a 5-bedroom three-story house plan in the Mediterranean tradition, with warm Spanish, Tuscan and Southwest accents. It offers 4,820 Sq Ft of living space under a hip & valley roof, with stucco exterior walls and an L-shaped footprint. The house measures 70'8" wide and 95'6" deep. It is a true mansion for a single family: five bedrooms, four full bathrooms and a 3-car garage give everyone room, with space left for guests and work.
The interior follows a closed floor plan, so each room keeps its own character and quiet. A large family room anchors the main level and gives the household a generous place to gather. The rear kitchen opens toward the back of the house and is large by any measure. It has an island, a breakfast bar for quick meals and a breakfast nook for slower mornings. A walk-in pantry keeps supplies out of sight, and the covered rear porch is close by for meals outdoors. A home office provides a dedicated place to work, away from the everyday traffic of the house.
The master suite is on the main floor, and the split bedrooms layout places it apart from the secondary bedrooms for real privacy. A walk-in closet completes the owners' retreat. An in-law suite welcomes visiting parents or adult children with a space of their own, and the four full bathrooms mean no one waits in the morning. Upstairs, a loft and a bonus/flex room adapt to whatever the family needs: a playroom, a media room, a hobby space or a study corner. Laundry on the main floor and a mudroom near the entry keep chores and muddy shoes contained.
Outside, the forward-extending garage frames a courtyard with a courtyard entry, so the 3-car garage doors stay discreet and the front of the house keeps its elegant Spanish look. The courtyard itself becomes an intimate outdoor room, and a balcony adds a private place for evening air. The covered rear porch extends living into the garden. The foundation is as shown in the drawings; the plan is also available with a crawl space, slab, monolithic slab, stem wall or basement on request, and 2×6 exterior walls can be ordered as an option.
