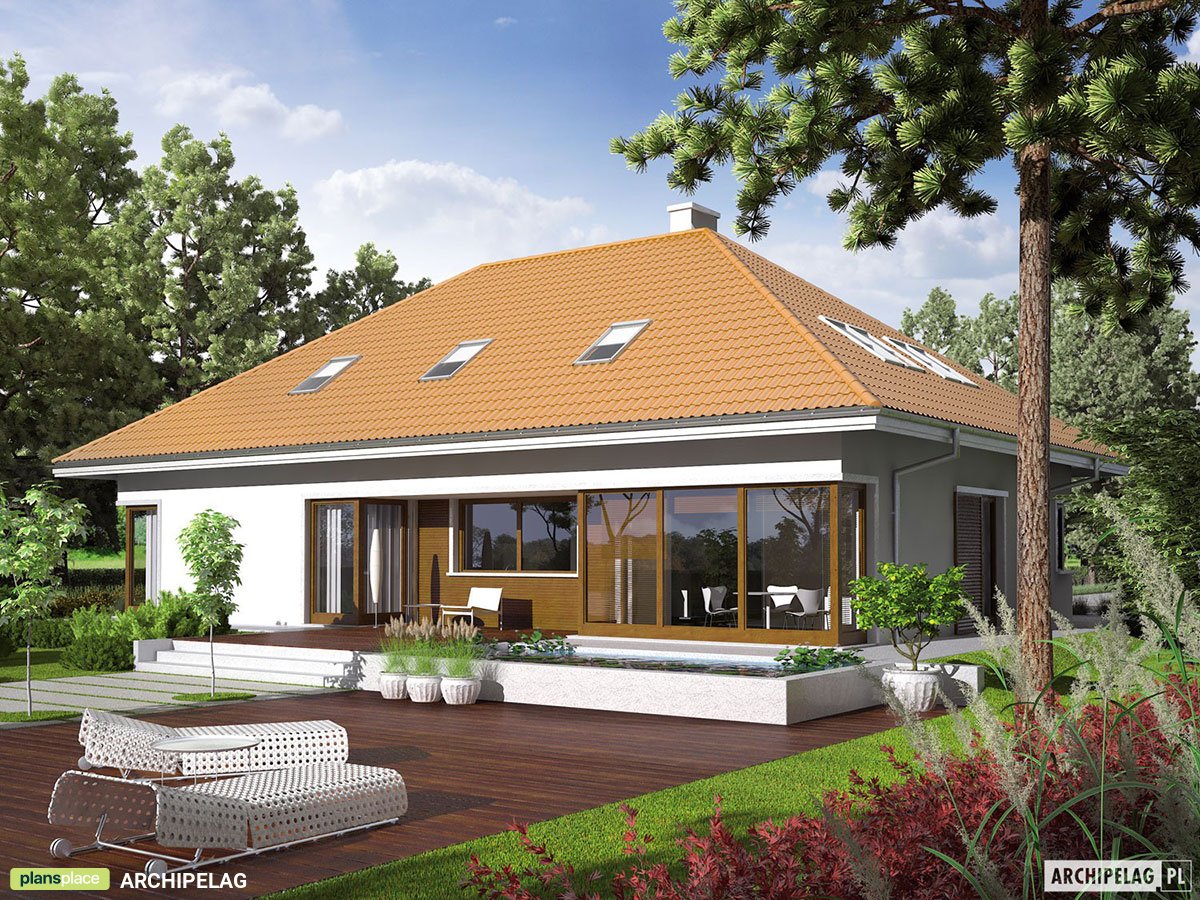

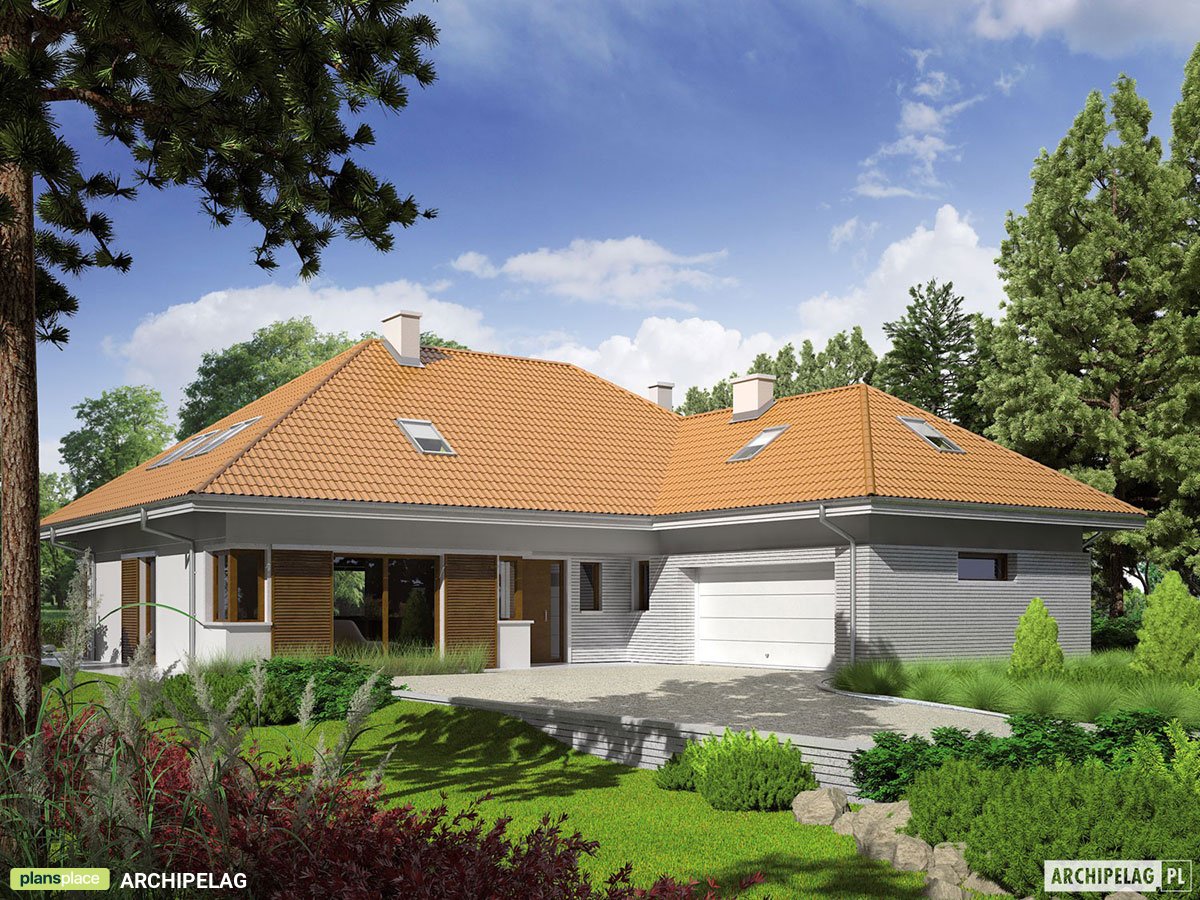

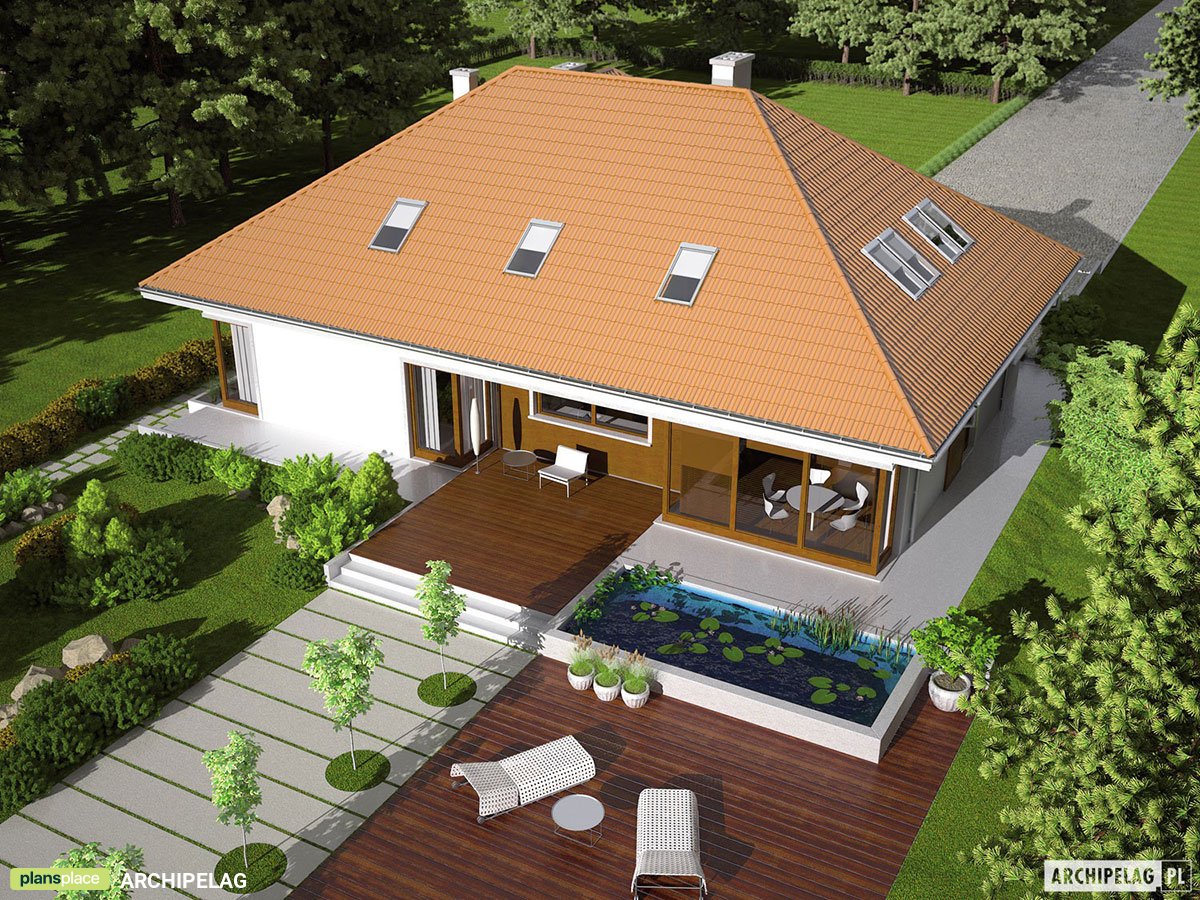

Gambrel Roof House Plan with Angled 2-Car Garage and 4 Beds
Gambrel Roof House Plan with Angled 2-Car Garage and 4 Beds Gambrel Roof House Plan with Angled 2-Car Garage and 4 Beds
5
Construction documents are prepared for the following countries:

Gambrel Roof House Plan with Angled 2-Car Garage and 4 Beds

Plan
92731R
Complete
Unsigned & Unsealed
DC None
Key Specs
195
Total Heated m²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

If you would like to modify this house plan, you have two options:

1. Modifications by the Original Architect: Work directly with the original architect to purchase a modified digital concept, then forward it to your local architect to order the construction documents.

2. Modifications by Your Local Architect: Purchase the digital concept as-is, work with your local architect to make changes, and then proceed with ordering the construction documents.

Floor Plans

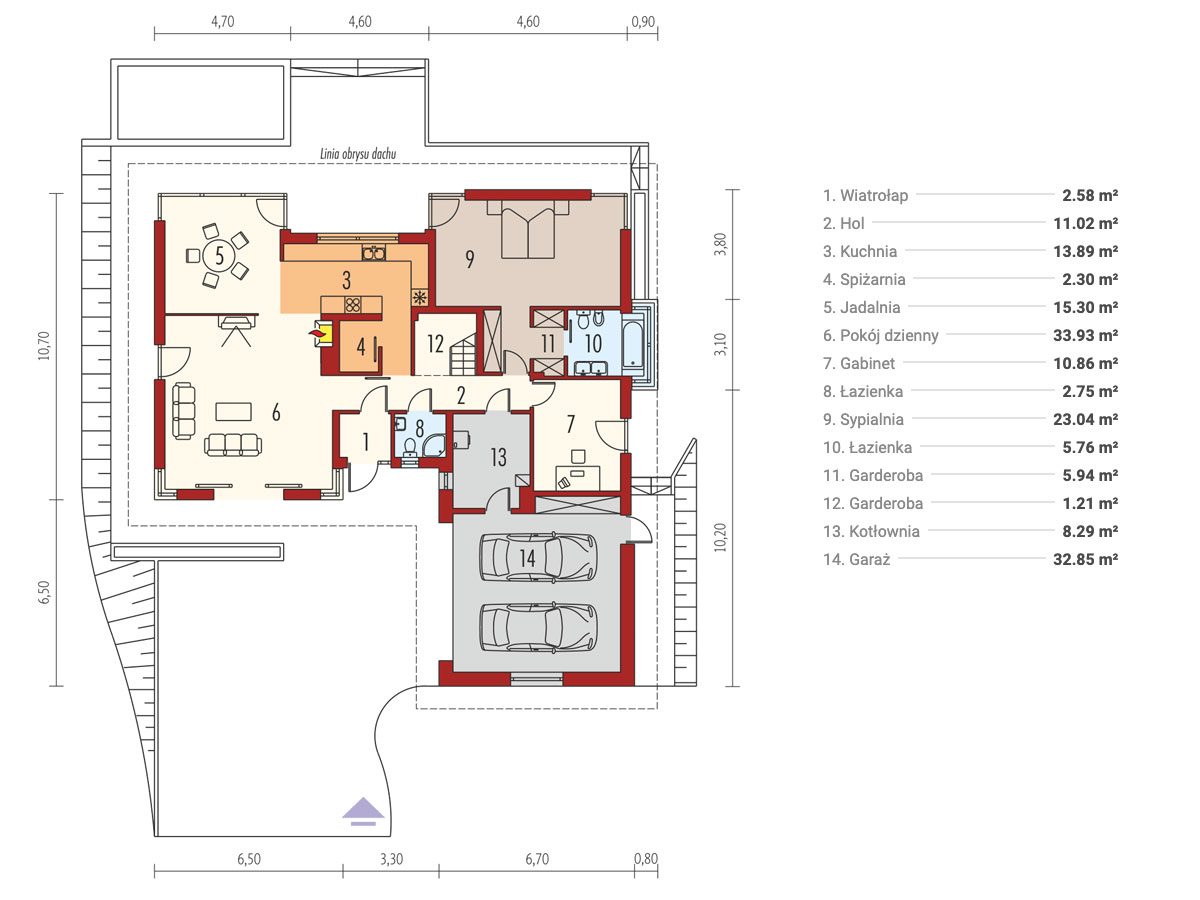

First Floor
92731R - First Floor

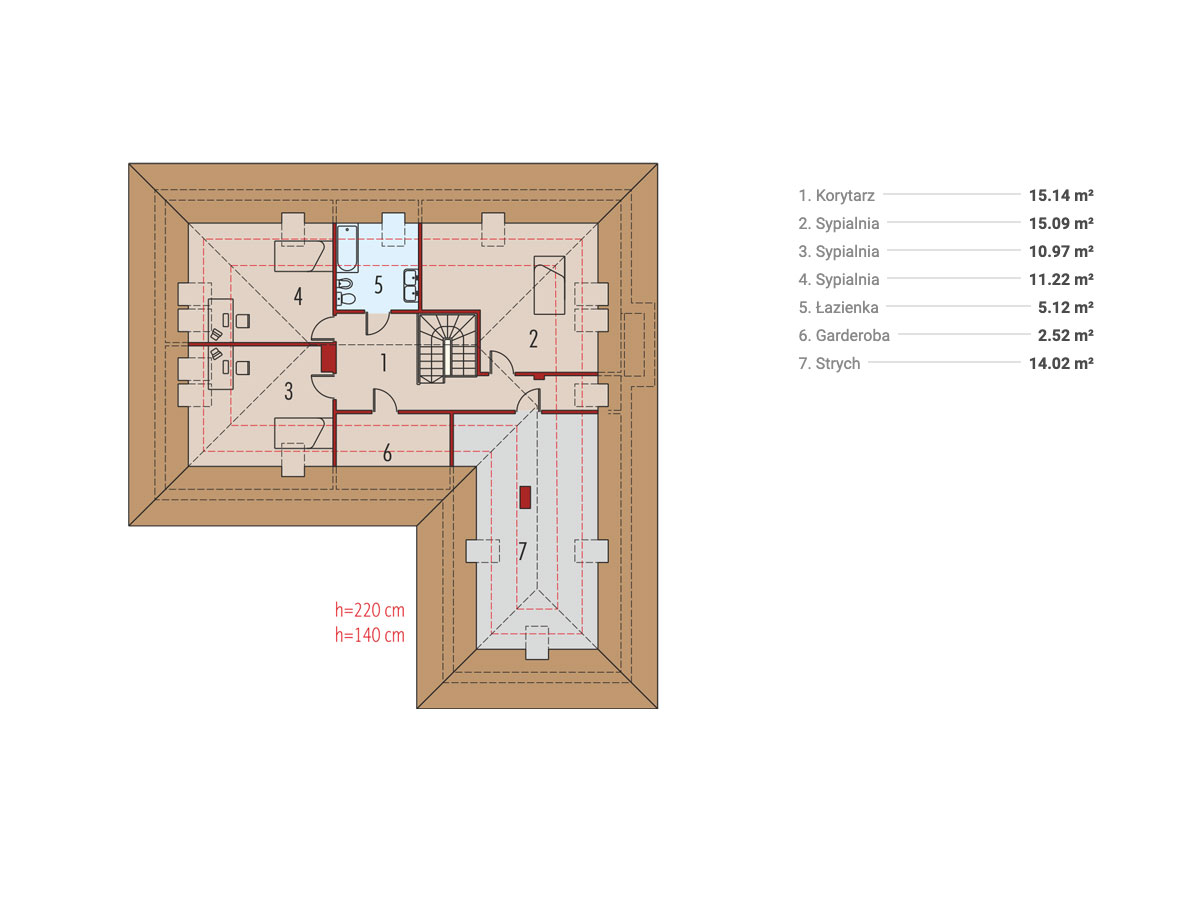

Second Floor
92731R - Second Floor
Full Specs & Features
Area
Total Unheated: 47 m²
Basement: 0 m²
Bonus: 14 m²
Total Heated: 195 m²
Dimensions
Depth 17.00 m
Width 17.30 m
Height 8.06 m
Exterior Wall Framing
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rock/Stone
Rooms
Full bathrooms : 3
Half bathrooms : 0
Bedrooms : 4
Utility room
Bonus/Flex Room
Entry
Home Office
Walk In Closet
Foundation
Slab
Concrete Stem Wall
Architectural Style
Bungalow
European
Traditional
Exterior Features
Wrap Around Porch
Deck
Bay Window
Corner Window
Panoramic Windows
Window Walls
Large Windows
Floor-to-Ceiling Windows
Interior Features
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Garage
9: 33 m²
Cars: 2
Courtyard Entry
Extension Forward
Roof
Roof Area: 3519.80m²
Hip & Valley
Skylight
Roof Pitch : 8/12 (34°)
Architect
ARCHIPELAG ARCHIPELAG Architecture Firm country with code pl Poland
country with code pl Poland
Lower Silesian Voivodeship, Wrocław, ul. Aleksandra Ostrowskiego 9/318
+48717983800
https://www.archipelag.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
