2-Story House Plan 2130 ft²: 4 Beds, 3 Baths, Open Floor Plan, without Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

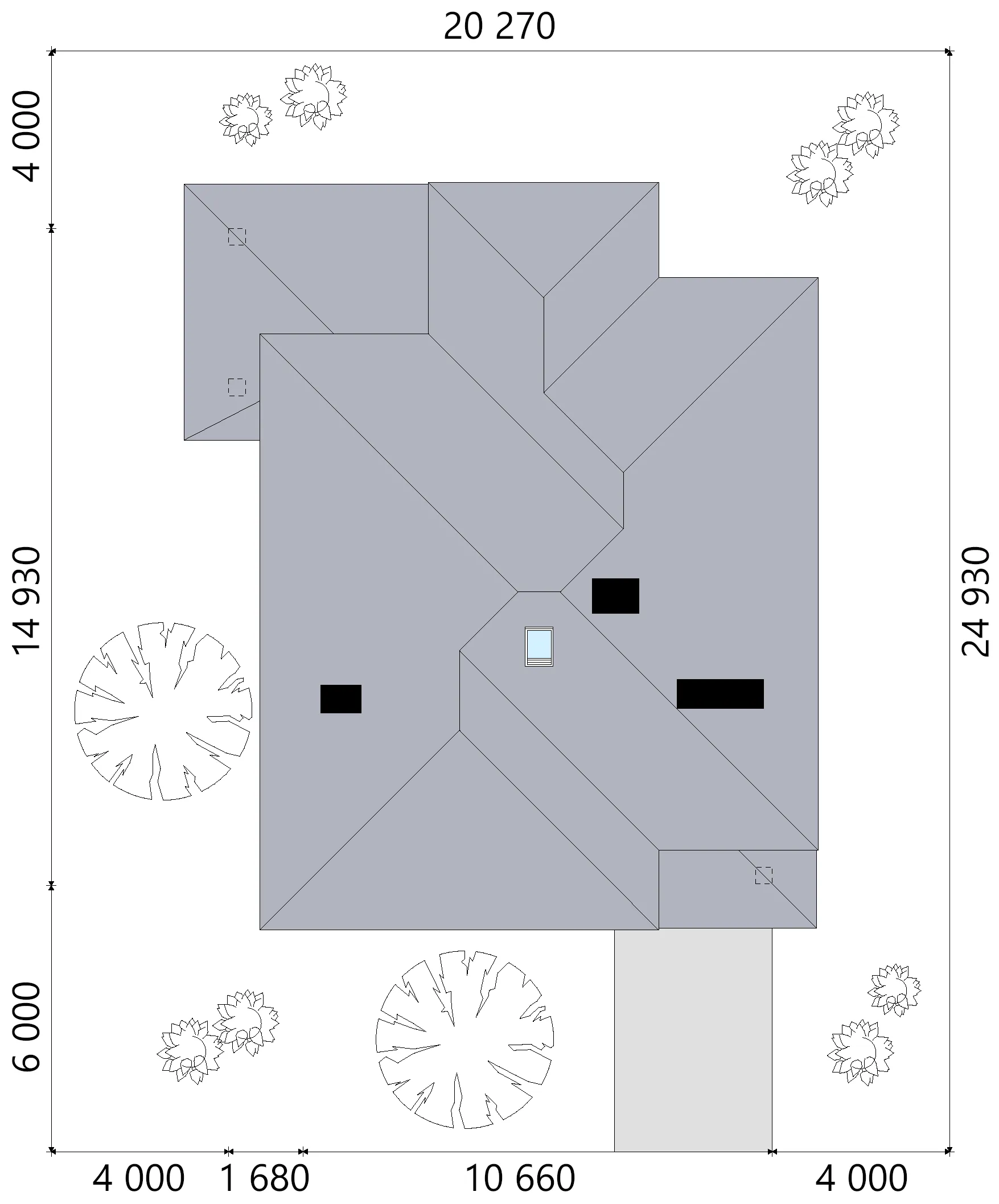

Plan 51862C is a 4-bedroom 3-story house plan in a European and Traditional style, offering 2130 ft² beneath a hip and valley roof with a 6/12 pitch and a skylight. Stone/brick veneer paired with stucco gives the facade a calm, timeless character, and the house measures 37'6" wide, 45'5" deep and 28'5" high. This single family home has 4 bedrooms and 3 full bathrooms, arranged over three levels with no basement.

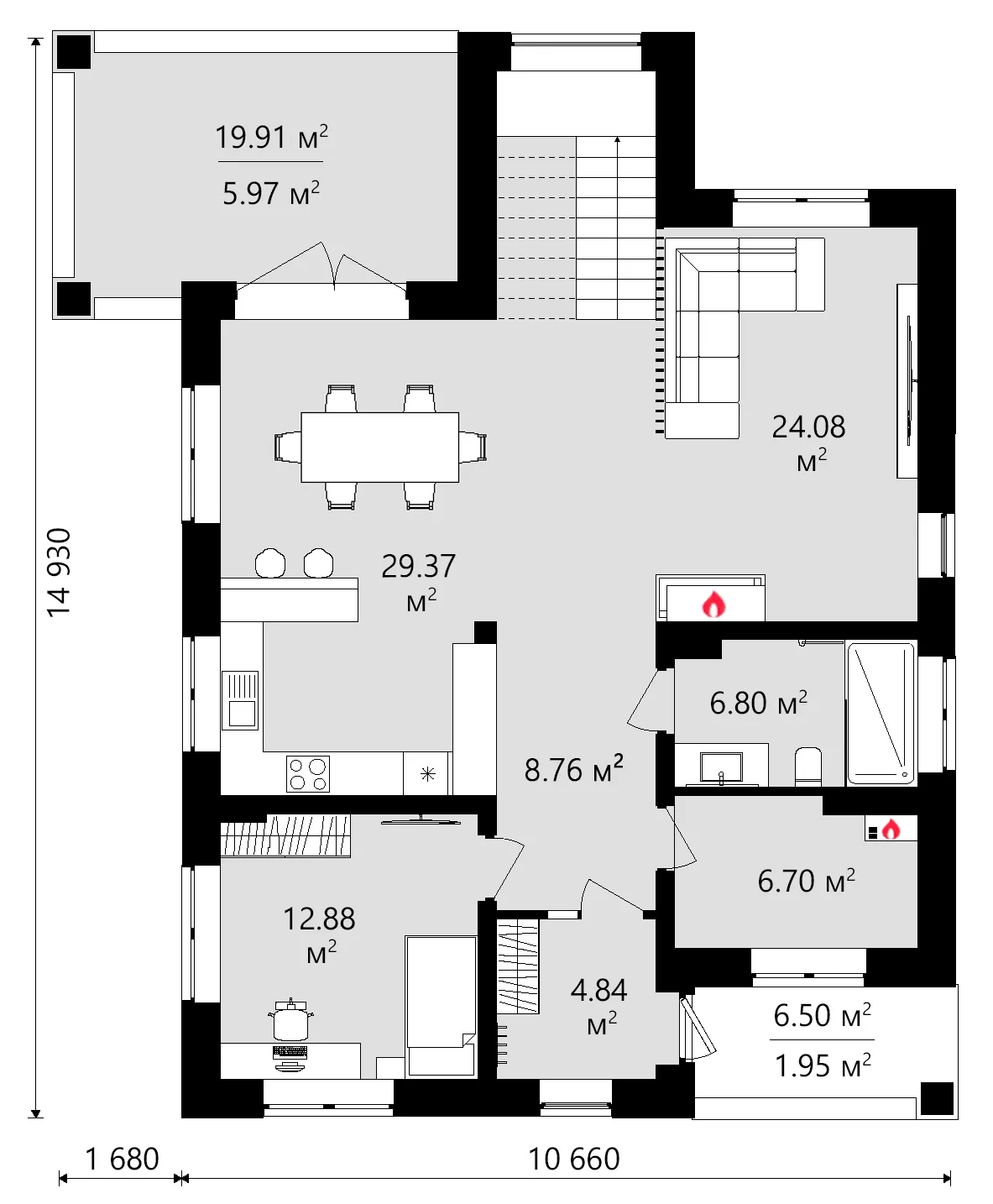

You step in through a proper entry that separates the front door from the main living area. From there the open floor plan unfolds, joining the family room, the dining space and the kitchen into one generous zone. The family room is anchored by a fireplace, a natural gathering point on winter evenings, while floor-to-ceiling windows draw daylight deep into the room. The large kitchen is made for everyday family life: a breakfast bar for quick meals and conversation with whoever is cooking, plus a breakfast nook for slower mornings and homework at the table.

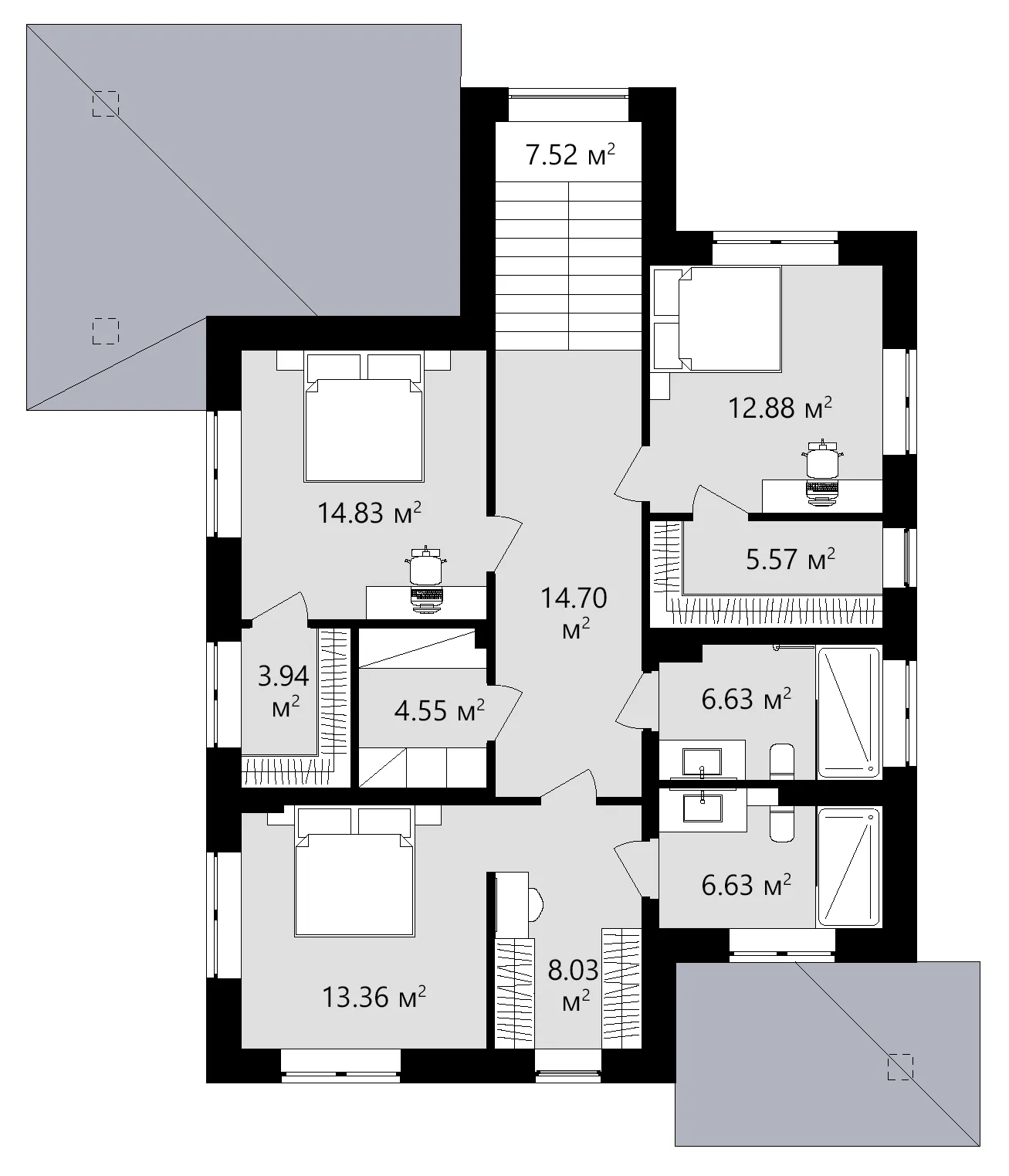

The bedrooms are clustered, which keeps family members close and the sleeping quarters quiet and well organized. The master suite sits on the second floor and includes a walk-in closet, so the owners have their own calm retreat away from the daytime rooms. Three full bathrooms serve the household, so mornings run without a line at the door. A utility room keeps laundry, cleaning supplies and household equipment out of sight and close at hand.
Outside, a covered rear porch extends the living space into the backyard, sheltered for summer dinners or a quiet coffee. The house is designed on strip footings and is also available with a slab or a concrete block foundation. The exterior walls are framed in aerated concrete, with ceramic hollow block or sand-lime block available on request. This European house plan with a fireplace combines a classic exterior, an open concept interior and a practical layout across 2130 ft² of thoughtfully planned space.
