Main Images 2 – 2-Story House Plan 2206 ft², 4 Beds — 70404C
Main Images 3 – 2-Story House Plan 2206 ft², 4 Beds — 70404C Main Images 5 – 2-Story House Plan 2206 ft², 4 Beds — 70404C
7
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2206 ft²: 4 Beds, 3 Baths, Open Floor Plan, without Garage

Plan
70404C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2206
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
1
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

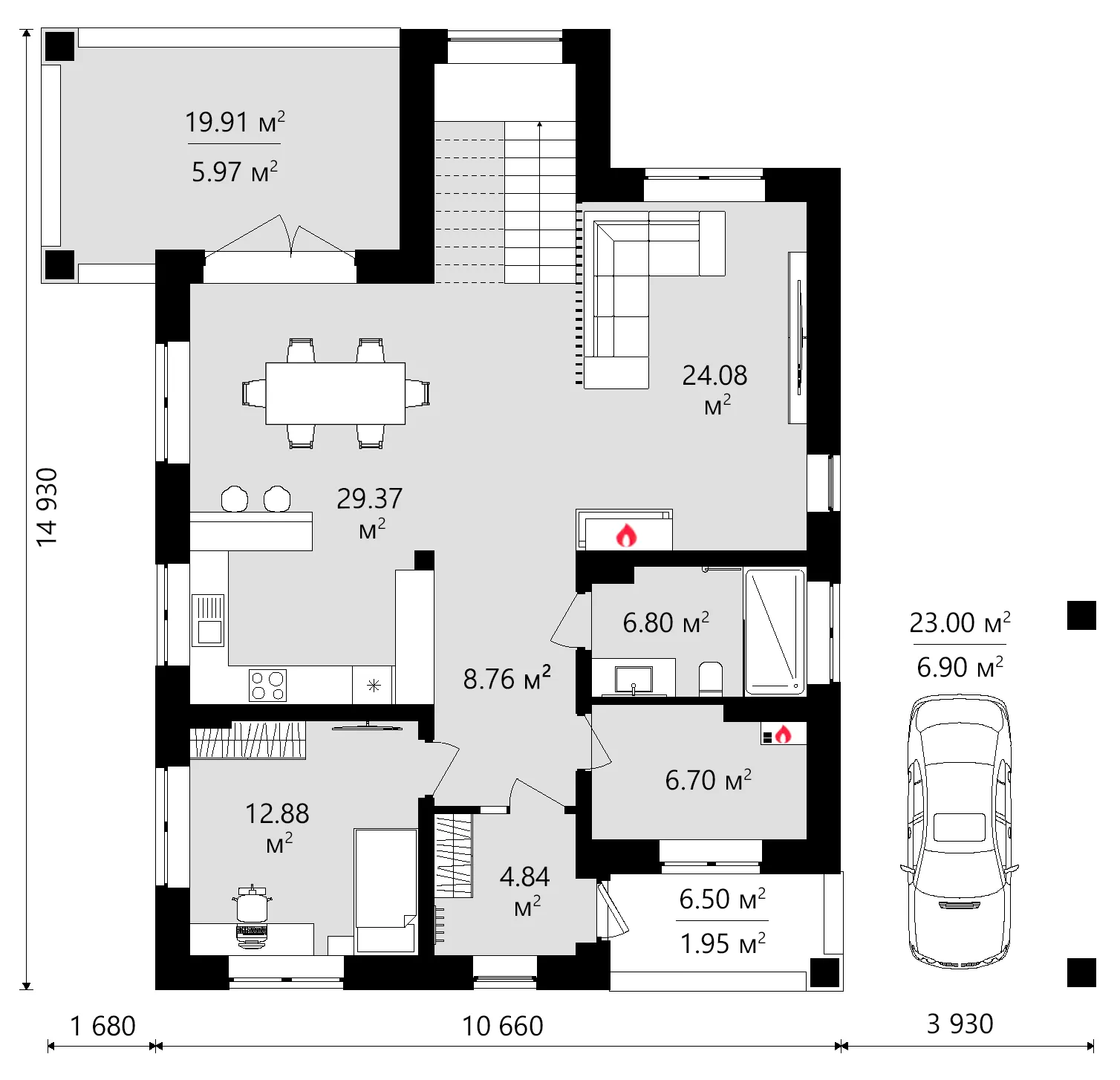

Main Floor
Main Floor 9 – 2-Story House Plan 2206 ft², 4 Beds — 70404C

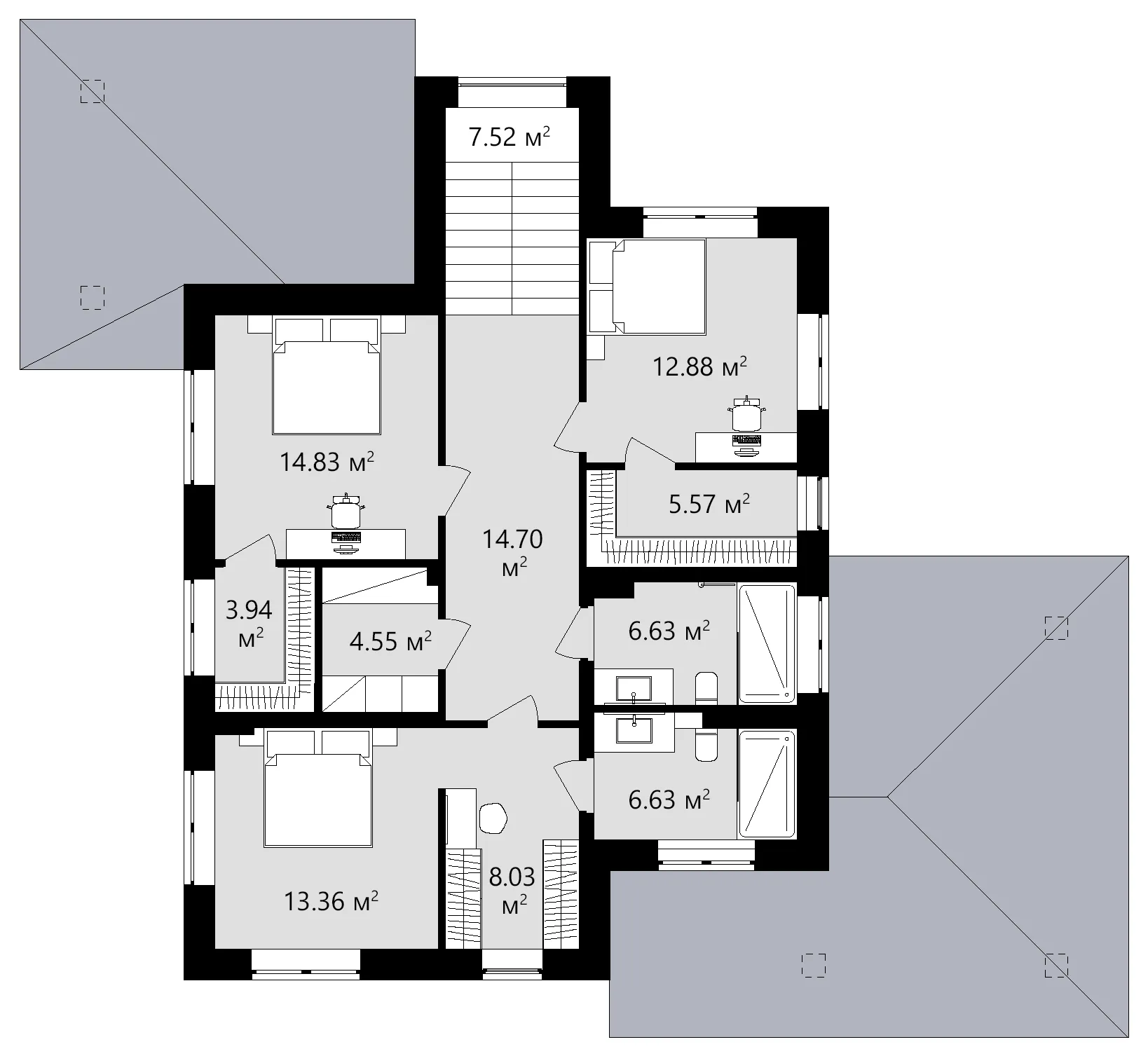

Second Floor
Second Floor 11 – 2-Story House Plan 2206 ft², 4 Beds — 70404C
Full Specs & Features
Area
Total Heated: 2205.85 ft²
Dimensions
Depth: 45'5" ft
Width: 49'6" ft
Height: 28'5" ft
Garage
Cars: 1
Carport
Foundation
Ławy
Płyta (Optional)
Z bloczków (Optional)
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Floor-to-Ceiling Windows
Architectural Style
European
Traditional

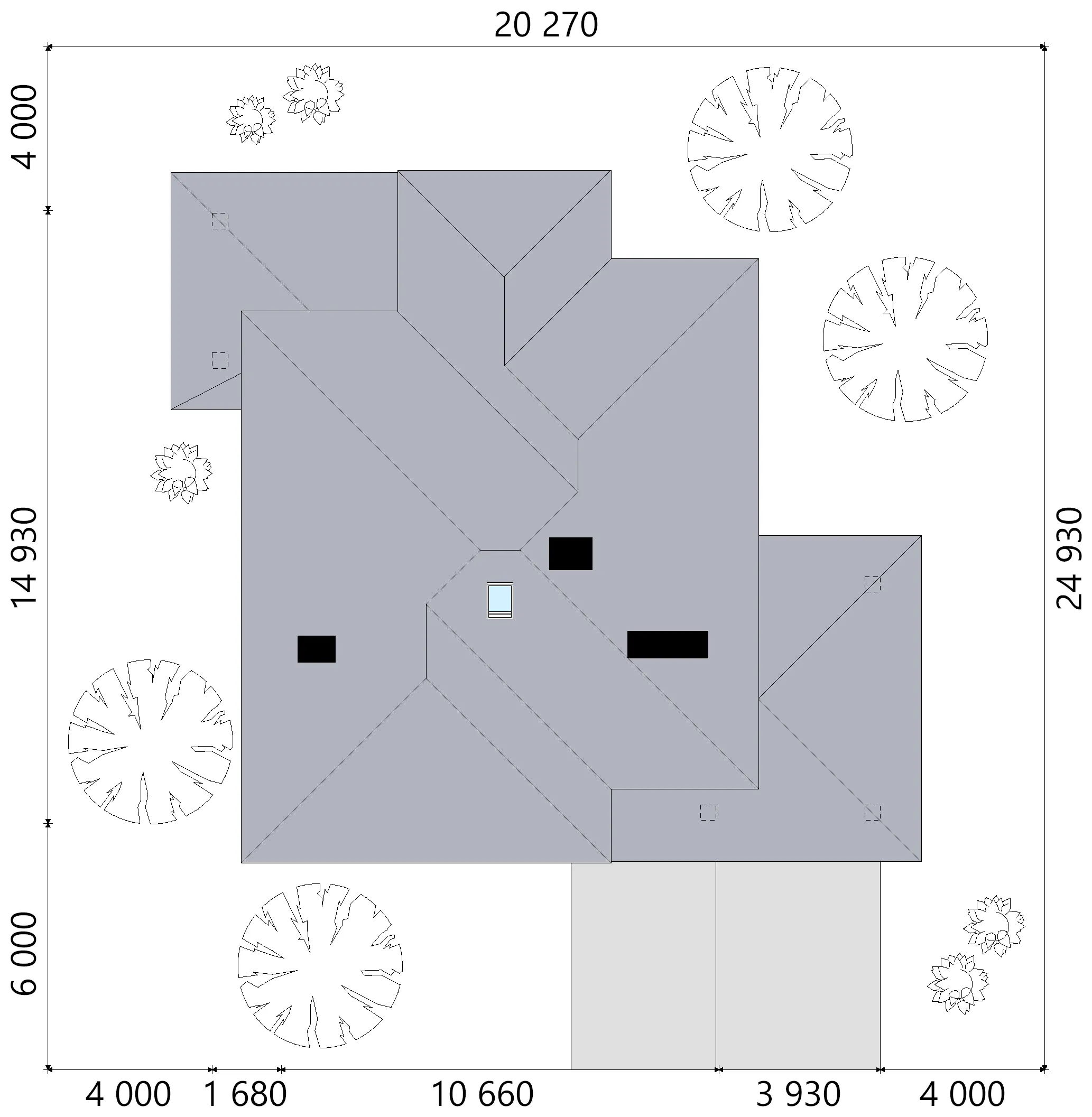

Roof
Roof Area: 3110.12 ft²
Hip
Roof Pitch: 6/12 (26°)

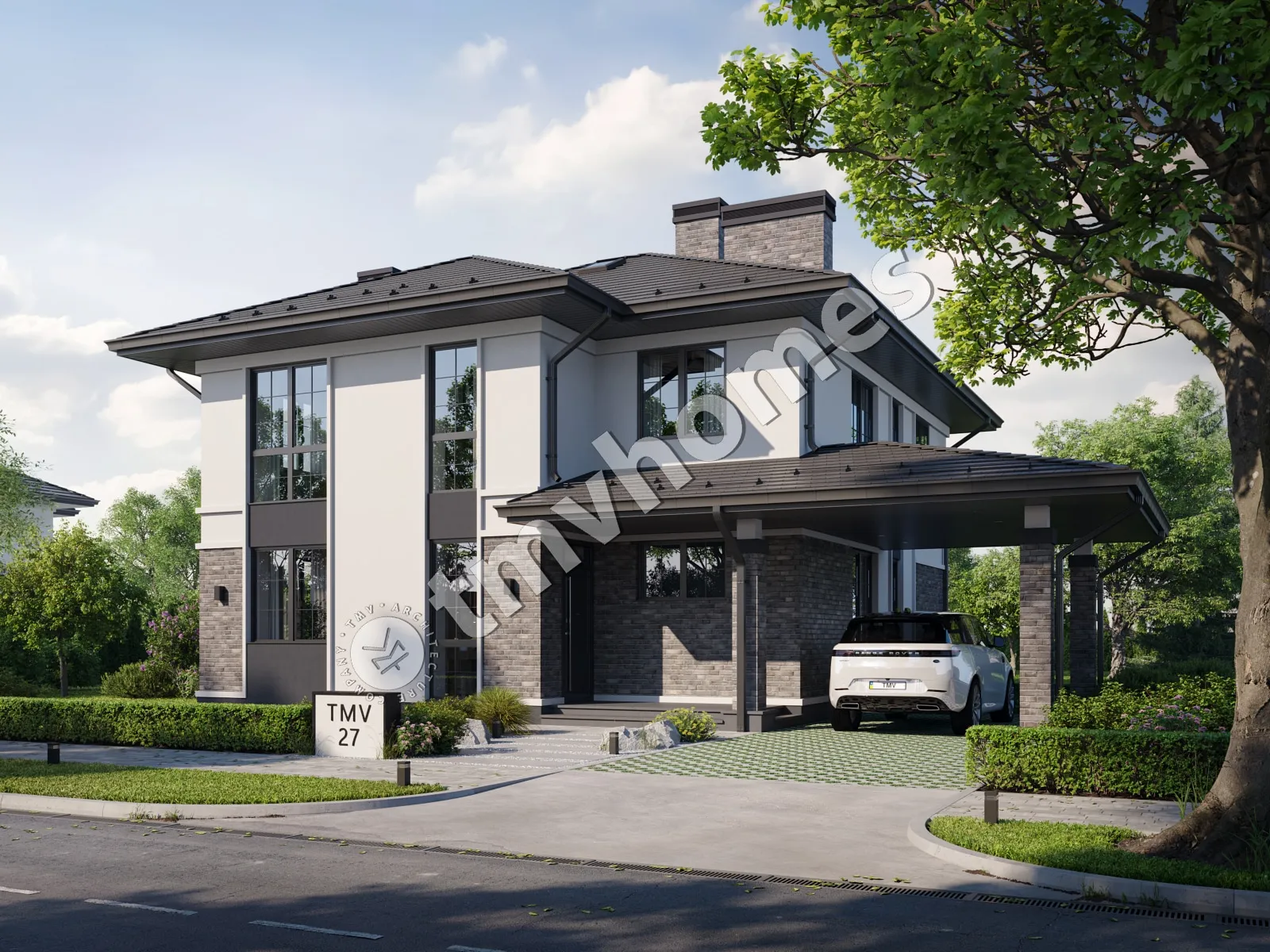

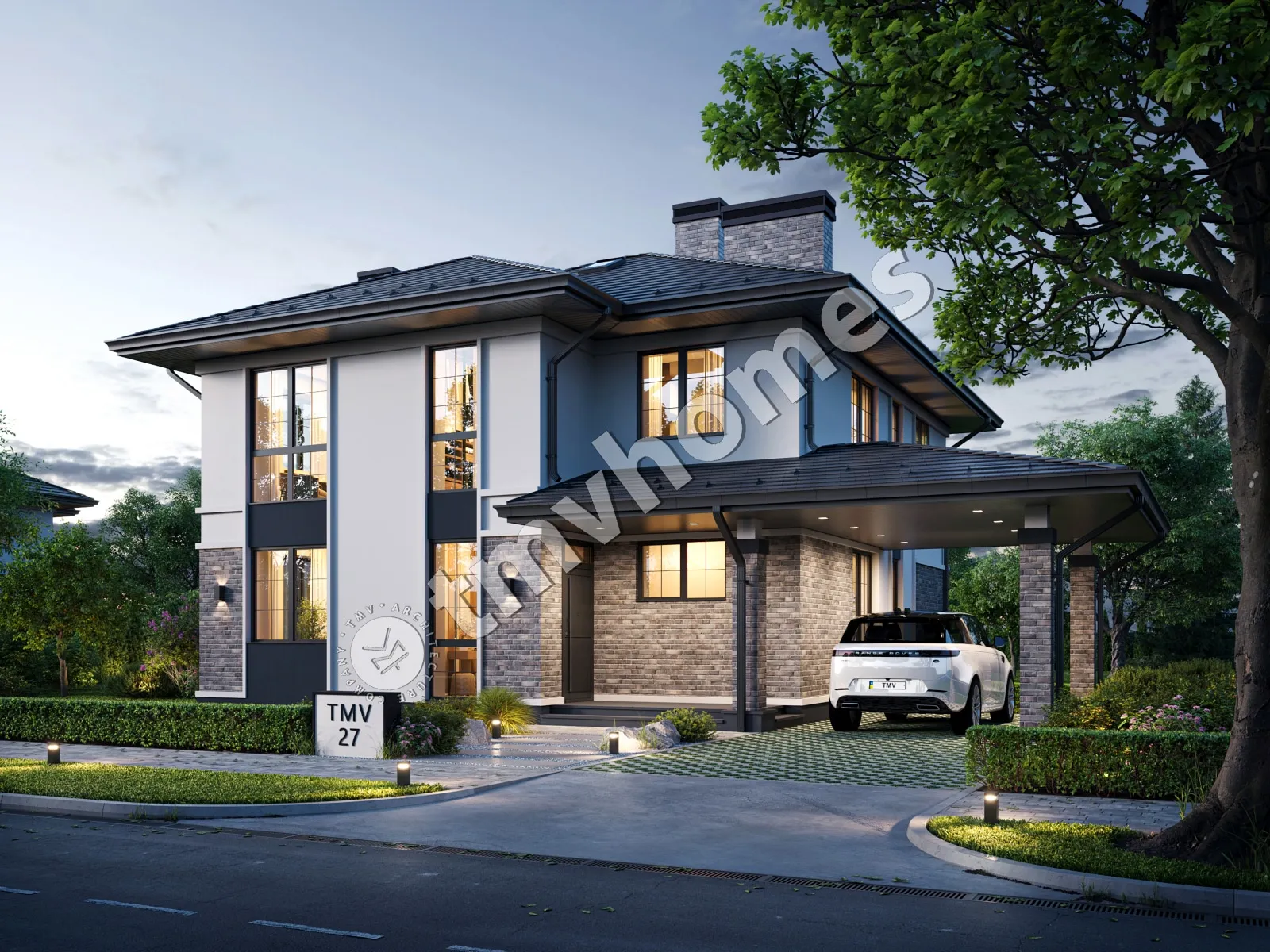

Plan 70404C is a 4-bedroom three-story house plan that brings 2206 ft² of living space together under a classic hip roof with a 6/12 pitch. The design is European and Traditional in character, and its exterior pairs stone/brick veneer with stucco for a facade that looks settled and timeless from the street. The main walls are framed in autoclaved aerated concrete, and ceramic hollow block or calcium silicate block framing is also available on request. The house measures 49'6" wide and 45'5" deep, with a height of 28'5".

A defined entry receives guests and sets the tone before the home opens up. The open floor plan connects the family room, the kitchen and the dining area, so conversation carries easily from one space to the next. The family room is built around a fireplace, which makes this a house plan with fireplace that suits long winter evenings without fuss. The large kitchen gives the cook generous room to work, with a breakfast bar for quick meals and a separate breakfast nook for slower mornings over coffee. Floor-to-ceiling windows draw daylight deep into the home and keep the outdoors in view.

The four bedrooms are clustered together, which keeps the sleeping quarters quiet and close for a family with children. The master suite sits on the second floor and includes a walk-in closet, giving the owners a private retreat away from the busy living spaces. Three full bathrooms serve the household, so mornings run smoothly even when everyone is getting ready at once. A utility room keeps laundry and household equipment out of sight and close at hand.

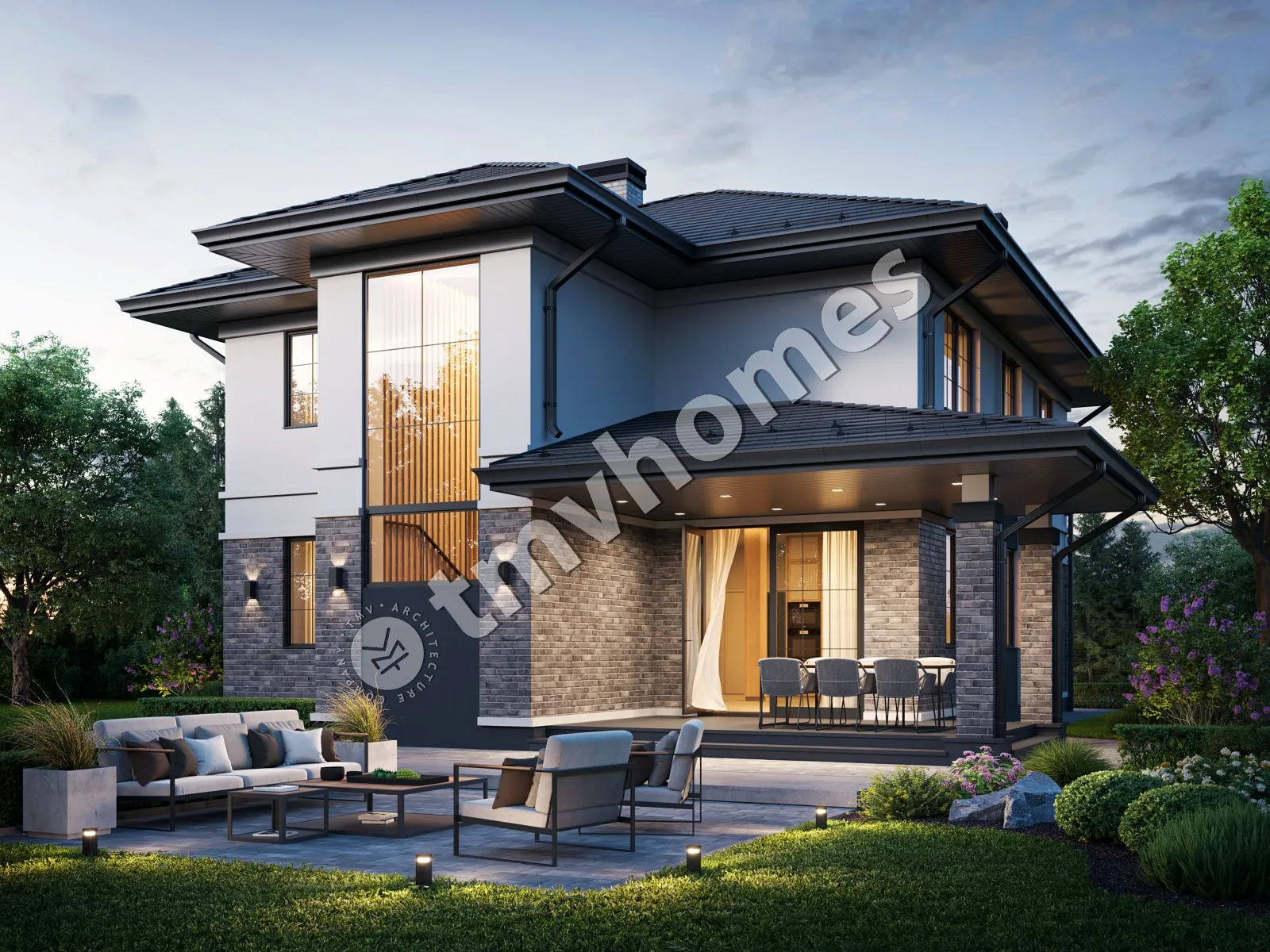

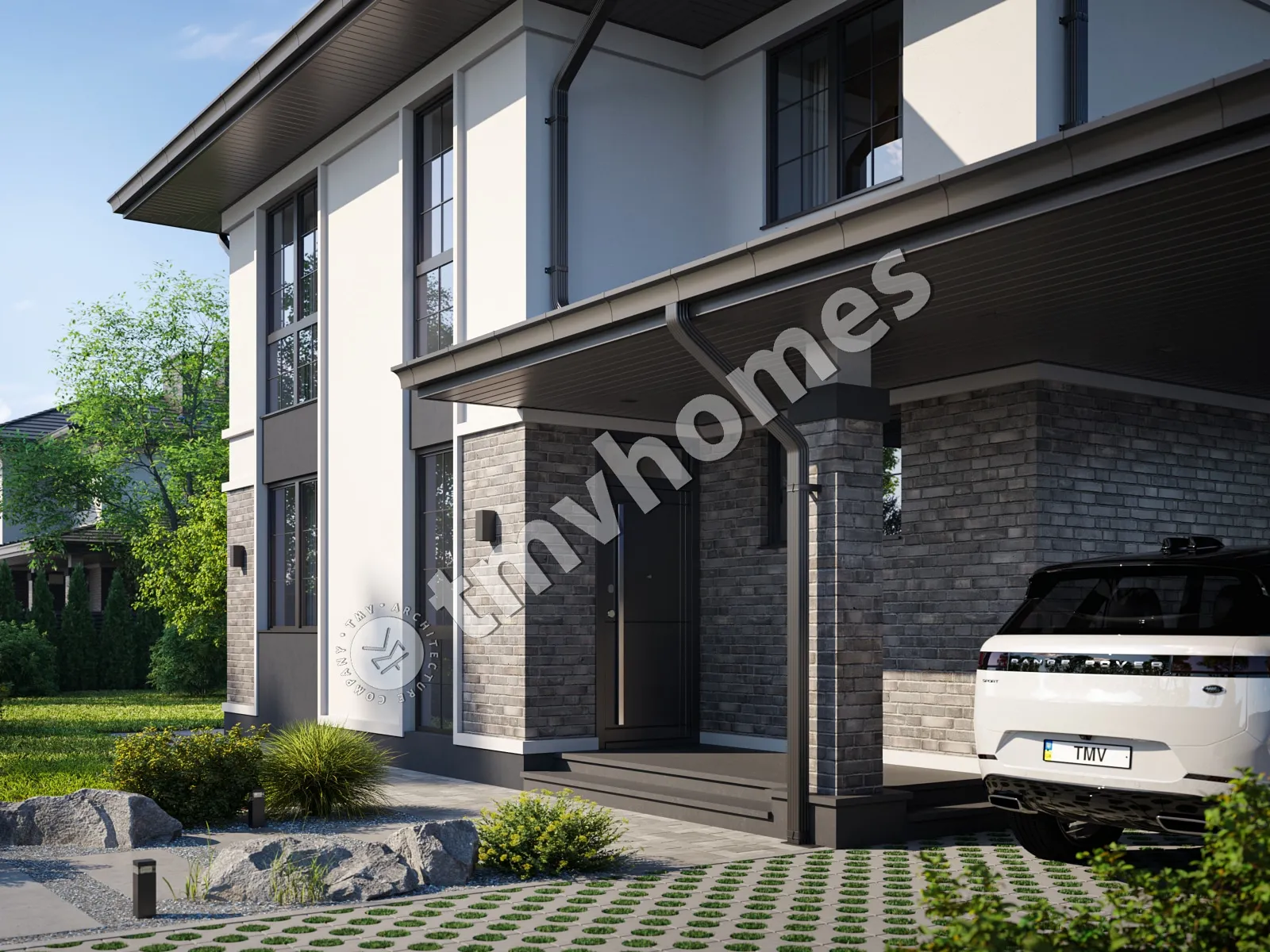

Outside, a covered rear porch extends the living area, sheltered from sun and rain and ready for summer dinners or a quiet evening outdoors. A carport provides cover for one car. The house stands on a strip footing foundation without a basement, and it is also available with a slab or a concrete block foundation. With its hip roof, refined masonry and practical layout over three levels, this 4 bedroom house plan offers a European house plan look with comfortable, year-round family living inside.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
