1-Story House Plan 2277 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

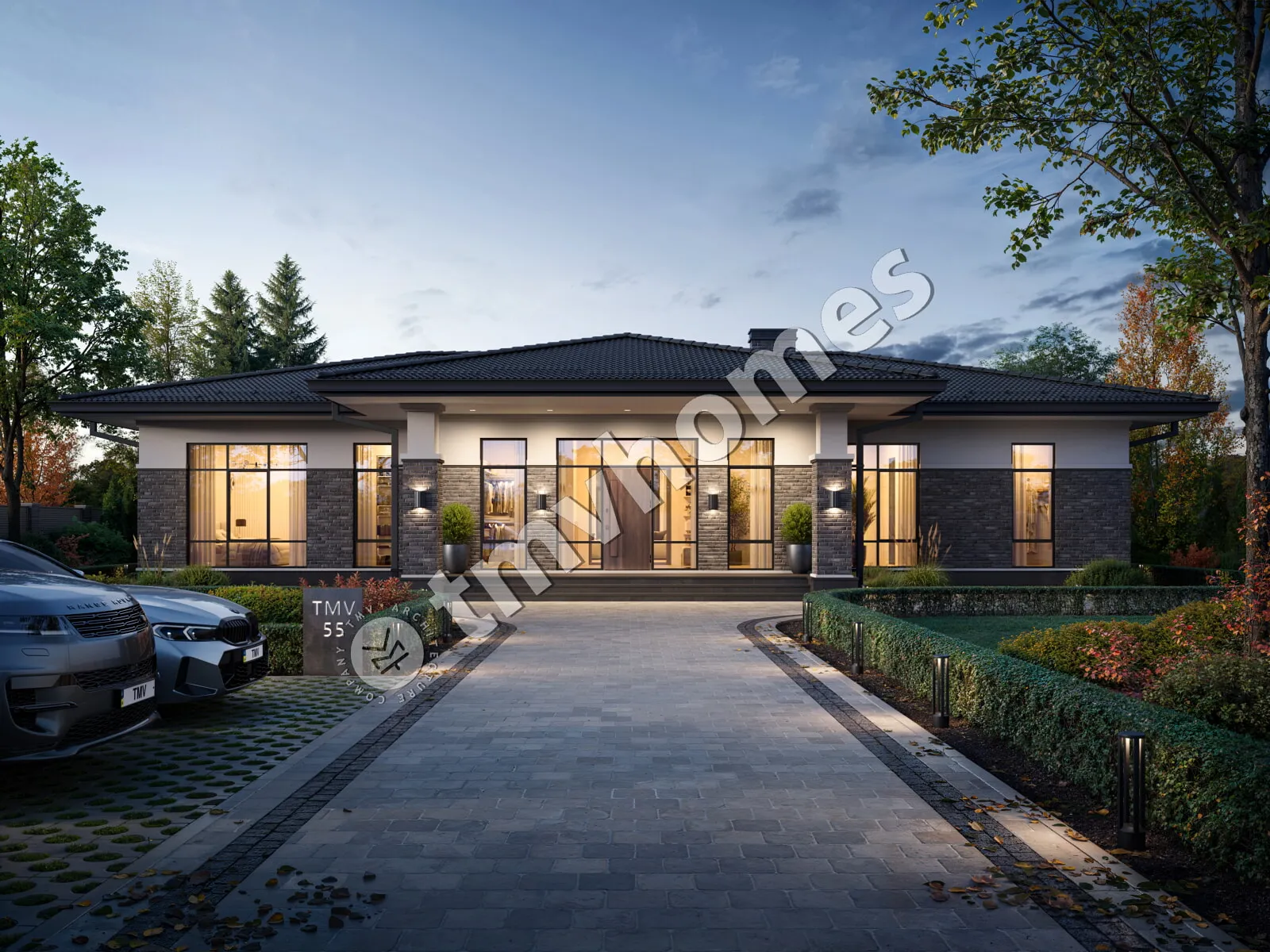

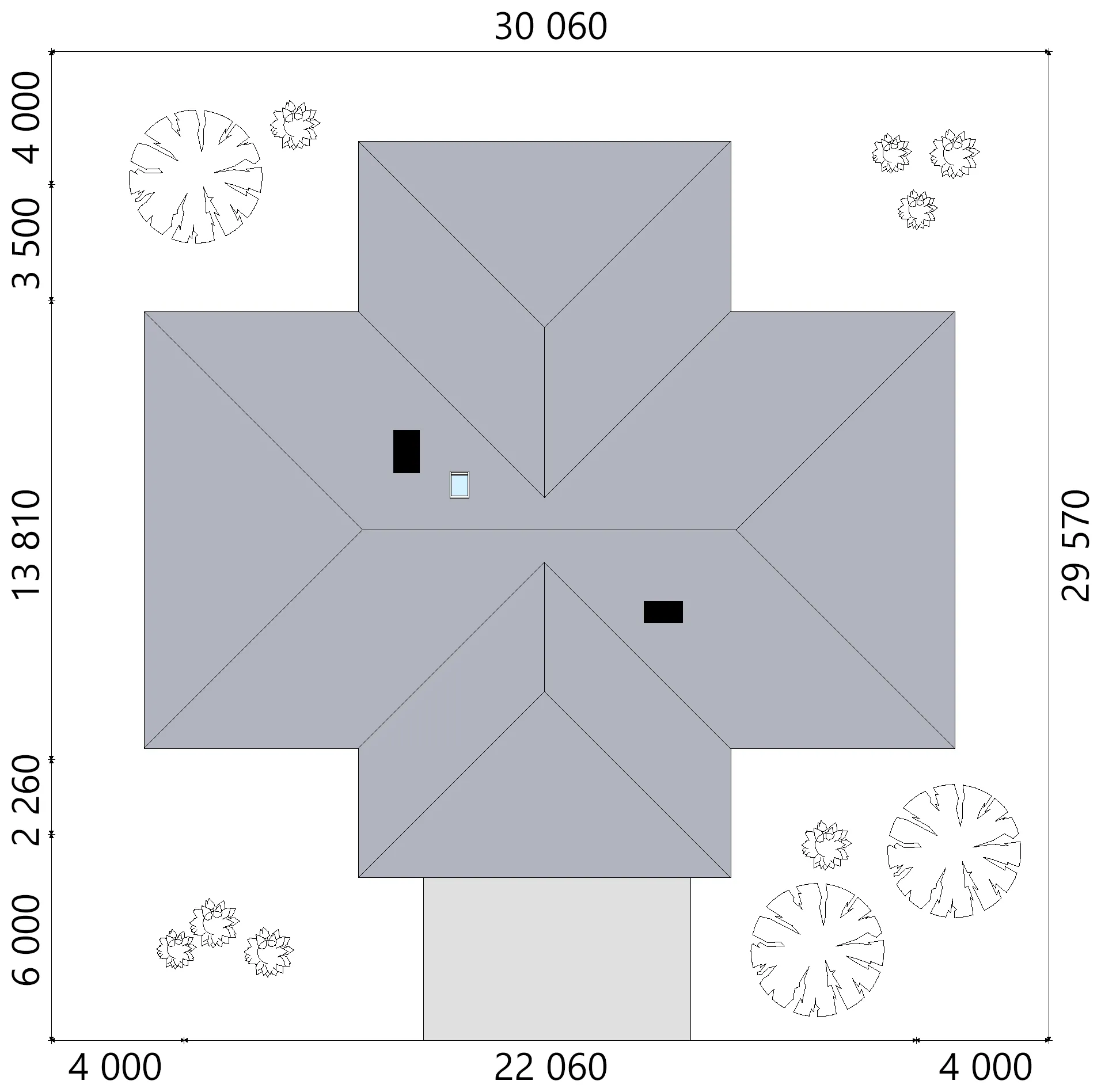

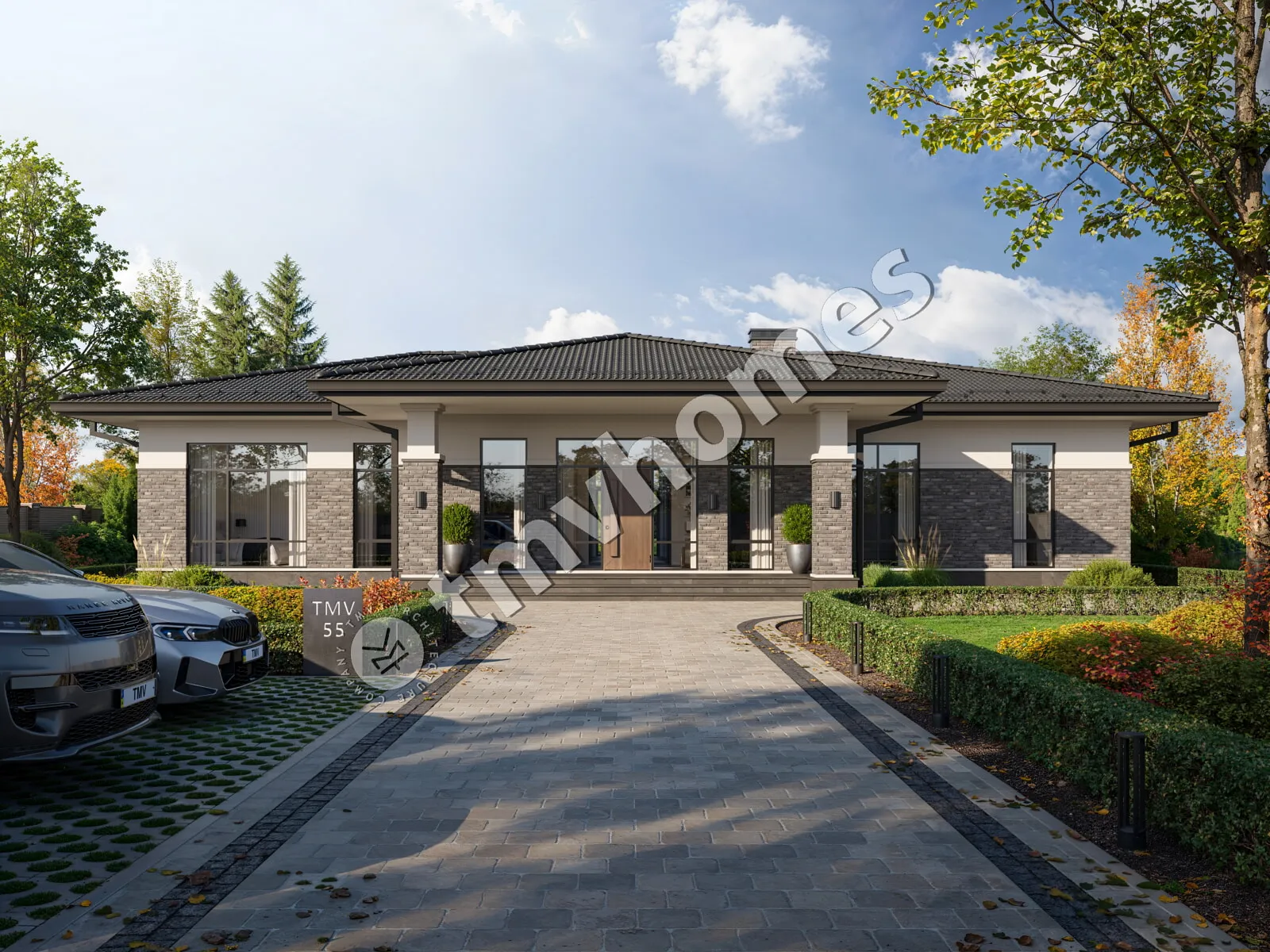

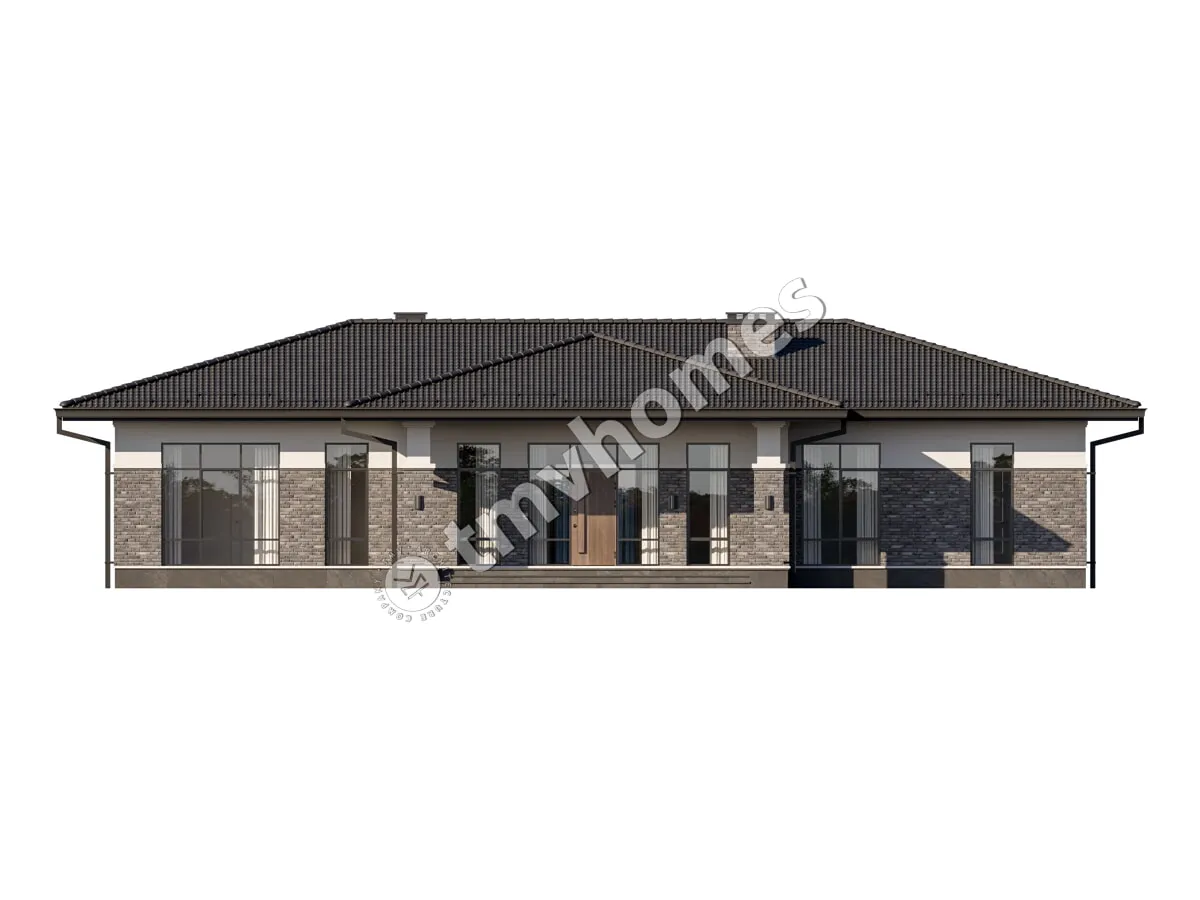

Plan 16713C is a 3-bedroom single-story house plan in the Prairie style, with 2277 ft² of living space under a low hip and valley roof pitched at 4/12 (18°). Stone/brick veneer and stucco give the exterior its calm, horizontal character. The house measures 67'1" wide and 59'5" deep, with a height of 18'4". The three bedrooms, three full bathrooms and every everyday room share one level, so daily life never involves stairs.

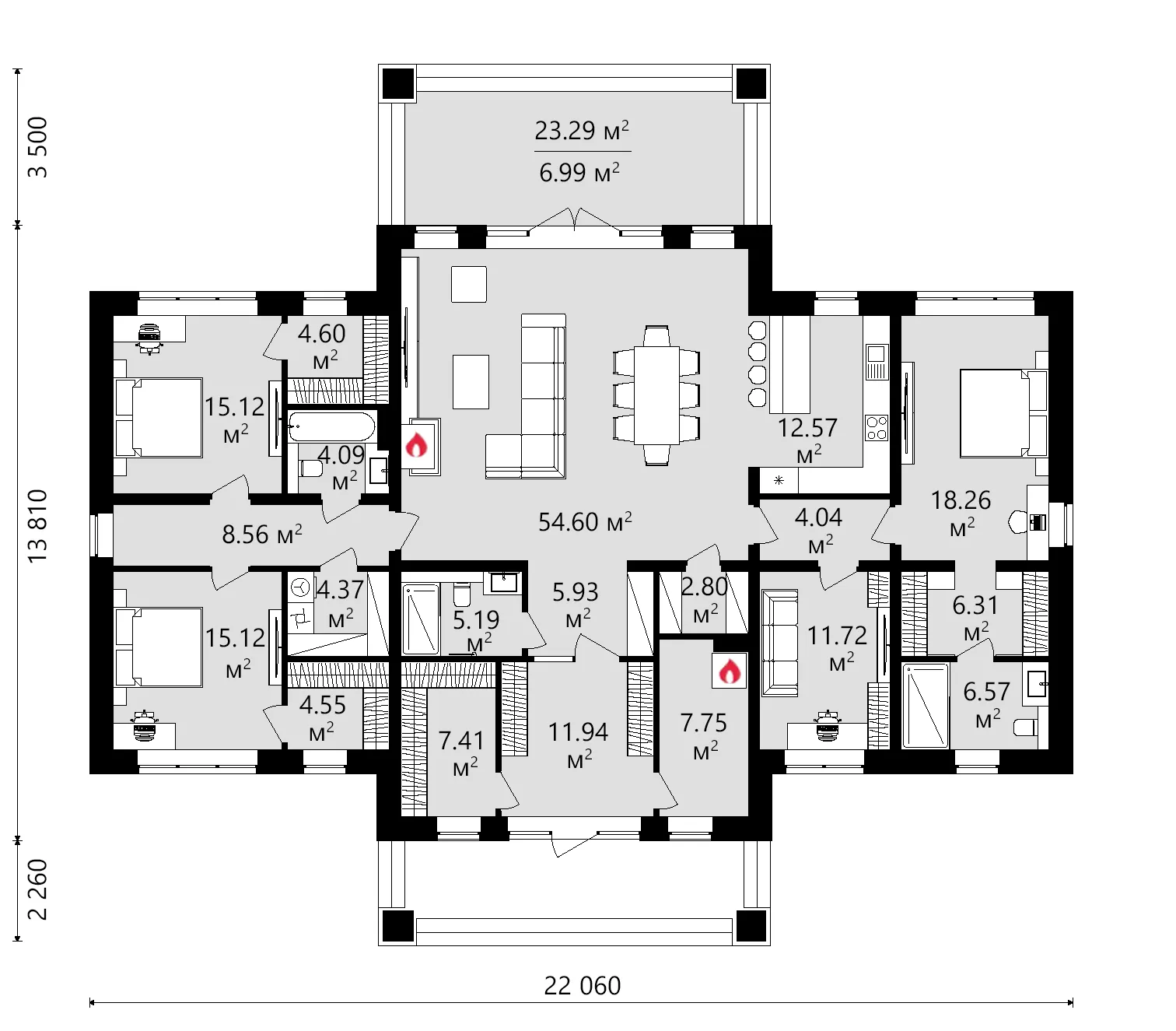

Past the entry, an open floor plan joins a large family room and a large kitchen into one connected space. The fireplace in the family room anchors the seating area and draws everyone together on winter evenings. Large windows and floor-to-ceiling windows carry daylight deep into the interior. The kitchen is planned for people who cook often. An island gives generous prep space, a breakfast bar seats the family for quick meals and homework, and a walk-in pantry keeps supplies organized and out of sight.
The split bedrooms layout places the main floor master on its own side of the house, away from the two secondary bedrooms. Parents get real quiet, and children or guests get privacy of their own. The master suite includes a walk-in closet. With three full bathrooms, mornings run without a queue. A home office offers a dedicated place for remote work or study. The practical rooms are just as well thought out: laundry on the main floor, a separate utility room and extra storage keep the household running smoothly.

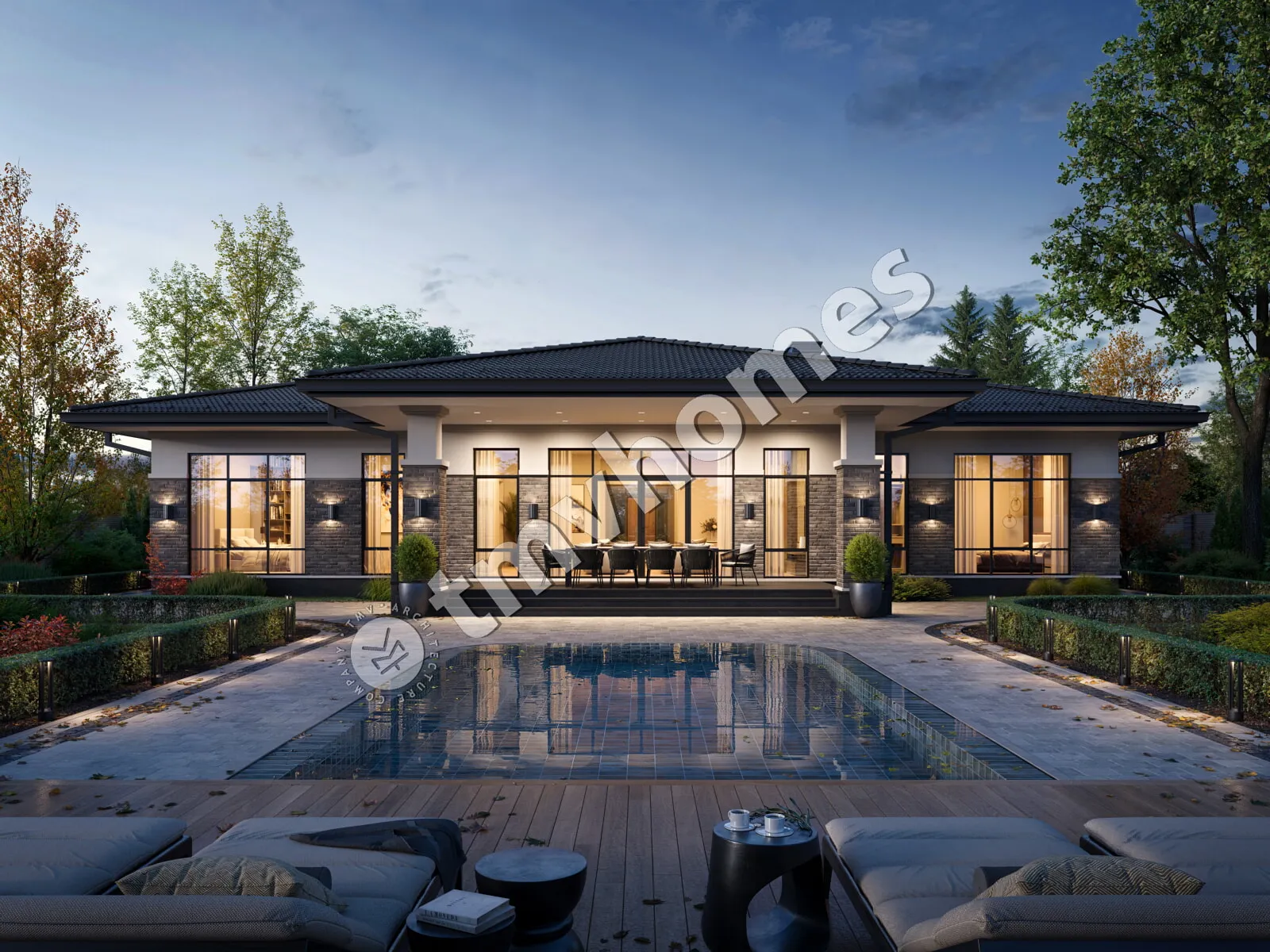

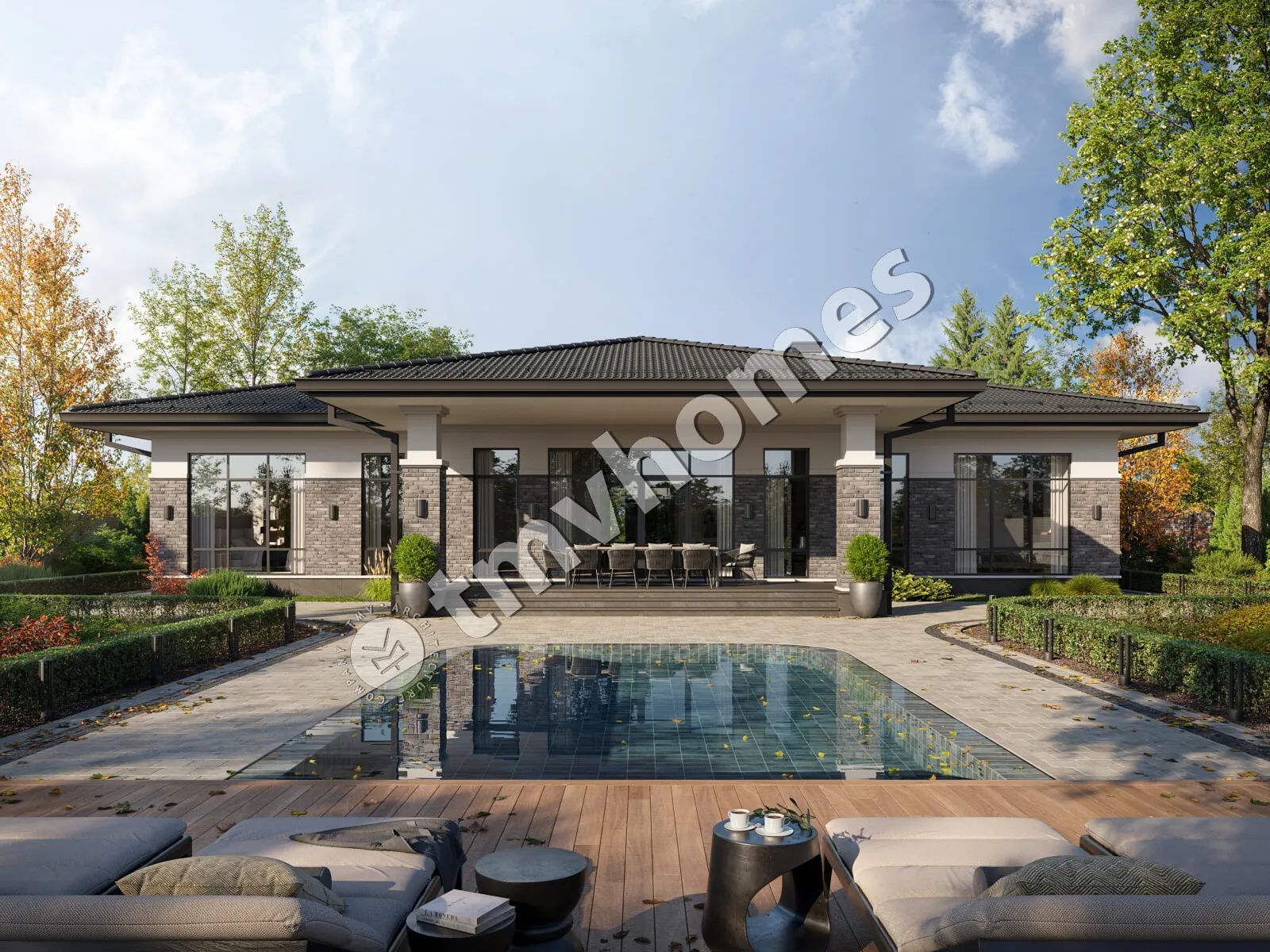

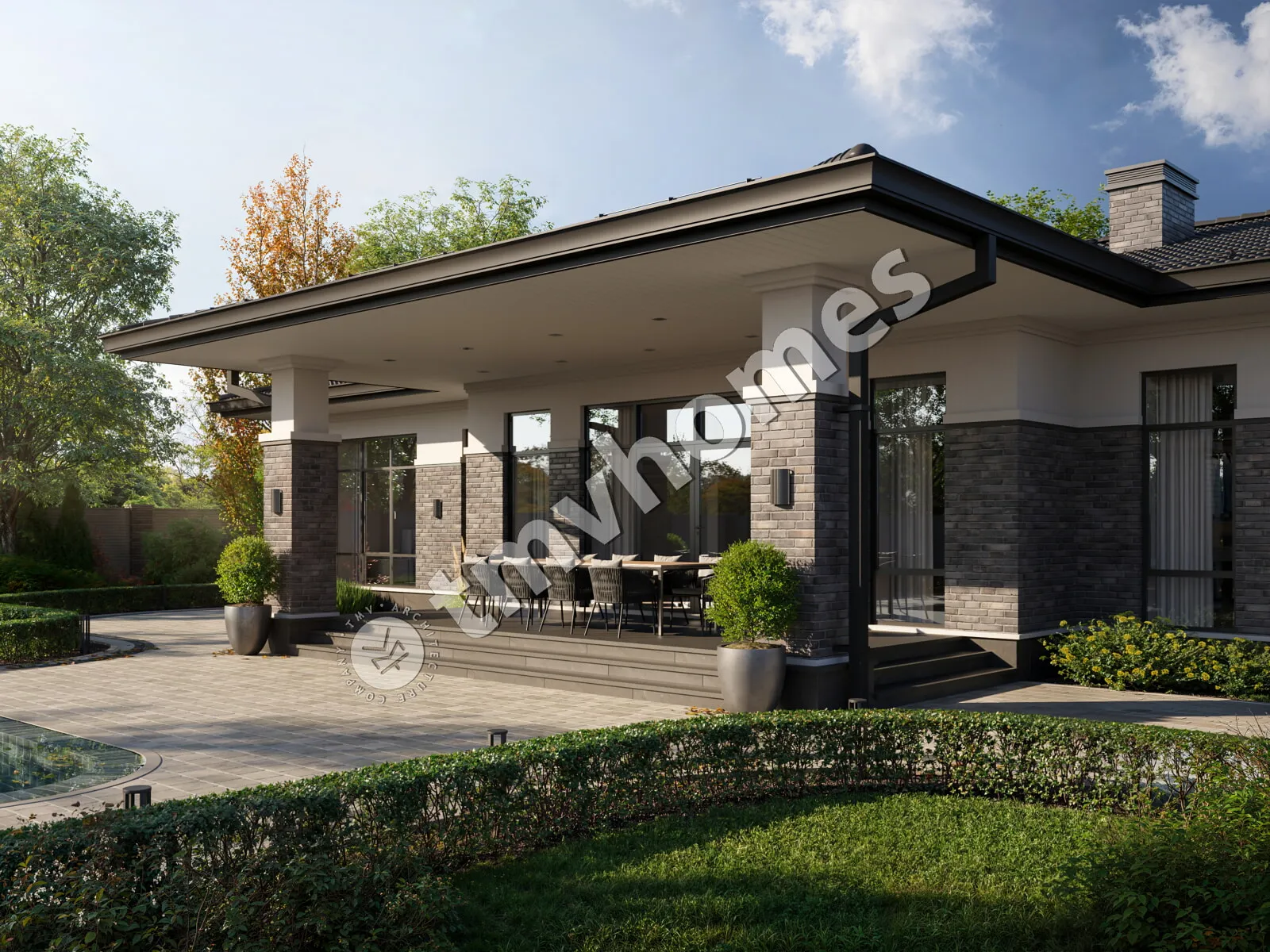

Outside, a covered front porch welcomes visitors, and a covered rear porch extends the living space into the open air for slow summer mornings or dinners outdoors. This Prairie house plan has no basement. It stands on strip footings, and the walls are built of aerated concrete. A slab or a concrete block foundation is also available on request, as are walls of ceramic hollow block or calcium silicate block. For a family looking for a spacious one-story house plan with a fireplace and an open concept layout, 16713C offers 2277 ft² of comfortable, well-organized living.
