1,371 Sq Ft L-Shaped Single-Story Barndominium Plan with 3 Bedrooms, 2 Bathrooms and Carport
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

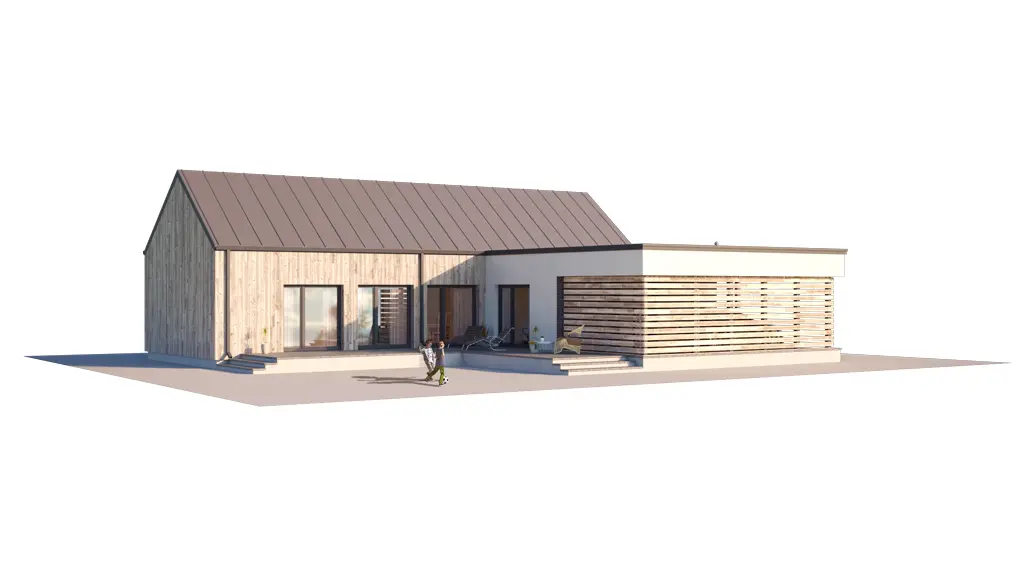

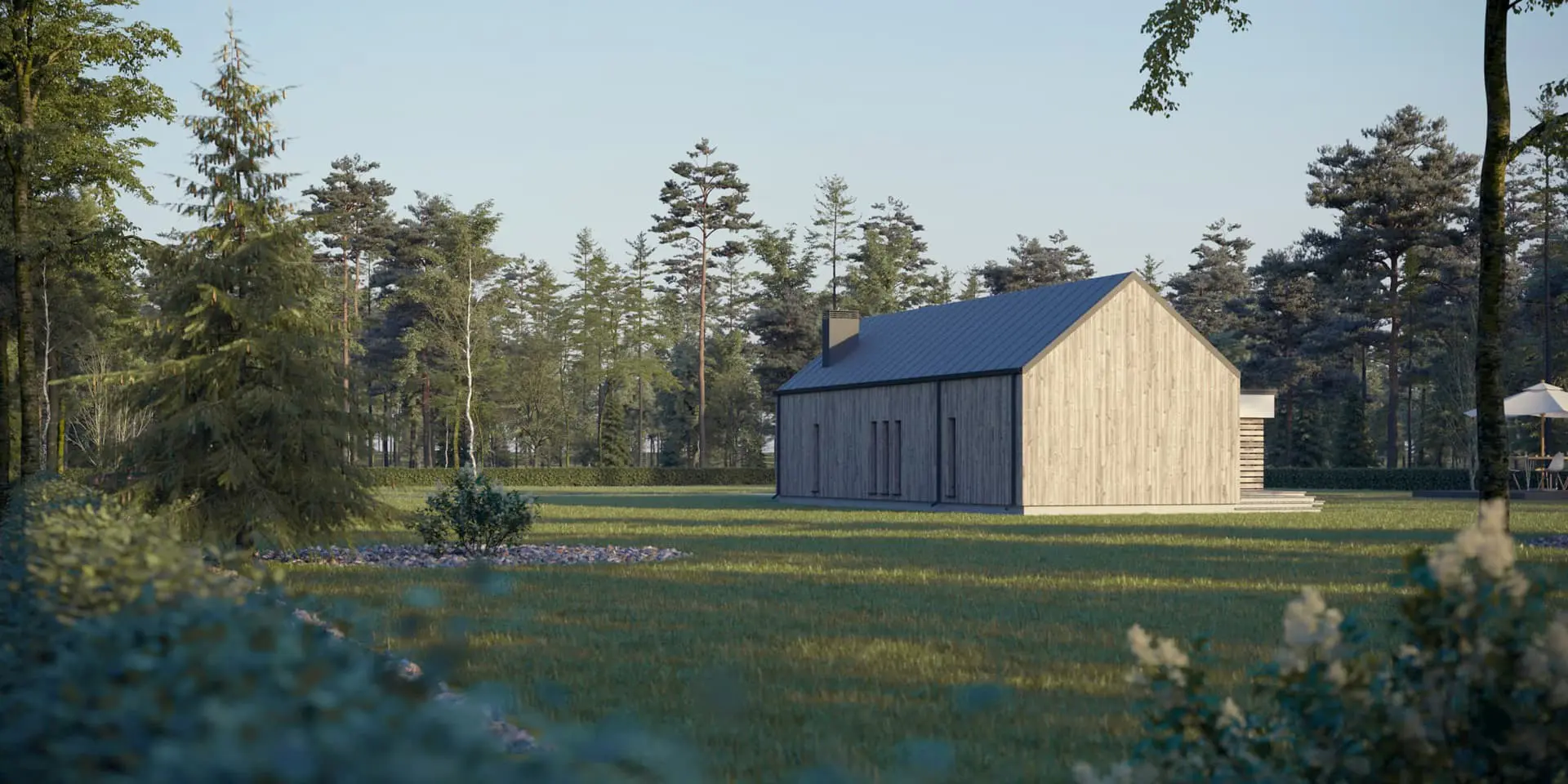

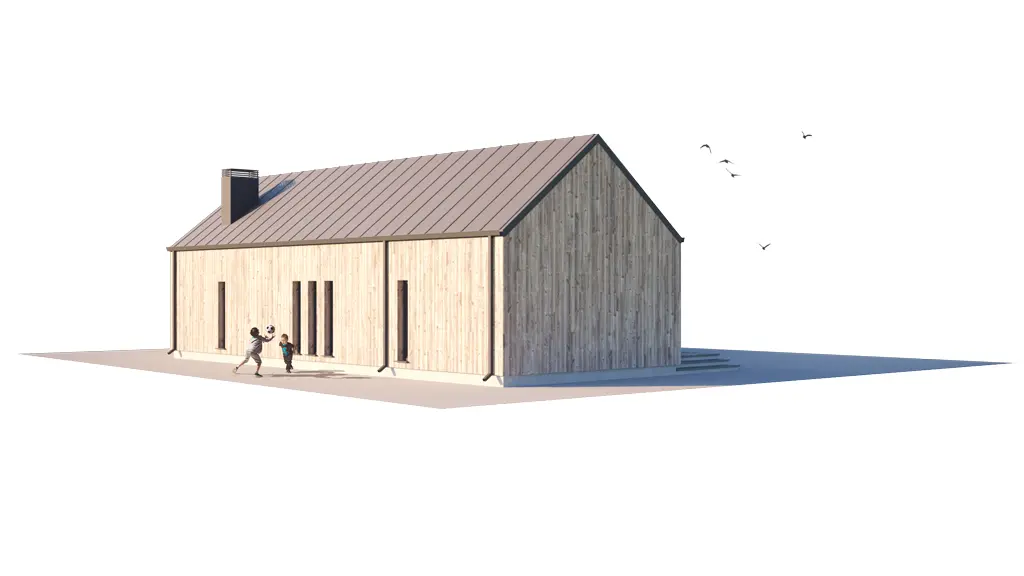

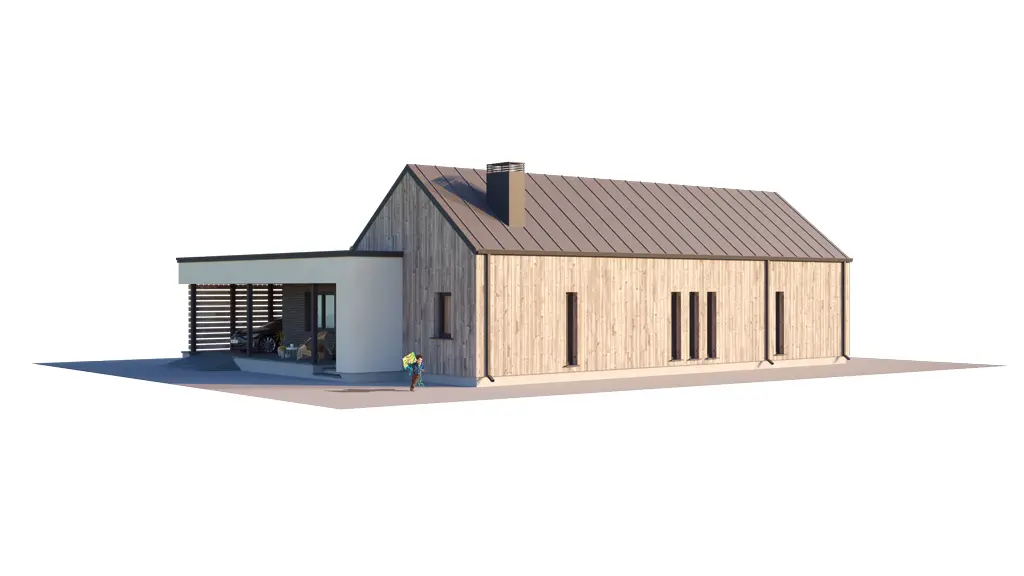

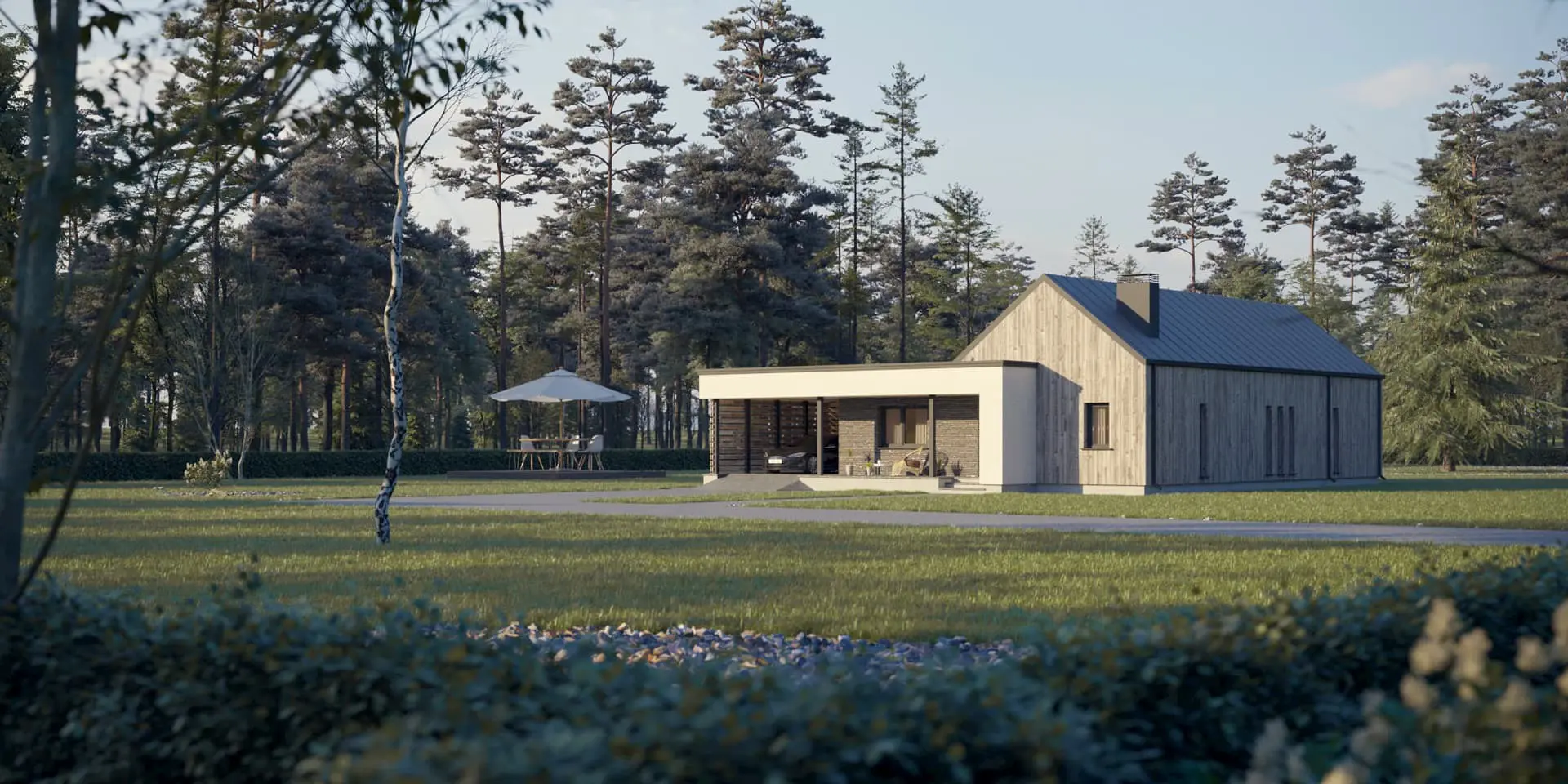

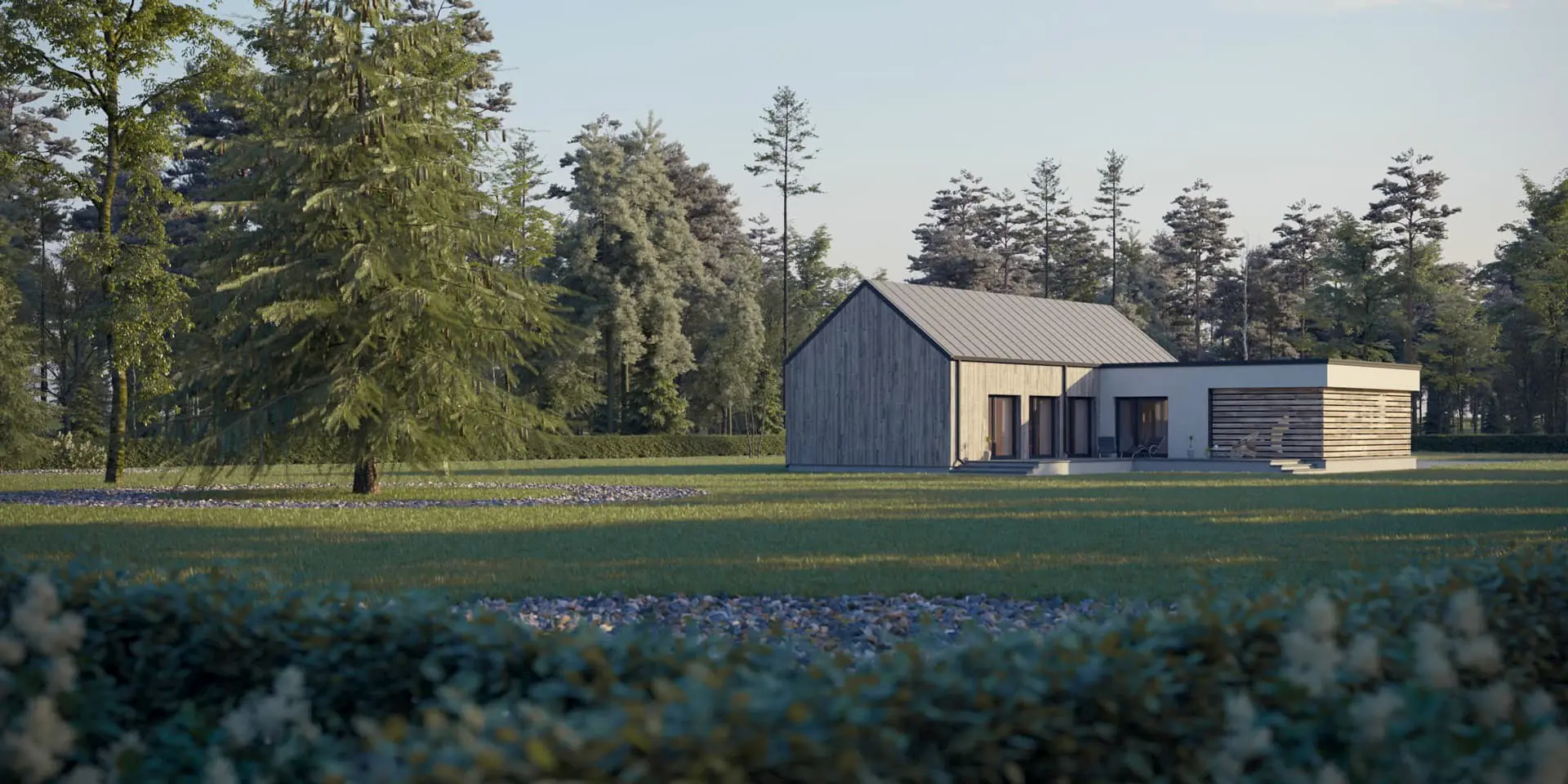

House design concept 95351R is an L-shaped single-story barndominium with a total heated area of 1,371 Sq Ft, 3 bedrooms, 2 bathrooms and a carport. The single-family layout suits a household of 3-4 people and measures 49'1" wide by 61'8" deep. A gable roof with a 9/12 pitch and a ridge perpendicular to the street is combined with a flat roof, while stone or brick veneer, wood and stucco give the facade texture.

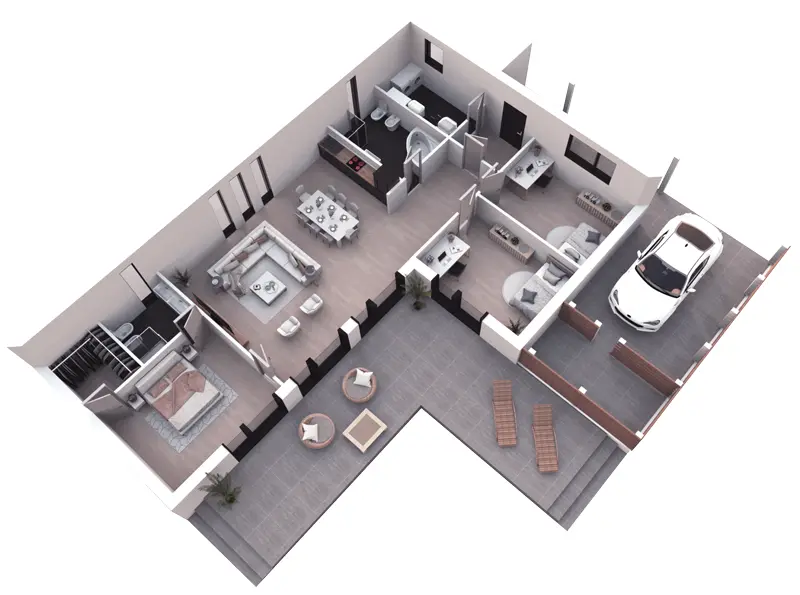

An entry leads into an open floor plan where the large family room, the kitchen and the breakfast nook share one great room, so cooking and conversation happen together. Large windows and floor-to-ceiling windows fill the space with daylight and open the view to the deck.

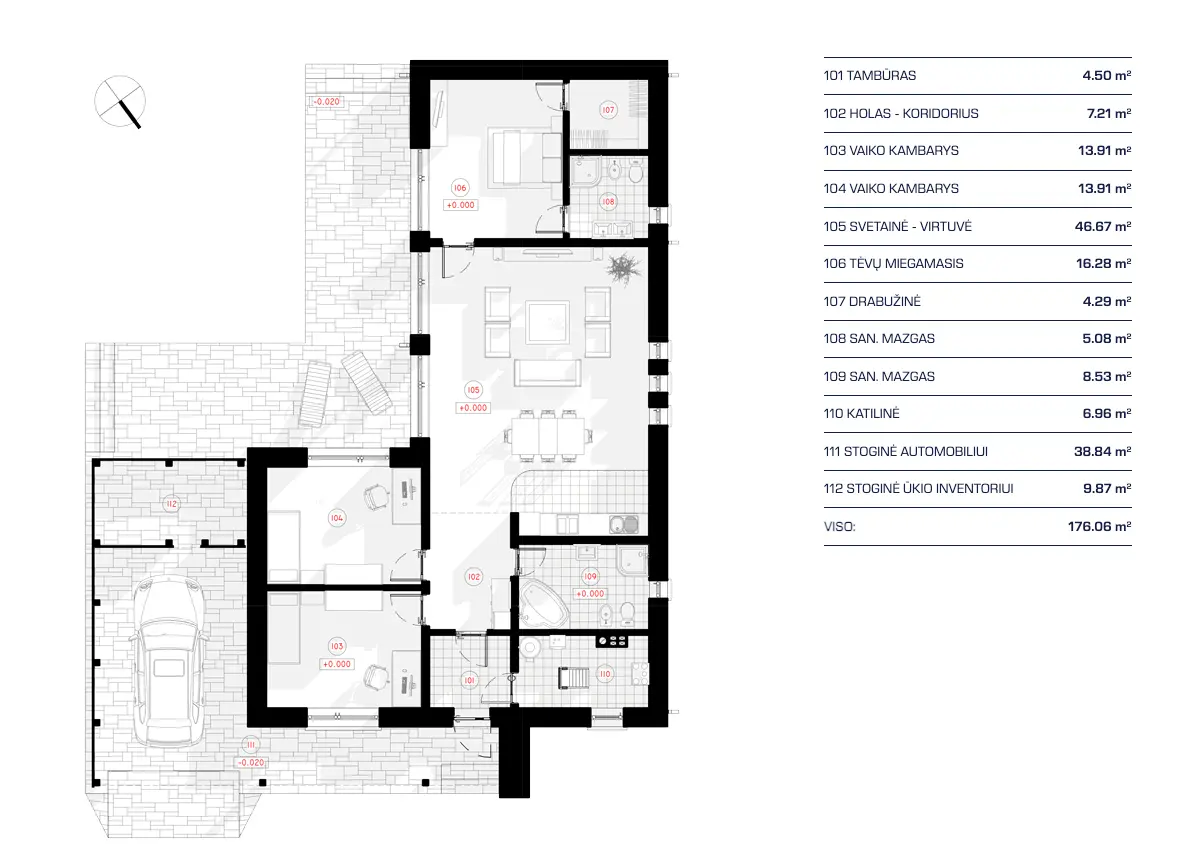

All rooms are on one level, which keeps daily routes short and suits every age. The split-bedroom layout places the primary bedroom with its walk-in closet apart from the two other bedrooms, giving parents quiet and privacy. Two full bathrooms keep mornings moving, and a utility room keeps household equipment out of the living space.

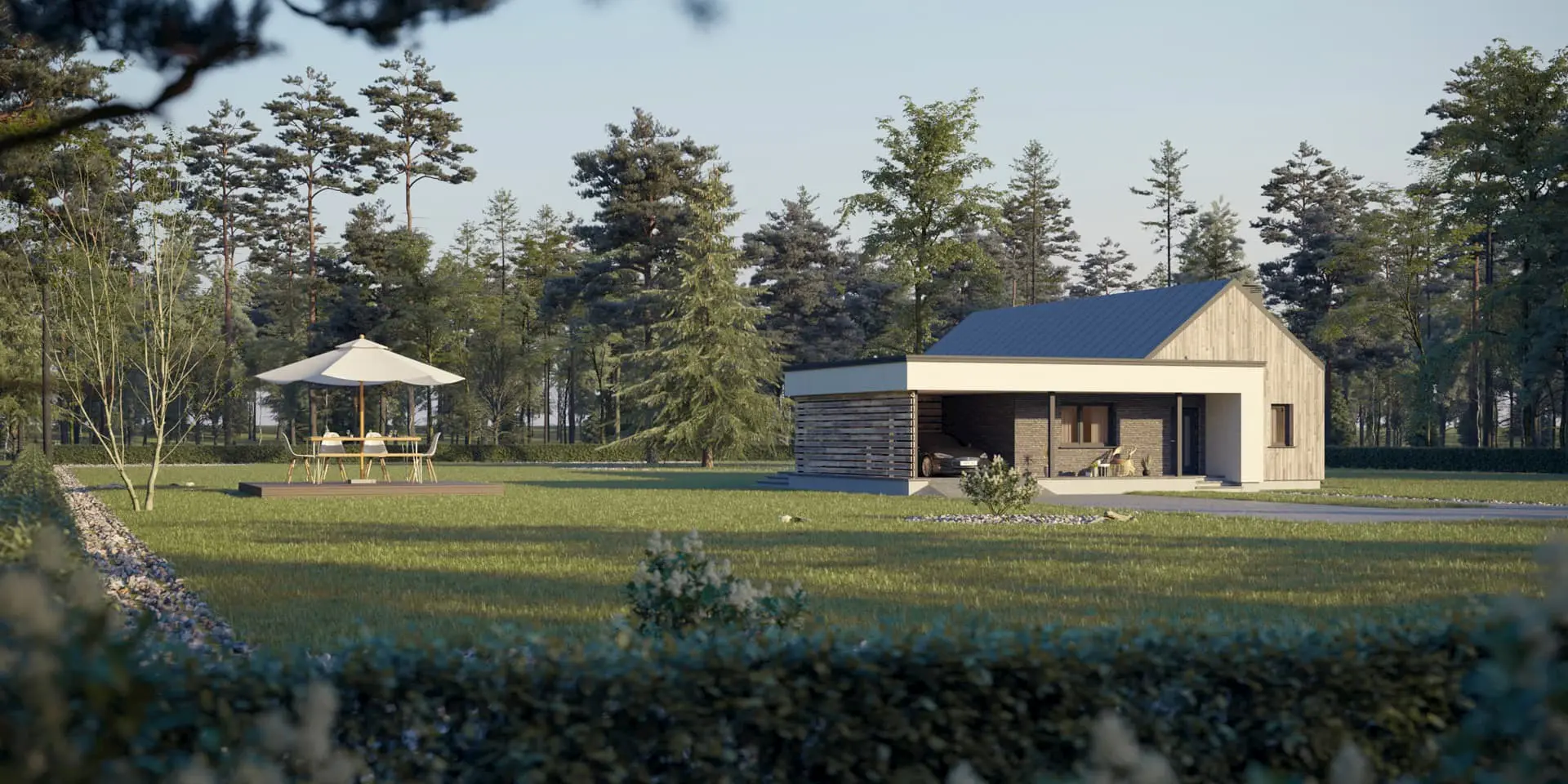

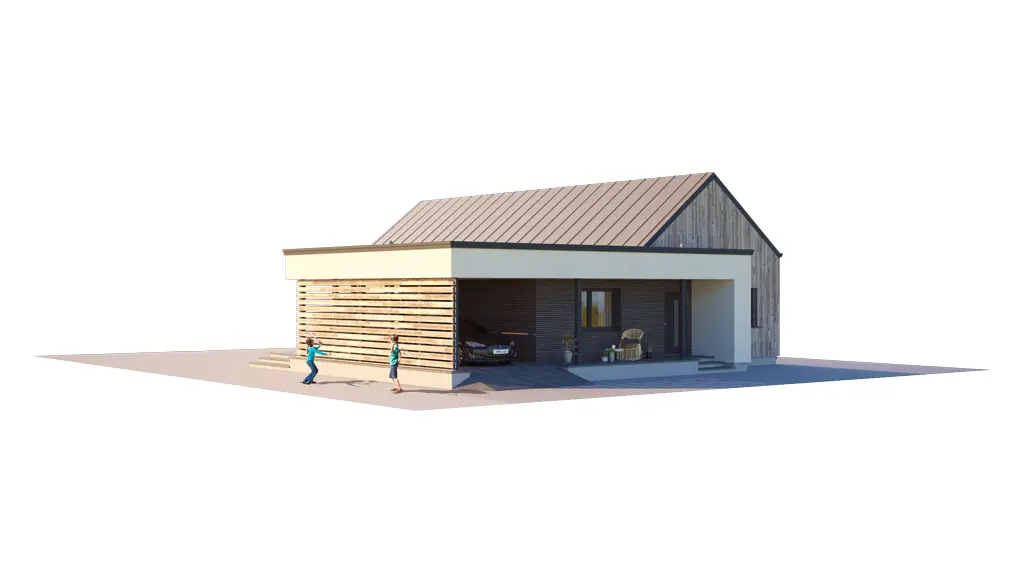

The deck extends living outdoors in the warm months. A carport for one car shelters it from sun, rain and snow. The project is designed on a slab foundation, with bored pile, strip or block foundations as options; the exterior walls are planned in sand-lime block, with aerated concrete, ceramic block or timber frame as alternatives. In figures: total heated area 1,371 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car carport.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 6,854
My Home Floor Plans Rosemead US$ 1,150
Plan & Simple LLC Austin US$ 2,742
