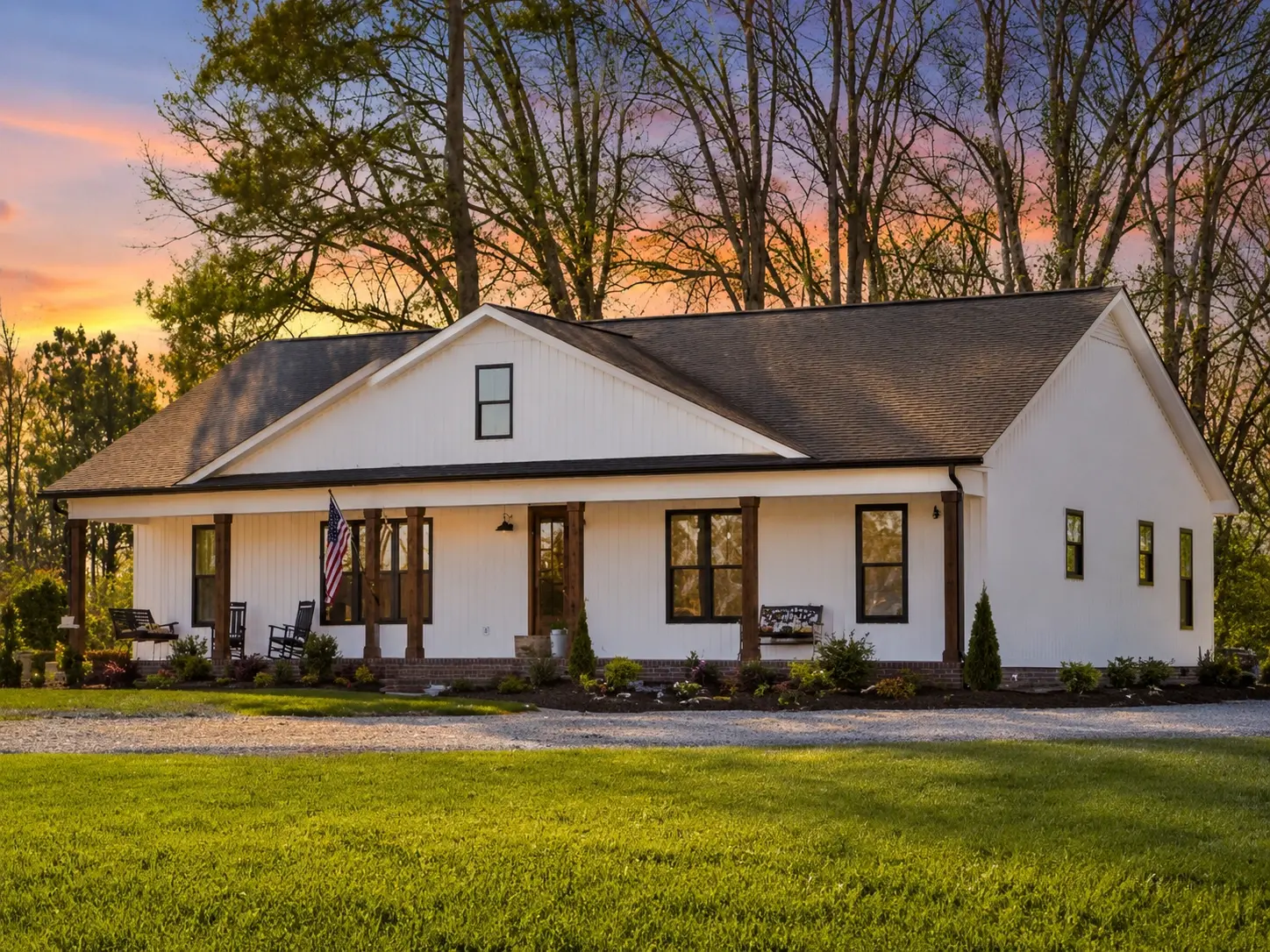

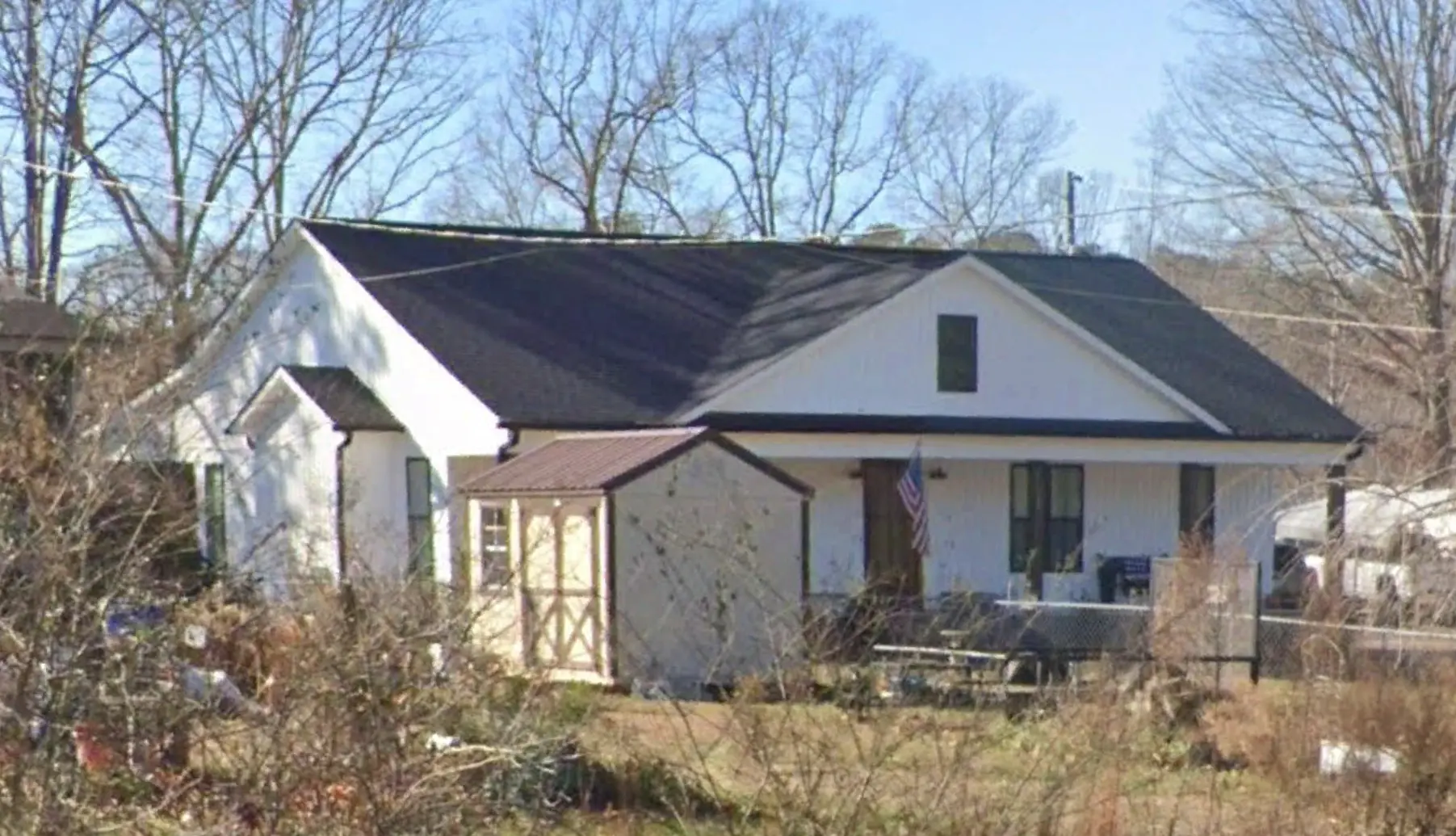

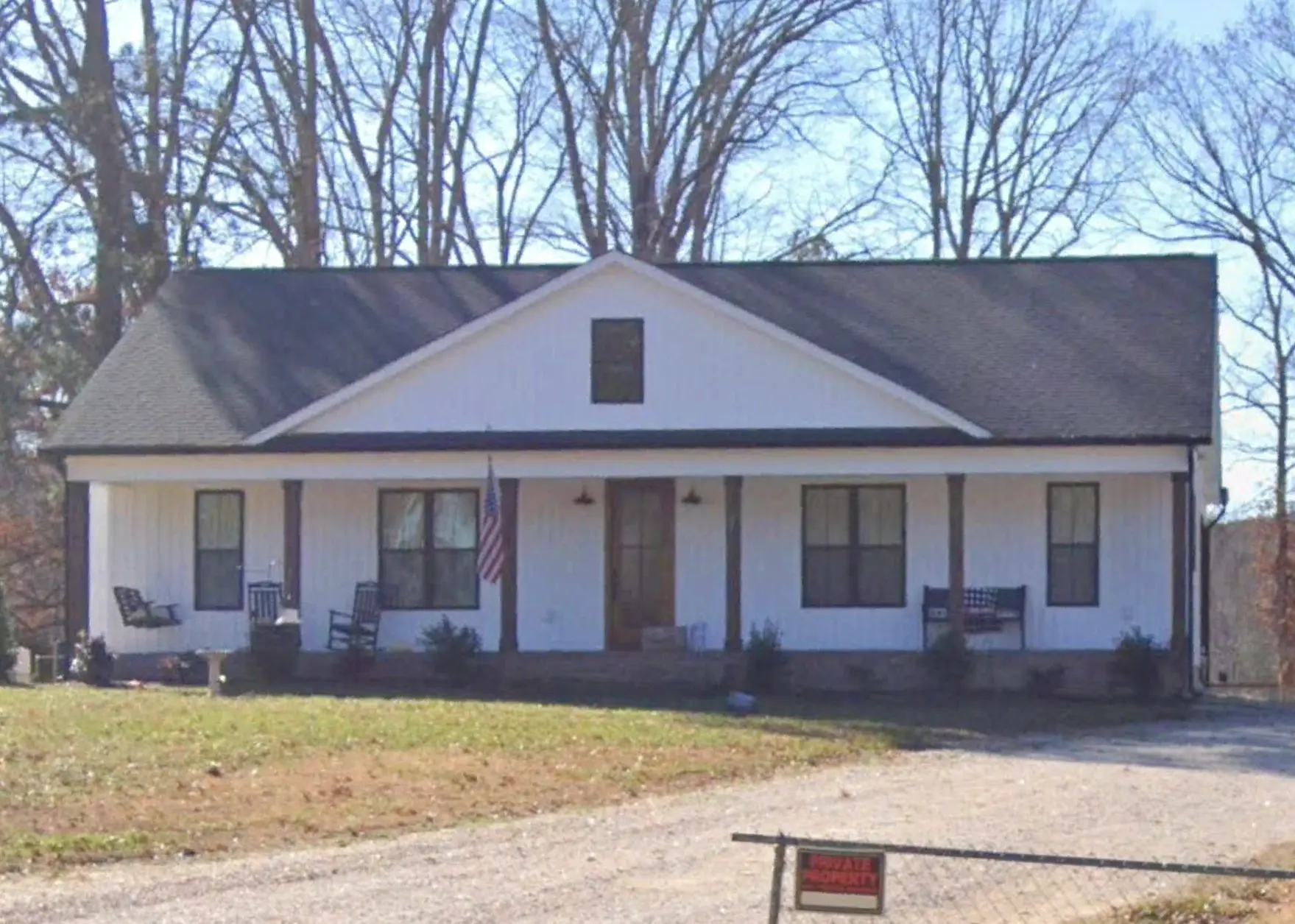

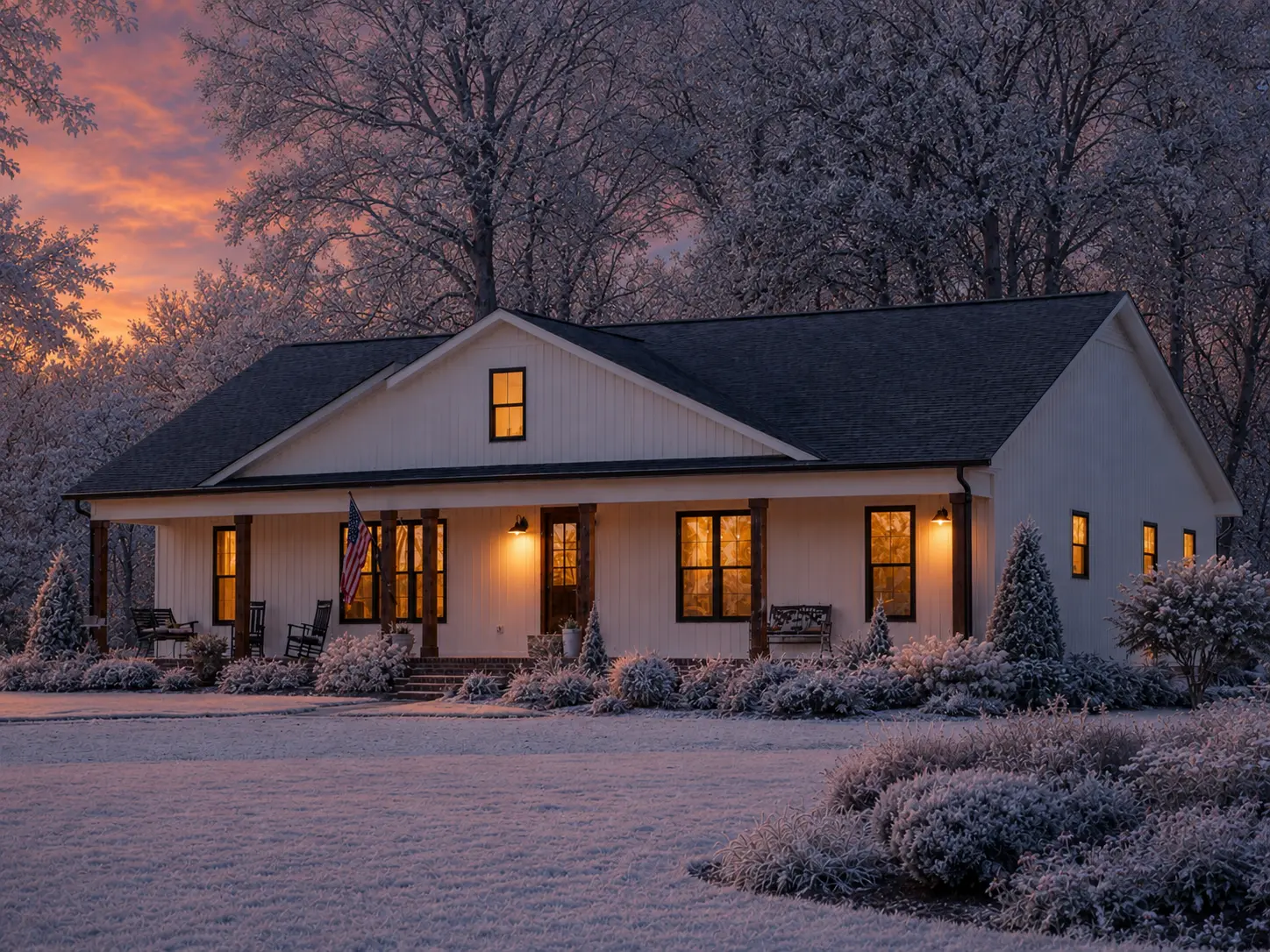

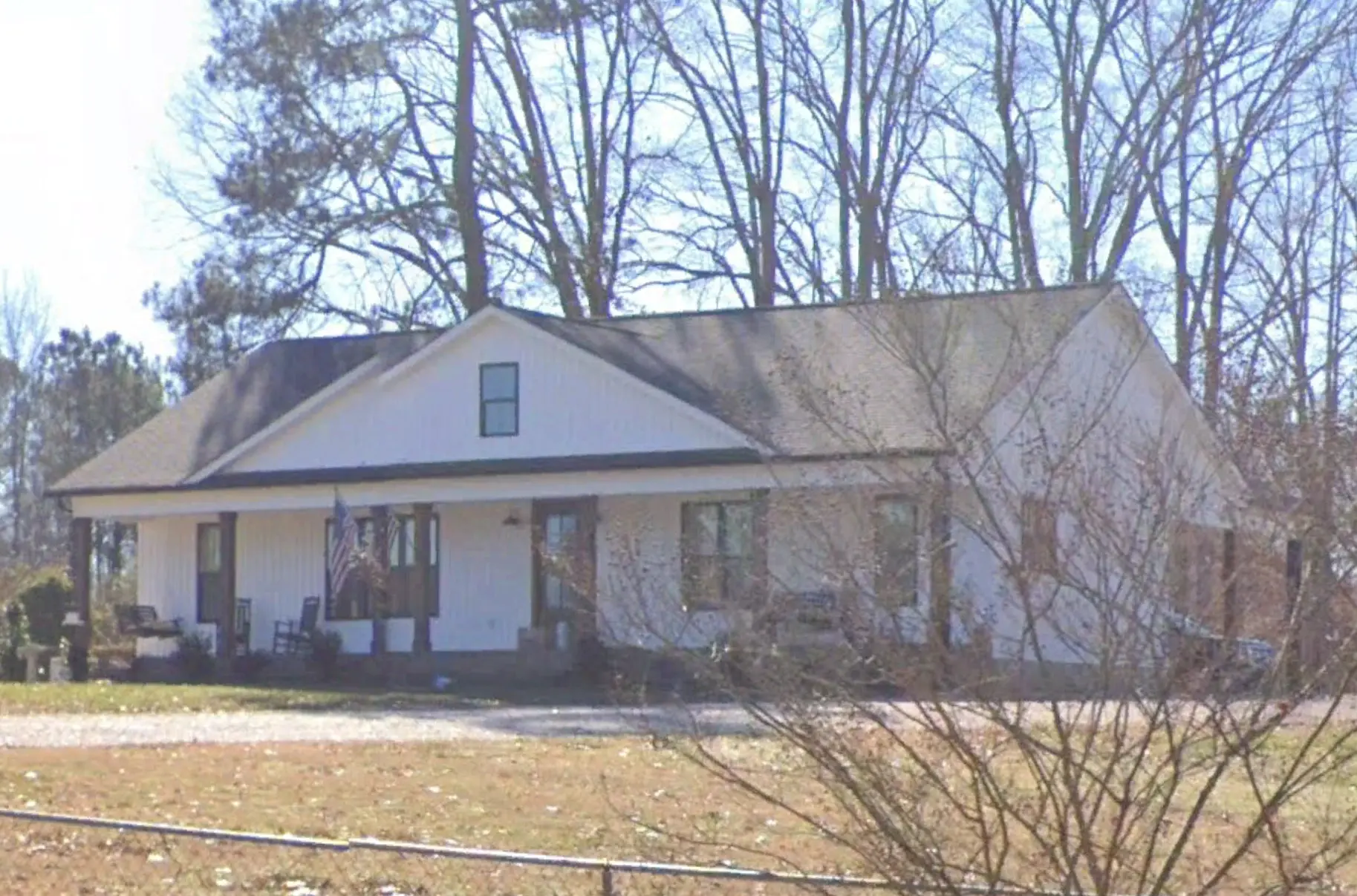

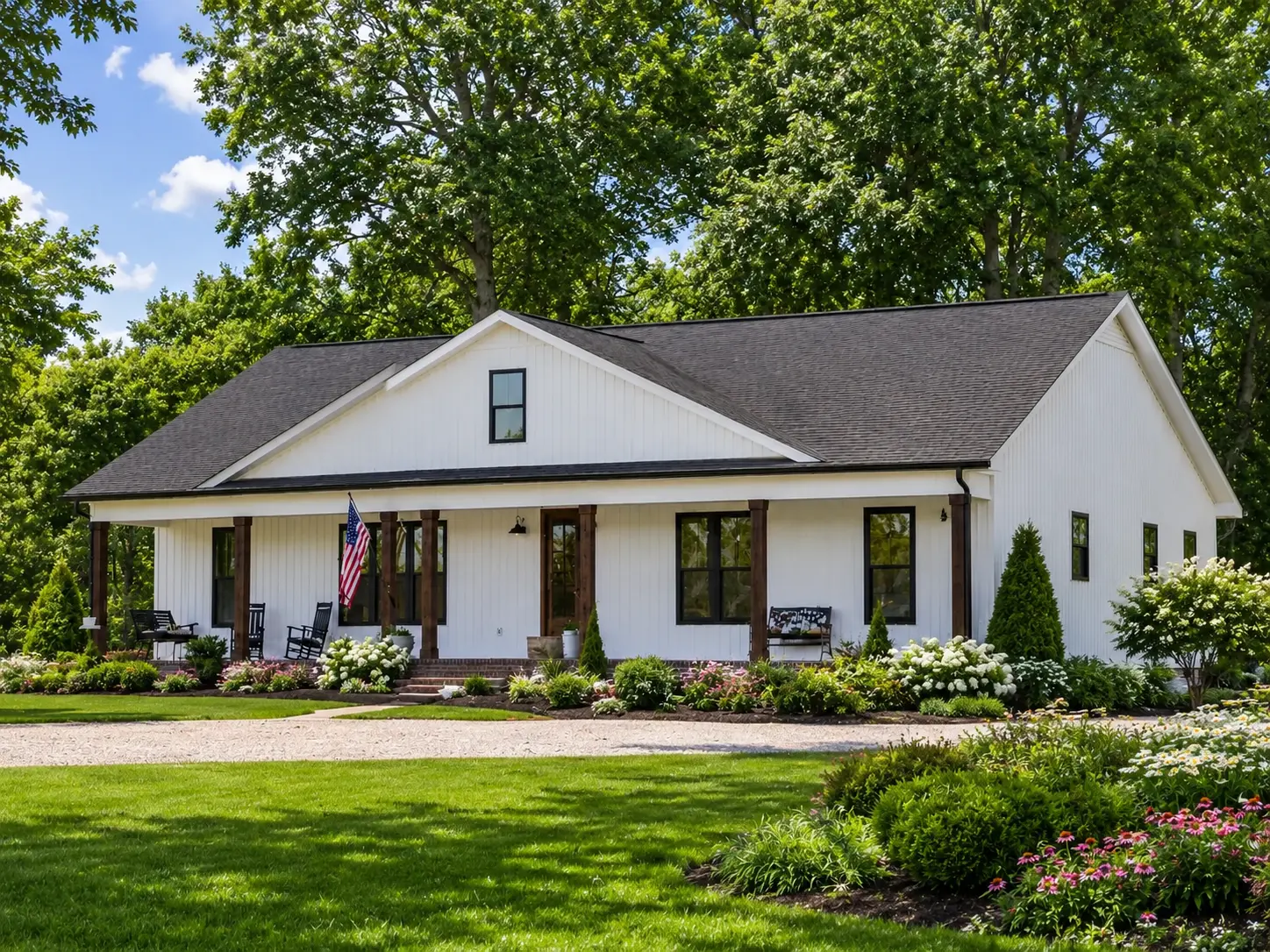

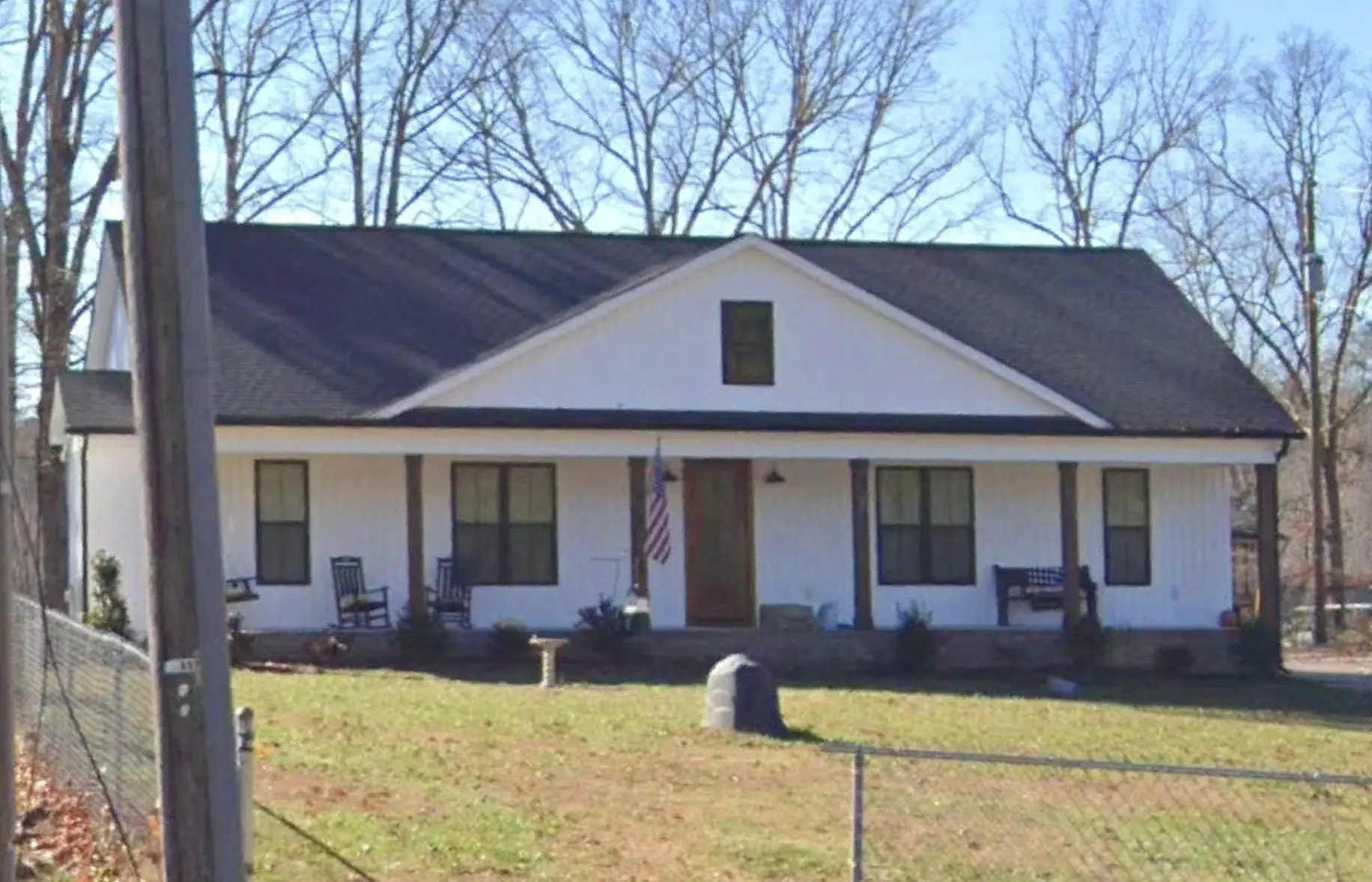

1-Story House Plan 1707 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage
1-Story House Plan 1707 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage 1-Story House Plan 1707 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage
8
Construction documents are prepared for the following countries:

1-Story House Plan 1707 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage

Plan
11609R
Complete
Unsigned & Unsealed
DC Available
Key Specs
1707
Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
United States Canada
General & Documentation

Cover Sheet (Includes Front Perspective & Project Data)

General Construction Notes (Specifications & Standards)

Index of Drawings (Sheet List)

Architectural (A)

Floor Plans

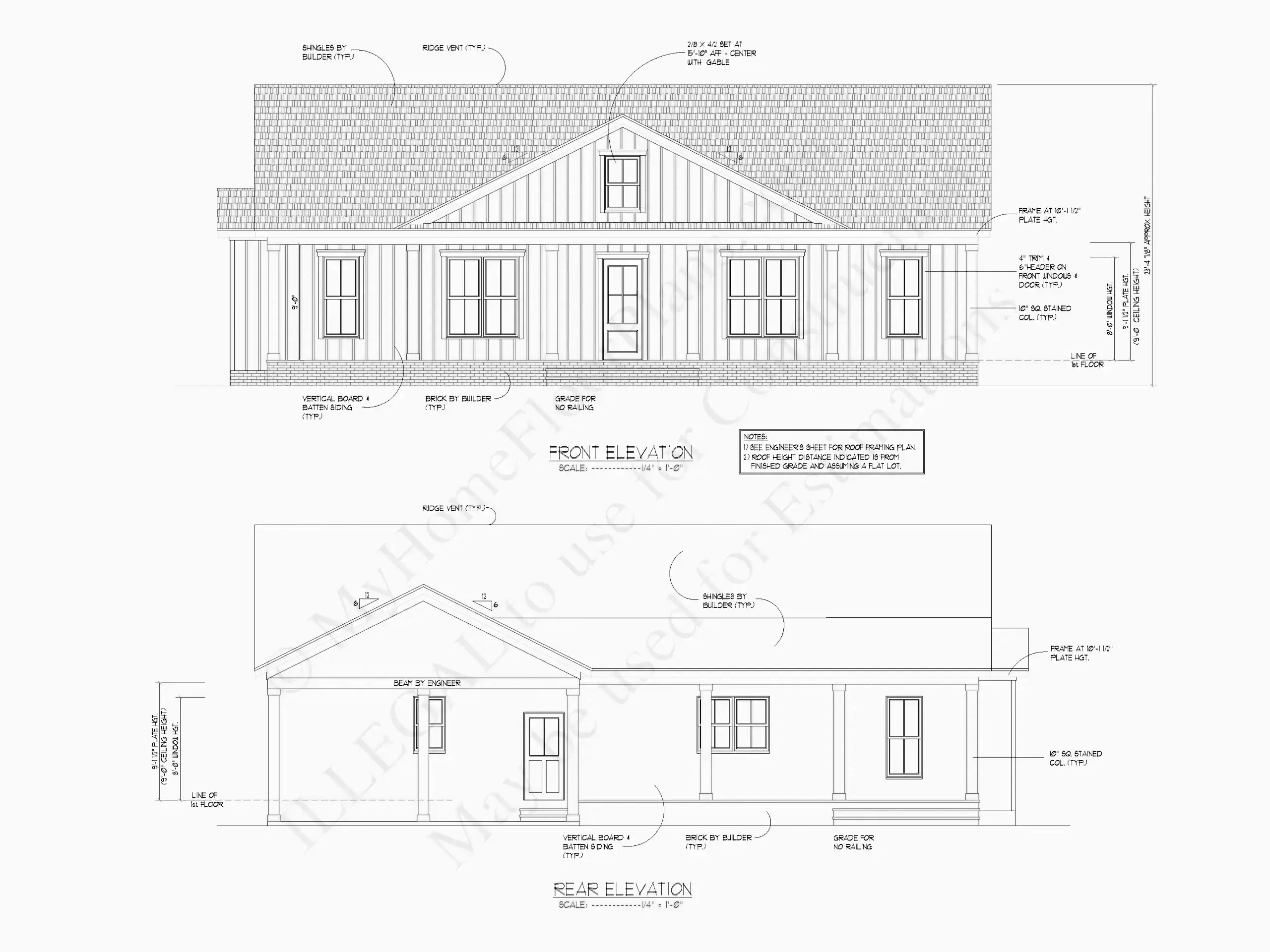

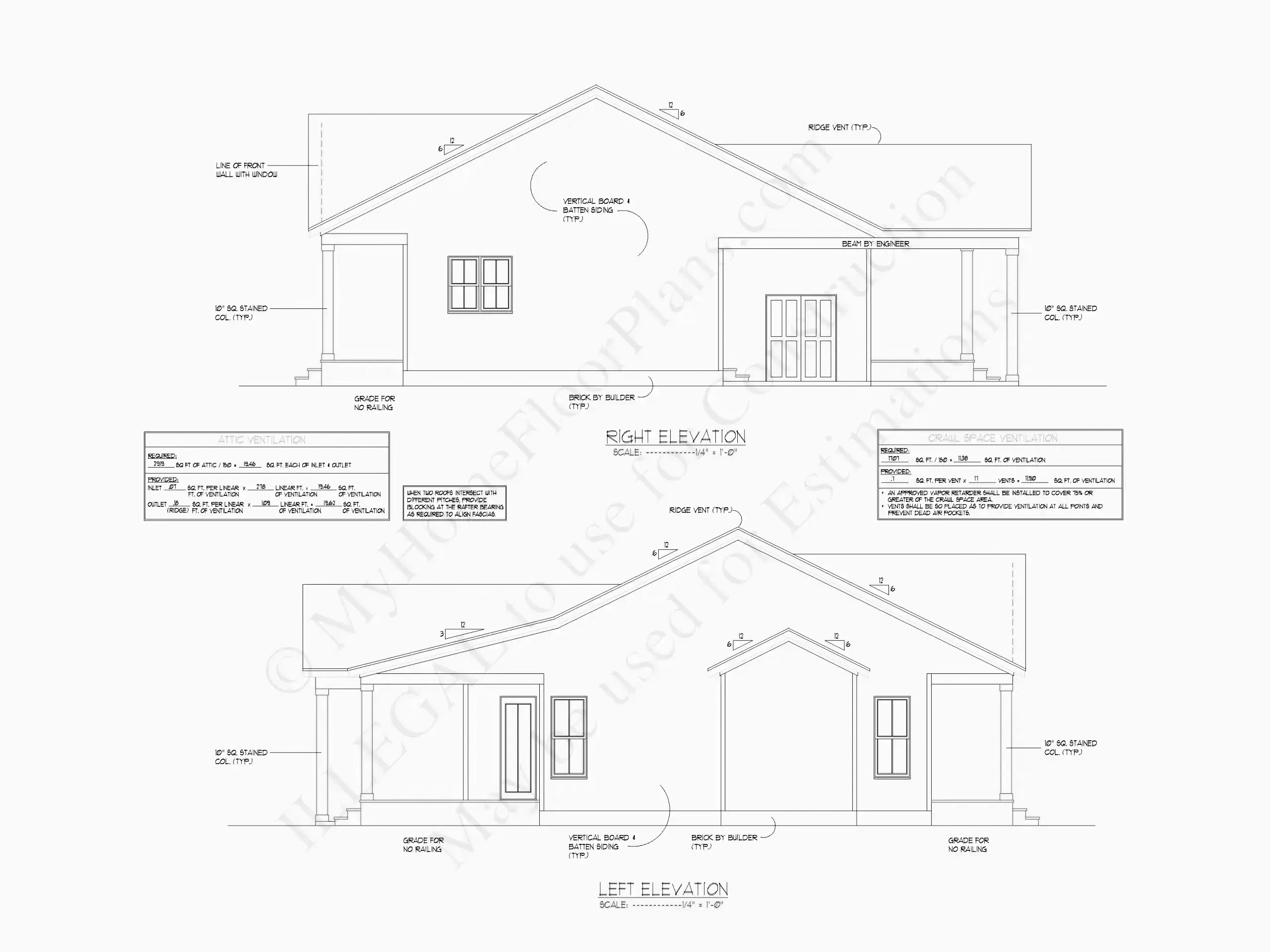

Exterior Elevations

Overhead Roof Plan

Cross Sections

Stair Details

Miscellaneous Details

Structural (S)

Foundation/Basement Plan

Electrical (E)

Electrical Plans

Download Example
General & Documentation

Cover Sheet (Includes Front Perspective & Project Data)

General Construction Notes (Specifications & Standards)

Index of Drawings (Sheet List)

Architectural (A)

Floor Plans

Structural (S)

Foundation/Basement Plan

Electrical (E)

Electrical Plans

Download Example
Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans
Main Floor
11609R - Main Floor
Full Specs & Features
Area
Heated: 1707.00 ft²
Unheated: 1212.00 ft²
Dimensions
Depth: 54'2" ft
Width: 58'2" ft
Garage
Cars: 2
Carport
Side Entry
Foundation
As Shown
Crawl Space (Optional)
Slab (Optional)
Monolithic Slab (Mono) (Optional)
Stem Wall (Optional)
Basement (Optional)
Exterior Wall Framing
As shown
2×6 Exterior Walls (Optional)
Exterior Wall Materials
Siding
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Laundry
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Open Floor Plan
Exterior Features
Covered Front Porch
Covered Rear Porch
Architectural Style
Bungalow
Country
Farmhouse
Ranch
American
Modern Farmhouse
Roof
Hip & Valley
Ridge parallel to street
Architect
My Home Floor Plans My Home Floor Plans Residential Architect country with code us United States
country with code us United States
California, Rosem
+18006428078
https://myhomefloorplans.com/
Plan Package

Digital Concept (Imperial system)
$750
Digital Plan Set
$834
Foundation
$0
$0
$0
$0
$0
$0
Exterior Walls
$0
$150
Additional Options
$150
$0
$0
$0
Subtotal
