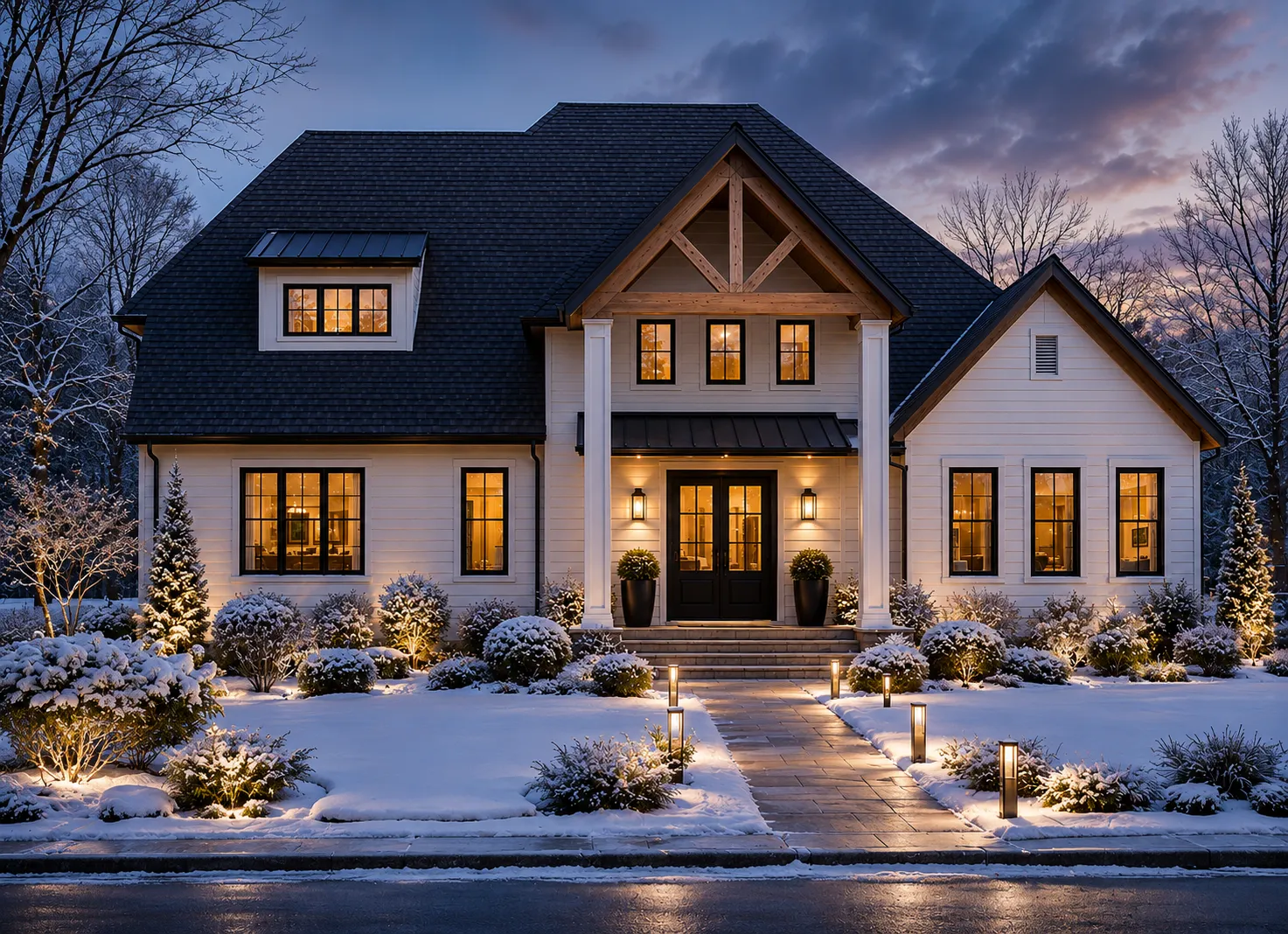

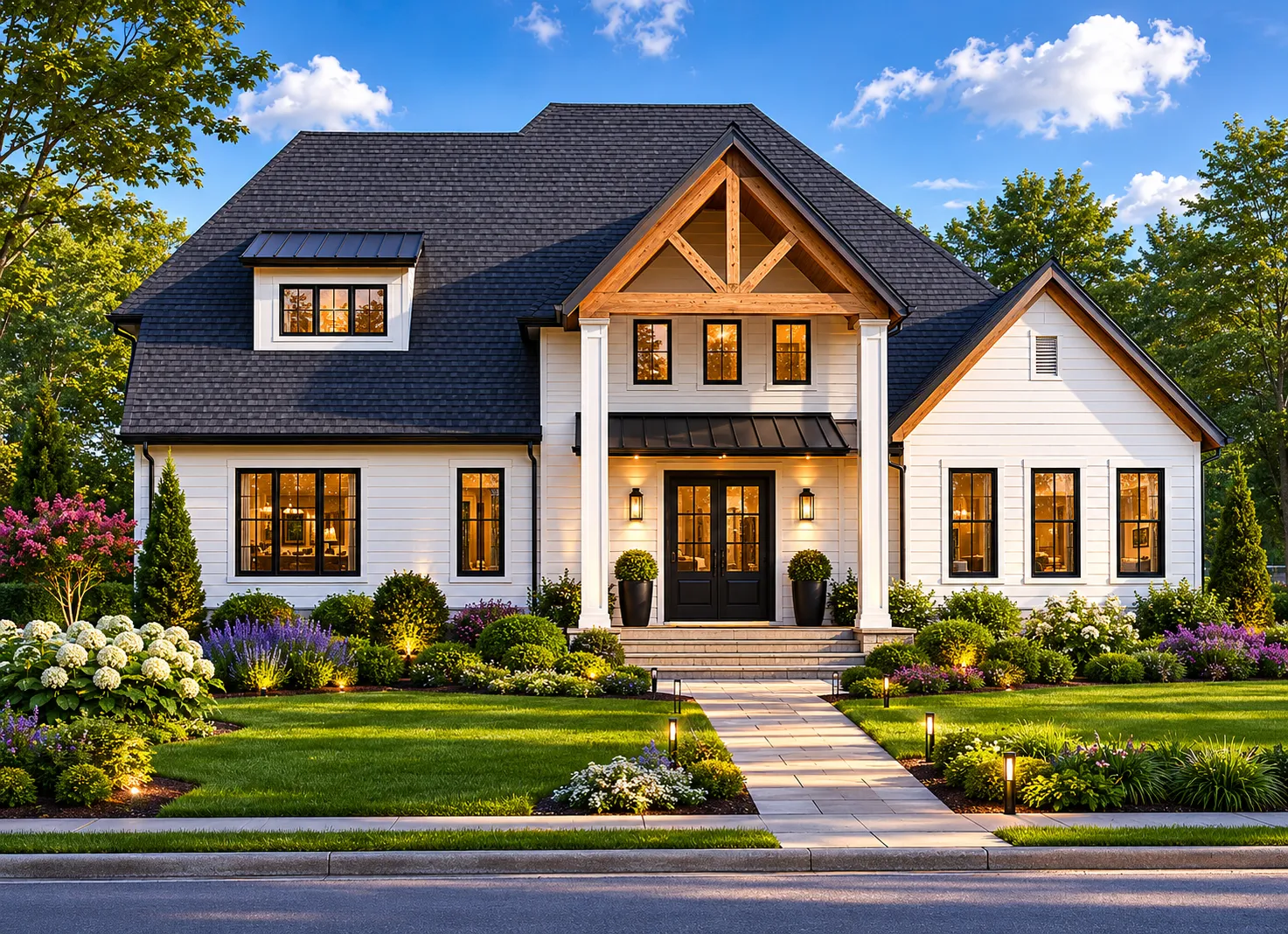

Renderings 2 – 3,590 Sq Ft Country 1.5-Story House Plan with Walkout Basement, 4 Bedrooms and 4.5 Bathrooms – 14862R
Renderings 3 – 3,590 Sq Ft Country 1.5-Story House Plan with Walkout Basement, 4 Bedrooms and 4.5 Bathrooms – 14862R Renderings 4 – 3,590 Sq Ft Country 1.5-Story House Plan with Walkout Basement, 4 Bedrooms and 4.5 Bathrooms – 14862R
6
Construction documents are prepared for the following countries:

3,590 Sq Ft Country T-Shaped 1.5-Story House Plan with Walkout Basement, 4 Bedrooms, 4.5 Bathrooms and 3-Car Garage

Plan
14862R
Complete
Unsigned & Unsealed
DC Available
Key Specs
3590
Total Heated ft²
4 + 1
Baths + 1/2 Baths
4 + 0
Beds + Home Office
3
Cars
United States Canada
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

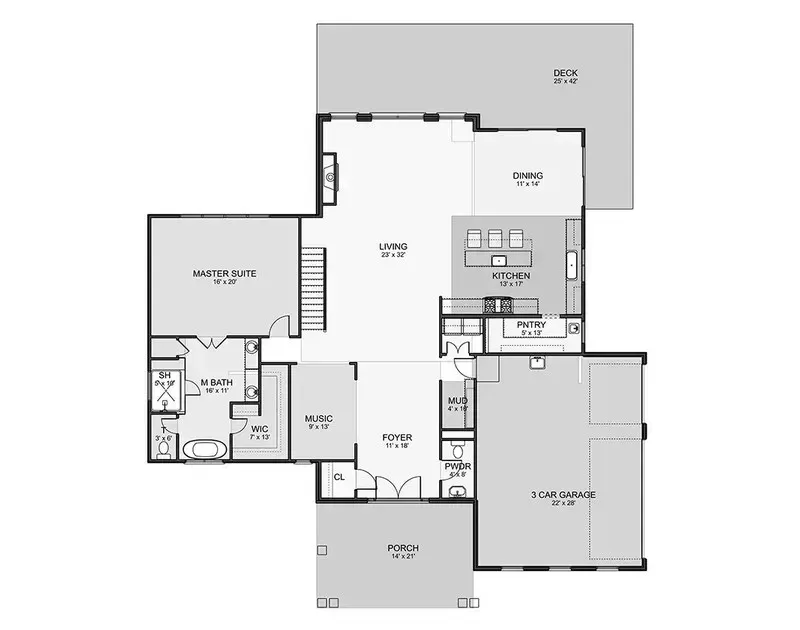

Main Floor
Main Floor 10 – 3,590 Sq Ft Country 1.5-Story House Plan with Walkout Basement, 4 Bedrooms and 4.5 Bathrooms – 14862R

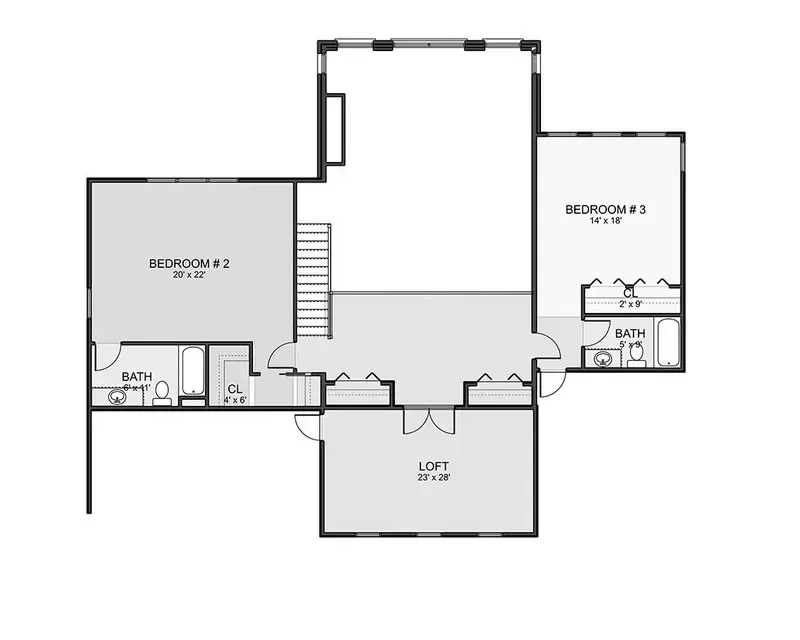

Second Floor
Second Floor 11 – 3,590 Sq Ft Country 1.5-Story House Plan with Walkout Basement, 4 Bedrooms and 4.5 Bathrooms – 14862R
Basement
Basement 9 – 3,590 Sq Ft Country 1.5-Story House Plan with Walkout Basement, 4 Bedrooms and 4.5 Bathrooms – 14862R
Full Specs & Features
Area
Main Floor: 2266 ft²
Second Floor: 1324 ft²
Basement: 1109 ft²
Bonus: 240 ft²
Porch: 933 ft²
Total Heated: 3590 ft²
Dimensions
Depth: 60'4" ft
Width: 66'3" ft
Height: 45'3" ft
Garage
Area: 661 ft²
Cars: 3
Attached
Side Entry
Foundation
Slab (Optional)
Walkout Basement
Crawl Space (Optional)
Exterior Wall Framing
Wood 2x6
Wood 2x4 (Optional)
Exterior Wall Materials
Siding
Rooms
Full bathrooms: 4
Half bathrooms: 1
Bedrooms: 4
Utility room
Bonus/Flex Room
Entry
Storage
Walk In Closet
Mudroom
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Open to Below
Loft
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Covered Front Porch
Deck
Large Windows
Architectural Style
Country
New American
Modern Farmhouse
Roof
Hip & Valley
Roof Pitch: 12/12 (45°)
Ceiling
Main Floor Ceiling Height: 9'0" ft
Second Floor Ceiling Height: 9'0" ft

House plan 14862R is a Country-style, T-shaped 1.5-story single-family home with a walkout basement. A hip-and-valley roof with a 12/12 pitch and siding on the exterior walls give the house a steep, sheltering roofline. The layout is sized for a family of 4 to 6 people.

A covered front porch leads to the entry and a mudroom that keeps coats and boots out of the living space. The open floor plan joins a large family room with a fireplace to a large kitchen, where an island and a breakfast bar give room for cooking and quick meals, while a breakfast nook seats the family for everyday dining. A walk-in pantry keeps supplies close at hand, and large windows bring daylight deep into the rooms. The family room is open to the loft above.

The primary suite sits on the main floor with a walk-in closet, and the split-bedroom layout sets it apart from the other bedrooms for privacy. The loft upstairs works as a reading or play area, and the bonus/flex room can become a guest room or hobby space. A utility room and storage keep household tasks and seasonal items organized.

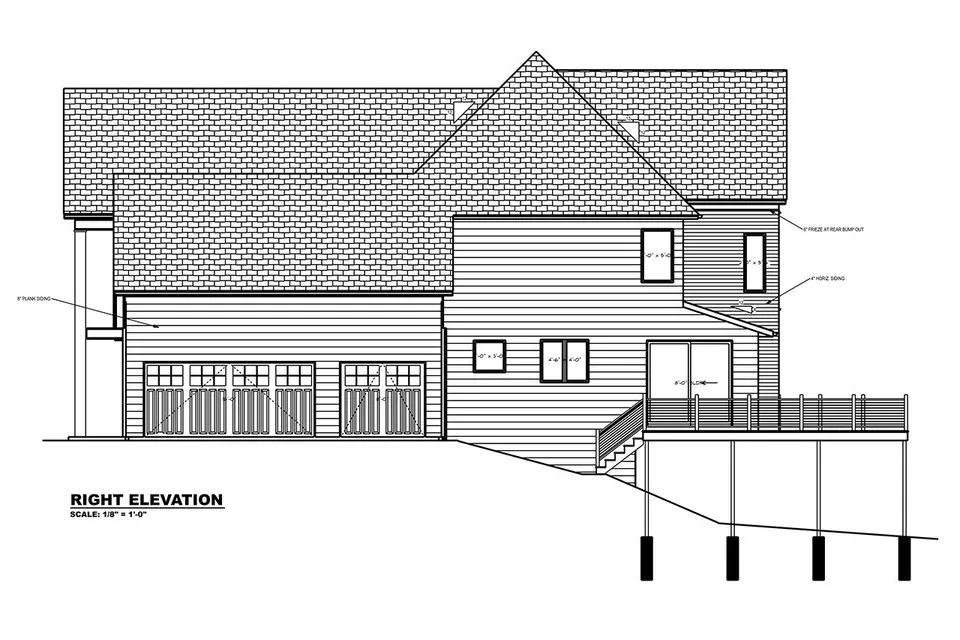

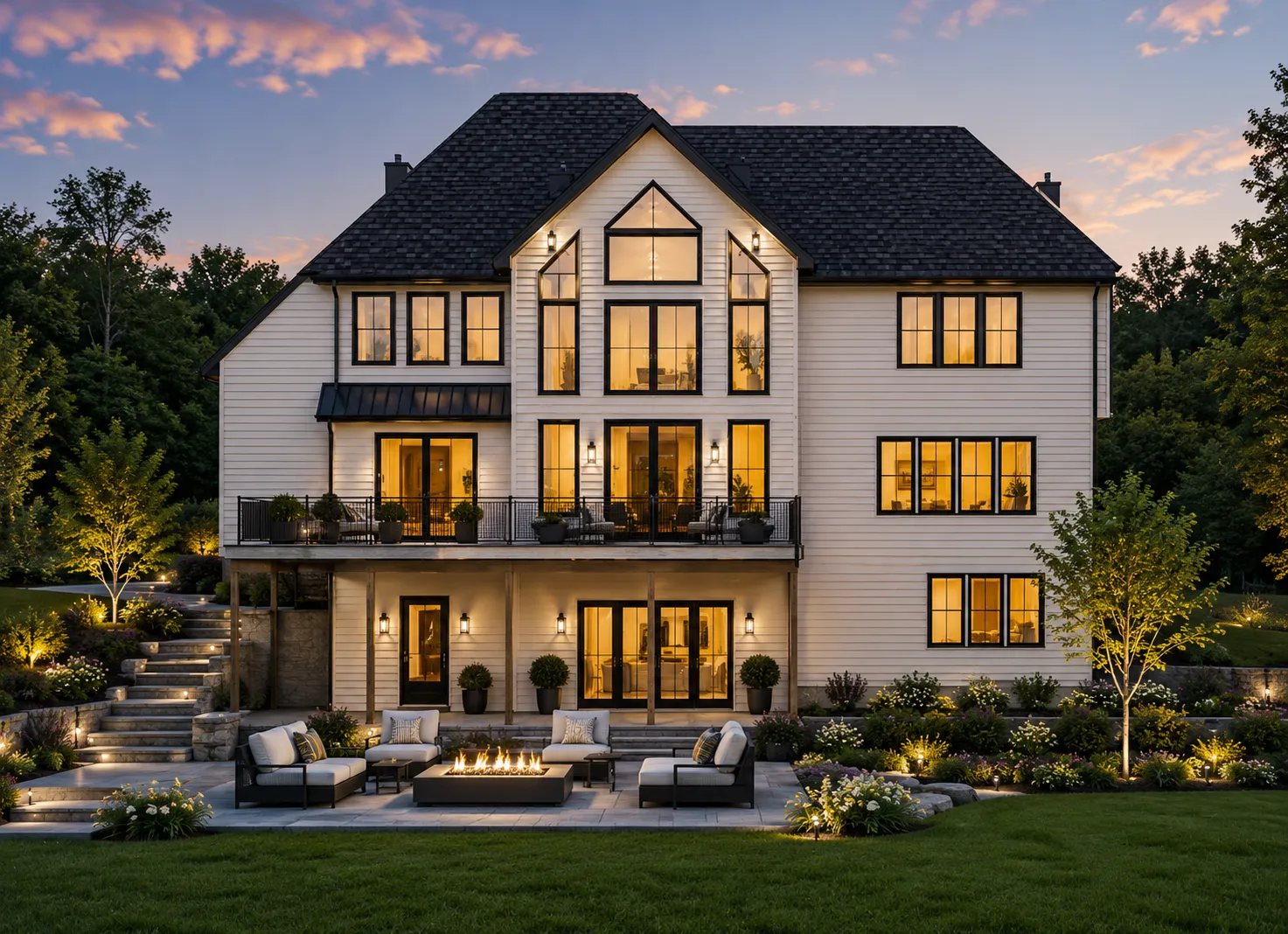

Stacked porches and a balcony add outdoor space on both levels, and the deck extends living into the yard. The attached 3-car garage has a side entry, which keeps the garage doors off the front elevation. The walkout basement opens to grade on a sloping lot, with slab and crawl space as alternative foundations; exterior walls are framed in 2x6 wood, with 2x4 as an option. The house measures 66'3" wide by 60'4" deep and offers Total Heated 3,590 Sq Ft, 4 bedrooms, 4.5 bathrooms and a 3-car garage.
