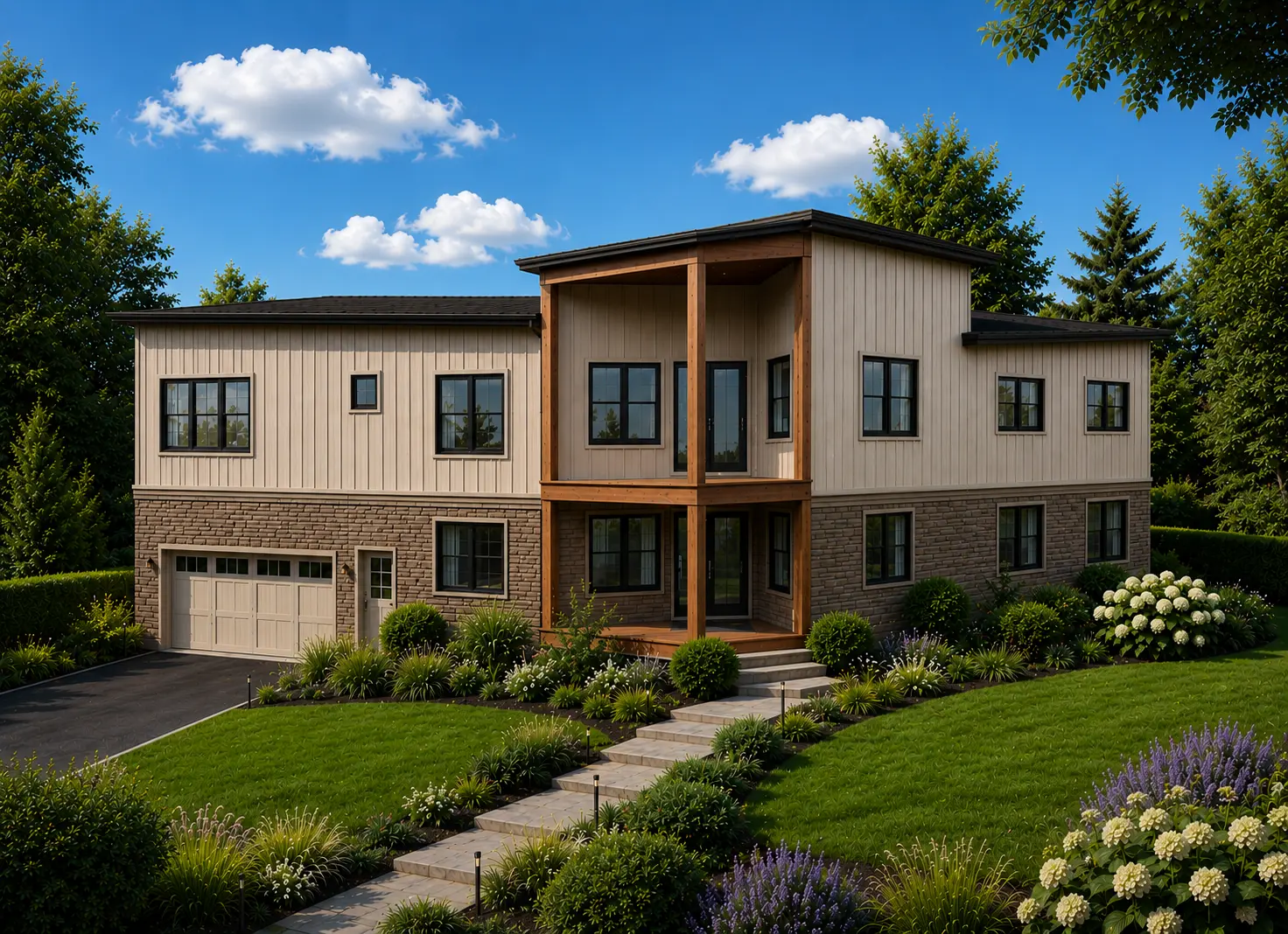

Renderings 2 – 2,917 Sq Ft Mid Century 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 64620R

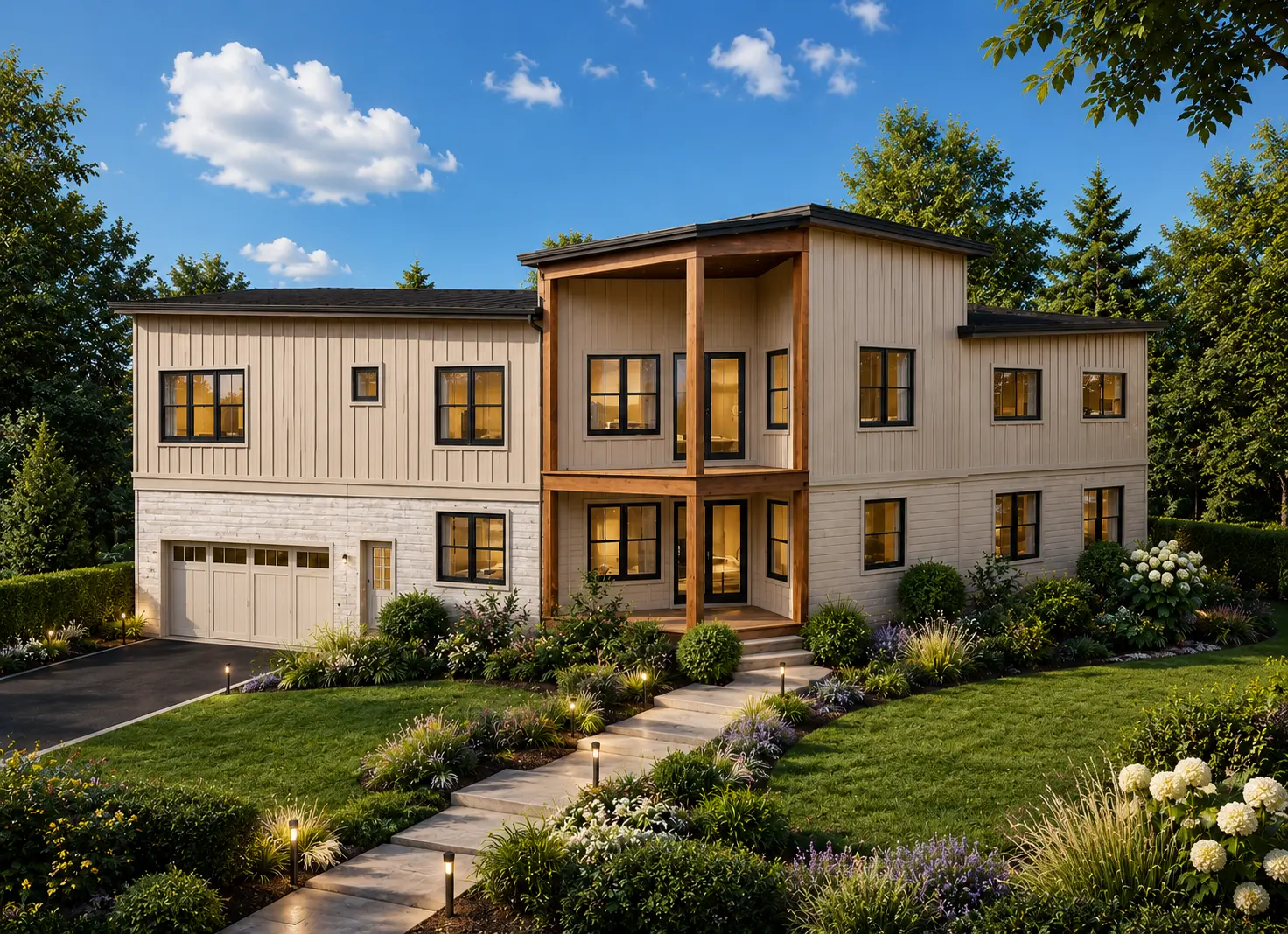

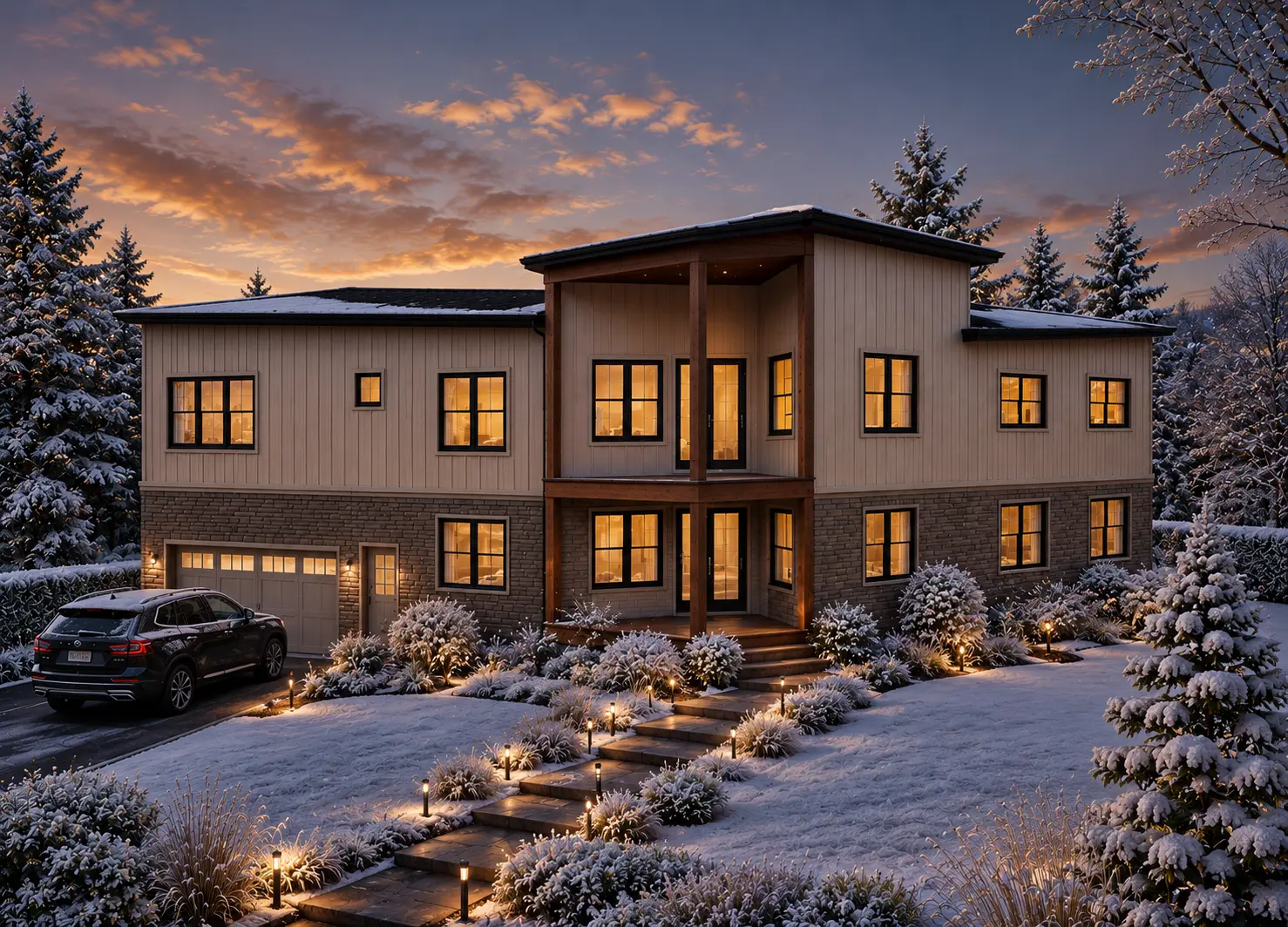

Renderings 3 – 2,917 Sq Ft Mid Century 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 64620R Renderings 4 – 2,917 Sq Ft Mid Century 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 64620R
5
Construction documents are prepared for the following countries:

2,917 Sq Ft Mid Century Sloped Lot 2-Story House Plan with 3 Bedrooms, 2.5 Bathrooms and 2-Car Garage

Plan
64620R
Complete
Unsigned & Unsealed
DC Available
Key Specs
2917
Total Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars
United States Canada
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

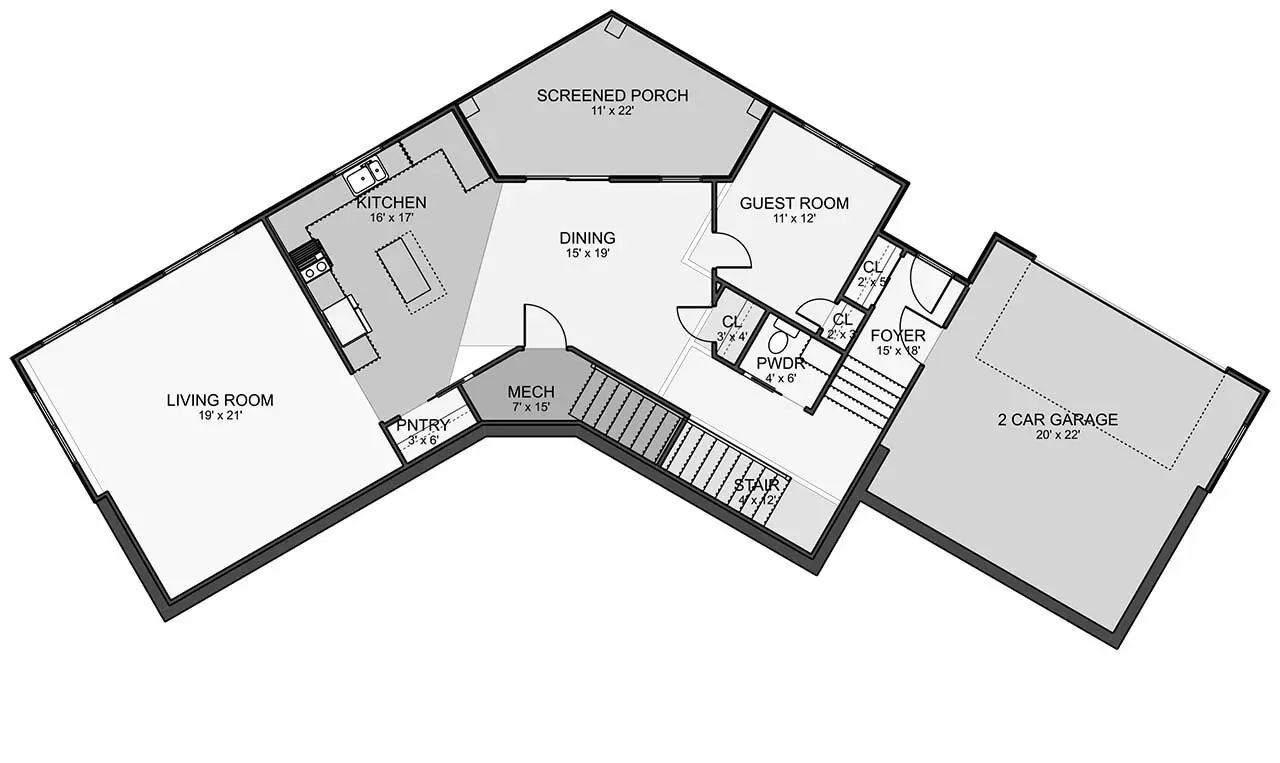

Main Floor
Main Floor 8 – 2,917 Sq Ft Mid Century 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 64620R

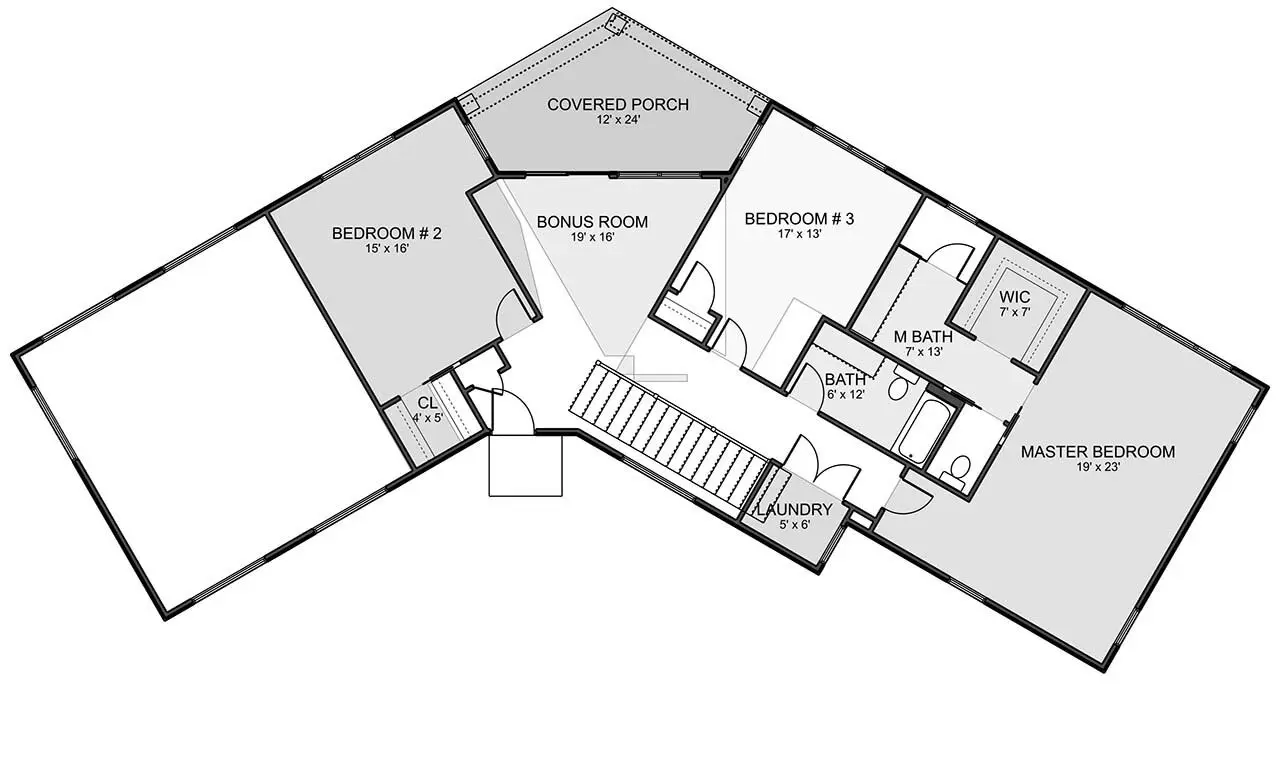

Second Floor
Second Floor 9 – 2,917 Sq Ft Mid Century 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 64620R
Full Specs & Features
Area
Main Floor: 1374 ft²
Second Floor: 1543 ft²
Porch: 530 ft²
Total Heated: 2917 ft²
Dimensions
Depth: 45'6" ft
Width: 89'3" ft
Height: 31'11" ft
Garage
Area: 470 ft²
Cars: 2
Room Above Garage
Front Entry
Foundation
Slab
Walkout Basement (Optional)
Crawl Space (Optional)
Exterior Wall Framing
Wood 2x6
Wood 2x4 (Optional)
Exterior Wall Materials
Siding
Stone/Brick Veneer
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Utility room
Bonus/Flex Room
Laundry
Entry
In-Law Suite
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry Second Floor
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Covered Front Porch
Screened Porch
Architectural Style
Mid Century
New American
Roof
Shed
Roof Pitch: 2/12 (9.5°)
Ceiling
Main Floor Ceiling Height: 9'0" ft
Second Floor Ceiling Height: 9'0" ft

House plan 64620R is a Mid Century 2-story single-family home with Total Heated 2,917 Sq Ft, designed for a sloped lot and a household of 3-4 people. The V-shaped form and low shed roof with a 2/12 (9.5°) pitch keep the profile horizontal, while siding with stone/brick veneer adds texture to the facades. The house is 89'3" wide and 45'6" deep.

A dedicated entry opens into a closed floor plan. The large family room gives the household space to gather, while the separate large kitchen keeps cooking noise and smells contained. An island with a breakfast bar serves quick meals, the breakfast nook hosts everyday dining, and the walk-in pantry keeps supplies out of sight.

The primary suite and the two other bedrooms are clustered on the second floor, keeping the night zone quiet. The primary suite has a walk-in closet, and the second-floor laundry saves trips down the stairs. The in-law suite gives a relative a private place to stay, and the bonus/flex room adapts to play or hobbies.

The covered front porch shelters arrivals, and the stacked porches pair a screened porch for bug-free evenings with a balcony above. The front-entry 2-car garage has a room above it for storage, and a utility room keeps equipment apart from living areas. A slab foundation is standard, with walkout basement or crawl space options; exterior walls are framed in 2x6 wood, or 2x4 as an option. In total, the plan offers Total Heated 2,917 Sq Ft, 3 bedrooms, 2.5 bathrooms and a 2-car garage.

Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
