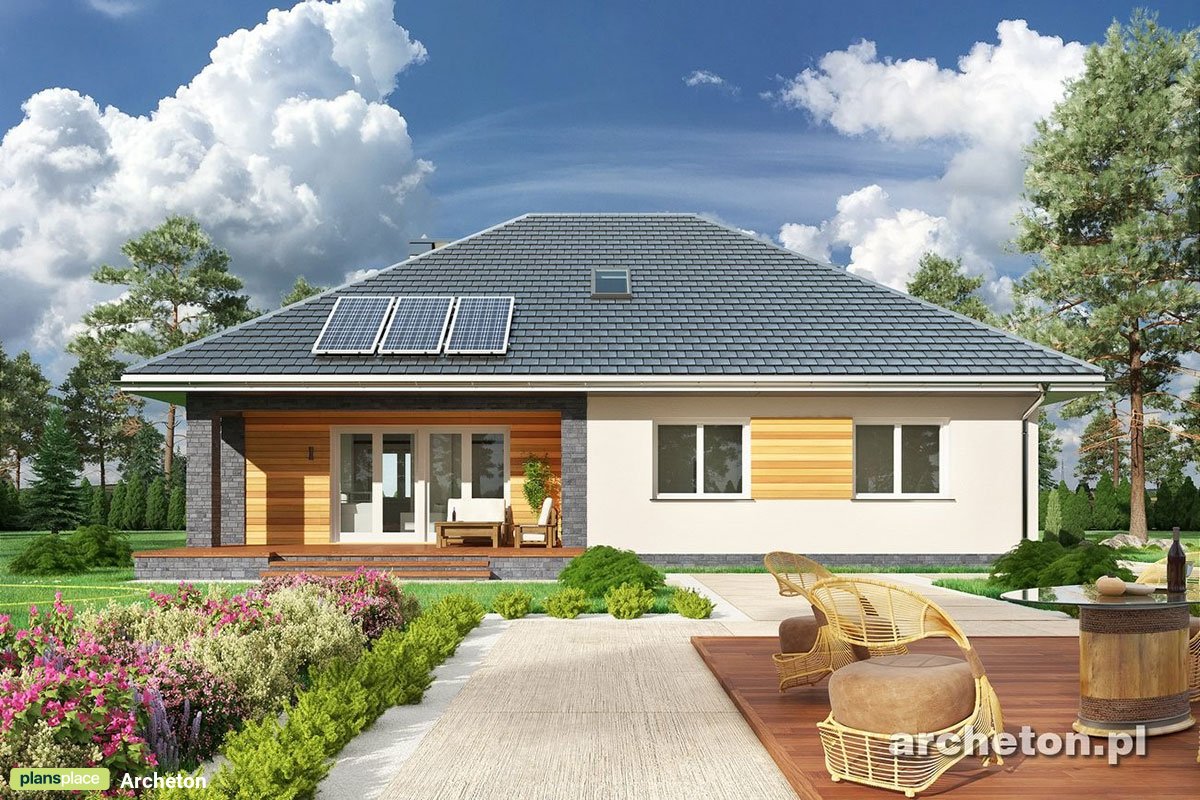

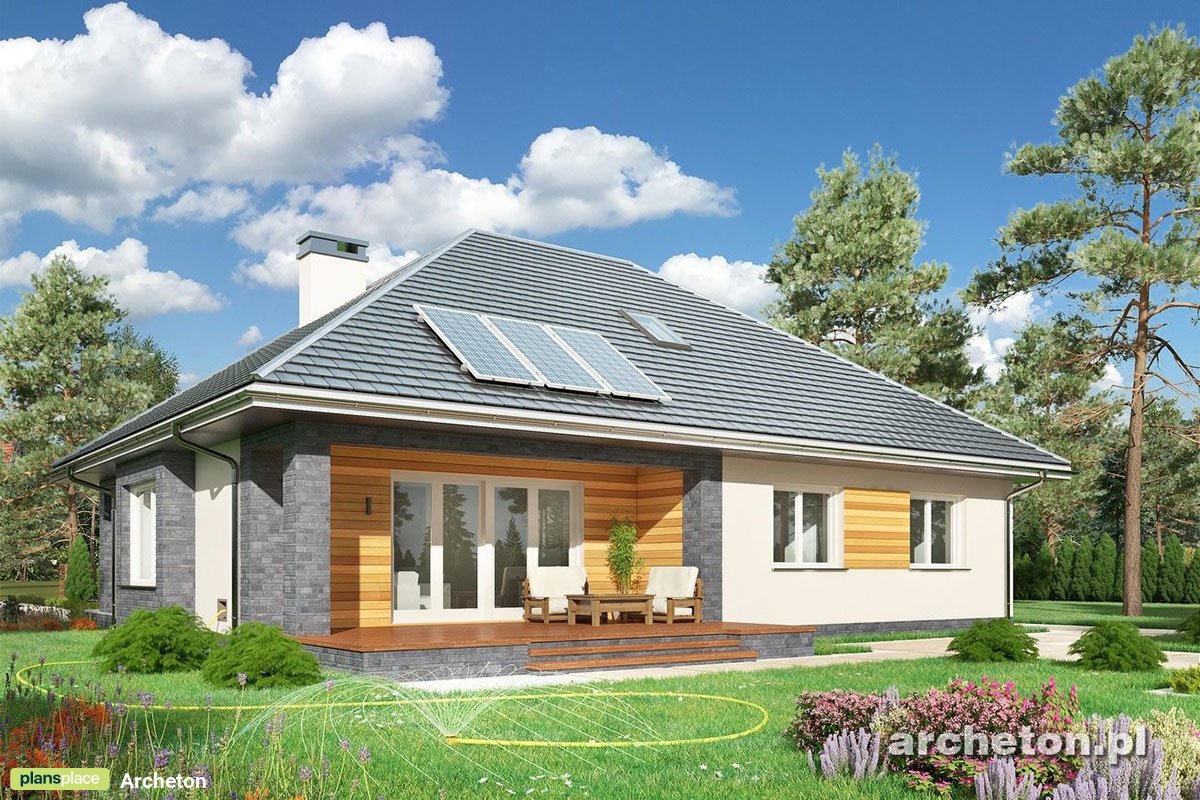

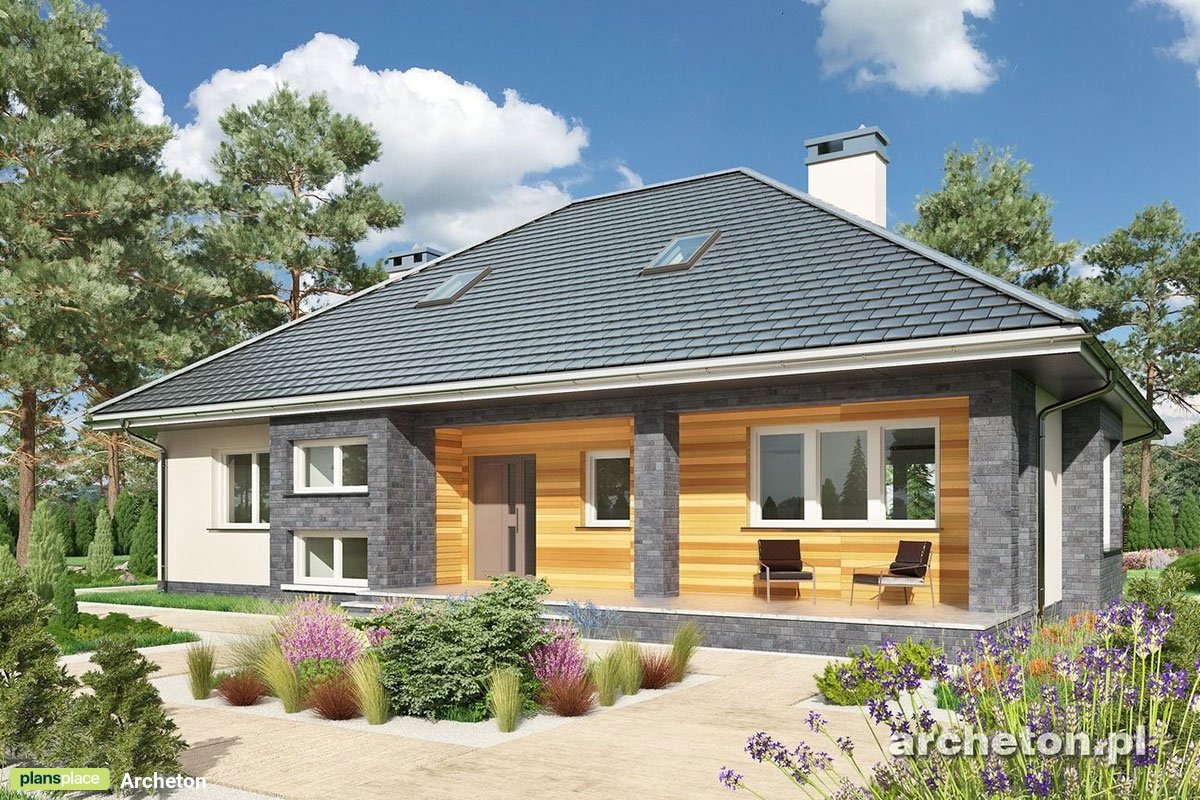

1-Story House Plan with Basement and Bonus Level Upstairs

Plan
41265R
Prepared
Stamped & Signatured
CAD Concept
Key Specs
1132
Total Heated Area sq ft
3293
Total Unheated Area sq ft
49'1"
WIDTH
37'5"
DEPTH
2
BATHS
0
1/2 BATHS
3
BEDS
0
CARS
The plan architect is not from your country!
If you want to buy a plan from a foreign architect, you have two options:
1. You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
2. Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.

You can select a local architect in the recommendations on this page on the right below or on the Architects page. If there are no architects from your country on Plansplace, use your local websites to find one.
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to change something?

This house plan can be modified to suit your family's lifestyle and/or your lot specifics.

The plan architect is not from your country!


If you want to modify a plan from a foreign architect, you have two options:
You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
or
Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.

Video
Floor Plans
First Floor

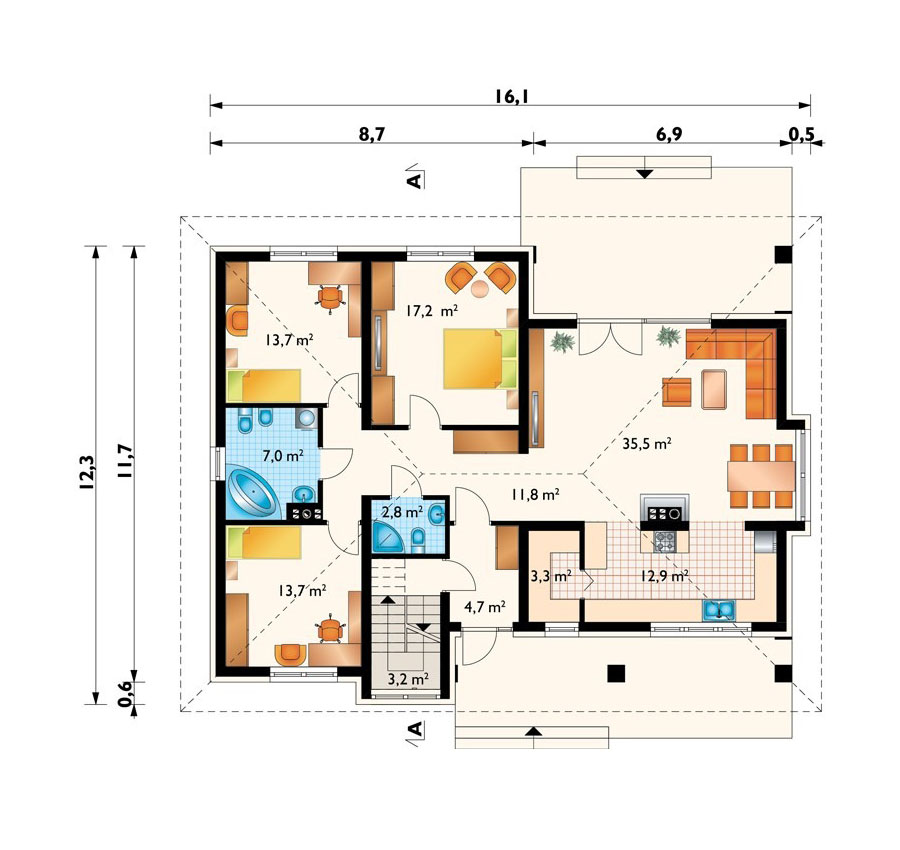

41265R - First Floor
Second Floor

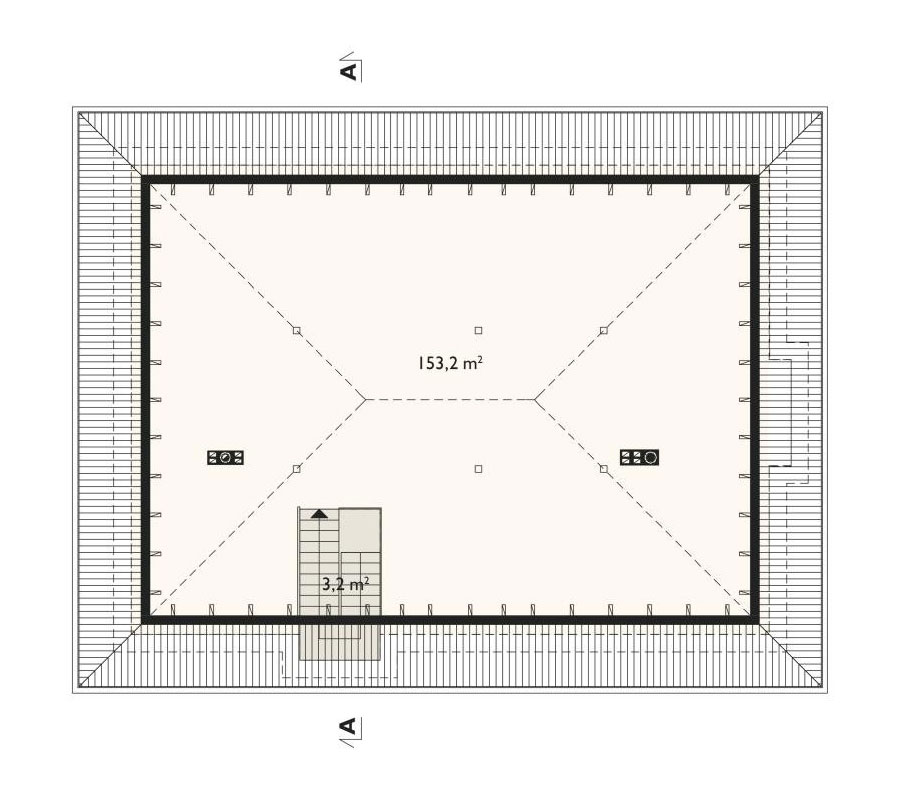

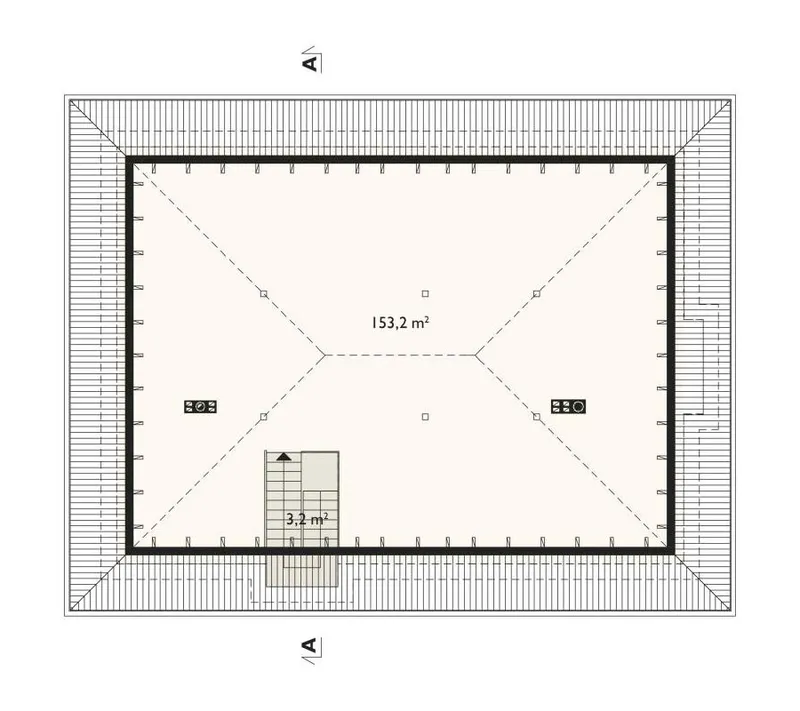

41265R - Second Floor
Basement

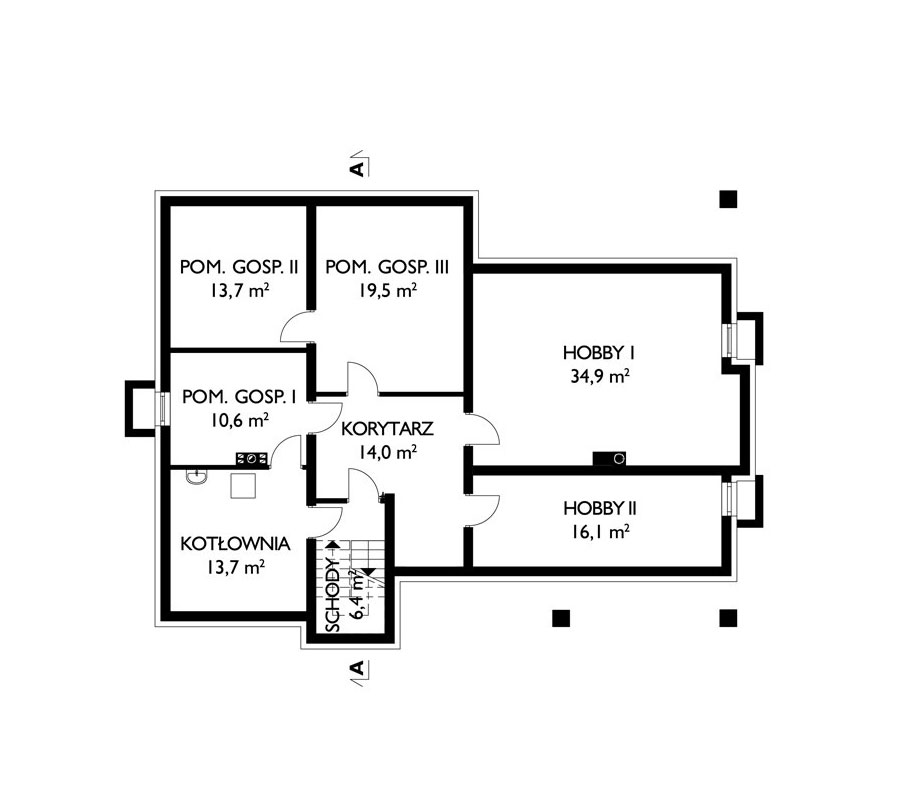

41265R - Basement
Full Specs & Features
Area
Total Heated Area: 1132 sq ft
Total Unheated Area: 3293 sq ft
Poddasze do adaptacji/Strych: 1684 sq ft
Basement: 1388 sq ft
Dimensions
Depth : 37'5" ft
Width : 49'1" ft
Height : 25'0" ft
Exterior Wall Framing
Ceramic Block
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Furnace Room
Laundry
Mudroom
Storage
Workshop
Bonus Level Upstairs
Foundation
Basement
Architectural Style
Bungalow
European
Traditional
Outdoor Options
Covered Front Porch
Covered Rear Porch
Interior Options
Laundry Lower Level
Fireplace in Family Room
Clustered Bedrooms
Jack & Jill Bath
Closed Floor Plan
Large Family Room
Large Kitchen
Kitchen and Dining
Butler Walk-in Pantry
Breakfast Nook
Garage
Garage Area: 222 sq ft
Roof
Roof Area: 2939 sq ft
Hip
Pyramid
Roof Pitch: 8/12
The Architect of the Plan
Archeton Archeton
Polska
Polska
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9 31-553
+48122950577
Plan Package

The house plan does not adhere to the building codes of your country.

You can buy an electronic editable CAD Concept file from the plan architect and order the construction documents from any local architect who you can find below in the recommendation block or on this page. If there are no architects from your country on PlansPlace, please use your local websites to find one.

CAD Concept (Elevations & Floor Plans)
$256
