2,032 Sq Ft Modern L-Shaped 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

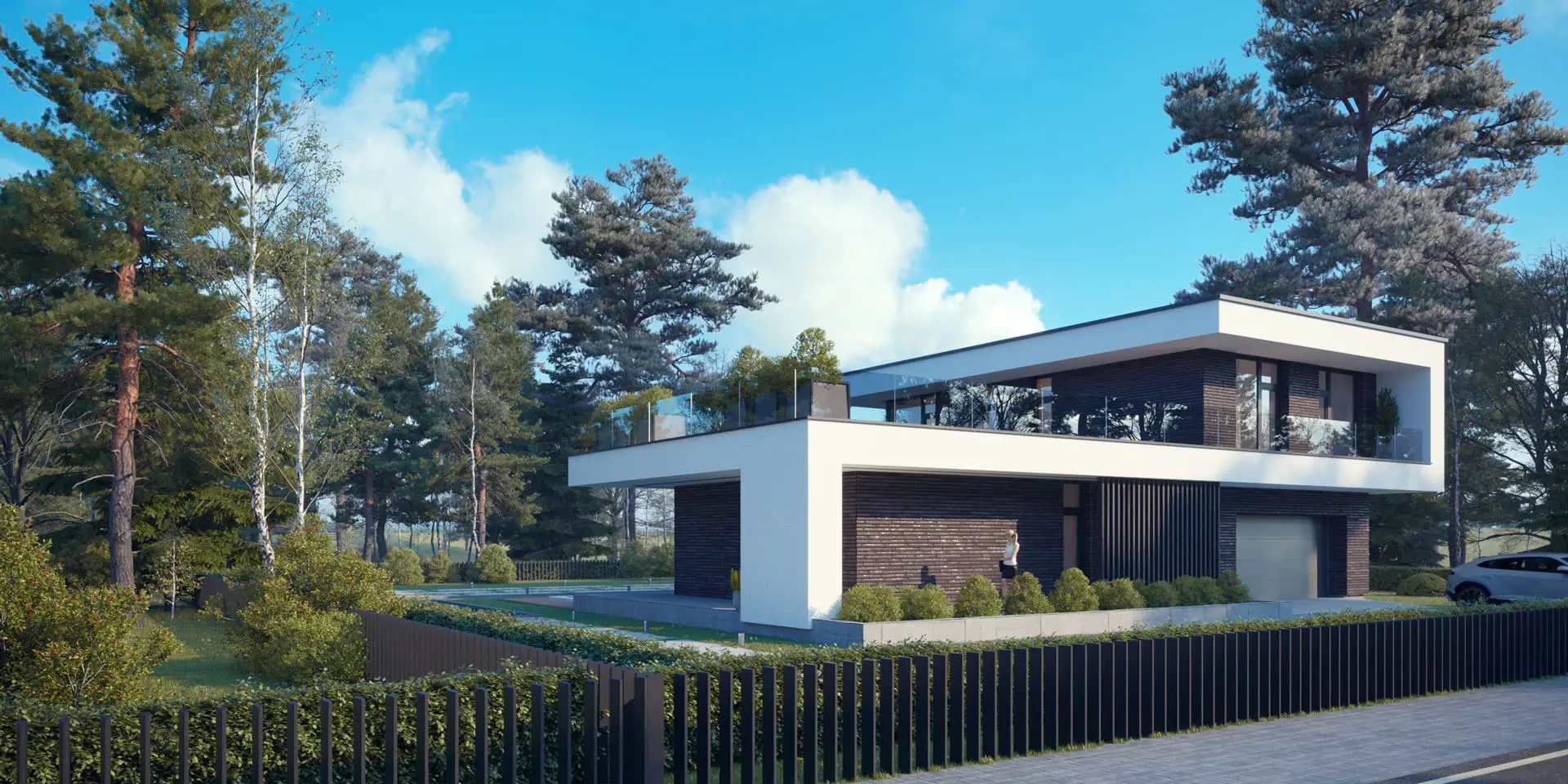

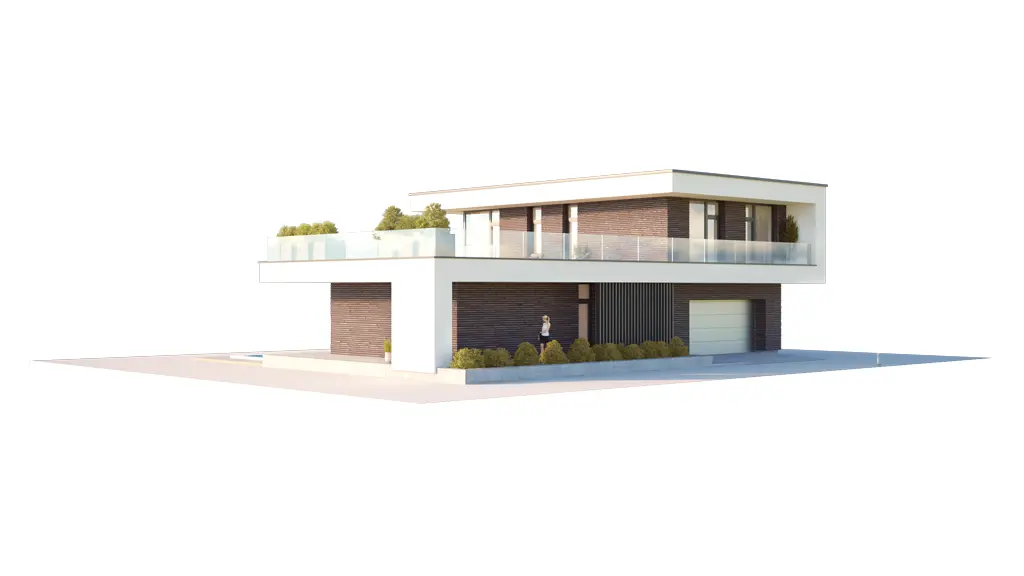

Plan 41846R is a modern L-shaped 2-story single-family house design concept with a total heated area of 2,032 Sq Ft, 3 bedrooms and 3 bathrooms, available for purchase as a digital house design concept. Sized for a family of 3-4 people, the house is 67'7" wide and 48'1" deep. A flat roof and exterior walls finished in stucco and panels give it clean, modern lines.

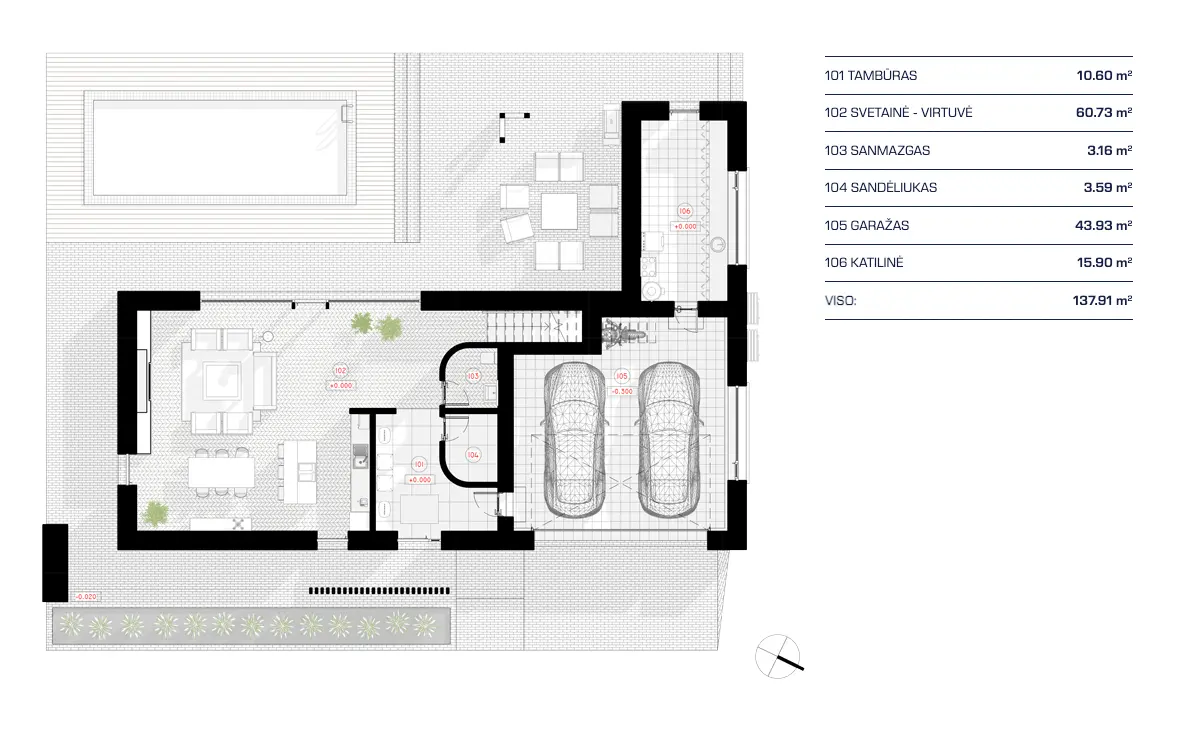

A defined entry leads into an open floor plan where the large great room and the kitchen share one space, so the family stays together while meals are prepared. The large kitchen centers on an island for extra prep space, and a breakfast nook handles quick everyday meals. Large windows, floor-to-ceiling windows and a corner window bring plenty of daylight inside.

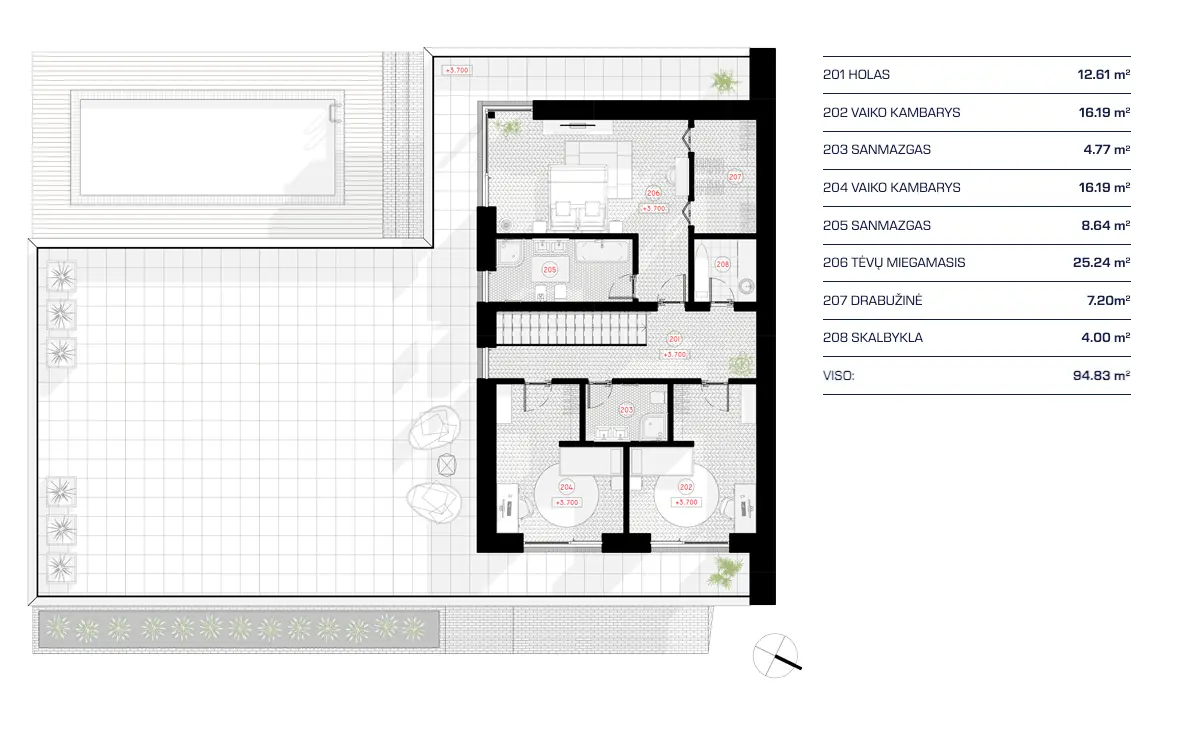

The primary suite sits on the second floor with a walk-in closet, and the split-bedroom layout keeps it apart from the other two bedrooms for more privacy. Three full bathrooms shorten the morning rush. The second-floor laundry is close to the bedrooms, so baskets no longer travel up and down the stairs, while a utility room and storage keep household equipment and seasonal items out of sight.
A covered rear porch offers a sheltered spot for outdoor meals, a deck extends the living space into the yard, and a balcony gives the upper floor its own place for fresh air. The rooftop deck turns the flat roof into an extra private terrace. The project is based on a slab foundation, with bored pile, strip and block foundations as options, and specifies sand-lime block exterior walls, with aerated concrete, ceramic block or wood frame as alternatives. In figures: total heated area 2,032 Sq Ft, 3 bedrooms and 3 bathrooms.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 10,162
My Home Floor Plans Rosemead US$ 1,450
Plan & Simple LLC Austin US$ 4,065
