1,626 Sq Ft Modern L-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 2-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

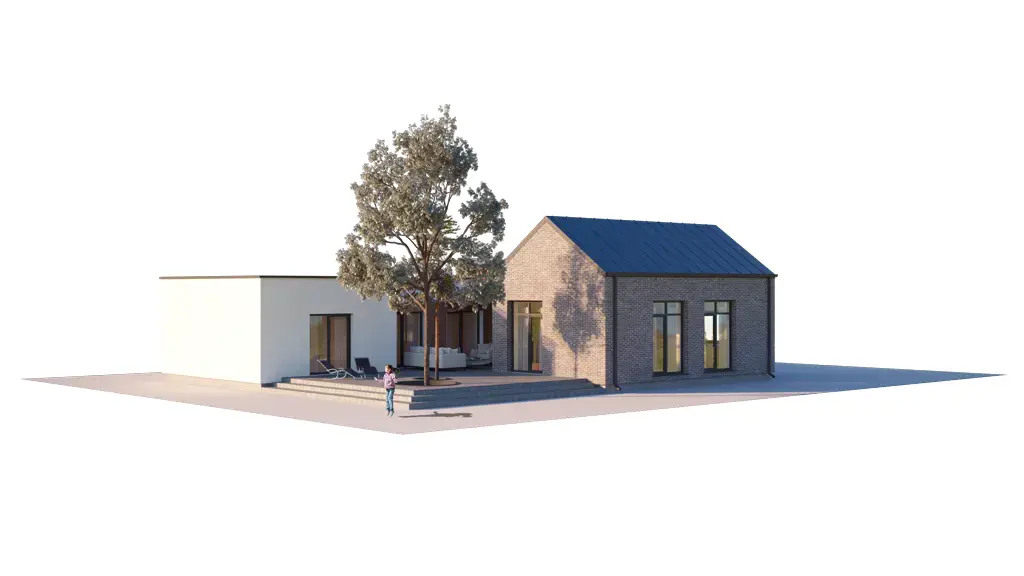

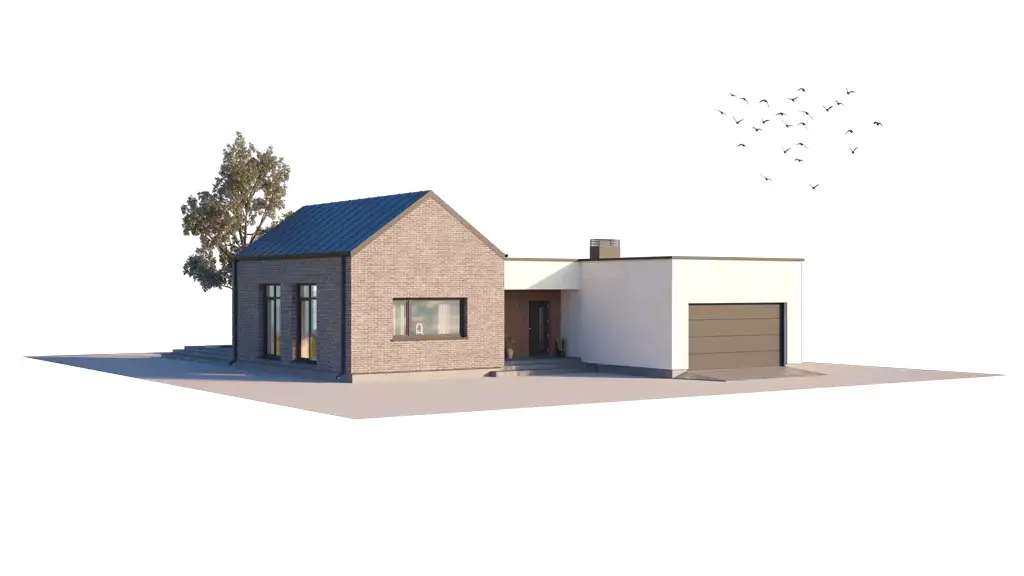

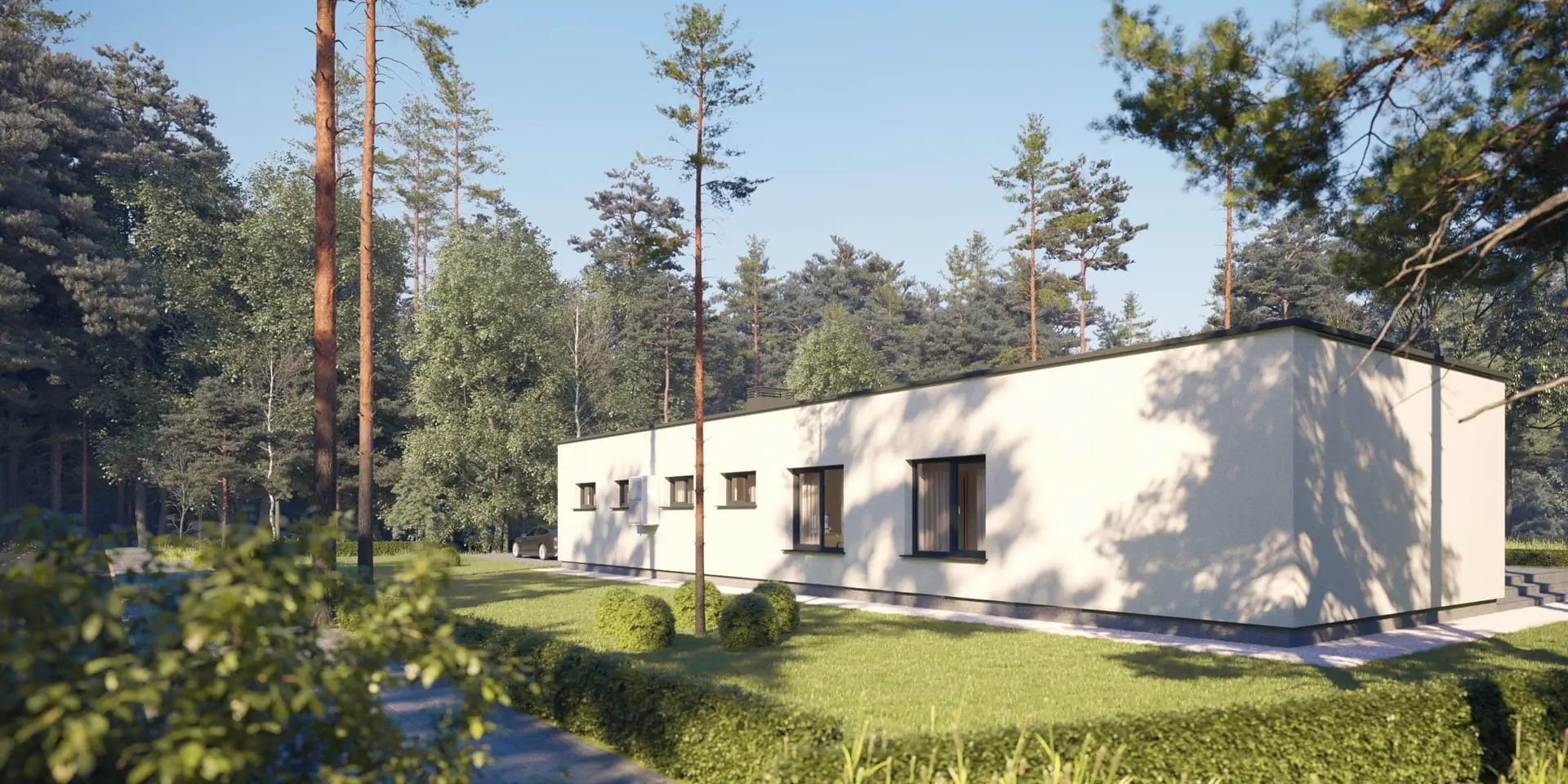

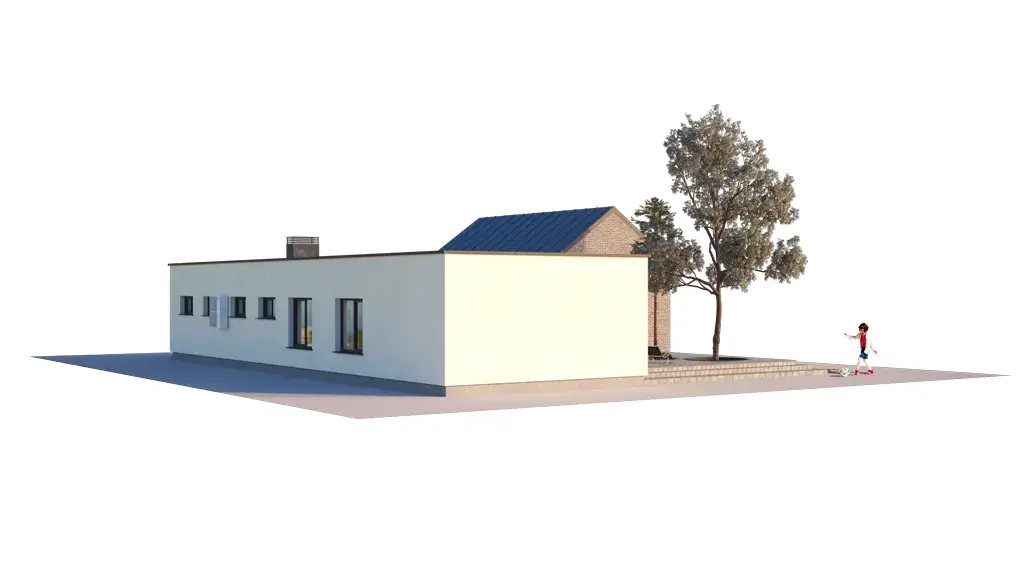

House design concept 44569R is a modern L-shaped single-story home with Total Heated 1,626 Sq Ft, designed for a single family of 3-4 people. Three bedrooms, two bathrooms and a 2-car garage sit under a gable roof with flat sections, pitched at 8/12 (34°) with the ridge perpendicular to the street.

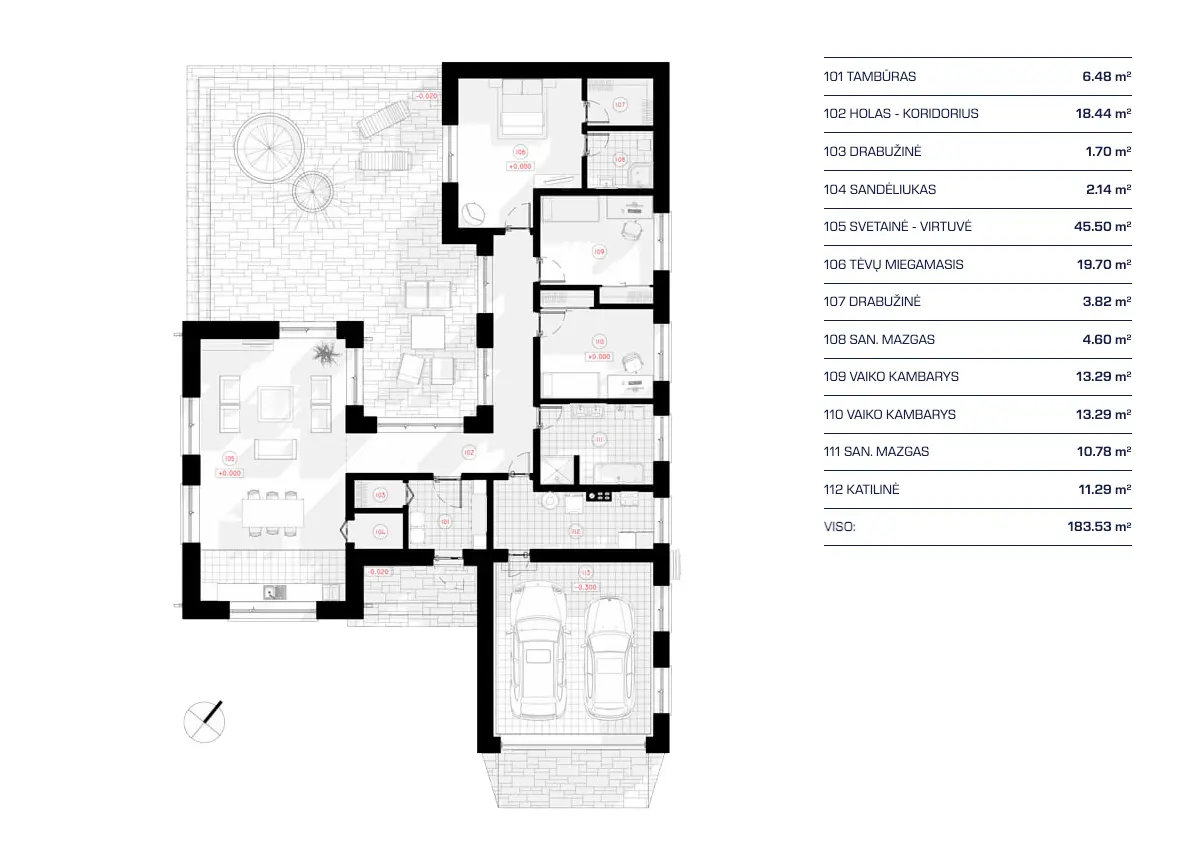

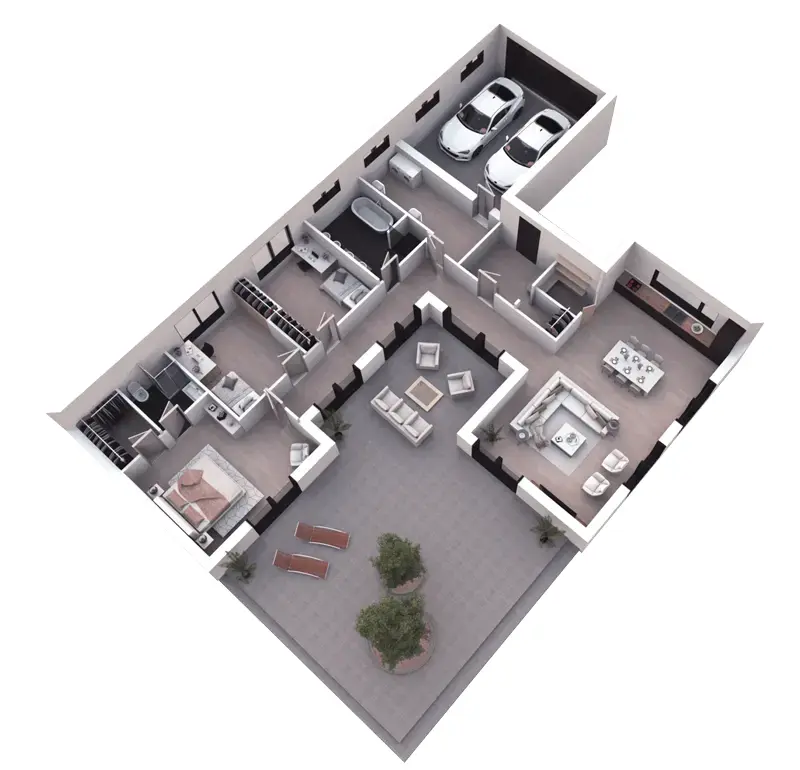

Through the entry you step into an open floor plan where the large family room, the large kitchen and the breakfast nook share one space, so cooking and conversation stay connected. A walk-in pantry keeps supplies out of sight, and floor-to-ceiling windows fill the day zone with daylight.
The bedrooms are clustered together, keeping the night zone compact and the children close to their parents. The primary bedroom on the main floor has a walk-in closet, and the two bathrooms share the morning rush between three bedrooms. Laundry is on the main floor in the utility room, keeping household chores on the living level.

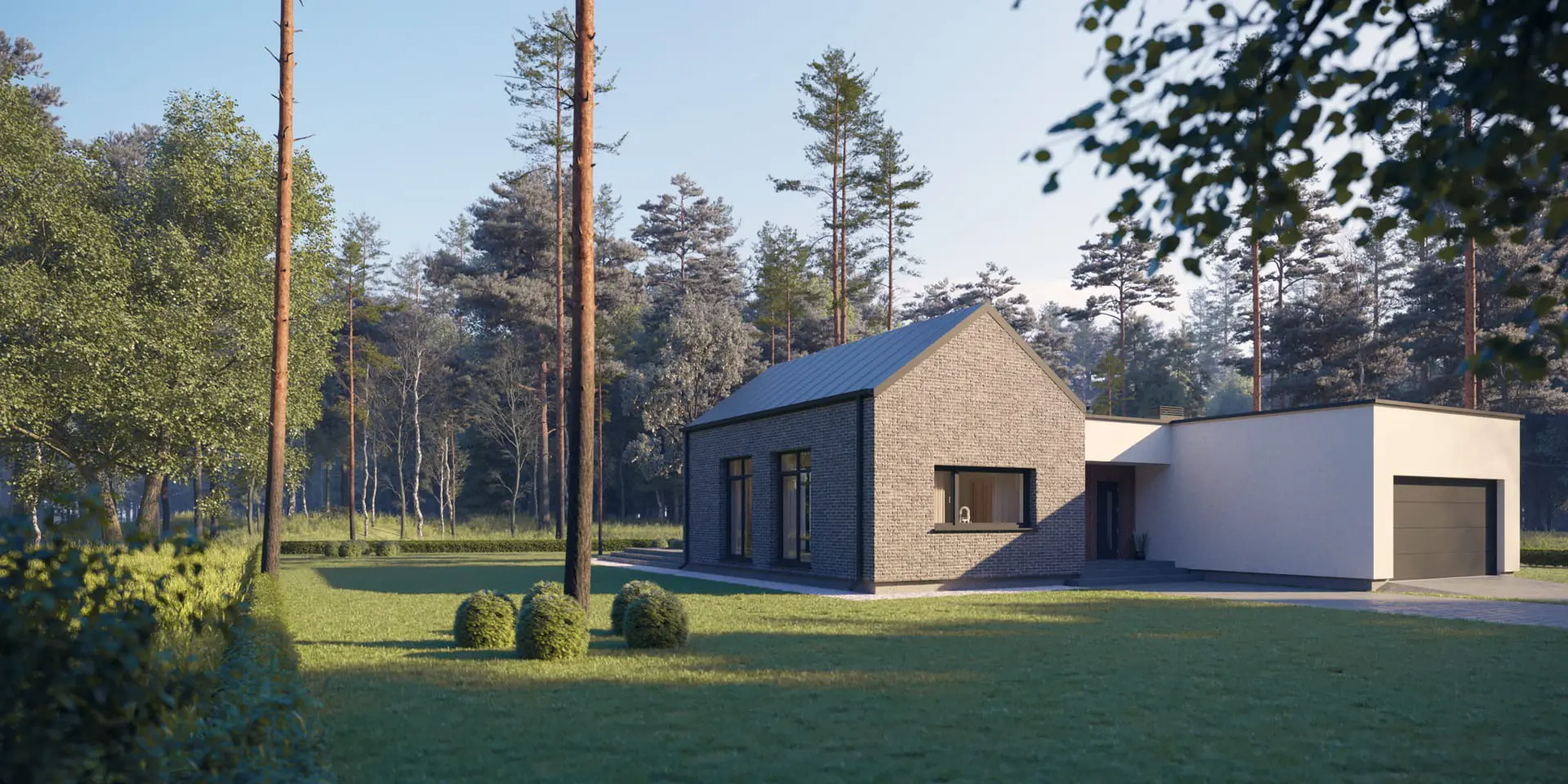

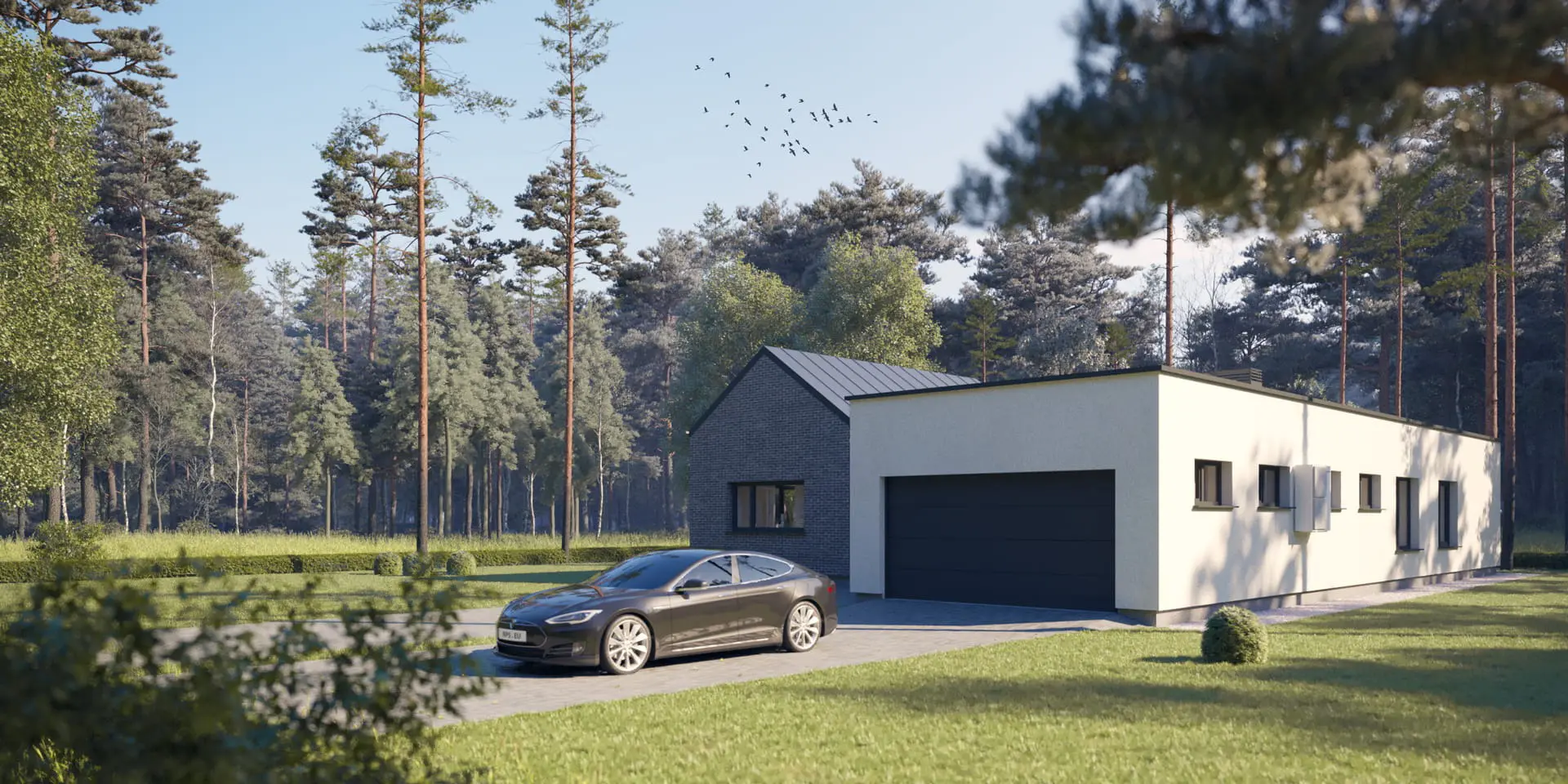

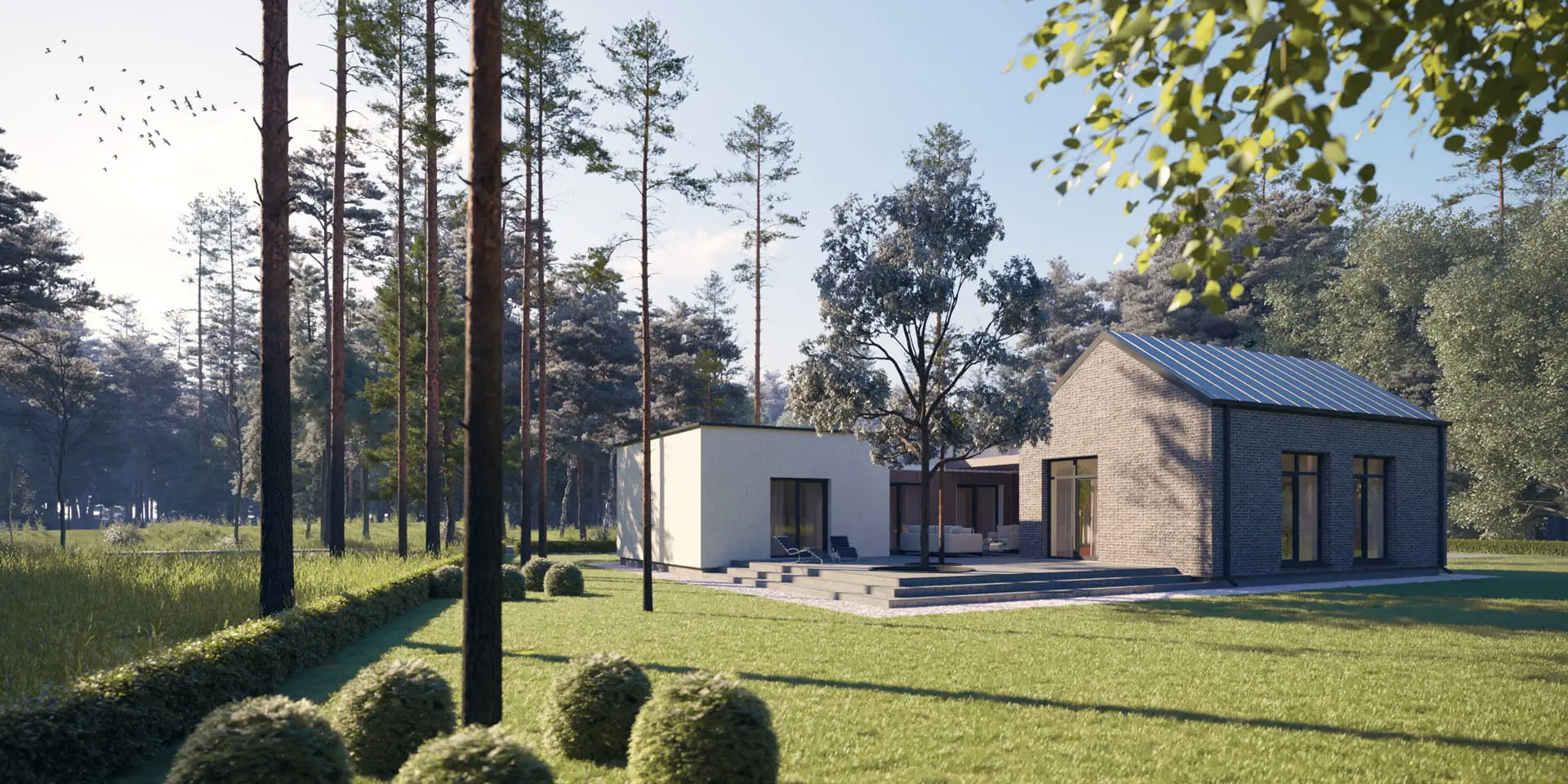

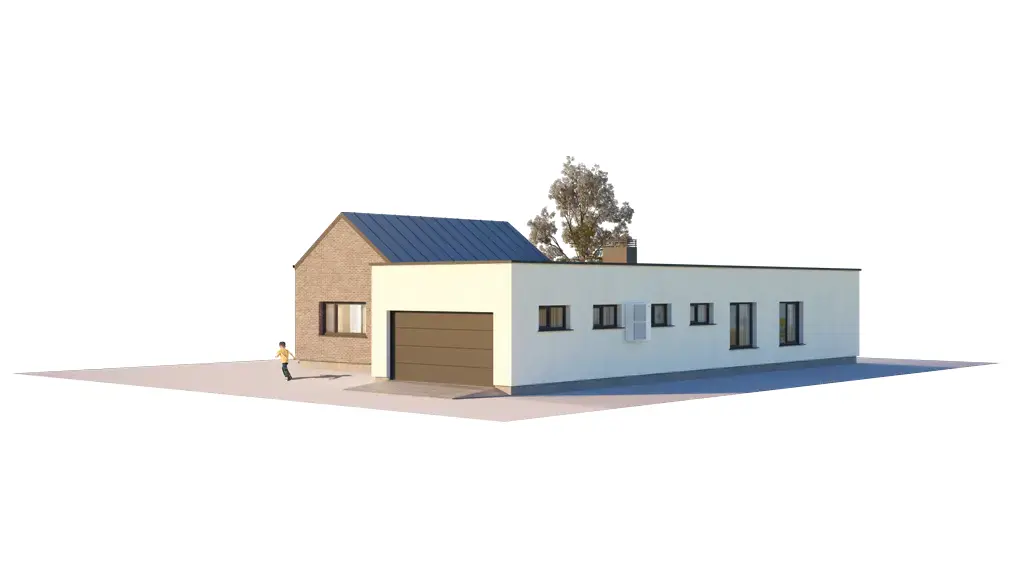

The deck extends living outdoors for summer meals. The front-entry 2-car garage projects forward, keeping the driveway short. Stone or brick veneer with stucco protects the facades. The house rests on a slab foundation, with bored piles, strip footings or blocks as options for other soils; the walls are sand-lime block, with aerated concrete, ceramic block or timber frame as alternatives. The width is 50'5" and the depth 71'8". In figures: Total Heated 1,626 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
