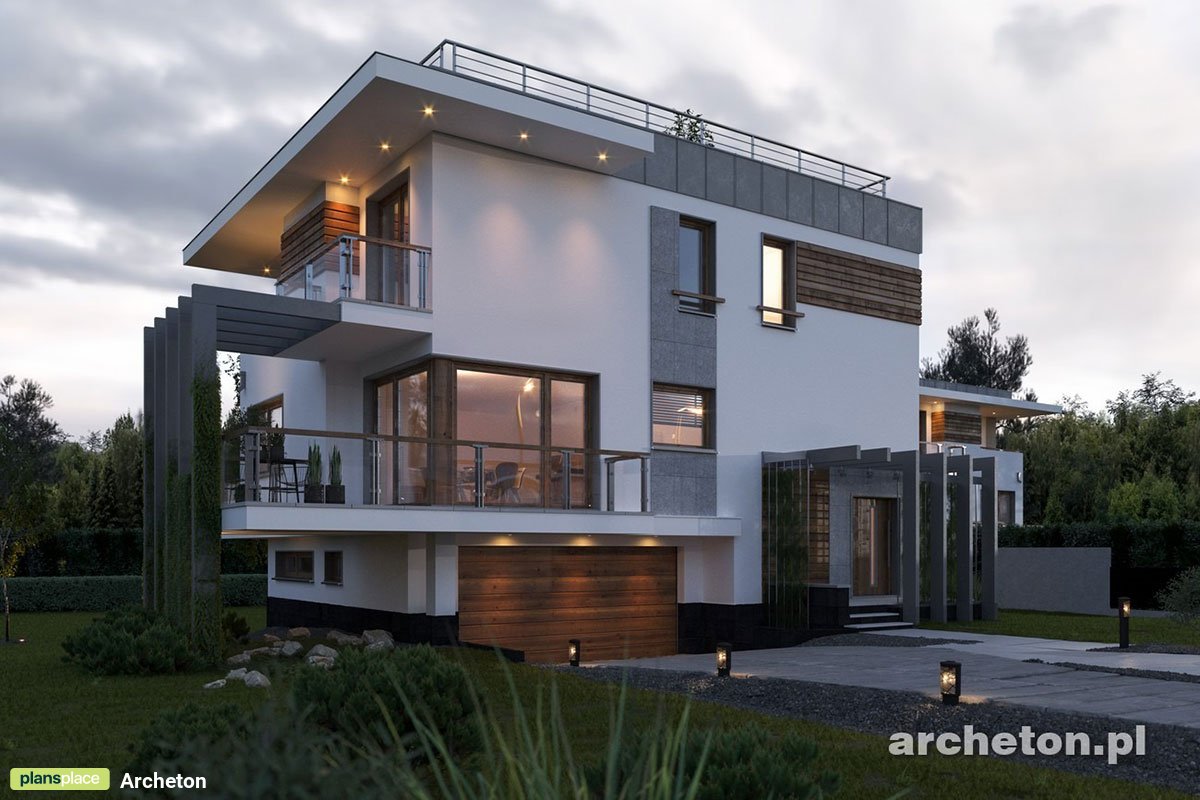

1600 Sq Ft Flat Roof House Plan with Basement Garage

Plan
53449R
Prepared
Stamped & Signatured
CAD Concept
Key Specs
1607
Total Heated Area sq ft
778
Total Unheated Area sq ft
36'9"
WIDTH
27'1"
DEPTH
3
BATHS
0
1/2 BATHS
3 + 1
BEDS
2
CARS
The plan architect is not from your country!
If you want to buy a plan from a foreign architect, you have two options:
1. You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
2. Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.

You can select a local architect in the recommendations on this page on the right below or on the Architects page. If there are no architects from your country on Plansplace, use your local websites to find one.
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to change something?

This house plan can be modified to suit your family's lifestyle and/or your lot specifics.

The plan architect is not from your country!


If you want to modify a plan from a foreign architect, you have two options:
You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
or
Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.

Floor Plans

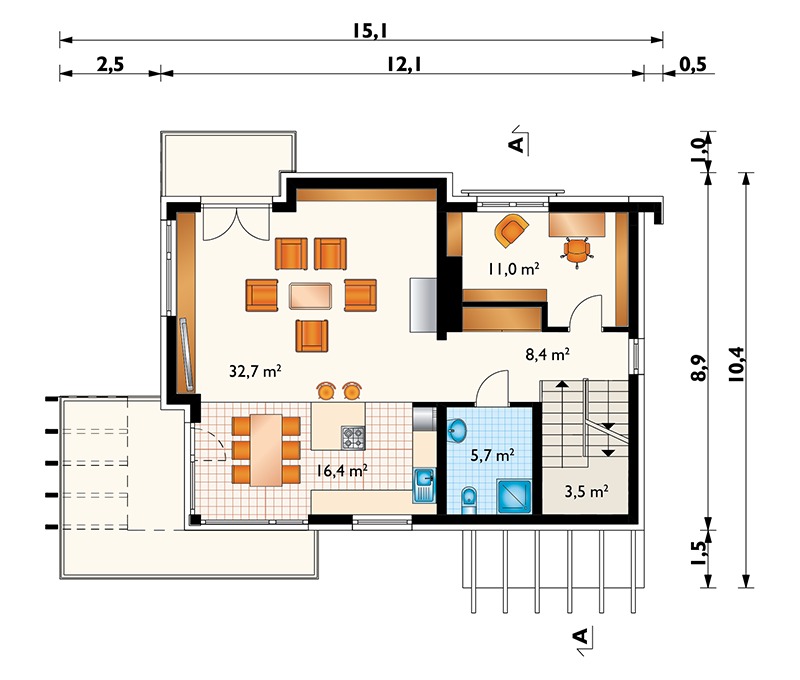

First Floor
53449R - First Floor

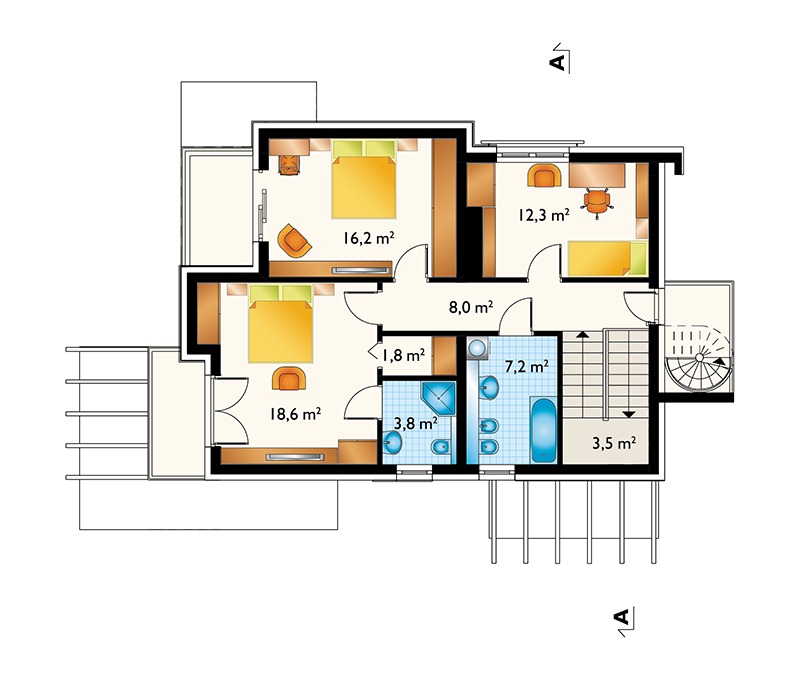

Second Floor
53449R - Second Floor

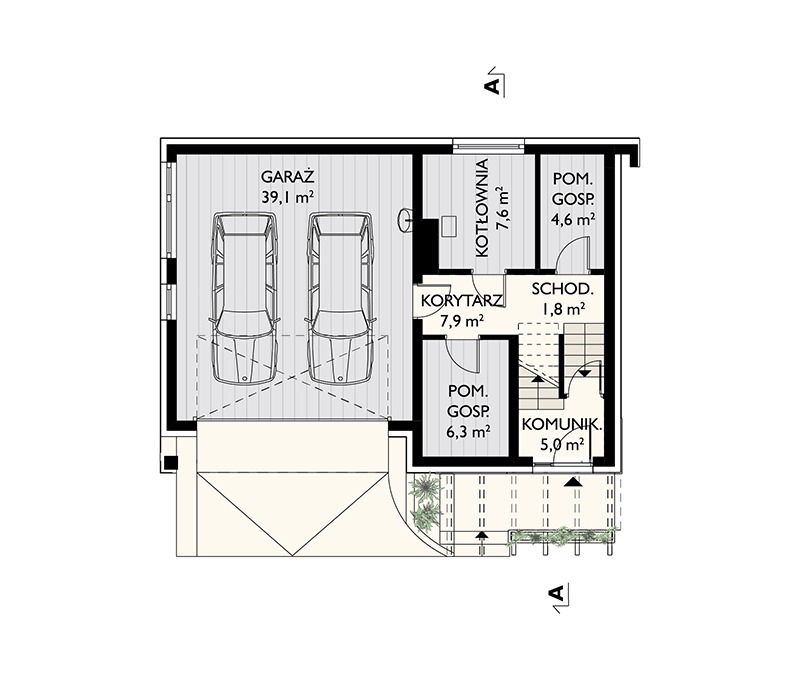

Basement
53449R - Basement
Full Specs & Features
Area
Total Heated Area: 1607 sq ft
Total Unheated Area: 778 sq ft
Basement: 778 sq ft
Dimensions
Depth : 27'1" ft
Width : 36'9" ft
Height : 27'1" ft
Exterior Wall Framing
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rooms
Furnace Room
Laundry
Home Office
Storage
Foundation
Daylight Basement
Architectural Style
Contemporary
European
High-tech
Modern
Outdoor Options
Balcony
Covered Front Porch
Deck
Covered Side Porch
Large Windows
Floor-to-Ceiling Windows
Interior Options
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Walk In Closet
In-Law/Guest Suite
Open Floor Plan
Large Family Room
Large Kitchen
Laundry in Furnace Room
Kitchen and Dining
Breakfast Nook
Island
Corner Window
Garage
Garage Area: 0 sq ft
Cars: 2
Drive Under
Front Entry
Roof
Roof Area: 840 sq ft
Flat
The Architect of the Plan
Archeton Archeton
Polska
Polska
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9 31-553
+48122950577
Plan Package

The house plan does not adhere to the building codes of your country.

You can buy an electronic editable CAD Concept file from the plan architect and order the construction documents from any local architect who you can find below in the recommendation block or on this page. If there are no architects from your country on PlansPlace, please use your local websites to find one.

CAD Concept (Elevations & Floor Plans)
$230
