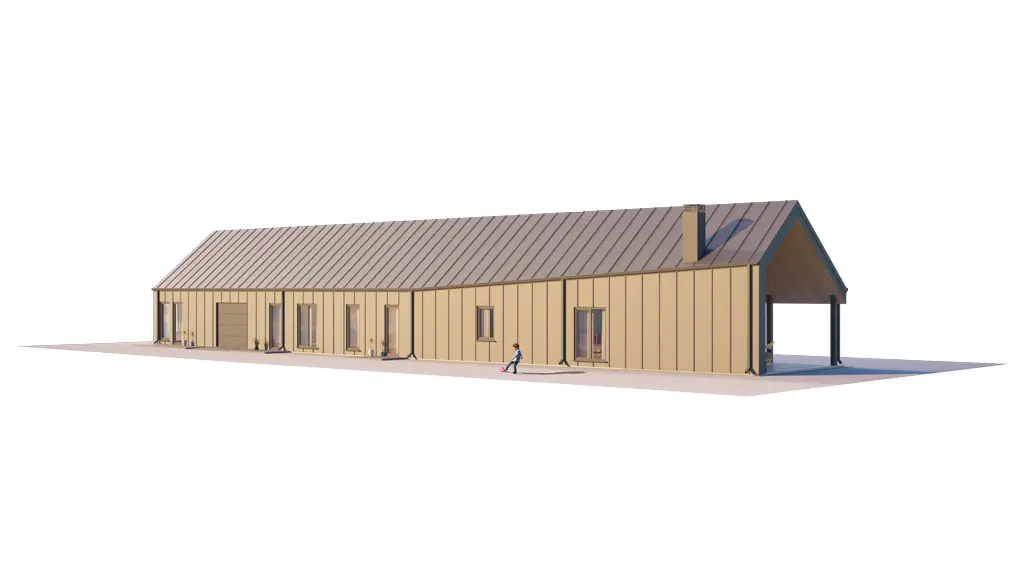

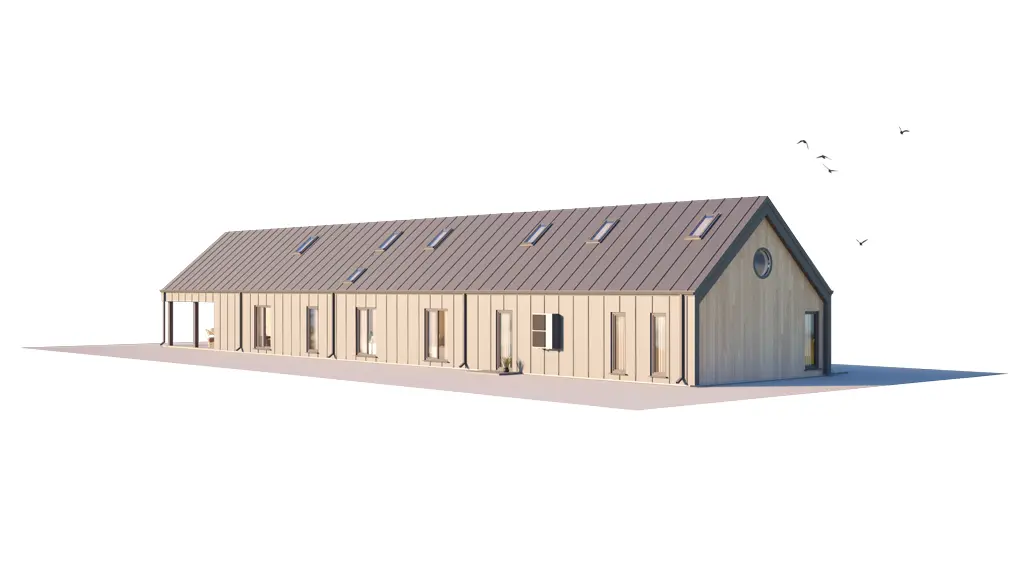

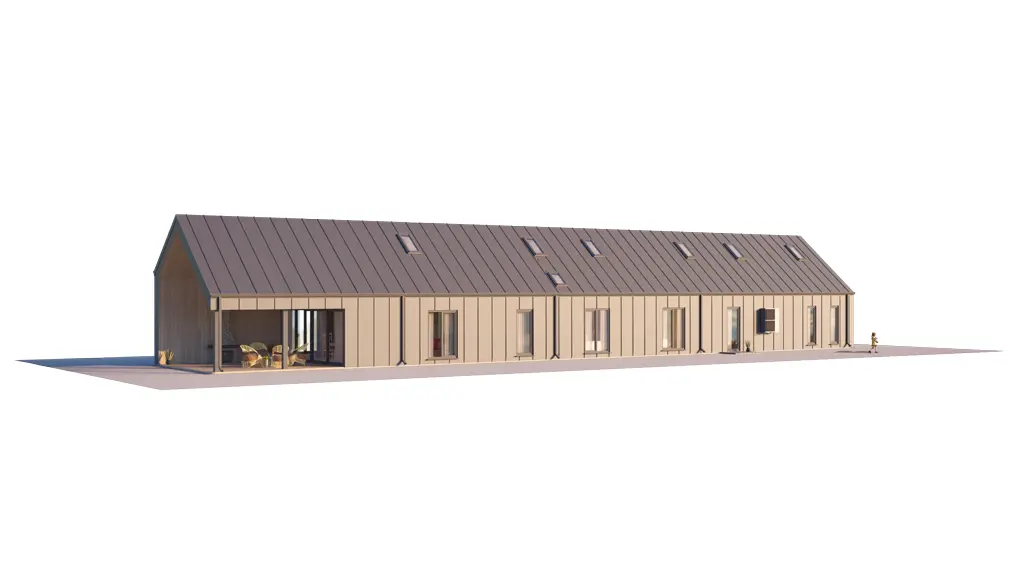

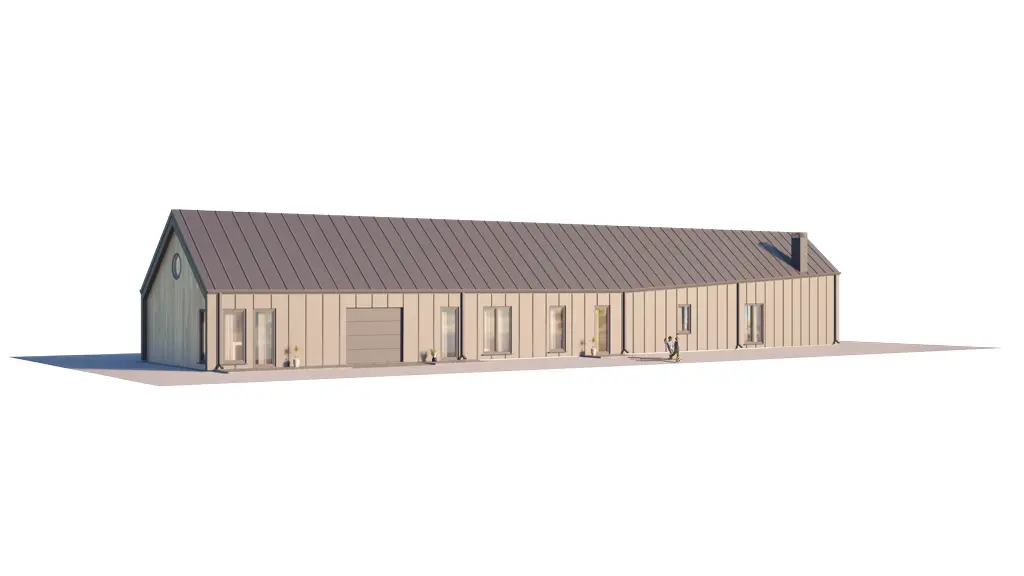

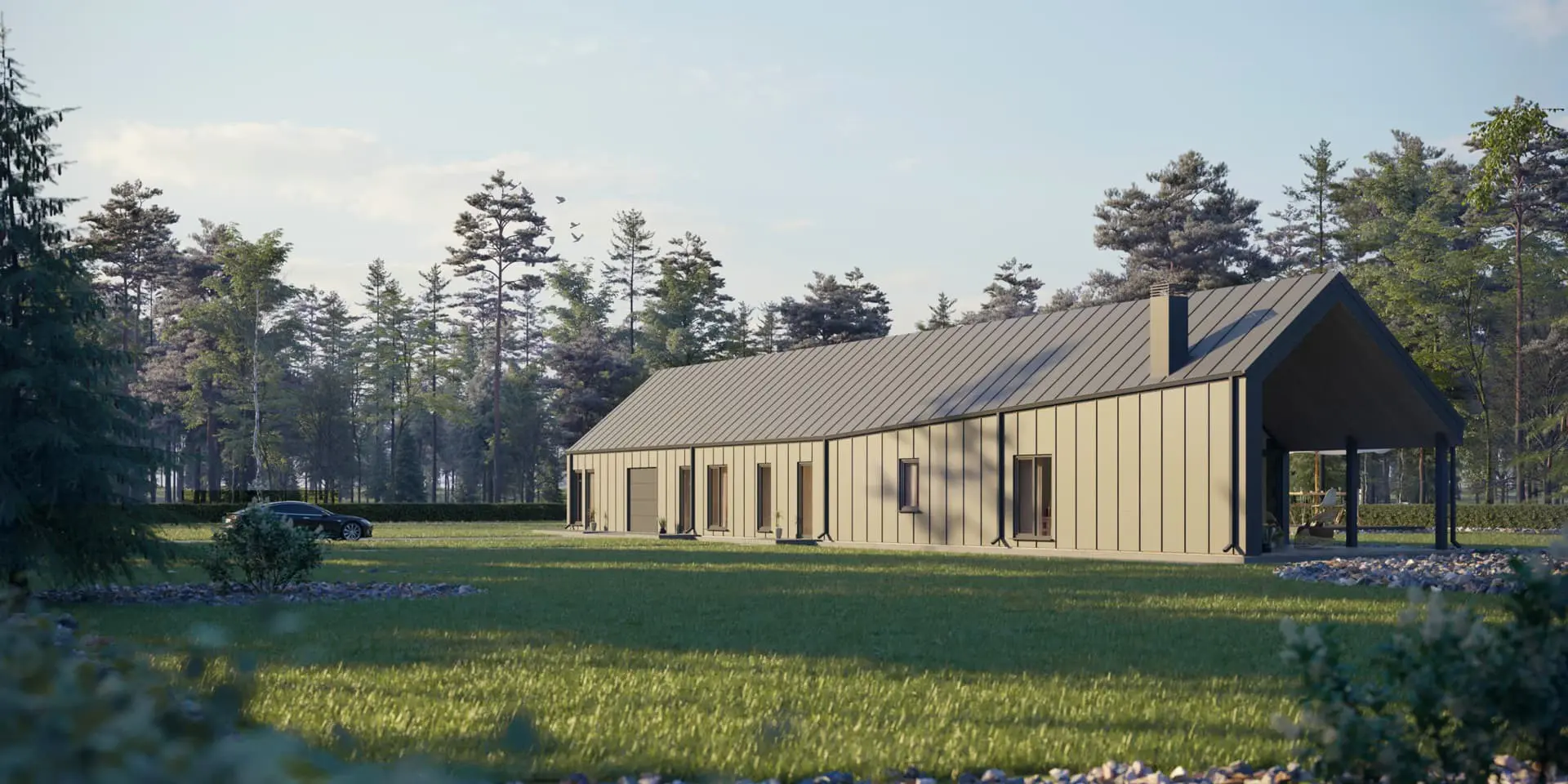

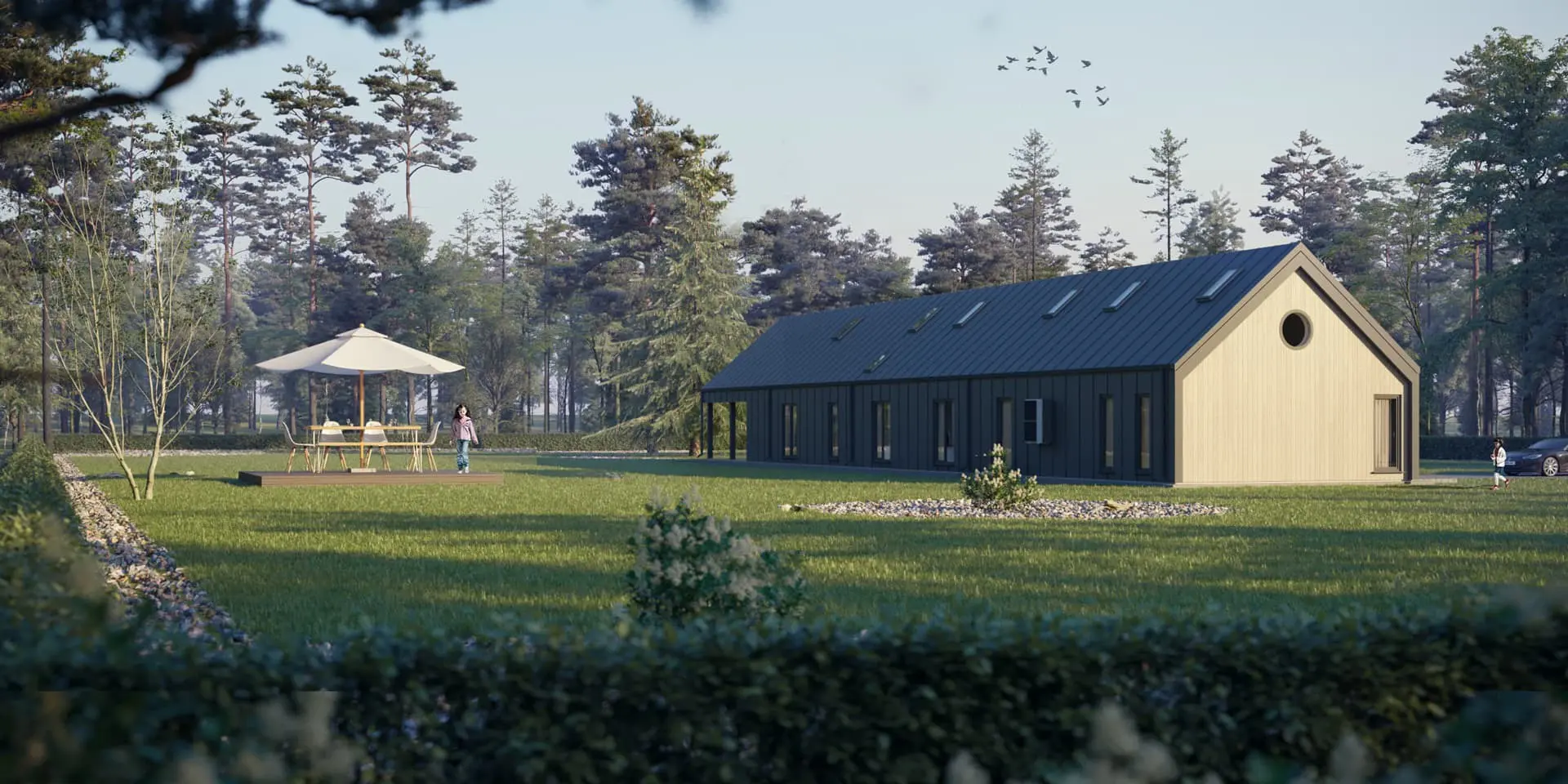

Renderings 1 – 2,194 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 65507R

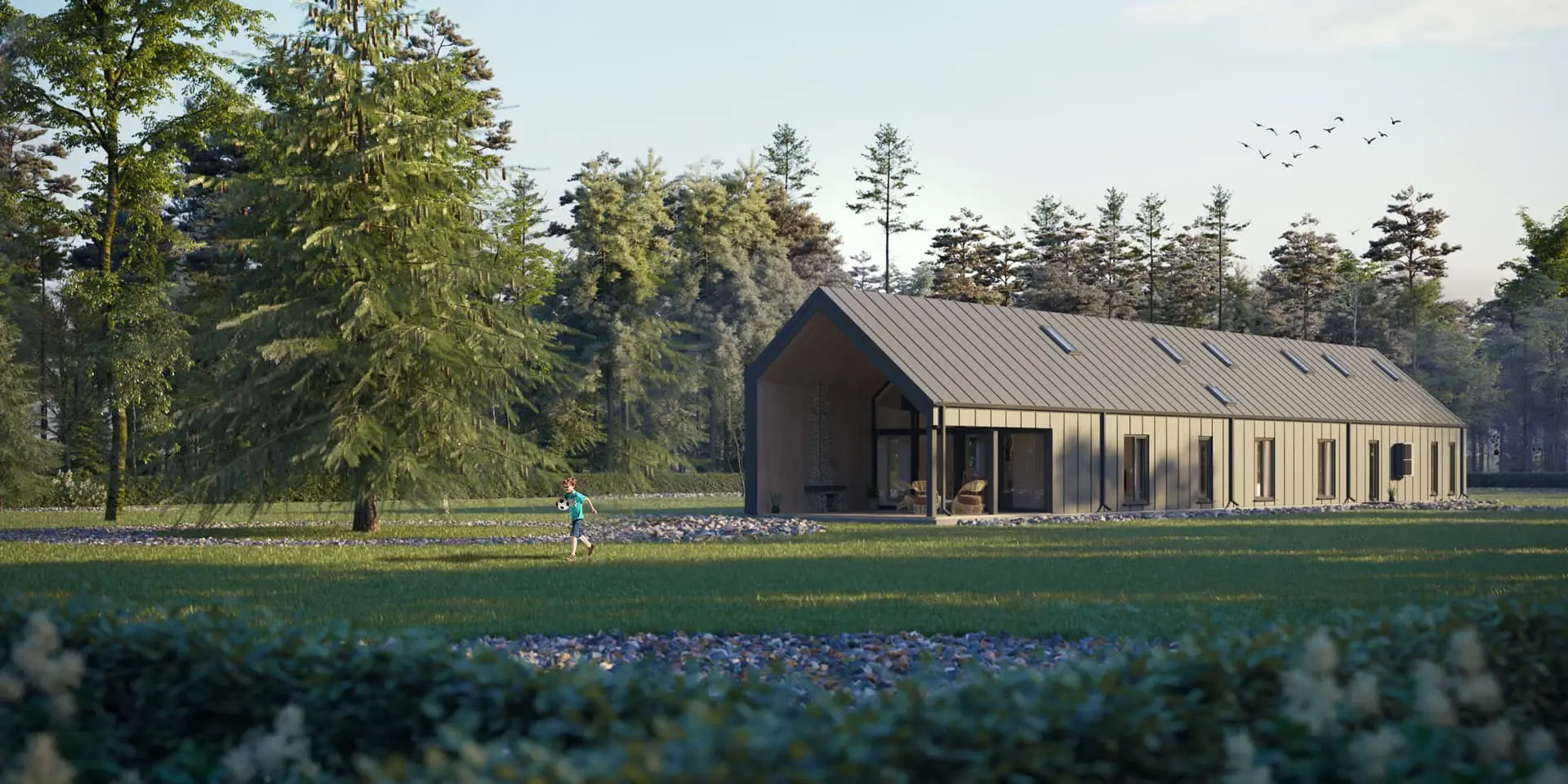

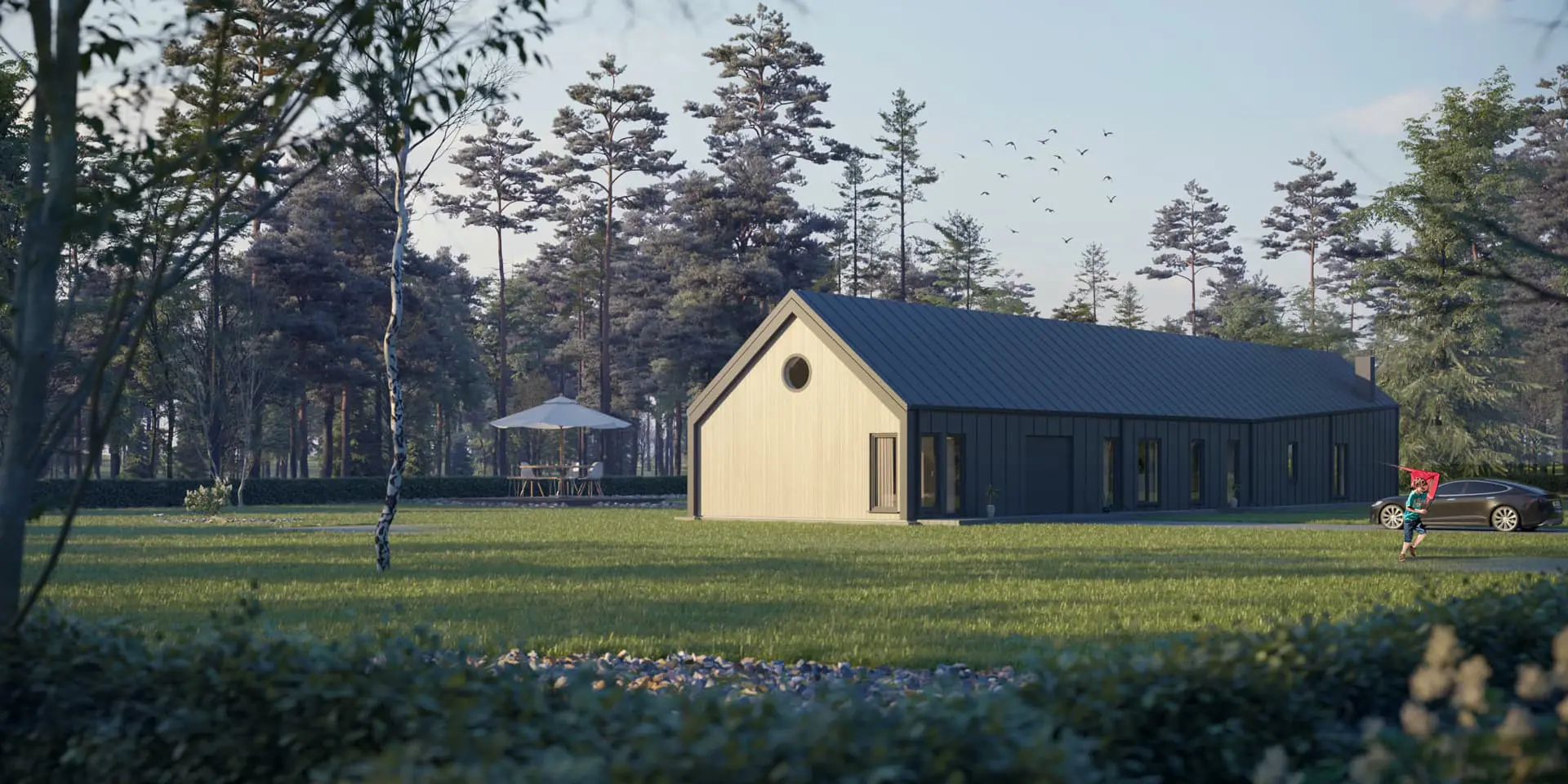

Renderings 2 – 2,194 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 65507R Renderings 3 – 2,194 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 65507R
6
Construction documents are prepared for the following countries:

2,194 Sq Ft Modern Narrow Lot Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
65507R
Complete
Signed & Sealed
DC Available
Key Specs
2194
Total Heated ft²
2 + 2
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars
111

222

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

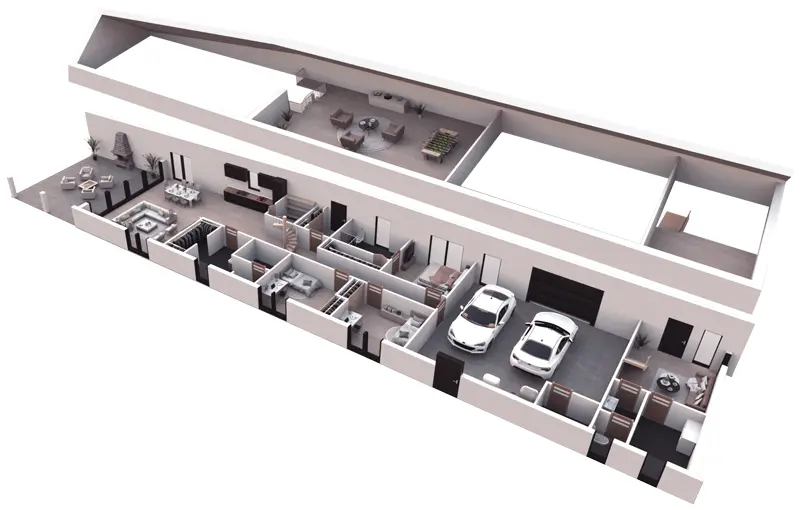

Floor Plans
Main Floor

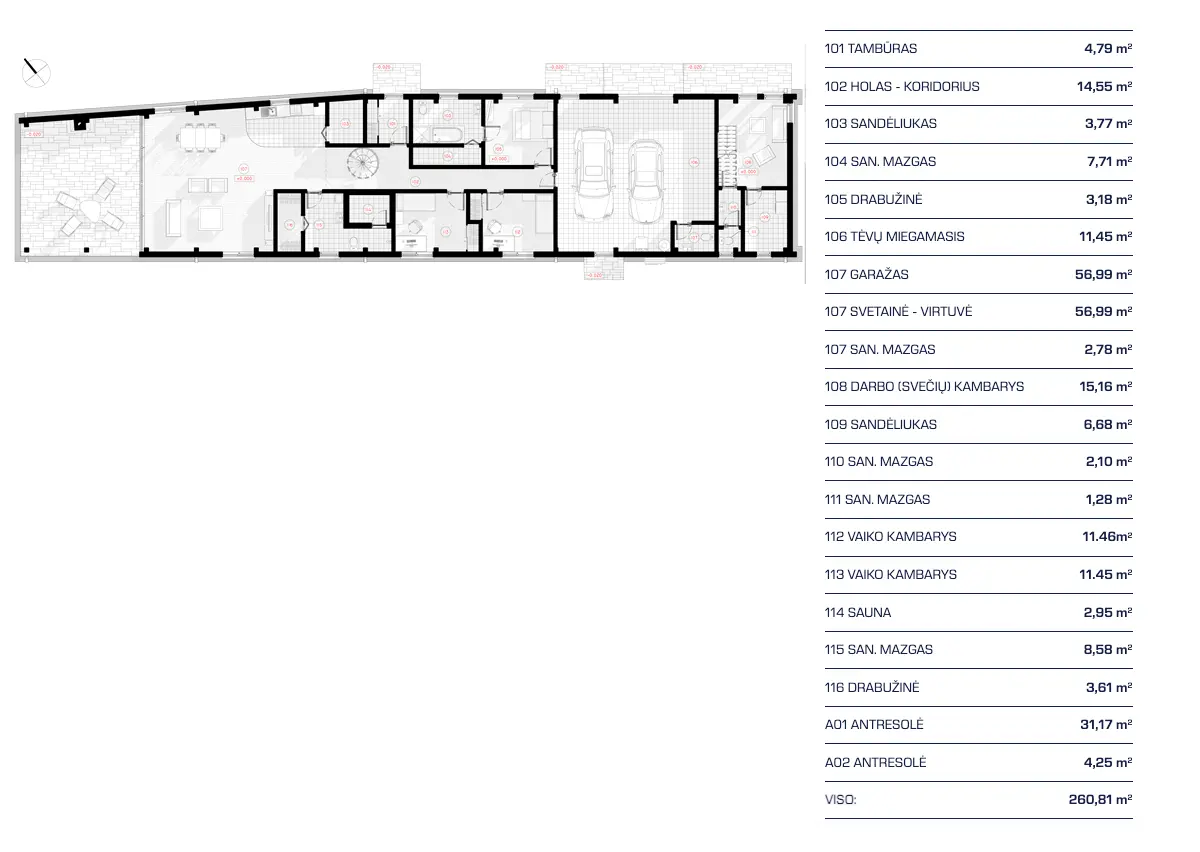

Main Floor 11 – 2,194 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 65507R
Full Specs & Features
Area
First Floor: 2193.9 ft²
Total Heated: 2193.9 ft²
Dimensions
Depth: 24'8" ft
Width: 117'8" ft
Height: 21'6" ft
Garage
Area: 613 ft²
Cars: 2
Front Entry
Foundation
Slab
Piling (Optional)
Concrete Stem Wall (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Calcium silicate block
Aerated Concrete Block (Optional)
Ceramic Block (Optional)
Wood-framed (Optional)
Exterior Wall Materials
Wood
Metal Panels
Rooms
Full bathrooms: 2
Half bathrooms: 2
Bedrooms: 3
Laundry
Entry
Home Office
Sauna
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Laundry On Main Floor
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Vaulted ceilings
Exterior Features
Outdoor Fireplace
Panoramic Windows
Window Walls
Covered Side Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Barn
Contemporary
European
Lake
Modern
Mountain
Scandinavian
Roof
Gable
Skylight
Ridge parallel to street
Roof Pitch: 10/12 (40°)

65507R is a Modern single-family, single-story house design concept for a narrow lot, designed for 3-4 people. Every room sits on one level, so daily life runs without stairs. A gable roof with the ridge parallel to the street and walls clad in wood and metal panels give the facade a clean outline.

From the entry, the open floor plan joins a large great room and a large kitchen under vaulted ceilings, keeping the family together. A breakfast nook serves everyday meals, and a walk-in pantry keeps supplies out of sight. Window walls, panoramic and floor-to-ceiling windows bring in daylight, a skylight adds more from above, and a home office offers a quiet place for remote work.

The clustered bedrooms form a calm night zone. The primary suite has a walk-in closet, two full and two half bathrooms spare the family morning queues, and a sauna adds relaxation at home. The laundry and a storage room on the main floor keep chores close.

A covered side porch shelters outdoor seating from rain, and an outdoor fireplace warms the evenings outside. The 2-car garage has a front entry straight from the street. The house stands on a slab foundation, with bored pile, strip or block foundations as options; the exterior walls are sand-lime block, or aerated concrete, ceramic block or timber frame. With a width of 117'8" and a depth of 24'8", the house suits a narrow lot. In figures: Total Heated 2,194 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
