2-Story House Plan 8514 ft²: 4 Beds, 4.5 Baths, Open Floor Plan, 2-Car Garage
2-Story House Plan 8514 ft²: 4 Beds, 4.5 Baths, Open Floor Plan, 2-Car Garage 2-Story House Plan 8514 ft²: 4 Beds, 4.5 Baths, Open Floor Plan, 2-Car Garage
5
Construction documents are prepared for the following countries:

2-Story House Plan 8514 ft²: 4 Beds, 4.5 Baths, Open Floor Plan, 2-Car Garage

Plan
66191R
Complete
Unsigned & Unsealed
DC Available
Key Specs
8514
Total Heated ft²
4 + 1
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
United States Canada
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

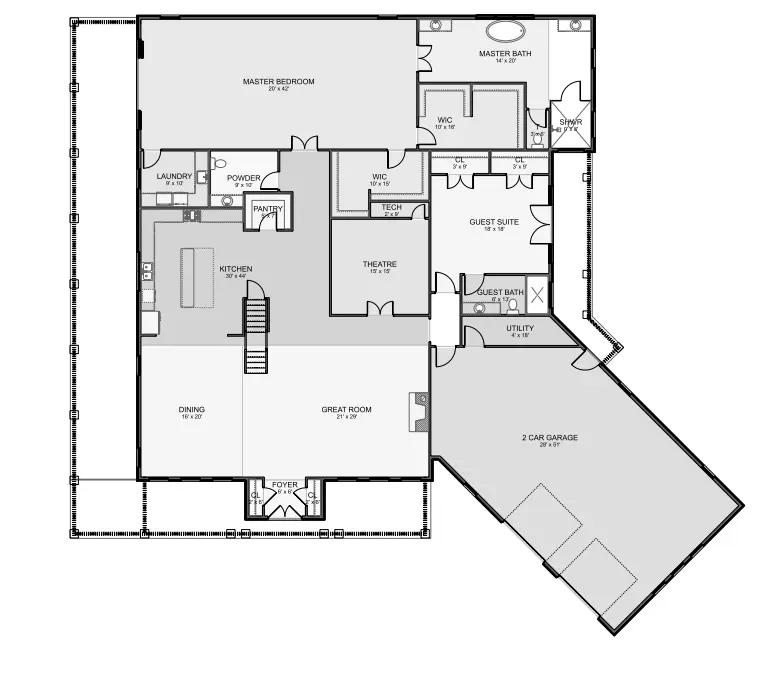

Main Floor
66191R - Main Floor
Second Floor
66191R - Second Floor
Full Specs & Features
Area
Main Floor: 4340 ft²
Second Floor: 4174 ft²
Bonus: 1890 ft²
Porch: 302 ft²
Total Heated: 8514 ft²
Dimensions
Depth: 77'6" ft
Width: 80'2" ft
Height: 42'7" ft
Garage
Area: 1354 ft²
Cars: 2
Garage with Upstairs
Courtyard Entry
Foundation
Slab (Optional)
Walkout Basement (Optional)
Crawl Space
Exterior Wall Framing
Wood 2x6
Wood 2x4 (Optional)
Exterior Wall Materials
Siding
Stone/Brick Veneer
Rooms
Full bathrooms: 4
Half bathrooms: 1
Bedrooms: 4
Utility room
Bonus/Flex Room
Exercise Room
Laundry
Media Room
Entry
In-Law Suite
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry On Main Floor
Laundry Access from Master Suite
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Jack & Jill Bath
Open to Below
Loft
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Bonus room above garage
Exterior Features
Balcony
Wrap Around Porch
Covered Front Porch
Covered Side Porch
Architectural Style
Country
Farmhouse
Traditional
American
Roof
Hip & Valley
Dormer
Roof Pitch: 10/12 (40°)
Ceiling
Main Floor Ceiling Height: 10'0" ft
Second Floor Ceiling Height: 9'0" ft
Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
+17046108070
https://advanceddrafting.net/
Plan Package

Digital Concept (Imperial system)
$550
Printed Plan Set
$2370
Digital Plan Set
$1410
$1940
$3820
$4220
$4640
Foundation
$660
$660
$0
Exterior Walls
$0
$660
Additional Options
$1410
$575
$90
$180
Subtotal
planSelect.safeCheckout.header: planSelect.safeCheckout.body
