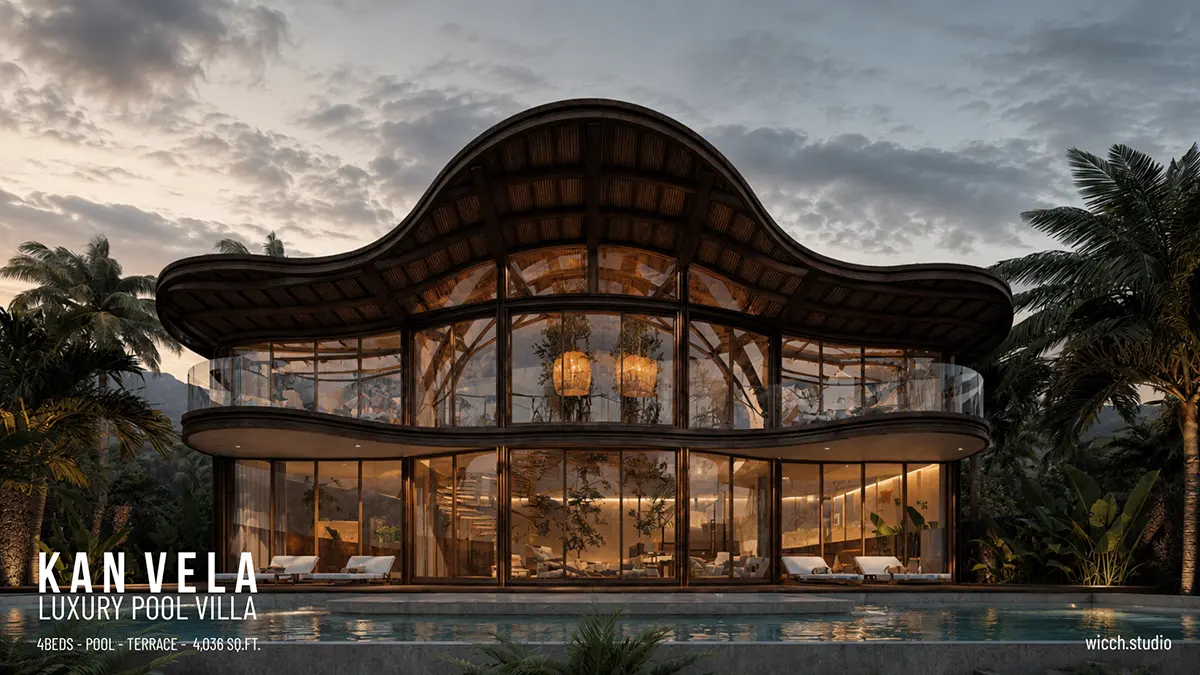

Renderings 2 – 4,035 Sq Ft Tropical 2-Story House Plan with Pool, 4 Bedrooms and 5 Bathrooms – 66838R

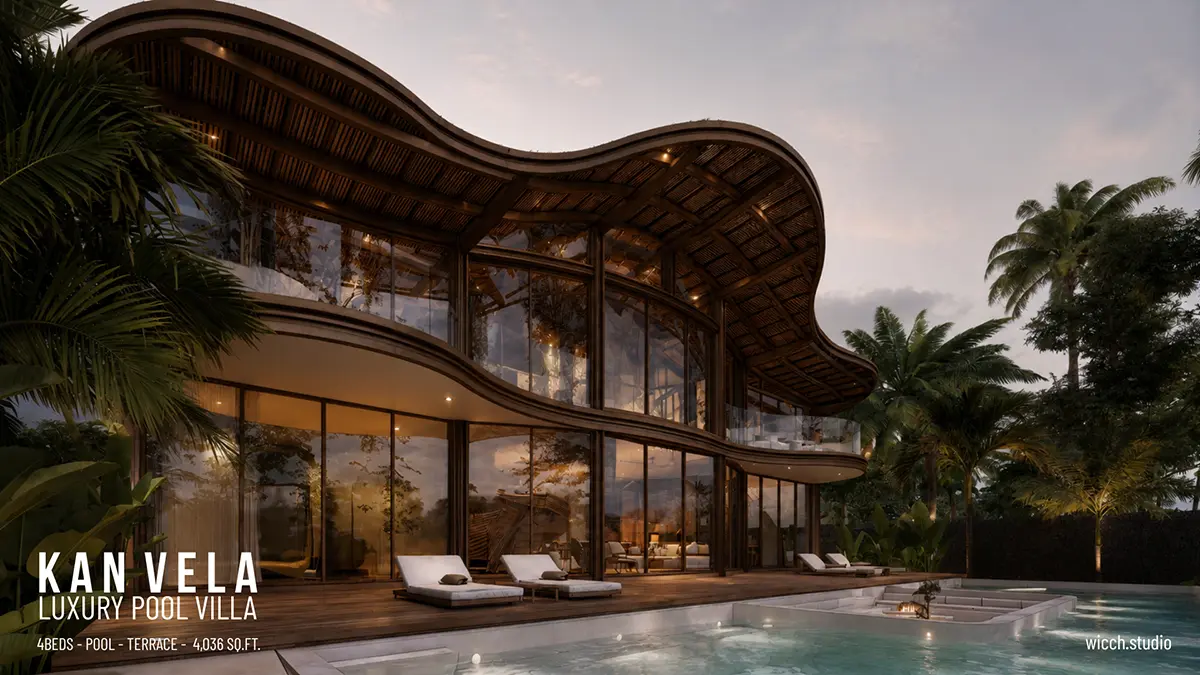

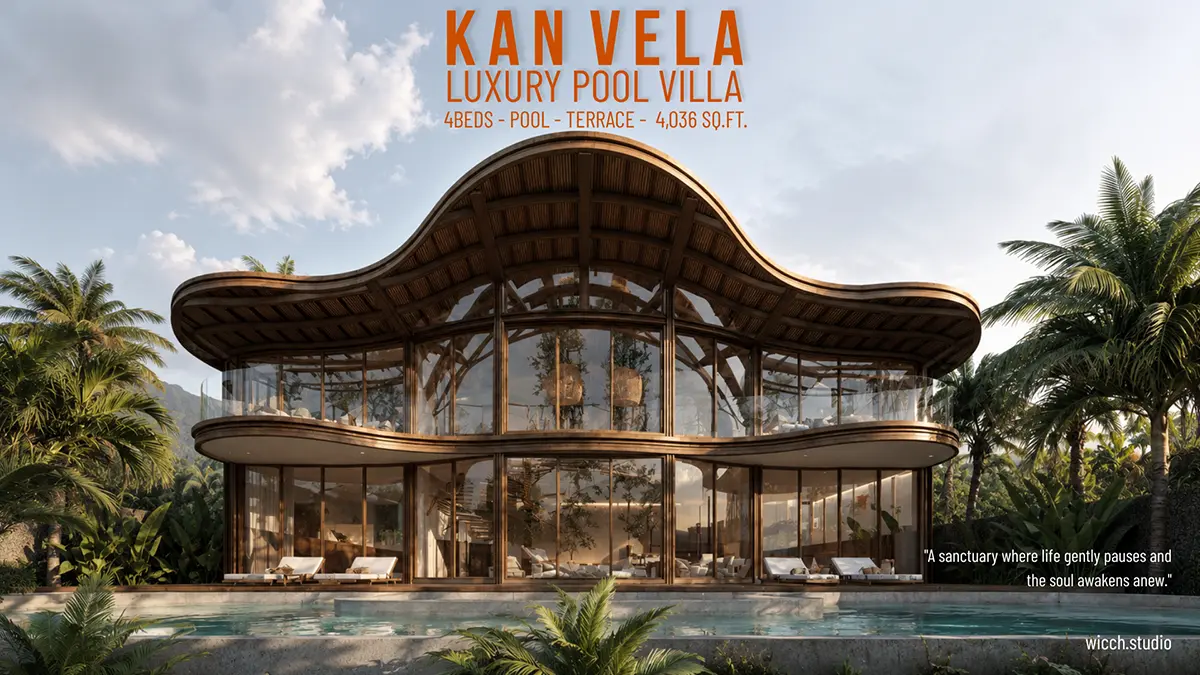

Renderings 3 – 4,035 Sq Ft Tropical 2-Story House Plan with Pool, 4 Bedrooms and 5 Bathrooms – 66838R Renderings 4 – 4,035 Sq Ft Tropical 2-Story House Plan with Pool, 4 Bedrooms and 5 Bathrooms – 66838R
21

4,035 Sq Ft Tropical 2-Story House Plan with Pool, 4 Bedrooms and 5 Bathrooms

Plan
66838R
Digital Concept Ready
Delivery Within 1–4 Days
DC Available
Key Specs
4035
Total Heated ft²
5 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

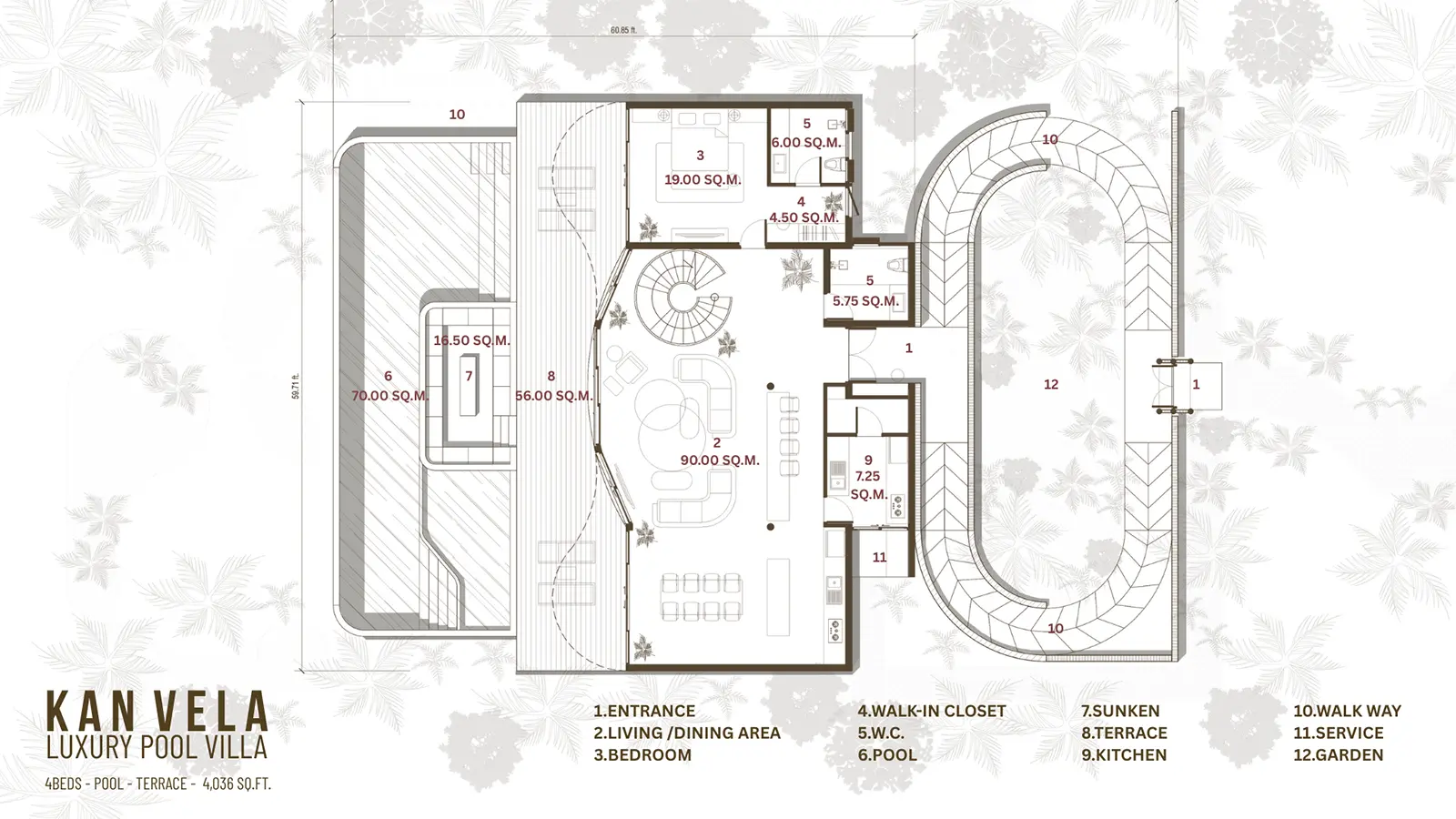

Main Floor
Main Floor 21 – 4,035 Sq Ft Tropical 2-Story House Plan with Pool, 4 Bedrooms and 5 Bathrooms – 66838R

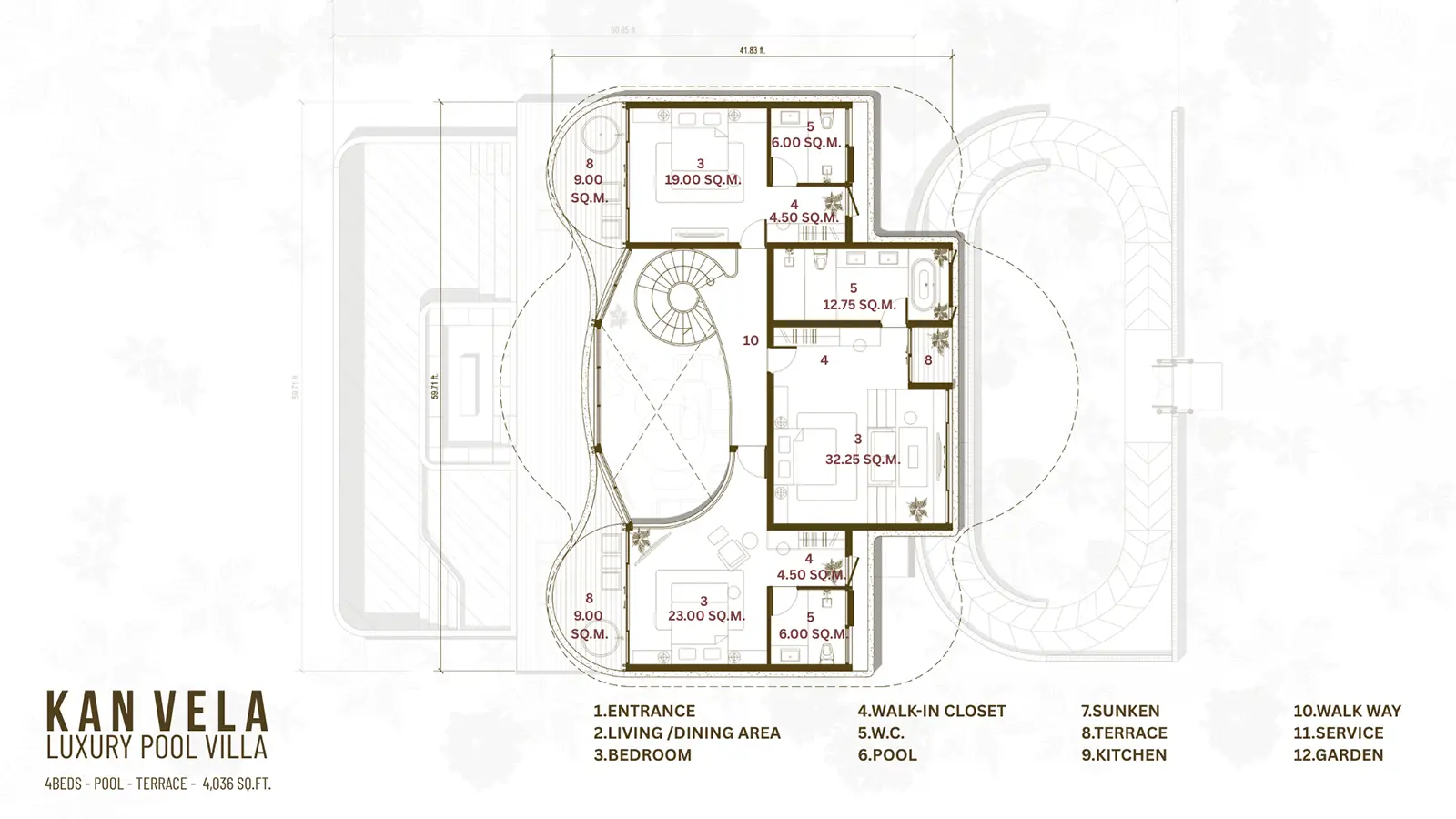

Second Floor
Second Floor 22 – 4,035 Sq Ft Tropical 2-Story House Plan with Pool, 4 Bedrooms and 5 Bathrooms – 66838R
Full Specs & Features
Area
Main Floor: 2407.89 ft²
Second Floor: 1627.5 ft²
Total Heated: 4035.39 ft²
Dimensions
Depth: 55'4" ft
Width: 56'5" ft
Height: 29'4" ft
Exterior Wall Materials
Wood
Rooms
Full bathrooms: 5
Bedrooms: 4
Entry
Pool
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Corner Window
Interior Features
Main Floor Master
Second Floor Master
2 Master Suites
Clustered Bedrooms
Open to Below
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Vaulted ceilings
Exterior Features
Balcony
Courtyard
Covered Rear Porch
Patio
Corner Window
Panoramic Windows
Window Walls
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Coastal
Contemporary
Luxury
Modern
Tropical
Roof
Roof Pitch: 8/12 (34°)
Ceiling
Main Floor Ceiling Height: 9'1" ft
Second Floor Ceiling Height: 14'8" ft

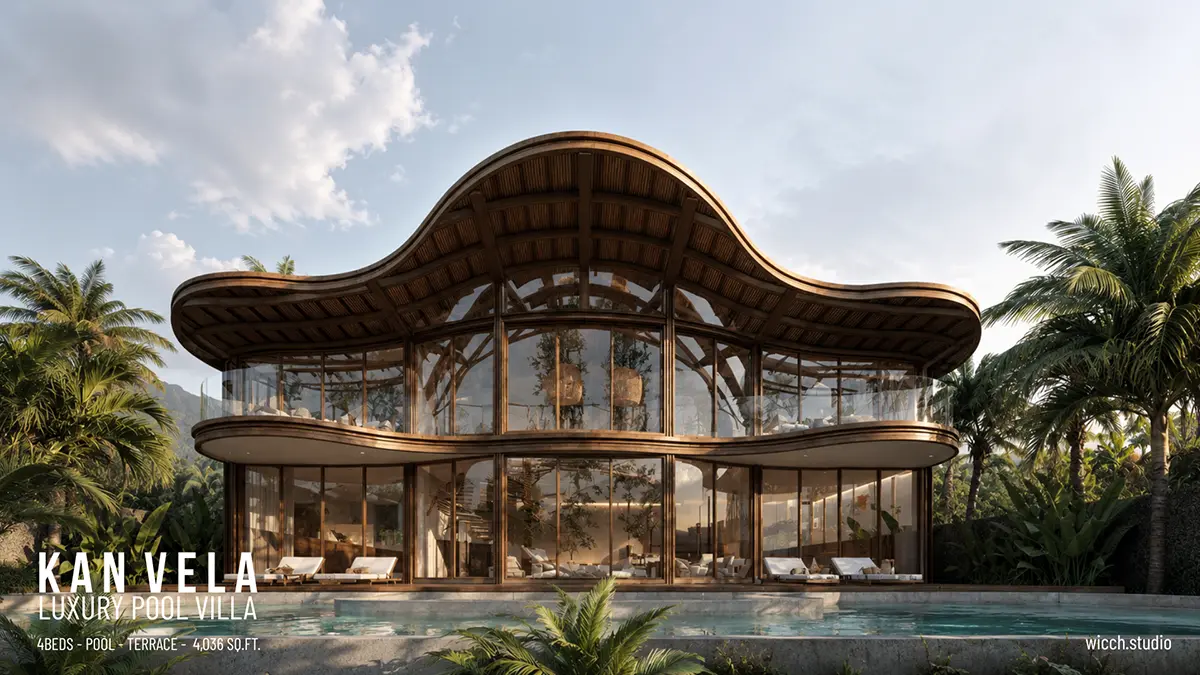

House design concept 66838R is a Tropical two-story home with a pool, 4 bedrooms and 5 bathrooms for a family of 4-6 people, offering Total Heated 4,035 Sq Ft. The single-family house has wood exterior walls, an 8/12 (34°) roof pitch, a width of 56'5" and a depth of 55'4". Two primary suites, one on each floor, give privacy to two generations or to guests.

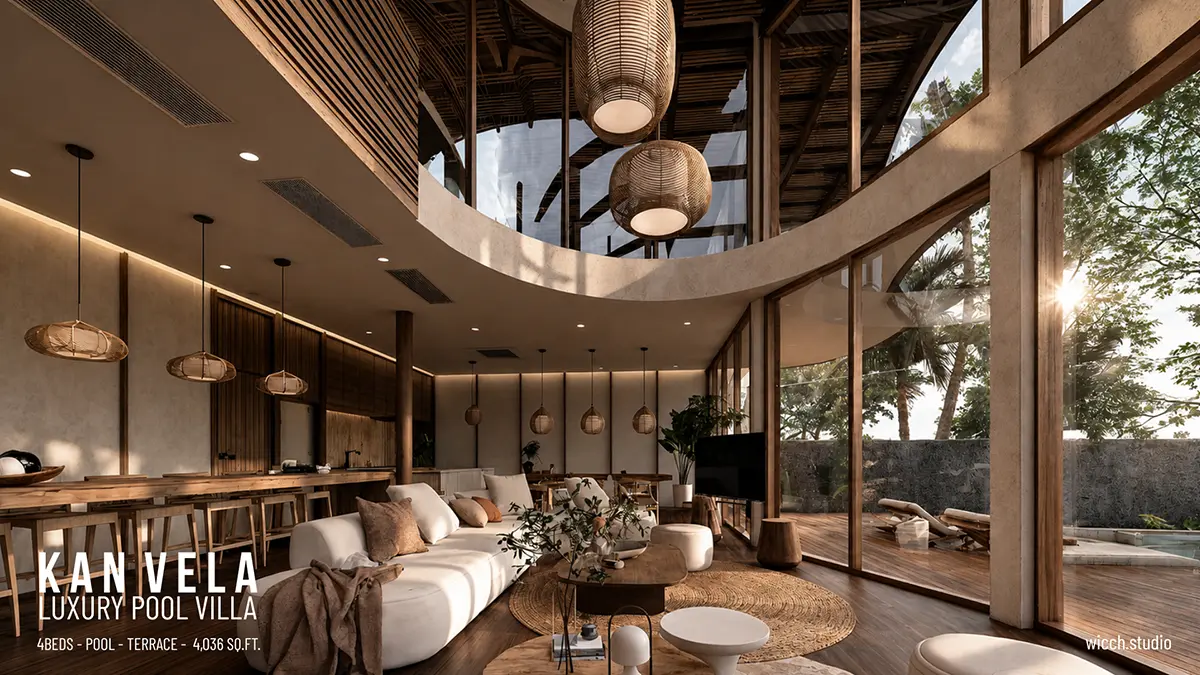

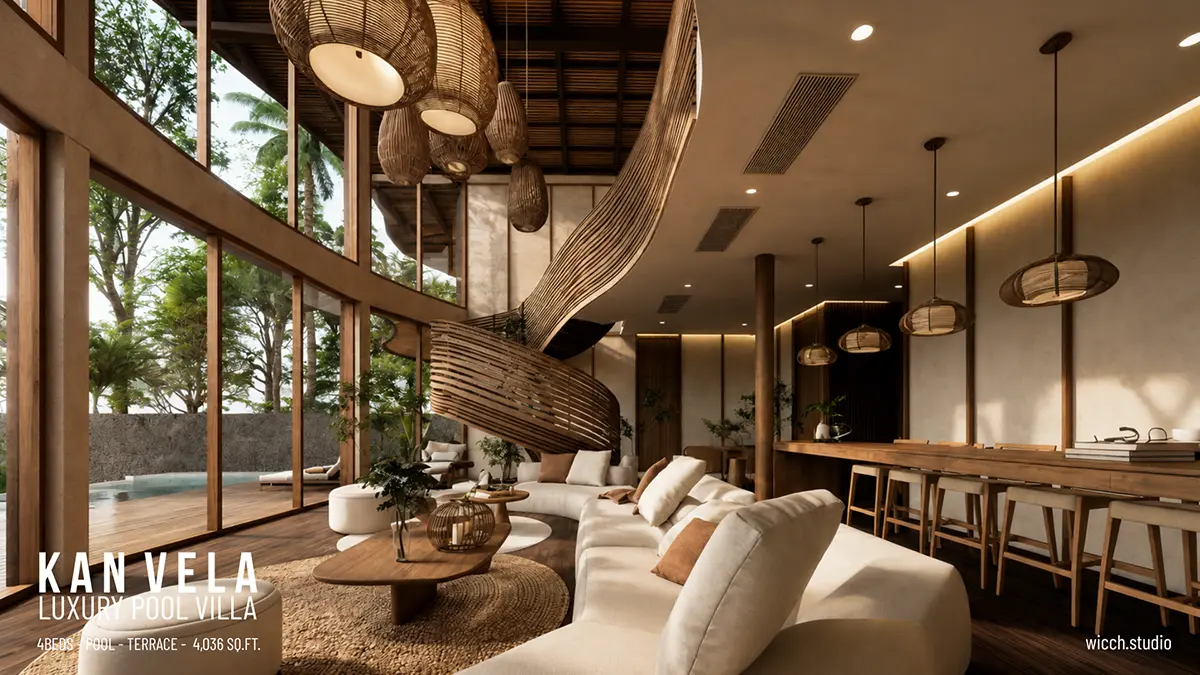

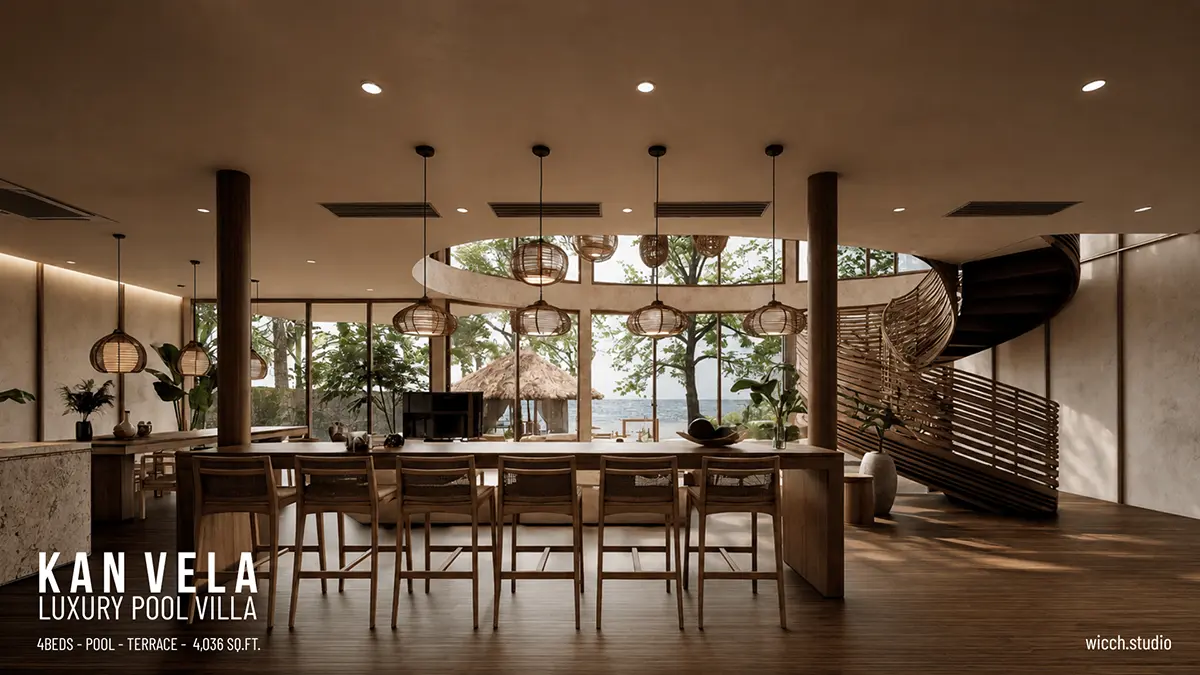

The entry opens into an open floor plan where the large great room sits under vaulted ceilings and a space open to below, giving the day zone volume. Window walls, panoramic, large and floor-to-ceiling windows fill the living area with daylight. The large kitchen works around an island and a breakfast bar for quick meals, the breakfast nook with a corner window serves family breakfasts, and the walk-in pantry keeps supplies out of sight.

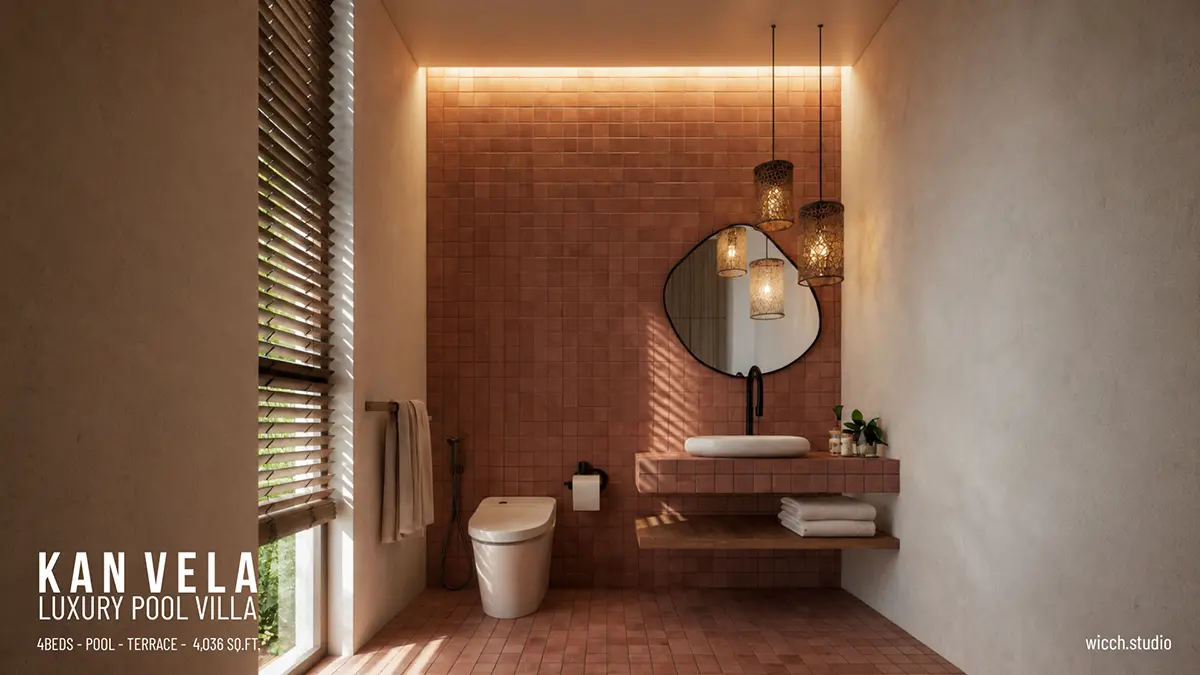

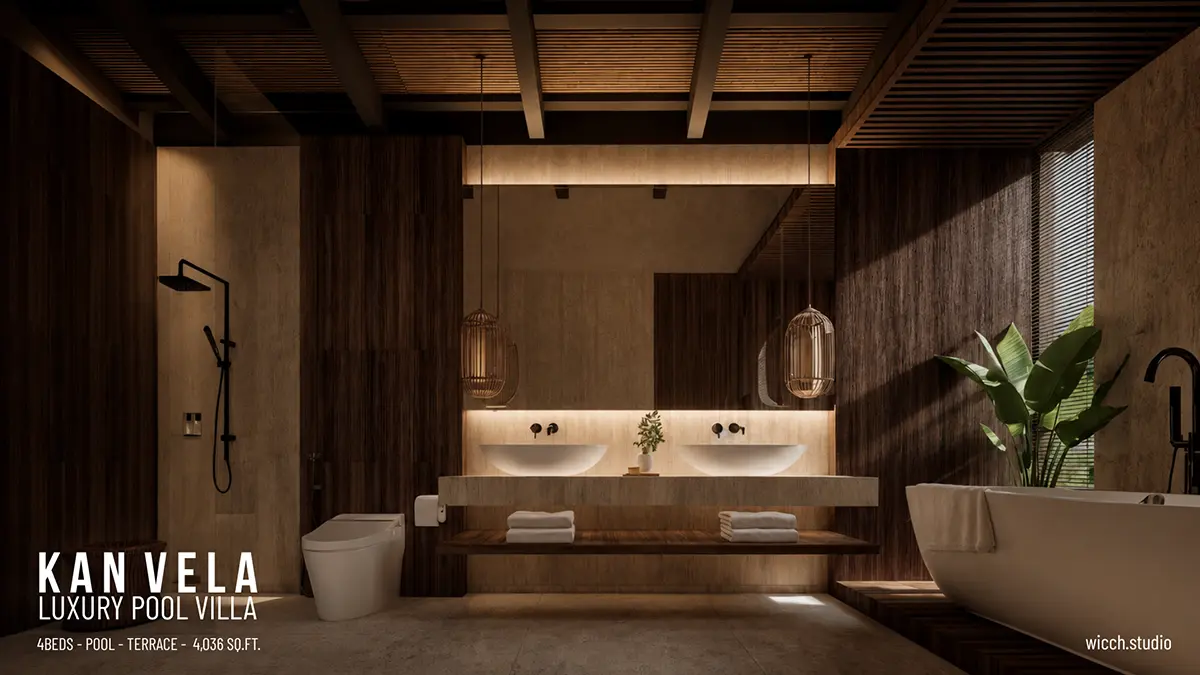

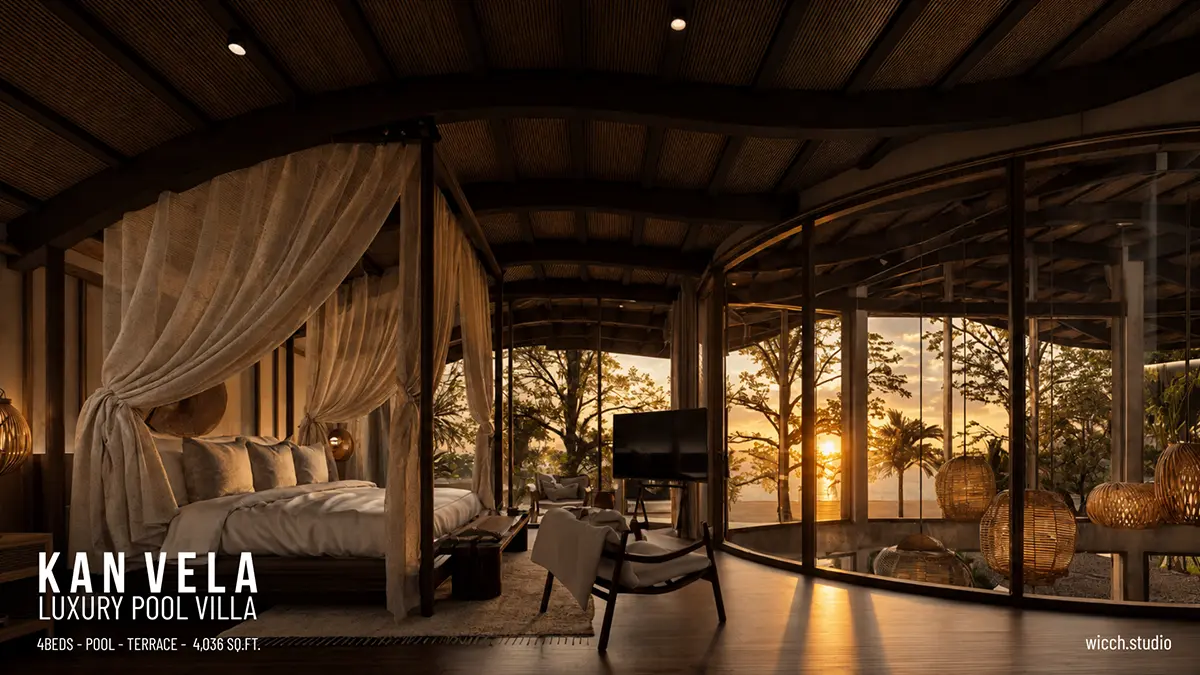

The primary suite on the main floor lets the owners avoid the stairs, while the second primary suite upstairs offers the same comfort. A walk-in closet keeps clothing organized, clustered bedrooms keep the family close together, and five full bathrooms end the morning queue.

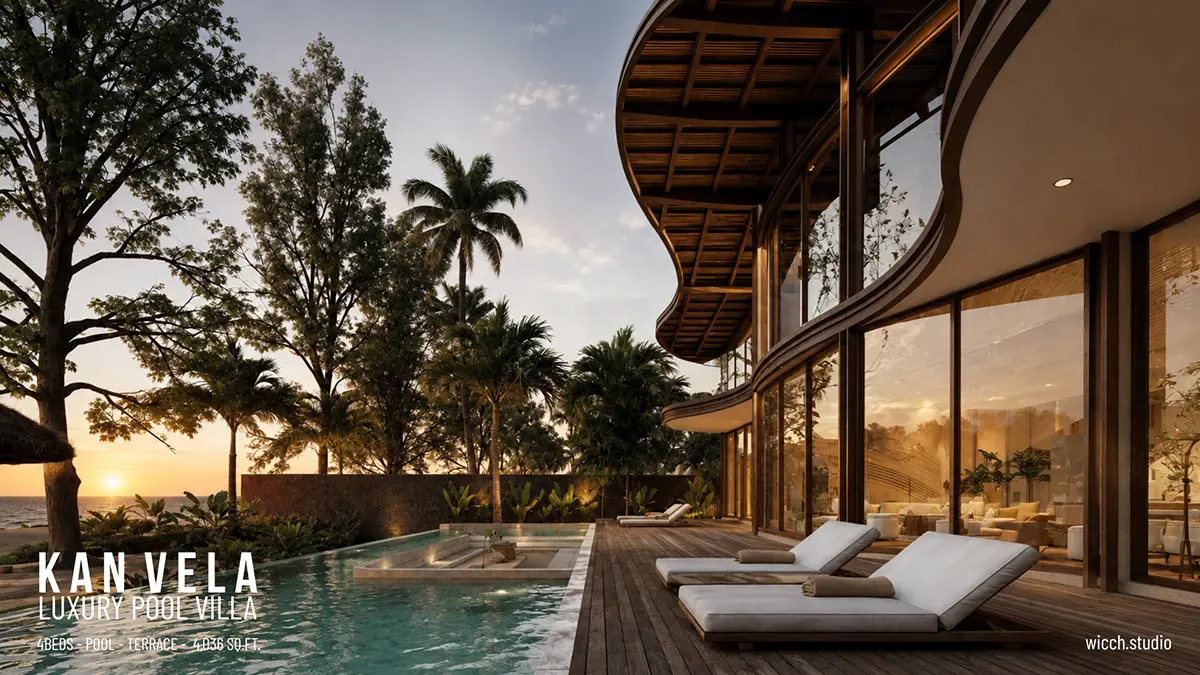

The covered rear porch provides shade, the patio and the courtyard move family life outdoors, and the pool turns the backyard into a place to relax. The balcony upstairs opens views over the surroundings. In figures: Total Heated 4,035 Sq Ft, 4 bedrooms and 5 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
wicch.studio wicch.studio Residential Architect country with code th Thailand
country with code th Thailand
Samut Prakan, Samut Prakan, 17/888 Room Sabai Boutique, Moo 13, Soi Janyawat, Bang Na-Trat Road (Km. 8), Bang Kaeo Subdistrict, Bang Phli District
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$959
