Renderings 2 – 1,616 Sq Ft Traditional 1.5-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 78852R
Renderings 3 – 1,616 Sq Ft Traditional 1.5-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 78852R Renderings 4 – 1,616 Sq Ft Traditional 1.5-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 78852R
5
Construction documents are prepared for the following countries:

1,616 Sq Ft Traditional 1.5-Story House Plan with 3 Bedrooms and 2.5 Bathrooms

Plan
78852R
Complete
Unsigned & Unsealed
DC Available
Key Specs
1616
Total Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
United States Canada
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

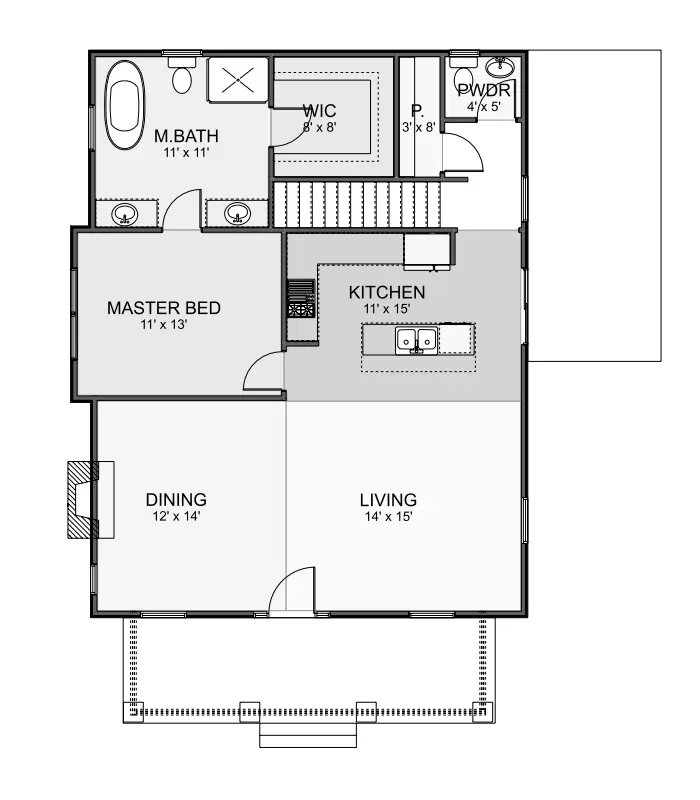

Main Floor
Main Floor 9 – 1,616 Sq Ft Traditional 1.5-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 78852R

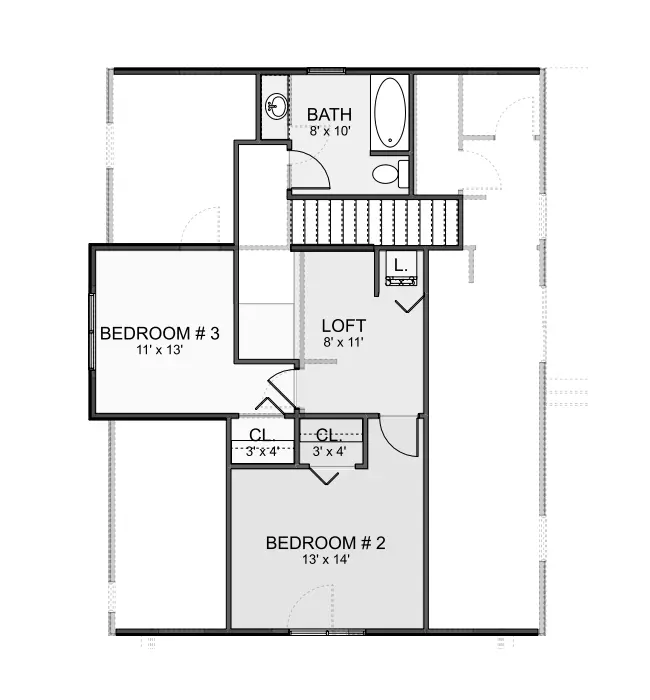

Second Floor
Second Floor 10 – 1,616 Sq Ft Traditional 1.5-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 78852R
Full Specs & Features
Area
Main Floor: 1071 ft²
Second Floor: 545 ft²
Porch: 343 ft²
Total Heated: 1616 ft²
Dimensions
Depth: 36'9" ft
Width: 29'7" ft
Height: 28'3" ft
Foundation
Slab (Optional)
Walkout Basement (Optional)
Crawl Space
Exterior Wall Framing
Wood 2x6 (Optional)
Wood 2x4
Exterior Wall Materials
Siding
Brick
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Laundry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry Second Floor
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Loft
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Architectural Style
Craftsman
Traditional
Roof
Hip & Valley
Roof Pitch: 10/12 (40°)

House plan 78852R is a Traditional 1.5-story single-family home with Total Heated 1,616 Sq Ft, 3 bedrooms and 2.5 bathrooms, designed for 3-4 people. A hip and valley roof with a 10/12 (40°) pitch tops a compact footprint 29'7" wide and 36'9" deep, which keeps the house easy to place on a modest lot.

The open floor plan joins the family room and the kitchen into one shared space, so whoever is cooking stays part of the conversation. A fireplace in the family room gives the living area a natural focal point. The large kitchen works around an island with a breakfast bar for quick meals, a breakfast nook for everyday dining and a walk-in pantry that keeps supplies out of sight.

The primary bedroom sits on the main floor with a walk-in closet, and the split-bedroom layout sets it apart from the two other bedrooms for more privacy. The upper level holds an open loft that adds an extra sitting area, and the second-floor laundry keeps washing away from the living spaces.

The covered front porch shelters the entrance and gives a place to sit outdoors. The exterior combines siding with brick, and the walls are framed in 2x4 wood, with 2x6 framing available as an option for thicker walls. The standard foundation is a crawl space; a slab or a walkout basement can be chosen instead, the latter suiting a sloped lot. In figures: Total Heated 1,616 Sq Ft, 3 bedrooms and 2.5 bathrooms.

Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
Plan Package

Printed Plan Set
US$1390
Digital Plan Set
US$820
US$1130
US$2230
US$2470
US$2710
Foundation
US$350
US$540
US$0
Exterior Walls
US$350
US$0
Additional Options
US$820
US$300
US$55
US$110
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
