3-Bed, 1200 Sq Ft European Barnhouse Plan with Large Windows
3-Bed, 1200 Sq Ft European Barnhouse Plan with Large Windows 3-Bed, 1200 Sq Ft European Barnhouse Plan with Large Windows
9
Construction documents are prepared for the following countries:

3-Bed, 1200 Sq Ft European Barnhouse Plan with Large Windows

Plan
27062R
Complete
Signed & Sealed
DC None
Key Specs
111
Total Heated m²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
Rysunki architektoniczne, konstrukcyjne i instalacyjne:

rzut fundamentów

rzuty parteru i kolejnych kondygnacji

rzut stropów i nadproży

rzut więźby dachowej

rzut dachu

przekroje

zestawienie stolarki drzwiowej i okiennej

detale konstrukcji

projekty instalacji

Opisy techniczne architektoniczno-konstrukcyjne oraz opisy wewnętrznych instalacji sanitarnych i elektrycznych:

opis techniczny części architektonicznej projektu

opis techniczny konstrukcji

opisy instalacji

Opisy i dokumentacja zawierają:

charakterystykę energetyczną budynku

charakterystykę ekologiczną

informację o planie b.i o.z.

analizę porównawczą dwóch źródeł energii

oświadczenia projektantów

liczne informacje formalno-prawne

Materiały pomocnicze:

obliczenia konstrukcyjne

zestawienie elementów więźby dachowej

zestawienie materiałów do podstawowych instalacji sanitarnych, grzewczych i gazowych

zestawienie stali do zbrojenia elementów żelbetowych

widoki więźby i stropów w 3D

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.


If you’d like to modify this plan by this foreign architect, you have two options:
Work directly with the original architect (if the language barrier isn’t an issue), then purchase a modified digital editable file (DGT Concept) and forward it to your local architect.
or
Purchase a DGT Concept from the original architect, send the file to your local architect, modify the plan together, and then order the construction documents.

Floor Plans
First Floor

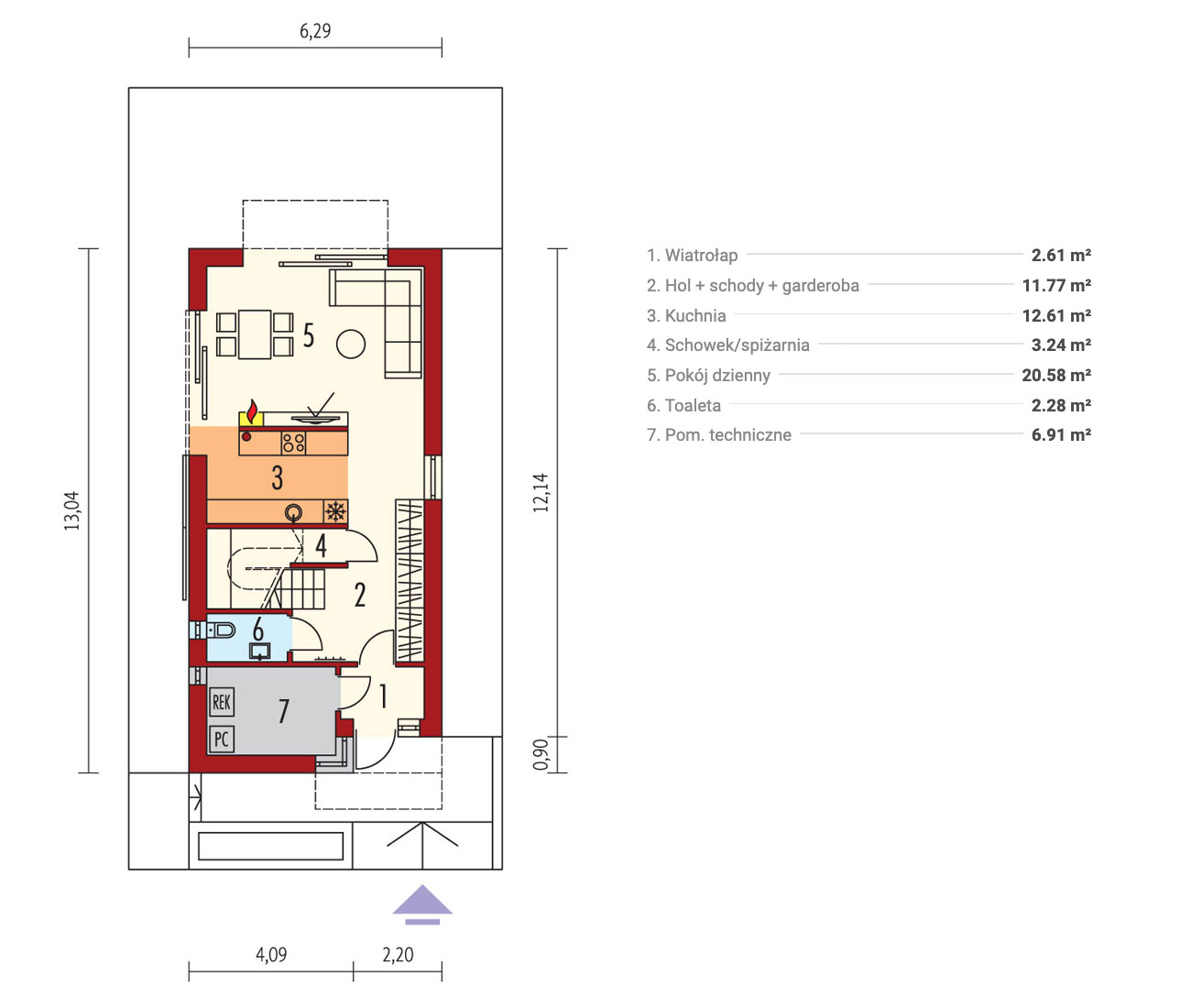

27062R - First Floor
Second Floor

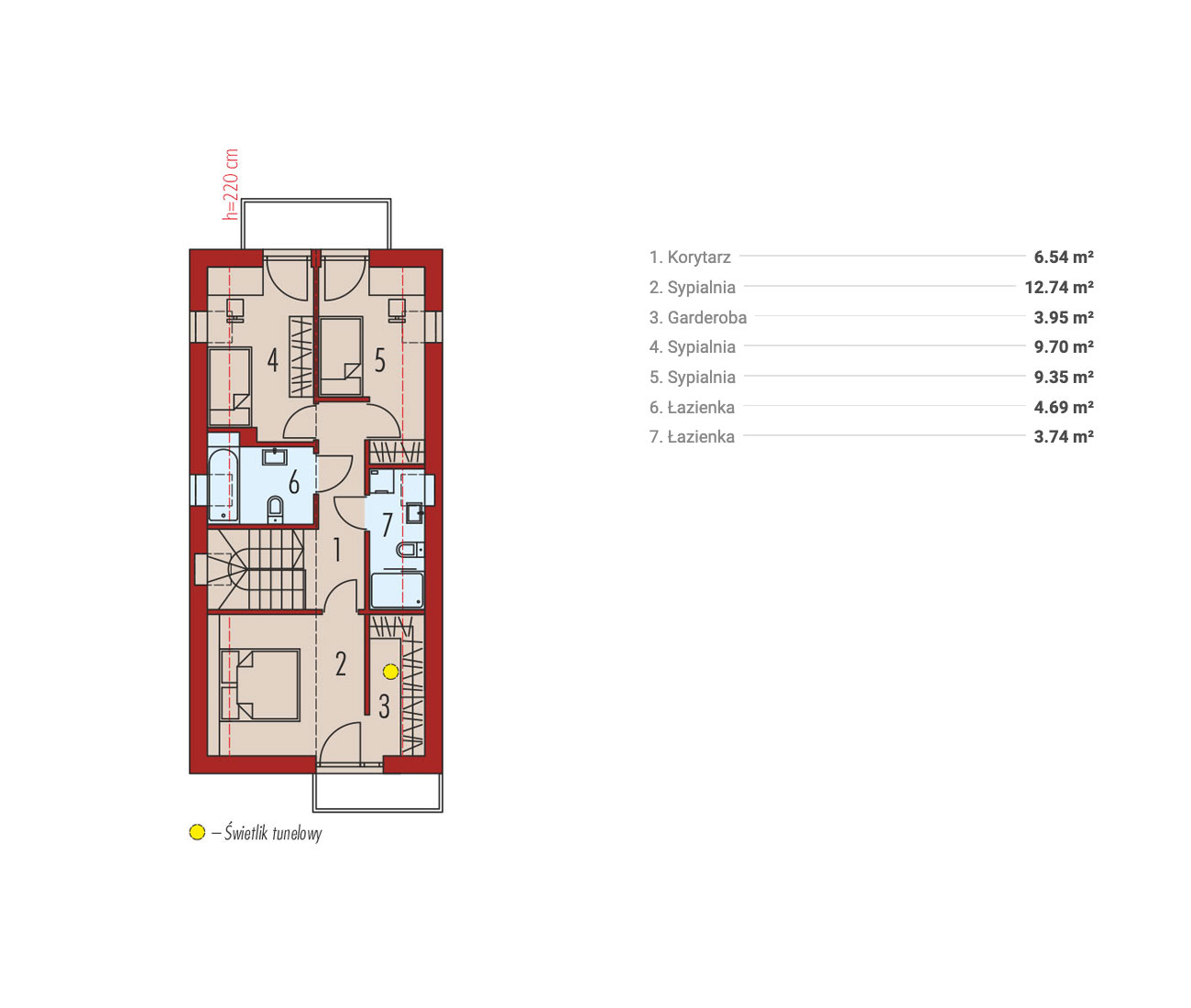

27062R - Second Floor
Full Specs & Features
Area
Total Heated: 111 m²
Total Unheated: 0 m²
Basement: 0 m²
Bonus: 0 m²
Dimensions
Depth 13.04 m
Width 6.26 m
Height 8.49 m
Exterior Wall Framing
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Furnace room
Entry
Walk In Closet
Foundation
Slab
Concrete Stem Wall
Architectural Style
Barn
Contemporary
European
Modern
Exterior Features
Balcony
Wrap Around Porch
Deck
Large Windows
Floor-to-Ceiling Windows
Interior Features
Fireplace in Family Room
Second Floor Master
Split Bedrooms
Clustered Bedrooms
Closed Floor Plan
Large Kitchen (>130 ft²)
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Garage
9: 0 m²
Cars: 0
Roof
Roof Area: 1162.50m²
Gable
Skylight
Ridge perpendicular to street
Roof Pitch: 12/12 (45°)
Architect
ARCHIPELAG ARCHIPELAG Architecture Firm country with code pl Poland
country with code pl Poland
Lower Silesian Voivodeship, Wrocław, ul. Mariana Smoluchowskiego 56/3
+48717983800
https://www.archipelag.pl/
