2-Story House Plan 3281 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage
2-Story House Plan 3281 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage 2-Story House Plan 3281 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage
6
Construction documents are prepared for the following countries:

2-Story House Plan 3281 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
11403R
Complete
Unsigned & Unsealed
DC Available
Key Specs
3281
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
United States Canada
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans
Main Floor

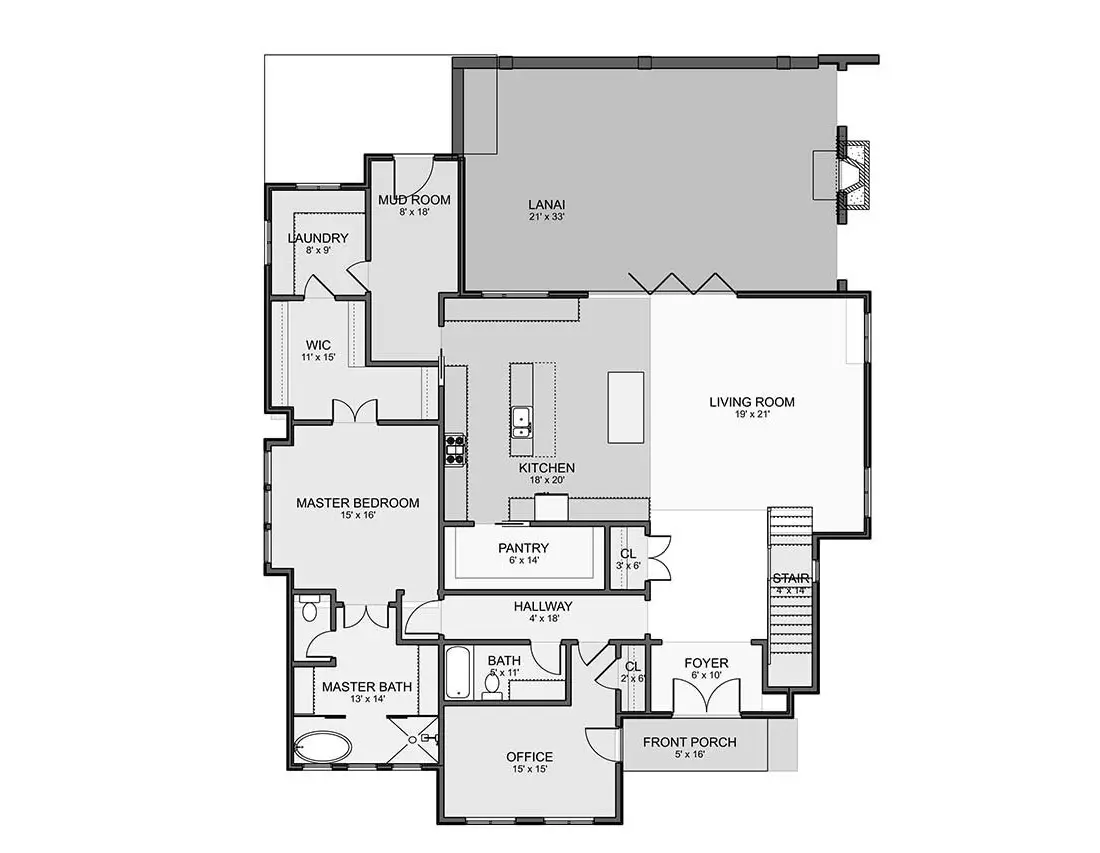

11403R - Main Floor
Second Floor

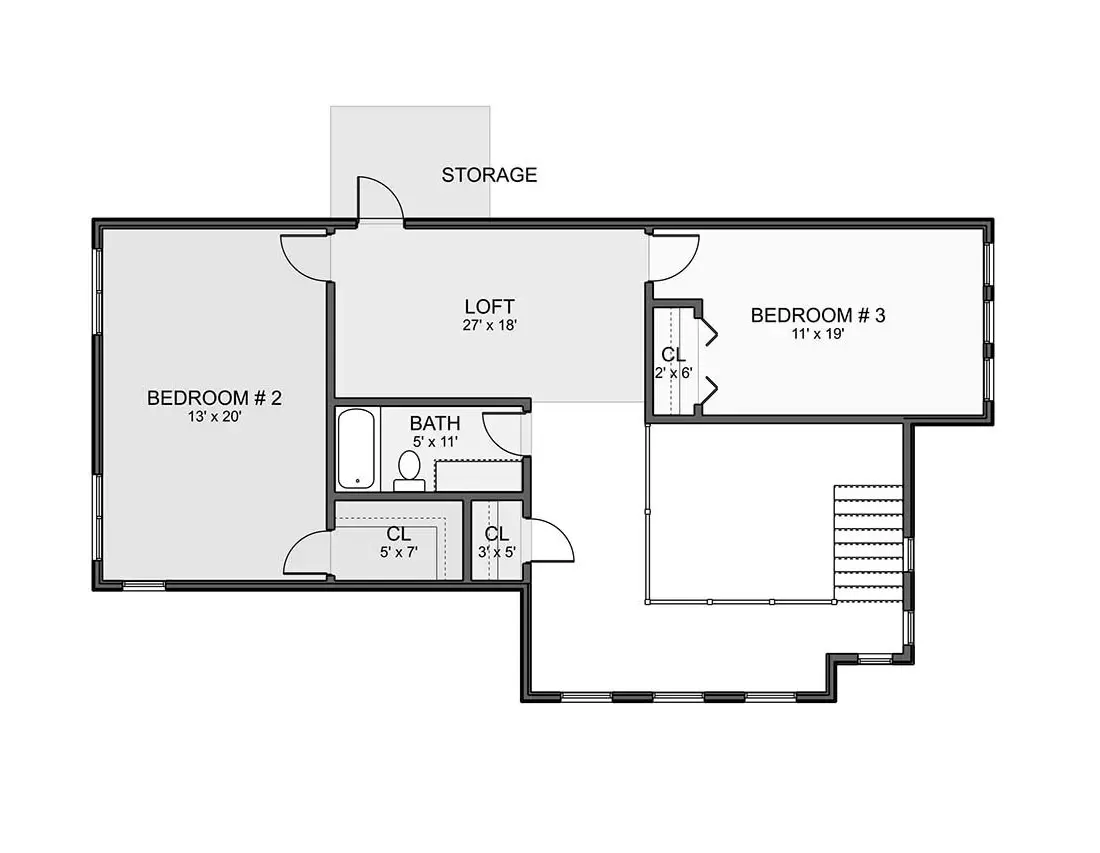

11403R - Second Floor
Full Specs & Features
Area
Main Floor: 2243 ft²
Second Floor: 1038 ft²
Bonus: 486 ft²
Porch: 973 ft²
Total Heated: 3281 ft²
Dimensions
Depth: 67'2" ft
Width: 54'0" ft
Height: 27'9" ft
Foundation
Slab (Optional)
Walkout Basement (Optional)
Crawl Space
Exterior Wall Framing
Wood 2x6
Wood 2x4 (Optional)
Exterior Wall Materials
Siding
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 3
Laundry
Entry
Home Office
Walk In Closet
Mudroom
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Island
Interior Features
Laundry On Main Floor
Laundry Access from Master Suite
Main Floor Master
Split Bedrooms
Open to Below
Loft
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Outdoor Fireplace
Covered Rear Porch
Architectural Style
Farmhouse
New American
Transitional
American
Roof
Hip & Valley
Roof Pitch: 6/12 (26°)
Ceiling
Main Floor Ceiling Height: 10'0" ft
Second Floor Ceiling Height: 9'0" ft
Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
+17046108070
https://advanceddrafting.net/
Plan Package

Digital Concept (Imperial system)
$400
Printed Plan Set
$1860
Digital Plan Set
$1100
$1520
$2990
$3310
$3640
Foundation
$660
$660
$0
Exterior Walls
$0
$660
Additional Options
$1100
$465
$70
$140
Subtotal
planSelect.safeCheckout.header: planSelect.safeCheckout.body
