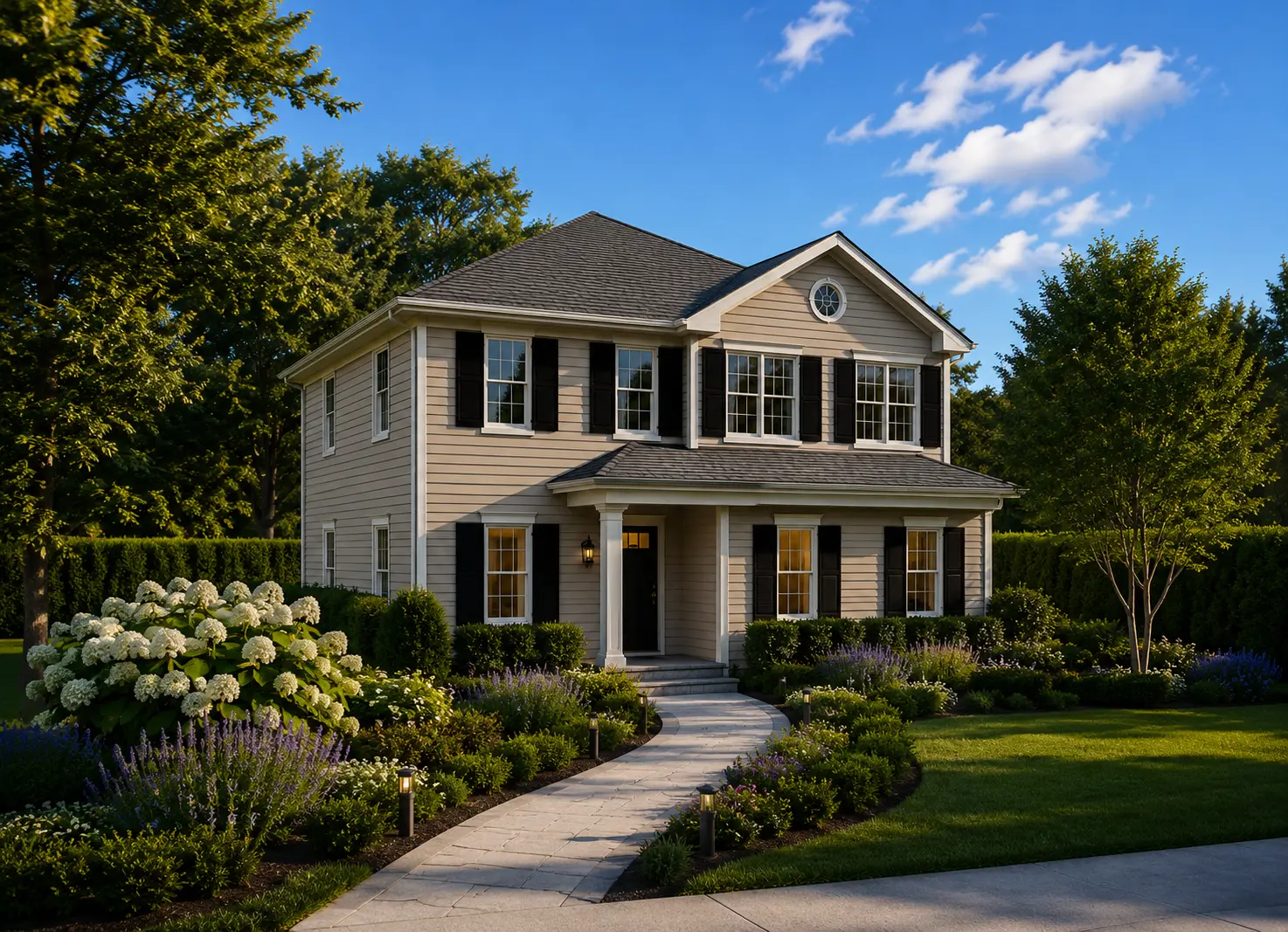

Renderings 2 – 2,261 Sq Ft Colonial 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 12830R

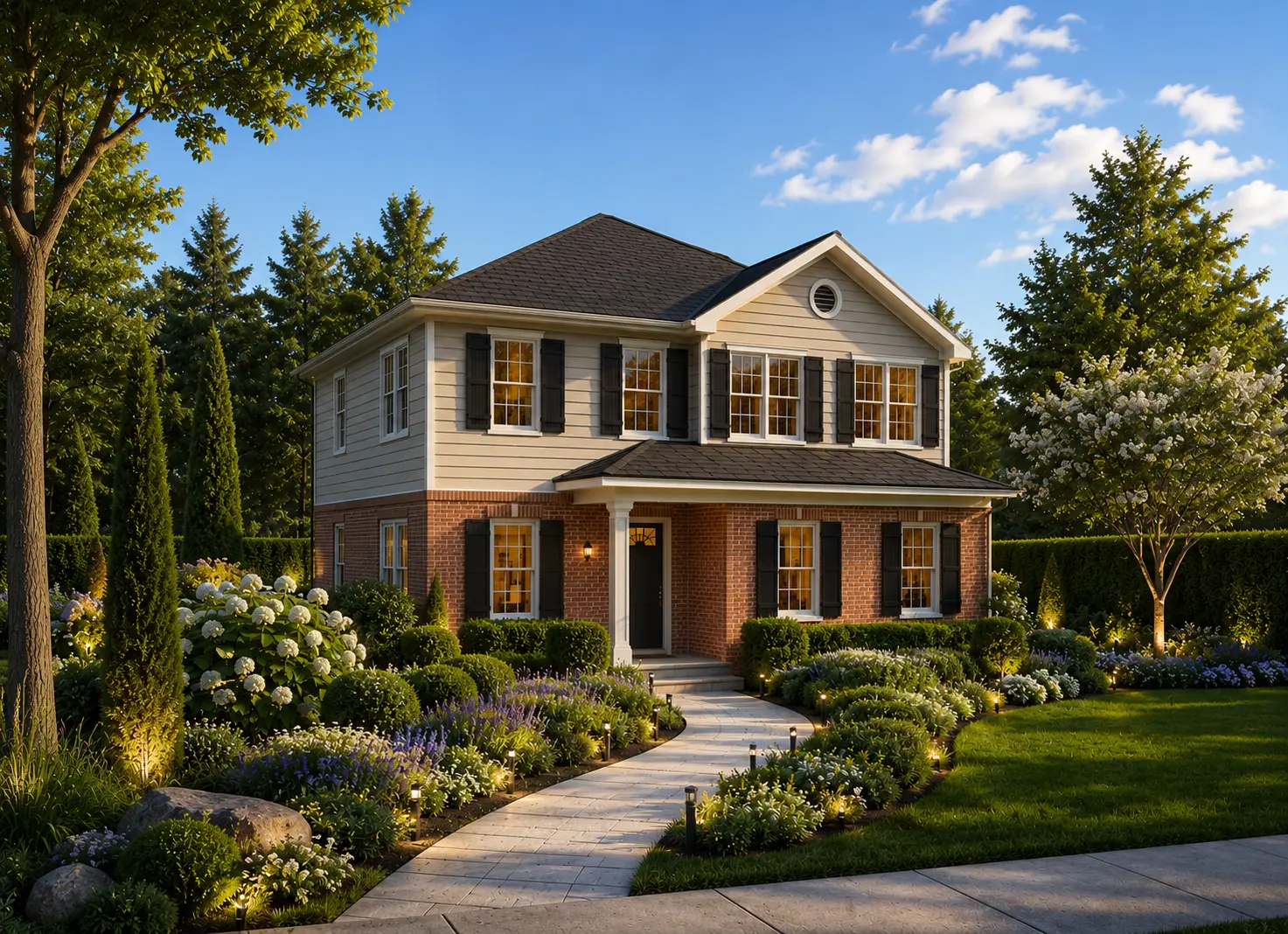

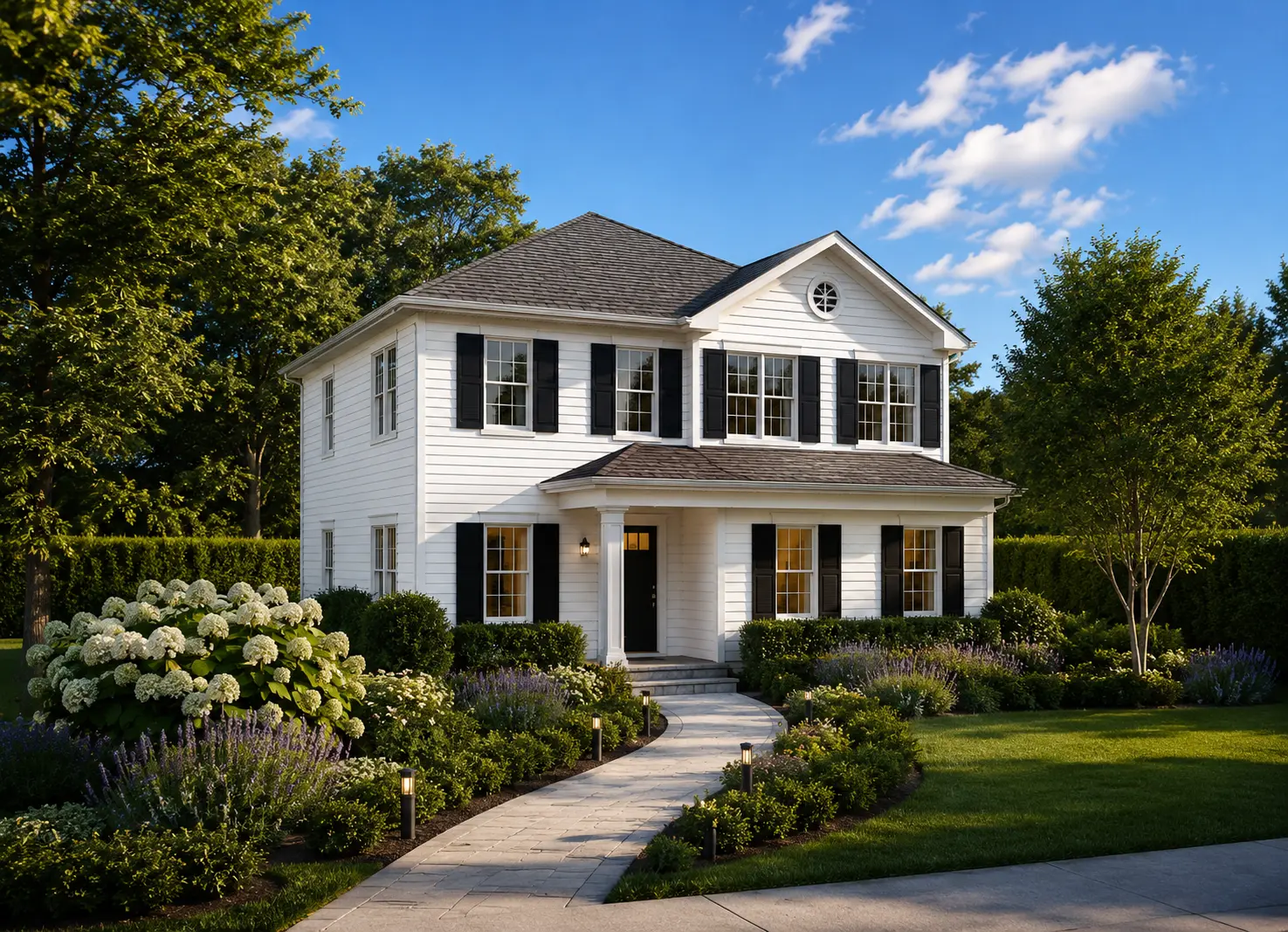

Renderings 3 – 2,261 Sq Ft Colonial 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 12830R Renderings 4 – 2,261 Sq Ft Colonial 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 12830R
6
Construction documents are prepared for the following countries:

2,261 Sq Ft Colonial 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms

Plan
12830R
Complete
Unsigned & Unsealed
DC Available
Key Specs
2261
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
United States Canada
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

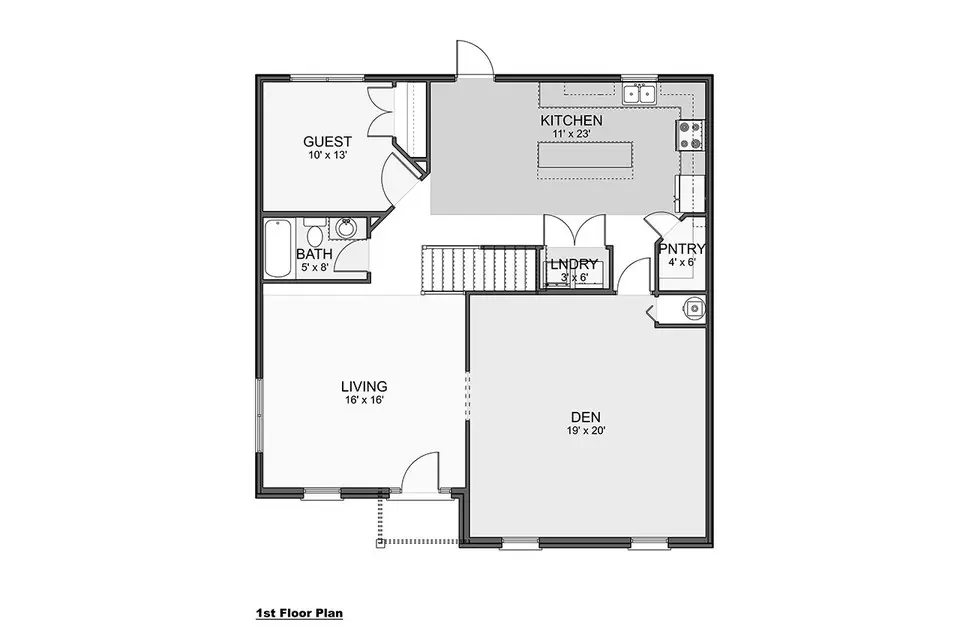

Main Floor
Main Floor 10 – 2,261 Sq Ft Colonial 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 12830R

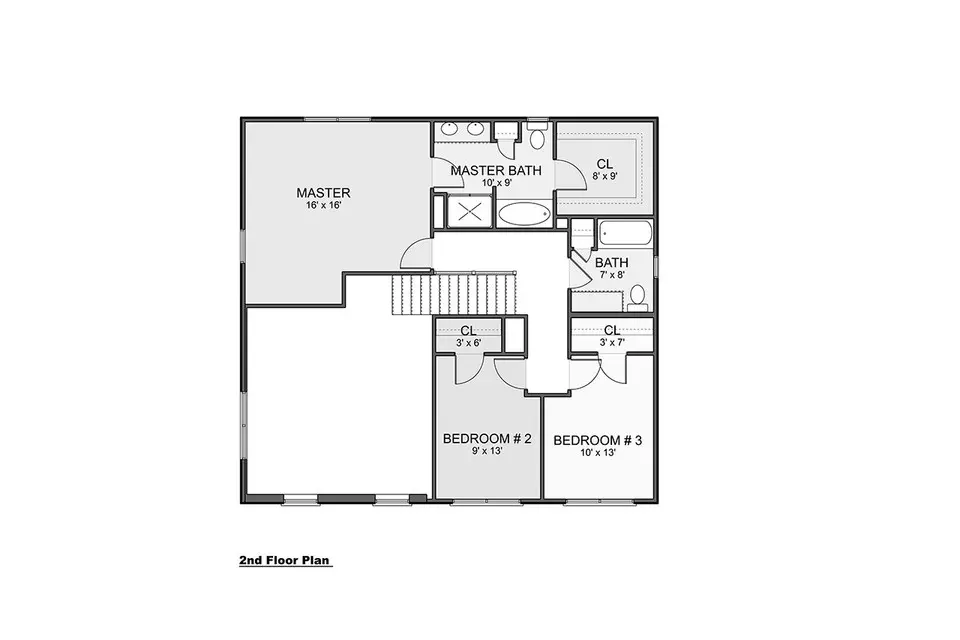

Second Floor
Second Floor 9 – 2,261 Sq Ft Colonial 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 12830R
Full Specs & Features
Area
Main Floor: 1343 ft²
Second Floor: 918 ft²
Total Heated: 2261 ft²
Dimensions
Depth: 37'9" ft
Width: 36'9" ft
Height: 29'5" ft
Foundation
Slab
Walkout Basement (Optional)
Crawl Space (Optional)
Exterior Wall Framing
Wood 2x6
Wood 2x4 (Optional)
Exterior Wall Materials
Siding
Rooms
Full bathrooms: 3
Bedrooms: 3
Bonus/Flex Room
Laundry
In-Law Suite
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Island
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open to Below
Closed Floor Plan
Large Kitchen (>130 ft²)
Architectural Style
Colonial
Traditional
Roof
Hip & Valley
Roof Pitch: 6/12 (26°)
Ceiling
Main Floor Ceiling Height: 9'0" ft
Second Floor Ceiling Height: 8'0" ft

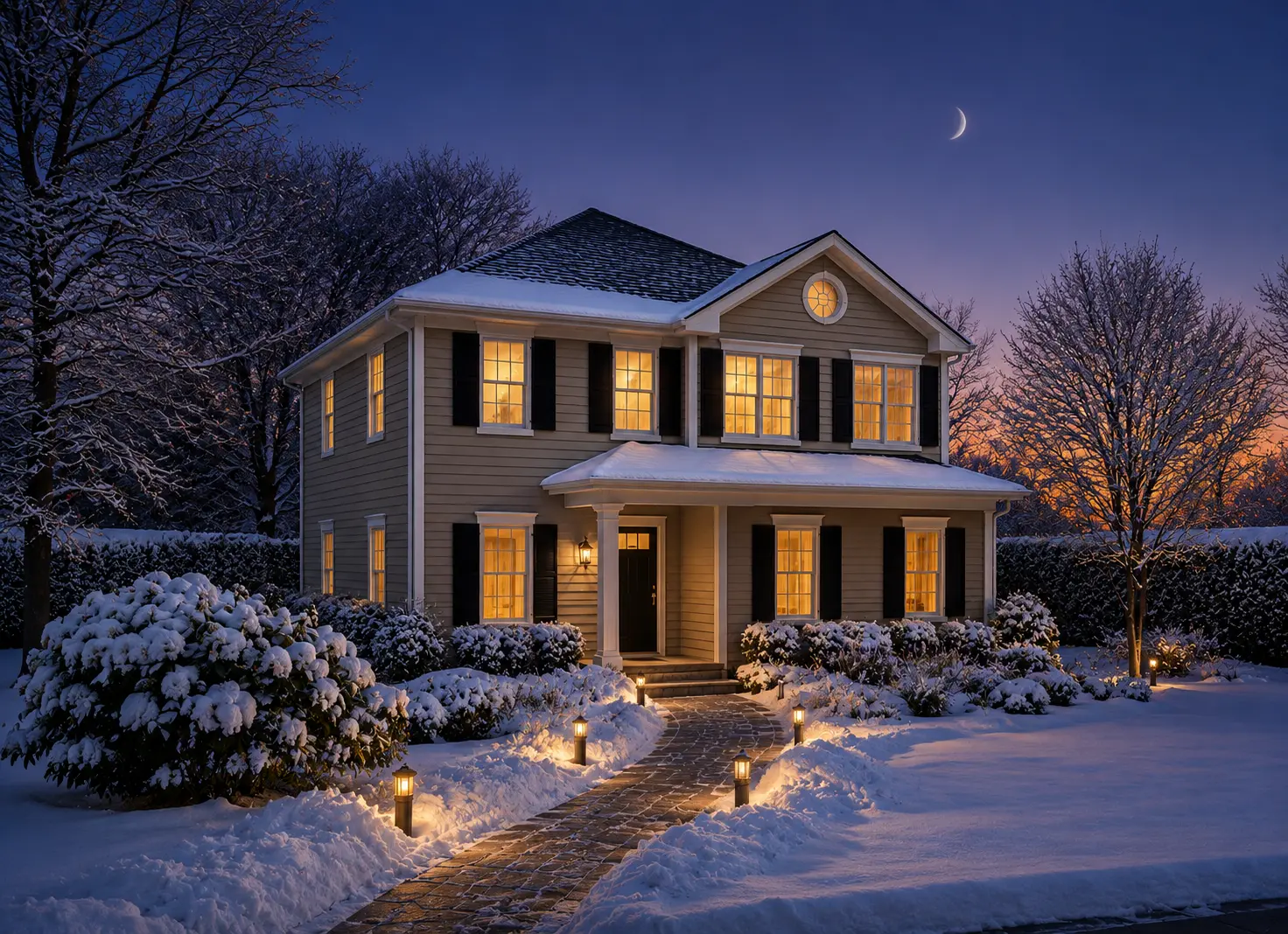

House plan 12830R is a Colonial 2-story single-family home with Total Heated 2,261 Sq Ft, 3 bedrooms and 3 full bathrooms, designed for a family of 3-4 people. The square footprint of 36'9" wide by 37'9" deep keeps the structure compact and the floor plan efficient. The hip and valley roof with a 6/12 pitch sheds rain and snow on every side, and siding on the exterior walls gives the house its classic Colonial look with easy upkeep.

The main floor follows a closed floor plan, so the kitchen stays separate from the living area and cooking smells stay where they belong. The large kitchen has an island and a breakfast bar for quick meals, and a walk-in pantry keeps groceries and small appliances out of sight. An open-to-below space creates a two-story volume that brings daylight deeper into the house. Laundry on the main floor keeps washer noise away from the bedrooms.

The primary suite is on the second floor, with a walk-in closet that keeps clothes organized in one place. The bedrooms are clustered, so parents stay close to their children at night. The In-Law Suite gives a grandparent or long-term guest private quarters, while the bonus/flex room works as a playroom, home office or hobby space as the family grows. Three full bathrooms mean nobody waits in the morning.

The house sits on a slab foundation, with a crawl space or a walkout basement available as options; the walkout basement suits a sloped lot. Exterior walls are framed with 2x6 lumber, which leaves room for thicker insulation, and 2x4 framing is available as an option. In figures: Total Heated 2,261 Sq Ft, 3 bedrooms and 3 bathrooms.

Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
Plan Package

Printed Plan Set
US$1530
Digital Plan Set
US$900
US$1250
US$2460
US$2720
US$2990
Foundation
US$0
US$540
US$415
Exterior Walls
US$0
US$415
Additional Options
US$900
US$355
US$60
US$120
Subtotal
