Main Images 1 – 800 Sq Ft Small House Plan with 3 Bedrooms
Main Images 1 – 800 Sq Ft Small House Plan with 3 Bedrooms Main Images 1 – 800 Sq Ft Small House Plan with 3 Bedrooms
7
Construction documents are prepared for the following countries:

Small European House Plan with 3 Bedrooms and 1 Bath

Plan
13834R
Complete
Signed & Sealed
DC None
Key Specs
831
Total Heated ft²
1 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Video

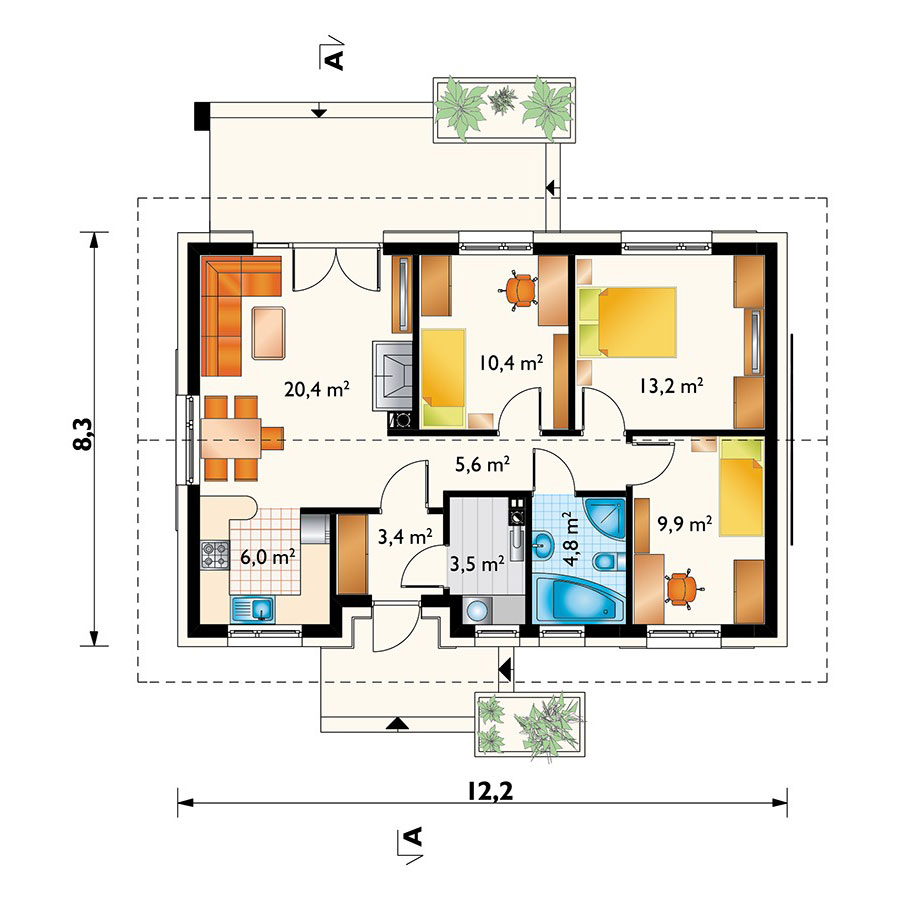

Floor Plans
Main Floor
Main Floor 1 – 800 Sq Ft Small House Plan with 3 Bedrooms
Full Specs & Features
Area
Total Heated: 830.97 ft²
Dimensions
Depth: 25'3" ft
Width: 37'2" ft
Height: 18'9" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block
Wood-framed (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 1
Bedrooms: 3
Utility room
Entry
Kitchen and Dining
Breakfast Nook
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Exterior Features
Deck
Architectural Style
Bungalow
Cottage
European
Traditional
Roof
Roof Area: 1646.88 ft²
Gable
Ridge parallel to street
Roof Pitch: 7/12 (30°)

Plan 13834R is a 3-bedroom single-story house plan of 831 ft², a compact bungalow with cottage, European and traditional character, set under a gable roof with a 7/12 pitch. The ridge runs parallel to the street, so the front shows a calm, low silhouette, and stucco exterior walls give the facade a clean, timeless finish. The house measures 37'2" wide and 25'3" deep, with a height of 18'9", and it is designed as a single family home for comfortable year-round living.

You come in through a dedicated entry, which keeps coats, boots and bags out of the main living area. Beyond it, an open floor plan joins the family room and the kitchen into one shared space, so the whole family stays together while dinner is being made. The fireplace in the family room anchors the room and becomes the natural place to gather on winter evenings. The kitchen includes a breakfast nook, a relaxed spot for a quick morning coffee, homework or a casual meal without setting a formal table. For a house plan with fireplace at this scale, the open layout makes every part of the day feel connected.

The three bedrooms are clustered together, and with the master bedroom on the main floor, everything you need is on one level with no stairs to climb. This arrangement suits young families who want the children close by, as well as couples planning to stay in the home for years. One full bathroom serves the bedrooms, and a utility room keeps household equipment and everyday chores out of sight, a practical advantage in a small house plan where every space has a clear purpose.

Outside, a deck extends the living space and offers a place for summer meals and quiet evenings in the open air. The house stands on strip footings, and it is also available with a slab foundation on request. The main walls are built of aerated concrete block, with ceramic block or wood frame walls offered as options. With no garage and no basement, this 3 bedroom house plan keeps the construction simple and the footprint efficient, leaving the budget for the finishes that make a home your own.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
