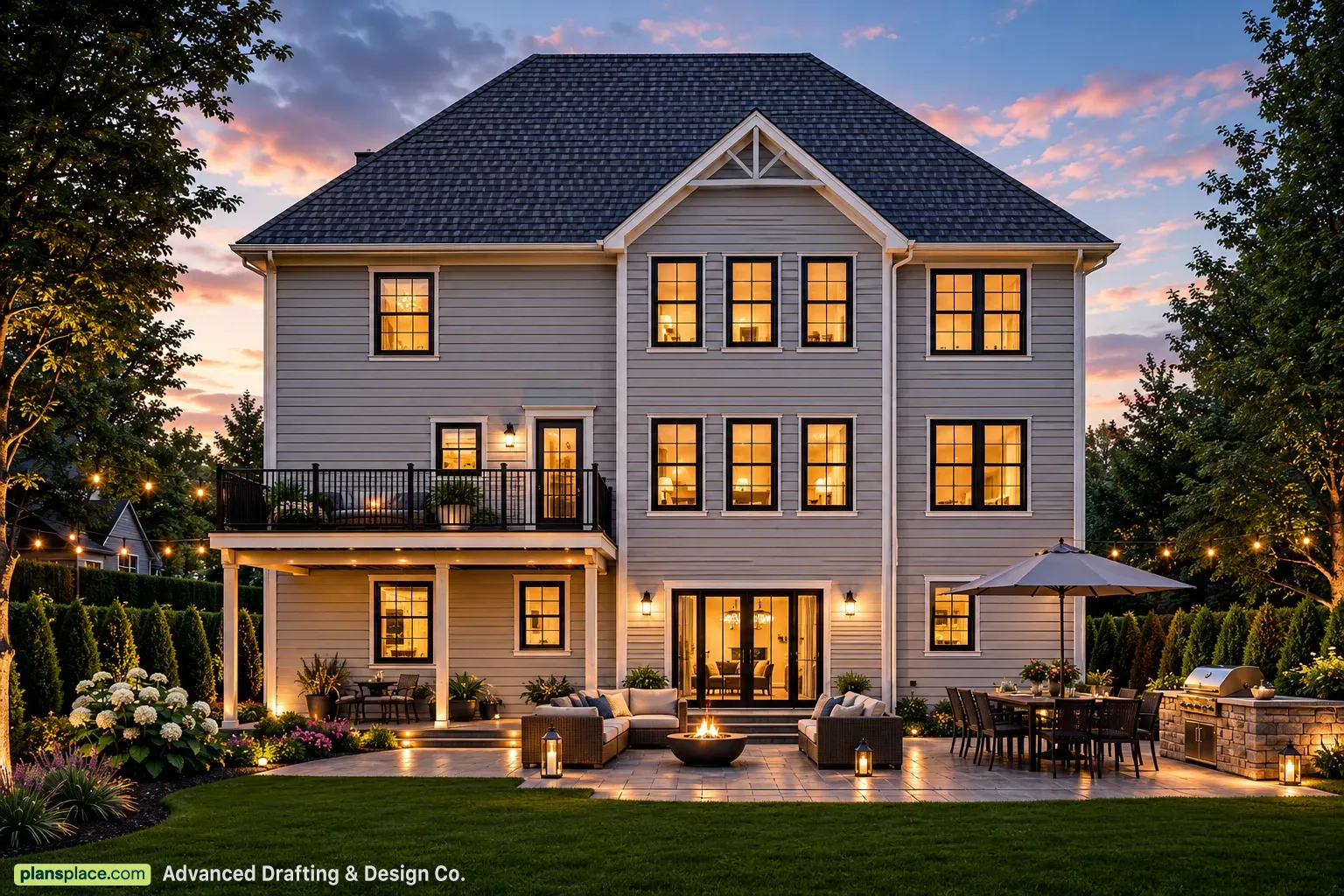

Renderings 2 – 2,853 Sq Ft Craftsman 2-Story House Plan with Walkout Basement, 5 Bedrooms and 4.5 Bathrooms – 24507R
Renderings 3 – 2,853 Sq Ft Craftsman 2-Story House Plan with Walkout Basement, 5 Bedrooms and 4.5 Bathrooms – 24507R Renderings 4 – 2,853 Sq Ft Craftsman 2-Story House Plan with Walkout Basement, 5 Bedrooms and 4.5 Bathrooms – 24507R
6
Construction documents are prepared for the following countries:

2,853 Sq Ft Craftsman 2-Story House Plan with Walkout Basement, 5 Bedrooms, 4.5 Bathrooms and 2-Car Garage

Plan
24507R
Complete
Unsigned & Unsealed
DC Available
Key Specs
2853
Total Heated ft²
4 + 1
Baths + 1/2 Baths
5 + 1
Beds + Home Office
2
Cars
United States Canada
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

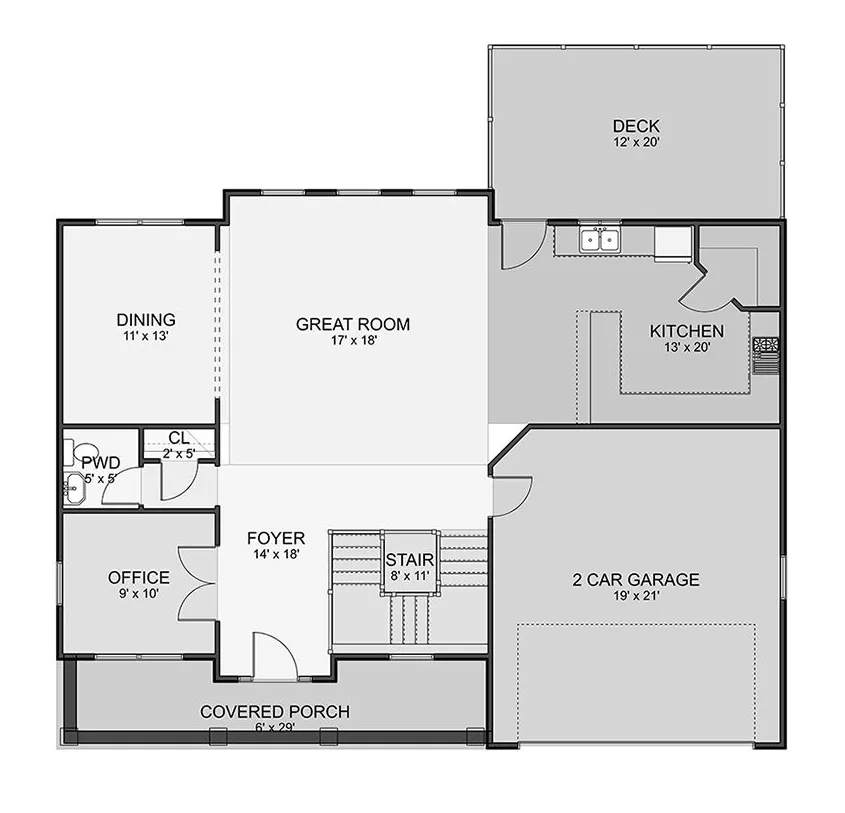

Main Floor
Main Floor 10 – 2,853 Sq Ft Craftsman 2-Story House Plan with Walkout Basement, 5 Bedrooms and 4.5 Bathrooms – 24507R

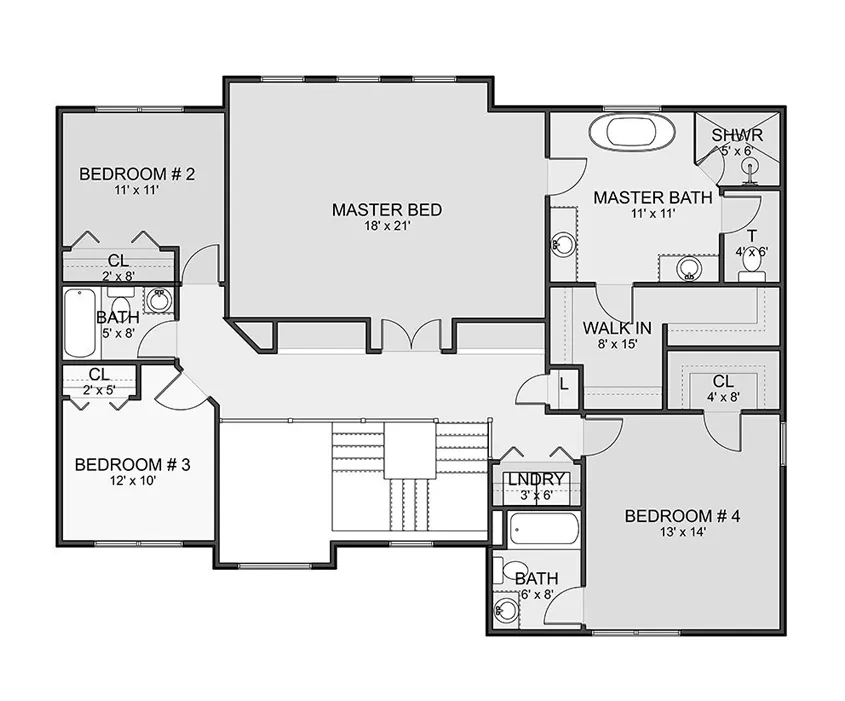

Second Floor
Second Floor 11 – 2,853 Sq Ft Craftsman 2-Story House Plan with Walkout Basement, 5 Bedrooms and 4.5 Bathrooms – 24507R

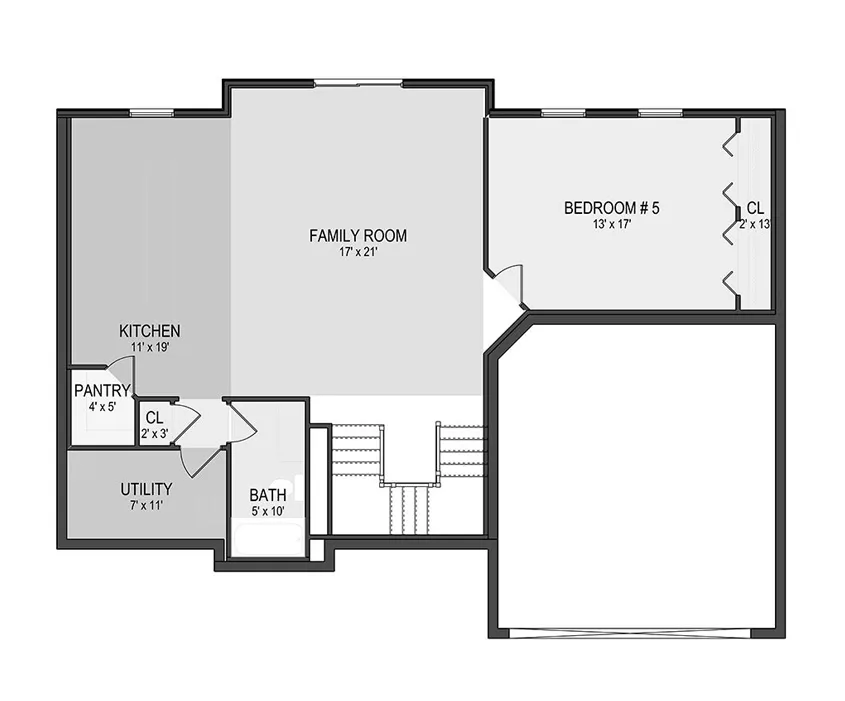

Basement
Basement 9 – 2,853 Sq Ft Craftsman 2-Story House Plan with Walkout Basement, 5 Bedrooms and 4.5 Bathrooms – 24507R
Full Specs & Features
Area
Main Floor: 1218 ft²
Second Floor: 1635 ft²
Basement: 1087 ft²
Porch: 582 ft²
Total Heated: 2853 ft²
Dimensions
Depth: 38'0" ft
Width: 49'0" ft
Height: 51'5" ft
Garage
Area: 439 ft²
Cars: 2
Room Above Garage
Front Entry
Foundation
Slab (Optional)
Walkout Basement
Crawl Space (Optional)
Exterior Wall Framing
Wood 2x6 (Optional)
Wood 2x4
Exterior Wall Materials
Siding
Rooms
Full bathrooms: 4
Half bathrooms: 1
Bedrooms: 5
Utility room
Laundry
Entry
Home Office
In-Law Suite
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
2 Kitchens
Interior Features
Laundry Second Floor
Second Floor Master
Clustered Bedrooms
Open to Below
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Deck
Architectural Style
Colonial
Craftsman
New American
Traditional
Roof
Hip & Valley
Ridge parallel to street

The 24507R house plan is a 2-story Craftsman single-family home with Total Heated 2,853 Sq Ft, sized for a household of 6-8 people. Five bedrooms and 4.5 bathrooms give everyone private space. The hip and valley roof runs with its ridge parallel to the street above siding walls, on a footprint 49'0" wide and 38'0" deep.

A covered front porch leads to the entry and into an open floor plan. The large family room sits in the open layout, and an open-to-below space adds height and daylight. The large kitchen pairs a breakfast bar for quick meals with a breakfast nook for family dinners, and the walk-in pantry keeps supplies out of sight. A home office offers a quiet place to work.

The bedrooms are clustered to keep the family close, with the primary suite and its walk-in closet on the second floor. The laundry on the same level spares trips with baskets between floors. An in-law suite and a second kitchen give grandparents or guests more independence.

The front-entry 2-car garage has a room above it for extra space, and a deck extends daily life outdoors. The walkout basement opens to the yard and suits a sloped lot; slab and crawl space foundations are available as options. Walls are framed in 2x4 wood, with 2x6 as an option. The project at a glance: Total Heated 2,853 Sq Ft, 5 bedrooms, 4.5 bathrooms and a 2-car garage.

Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
Plan Package

Printed Plan Set
US$1950
Digital Plan Set
US$1160
US$1600
US$3140
US$3480
US$3820
Foundation
US$660
US$0
US$660
Exterior Walls
US$660
US$0
Additional Options
US$1160
US$465
US$70
US$140
Subtotal
