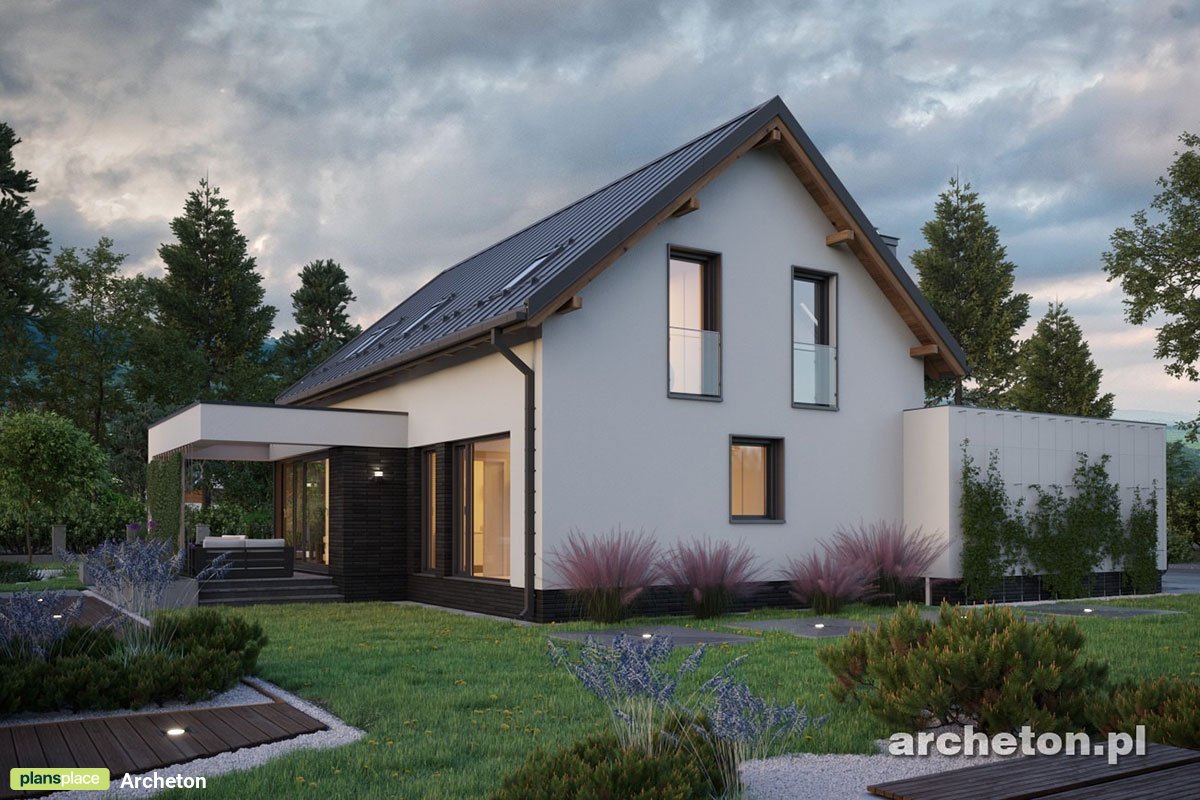

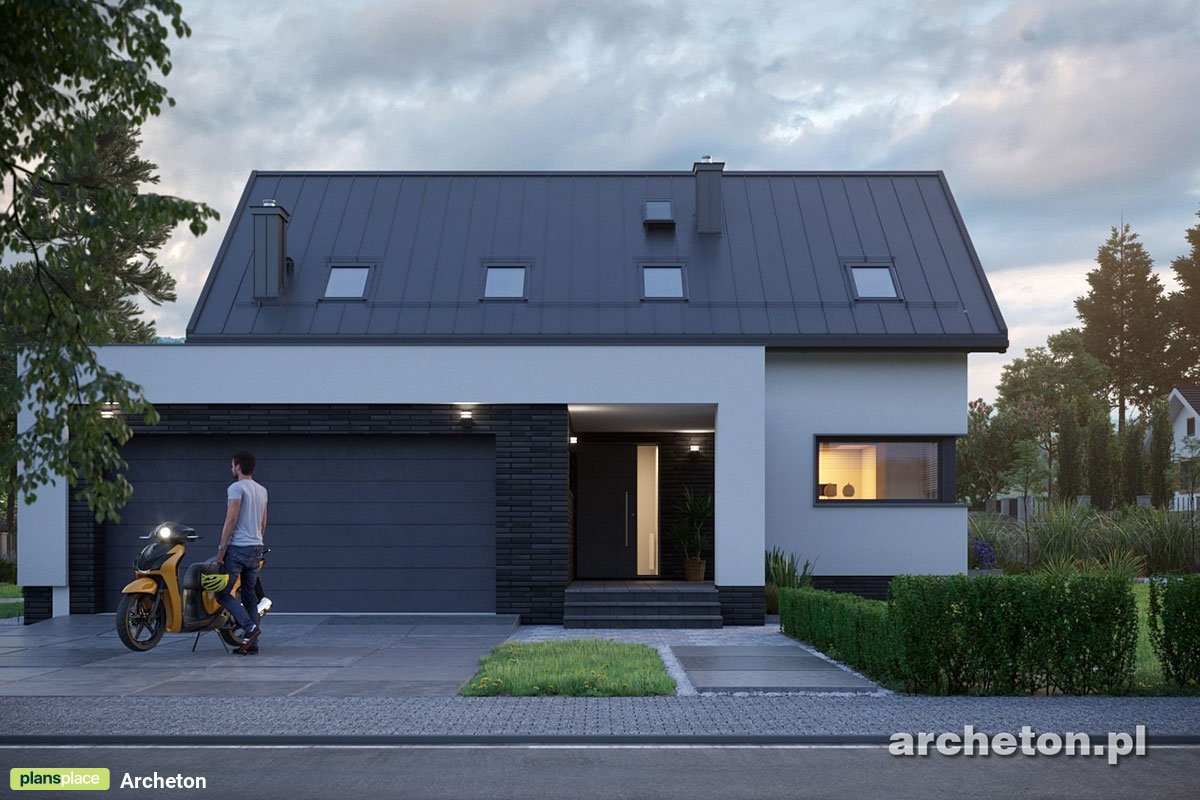

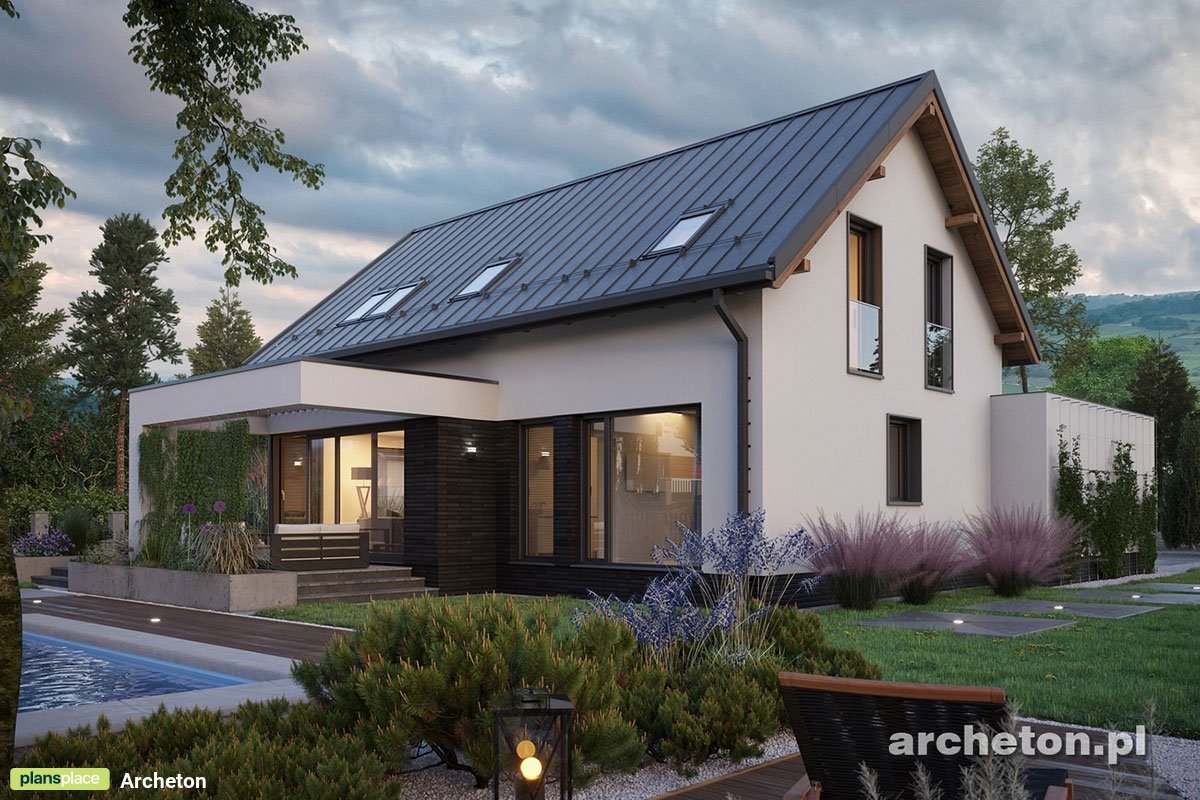

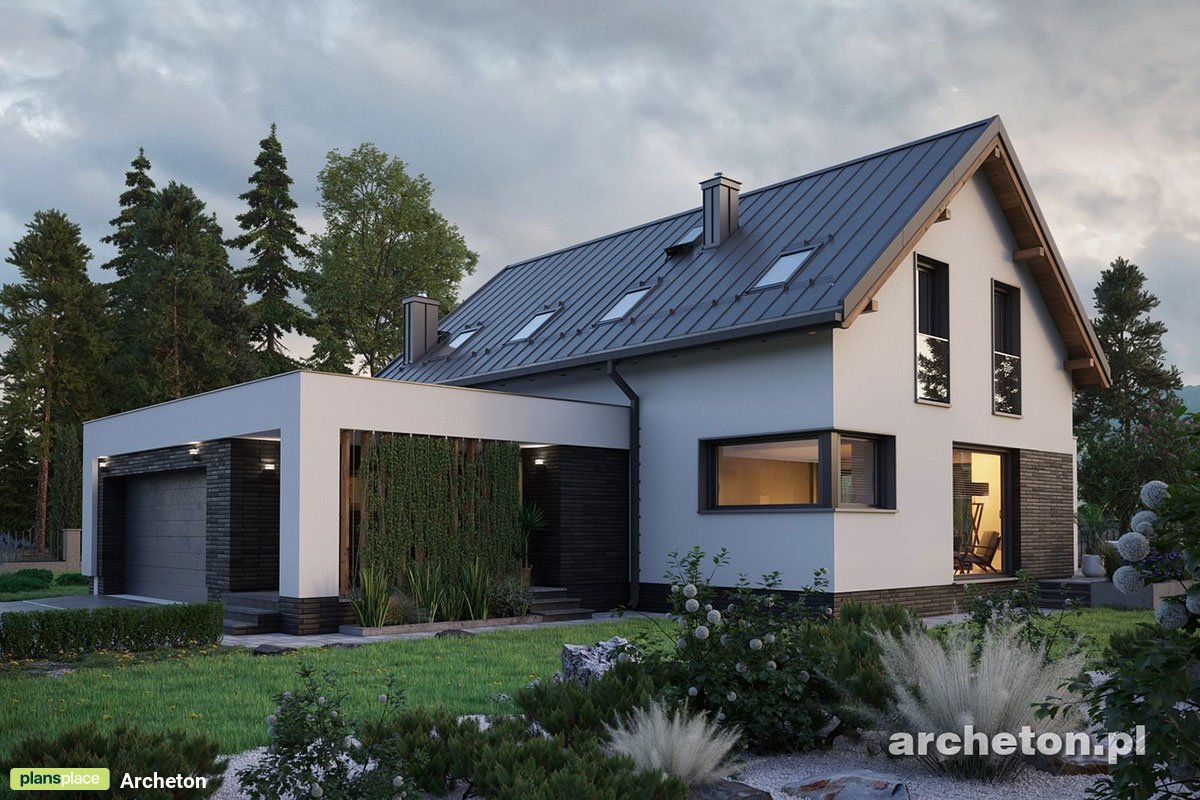

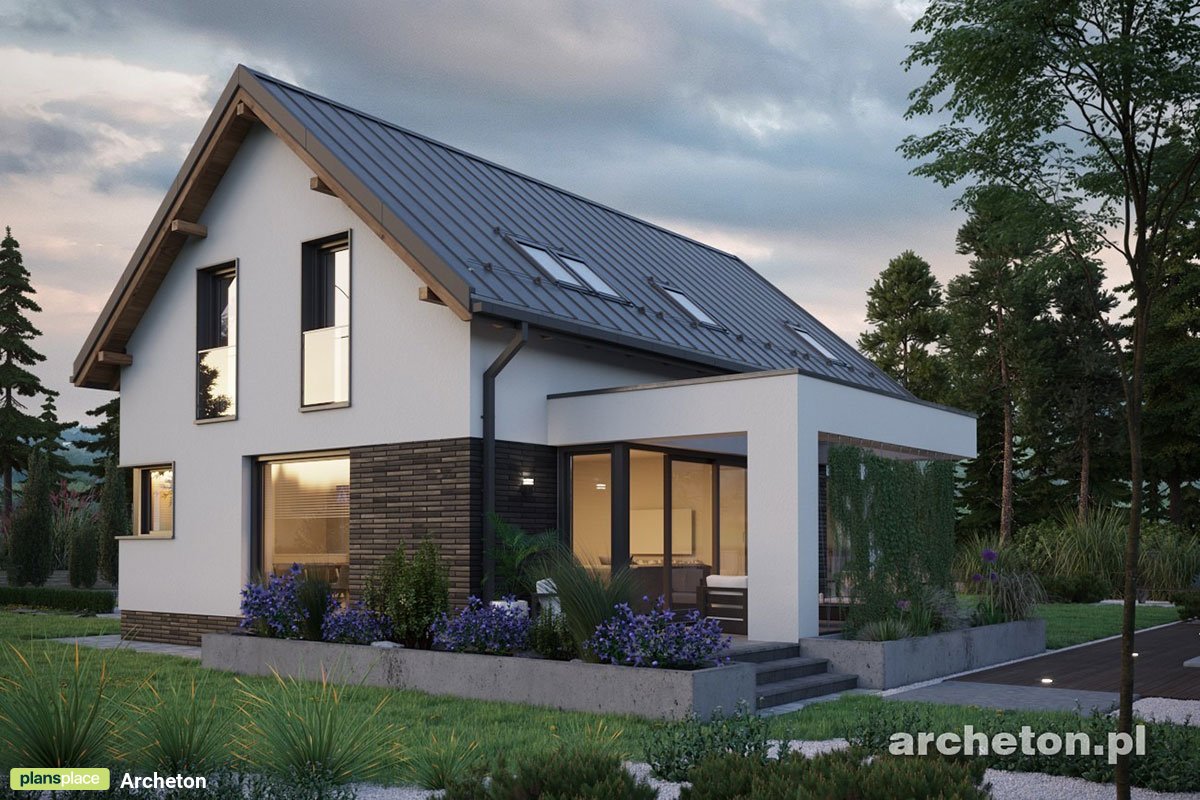

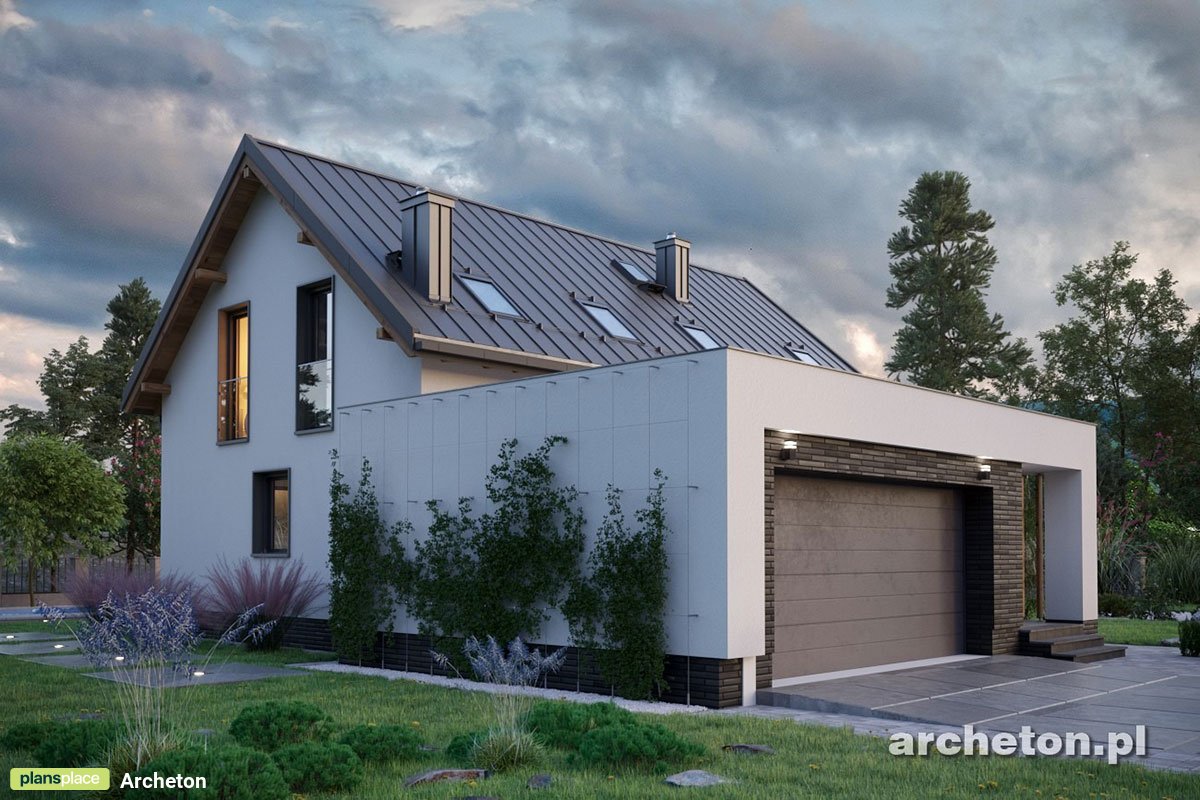

Main Images 1 – House Plan with Gable Roof und Attached Garage
Main Images 1 – House Plan with Gable Roof und Attached Garage Main Images 1 – House Plan with Gable Roof und Attached Garage
8
Construction documents are prepared for the following countries:

House Plan with Gable Roof und 2-Car Attached Garage

Plan
81752R
Complete
Signed & Sealed
DC None
Key Specs
1736
Total Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

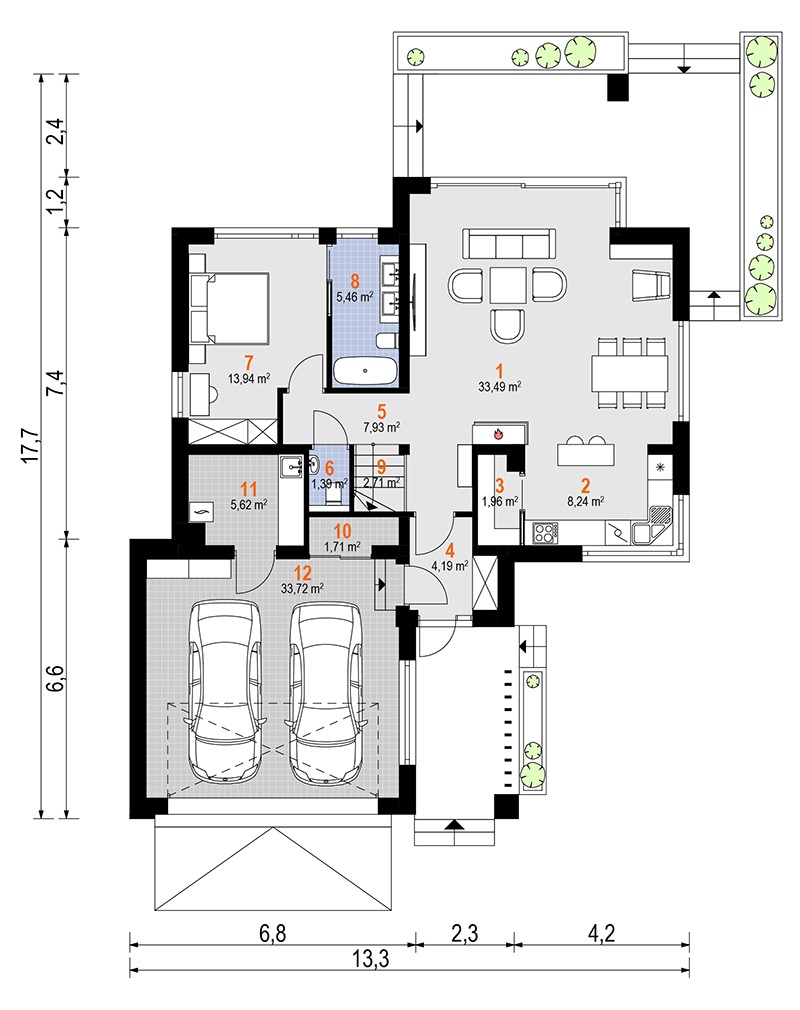

Main Floor
Main Floor 1 – House Plan with Gable Roof und Attached Garage

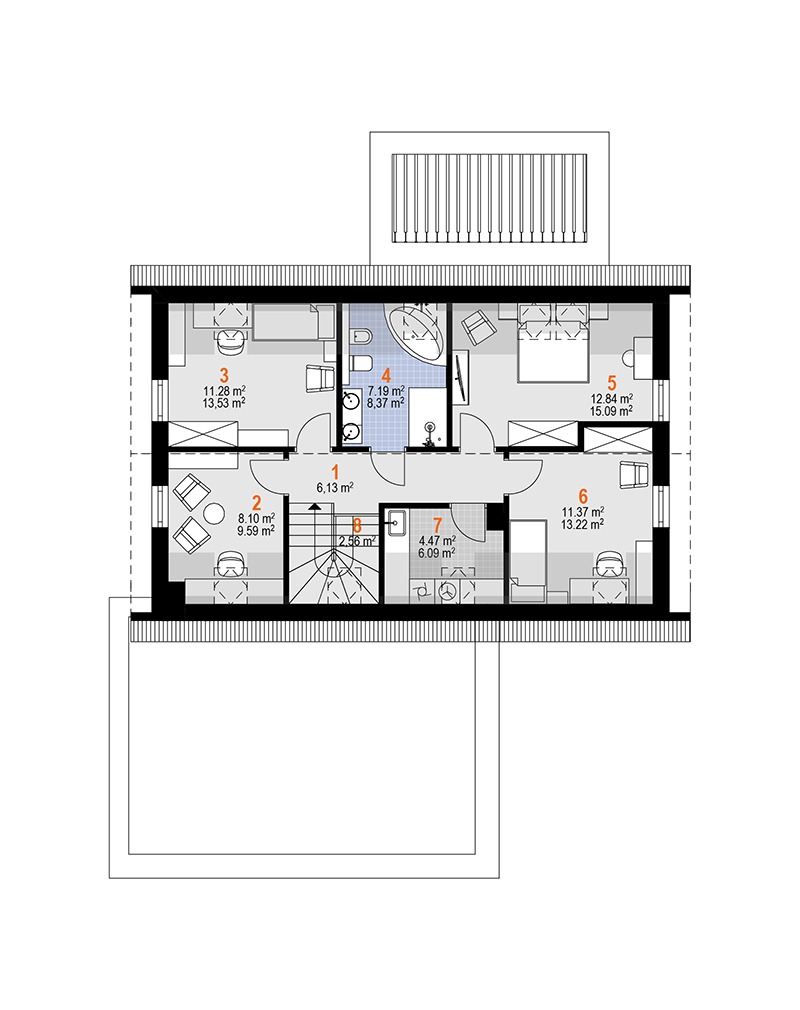

Second Floor
Second Floor 1 – House Plan with Gable Roof und Attached Garage
Full Specs & Features
Area
Total Unheated: 362.74 ft²
Total Heated: 1735.57 ft²
Dimensions
Depth: 53'9" ft
Width: 40'5" ft
Height: 25'0" ft
Garage
Area: 363 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block
Wood-framed (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Utility room
Laundry
Entry
Home Office
In-Law Suite
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Corner Window
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Transitional
Roof
Roof Area: 1571.53 ft²
Gable
Skylight
Ridge parallel to street
Roof Pitch: 10/12 (40°)

Plan 81752R is a 3-bedroom two-story house plan that carries its Contemporary character lightly, blending the clean geometry of Modern design with the softer, timeless notes of European and Transitional architecture. The L-shaped layout wraps 1736 ft² of living space around the daily life of a family. The two-car garage, a front-entry design that extends forward of the main facade, gives the street view depth and a clear sense of arrival. Stone/brick veneer and smooth stucco share the exterior walls, and a gable roof with its ridge parallel to the street keeps the profile quiet, balanced and unmistakably residential.

The day begins on the covered front porch, a sheltered threshold that leads into a proper entry rather than straight into the living space. Beyond it, the open floor plan unfolds in one easy movement. The large family room is the heart of the house, anchored by a fireplace and washed in daylight from floor-to-ceiling windows, so evenings by the fire and mornings in the sun feel equally at home here. The kitchen is made for real use. A generous island hosts chopping, homework and conversation, a walk-in pantry keeps the counters clear, and a breakfast nook brightened by a corner window invites coffee to linger a little longer. The covered rear porch extends all of this outdoors, an open-air room for summer dinners and rainy afternoons alike.

Upstairs, the second floor master suite and the other bedrooms are clustered together, keeping the family close at night and the morning routine simple. The laundry sits on the second floor as well, right where clothes are worn, folded and put away, so no basket has to climb the stairs. Throughout the home, two full bathrooms and a half bath serve both the household and its guests. A skylight draws light down from above, and large windows keep the rooms connected to the outdoors and the changing sky. An in-law suite gives parents, longer-staying guests or a grown child a private place of their own. A home office gives remote work a door that closes, and a separate utility room keeps the mechanics of the house out of sight.

The house rests on a slab with a concrete stem wall foundation and has no basement, so every square foot of living space stays in the light, where the family actually spends its days. Covered porches at the front and the rear, a kitchen turned toward the view through its corner window, and the measured composition of stone, stucco and glass make this 1736 ft² home feel both current and lasting. It is a house designed for every season and for many years of family life.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
