House Plan with Covered Porch and Indoor-Outdoor Fireplace

Plan
20457R
Prepared
Stamped & Signatured
CAD Concept
Key Specs
1817
Total Heated Area sq ft
416
Total Unheated Area sq ft
55'0"
WIDTH
38'3"
DEPTH
2
BATHS
1
1/2 BATHS
3
BEDS
2
CARS
The plan architect is not from your country!
If you want to buy a plan from a foreign architect, you have two options:
1. You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
2. Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.

You can select a local architect in the recommendations on this page on the right below or on the Architects page. If there are no architects from your country on Plansplace, use your local websites to find one.
Rysunki architektoniczne, konstrukcyjne i instalacyjne:

rzut fundamentów

rzuty parteru i kolejnych kondygnacji

rzut stropów i nadproży

rzut więźby dachowej

rzut dachu

przekroje

zestawienie stolarki drzwiowej i okiennej

detale konstrukcji

projekty instalacji

Opisy techniczne architektoniczno-konstrukcyjne oraz opisy wewnętrznych instalacji sanitarnych i elektrycznych:

opis techniczny części architektonicznej projektu

opis techniczny konstrukcji

opisy instalacji

Opisy i dokumentacja zawierają:

charakterystykę energetyczną budynku

charakterystykę ekologiczną

informację o planie b.i o.z.

analizę porównawczą dwóch źródeł energii

oświadczenia projektantów

liczne informacje formalno-prawne

Materiały pomocnicze:

obliczenia konstrukcyjne

zestawienie elementów więźby dachowej

zestawienie materiałów do podstawowych instalacji sanitarnych, grzewczych i gazowych

zestawienie stali do zbrojenia elementów żelbetowych

widoki więźby i stropów w 3D

Need to change something?

This house plan can be modified to suit your family's lifestyle and/or your lot specifics.

The plan architect is not from your country!


If you want to modify a plan from a foreign architect, you have two options:
You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
or
Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.

Floor Plans
First Floor

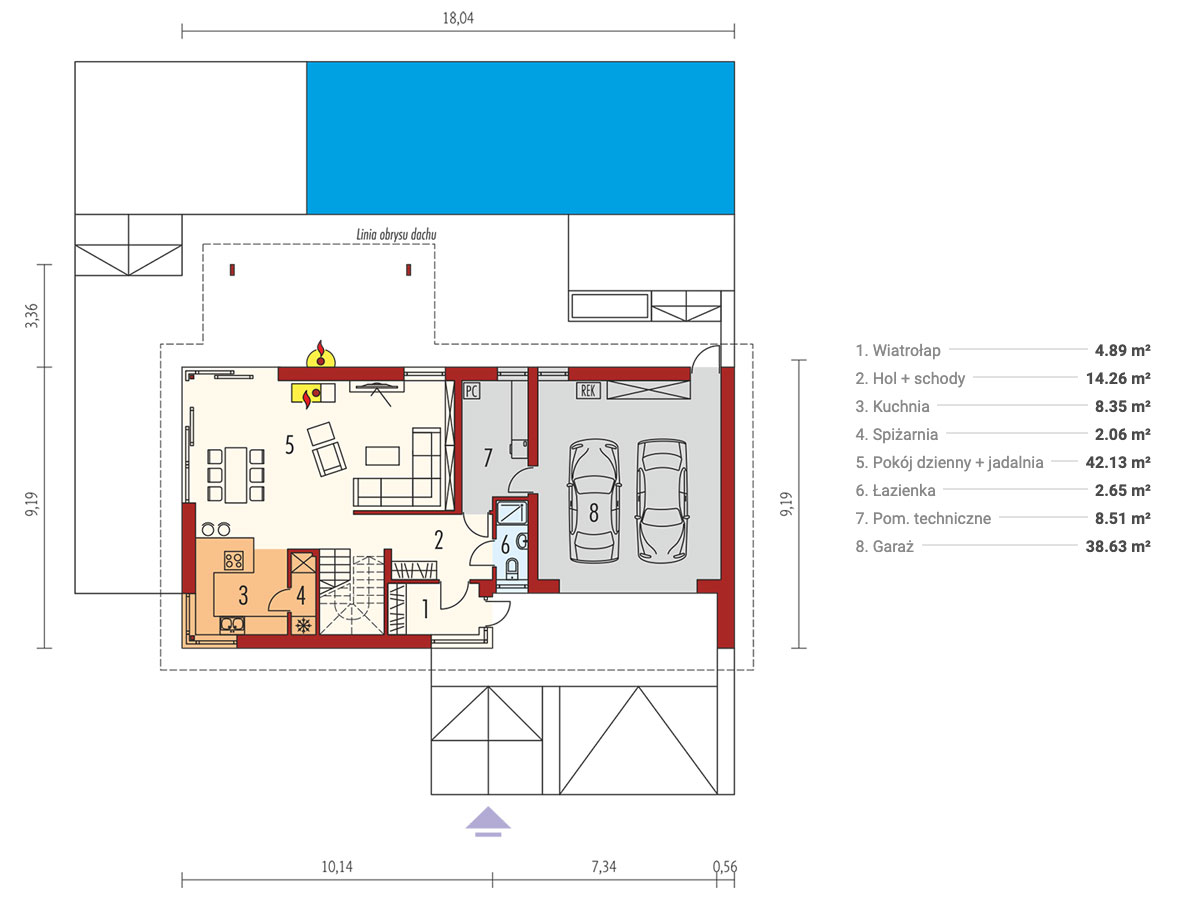

20457R - First Floor
Second Floor

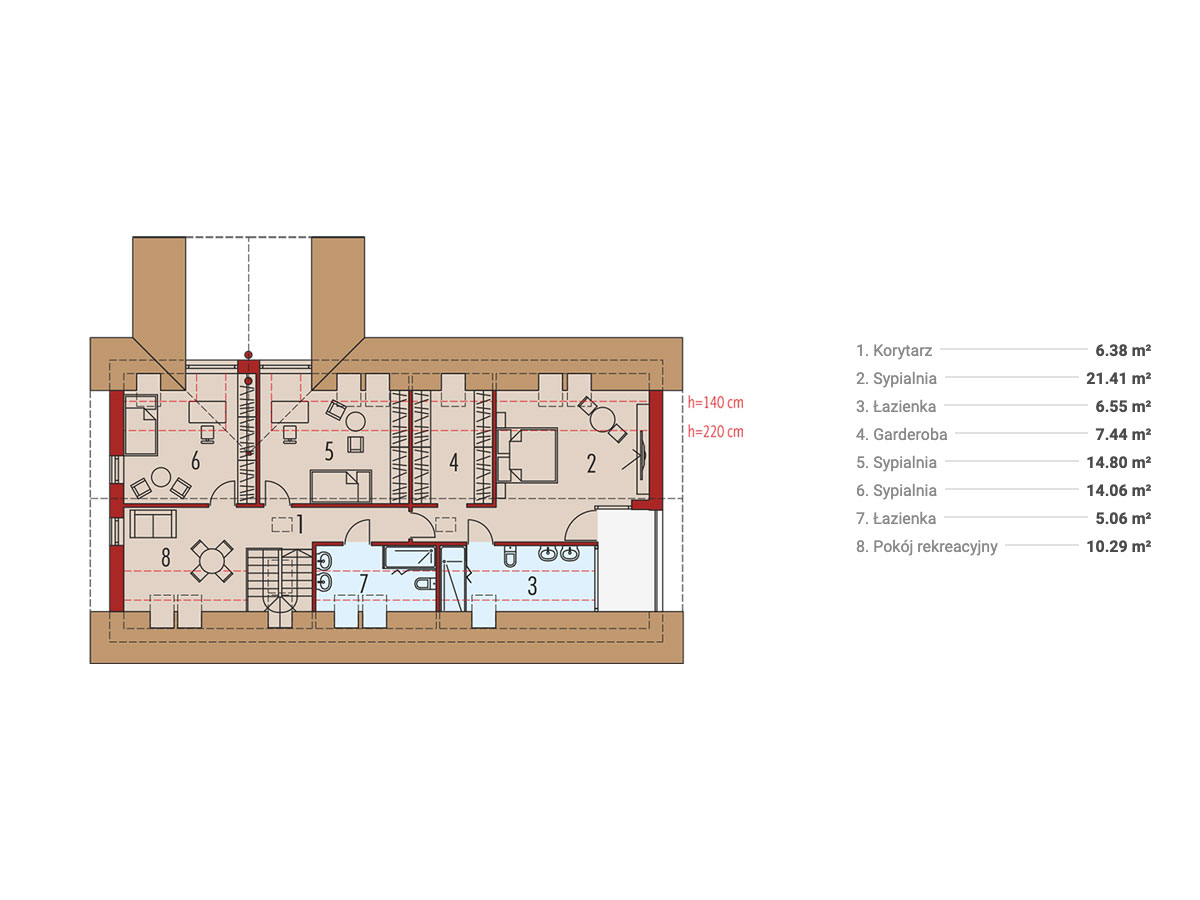

20457R - Second Floor
Full Specs & Features
Area
Total Heated Area: 1817 sq ft
Total Unheated Area: 416 sq ft
Dimensions
Depth : 38'3" ft
Width : 55'0" ft
Height : 25'5" ft
Exterior Wall Framing
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rock/Stone
Rooms
Furnace Room
Bonus/Flex Room
Laundry
Mudroom
Foundation
Concrete Stem Wall
Architectural Style
European
Lake
Mountain
Traditional
Outdoor Options
Balcony
Outdoor Fireplace
Covered Rear Porch
Deck
Corner Window
Large Windows
2-Sided Fireplace
Floor-to-Ceiling Windows
Interior Options
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Walk In Closet
Open Floor Plan
Large Family Room
Laundry in Furnace Room
Kitchen and Dining
Butler Walk-in Pantry
Eating Bar
Breakfast Nook
Corner Window
Garage
Garage Area: 416 sq ft
Cars: 2
Garage with Upstairs
Front Entry
Roof
Roof Area: 3111 sq ft
Gable
Skylight
Roof Pitch: 10/12
The Architect of the Plan
ARCHIPELAG ARCHIPELAG
Polska
Polska
Lower Silesian Voivodeship, Wrocław, ul. Mariana Smoluchowskiego 56/3
+48717983800
