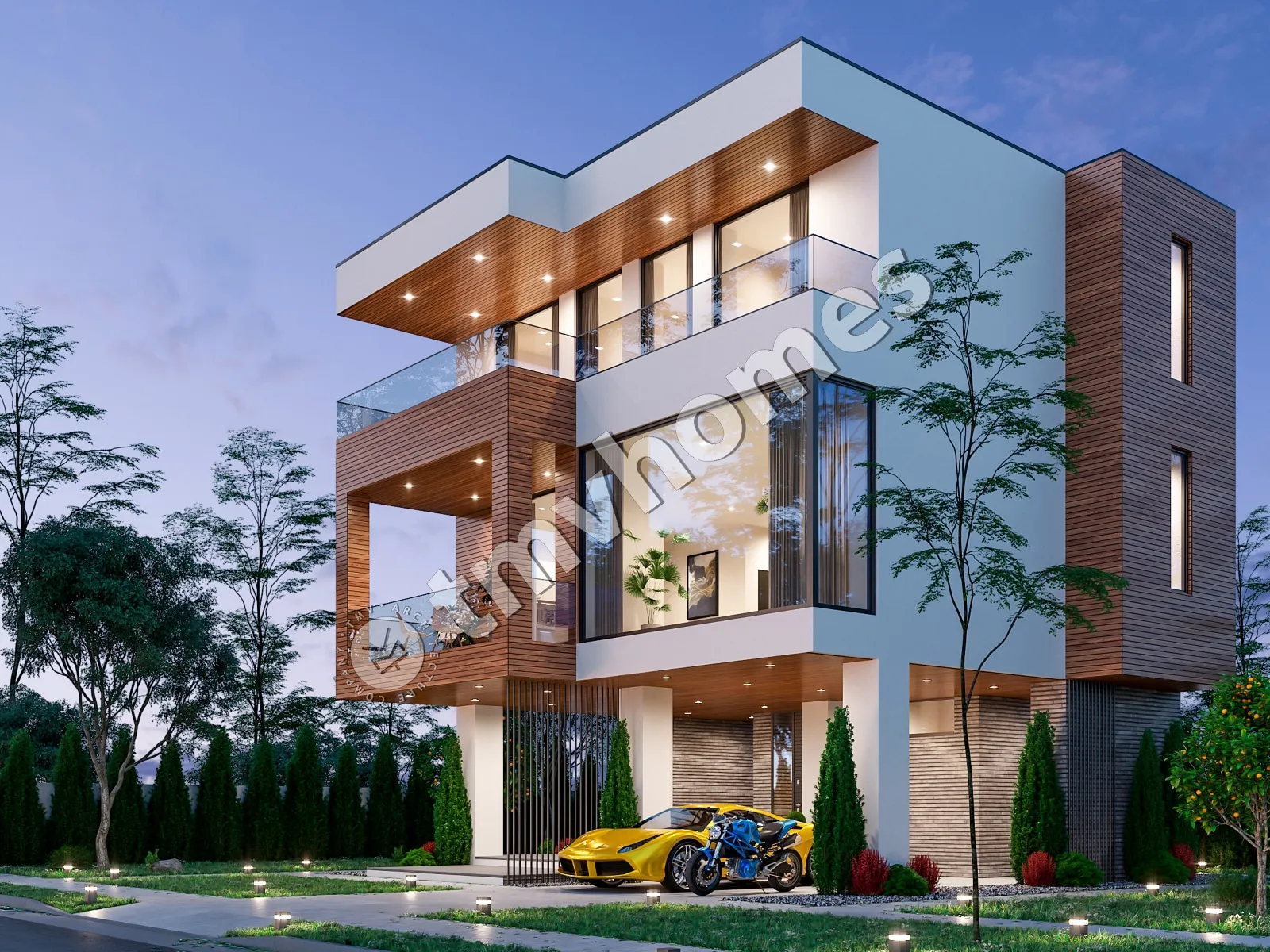

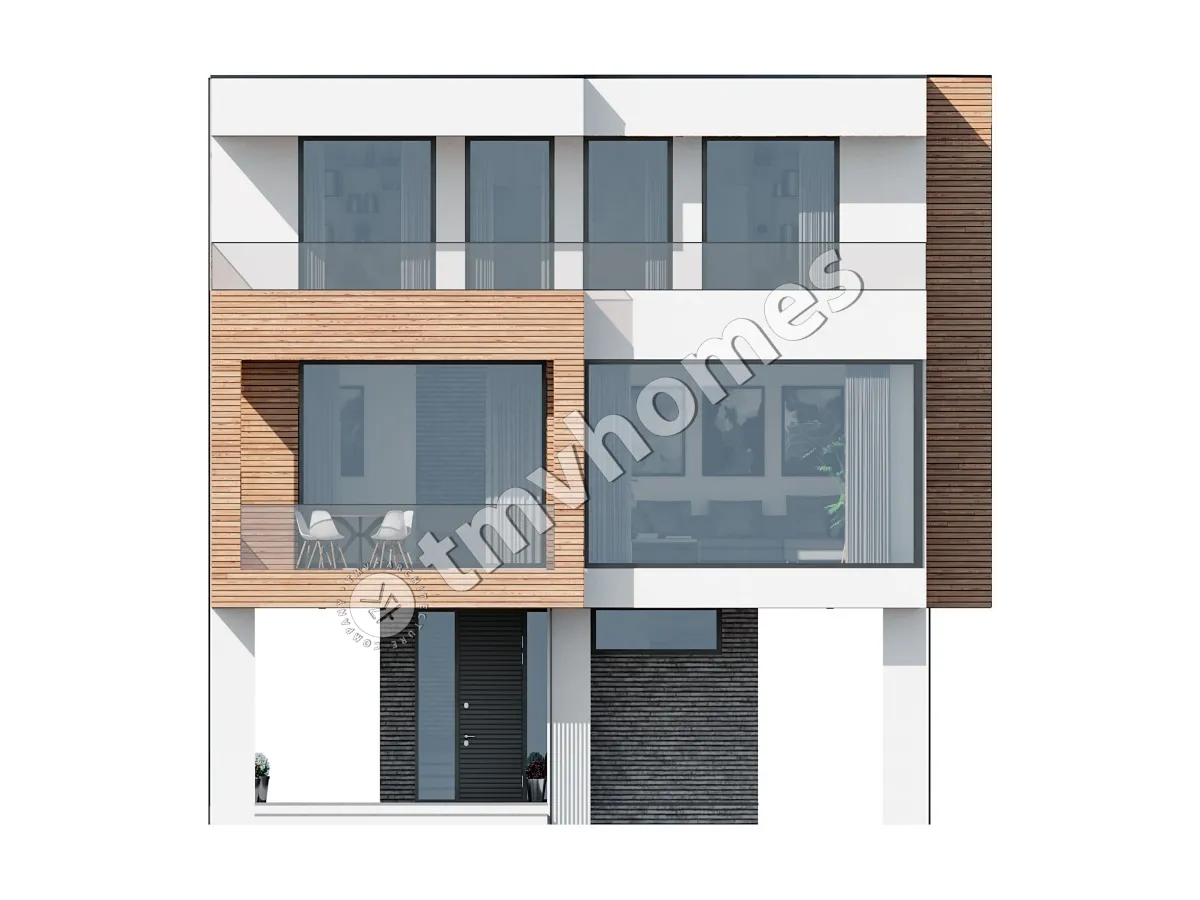

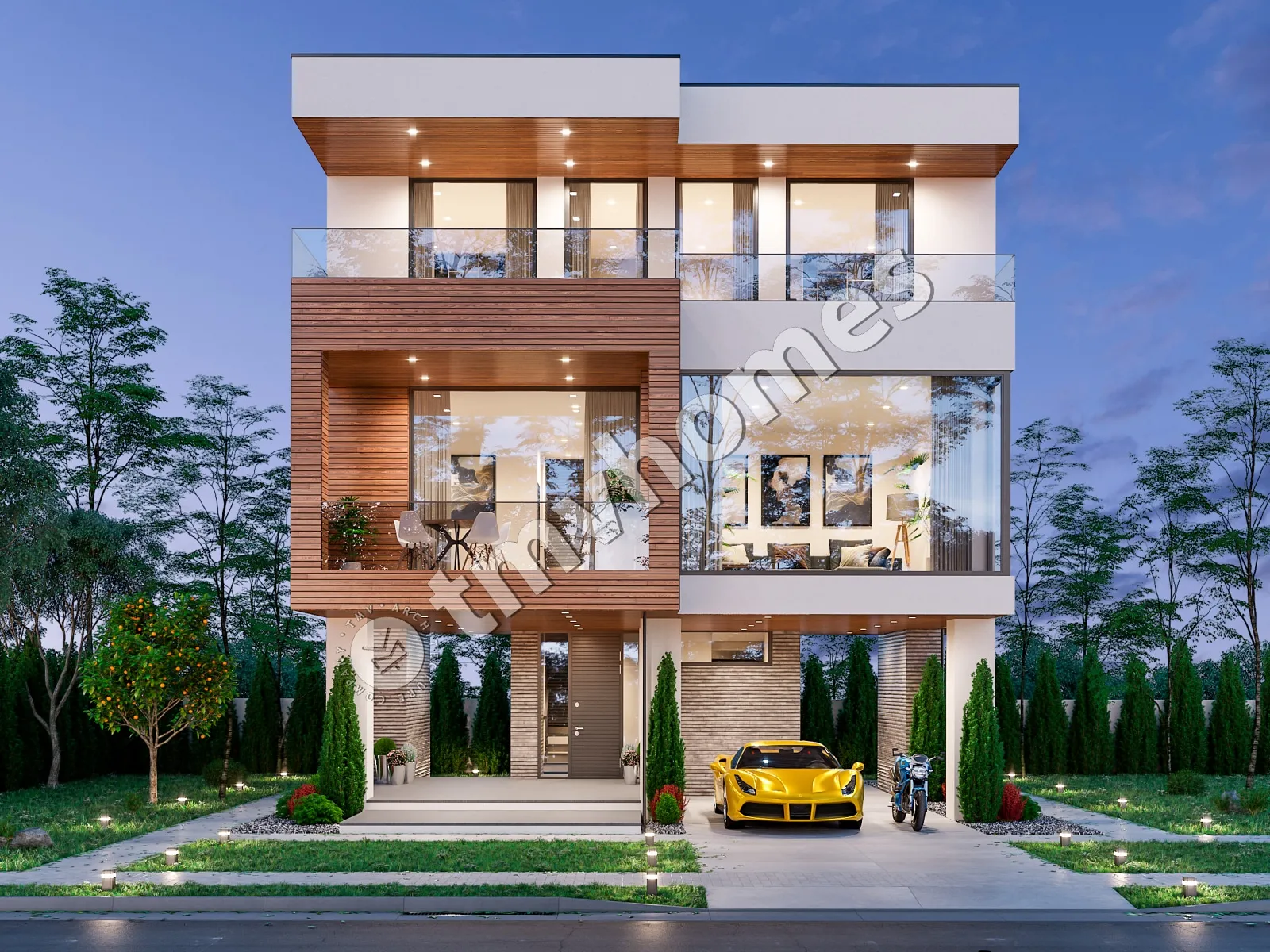

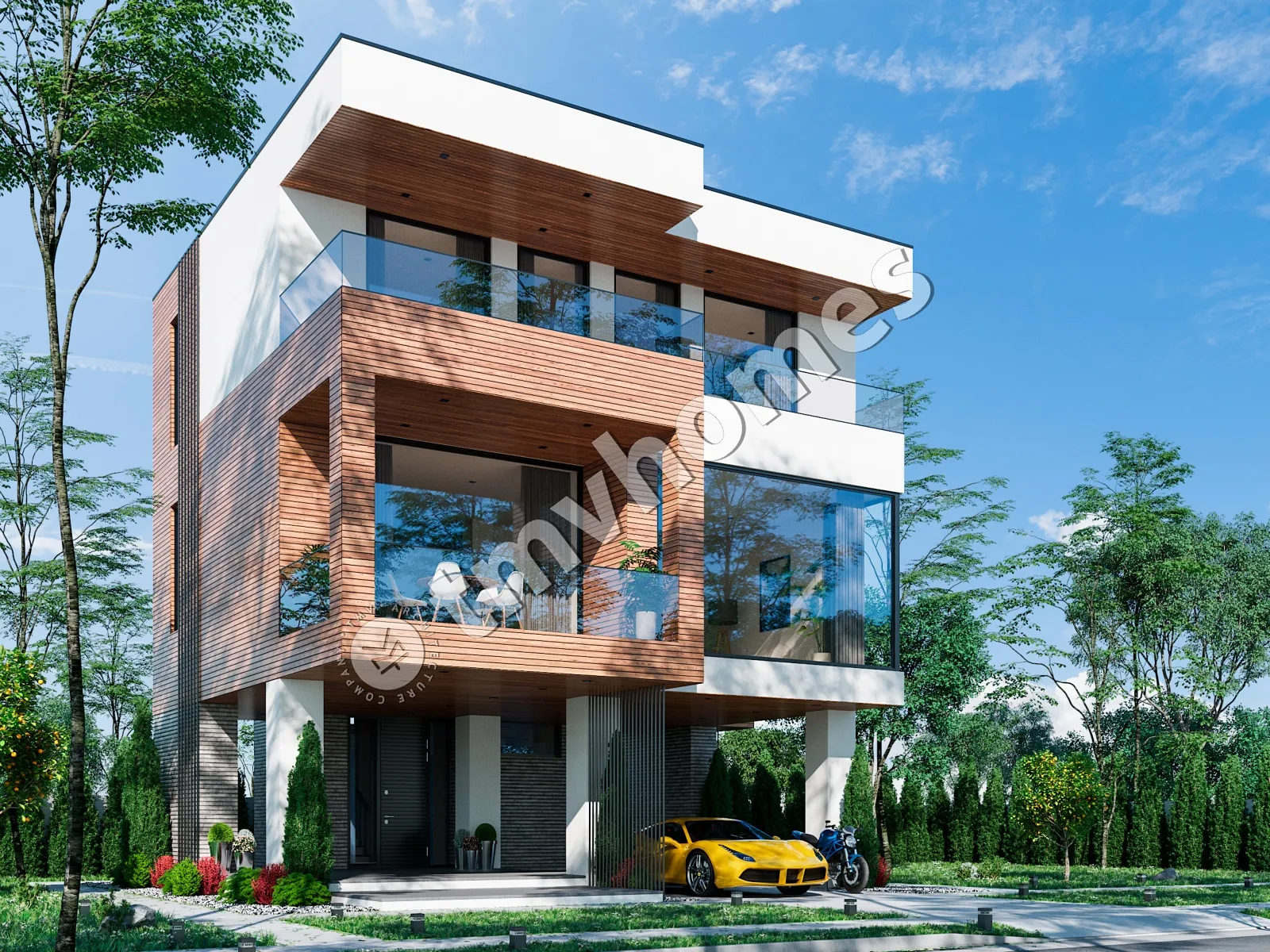

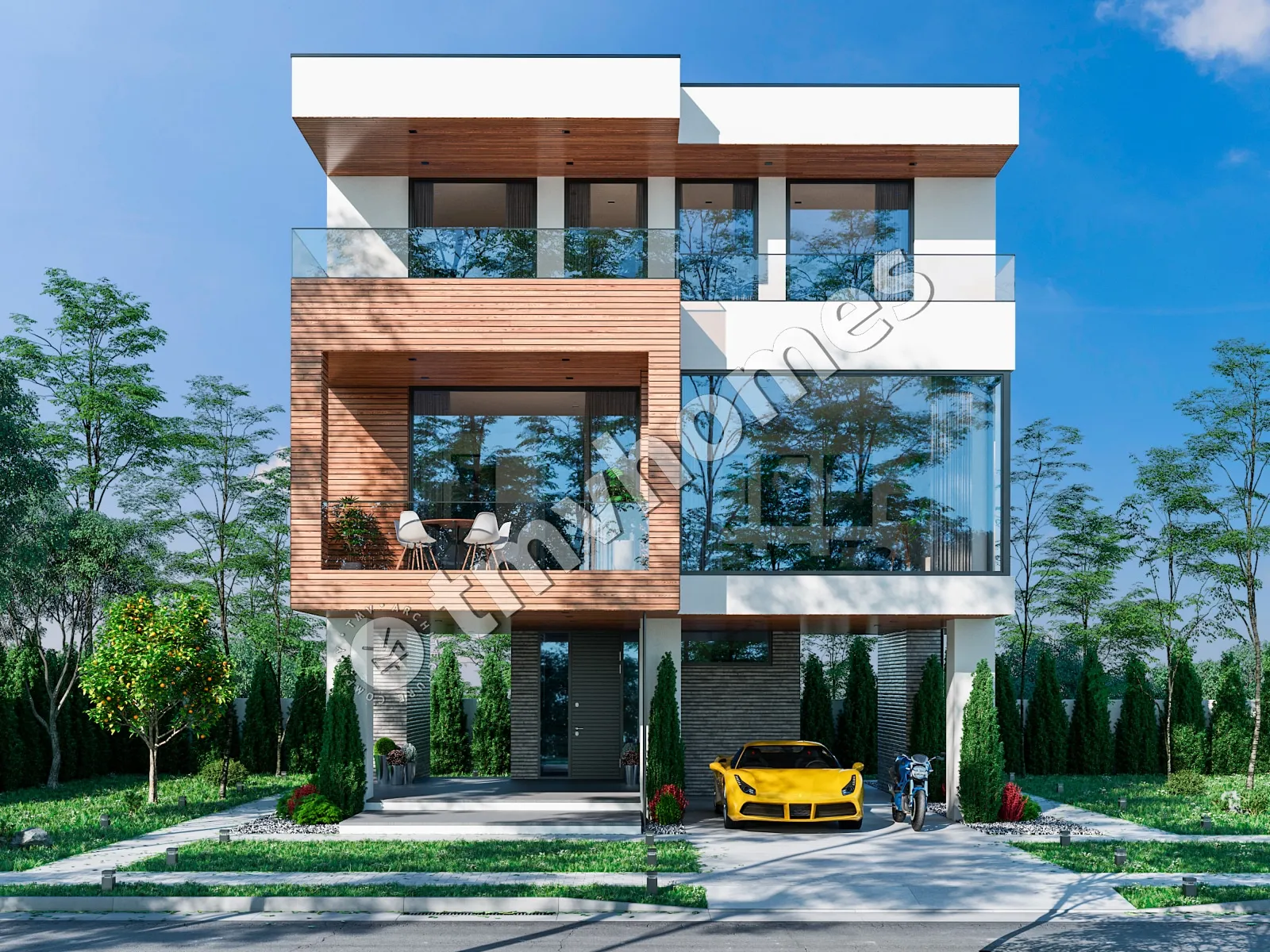

Renderings 2 – 1,555 Sq Ft Modern 3-Story House Plan with 3 Bedrooms and 3 Bathrooms – 10865C

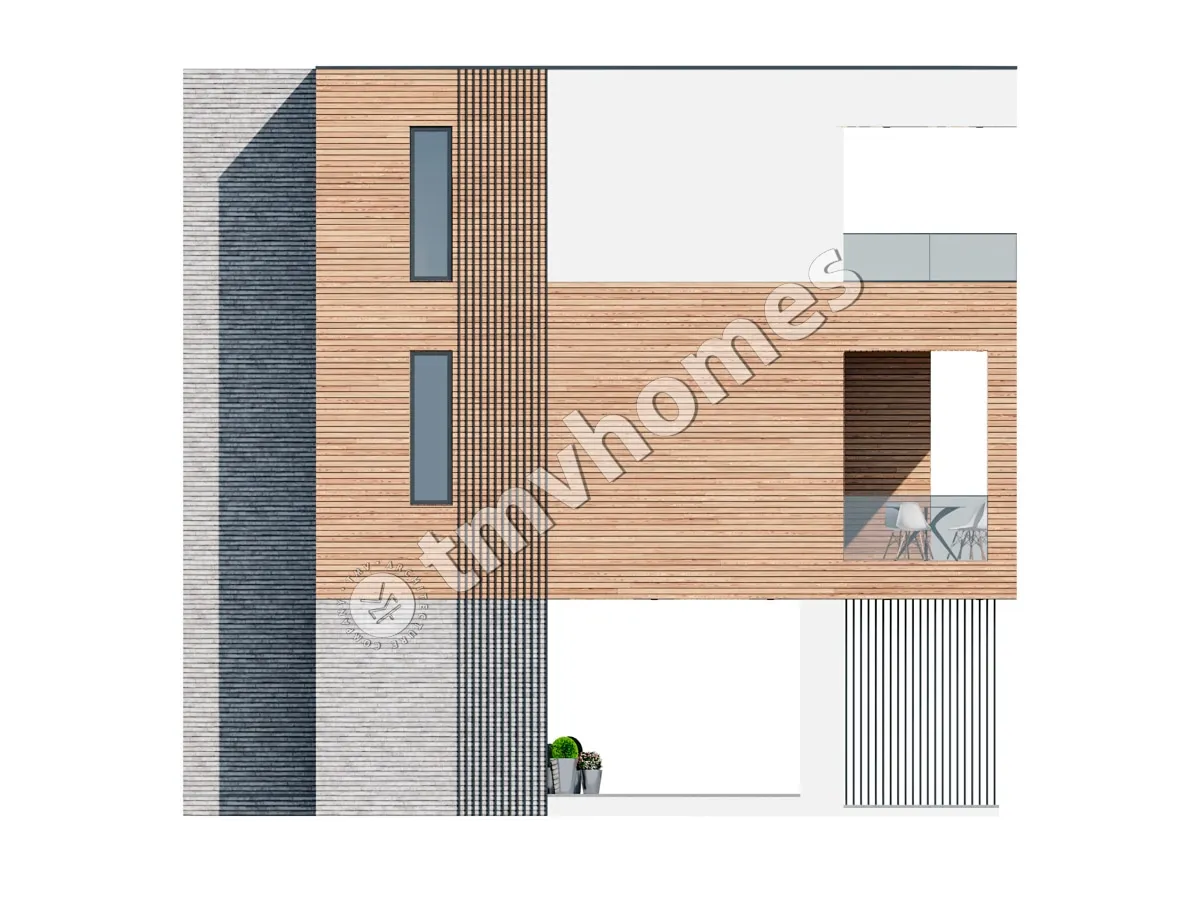

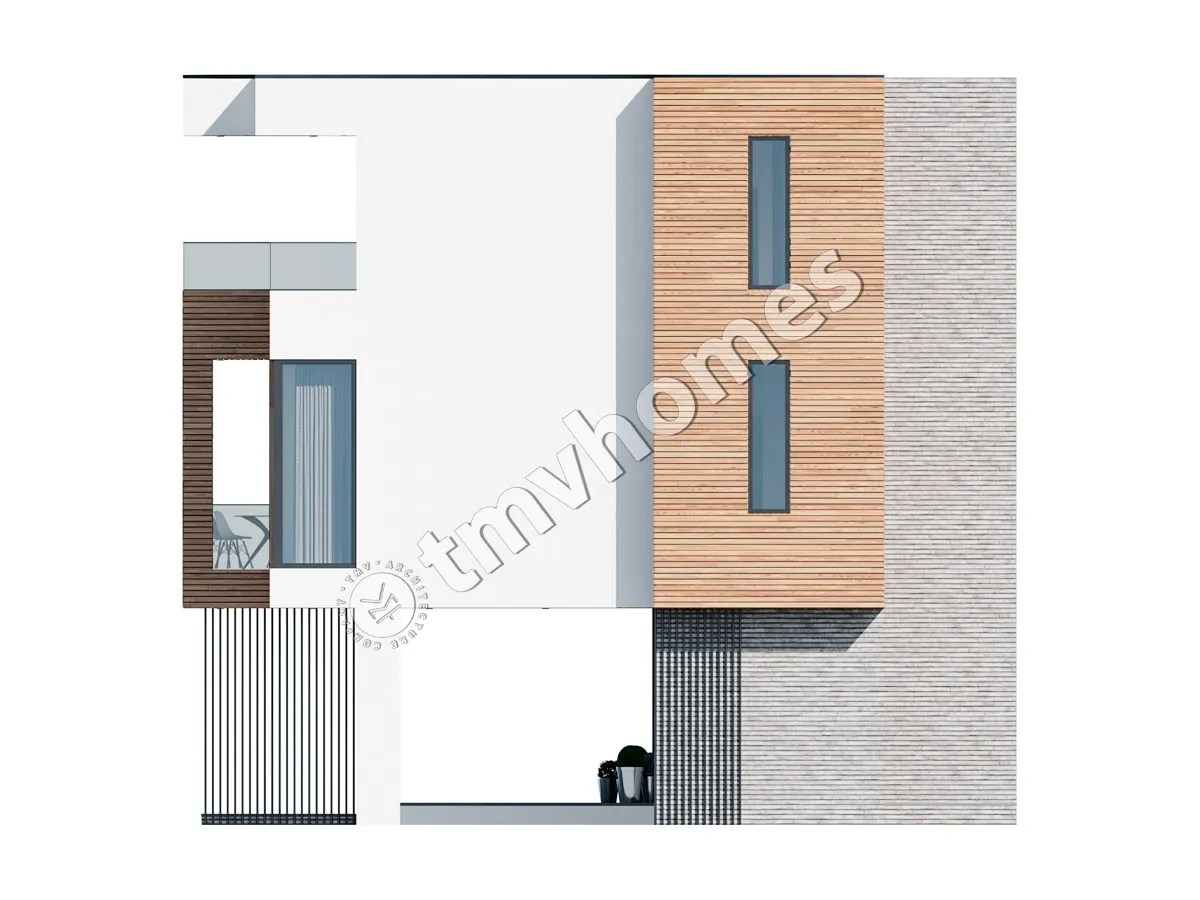

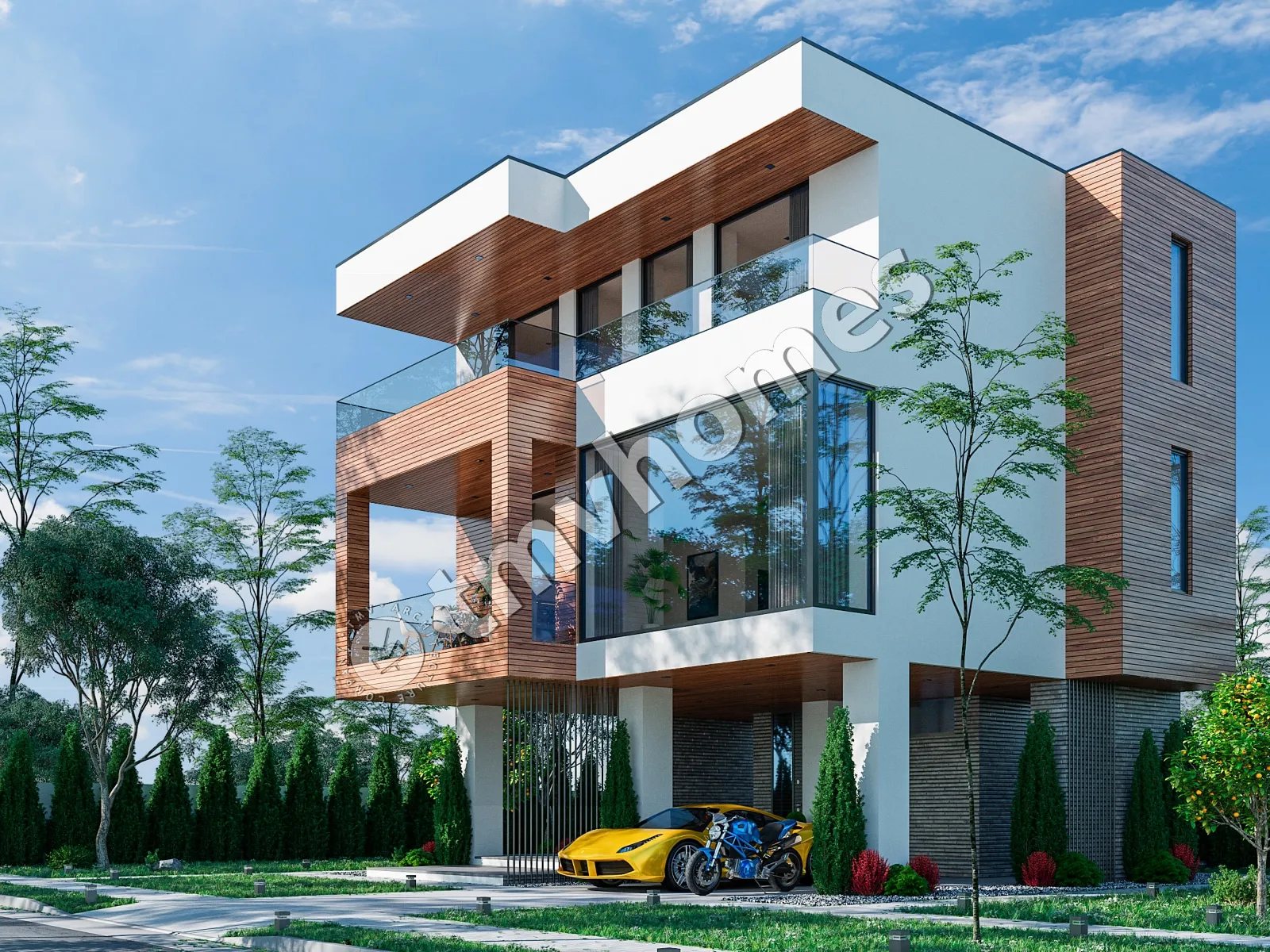

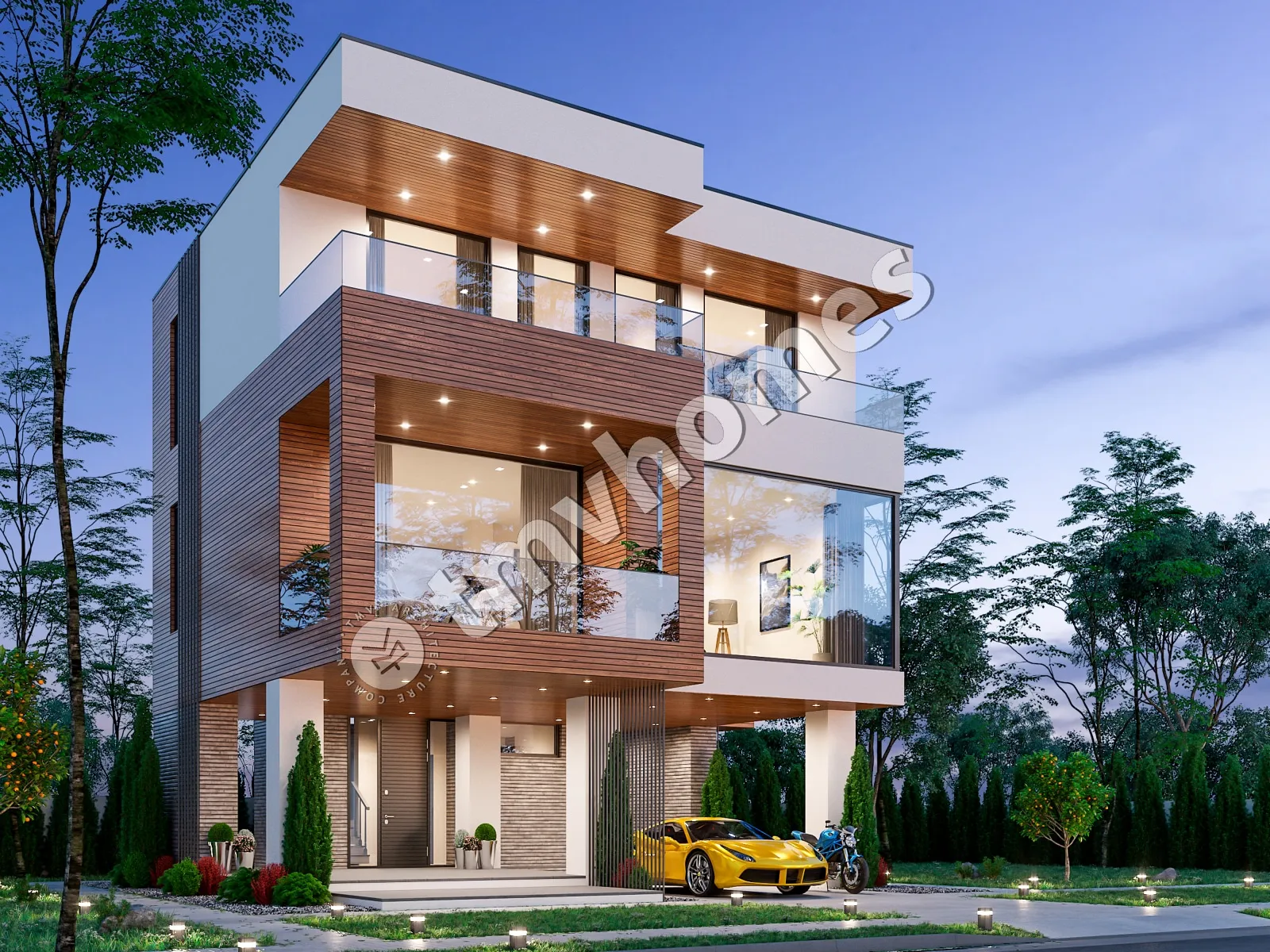

Renderings 3 – 1,555 Sq Ft Modern 3-Story House Plan with 3 Bedrooms and 3 Bathrooms – 10865C Renderings 4 – 1,555 Sq Ft Modern 3-Story House Plan with 3 Bedrooms and 3 Bathrooms – 10865C
9
Concept
Construction documents are prepared for the following countries:

1,555 Sq Ft Modern 3-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
10865C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1555
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

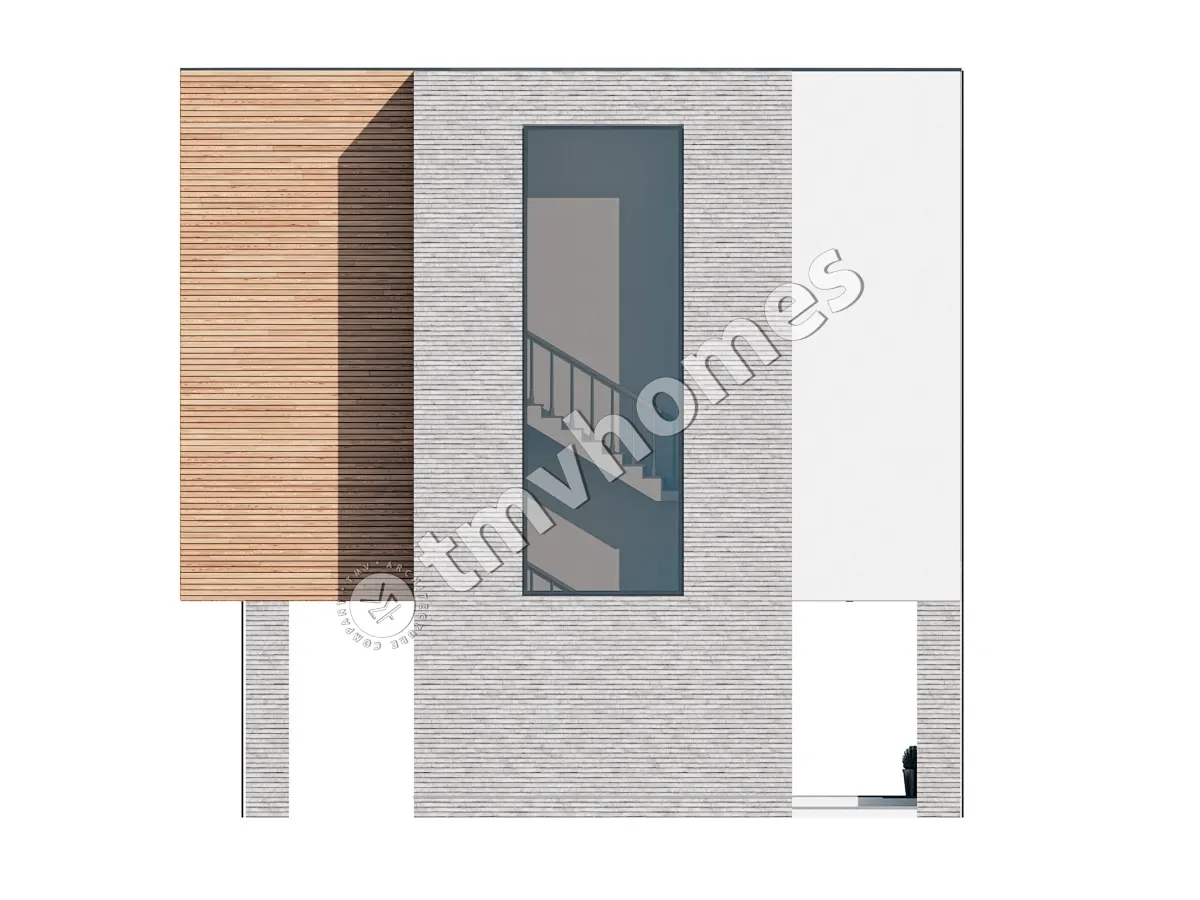

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

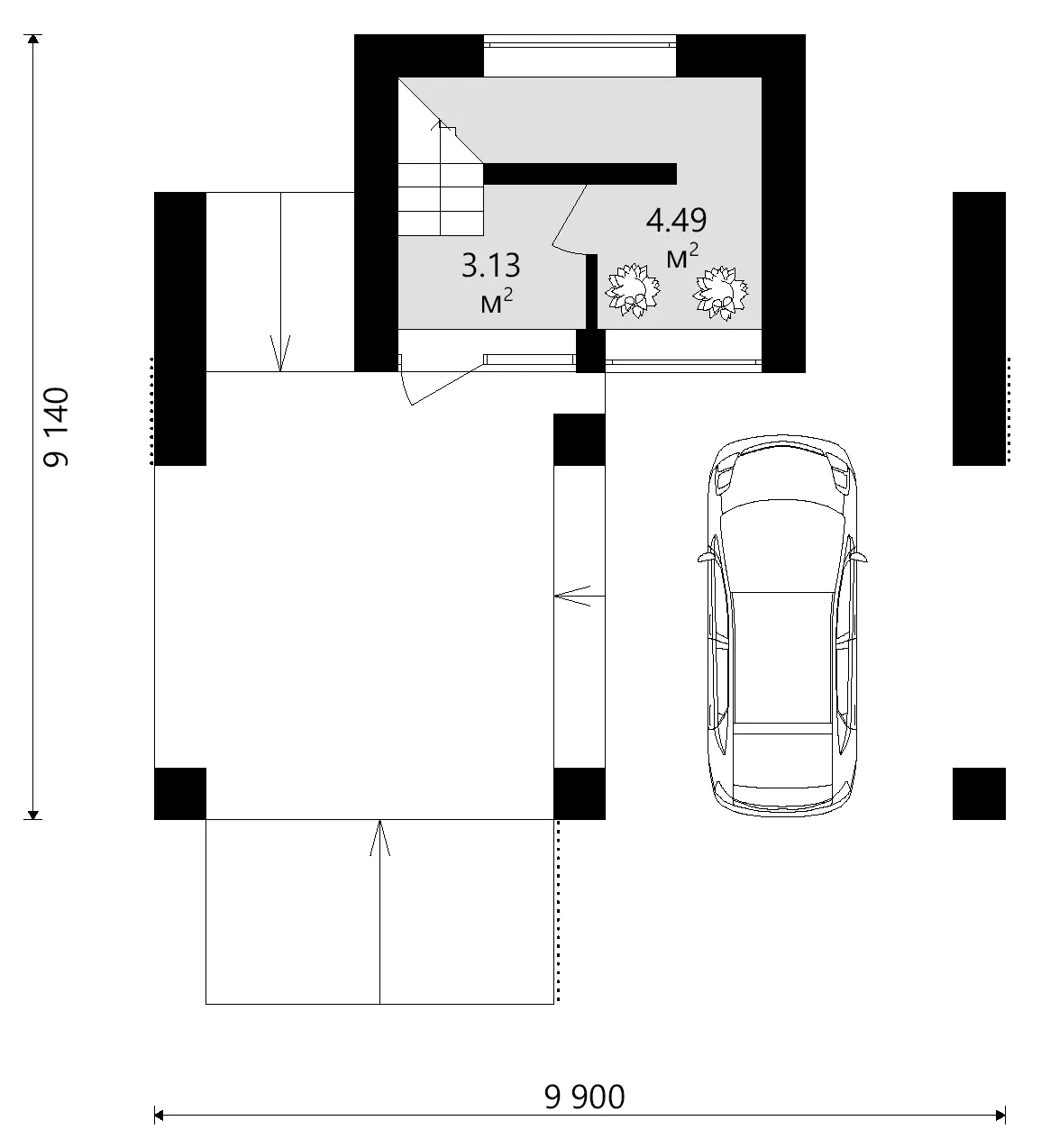

Main Floor
Main Floor 12 – 1,555 Sq Ft Modern 3-Story House Plan with 3 Bedrooms and 3 Bathrooms – 10865C

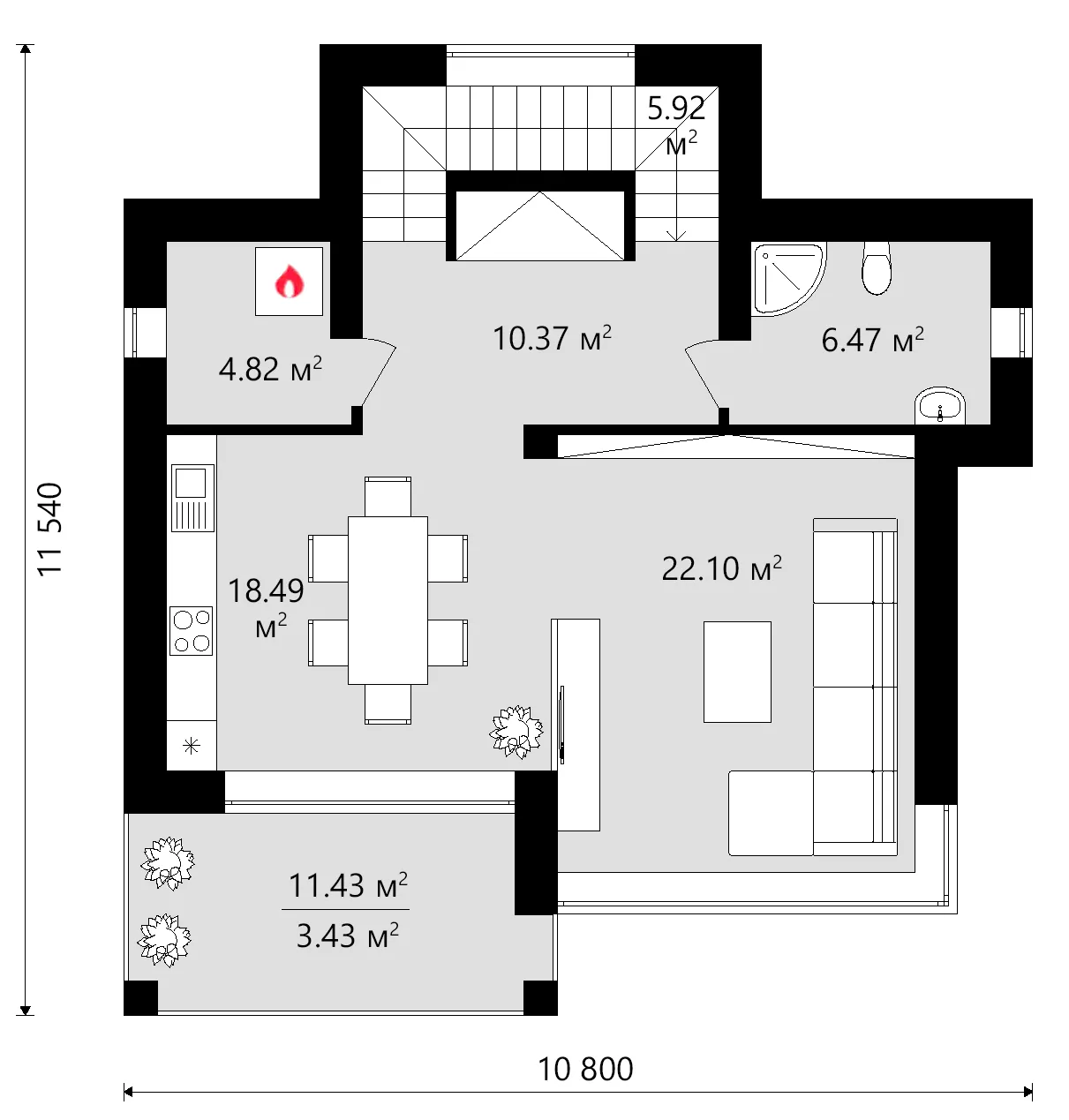

Second Floor
Second Floor 13 – 1,555 Sq Ft Modern 3-Story House Plan with 3 Bedrooms and 3 Bathrooms – 10865C

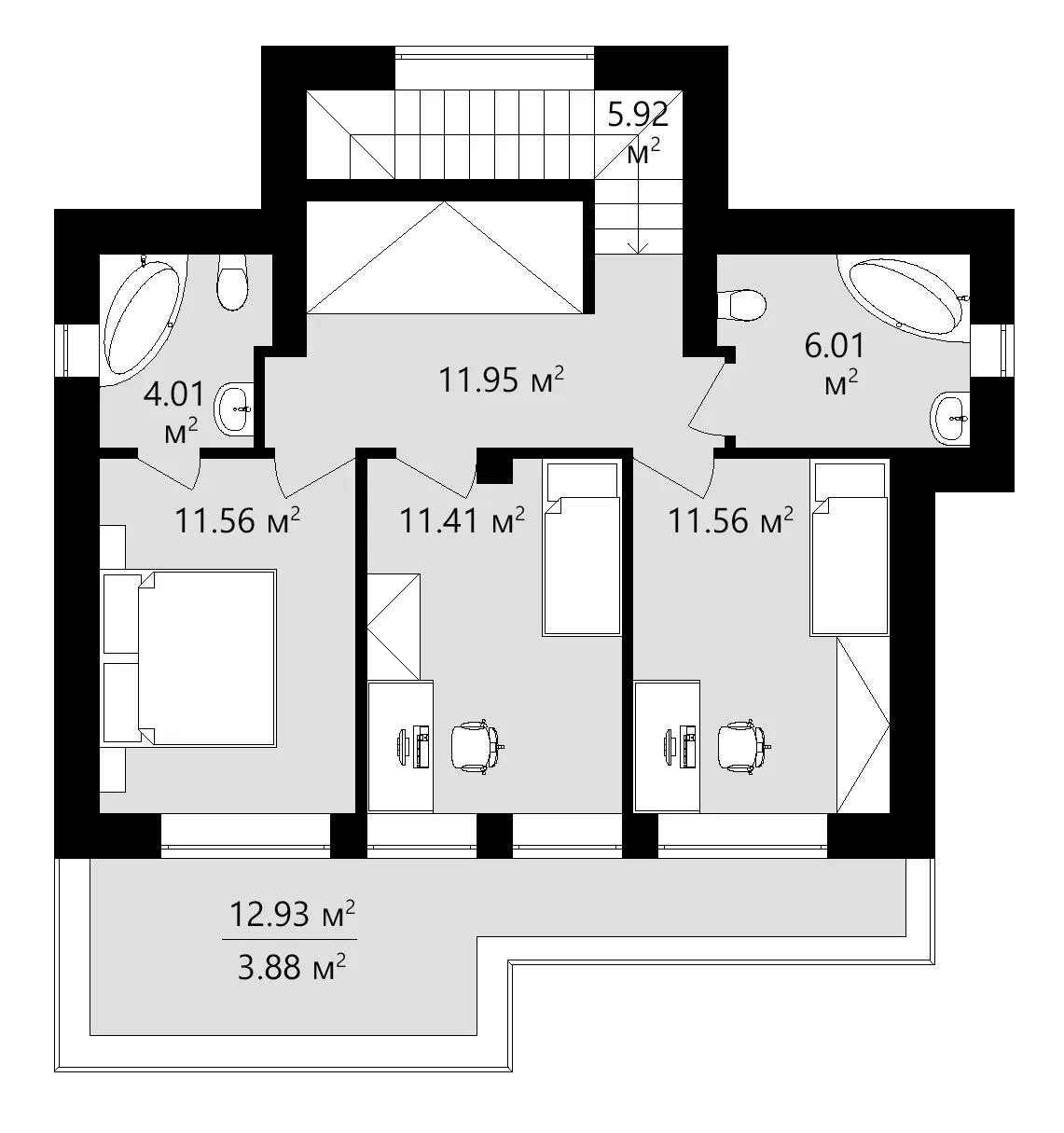

Third Floor
Third Floor 14 – 1,555 Sq Ft Modern 3-Story House Plan with 3 Bedrooms and 3 Bathrooms – 10865C
Full Specs & Features
Area
Total Heated: 1554.95 ft²
Dimensions
Depth: 35'2" ft
Width: 32'9" ft
Height: 32'0" ft
Garage
Cars: 1
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Interior Features
Second Floor Master
Clustered Bedrooms
Open to Below
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 914.93 ft²
Flat

The 10865C digital house design concept describes a modern 3-story single-family home with Total Heated 1,555 Sq Ft, 3 bedrooms, 3 full bathrooms, a carport, a flat roof and an open floor plan, sized for a household of 3-4 people. The facade combines stone or brick veneer, wood and stucco, giving the volume texture, while the flat roof keeps the outline clean. At 32'9" wide and 35'2" deep, the house stands on a compact footprint.

The entry leads into an open floor plan where the great room and the kitchen share one space, so whoever cooks stays part of the conversation. The kitchen is large enough for several people to work at once. Above the great room the space is open to below, adding volume and connecting the levels.

The primary suite is on the second floor, and the bedrooms are clustered together, keeping parents close to the children's rooms. Three full bathrooms spare the family a morning queue, and a utility room keeps household equipment out of the living areas.

Stacked porches and a balcony give the upper levels their own outdoor space, and the carport shelters one car from rain and snow. Large, panoramic and floor-to-ceiling windows, together with a corner window, fill the rooms with daylight. The base design sets the house on strip footings, with a slab or a block foundation as options; the exterior walls are aerated concrete (AAC), with ceramic hollow block or sand-lime block as alternatives. In figures: Total Heated 1,555 Sq Ft, 3 bedrooms, 3 bathrooms and a one-car carport.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1108
