1,520 Sq Ft Bungalow L-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 2-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

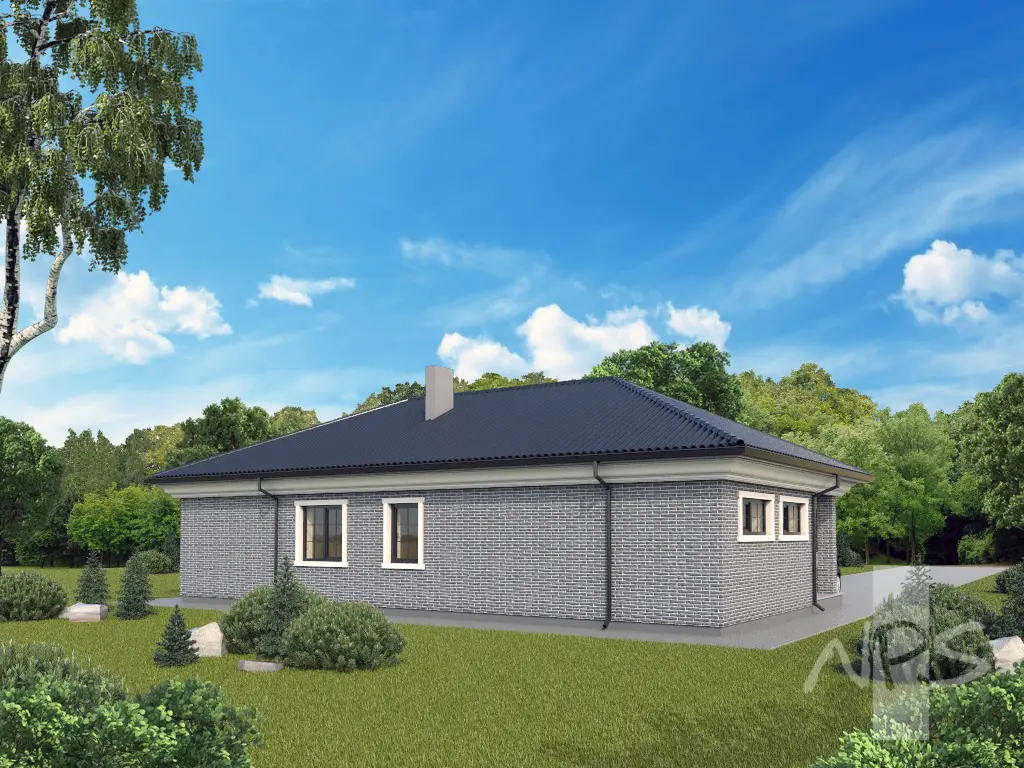

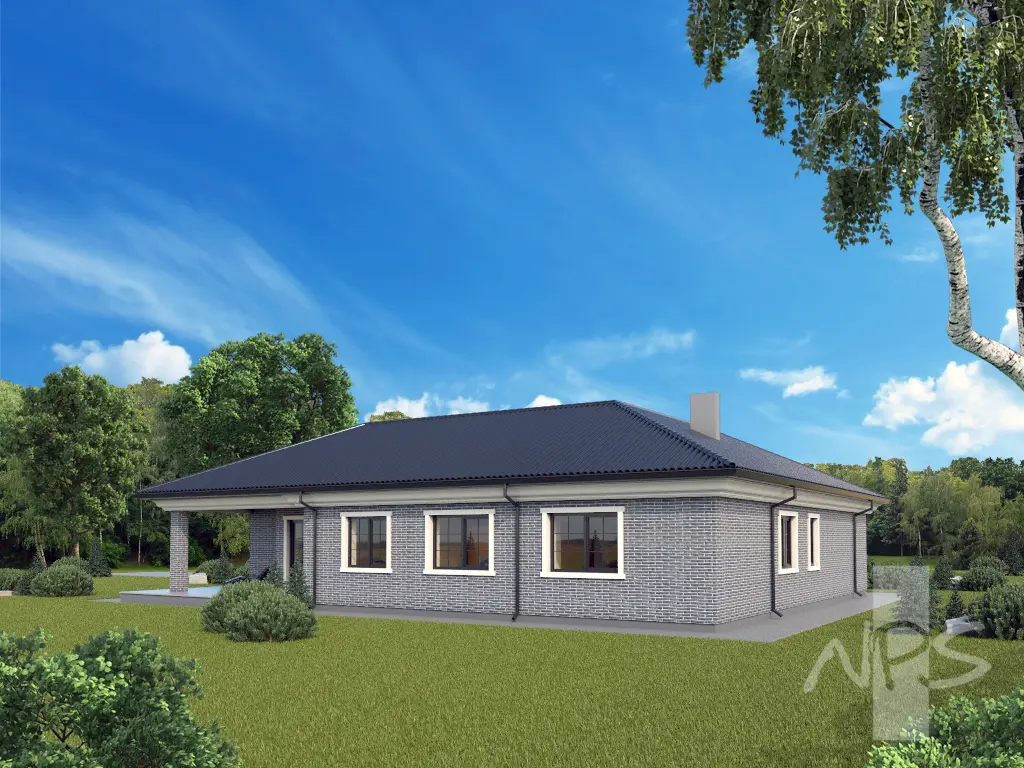

The 12562R house design concept is a single-family, single-story L-shaped Bungalow with Total Heated 1,520 Sq Ft, 3 bedrooms, 2 bathrooms, a 2-car garage and a breakfast nook. A hip and valley roof with a 6/12 (26°) pitch and stone/brick veneer walls give the house, 59'9" wide and 51'7" deep, a solid street presence. The layout is sized for a household of 3-4 people.
The entry leads to a large family room, where the fireplace becomes the natural gathering point on cold evenings. The closed floor plan gives the kitchen its own room, so cooking smells and clutter stay out of the living space. The large kitchen works around an island and a breakfast bar for quick meals, the breakfast nook hosts everyday dining, and the walk-in pantry keeps supplies out of sight.
All bedrooms sit on one level, so daily life runs without stairs. The bedrooms are clustered, keeping children close to their parents at night, and the primary bedroom has a walk-in closet that keeps clothes organized. Two bathrooms ease the morning rush. Laundry on the main floor saves carrying baskets between levels, and the utility room keeps household equipment apart from the living areas.

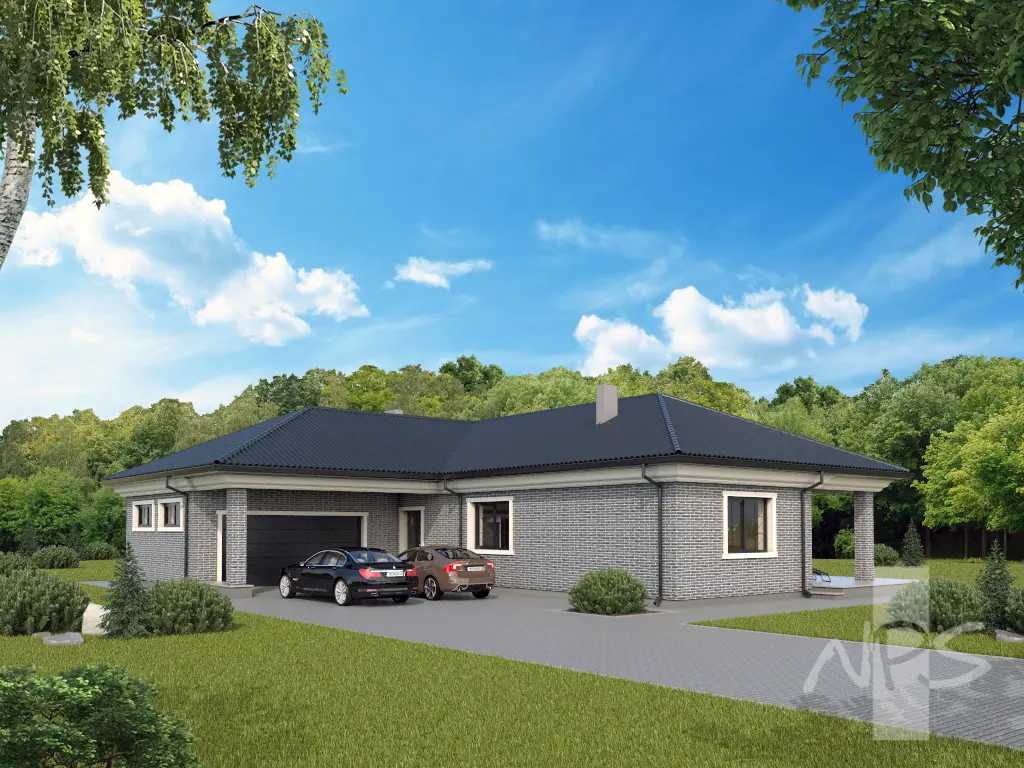

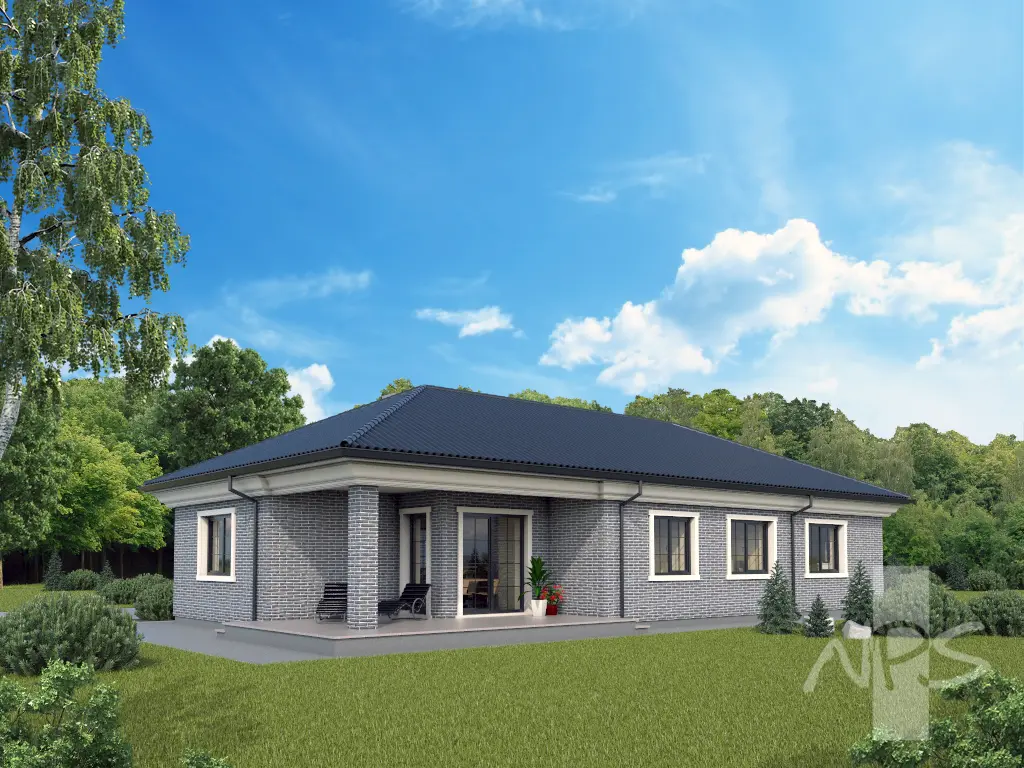

The covered rear porch provides a shaded spot for outdoor meals. The 2-car garage opens onto the courtyard formed by the L shape, so the garage doors face away from the street. The main foundation is bored piles, with slab, strip and block foundations as options to match the soil; the walls are calcium silicate block, with aerated concrete, ceramic block or timber frame as alternatives. In figures: Total Heated 1,520 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 7,603
My Home Floor Plans Rosemead US$ 1,150
Plan & Simple LLC Austin US$ 3,041
