Renderings 2 – 1,603 Sq Ft Modern Mountain Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 16819R
Renderings 3 – 1,603 Sq Ft Modern Mountain Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 16819R Renderings 4 – 1,603 Sq Ft Modern Mountain Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 16819R
5
Construction documents are prepared for the following countries:

1,603 Sq Ft Modern Mountain Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
16819R
Complete
Unsigned & Unsealed
DC Available
Key Specs
1603
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars
United States Canada
Architectural (A)

Front Perspective

Detailed Floor Plans

Roof Plans

House And Detail Cross-Sections

Exterior Elevations

Structural (S)

Foundation and Basement

Standard Construction Details

Electrical (E)

Electrical Plan

Architectural (A)

Front Perspective

Detailed Floor Plans

Roof Plans

House And Detail Cross-Sections

Exterior Elevations

Structural (S)

Foundation and Basement

Standard Construction Details

Electrical (E)

Electrical Plan

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans
Main Floor

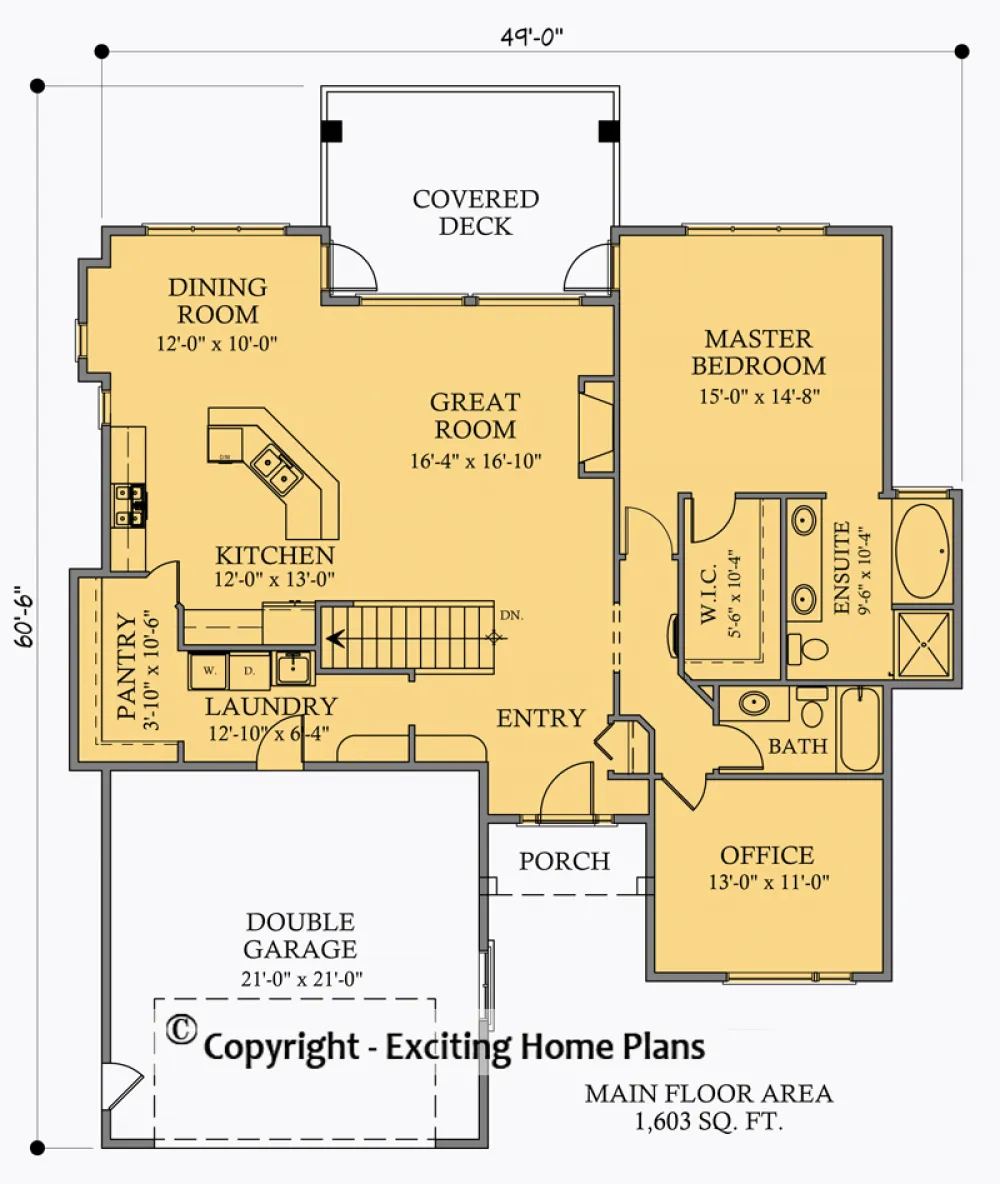

Main Floor 5 – 1,603 Sq Ft Modern Mountain Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 16819R
Basement

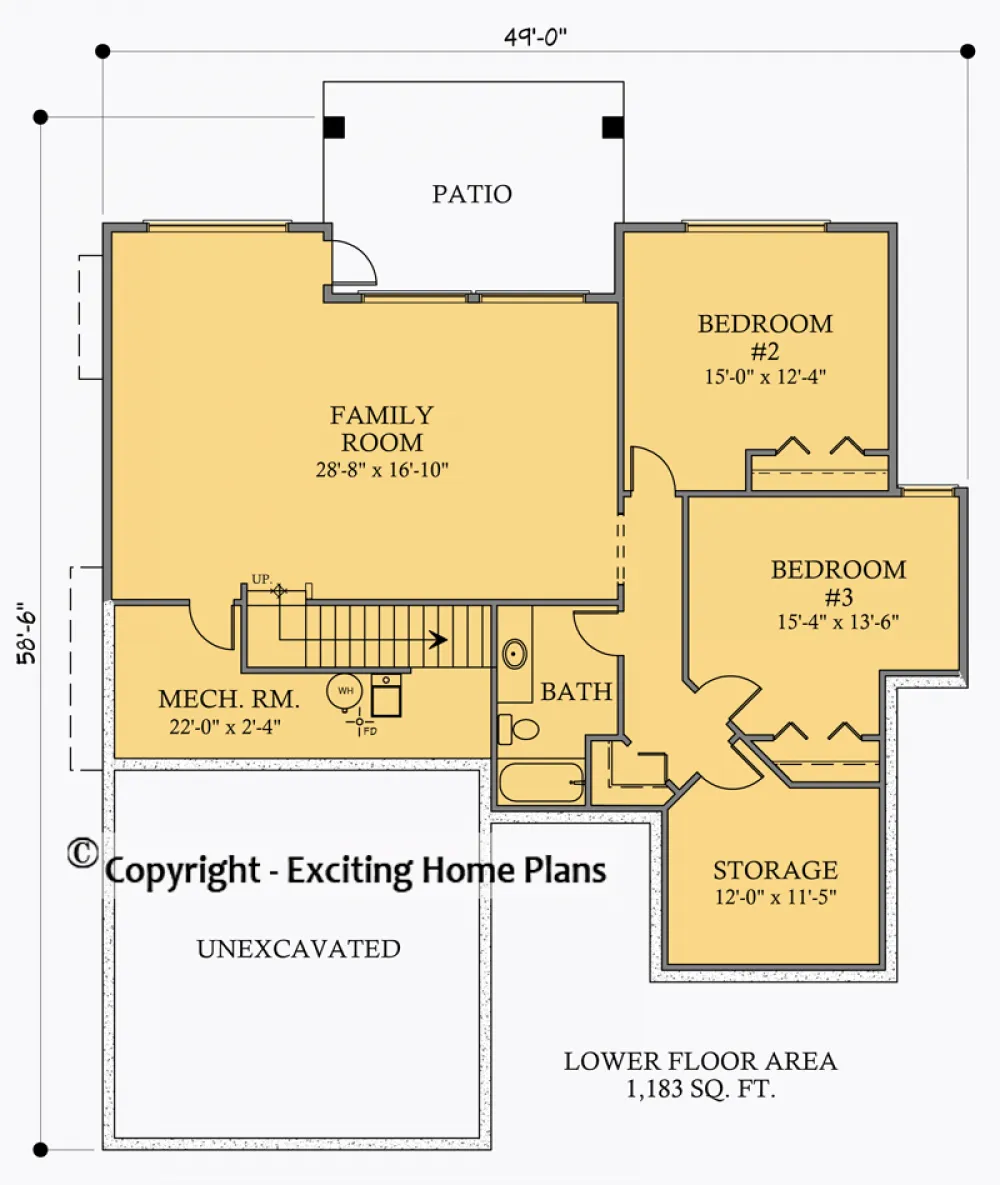

Basement 6 – 1,603 Sq Ft Modern Mountain Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 16819R
Full Specs & Features
Area
Main Floor: 1603 ft²
Basement: 1183 ft²
Total Heated: 1603 ft²
Dimensions
Depth: 60'6" ft
Width: 49'0" ft
Garage
Area: 441 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Slab (Optional)
Walkout Basement
Crawl Space (Optional)
Exterior Wall Framing
Wood 2x6
Wood 2x4 (Optional)
Exterior Wall Materials
Siding
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Laundry
Media Room
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Reverse Living
Exterior Features
Balcony
Stacked Porches
Covered Front Porch
Covered Rear Porch
Patio
Large Windows
Architectural Style
Contemporary
Modern
Modern Mountain
Roof
Double Shed
Ceiling
Main Floor Ceiling Height: 9'0" ft
Second Floor Ceiling Height: 9'0" ft

House plan 16819R is a Modern Mountain single-story home for a sloped lot, with a walkout basement, 3 bedrooms, 3 bathrooms and a 2-car garage. Built for a single family of 3-4 people, the house is 49'0" wide and 60'6" deep, and its double shed roof gives the exterior a layered profile.

A covered front porch leads to the entry and an open floor plan where the great room, kitchen and breakfast nook share one space. A fireplace warms the large great room, and large windows bring in daylight. The kitchen offers an island, a breakfast bar and a walk-in pantry for organized storage. A home office and a media room add flexible space for work and entertainment.

The main-floor primary suite has a walk-in closet and a private bathroom, and the split bedrooms keep it apart from the other bedrooms. Three full bathrooms ease busy mornings. Laundry on the main floor, a utility room and storage keep chores close at hand.

Stacked porches with a balcony, a covered rear porch and a patio extend living outdoors. The front-entry garage extends forward, keeping the backyard free. The walkout basement opens to grade on the sloped lot, with slab and crawl space as foundation options. Walls use 2x6 wood framing, or 2x4 as an option, finished in siding, stone/brick veneer and stucco. Total Heated 1,603 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car garage.
