Home / House plans / 29027R

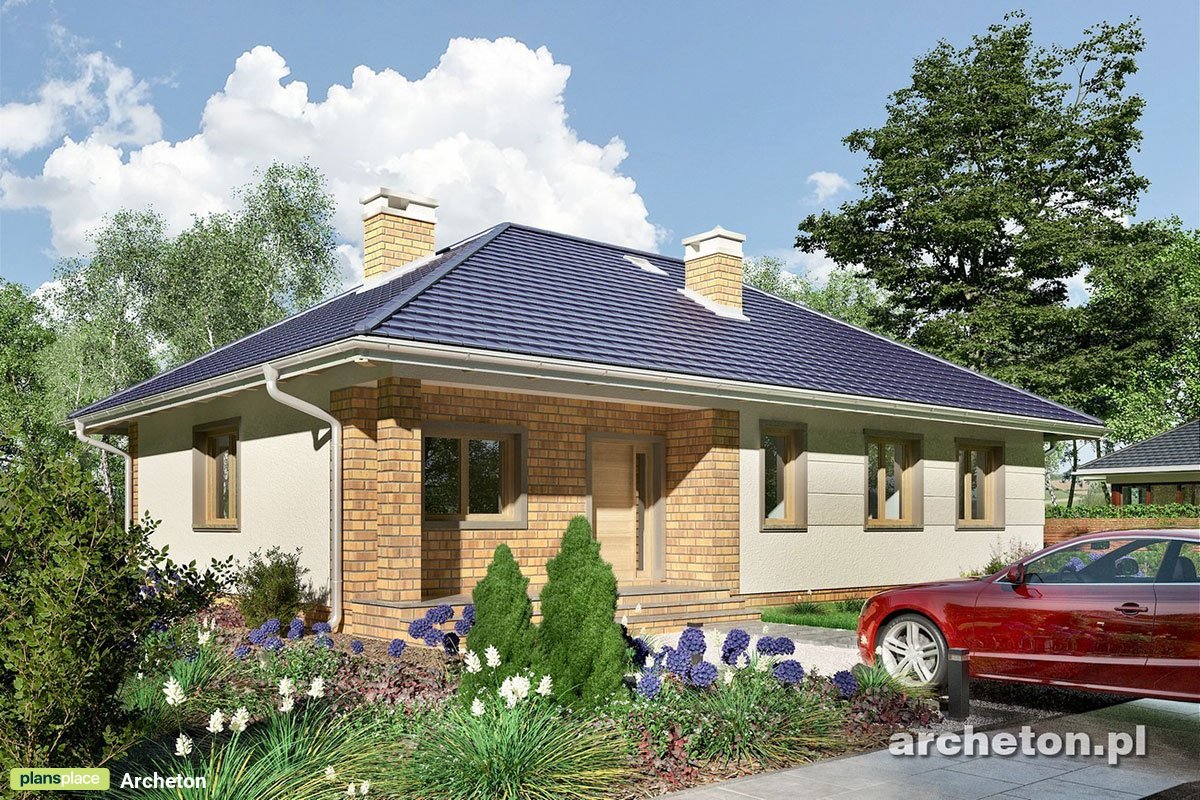

Main Images 1 – House with Fireplace and Open Floor Plan
Main Images 1 – House with Fireplace and Open Floor Plan Main Images 1 – House with Fireplace and Open Floor Plan
4
Construction documents are prepared for the following countries:

European House with Fireplace and Open Floor Plan

Plan
29027R
Complete
Signed & Sealed
DC None
Key Specs
1256
Total Heated ft²
2 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Video
Floor Plans

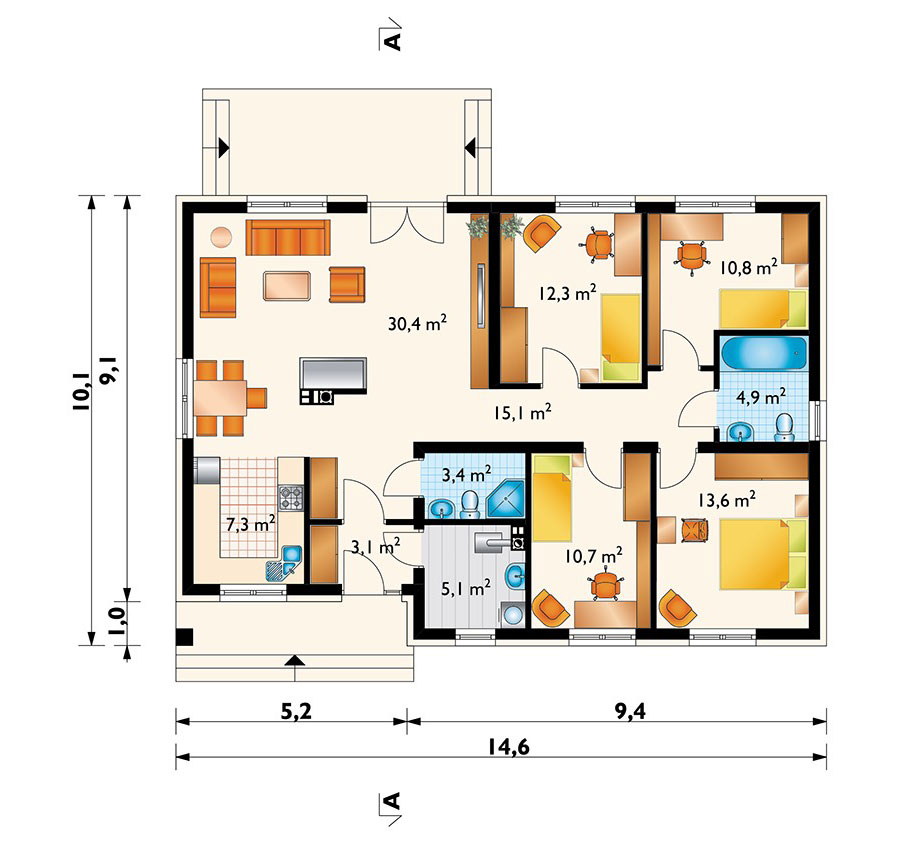

Main Floor
Main Floor 1 – House with Fireplace and Open Floor Plan
Full Specs & Features
Area
Total Heated: 1256.15 ft²
Dimensions
Depth: 30'8" ft
Width: 44'5" ft
Height: 20'4" ft
Foundation
Ławy
Płyta (Optional)
Exterior Wall Framing
Pustak ceramiczny (Optional)
Beton komórkowy
Szkieletowe (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 4
Utility room
Entry
Kitchen and Dining
Breakfast Nook
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Covered Front Porch
Deck
Architectural Style
Bungalow
European
Traditional
Roof
Roof Area: 2357.30 ft²
Hip
Roof Pitch: 7/12 (30°)

Plan 29027R is a 4-bedroom single-story house plan that fits a full family layout into 1256 ft² beneath a hip roof with a 7/12 (30°) pitch. The Bungalow proportions take on European and Traditional details, with Stone/Brick Veneer and Stucco on the exterior walls and a covered front porch at the entrance. The house is 44'5" wide and 30'8" deep, with a height of 20'4", which makes it a small house plan that still sleeps a larger family comfortably.

The front door opens into a defined entry that keeps coats and shoes out of the main rooms. Beyond it the home follows an open floor plan: the large family room, the kitchen and the breakfast nook share one continuous space, so whoever is cooking stays part of the conversation. The fireplace in the family room anchors the seating area and gives the room a natural focal point, and on winter evenings it becomes the place everyone gathers. The breakfast nook handles quick weekday meals and slow weekend coffee without the need for a separate formal dining room.

All four bedrooms sit on the same level, including the main floor master, and they are clustered together in their own part of the plan, apart from the daily activity of the living area. Two full bathrooms serve the bedroom wing, so mornings run smoothly even with a full house. A utility room keeps laundry and household equipment out of sight, a practical addition in a home of this compact footprint.

Outside, the house stands on a strip footing foundation and has no basement; a slab foundation is also available on request. The exterior walls are built of autoclaved aerated concrete block, with clay block or wood framing offered as alternatives. The plan does not include a garage, which keeps the footprint efficient and leaves room for a detached solution if needed. A deck extends the living space outdoors for summer meals, while the covered front porch gives a sheltered spot to sit and greet the neighbors.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
