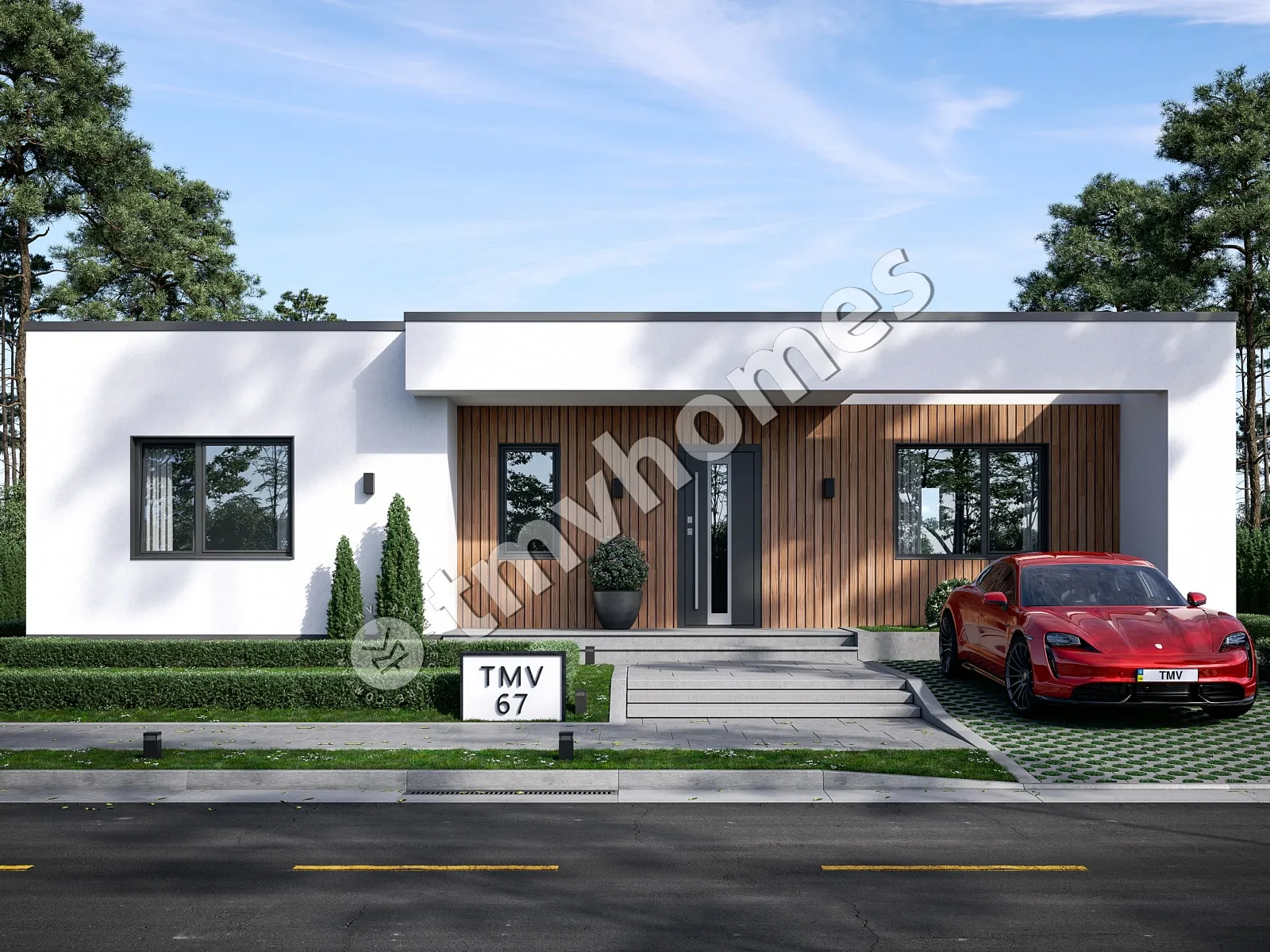

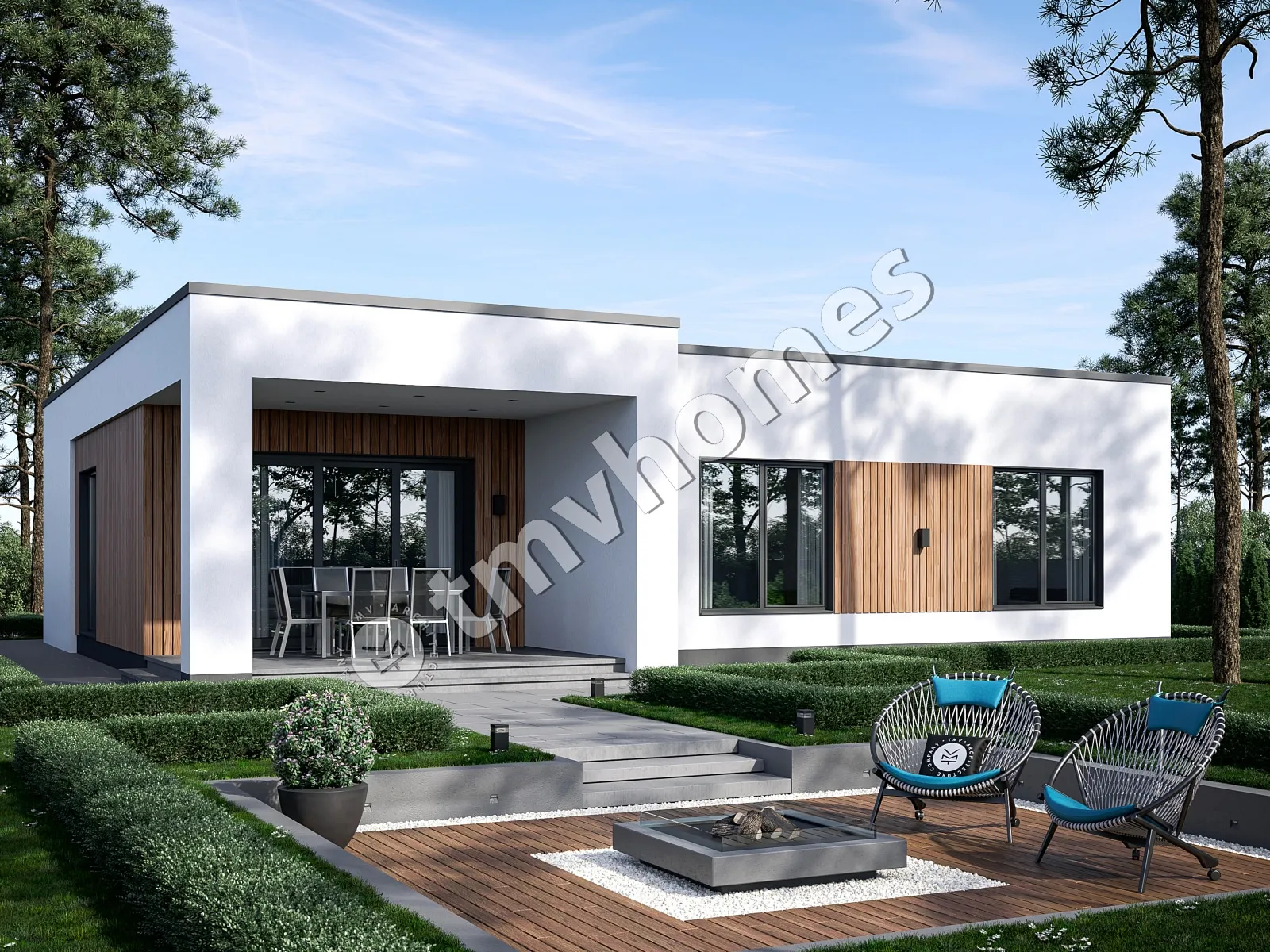

Renderings 2 – 1,219 Sq Ft Small Modern Single-Story House Plan with 3 Bedrooms and 2 Bathrooms – 35313C

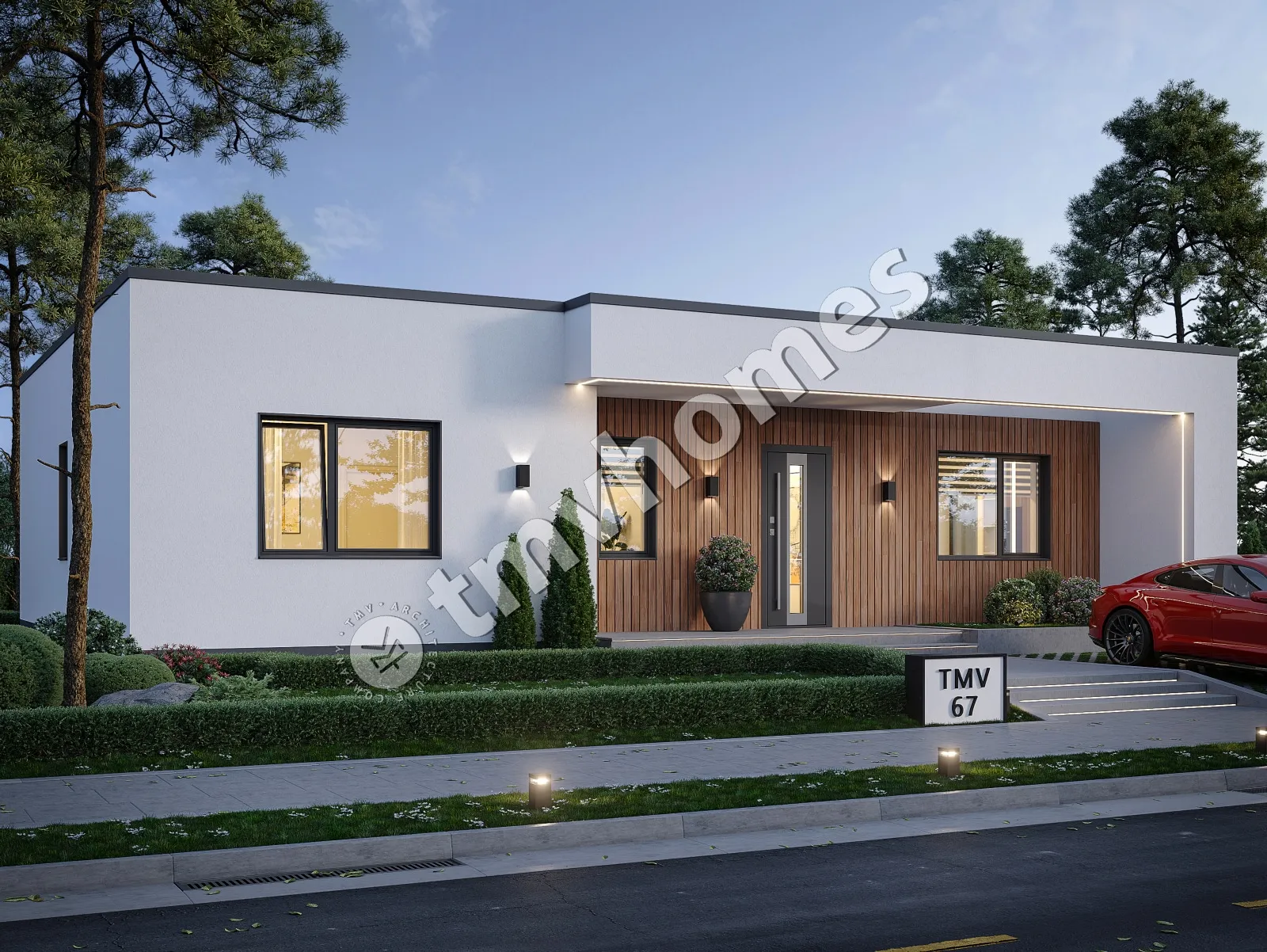

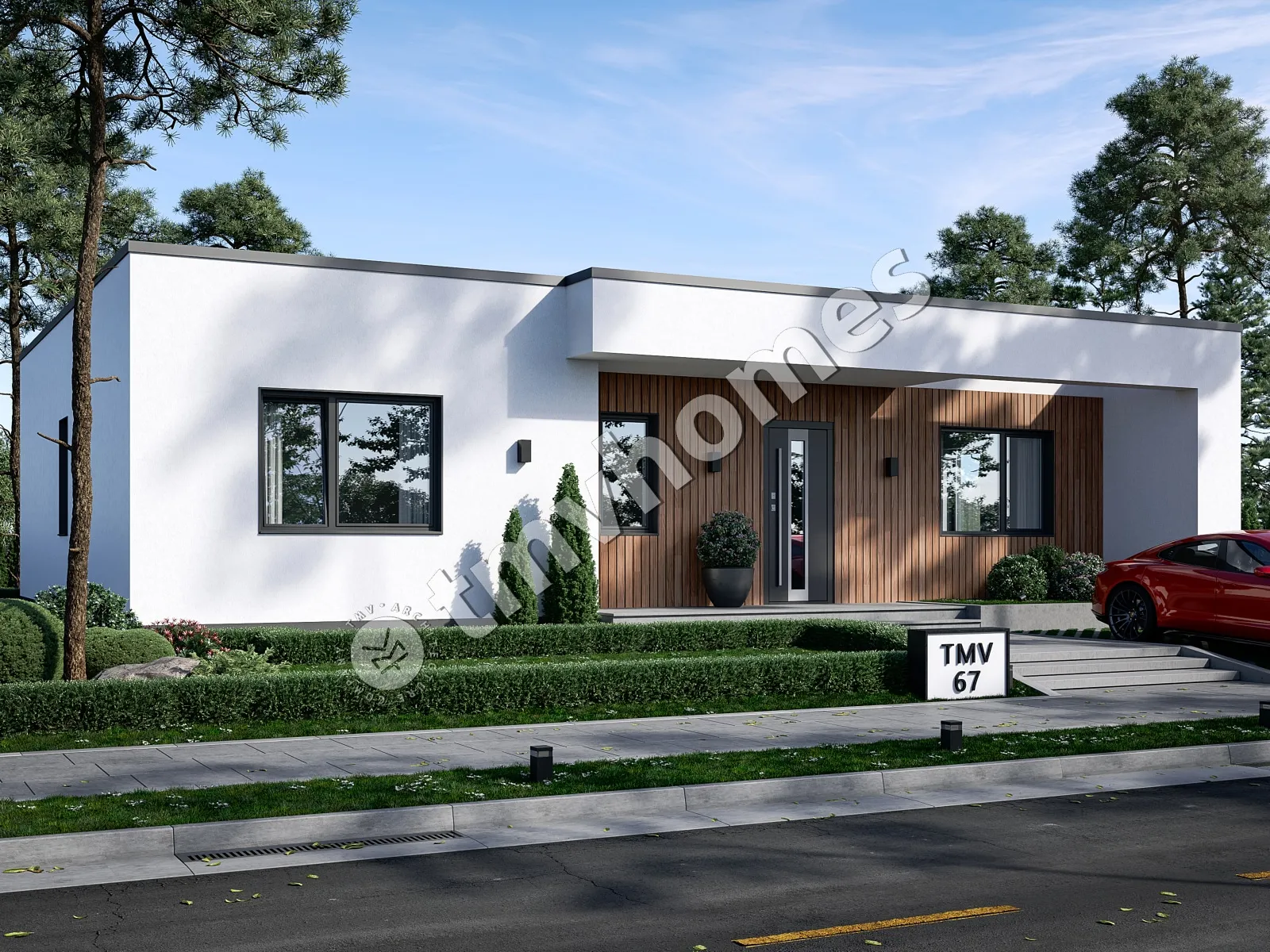

Renderings 3 – 1,219 Sq Ft Small Modern Single-Story House Plan with 3 Bedrooms and 2 Bathrooms – 35313C Renderings 4 – 1,219 Sq Ft Small Modern Single-Story House Plan with 3 Bedrooms and 2 Bathrooms – 35313C
6
Concept
Construction documents are prepared for the following countries:

1,219 Sq Ft Small Modern Single-Story House Plan with 3 Bedrooms and 2 Bathrooms

Plan
35313C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1219
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

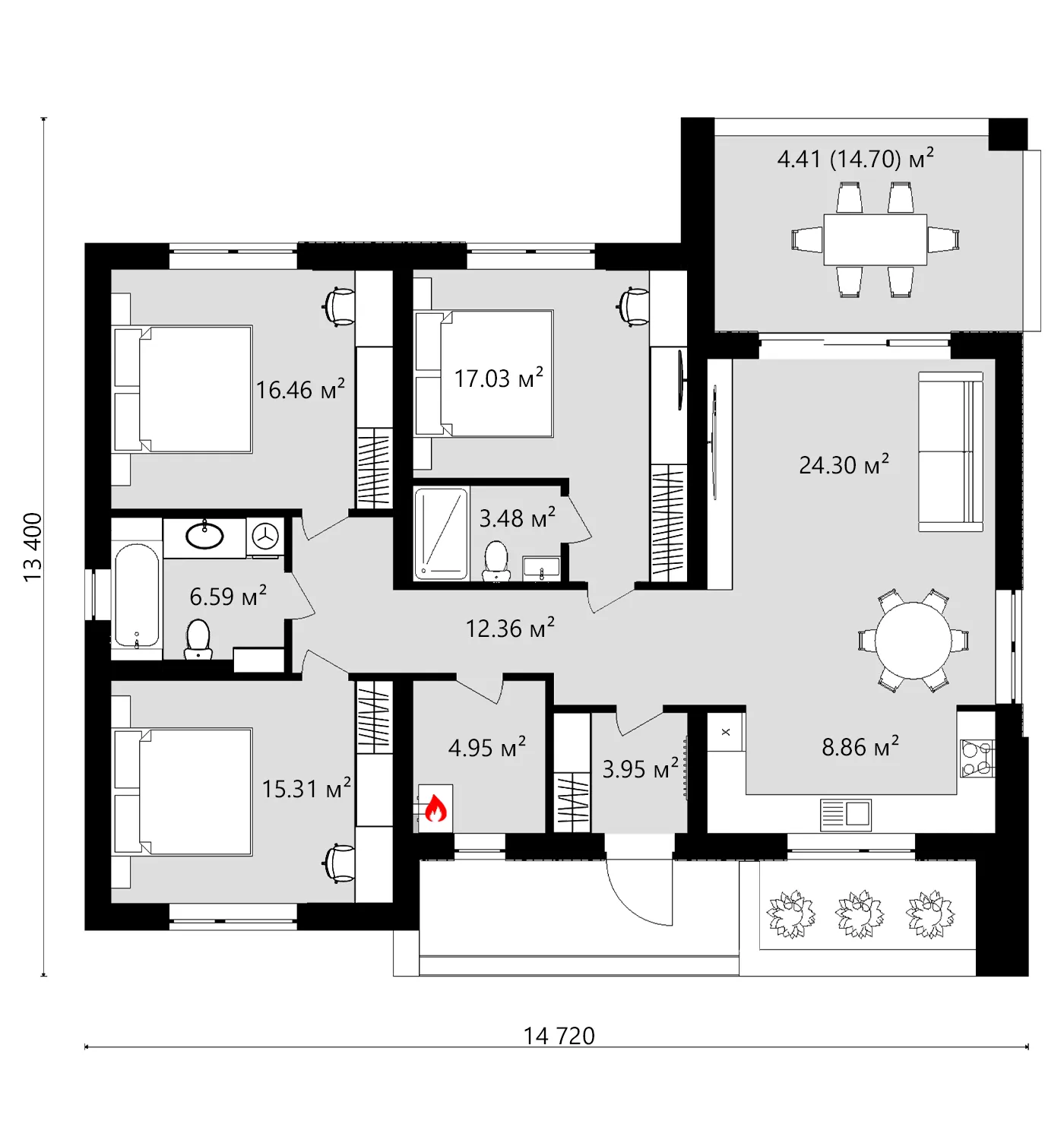

Main Floor
Main Floor 8 – 1,219 Sq Ft Small Modern Single-Story House Plan with 3 Bedrooms and 2 Bathrooms – 35313C
Full Specs & Features
Area
Total Heated: 1219.44 ft²
Dimensions
Depth: 40'8" ft
Width: 44'9" ft
Height: 12'7" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Entry
Kitchen and Dining
Breakfast Nook
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Exterior Features
Covered Rear Porch
Architectural Style
Contemporary
Minimalism
Modern
Roof
Roof Area: 1549.03 ft²
Flat

35313C is a small Modern single-story house design concept with Total Heated 1,219 Sq Ft, 3 bedrooms and 2 bathrooms, available for purchase as a digital house design concept. The single-family home is sized for a household of 3-4 people, and the flat roof with wood and stucco siding gives it clean lines. The footprint measures 44'9" wide by 40'8" deep.

An entry receives guests and keeps coats and shoes out of the living area. The open floor plan joins the great room, kitchen and dining space, so whoever cooks stays part of the conversation. A breakfast nook adds a casual spot for quick morning meals.

The night zone shares the same level as the day zone, so every room is reached without changing floors. The main floor primary bedroom sits among clustered bedrooms that keep the family close together, which is convenient with young children. Two full bathrooms shorten the morning queue, and a utility room keeps household tasks apart from the living spaces.

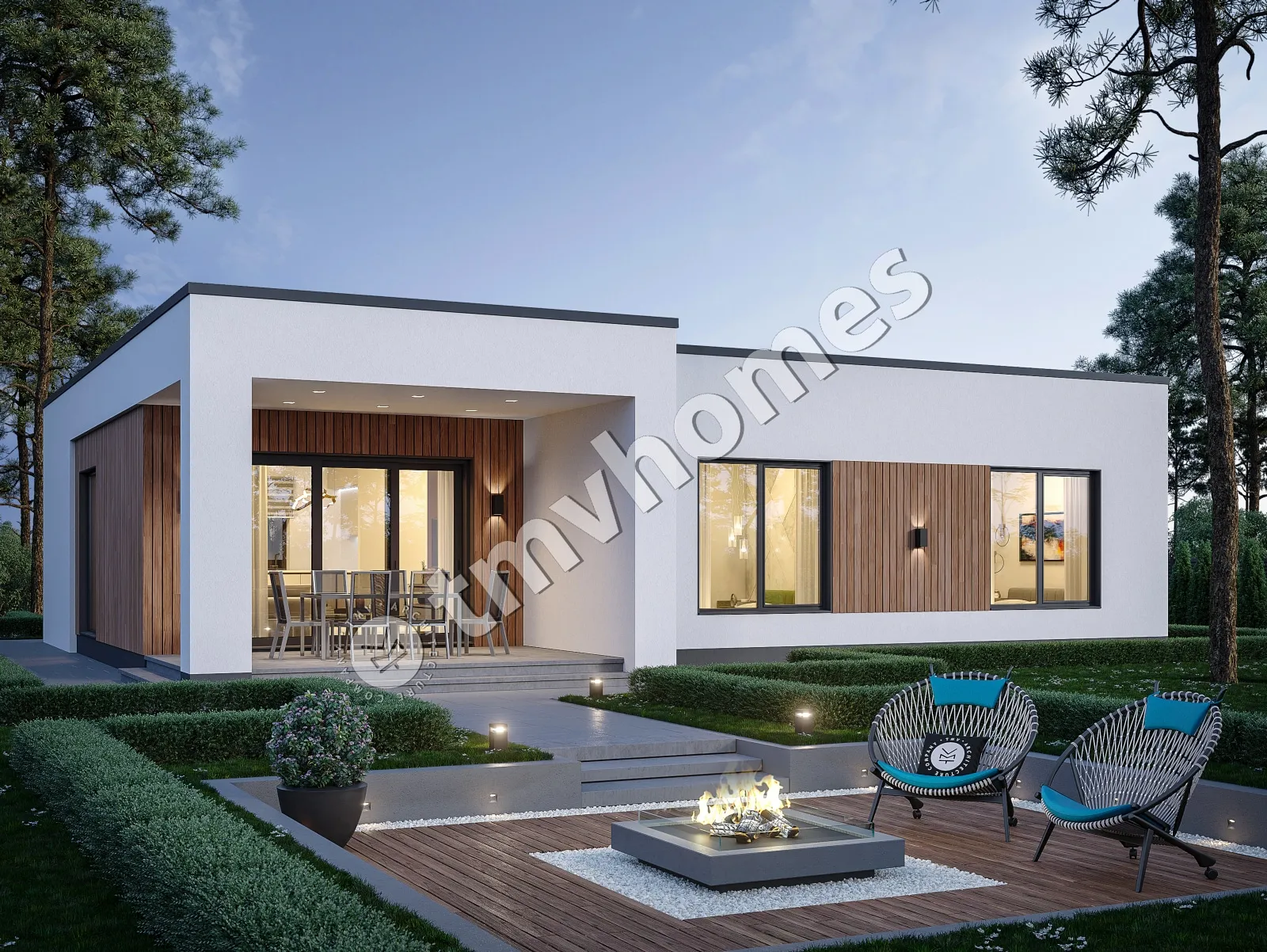

Out back, a covered rear porch extends the living space outdoors in any weather. The main foundation is strip footings, with a slab or block foundation as options to suit the soil of your lot. The exterior walls are designed in aerated concrete (AAC), with clay block or calcium silicate block as alternatives. In figures: Total Heated 1,219 Sq Ft, 3 bedrooms and 2 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$764
