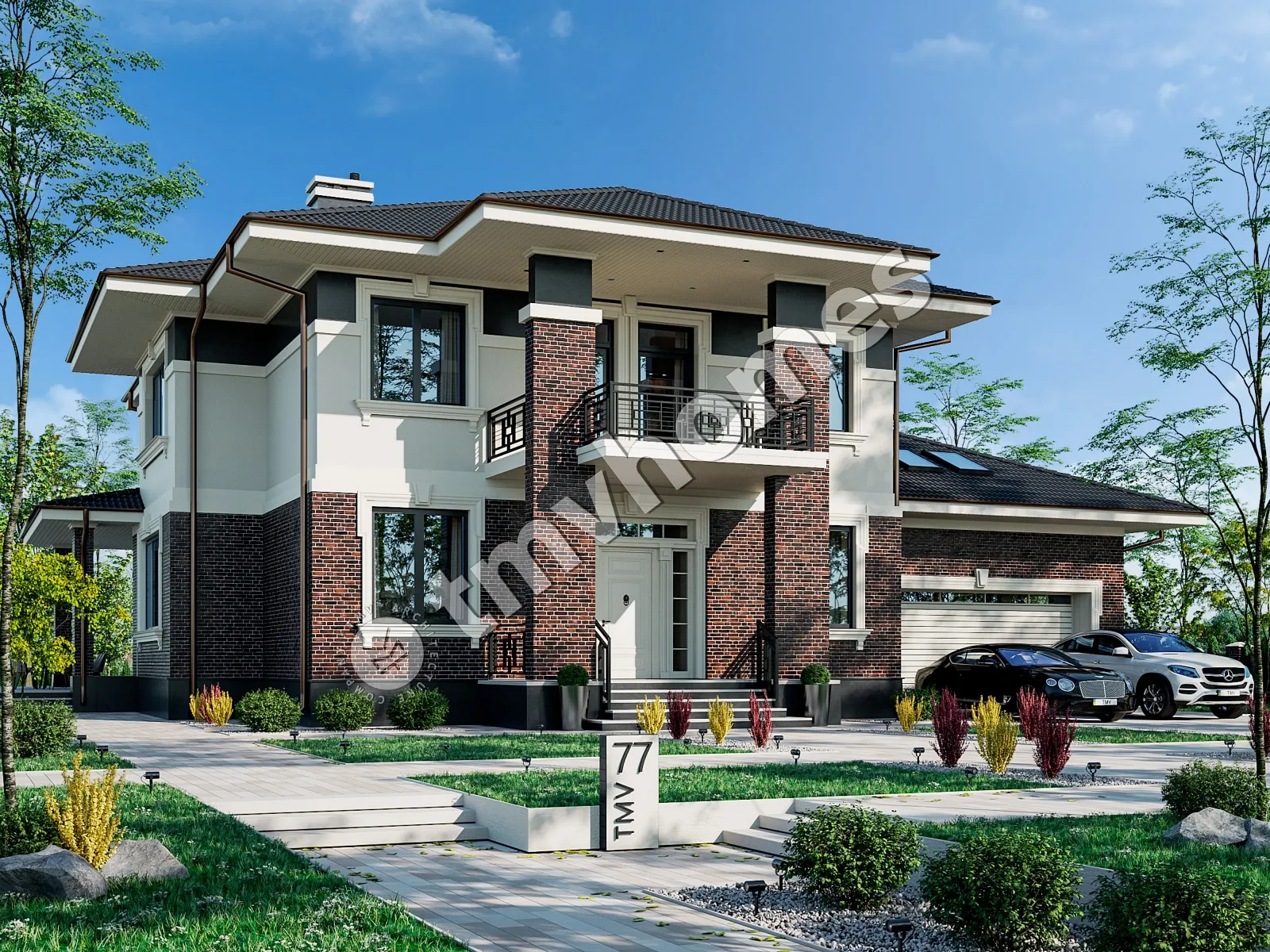

Renderings 2 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C

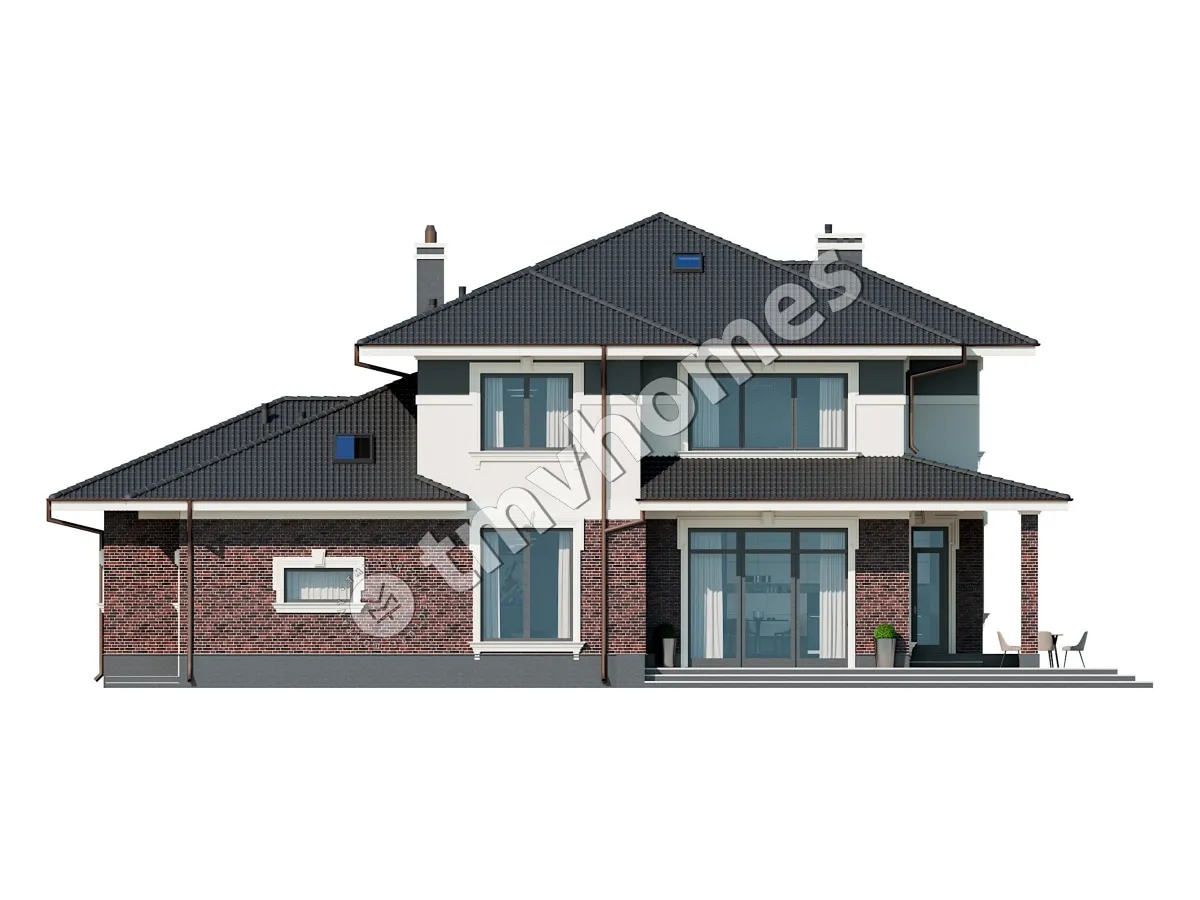

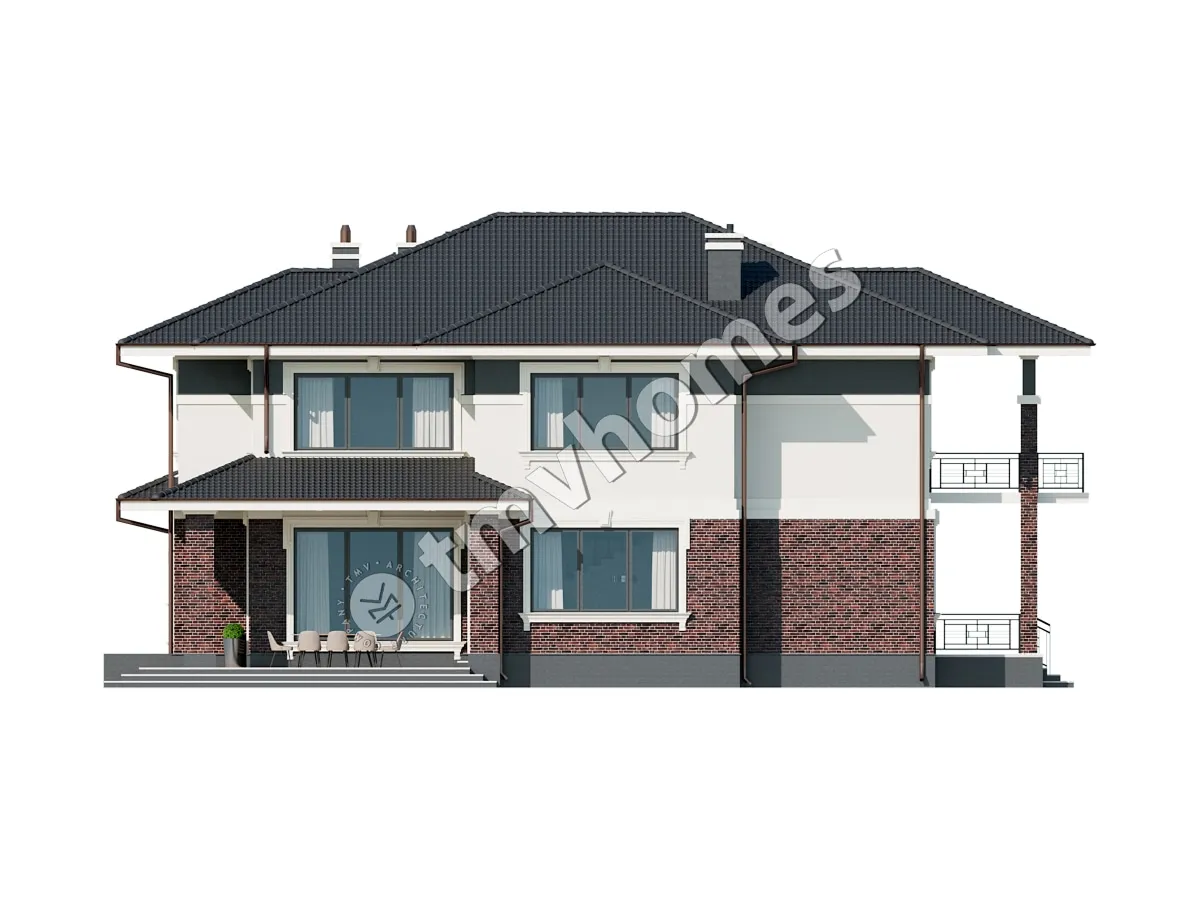

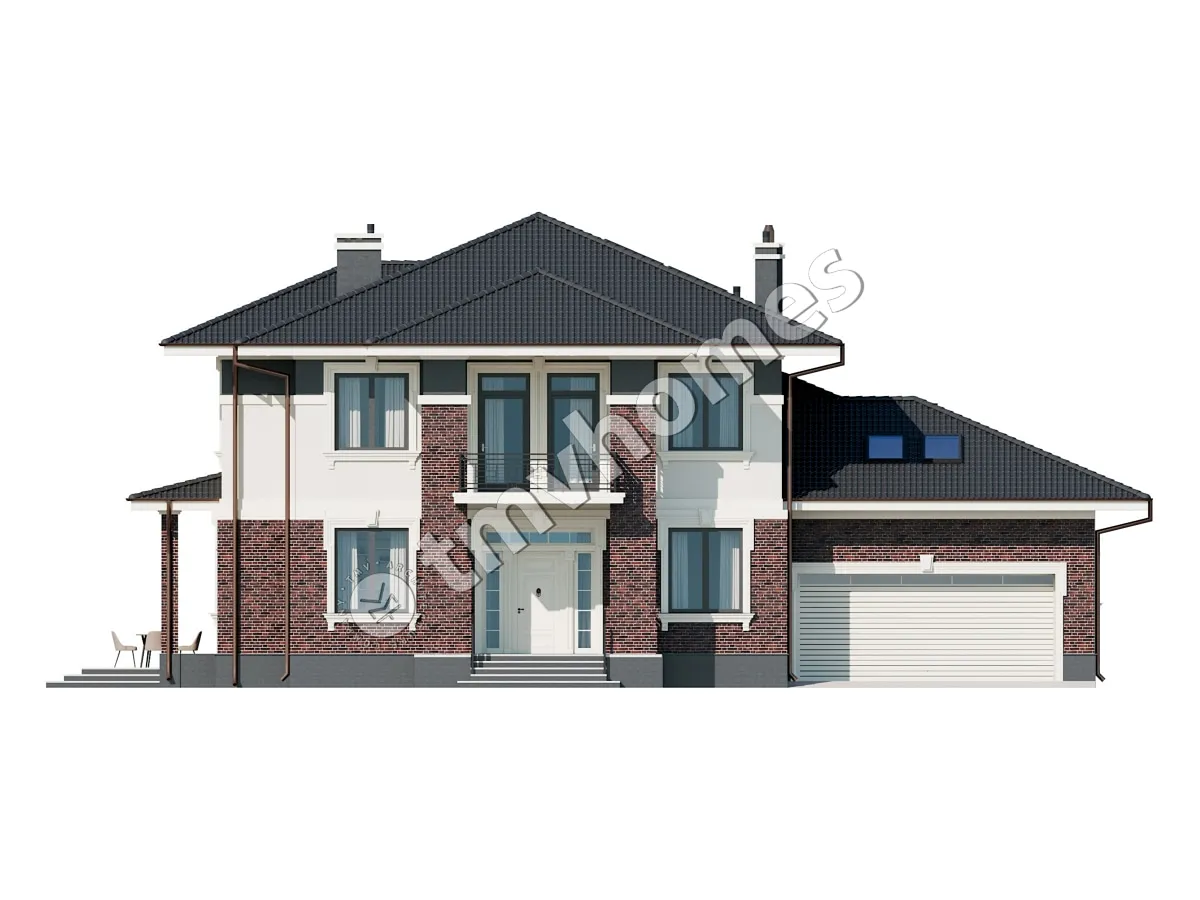

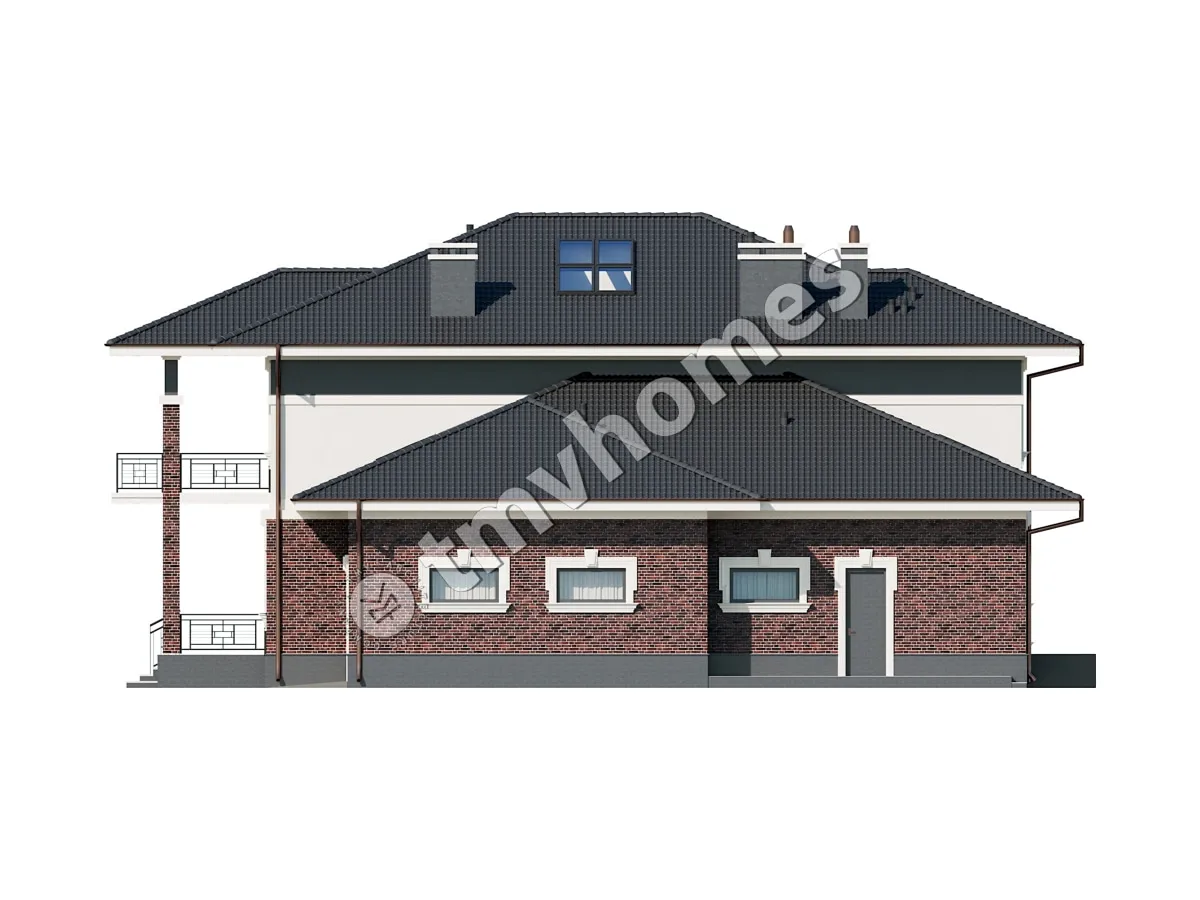

Renderings 3 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C Renderings 4 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C
8
Concept
Construction documents are prepared for the following countries:

4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
38085C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
4234
Total Heated ft²
3 + 0
Baths + 1/2 Baths
5 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

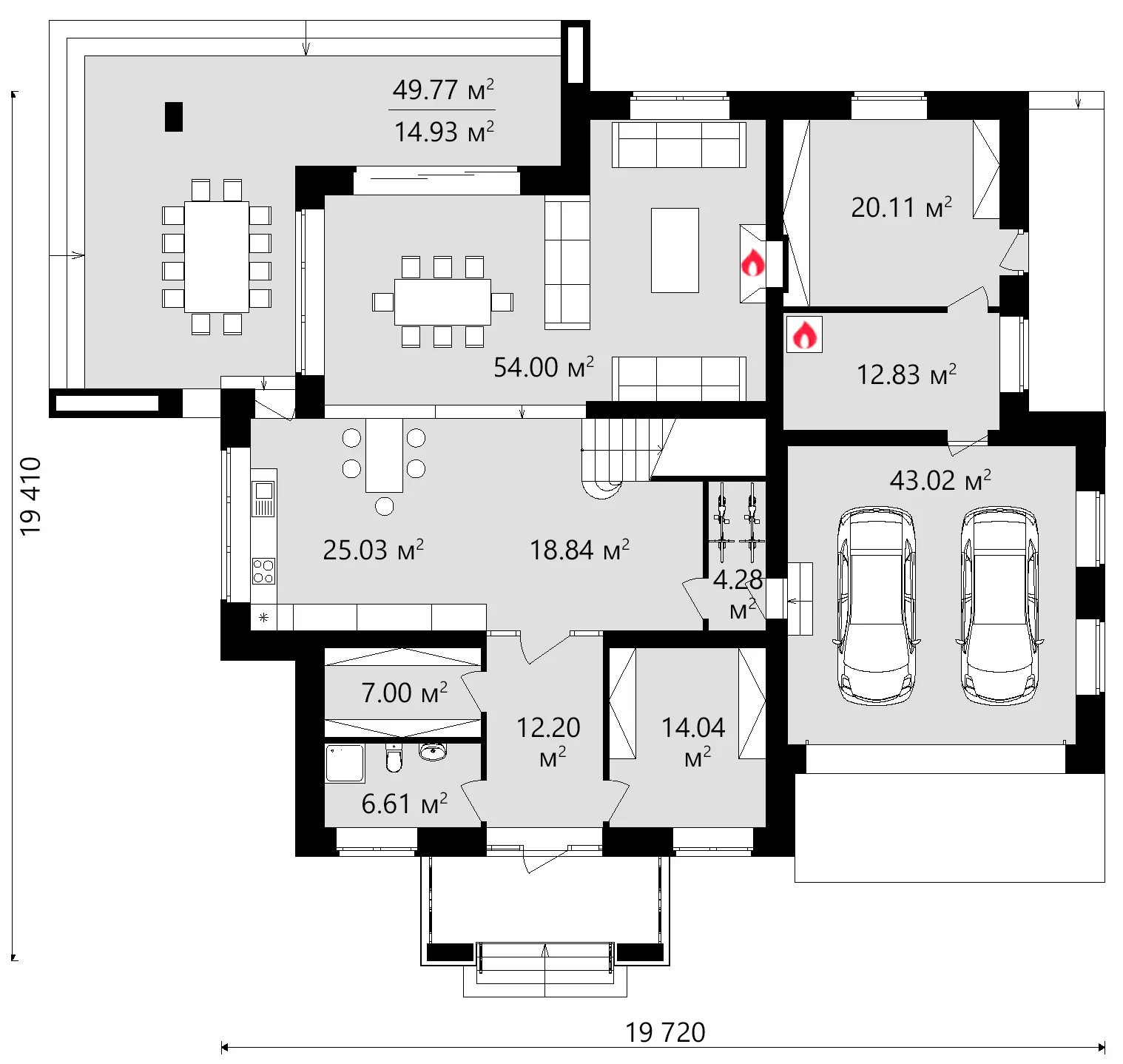

Main Floor
Main Floor 13 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C

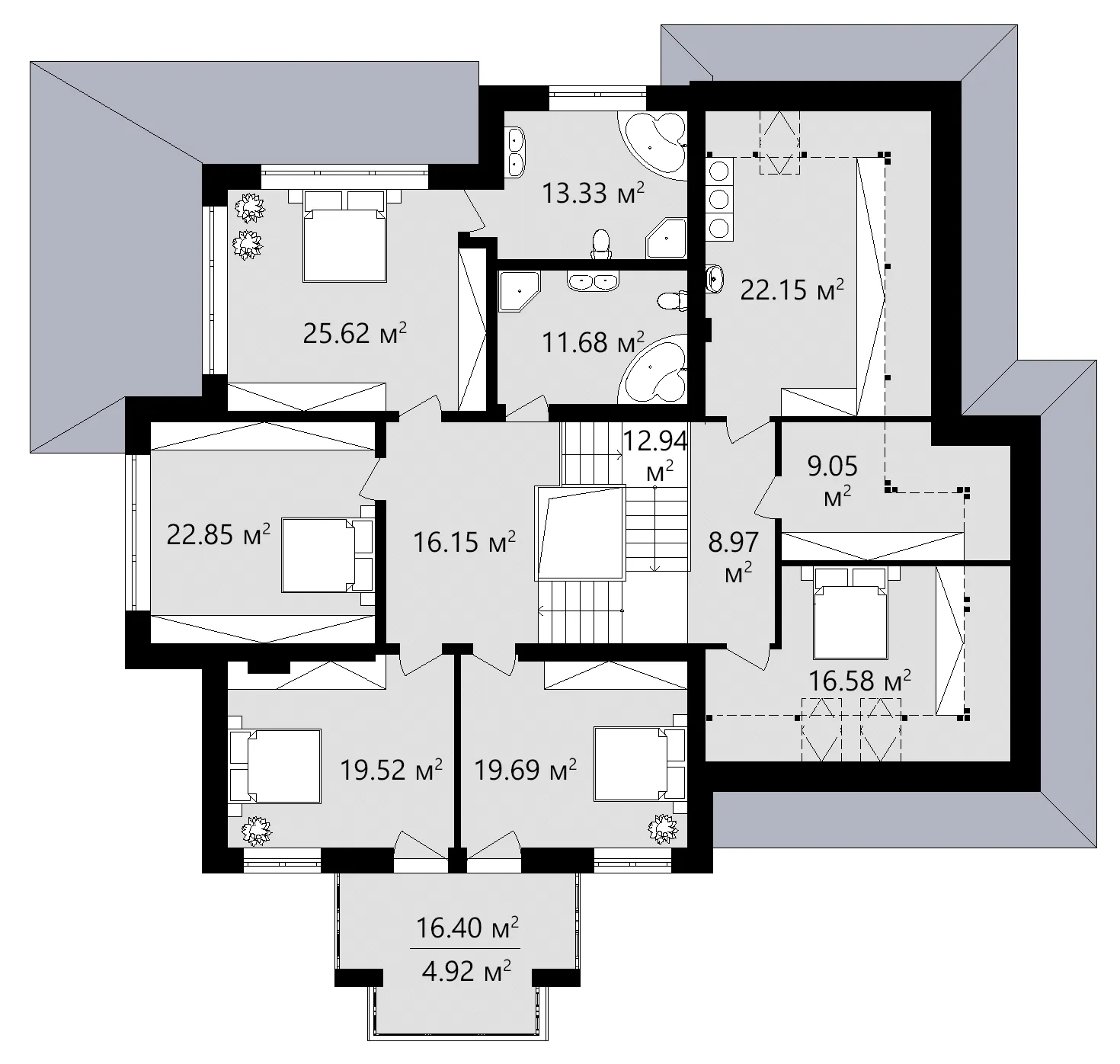

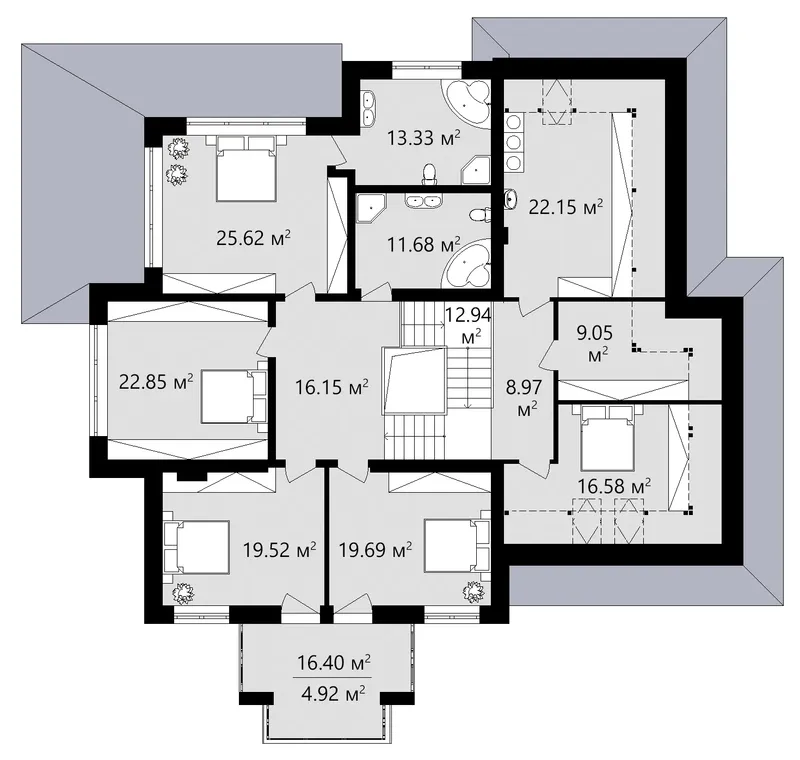

Second Floor
Second Floor 14 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C
Full Specs & Features
Area
Total Unheated: 463.06 ft²
Total Heated: 4233.66 ft²
Dimensions
Depth: 59'2" ft
Width: 60'1" ft
Height: 32'3" ft
Garage
Area: 463 ft²
Cars: 2
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 5
Utility room
Laundry
Entry
Storage
Kitchen and Dining
Breakfast bar
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open to Below
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Covered Rear Porch
Portico
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional

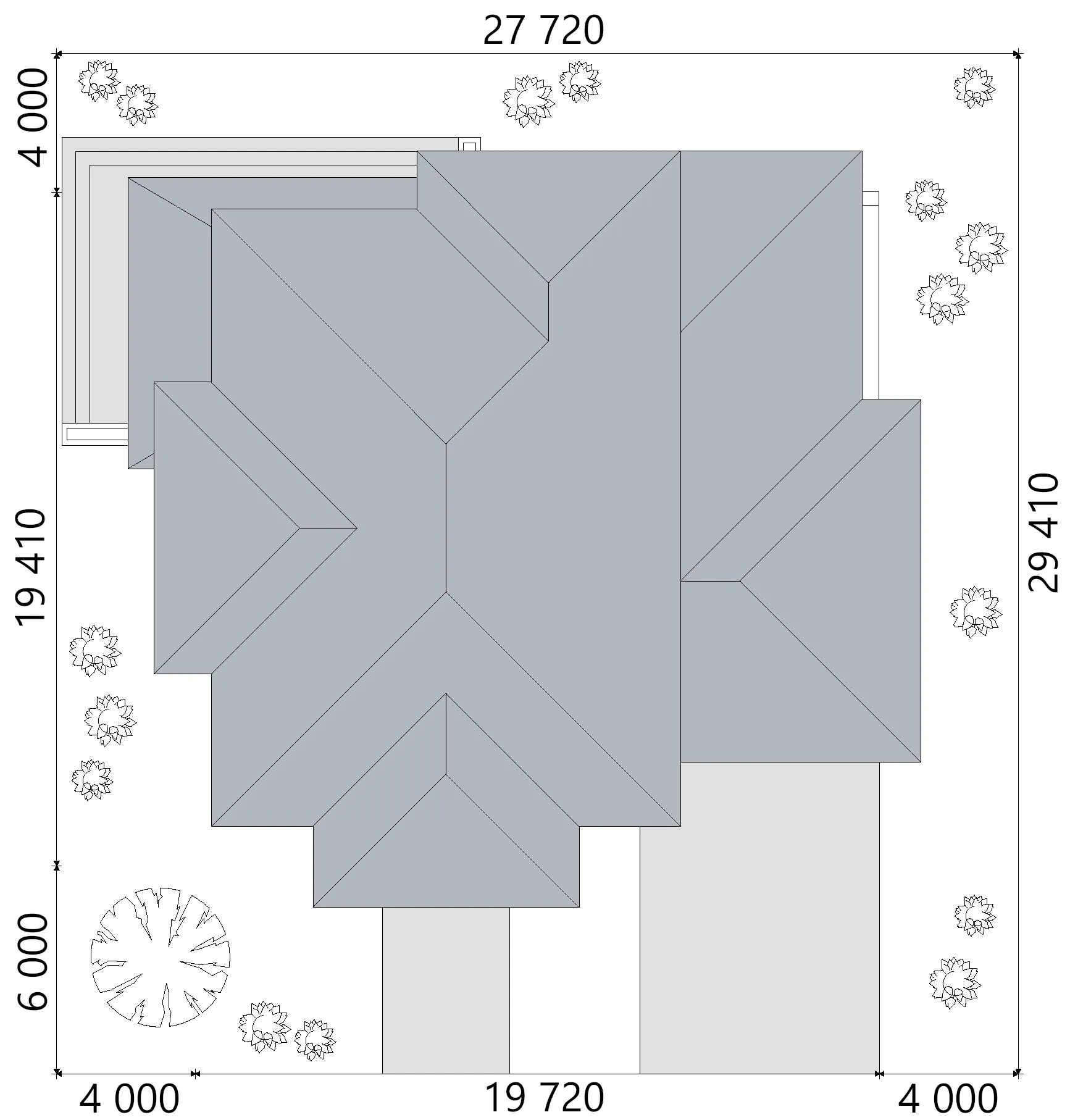

Roof
Roof Area: 4994.45 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Digital house design concept 38085C is a Traditional 2-story single-family home with Total Heated 4,234 Sq Ft, 5 bedrooms, 3 bathrooms, an attached 2-car garage and an open floor plan. The footprint measures 60'1" wide by 59'2" deep, and a hip and valley roof crowns the house. Five bedrooms give a household of 6-8 people a room for everyone.

A portico shelters the front door, and the entry keeps coats and shoes out of the living spaces. The large family room with a fireplace is open to below, so the space rises through both stories. The large kitchen opens to the family room, and its breakfast bar serves quick meals without setting the table. Large windows fill the rooms with daylight, and floor-to-ceiling windows open the view to the yard.

The primary bedroom is on the second floor, and the bedrooms are clustered together, so parents stay close to the children at night. The laundry on the second floor saves carrying baskets up and down the stairs. A utility room and storage keep equipment and seasonal items out of sight.

Stacked porches give outdoor space on both levels: a covered rear porch on the ground floor and a balcony above it. The attached front-entry garage holds two cars. Stone/brick veneer and stucco dress the exterior. Strip footings are the main foundation, with slab or concrete block foundations as options; the exterior walls are of aerated concrete blocks, with ceramic hollow blocks or calcium silicate blocks as alternatives. In figures: Total Heated 4,234 Sq Ft, 5 bedrooms, 3 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1824
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
