House Plan with Second Floor Laundry Room and Home Office

Plan
46399R
Complete
Signed & Sealed
DC None
Key Specs
1974
Total Heated ft²
2 + 1
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

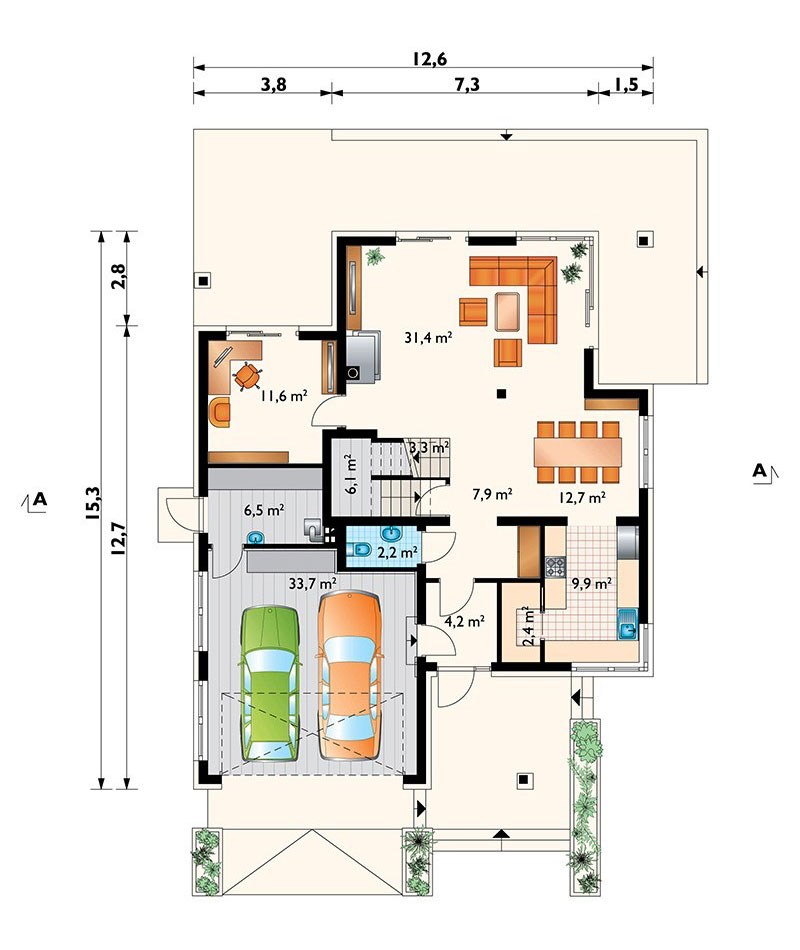

Main Floor
Main Floor 1 – House Plan with Second Floor Laundry Room

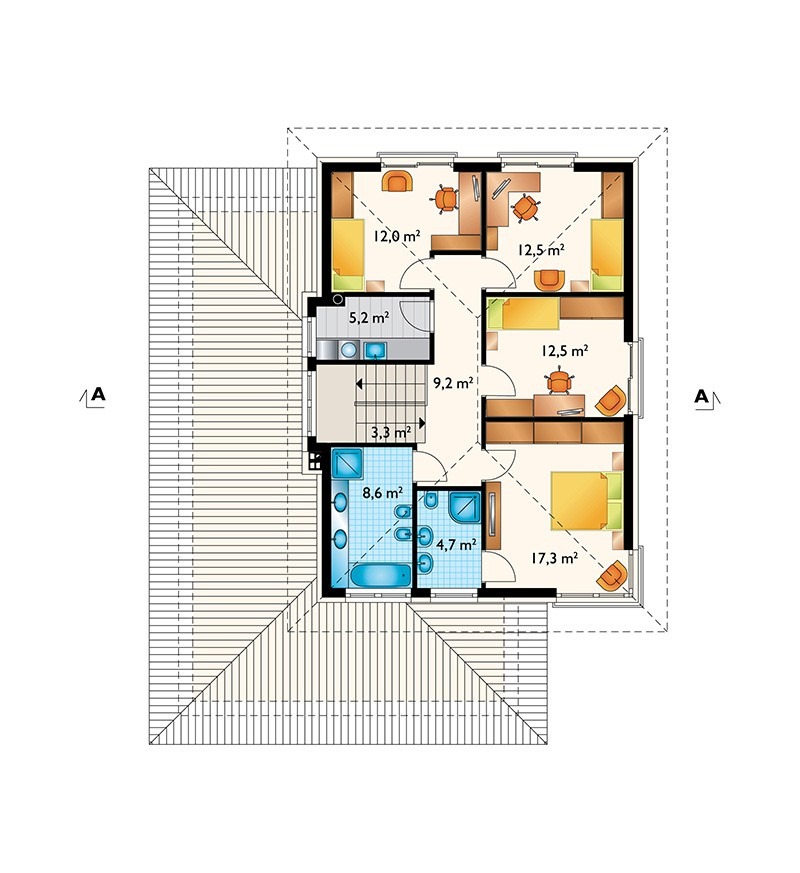

Second Floor
Second Floor 1 – House Plan with Second Floor Laundry Room
Full Specs & Features
Area
Total Unheated: 362.74 ft²
Total Heated: 1974.1 ft²
Dimensions
Depth: 46'6" ft
Width: 38'4" ft
Height: 25'6" ft
Garage
Area: 363 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block
Wood-framed (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 4
Utility room
Laundry
Entry
Home Office
Storage
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Corner Window
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Deck
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 2755.56 ft²
Hip
Roof Pitch: 5/12 (22°)

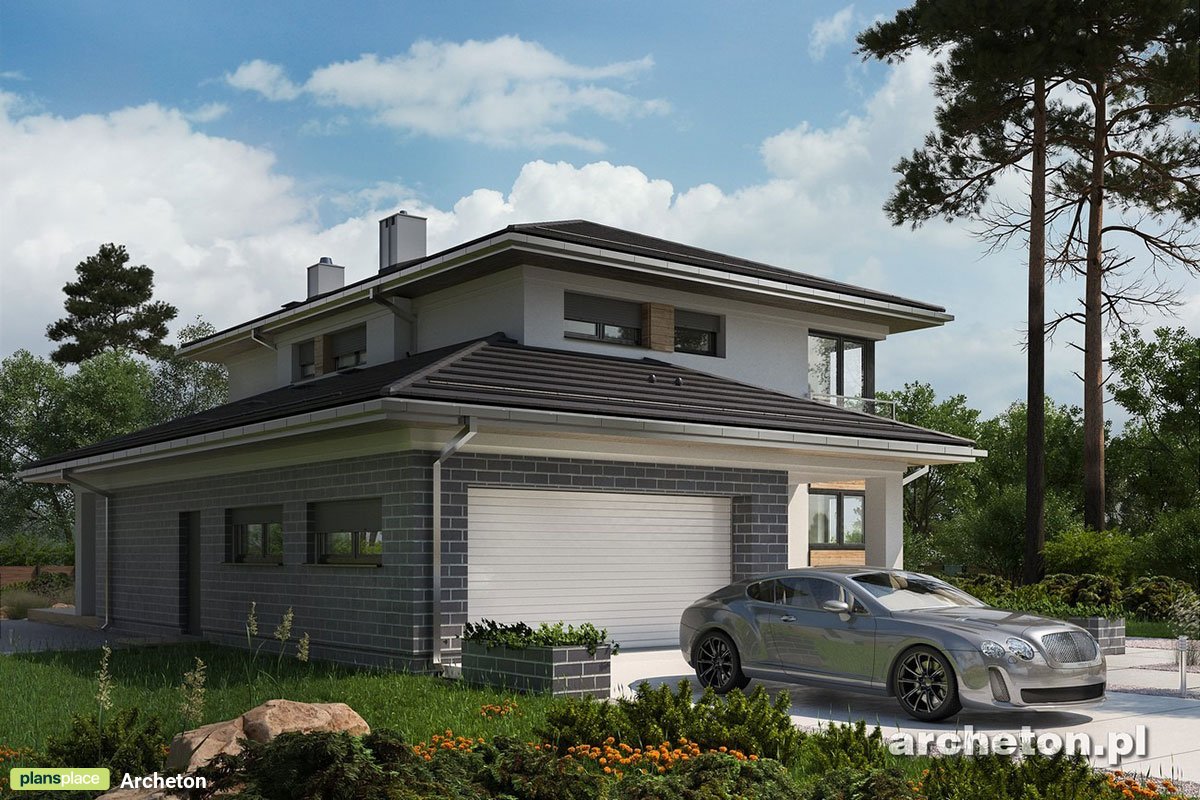

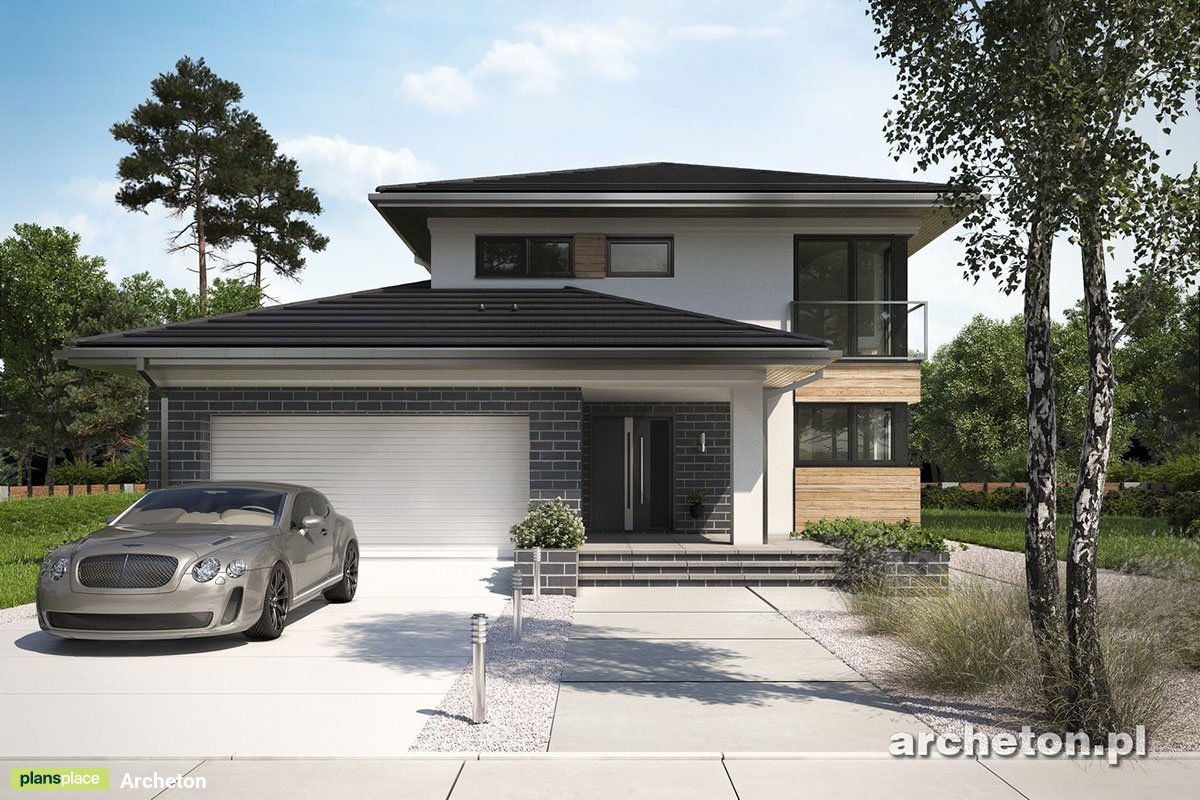

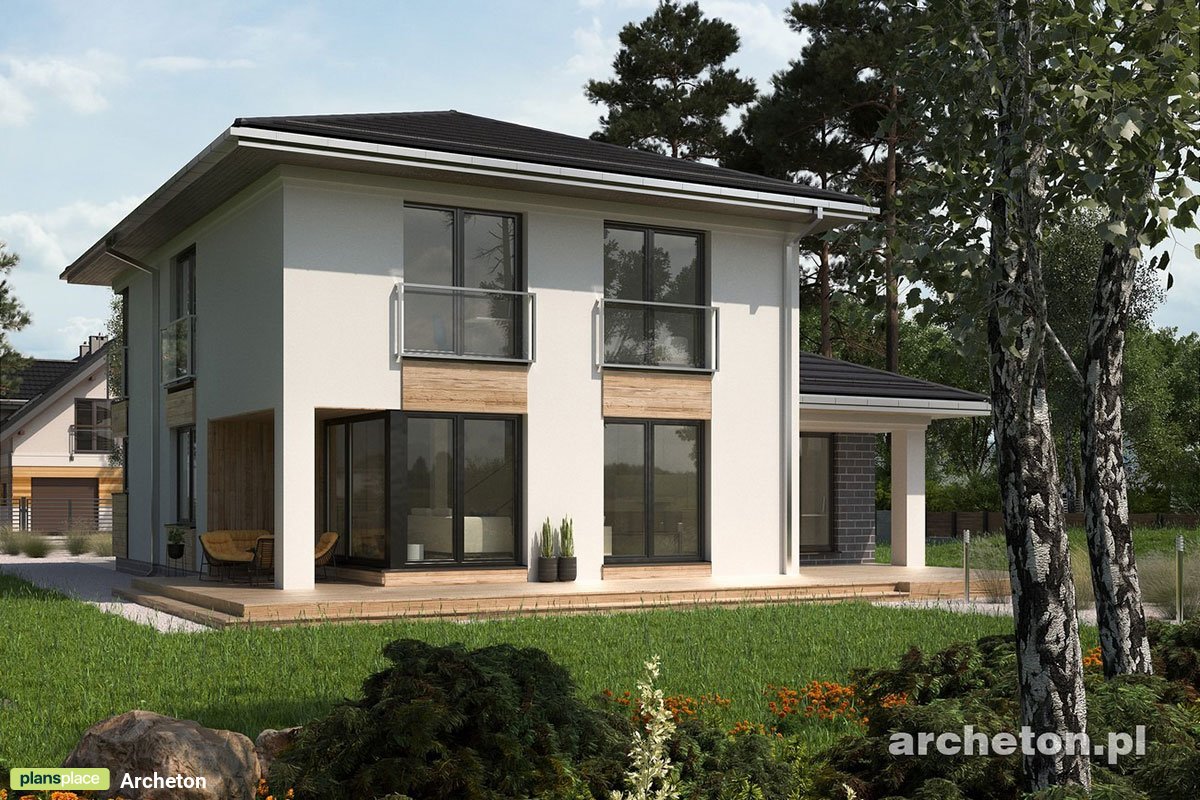

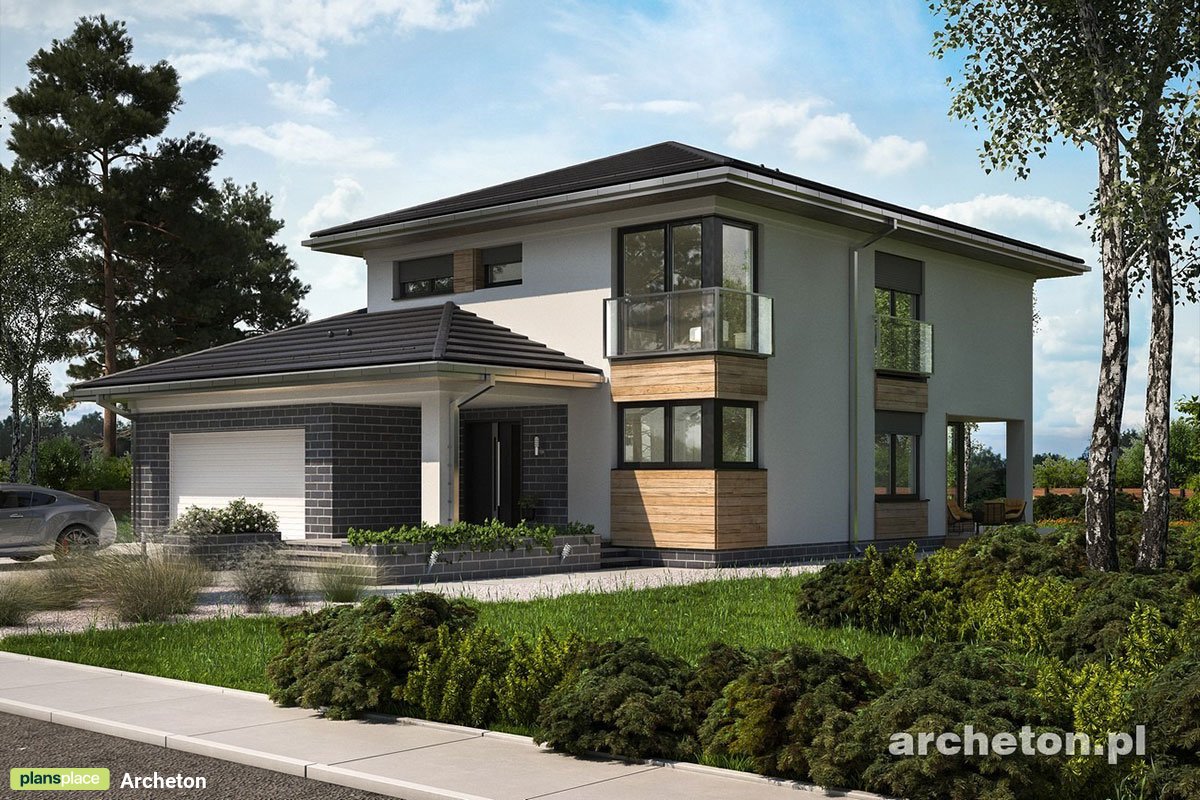

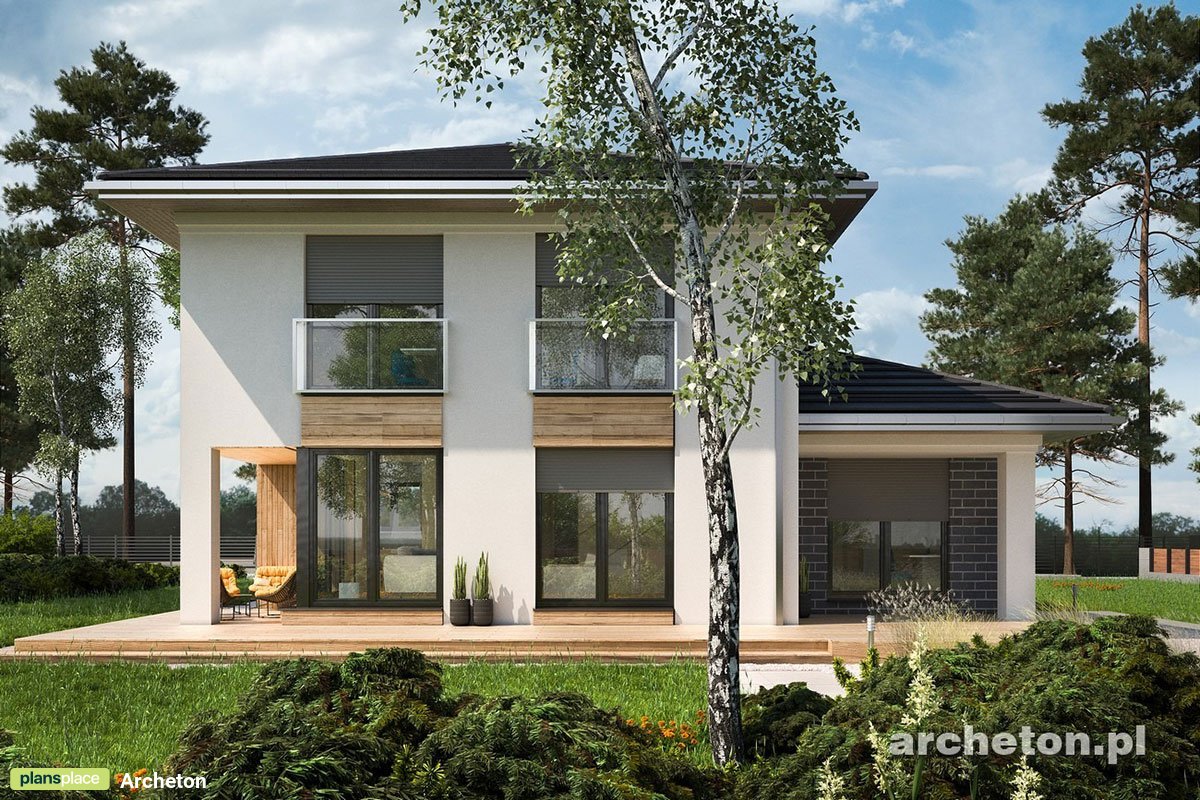

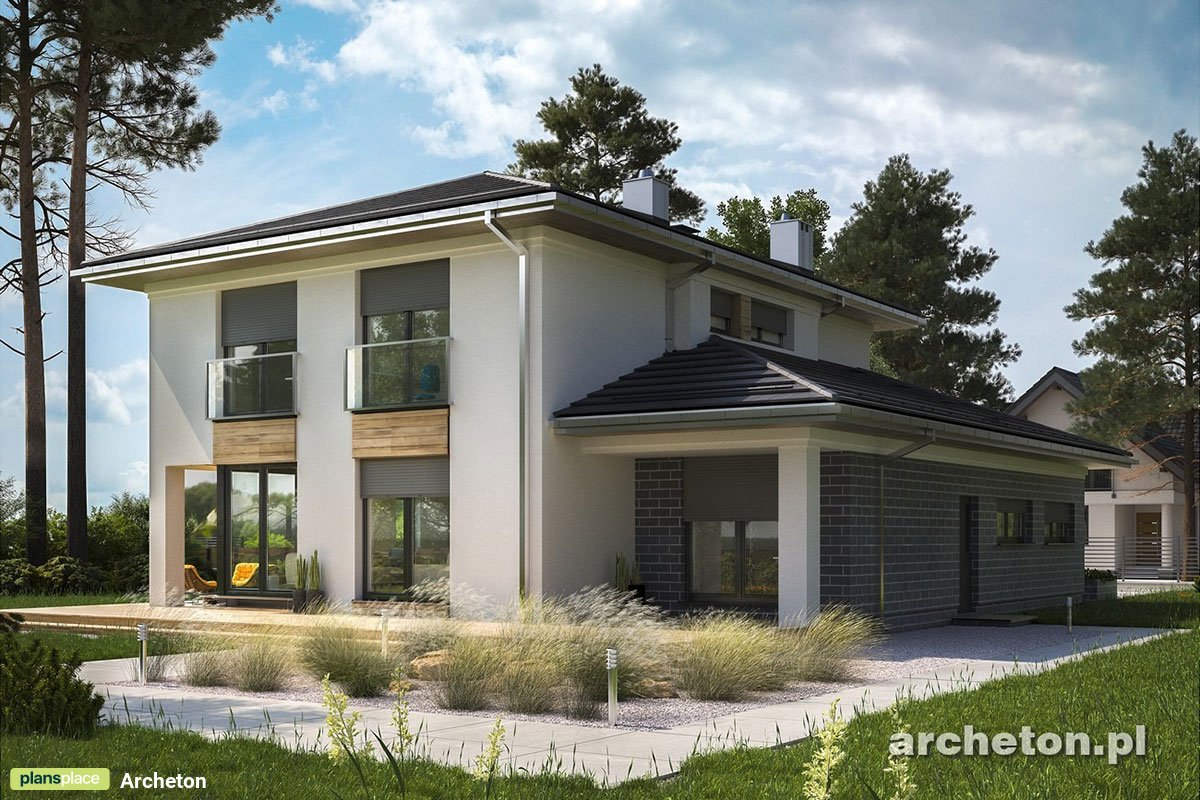

Plan 46399R is a 4-bedroom three-story house plan of 1974 ft², designed in a contemporary European style and finished with a hip roof at a 5/12 (22°) pitch. This L-shaped single family home measures 38'4" wide, 46'6" deep and 25'6" high, and its facades combine stone/brick veneer, wood and stucco, a modern mix that looks crisp and calm. Large windows, a corner window and floor-to-ceiling windows open the walls to daylight and to the garden.

The covered front porch leads into an entry that shelters the home from wind and rain. From there a closed floor plan unfolds, with each room kept distinct and quiet rather than merged into one space. The large family room anchors daily life and gathers everyone around a fireplace, so this is a house plan with fireplace comfort for long winter evenings. The kitchen is its own well-defined room, with a walk-in pantry for supplies and a breakfast nook beside a corner window, where the first coffee of the day comes with a view in two directions. A home office gives a separate, peaceful place to work, away from the family room.

The four bedrooms are clustered together, which keeps the sleeping area compact and private, and the master suite sits on the second floor. Two full bathrooms and a half bath serve the family and guests. The laundry is on the second floor, right next to the bedrooms and their closets, which saves many trips up and down the stairs across three stories. A utility room and dedicated storage keep mechanical equipment, seasonal items and everyday clutter out of the living spaces.

The 2-car garage has a front entry and extends forward of the house, shaping the L of the plan. Outdoors, the covered rear porch and the deck add room for summer meals and quiet evenings outside. The home has no basement and stands on strip footings, and it is also available with a slab foundation. The exterior walls are designed in aerated concrete block, with ceramic block and wood frame construction available on request.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
