4-Bed, 1600 Sq Ft European Barnhouse Plan with Rear Porch - 49706R
4-Bed, 1600 Sq Ft European Barnhouse Plan with Rear Porch - 49706R - 2 4-Bed, 1600 Sq Ft European Barnhouse Plan with Rear Porch - 49706R - 3
14

4-Bed, 1600 Sq Ft European Barnhouse Plan with Rear Porch

Plan
49706R
Prepared
Stamped & Signatured
CAD None
Key Specs
1599
Total Heated Area sq ft
0
Total Unheated Area sq ft
32'1"
WIDTH
35'8"
DEPTH
1
BATHS
1
1/2 BATHS
3 + 1
BEDS
0
CARS
Rysunki architektoniczne, konstrukcyjne i instalacyjne:

rzut fundamentów

rzuty parteru i kolejnych kondygnacji

rzut stropów i nadproży

rzut więźby dachowej

rzut dachu

przekroje

zestawienie stolarki drzwiowej i okiennej

detale konstrukcji

projekty instalacji

Opisy techniczne architektoniczno-konstrukcyjne oraz opisy wewnętrznych instalacji sanitarnych i elektrycznych:

opis techniczny części architektonicznej projektu

opis techniczny konstrukcji

opisy instalacji

Opisy i dokumentacja zawierają:

charakterystykę energetyczną budynku

charakterystykę ekologiczną

informację o planie b.i o.z.

analizę porównawczą dwóch źródeł energii

oświadczenia projektantów

liczne informacje formalno-prawne

Materiały pomocnicze:

obliczenia konstrukcyjne

zestawienie elementów więźby dachowej

zestawienie materiałów do podstawowych instalacji sanitarnych, grzewczych i gazowych

zestawienie stali do zbrojenia elementów żelbetowych

widoki więźby i stropów w 3D

Need to change something?

This house plan can be modified to suit your family's lifestyle and/or your lot specifics.

Floor Plans

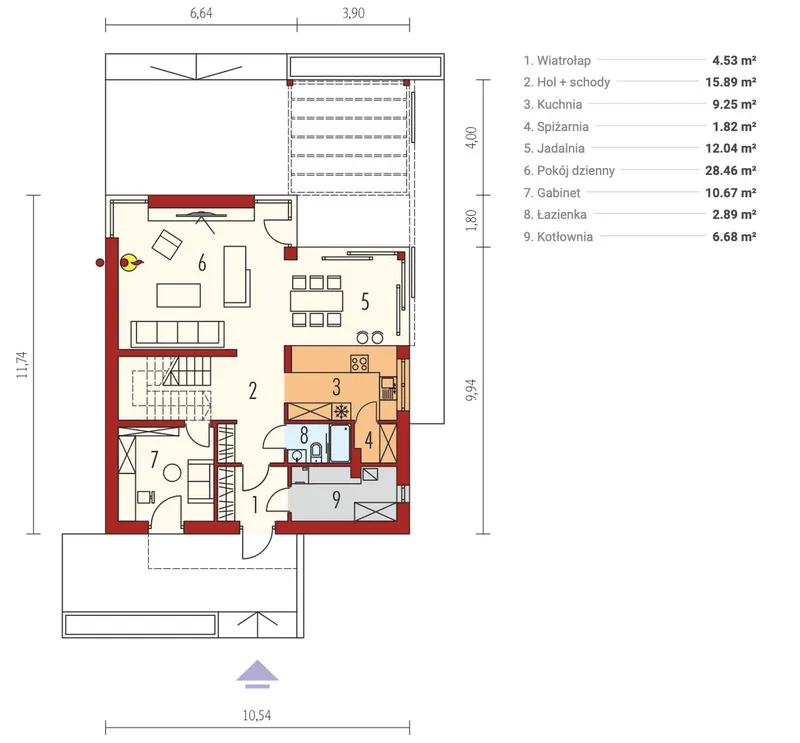

First Floor

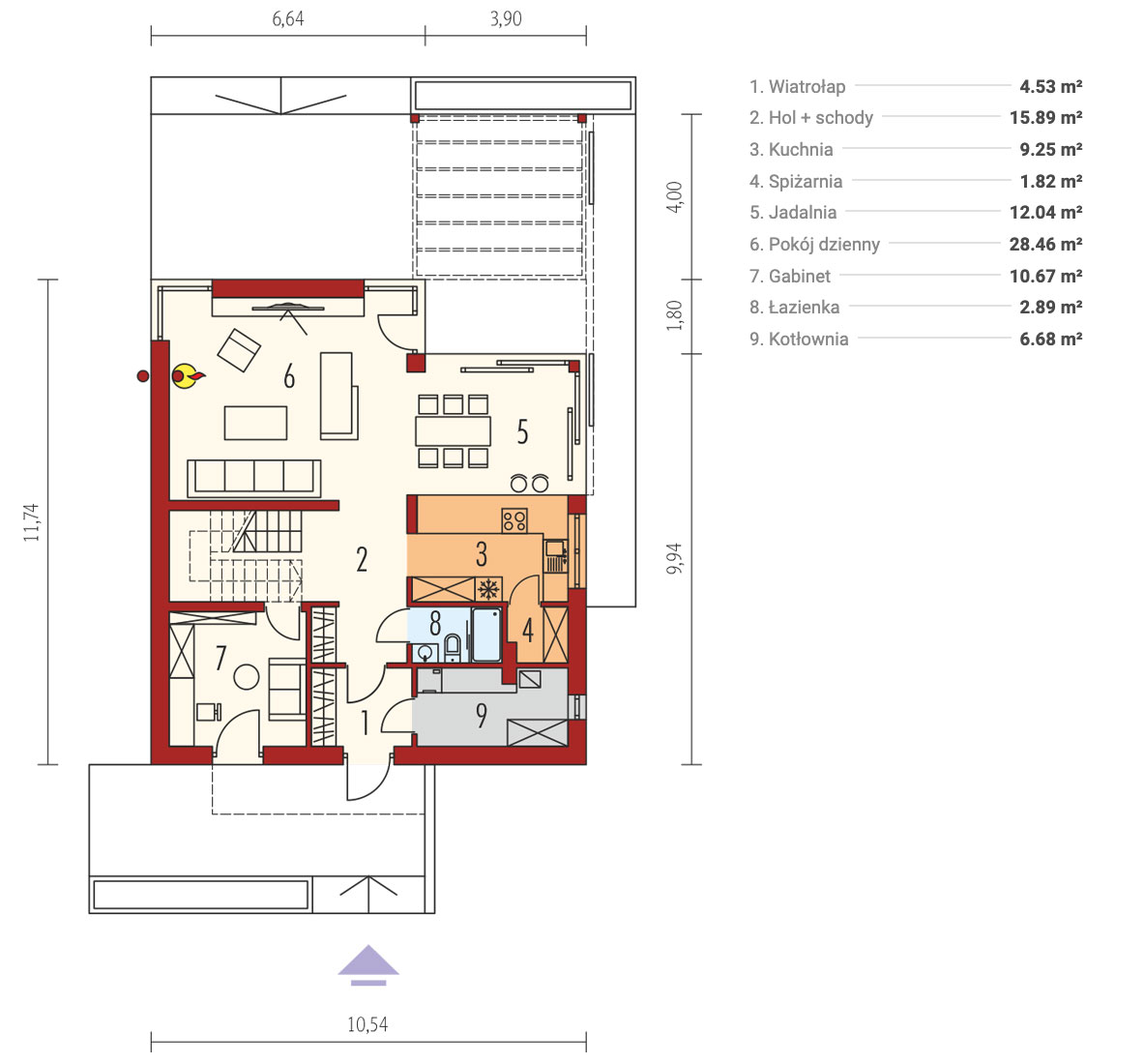

49706R - First Floor

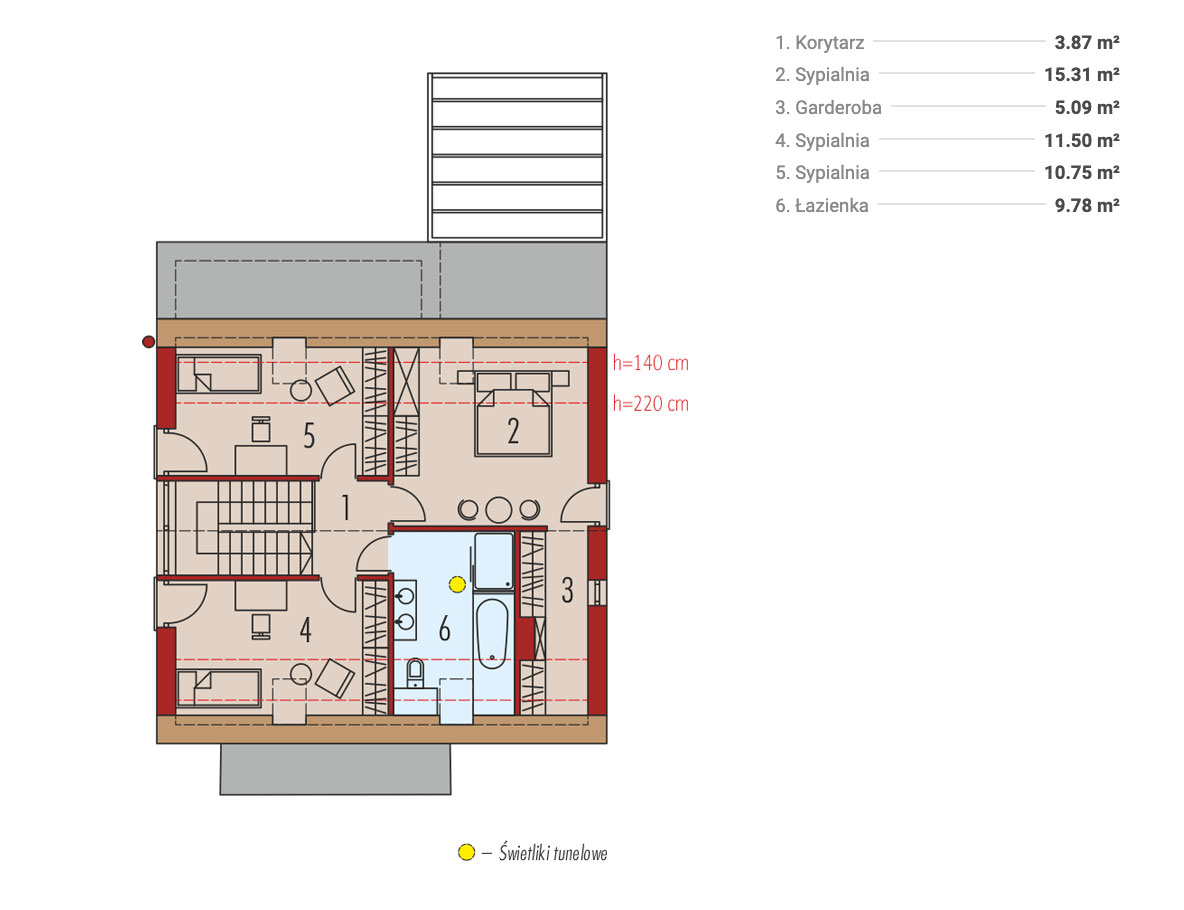

Second Floor
49706R - Second Floor
Full Specs & Features
Area
Total Heated Area: 1599 sq ft
Total Unheated Area: 0 sq ft
Dimensions
Depth : 35'8" ft
Width : 32'1" ft
Height : 26'6" ft
Exterior Wall Framing
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rooms
Furnace Room
Mudroom
Home Office
Foundation
Concrete Stem Wall
Architectural Style
Barn
Contemporary
European
Modern
Outdoor Options
Covered Rear Porch
Deck
Corner Window
Large Windows
Floor-to-Ceiling Windows
Interior Options
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Walk In Closet
In-Law/Guest Suite
Open Floor Plan
Kitchen and Dining
Butler Walk-in Pantry
Eating Bar
Breakfast Nook
Corner Window
Roof
Roof Area: 1432 sq ft
Gable
Skylight
Roof Pitch: 10/12
The Architect of the Plan
ARCHIPELAG ARCHIPELAG
Polska
Polska
Lower Silesian Voivodeship, Wrocław, ul. Mariana Smoluchowskiego 56/3
+48717983800
https://www.archipelag.pl/
+48717983800
Plan Package
Plan Set
$1309
Foundation
$0
$307
Exterior Walls Framing
$128
$0
$128
Additional Options
$256
$179
$128
$179
$51
$102
$77
$77
$51
$90
$3
Subtotal
$
How much will it cost to build?
Cost-to-Build Report
$ 90
This report will provide you cost estimates based on location and building materials.
More Plans By This Architect
All Architect's plans
98360R CAD Concept 1102 ft 2 40'8" width 32'1" depth 1 Story 1 Bathroom 3 Bedrooms 0 Cars $ 839 $ 90 Cost-to-Build Report
11093R CAD Concept 1742 ft 2 42'0" width 65'5" depth 1 Story 1 Bathroom 3 Bedrooms 2 Cars $ 1084 $ 90 Cost-to-Build Report
90728R CAD Concept 1447 ft 2 49'7" width 38'4" depth 2 Stories 2 Bathrooms 3 Bedrooms 2 Cars $ 1304 $ 90 Cost-to-Build Report
76091R CAD Concept 1274 ft 2 44'0" width 34'9" depth 1 Story 1 Bathroom 3 Bedrooms 0 Cars $ 859 $ 90 Cost-to-Build Report
Back to Plan
