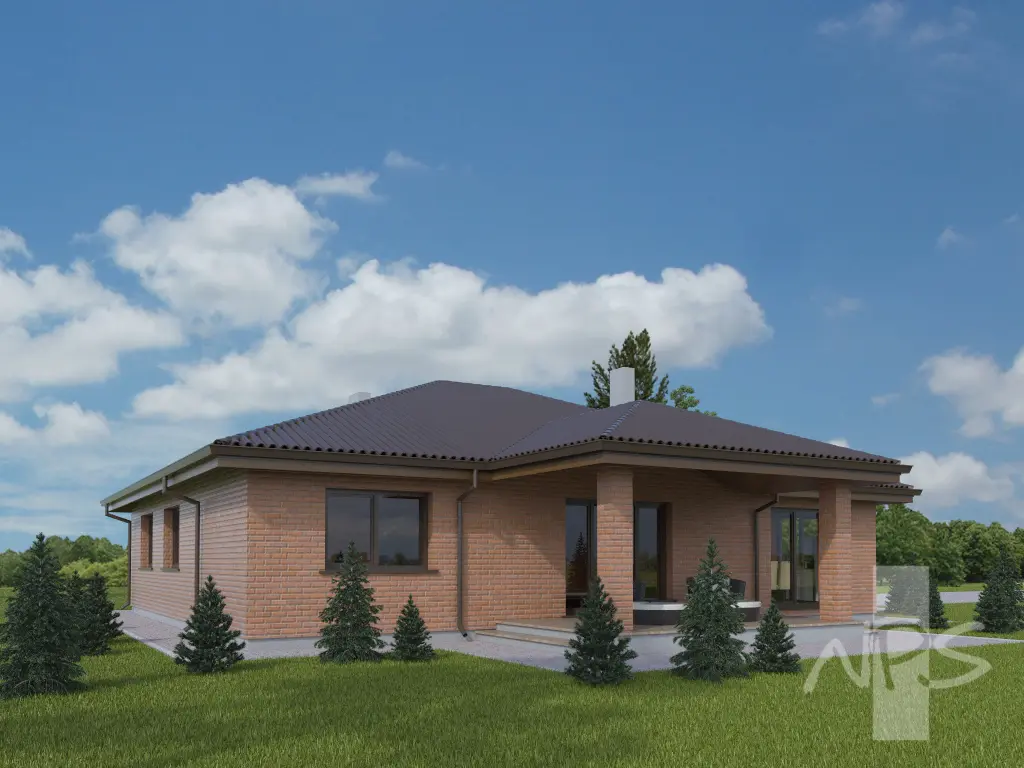

Renderings 2 – 1,424 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 2-Car Garage – 52166R

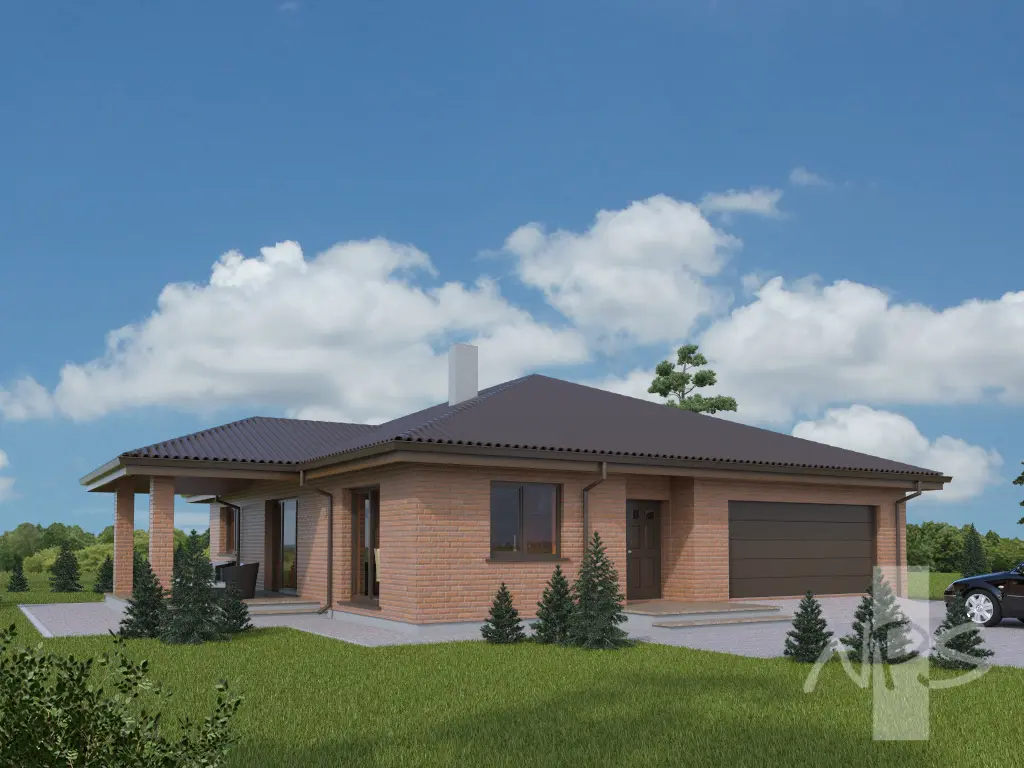

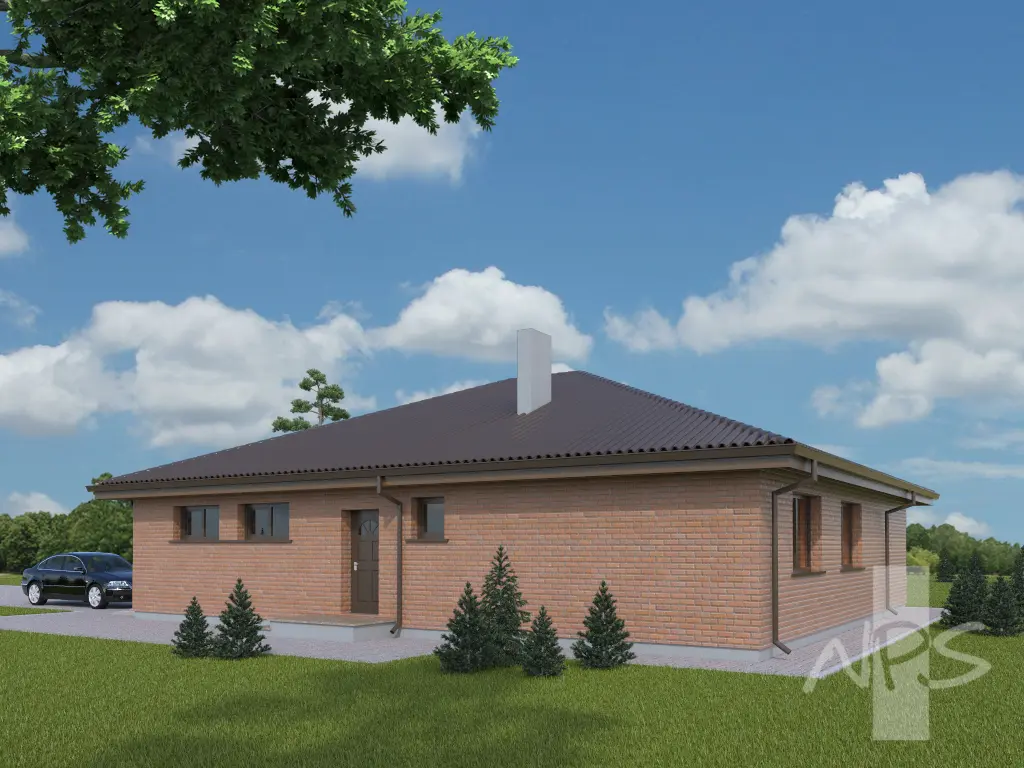

Renderings 3 – 1,424 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 2-Car Garage – 52166R Renderings 4 – 1,424 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 2-Car Garage – 52166R

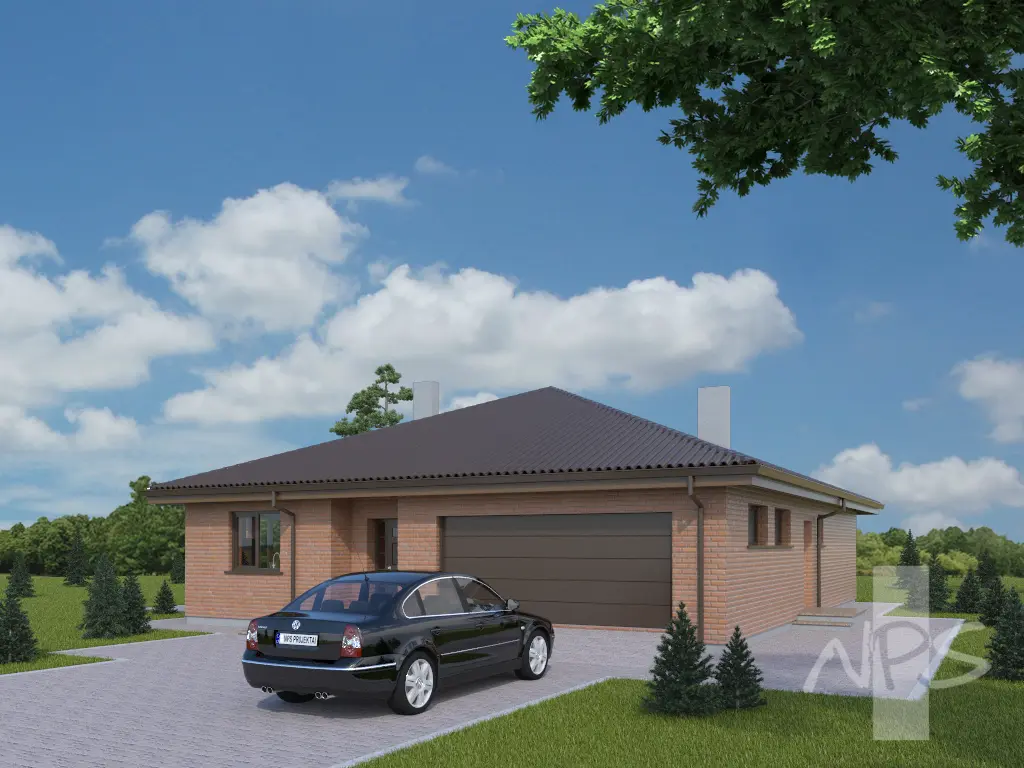

5
Construction documents are prepared for the following countries:

1,424 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms, 1 Bathroom and 2-Car Garage

Plan
52166R
Complete
Signed & Sealed
DC Available
Key Specs
1424
Total Heated ft²
1 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars
111

222

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

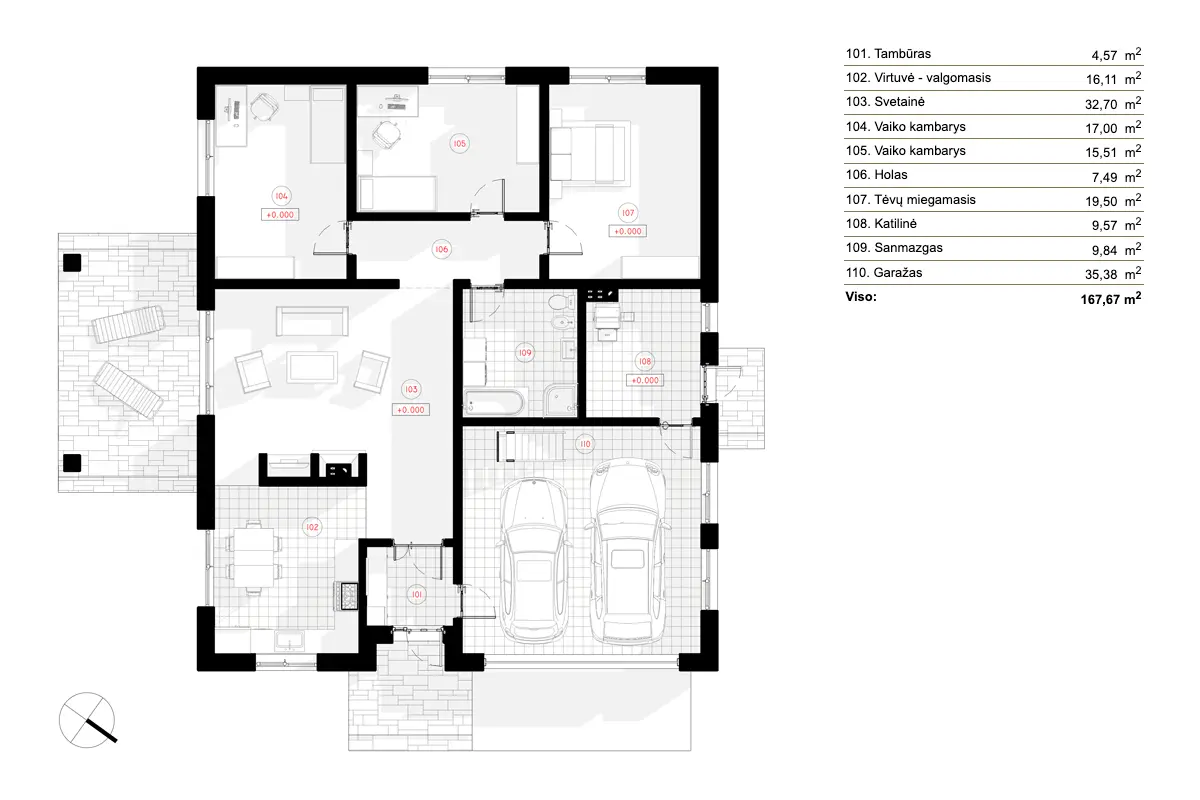

Main Floor 6 – 1,424 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 2-Car Garage – 52166R
Full Specs & Features
Area
First Floor: 1423.96 ft²
Total Heated: 1423.96 ft²
Dimensions
Depth: 46'8" ft
Width: 50'7" ft
Height: 18'1" ft
Garage
Area: 381 ft²
Cars: 2
Front Entry
Foundation
Piling
Slab (Optional)
Concrete Stem Wall (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Calcium silicate block
Aerated Concrete Block (Optional)
Ceramic Block (Optional)
Wood-framed (Optional)
Exterior Wall Materials
Brick
Rooms
Full bathrooms: 1
Bedrooms: 3
Utility room
Entry
Kitchen and Dining
Breakfast Nook
Interior Features
Fireplace in Family Room
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Side Porch
Architectural Style
Bungalow
European
Traditional
Roof
Hip & Valley
Roof Pitch: 5/12 (22°)

House design concept 52166R is a Traditional single-story single-family home for a household of 3-4 people, with every room on one level. The hip and valley roof with a 5/12 (22°) pitch and the brick exterior give the house a classic, low profile. The footprint measures 50'7" wide by 46'8" deep and fits a typical suburban lot.

An entry separates the front door from the living space and keeps drafts and outdoor gear away from the main rooms. The large family room with a fireplace anchors the day zone and gives you a warm place to gather in winter. The closed floor plan places the large kitchen in its own room, so cooking smells stay out of the family room, while the breakfast nook offers a spot for everyday meals right in the kitchen.

The three bedrooms are clustered together, which keeps the children's rooms close to the parents' room. They share one full bathroom. A separate utility room keeps household chores away from the living areas.

A covered side porch provides shade and shelter from the rain. The front-entry 2-car garage faces the street and allows a short, straight driveway. The project specifies bored pile foundations, with slab, strip or block foundations as options, and silicate block exterior walls, with aerated concrete, ceramic block or frame construction as alternatives. In figures: Total Heated 1,424 Sq Ft, 3 bedrooms, 1 bathroom and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
NPS projektai NPS projektai Architecture Firm country with code lt Lithuania
country with code lt Lithuania
Šiauliai City Municipality, Šiauliai, Tilžės g. 151 (II aukštas)
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1382
