Main Images 1 – 1600 Sq Ft House Plan with 5 Beds and Pantry
Main Images 1 – 1600 Sq Ft House Plan with 5 Beds and Pantry Main Images 1 – 1600 Sq Ft House Plan with 5 Beds and Pantry
5
Construction documents are prepared for the following countries:

1600 Sq Ft European House Plan with 5 Beds and Walk-in Pantry

Plan
67083R
Complete
Unsigned & Unsealed
DC None
Key Specs
1669
Total Heated ft²
2 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

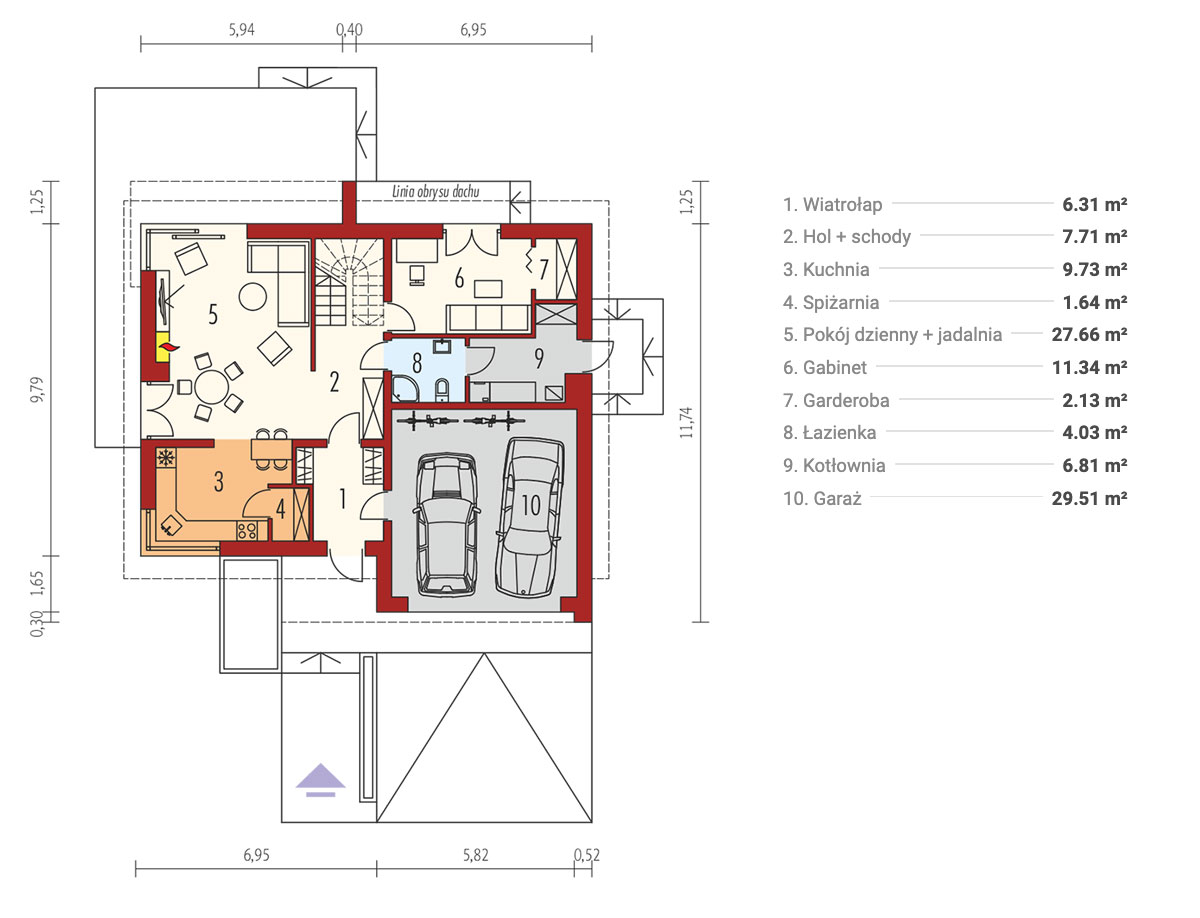

Main Floor

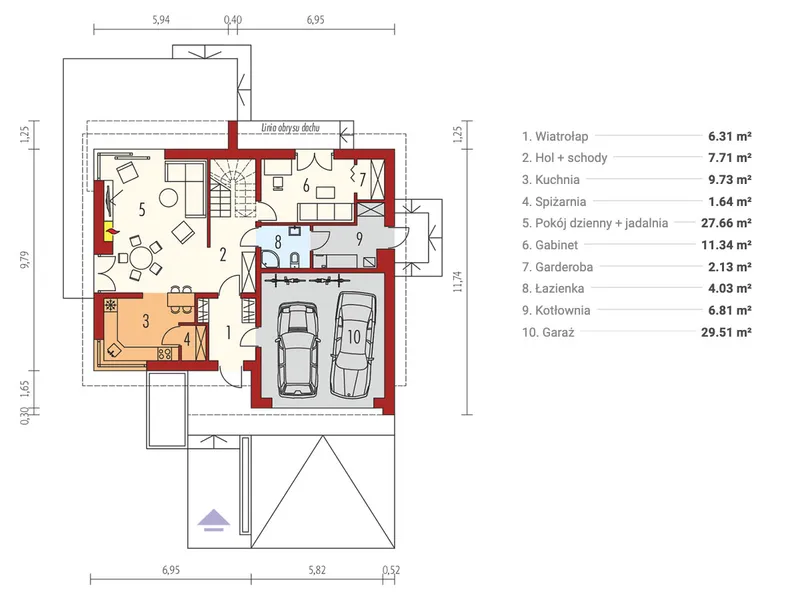

Main Floor 1 – 1600 Sq Ft House Plan with 5 Beds and Pantry

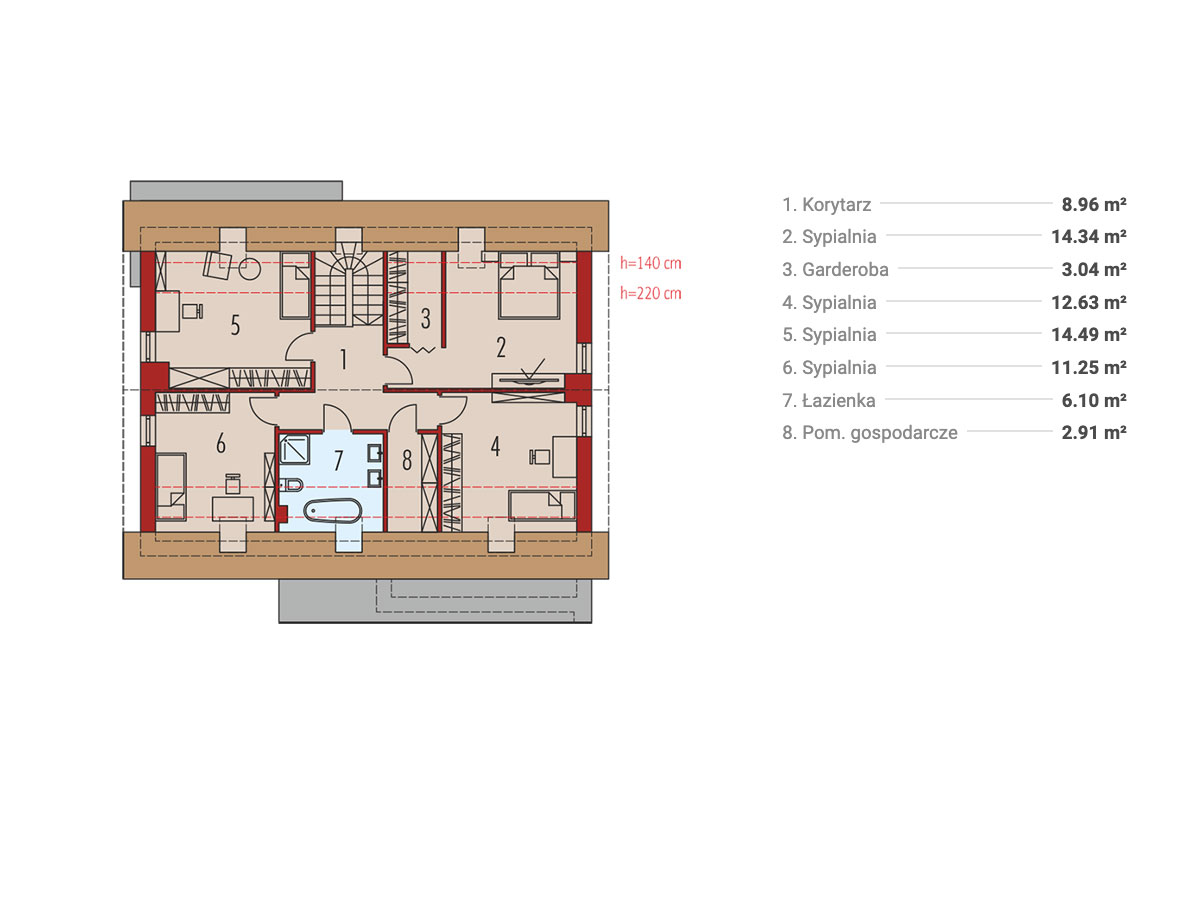

Second Floor
Second Floor 1 – 1600 Sq Ft House Plan with 5 Beds and Pantry
Full Specs & Features
Area
Total Unheated: 317.64 ft²
Total Heated: 1669.27 ft²
Dimensions
Depth: 39'6" ft
Width: 40'5" ft
Height: 27'1" ft
Garage
Area: 318 ft²
Cars: 2
Garage with Upstairs
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block
Wood-framed (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 4
Utility room
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Deck
Corner Window
Floor-to-Ceiling Windows
Architectural Style
European
Traditional
Transitional
Roof
Roof Area: 2238.89 ft²
Gable
Skylight
Ridge parallel to street
Roof Pitch: 11/12 (42°)

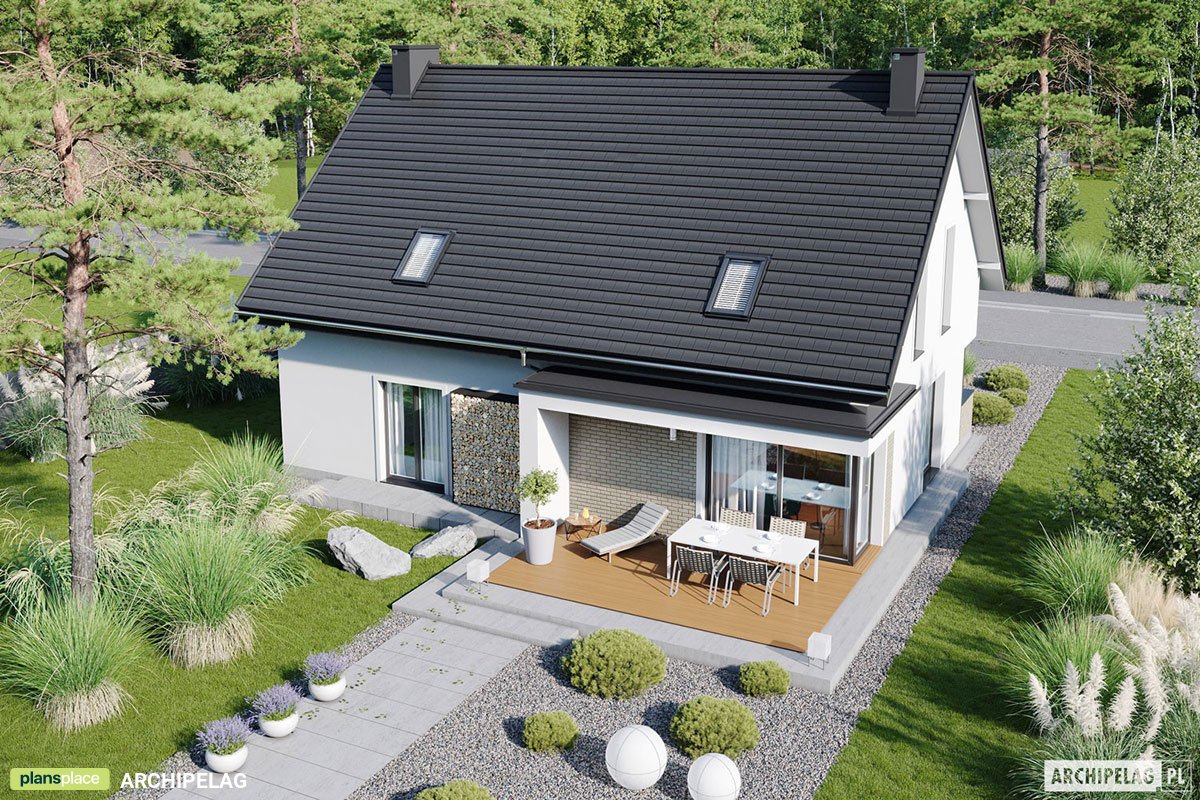

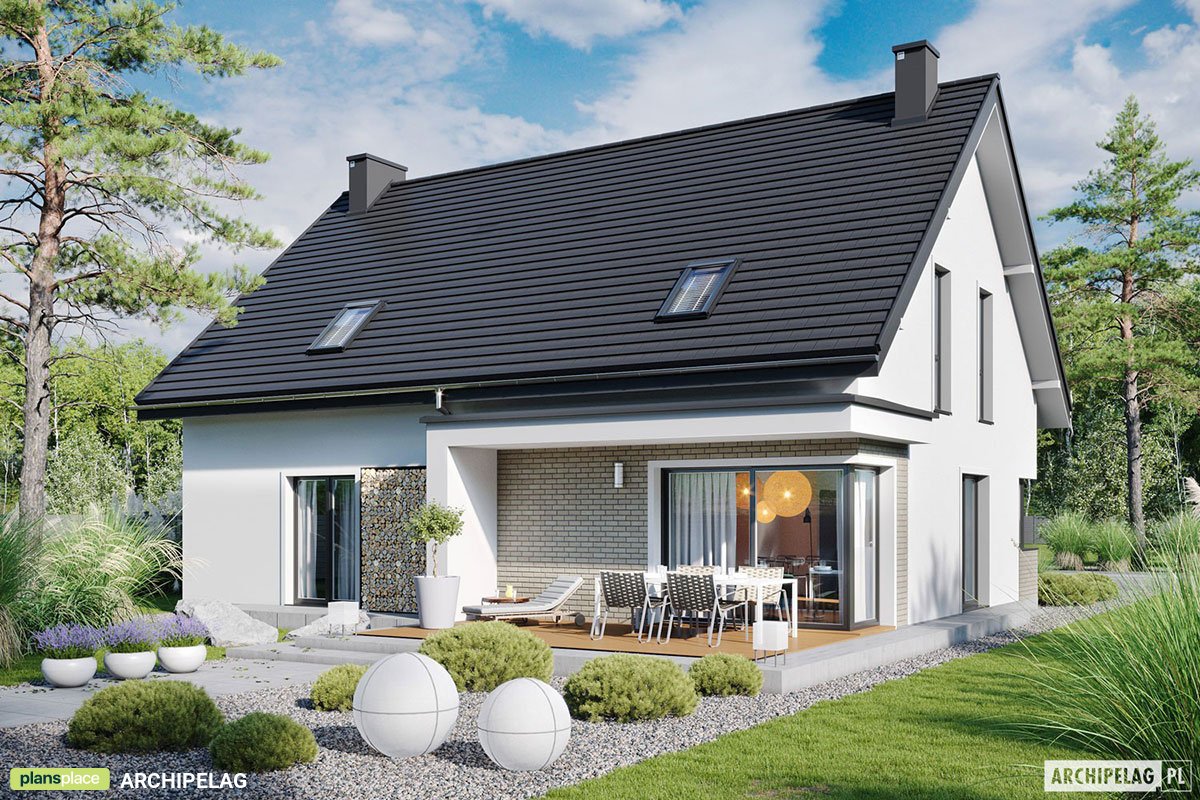

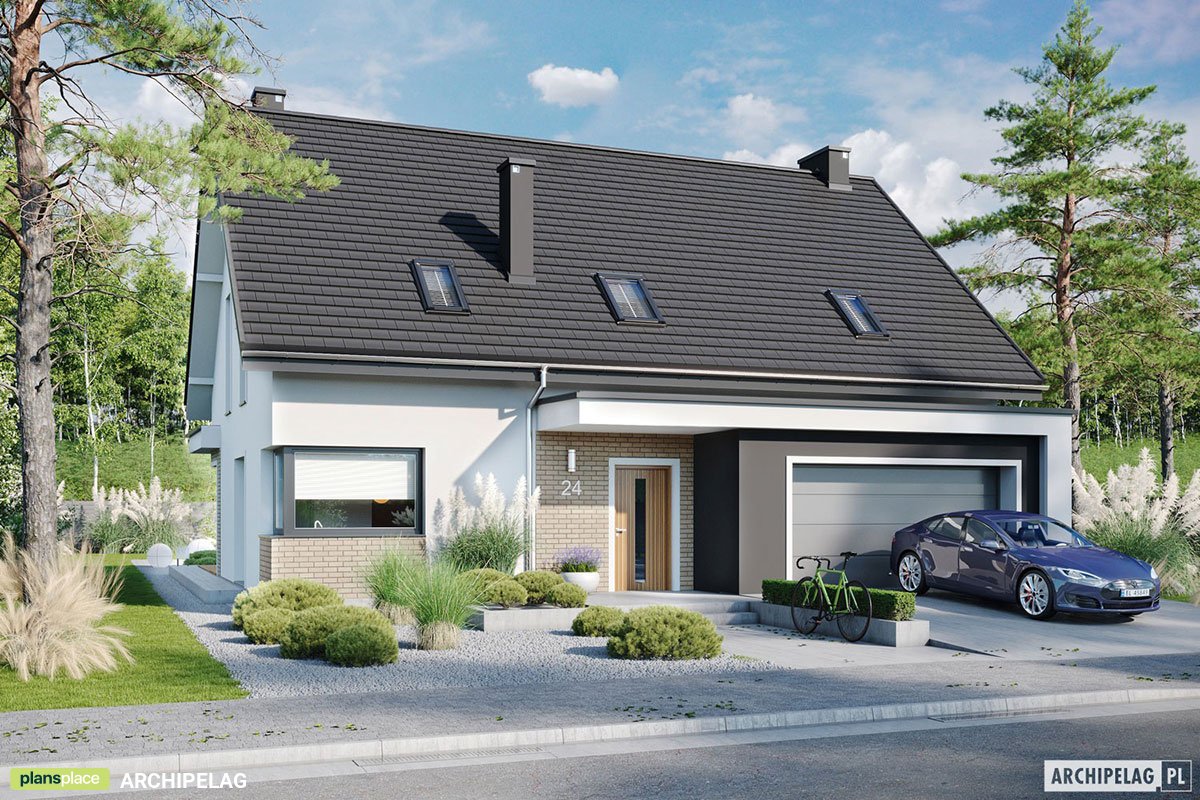

Plan 67083R is a 4-bedroom 2-story house plan of 1669 ft² that brings European, Traditional and Transitional styles together under a steep gable roof with an 11/12 (42°) pitch. The ridge runs parallel to the street, a skylight draws daylight down from above, and the facade pairs stone/brick veneer with stucco for a refined, lasting look. The home measures 40'5" wide, 39'6" deep and 27'1" high. The walls are designed in autoclaved aerated concrete, with clay block or wood frame construction also available on request.

A proper entry greets you at the front door and keeps coats, boots and school bags out of the living areas. From there, a closed floor plan gives each room its own purpose and its own quiet. The large family room is the heart of the house, built around a fireplace that turns winter evenings into time spent together. The kitchen works hard and stays organized: a walk-in pantry holds groceries and small appliances, a breakfast bar serves quick meals and homework sessions, and a breakfast nook with a corner window catches the morning sun. Floor-to-ceiling windows open the interior to the outdoors, and a home office gives remote work or household paperwork a door that closes.

All four bedrooms are clustered on the second floor, so the family sleeps close together while the main level stays free for daytime life. The second floor master suite includes a walk-in closet, and two full bathrooms serve the bedrooms comfortably. Practical rooms are not an afterthought here: a utility room handles laundry and household chores, and dedicated storage keeps seasonal items, luggage and sports gear out of sight.

Outside, the house stands on strip footings and has no basement; a slab foundation is also available on request. A front-entry 2-car garage with space upstairs offers room for vehicles plus extra square footage above for a hobby area or more storage. At the back, a deck extends the living space for summer dinners and lazy weekend mornings. For a family looking for a European house plan with a fireplace, four bedrooms and a well-planned kitchen, this design delivers a calm, traditional character with everyday comfort.

Architect
ARCHIPELAG ARCHIPELAG Architecture Firm country with code pl Poland
country with code pl Poland
Lower Silesian Voivodeship, Wrocław, ul. Aleksandra Ostrowskiego 9/318
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
