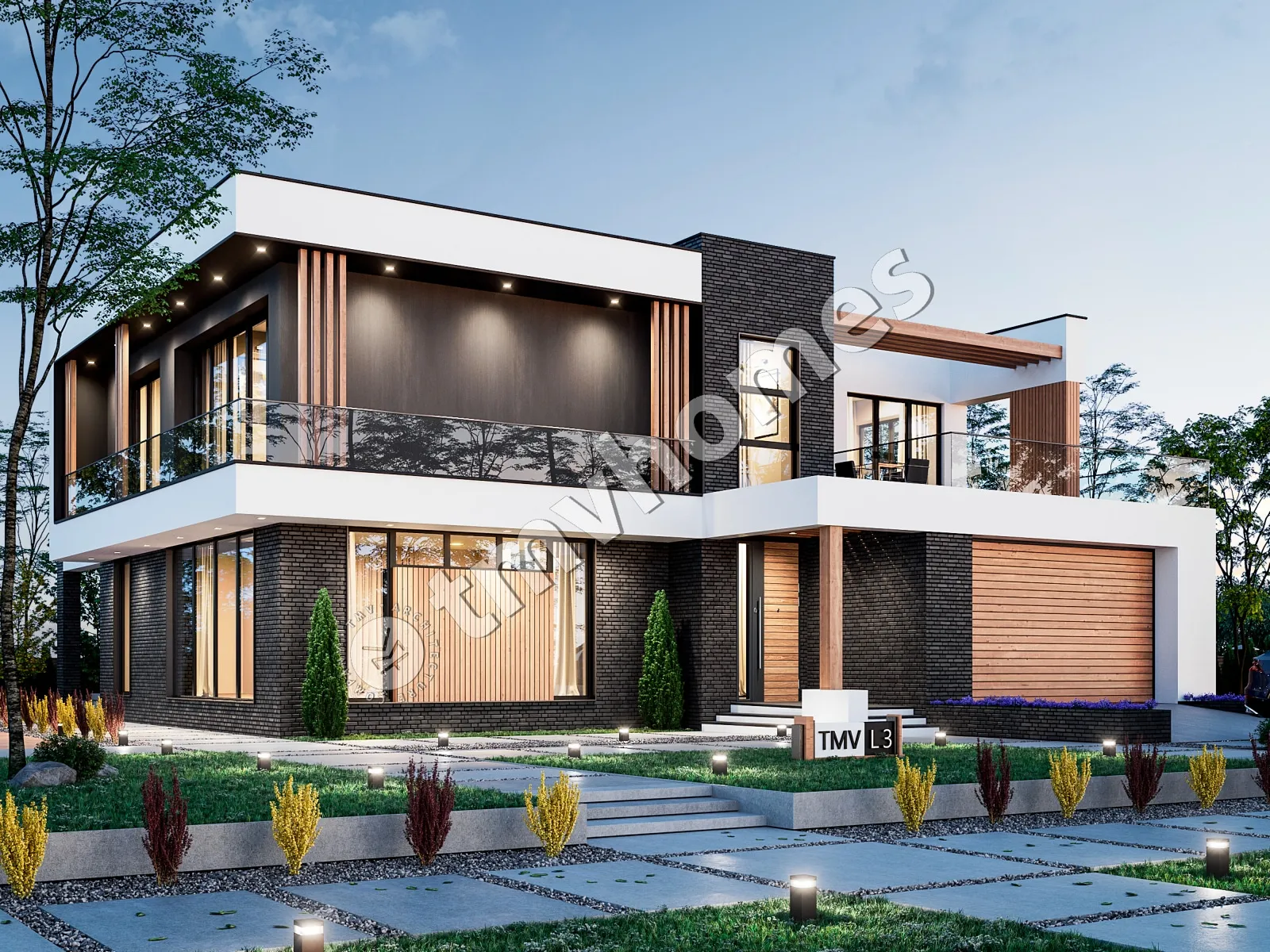

Renderings 2 – 3,159 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 82818R

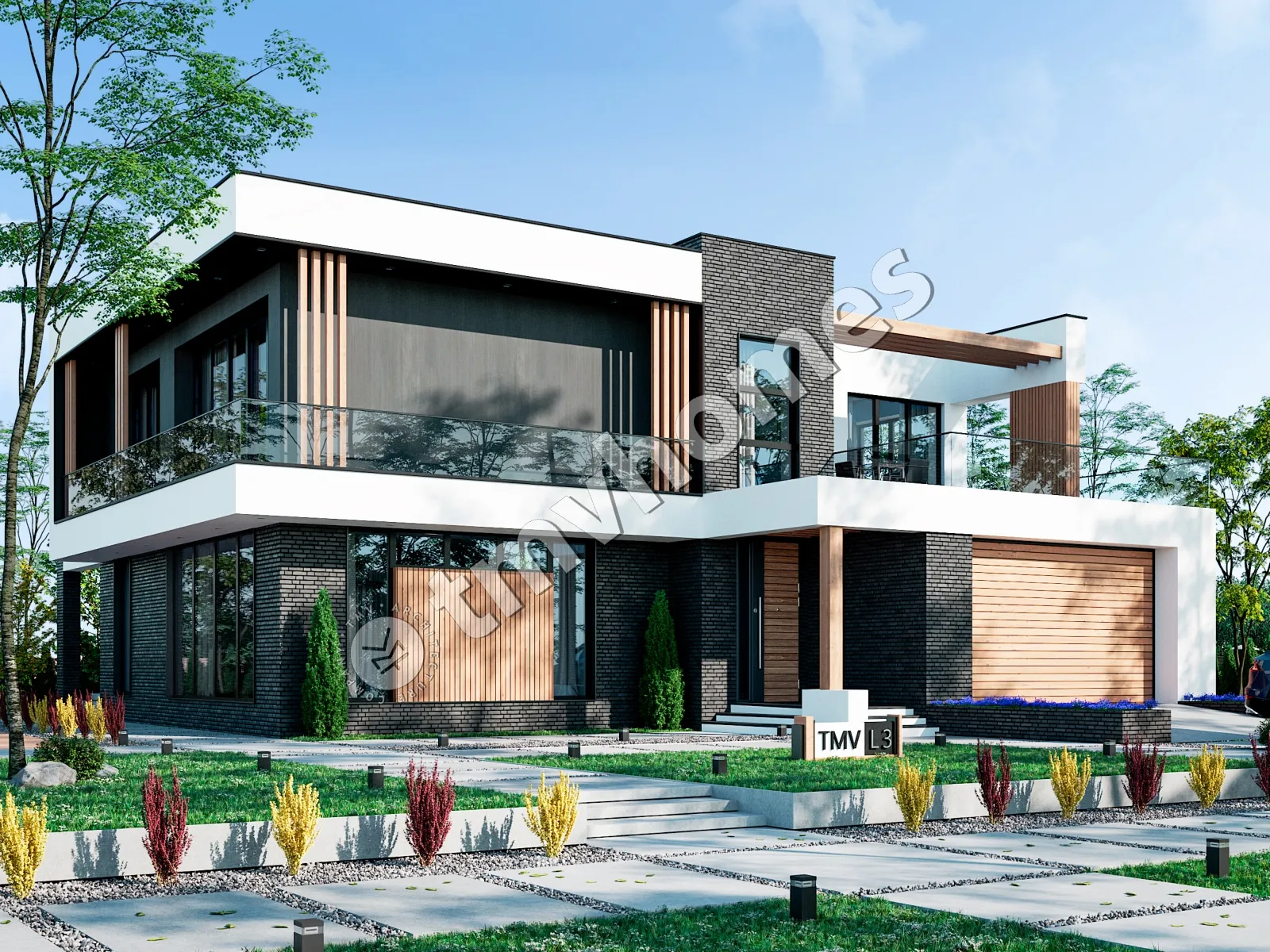

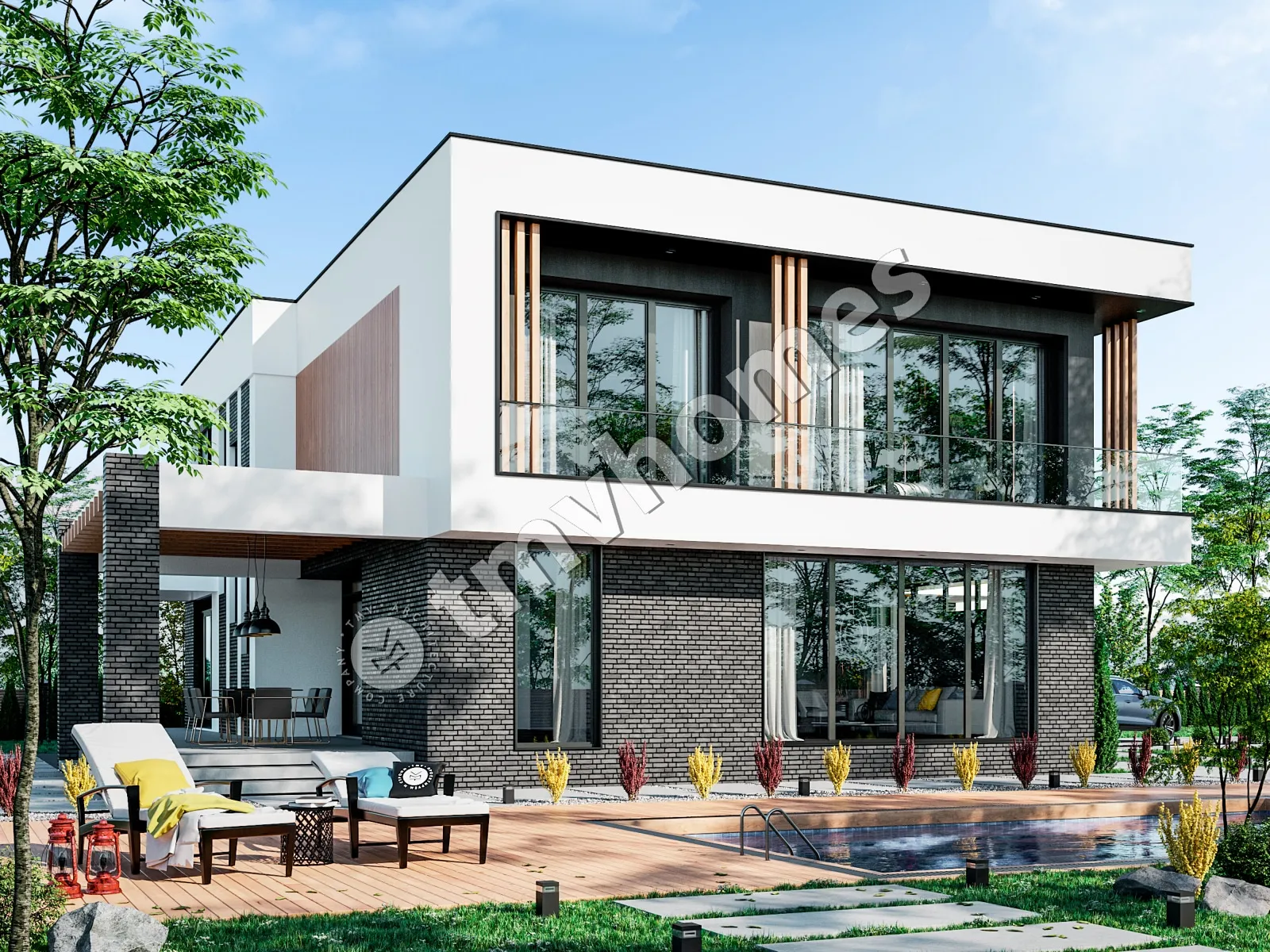

Renderings 3 – 3,159 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 82818R Renderings 4 – 3,159 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 82818R
8
Construction documents are prepared for the following countries:

3,159 Sq Ft Modern 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
82818R
Complete
Signed & Sealed
DC Available
Key Specs
3159
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

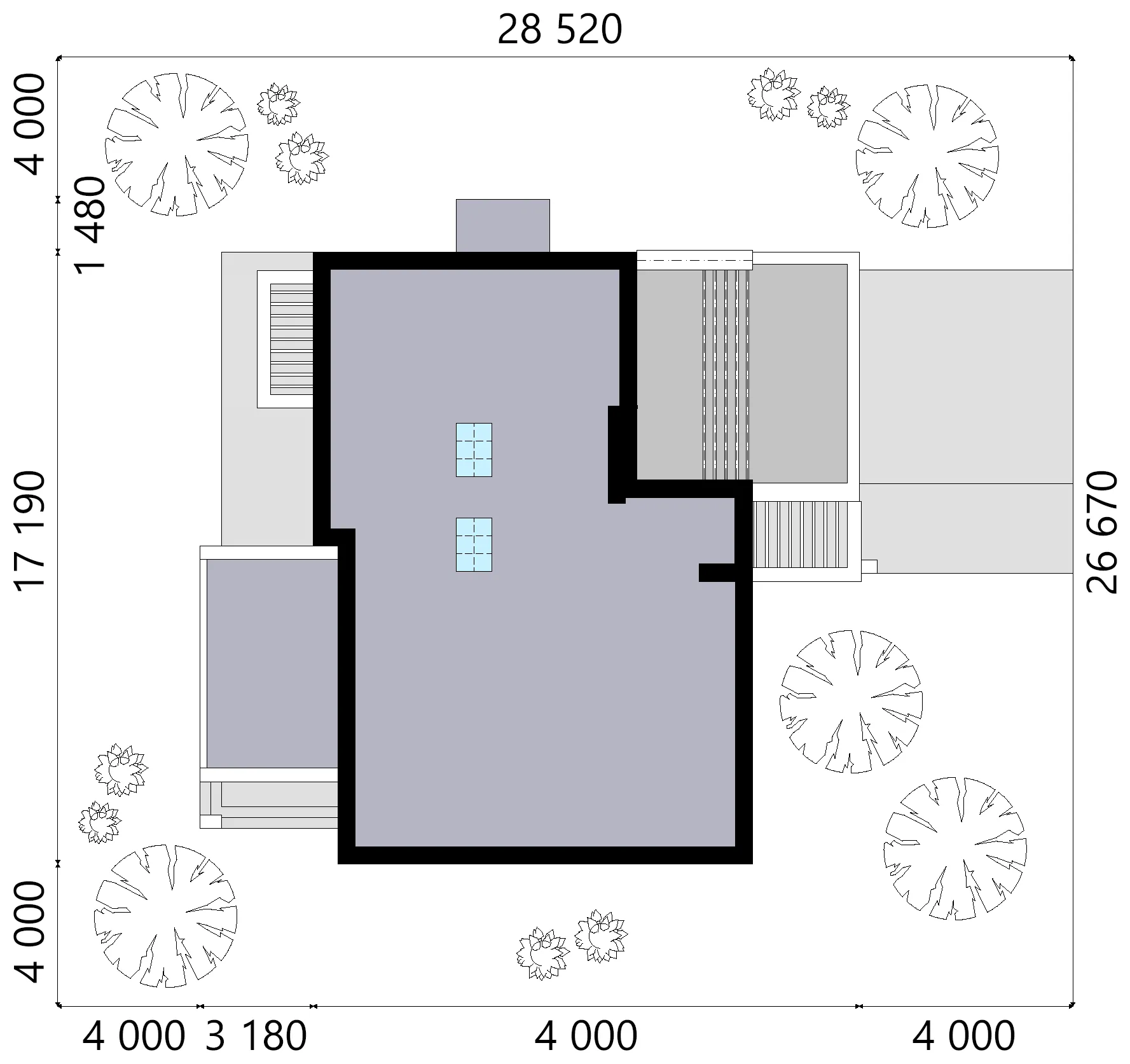

Rzut dachu

Przekroje

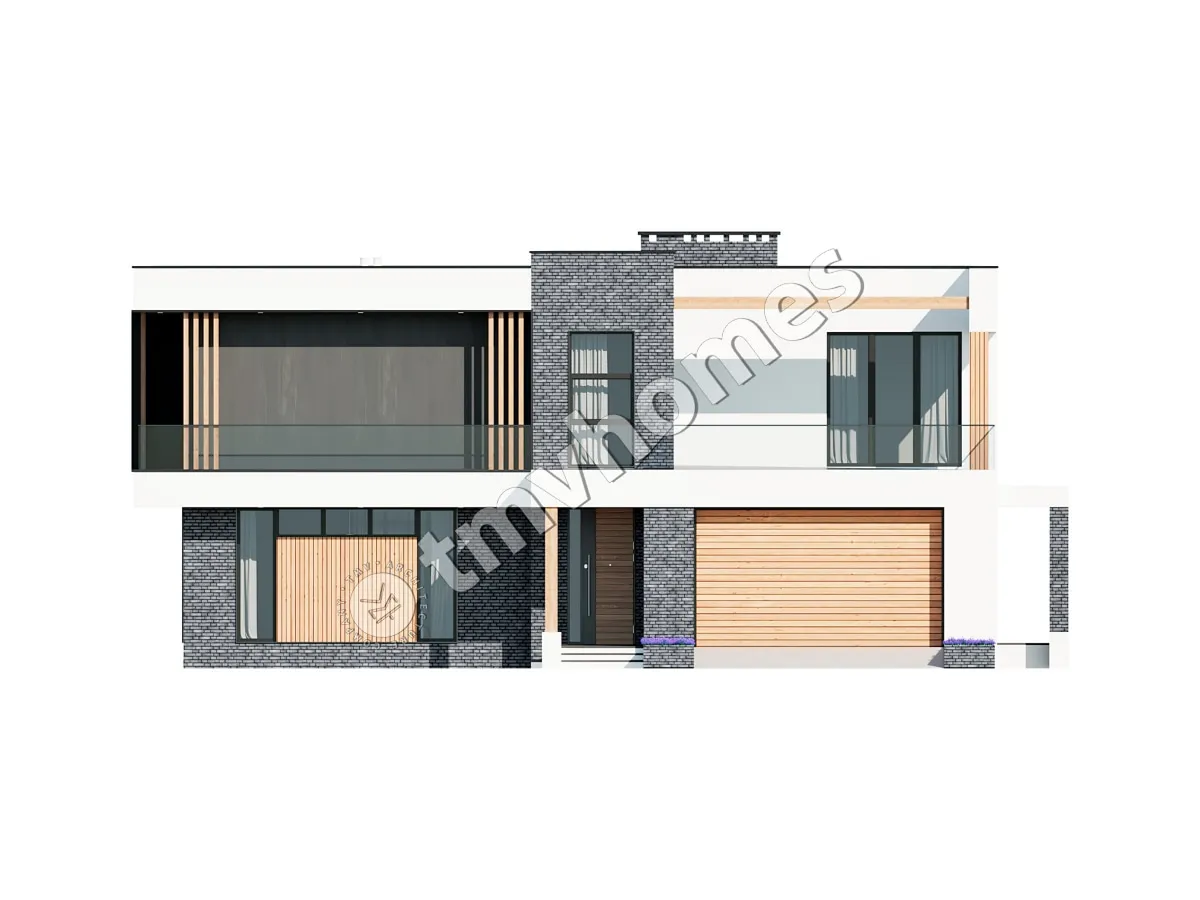

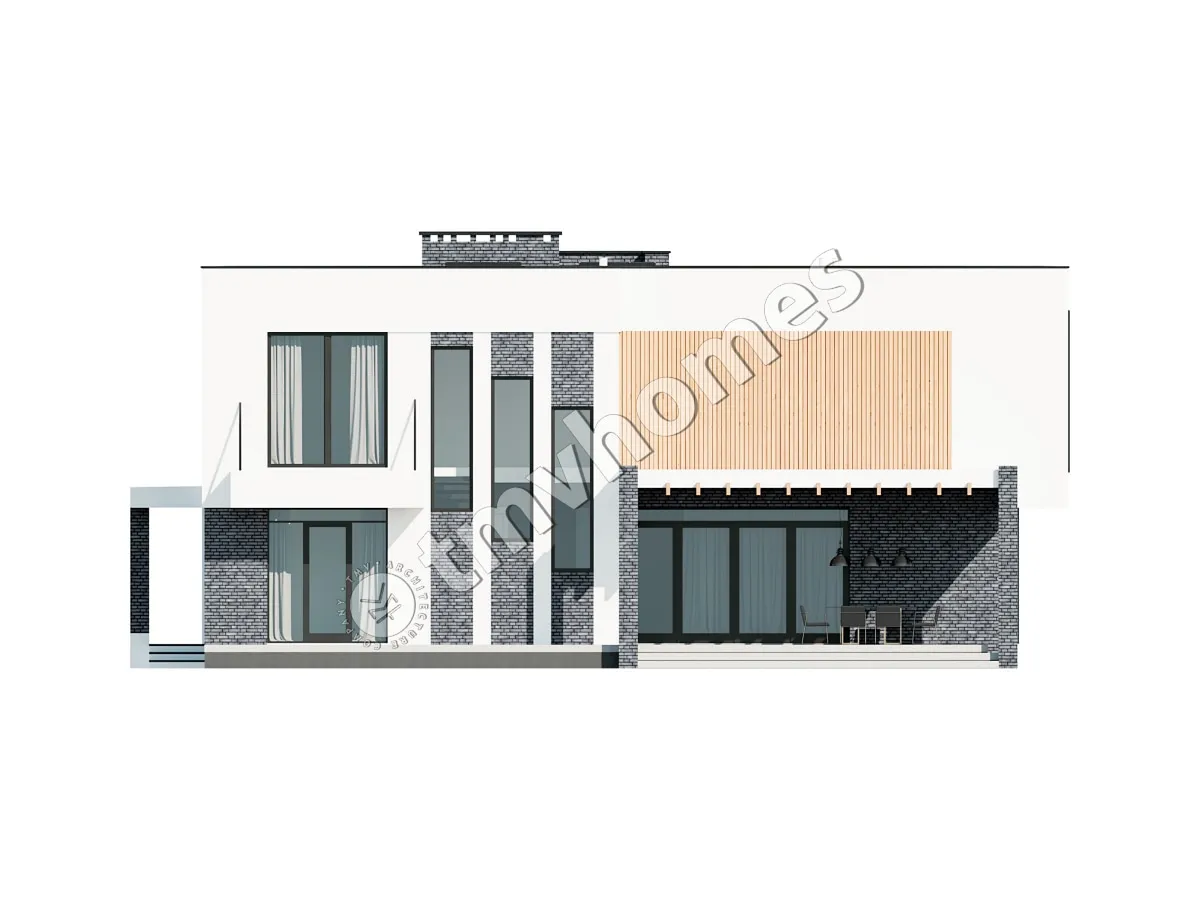

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

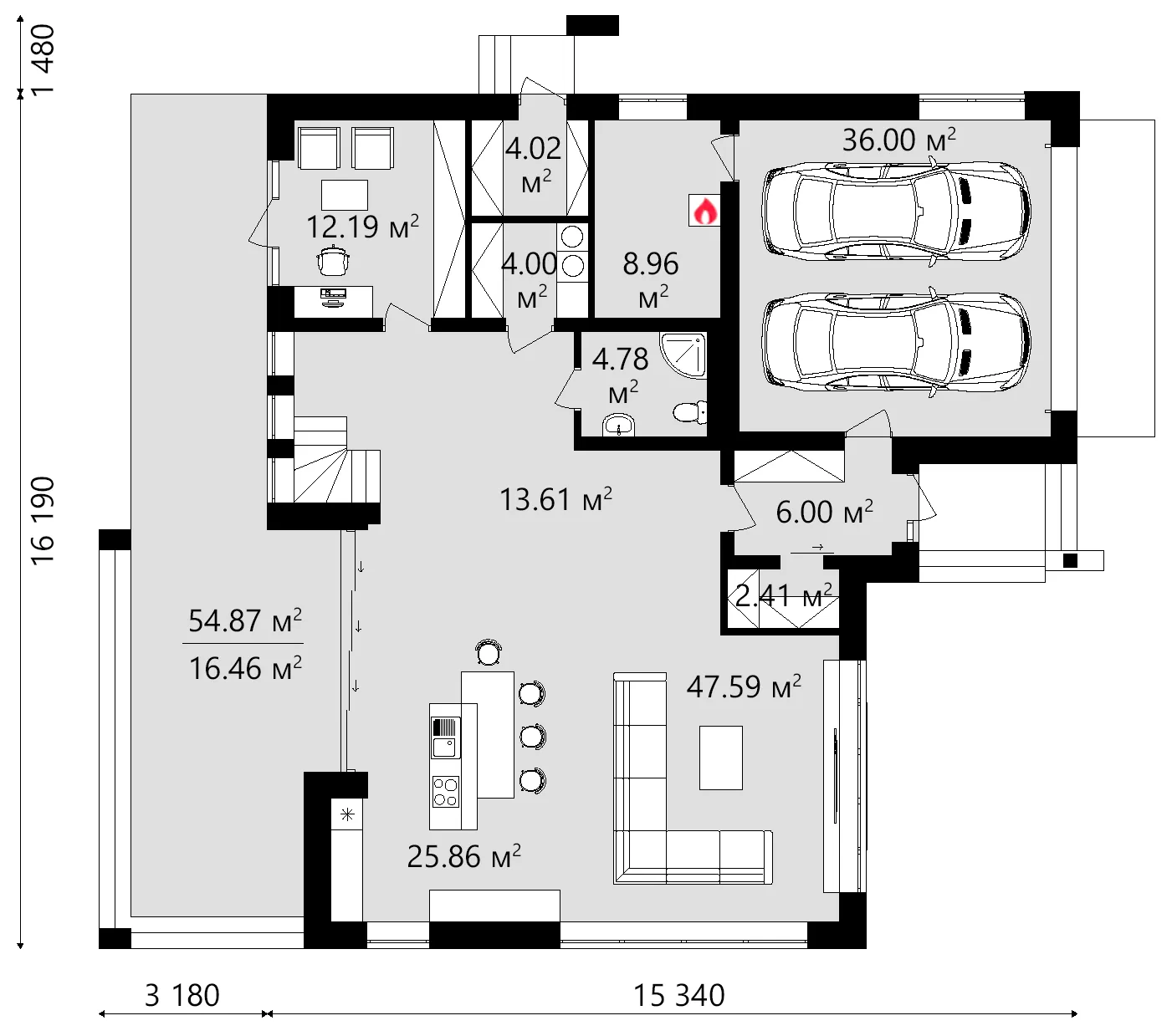

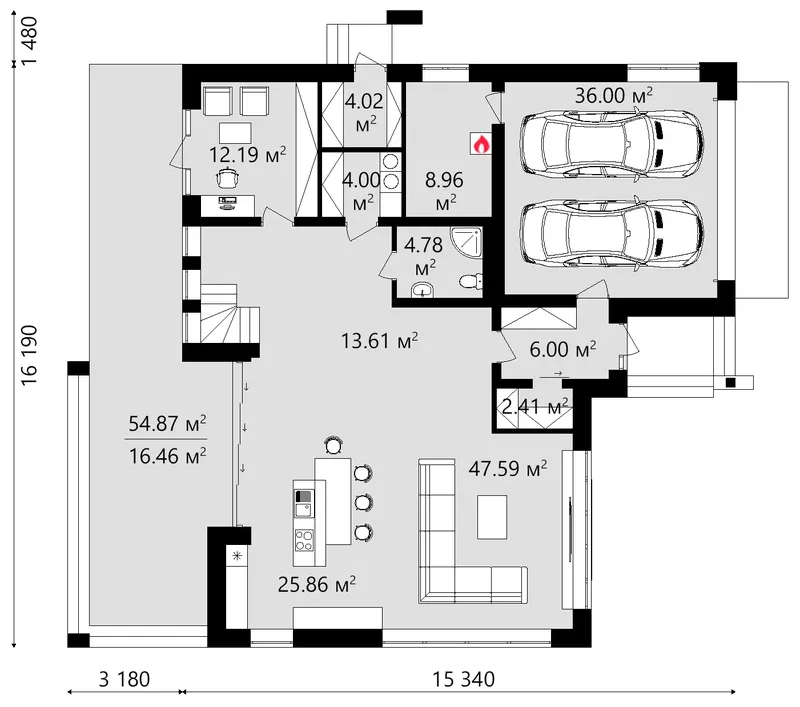

Main Floor
Main Floor 13 – 3,159 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 82818R

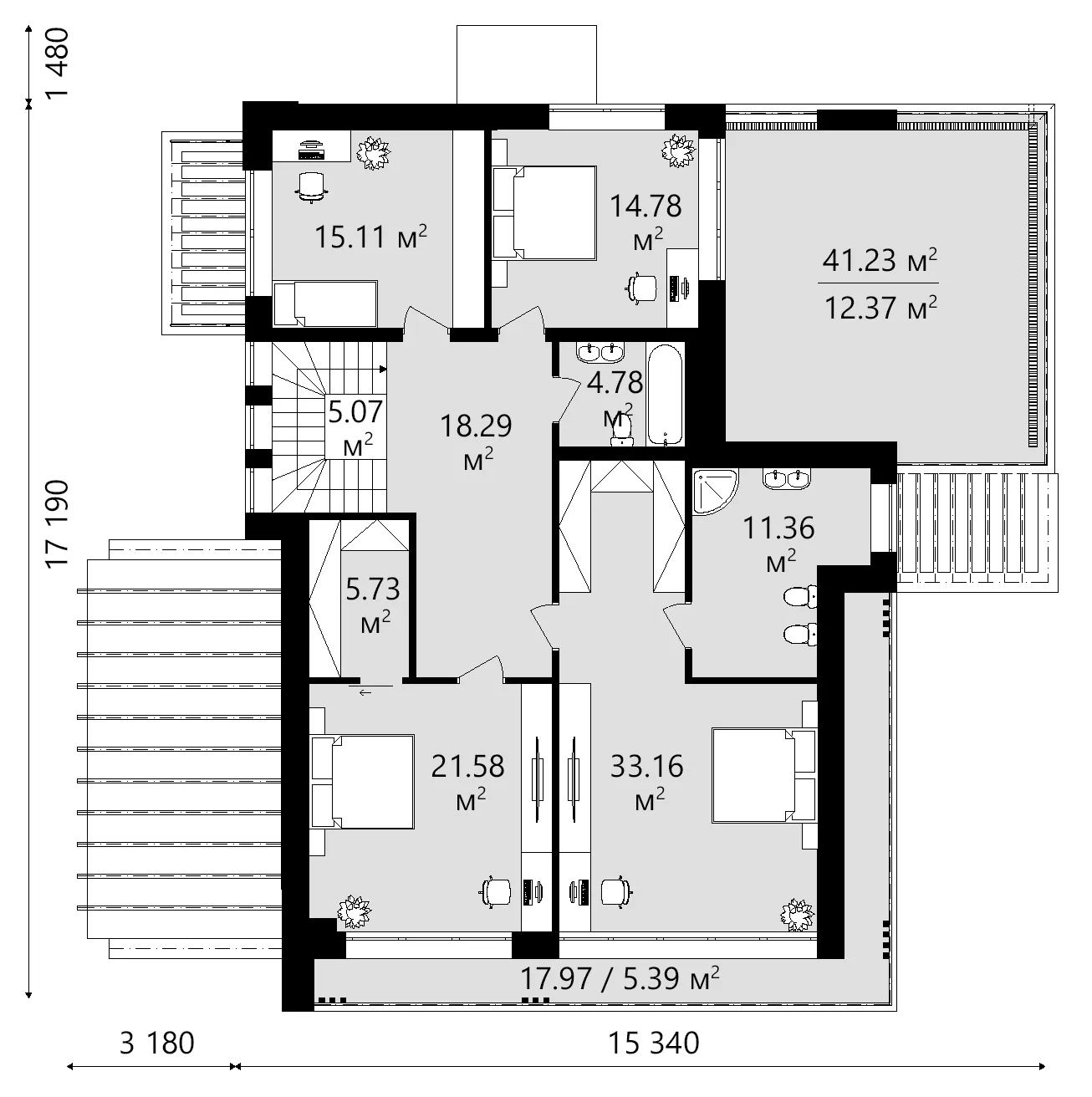

Second Floor
Second Floor 14 – 3,159 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 82818R
Full Specs & Features
Area
Total Unheated: 387.5 ft²
Total Heated: 3159.21 ft²
Dimensions
Depth: 49'3" ft
Width: 46'9" ft
Garage
Area: 388 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Island
Interior Features
Laundry On Main Floor
Second Floor Master
Split Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Rear Porch
Deck
Garage rooftop deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 1683.48 ft²
Flat
Roof Pitch: Not specified

The 82818R is a modern 2-story digital house design concept for a single-family home with Total Heated 3,159 Sq Ft, 4 bedrooms, 3 bathrooms and a 2-car garage. Sized for 4-6 people, the house pairs a flat roof with stone or brick veneer, wood and stucco, which gives the facade a crisp, layered look.

The entry opens into an open floor plan where the large family room, the kitchen and the breakfast nook share one space, so meals and conversation happen together. The large kitchen has an island for extra prep and serving space, while large and floor-to-ceiling windows fill the living area with daylight. A home office on the main floor gives a quiet room for remote work or homework.

The primary suite on the second floor has a walk-in closet with room for a full wardrobe, and the split bedrooms layout places it apart from the other three bedrooms for more privacy. The laundry sits on the main floor, close to everyday activity, while a utility room and storage keep household gear out of sight.

Outside, a covered rear porch offers shade in any weather, a deck adds space for grilling and relaxing, and the balcony and the garage rooftop deck provide extra outdoor rooms. The front-entry 2-car garage extends forward, which shortens the driveway. The footprint measures 46'9" wide by 49'3" deep. The main foundation is strip footings, with a slab or block foundation as options, and the walls are built of aerated concrete block, with ceramic hollow block or calcium silicate block as alternatives. Total Heated 3,159 Sq Ft, 4 bedrooms, 3 bathrooms and a 2-car garage complete the figures.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1046
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
