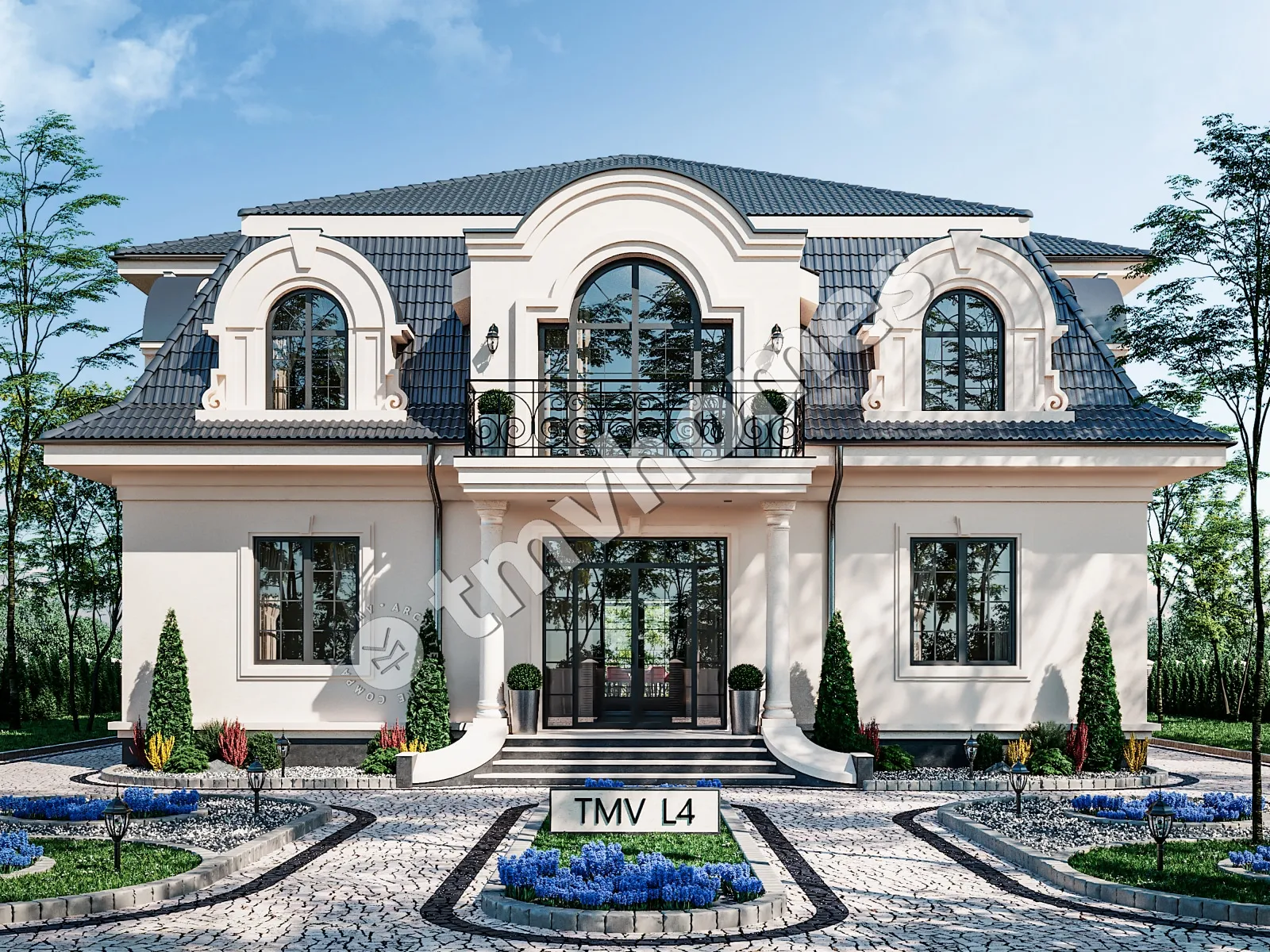

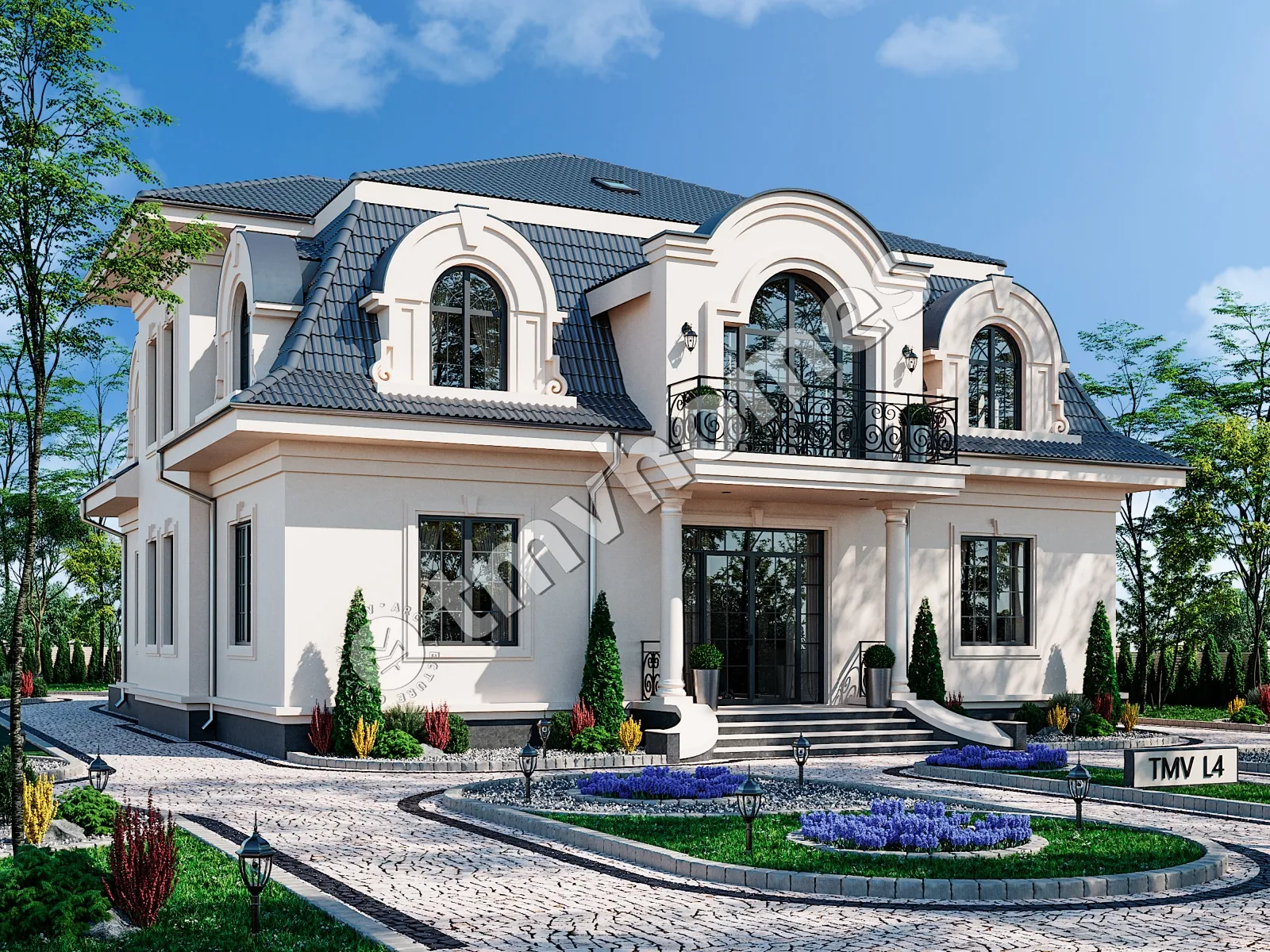

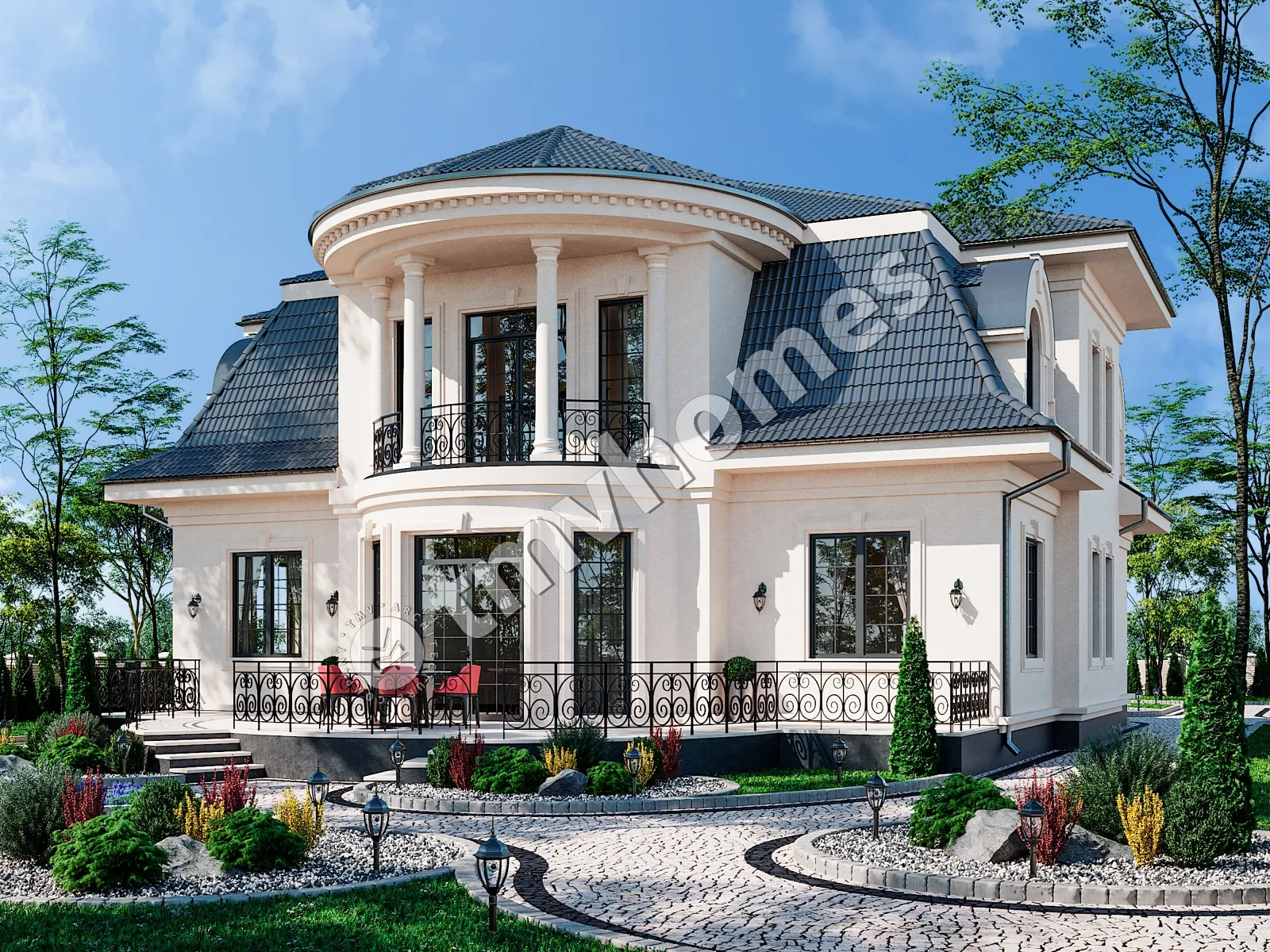

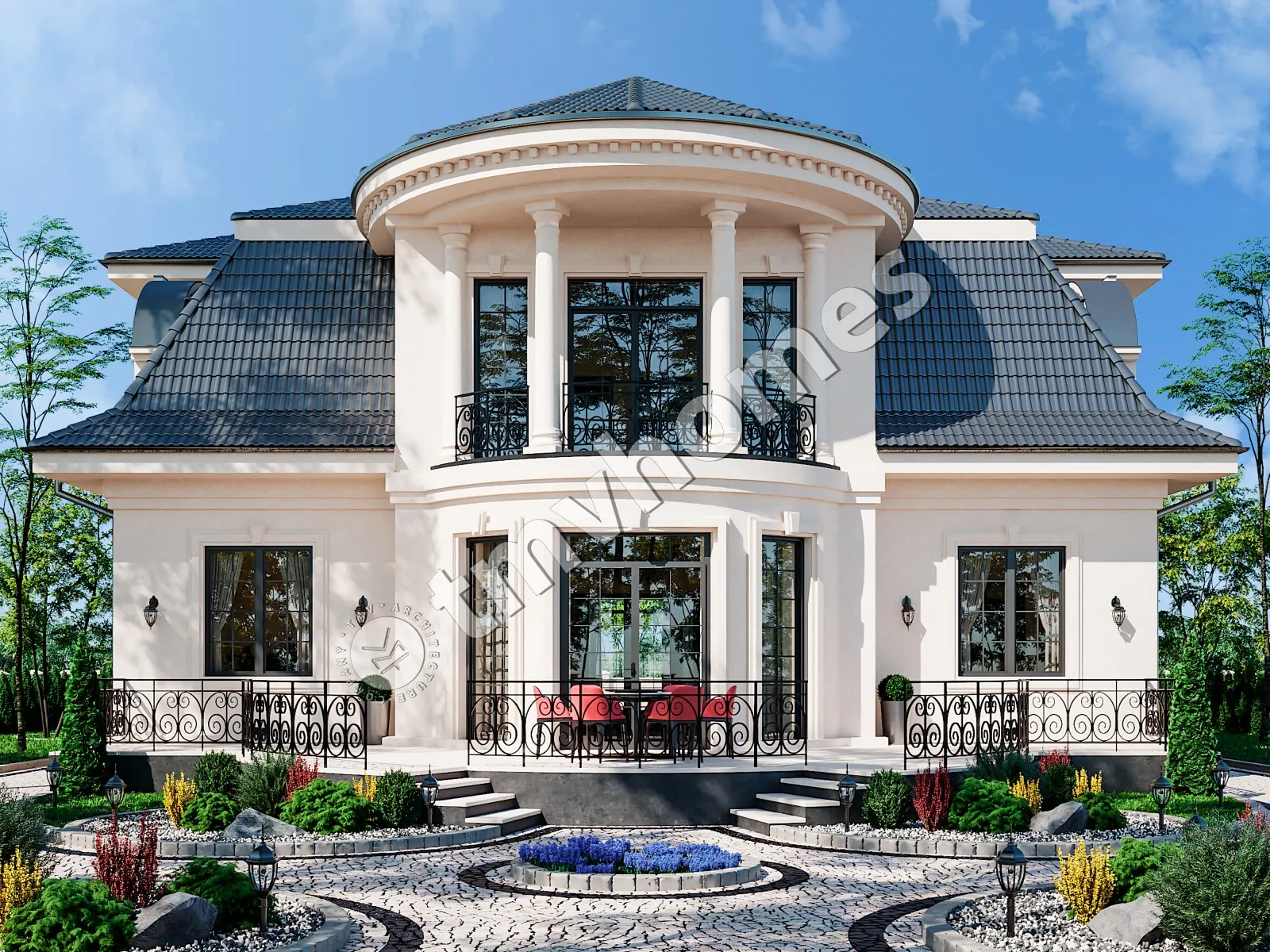

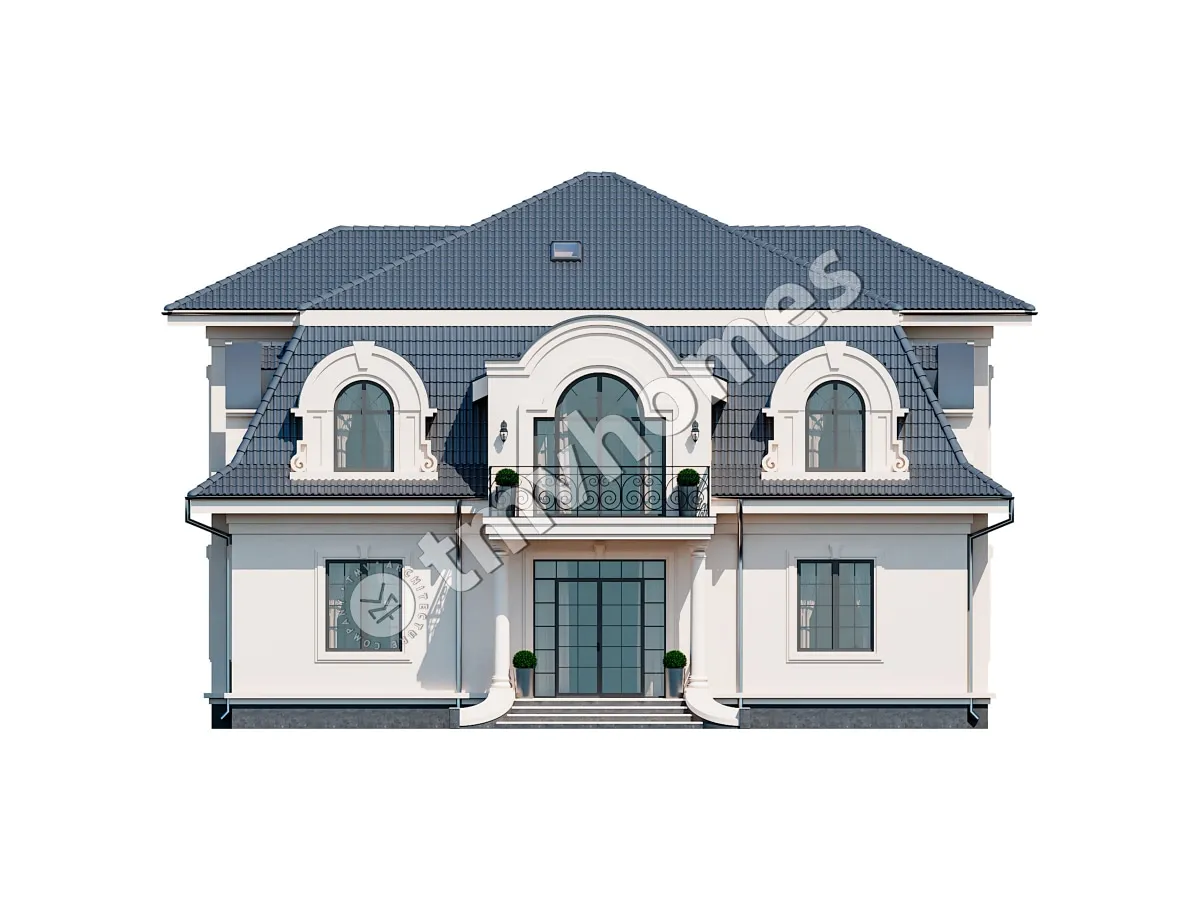

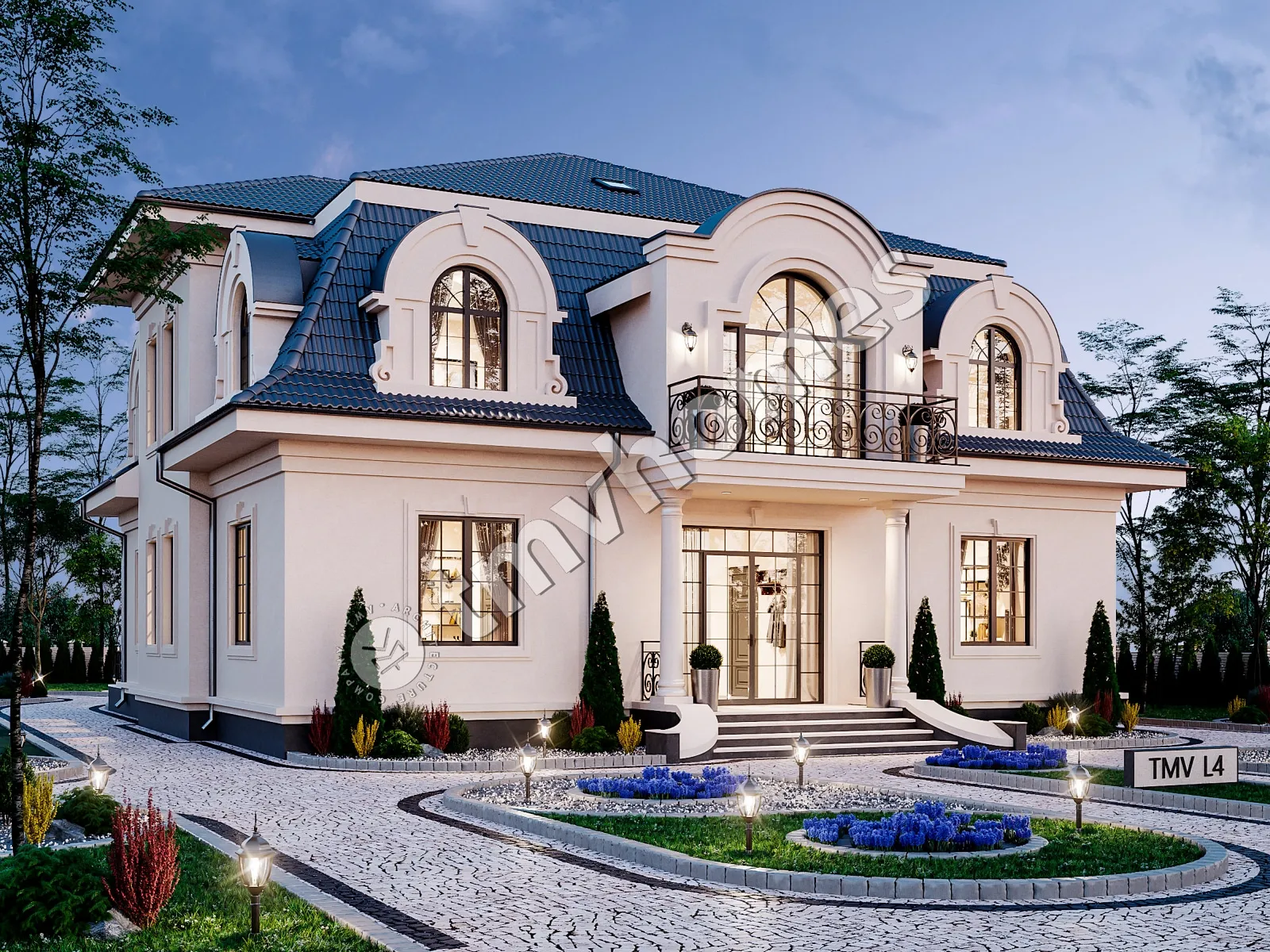

Main Images 2 – 2-Story House Plan 3857 ft², 4 Beds — 83292R

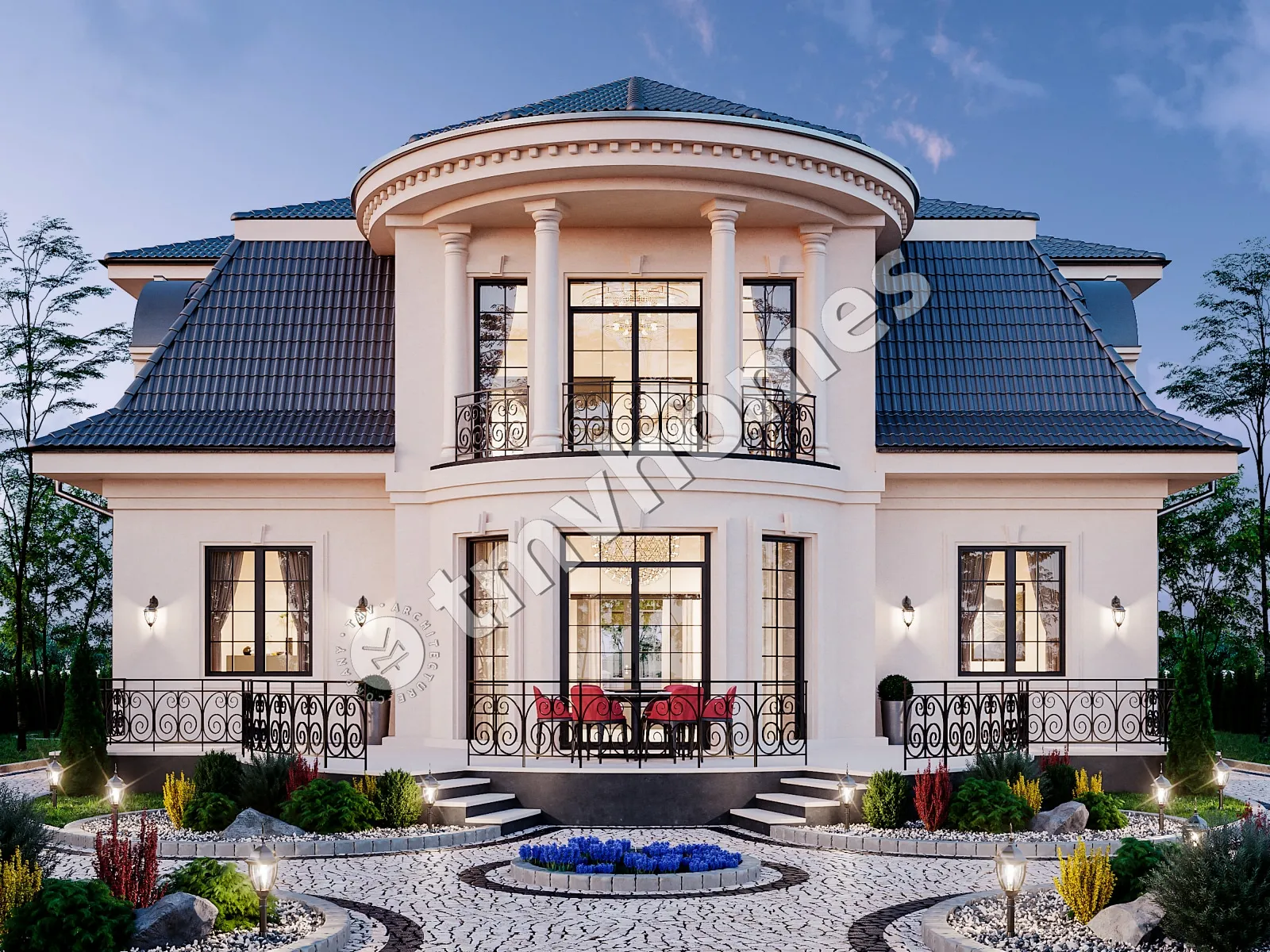

Main Images 3 – 2-Story House Plan 3857 ft², 4 Beds — 83292R Main Images 4 – 2-Story House Plan 3857 ft², 4 Beds — 83292R
8
Construction documents are prepared for the following countries:

2-Story House Plan 3857 ft²: 4 Beds, 4 Baths, without Garage

Plan
83292R
Complete
Signed & Sealed
DC Available
Key Specs
3857
Total Heated ft²
4 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

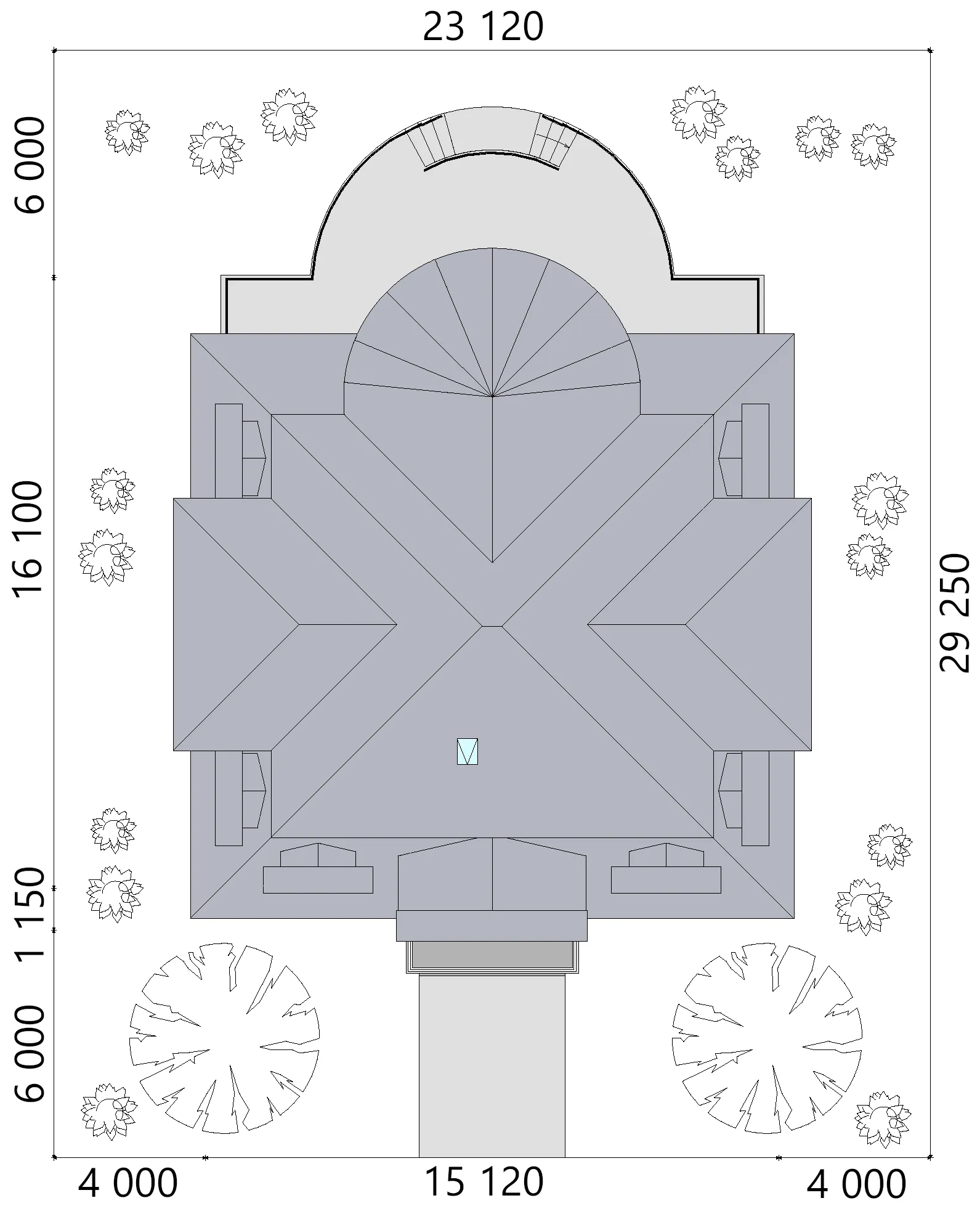

Rzut dachu

Przekroje

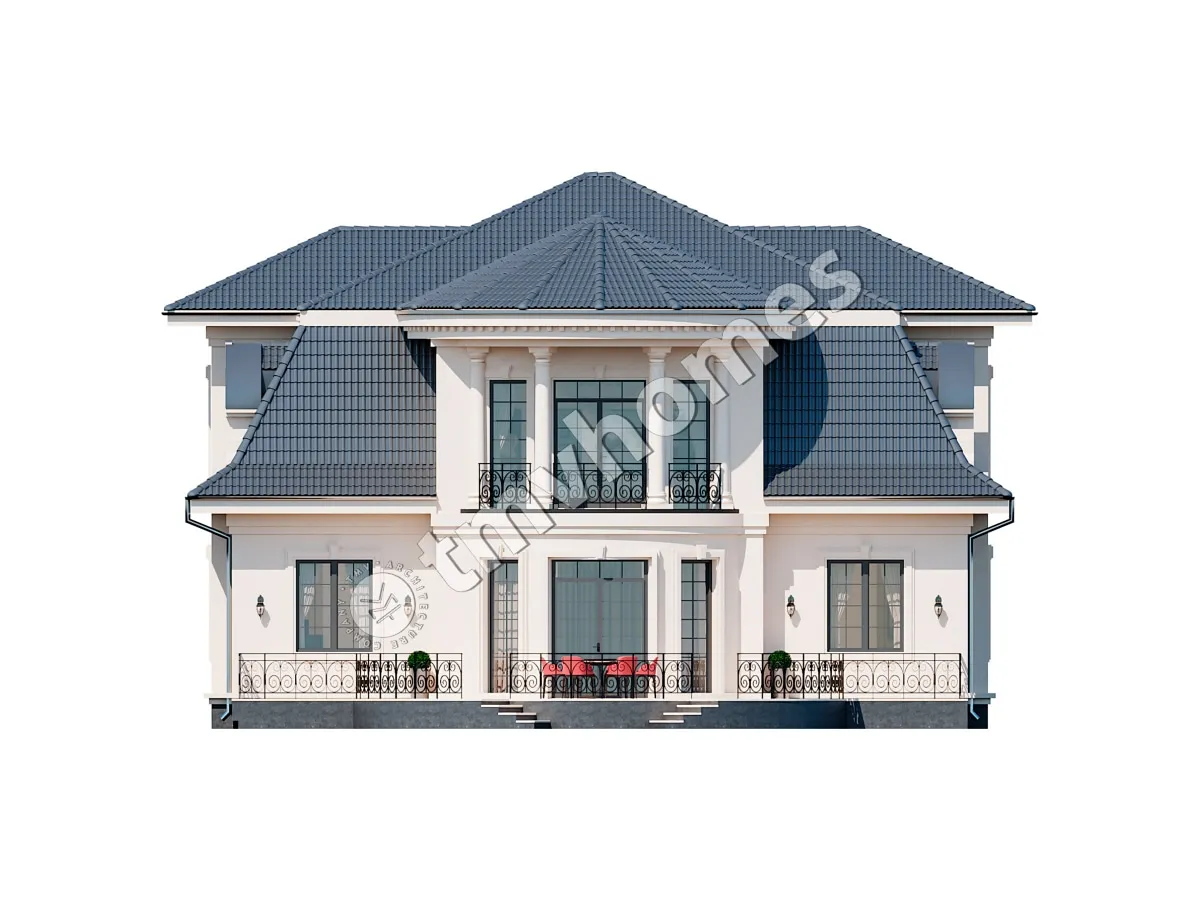

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

plan_plan_package_title

Floor Plans

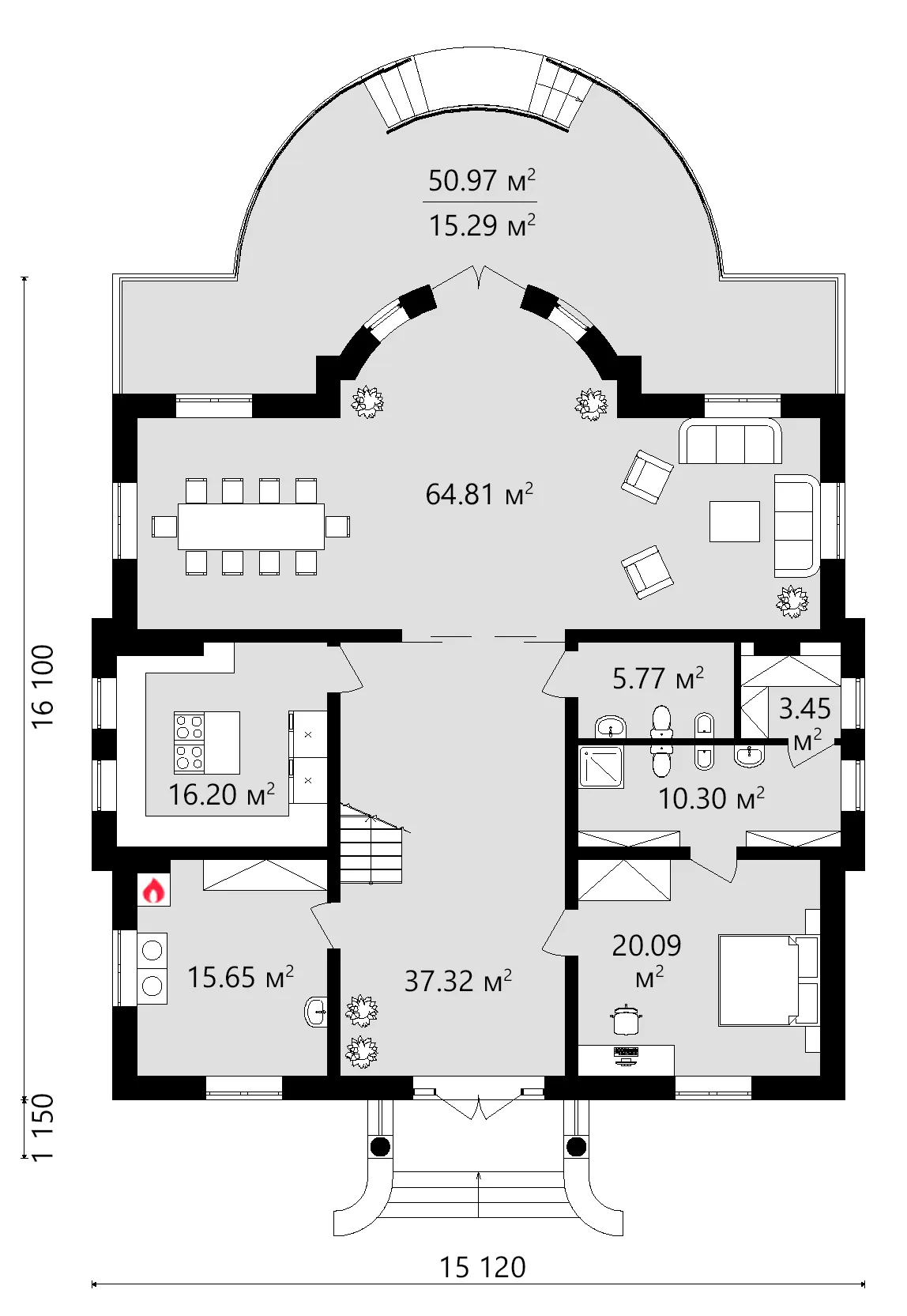

Main Floor
Main Floor 13 – 2-Story House Plan 3857 ft², 4 Beds — 83292R

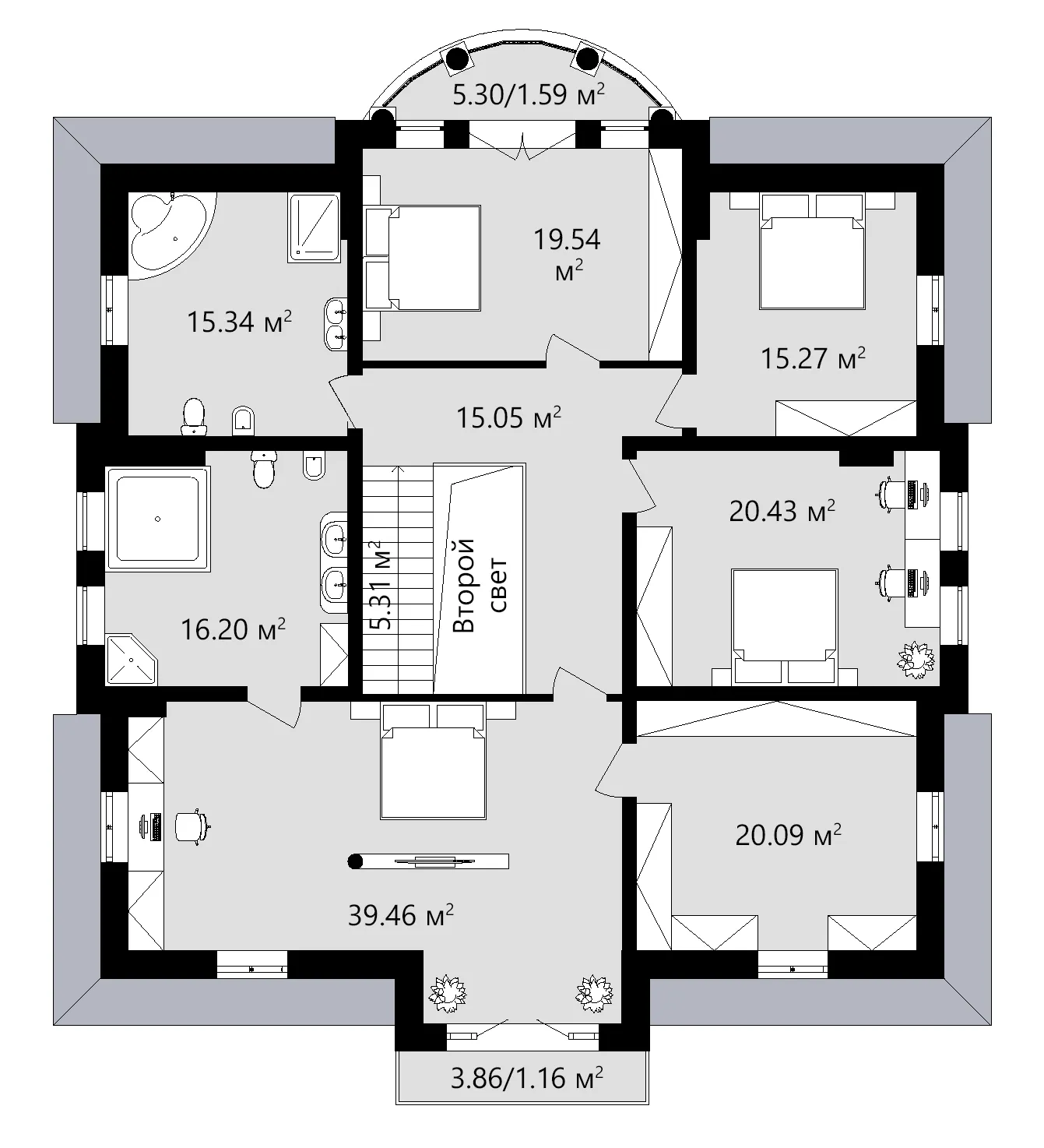

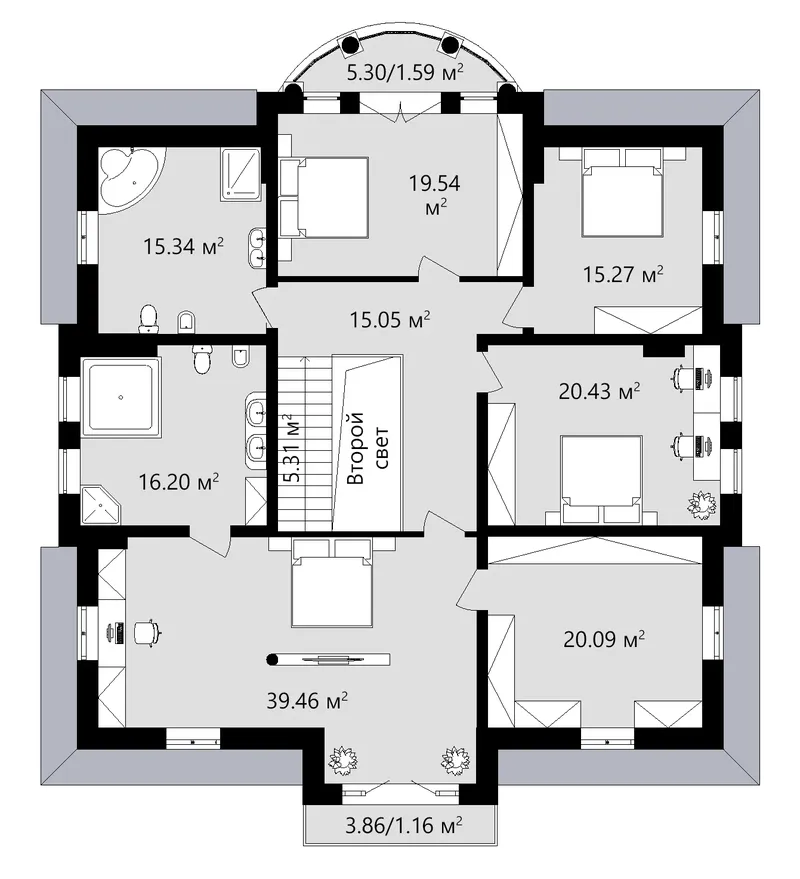

Second Floor
Second Floor 14 – 2-Story House Plan 3857 ft², 4 Beds — 83292R
Full Specs & Features
Area
Total Heated: 3856.92 ft²
Dimensions
Depth: 70'7" ft
Width: 46'1" ft
Height: 32'8" ft
Foundation
Ławy
Płyta (Optional)
Z bloczków (Optional)
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 4
Bedrooms: 4
Utility room
Laundry
In-Law Suite
Walk In Closet
Kitchen and Dining
Island
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open to Below
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Laundry in Utility Room
Exterior Features
Balcony
Deck
Bay Window
Portico
Large Windows
Architectural Style
Classical
European
French Country
Luxury
Neoclassical
Traditional
Roof
Roof Area: 3455.22 ft²
Hip & Valley
Dormer
Roof Pitch: 6/12 (26°)
Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
+48604865858
https://tmv.com.ua
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$2127
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
