Main Images 2 – 2-Story House Plan 2644 ft², 4 Beds — 88916C
Main Images 3 – 2-Story House Plan 2644 ft², 4 Beds — 88916C Main Images 4 – 2-Story House Plan 2644 ft², 4 Beds — 88916C
6
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2644 ft²: 4 Beds, 3 Baths, Open Floor Plan, without Garage

Plan
88916C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2644
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

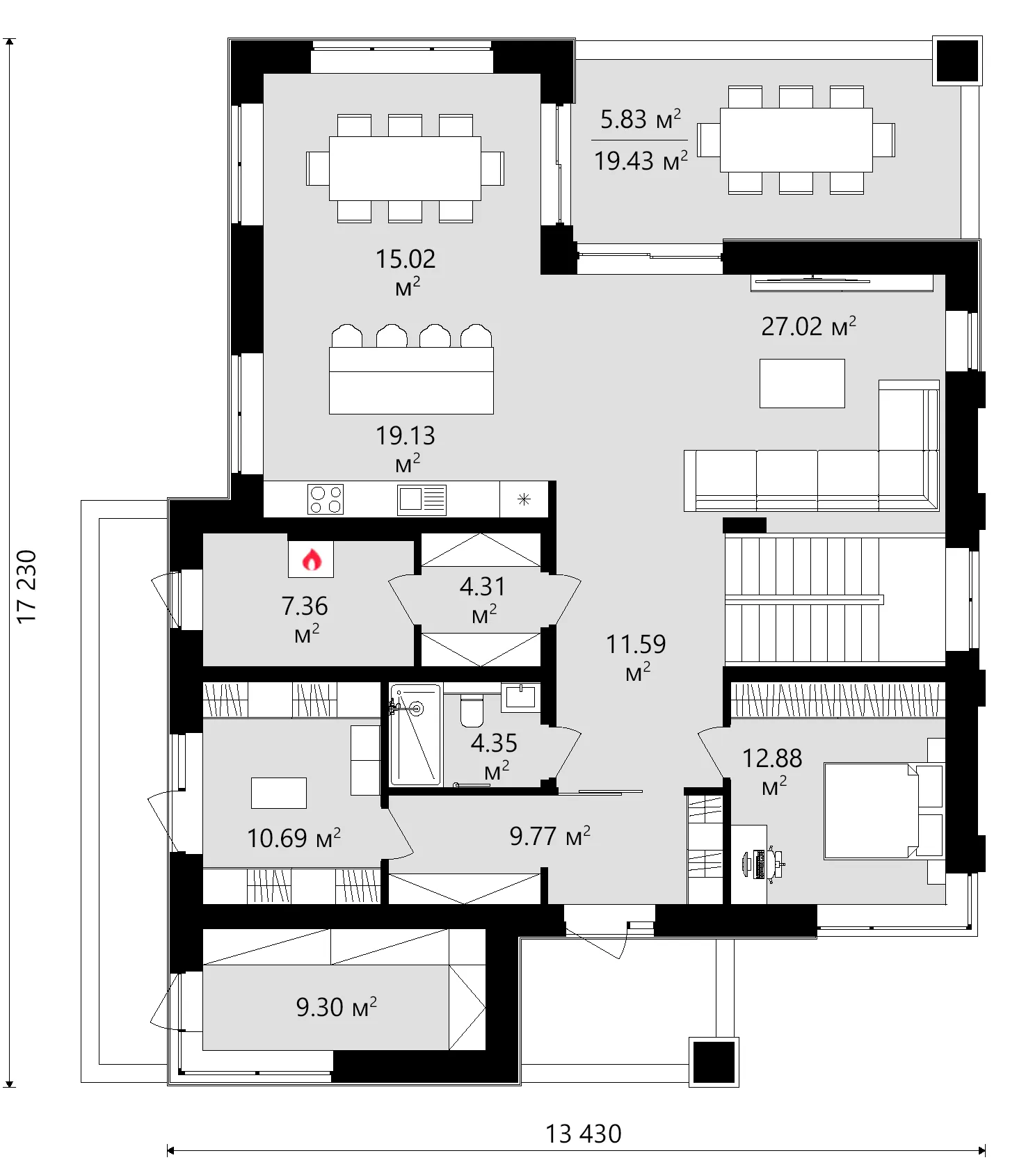

Main Floor
Main Floor 11 – 2-Story House Plan 2644 ft², 4 Beds — 88916C

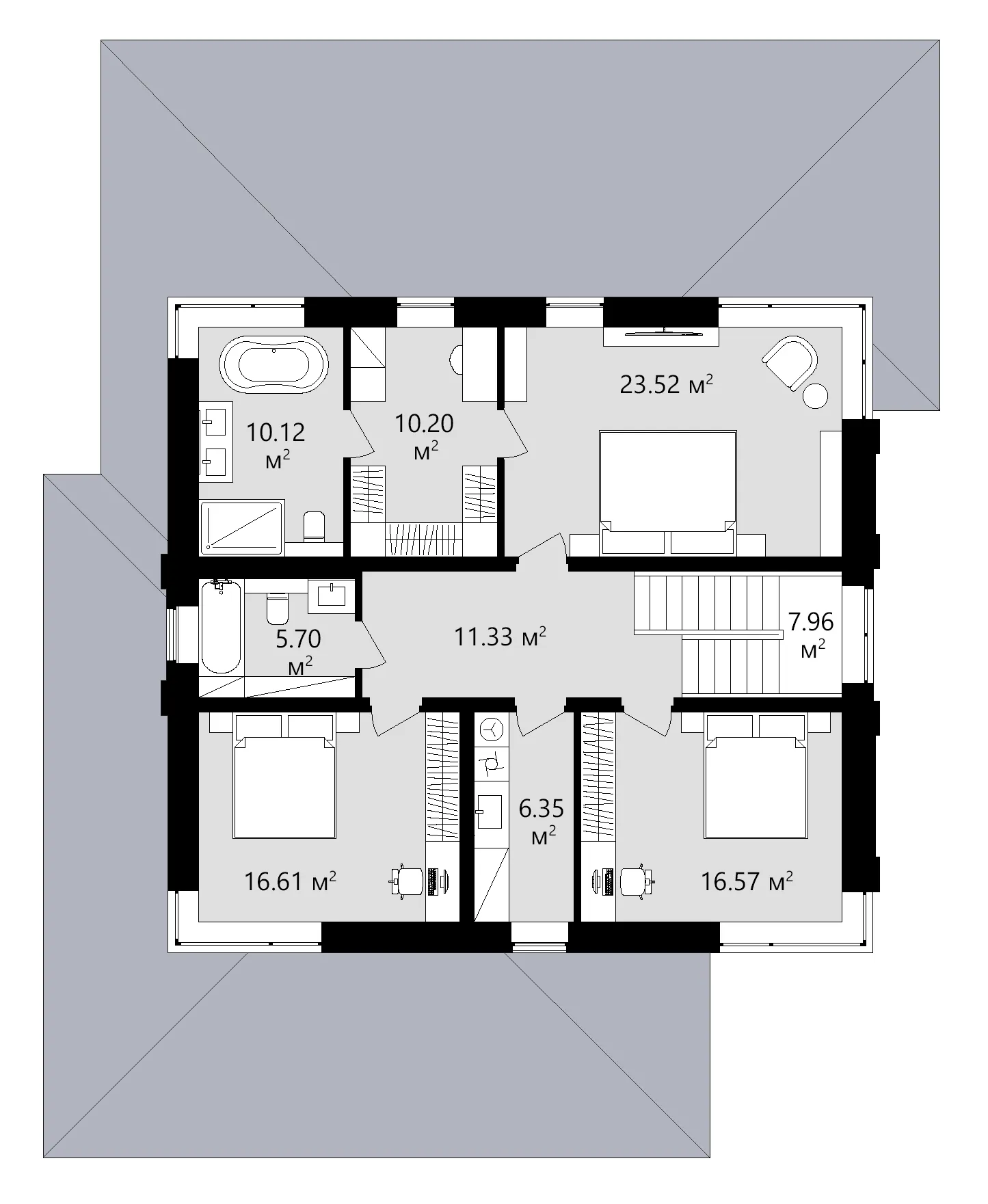

Second Floor
Second Floor 12 – 2-Story House Plan 2644 ft², 4 Beds — 88916C
Full Specs & Features
Area
Total Heated: 2643.72 ft²
Dimensions
Depth: 52'5" ft
Width: 40'9" ft
Height: 28'3" ft
Foundation
Ławy
Płyta (Optional)
Z bloczków (Optional)
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Brick
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Bonus/Flex Room
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Island
Interior Features
Laundry Second Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional
Roof
Roof Area: 3732.39 ft²
Hip
Roof Pitch: 4/12 (18°)

Plan 88916C is a 4-bedroom three-story house plan that brings European, Prairie and Traditional influences together under a low hip roof with a 4/12 (18°) pitch. Spread over three levels and 2644 ft², this single family home is finished in brick and wood, and its broad roof planes and steady horizontal lines give the façade a calm, grounded presence. The house measures 40'9" wide and 52'5" deep, with a height of 28'3".

A proper entry leads into an open floor plan where the large family room and the kitchen share one generous space, so cooking, homework and conversation happen side by side. The large kitchen is planned for real use: a central island gives plenty of prep room, a breakfast bar seats the family for quick meals, and a walk-in pantry keeps bulk supplies out of sight. Large windows and floor-to-ceiling windows, along with a corner window, open the interior to daylight and views, and on a grey afternoon the rooms still feel bright.

The second floor master suite includes a walk-in closet, and the bedrooms are clustered so parents stay close to the children. Three full bathrooms serve the four bedrooms comfortably, which eases the morning rush. A second floor laundry sits right where the clothes are worn and stored, sparing trips up and down the stairs. A bonus/flex room adapts to whatever the household needs, whether a home office, playroom or guest space, while a utility room and dedicated storage keep the mechanical equipment and seasonal items organized.

Outside, a covered front porch welcomes visitors and a covered rear porch offers a sheltered spot for summer evenings outdoors. The house has no basement and is designed on strip footings, and it is also available with a slab or a concrete block foundation. The exterior walls are framed in aerated concrete block, with clay hollow block or sand-lime block available on request. This plan does not include a garage, keeping the full footprint devoted to the living spaces of a hip roof home with timeless curb appeal.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1876
