2,613 Sq Ft Modern 2-Story House Plan with 2 Bedrooms, 2 Bathrooms and 1-Car Garage

Plan
90840C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2613
Total Heated ft²
2 + 0
Baths + 1/2 Baths
2 + 1
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

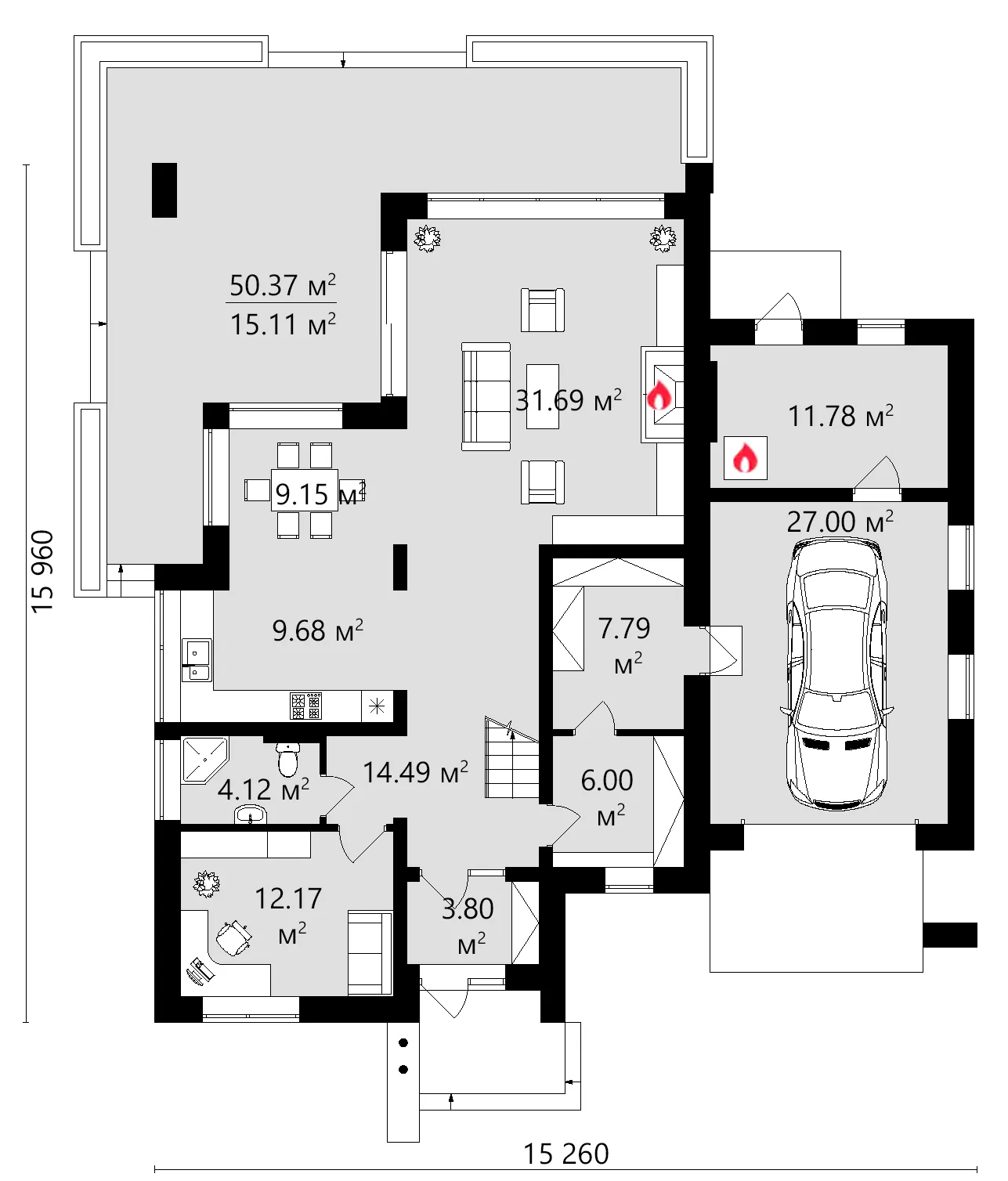

Main Floor 12 – 2,613 Sq Ft Modern 2-Story House Plan with 2 Bedrooms and 1-Car Garage – 90840C
Second Floor

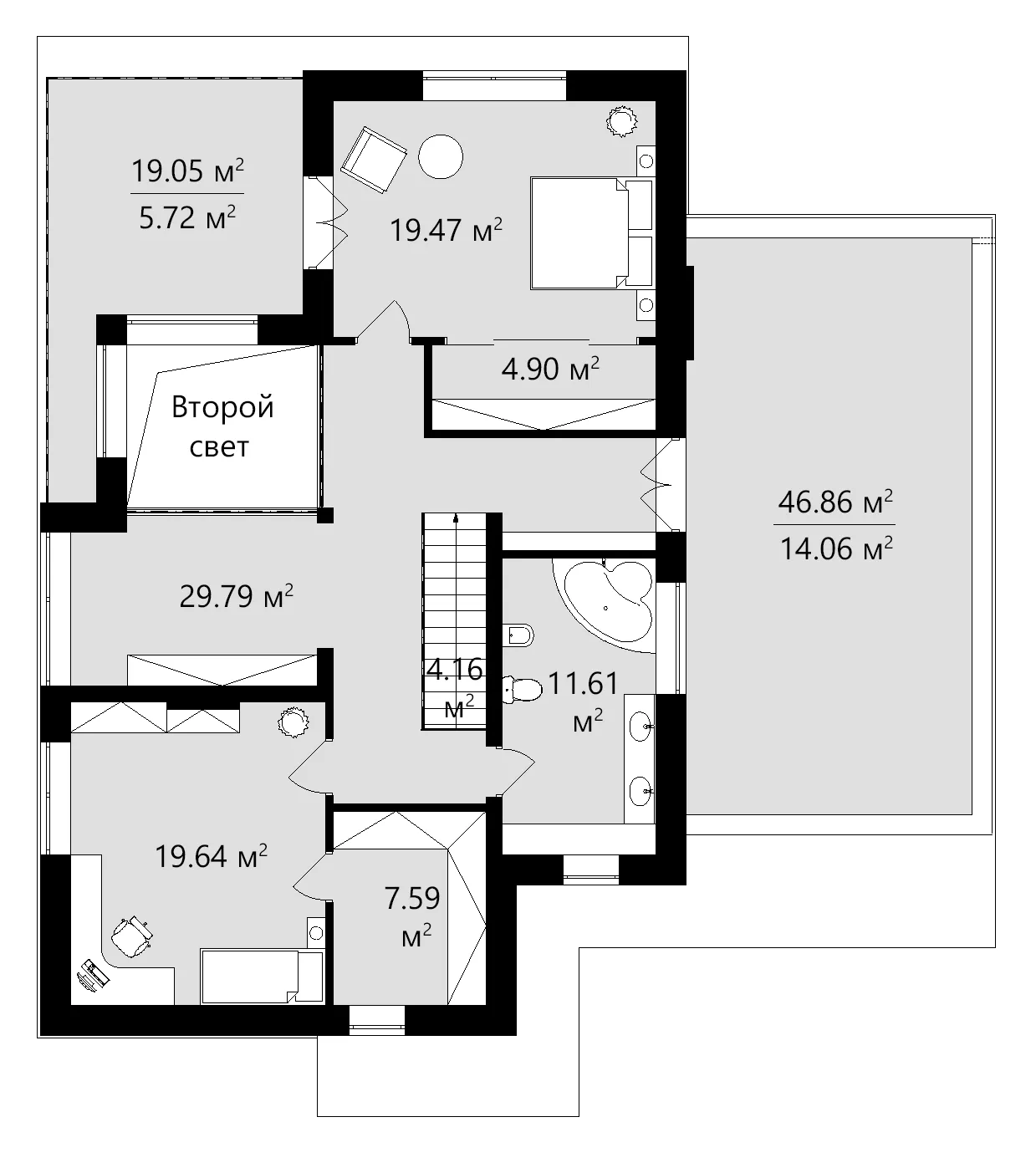

Second Floor 13 – 2,613 Sq Ft Modern 2-Story House Plan with 2 Bedrooms and 1-Car Garage – 90840C
Full Specs & Features
Area
Total Unheated: 290.63 ft²
Total Heated: 2612.62 ft²
Dimensions
Depth: 48'6" ft
Width: 46'5" ft
Height: 25'2" ft
Garage
Area: 291 ft²
Cars: 1
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Panels
Rooms
Full bathrooms: 2
Bedrooms: 2
Utility room
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Corner Window
Interior Features
Fireplace in Family Room
Clustered Bedrooms
Open to Below
Loft
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Rear Porch
Corner Window
Garage rooftop deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 2137.28 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

The 90840C design concept is a Modern 2-story home with Total Heated 2,613 Sq Ft, 2 bedrooms, 2 bathrooms and an attached 1-car garage, sized for 2-3 people. This single-family home combines a stucco and panel exterior with a hip and valley roof at a 5/12 (22°) pitch that sheds rain evenly. It is available for purchase as a digital house design concept.

Past the entry, an open floor plan joins the large family room with its fireplace, the large kitchen and a breakfast nook. The family room is open to below, and floor-to-ceiling windows draw daylight deep inside, while a corner window brightens the kitchen. A home office offers a quiet place to work, and the covered rear porch extends the day zone outdoors.

Upstairs, the clustered bedrooms share the floor with a loft that overlooks the family room. The primary bedroom has a walk-in closet, and two full bathrooms serve the house, while a utility room and storage keep household items out of sight.

A balcony and a garage rooftop deck add private outdoor space on the upper level. The garage has a front entry for a direct drive-in from the street. Strip footings form the main foundation, with slab or block options, and the walls are aerated concrete, with ceramic hollow block or sand-lime block as alternatives. The house measures 46'5" wide and 48'6" deep, with Total Heated 2,613 Sq Ft, 2 bedrooms, 2 bathrooms and a 1-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
