1.5-Story House Plan 1832 ft²: 4 Beds, 4 Baths, Open Floor Plan, without Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

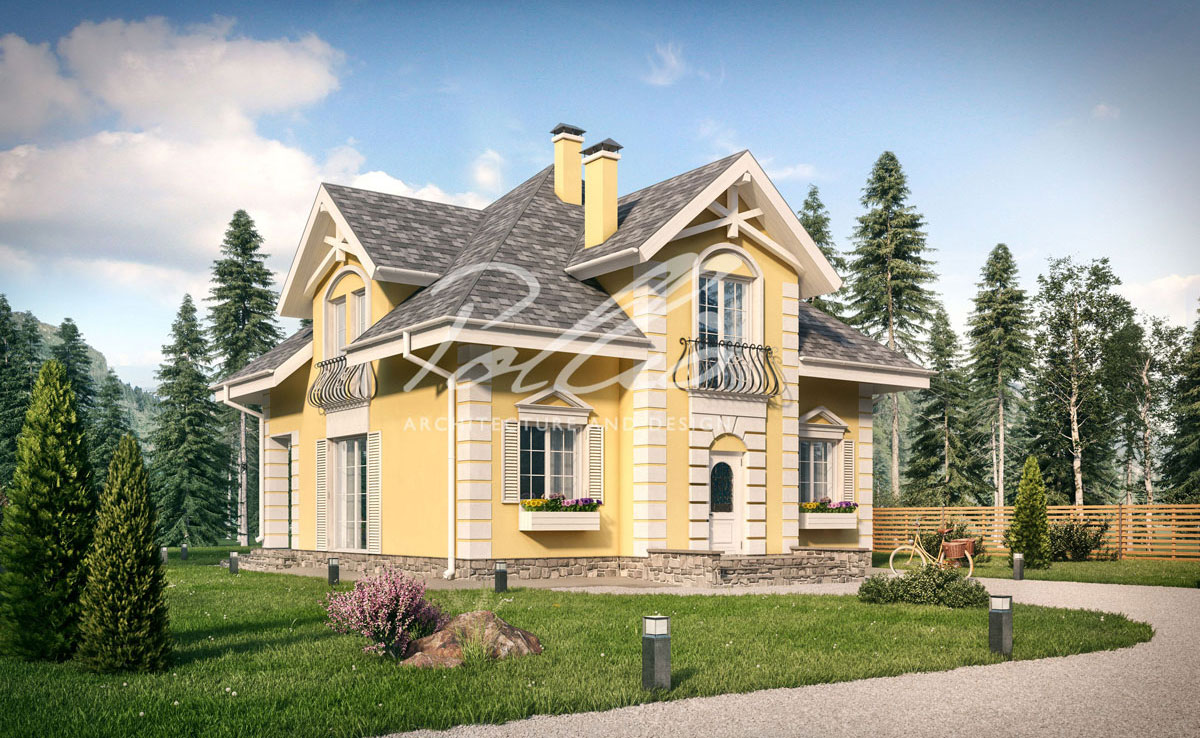

Plan 94246C is a 4-bedroom 2-story house plan that brings European and Traditional character to a compact, well-ordered home of 1832 ft². A steep Hip & Valley roof pitched at 10/12 (40°) crowns the stucco exterior, giving the house a classic, settled silhouette from every side. The footprint measures 31'5" wide and 37'0" deep, and the four bedrooms are matched by four full bathrooms, an uncommon level of comfort for a single family home of this size.
A proper entry greets guests and gives the house a calm threshold before the main living area opens up. The open floor plan joins a large family room and a large kitchen into one connected space, so whoever is cooking stays part of the conversation. The fireplace in the family room anchors the seating area and becomes the natural gathering point on winter evenings. The kitchen includes a breakfast nook, a relaxed spot for morning coffee and homework that keeps the more formal moments of the day separate from the everyday ones.

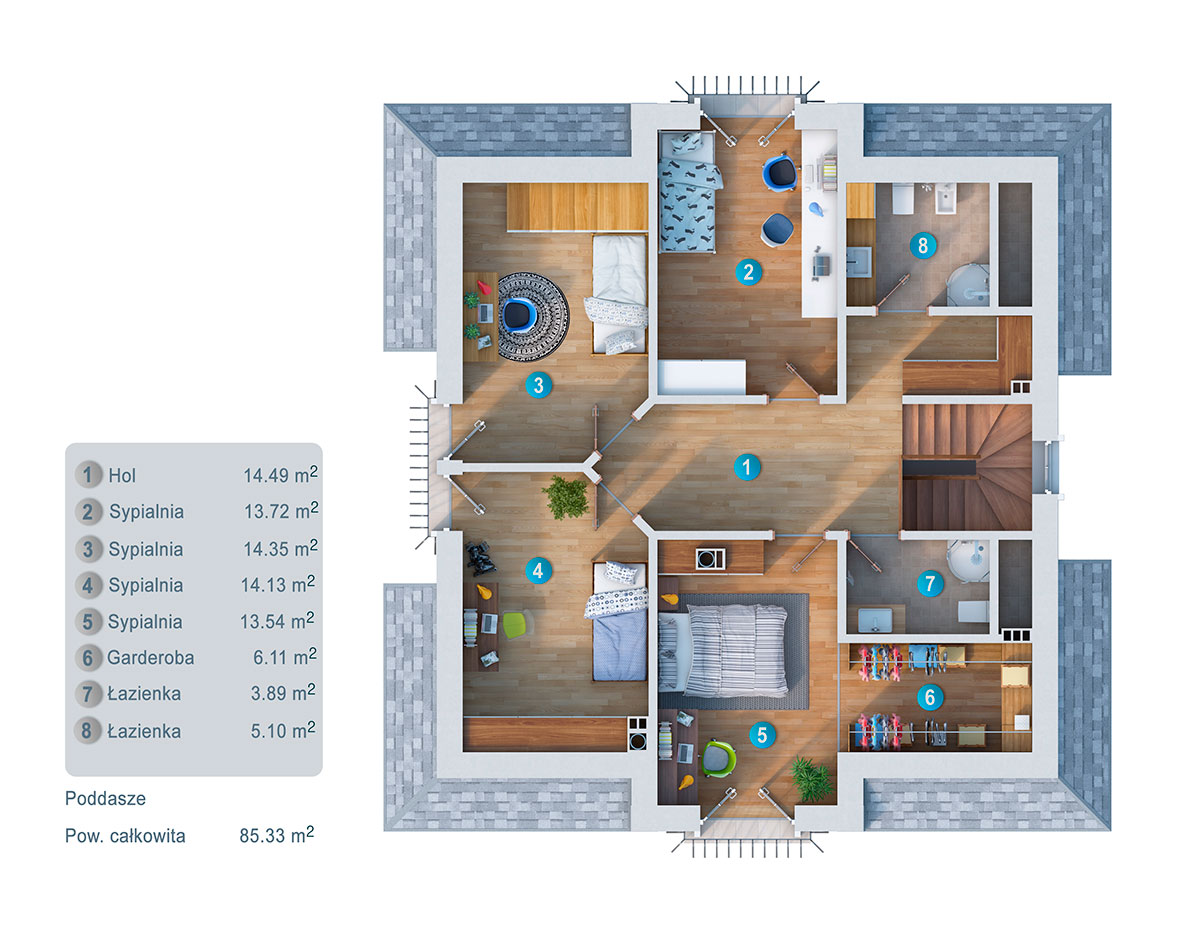

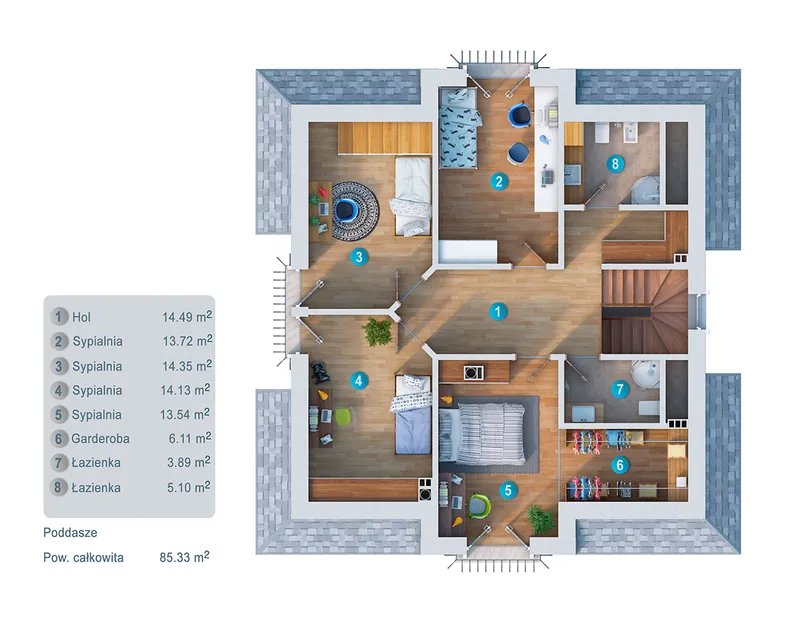

The bedrooms are clustered, which keeps sleeping quarters quiet and close together. The second-floor master suite is a private retreat with its own fireplace and a walk-in closet, a rare pairing that turns the bedroom into a place to unwind rather than only to sleep. An in-law suite gives parents, long-staying guests or a grown child comfortable space of their own. With four full bathrooms, no one waits in line in the morning, and a utility room keeps laundry and household equipment out of the living areas.

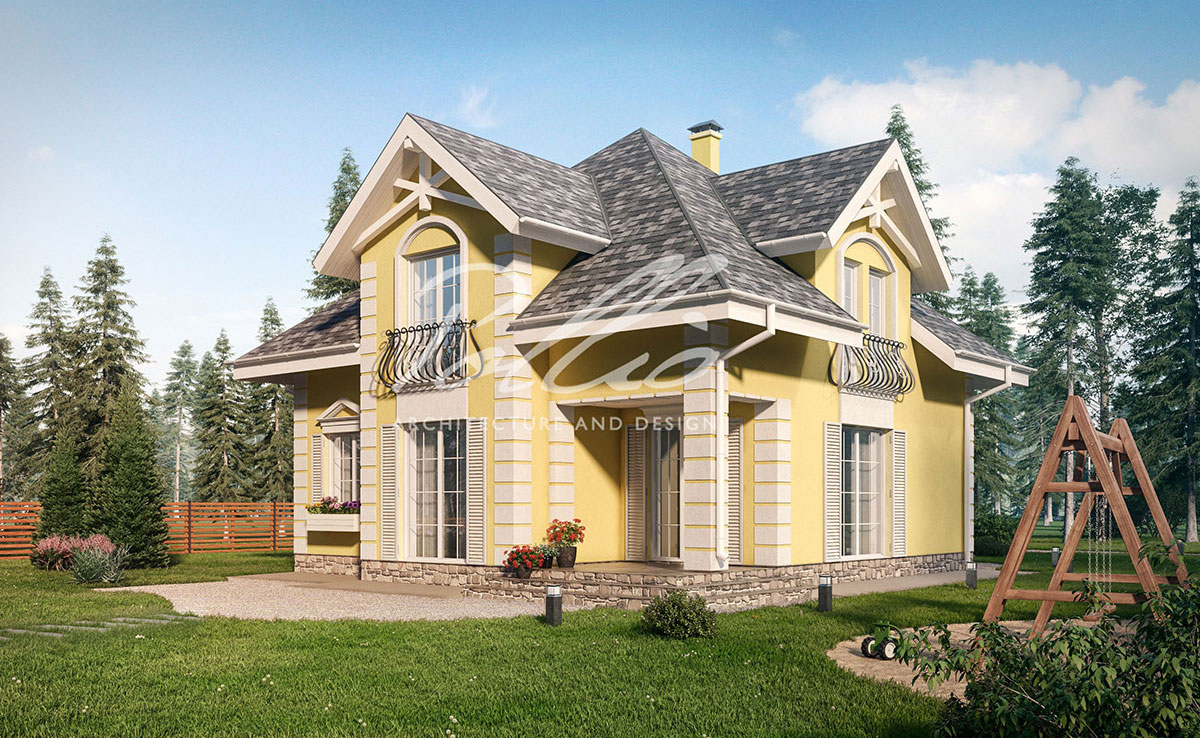

Outside, a covered rear porch extends the living space into the open air, sheltered for dinners and quiet afternoons. The house stands on strip footings and is also available with a slab or a concrete block foundation. The exterior walls are built of 24 cm aerated concrete, with ceramic hollow block, sand-lime block or wood frame construction available on request. The plan has no basement and no garage, which keeps construction straightforward and focuses the budget on the rooms where the family actually lives.
