Renderings 2 – 2,408 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and Carport – 11223C
Renderings 3 – 2,408 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and Carport – 11223C Renderings 4 – 2,408 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and Carport – 11223C
6
Concept
Construction documents are prepared for the following countries:

2,408 Sq Ft Modern H-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
11223C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2408
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

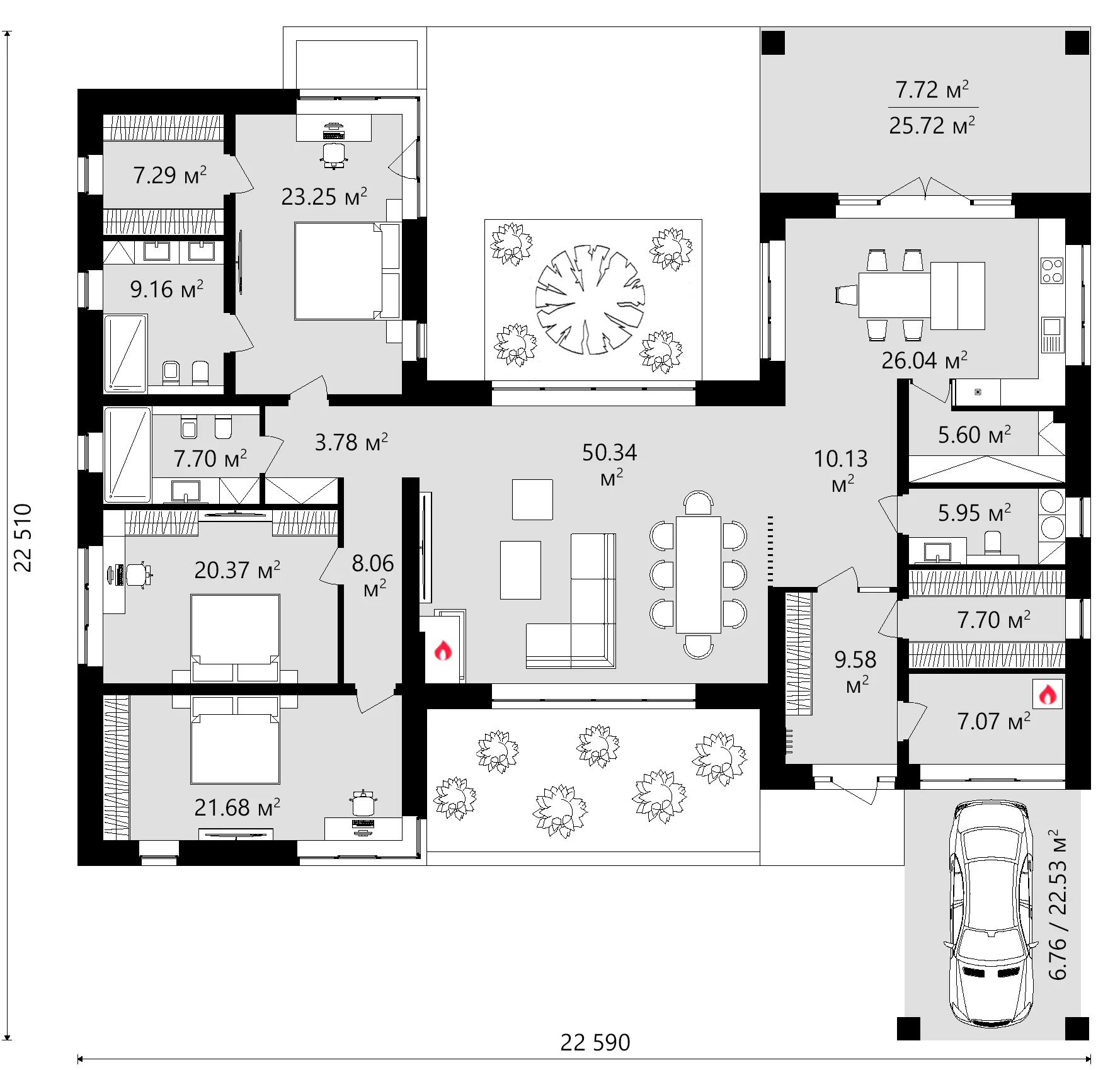

Main Floor
Main Floor 12 – 2,408 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and Carport – 11223C
Full Specs & Features
Area
Total Heated: 2407.89 ft²
Dimensions
Depth: 68'6" ft
Width: 68'9" ft
Height: 22'3" ft
Garage
Cars: 1
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Tiles
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Courtyard
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
California Style
Contemporary
Florida Style
Luxury
Modern
Prairie
Roof
Roof Area: 5779.47 ft²
Hip
Hip & Valley
Roof Pitch: 4/12 (18°)

The 11223C digital house design concept is a modern single-story H-shaped home with Total Heated 2,408 Sq Ft, 3 bedrooms, 3 bathrooms and a carport. Designed as a single family home for 3-4 people, it measures 68'9" wide by 68'6" deep and includes a courtyard. A hip roof with a 4/12 (18°) pitch handles wind well, and the tiled exterior keeps facade upkeep low.

An entry leads into a closed floor plan, where the large family room with a fireplace gives evenings a warm center away from the cooking. The large kitchen has an island for prep work, a breakfast nook for quick meals and a walk-in pantry for bulk storage. Floor-to-ceiling windows, a corner window and large windows bring daylight deep into the rooms.

The clustered bedrooms sit on one level, keeping parents close to the children. The main floor primary suite with a walk-in closet keeps clothing organized, and three full bathrooms shorten the morning rush. A utility room keeps household equipment out of the living spaces.

A covered rear porch extends daily life outdoors in any weather, and the carport shelters one car from rain and snow. The main foundation is strip footings, with slab or block foundation as options; exterior walls are aerated concrete, with ceramic hollow block or sand-lime block as alternatives. In figures: Total Heated 2,408 Sq Ft, 3 bedrooms, 3 bathrooms and a one-car carport.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1978
Subtotal
