Single Floor Plan with Fireplace in Center of House and Garage - 14513R
Single Floor Plan with Fireplace in Center of House and Garage - 14513R - 2 Single Floor Plan with Fireplace in Center of House and Garage - 14513R - 3
14

Single Floor Plan with Fireplace in Center of House and Garage

Plan
14513R
Prepared
Stamped & Signatured
CAD Concept
Key Specs
1748
Total Heated Area sq ft
388
Total Unheated Area sq ft
50'1"
WIDTH
48'6"
DEPTH
2
BATHS
1
1/2 BATHS
3 + 1
BEDS
2
CARS
The plan architect is not from your country!
If you want to buy a plan from a foreign architect, you have two options:
1. You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable file (CAD Concept) to forward it to your local architect.
2. Buy a CAD Concept from the plan architect, forward the file to your local architect, modify the plan with them, and order the construction documents.

You can choose a local architect in the recommendations on this page on the right below or on the Architects page. If there are no architects from your country on Plansplace, use your local websites to find one.
Rysunki architektoniczne, konstrukcyjne i instalacyjne:

rzut fundamentów

rzuty parteru i kolejnych kondygnacji

rzut stropów i nadproży

rzut więźby dachowej

rzut dachu

przekroje

zestawienie stolarki drzwiowej i okiennej

detale konstrukcji

projekty instalacji

Opisy techniczne architektoniczno-konstrukcyjne oraz opisy wewnętrznych instalacji sanitarnych i elektrycznych:

opis techniczny części architektonicznej projektu

opis techniczny konstrukcji

opisy instalacji

Opisy i dokumentacja zawierają:

charakterystykę energetyczną budynku

charakterystykę ekologiczną

informację o planie b.i o.z.

analizę porównawczą dwóch źródeł energii

oświadczenia projektantów

liczne informacje formalno-prawne

Materiały pomocnicze:

obliczenia konstrukcyjne

zestawienie elementów więźby dachowej

zestawienie materiałów do podstawowych instalacji sanitarnych, grzewczych i gazowych

zestawienie stali do zbrojenia elementów żelbetowych

widoki więźby i stropów w 3D

Need to change something?

This house plan can be modified to suit your family's lifestyle and/or your lot specifics.

The plan architect is not from your country!


If you want to modify a plan from a foreign architect, you have two options:
You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
or
Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.

Floor Plans

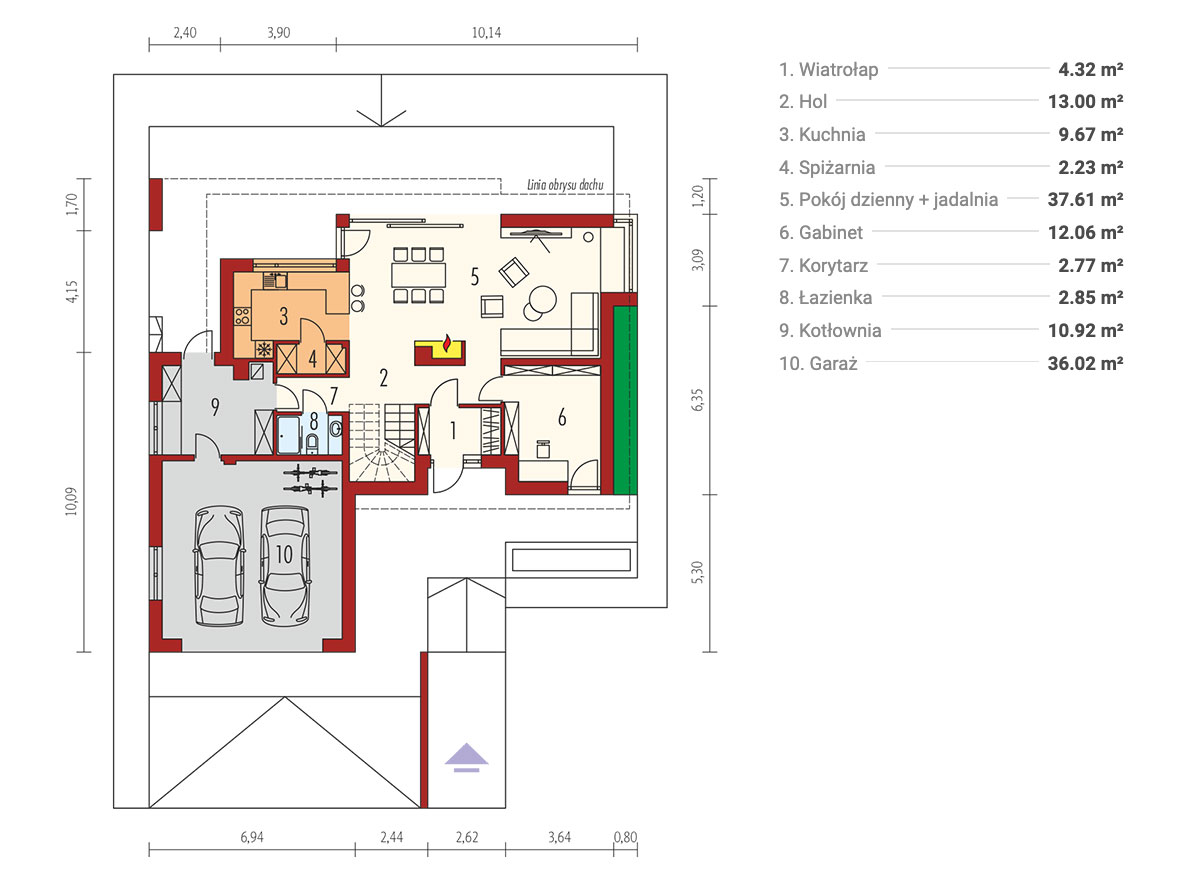

First Floor

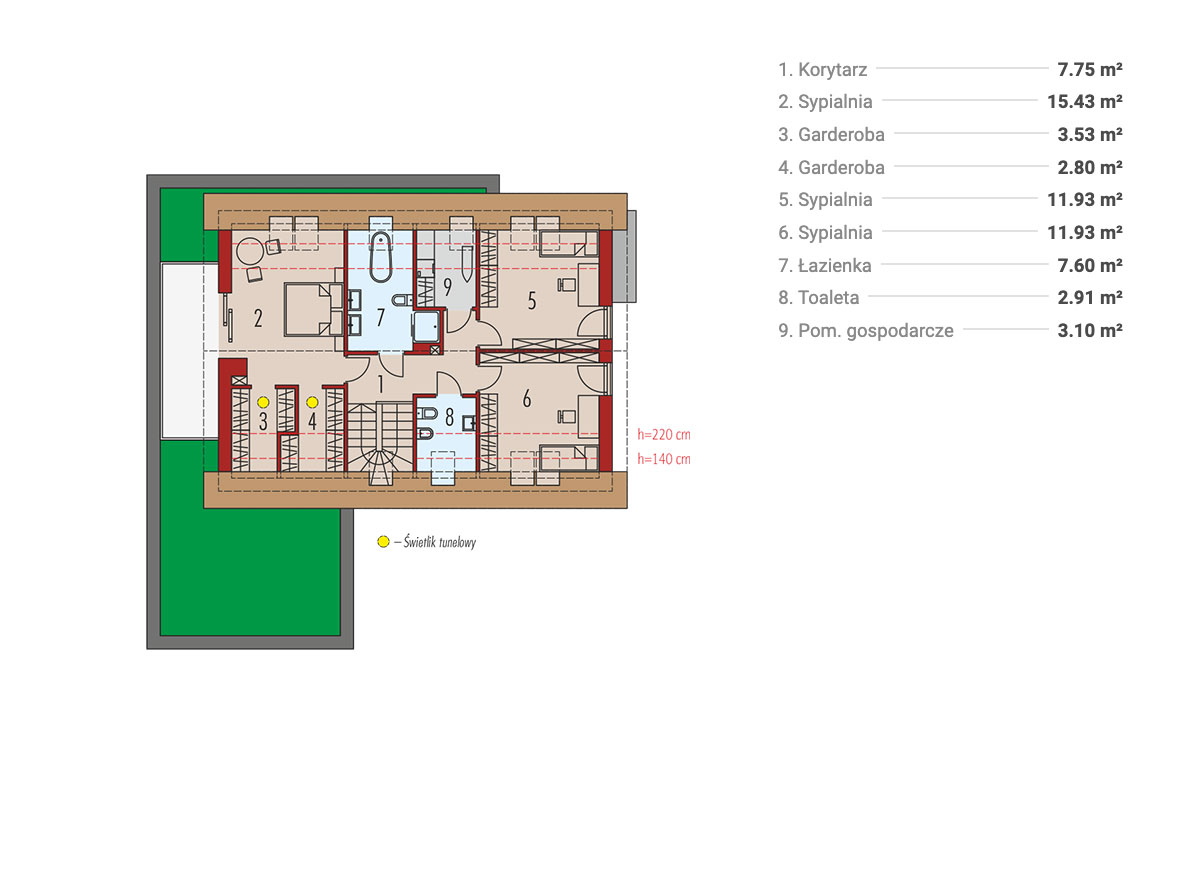

14513R - First Floor
Second Floor
14513R - Second Floor
Full Specs & Features
Area
Total Heated Area: 1748 sq ft
Total Unheated Area: 388 sq ft
Dimensions
Depth : 48'6" ft
Width : 50'1" ft
Height : 27'0" ft
Exterior Wall Framing
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rooms
Furnace Room
Mudroom
Home Office
Storage
Foundation
Concrete Stem Wall
Architectural Style
Contemporary
European
Modern
Outdoor Options
Balcony
Covered Rear Porch
Deck
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Interior Options
Fireplace in Family Room
Second Floor Master
Split Bedrooms
Walk In Closet
In-Law/Guest Suite
Open Floor Plan
Large Family Room
Kitchen and Dining
Butler Walk-in Pantry
Eating Bar
Breakfast Nook
Garage
Garage Area: 388 sq ft
Cars: 2
Attached
Front Entry
Extension Forward
Roof
Roof Area: 2067 sq ft
Gable
Skylight
Roof Pitch: 11/12
