Main Images 1 – 4-Bed, 1600 Sq Ft House Plan with 2-Car Garage
Main Images 1 – 4-Bed, 1600 Sq Ft House Plan with 2-Car Garage Main Images 1 – 4-Bed, 1600 Sq Ft House Plan with 2-Car Garage
6
Construction documents are prepared for the following countries:

4-Bed, 1600 Sq Ft Hip Roof House Plan with 2-Car Garage

Plan
69187R
Complete
Signed & Sealed
DC None
Key Specs
1666
Total Heated ft²
2 + 1
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

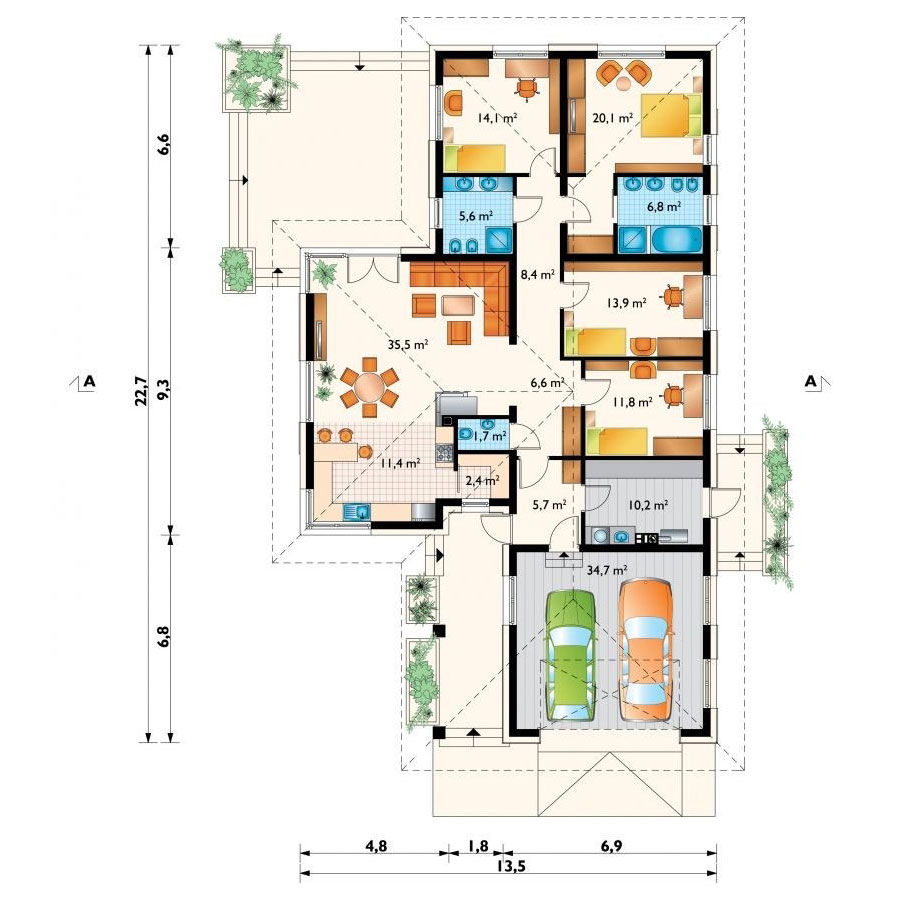

Main Floor
Main Floor 1 – 4-Bed, 1600 Sq Ft House Plan with 2-Car Garage
Full Specs & Features
Area
Total Unheated: 373.51 ft²
Total Heated: 1666.25 ft²
Dimensions
Depth: 69'2" ft
Width: 41'1" ft
Height: 22'6" ft
Garage
Area: 374 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block
Wood-framed (Optional)
Exterior Wall Materials
Stucco
Tiles
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 4
Utility room
Laundry
Entry
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Laundry in Utility Room
Exterior Features
Covered Front Porch
Deck
Corner Window
Floor-to-Ceiling Windows
Architectural Style
Bungalow
European
Traditional
Roof
Roof Area: 4187.16 ft²
Hip & Valley
Roof Pitch: 8/12 (34°)

Plan 69187R is a 4-bedroom single-story house plan with a T-shaped footprint, 1666 ft² of living space and a hip and valley roof set at an 8/12 (34°) pitch. Its character draws on Bungalow, European and Traditional styles, and the exterior walls are finished in stucco and tiles. The house measures 41'1" wide and 69'2" deep, with a height of 22'6". The exterior walls are designed in aerated concrete, and hollow clay block or wood frame construction is available on request.

The front door opens into an entry that leads to an open floor plan, where the family room, the kitchen and the breakfast nook share one connected space. The large family room is anchored by a fireplace, so this house plan with fireplace has a natural gathering spot for long winter evenings. The kitchen is built for everyday family life. A breakfast bar handles quick meals and keeps the cook part of the conversation, a walk-in pantry stores bulk groceries out of sight, and a corner window brightens the work area. Floor-to-ceiling windows let generous daylight into the home.

All four bedrooms are clustered together on one level, including the main floor master, so the whole family lives without stairs. Two full bathrooms and one half bathroom complete the layout, and the half bath is a convenience for guests. The laundry is set in the utility room, which keeps washing and household equipment in one practical place, away from the living areas.

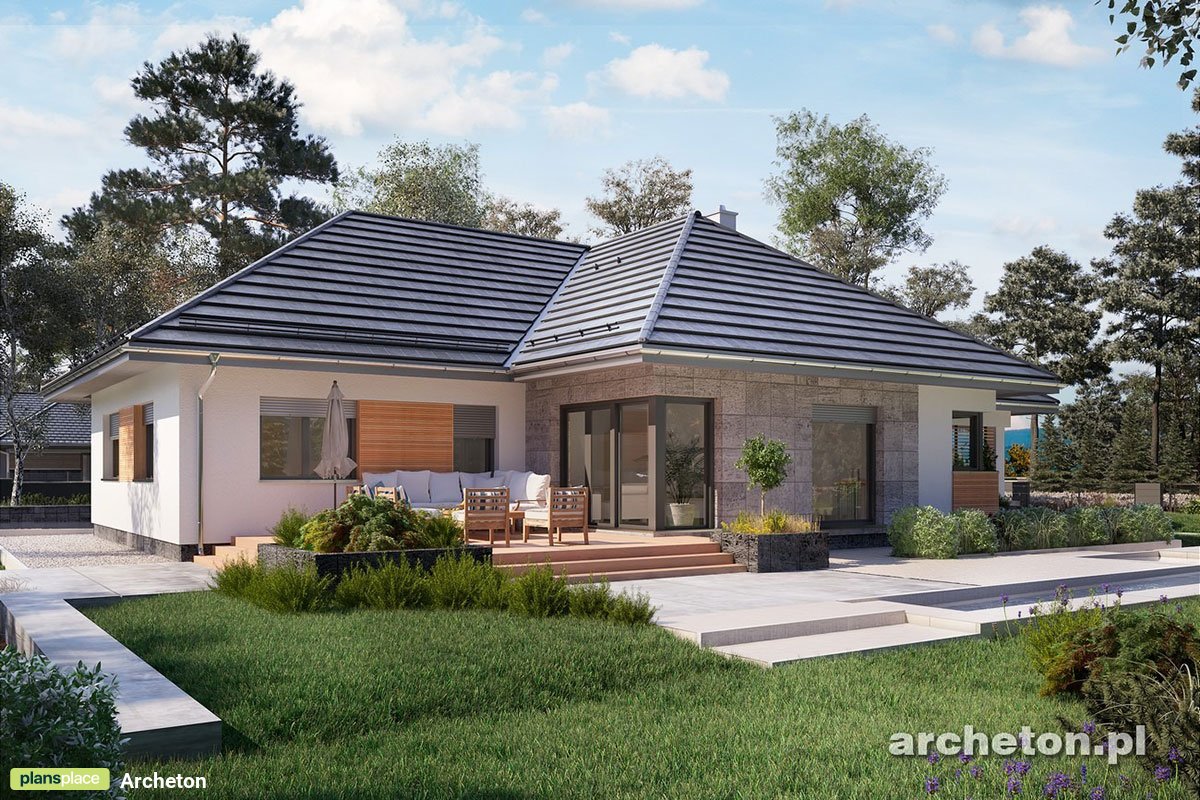

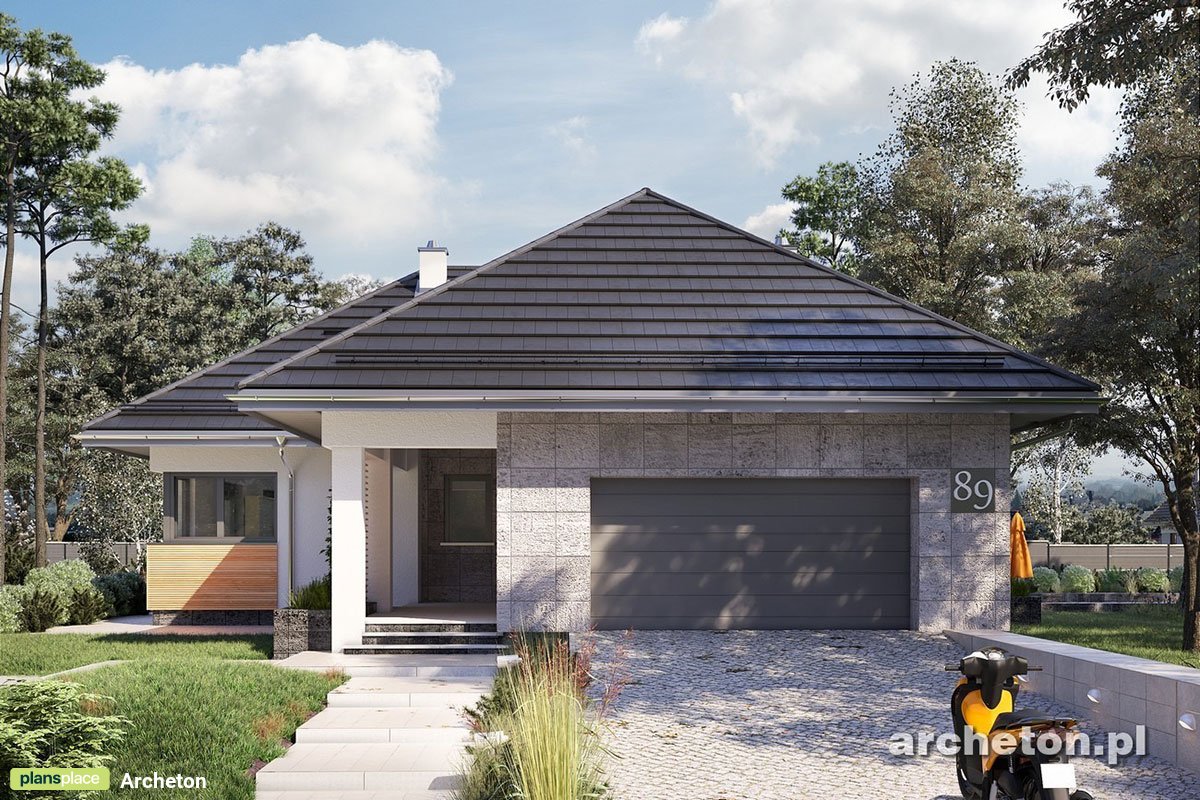

Outside, a covered front porch shelters arrivals and offers a place to sit and watch the street, while a deck extends living space outdoors for summer meals. The front-entry 2-car garage projects forward from the house, giving the facade depth and keeping vehicles and storage close to the entry. The house stands on strip footings with no basement, and a slab foundation is also available. For a family looking for a 4 bedroom house plan with everything on one floor, 69187R combines an open concept, a fireplace and a 2-car garage in a refined, well-organized design.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
