Home / House plans / 14556R
Main Images 1 – Floor Plan with In-Law Suite and 1-Car Garage
Main Images 1 – Floor Plan with In-Law Suite and 1-Car Garage Main Floor 1 – Floor Plan with In-Law Suite and 1-Car Garage
4
Construction documents are prepared for the following countries:

Floor Plan with 1-Car Front Entry Garage and In-Law Suite

Plan
14556R
Complete
Signed & Sealed
DC None
Key Specs
1480
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
1
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Video
Floor Plans

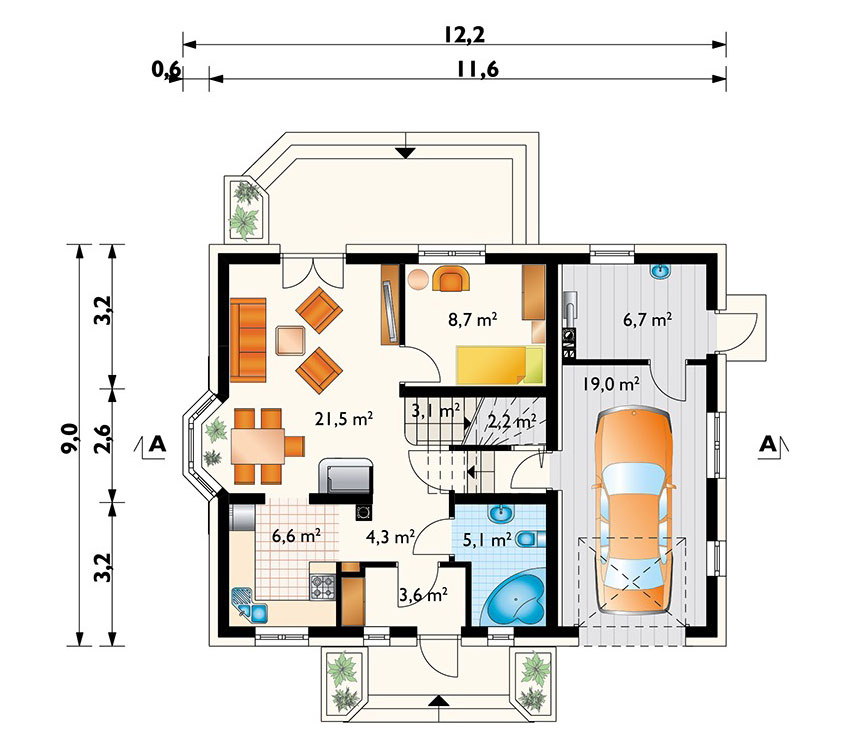

Main Floor
Main Floor 1 – Floor Plan with In-Law Suite and 1-Car Garage

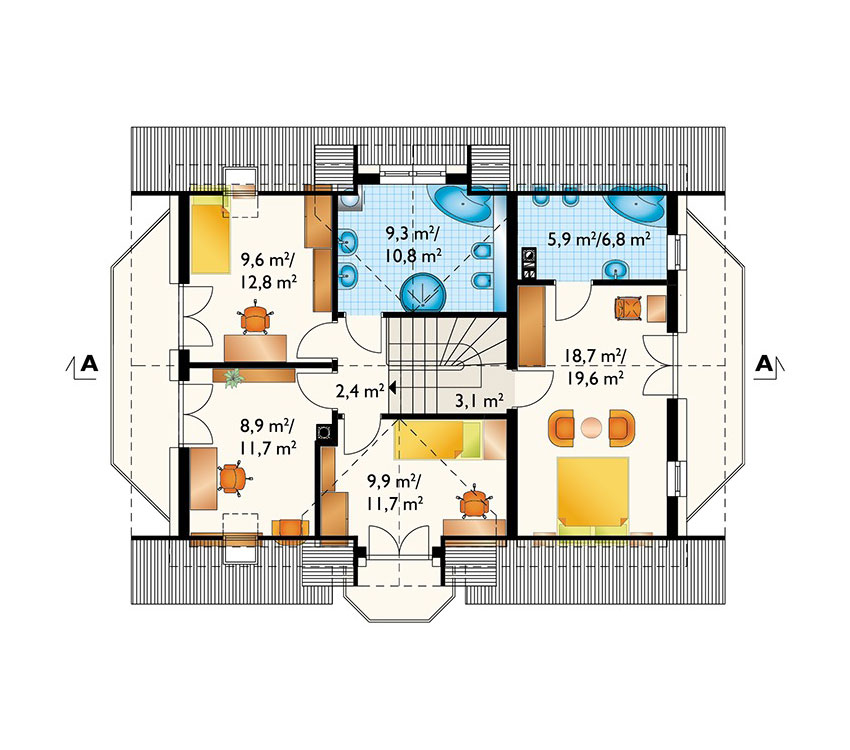

Second Floor
Second Floor 1 – Floor Plan with In-Law Suite and 1-Car Garage
Full Specs & Features
Area
Total Unheated: 204.51 ft²
Total Heated: 1480.04 ft²
Dimensions
Depth: 27'4" ft
Width: 37'2" ft
Height: 26'5" ft
Garage
Area: 205 ft²
Cars: 1
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block
Wood-framed (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Home Office
Storage
In-Law Suite
Kitchen and Dining
Breakfast Nook
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Exterior Features
Balcony
Deck
Bay Window
Architectural Style
European
Traditional
Roof
Roof Area: 2120.49 ft²
Gable
Skylight
Dormer
Ridge parallel to street
Roof Pitch: 11/12 (42°)

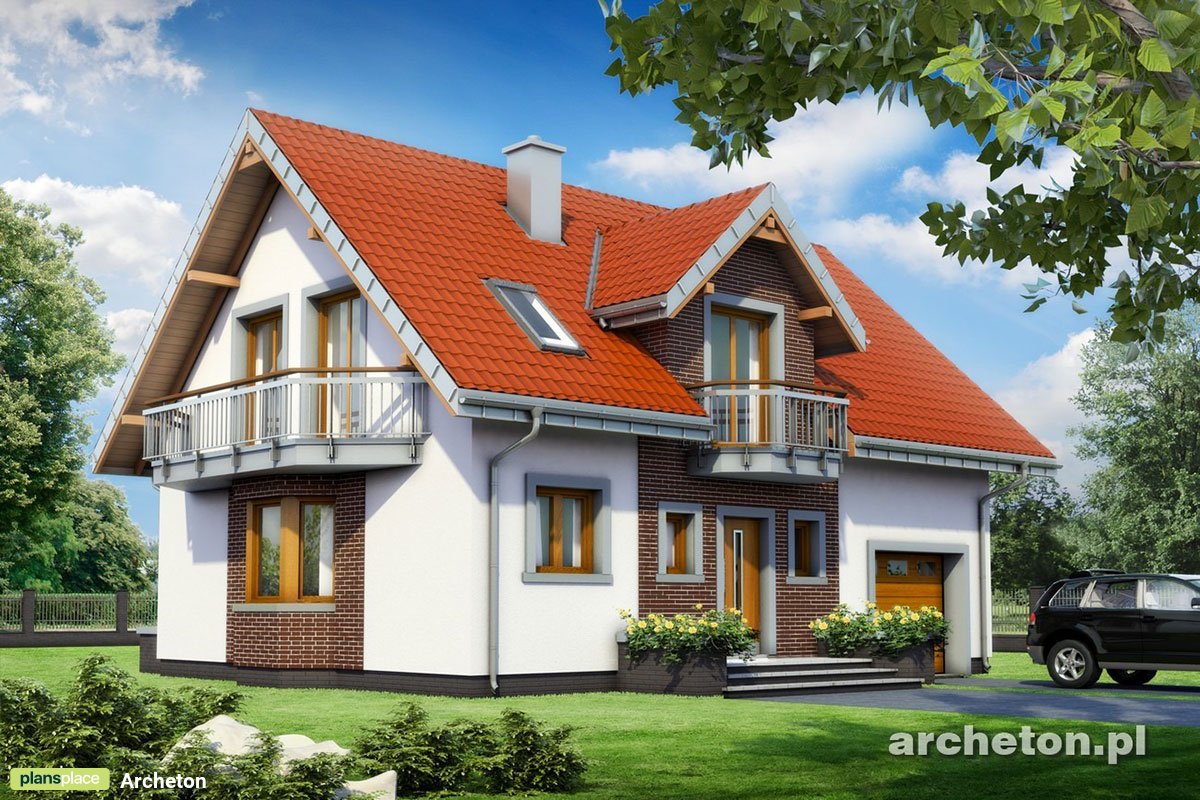

Plan 14556R is a 3-bedroom 2-story house plan in a European and Traditional style, offering 1480 ft² beneath a steep gable roof with dormers and a skylight. Stone/brick veneer and stucco dress the exterior walls, and the ridge runs parallel to the street, giving the facade a calm, classic presence. The house measures 37'2" wide and 27'4" deep, with a height of 26'5", and the roof pitch is 11/12 (42°). The main walls are built of aerated concrete block, with ceramic block or wood framing also available on request.

The closed floor plan gives every room its own purpose and its own quiet. An entry welcomes guests and leads into the family room, where the fireplace becomes the natural gathering point on winter evenings. The kitchen is set apart from the living areas and includes a breakfast nook for morning coffee and unhurried weekend breakfasts. A bay window adds depth and light to the interior, while a home office lets work happen behind a closed door, away from the rhythm of the household.

The three bedrooms are clustered together, and the master bedroom sits on the second floor. With three full bathrooms, mornings run smoothly even when the whole family is getting ready at once. The plan also provides an in-law suite, a comfortable arrangement for visiting parents, grown children or long-staying guests who value their own space. A utility room and dedicated storage keep laundry, household equipment and seasonal items organized and out of sight.

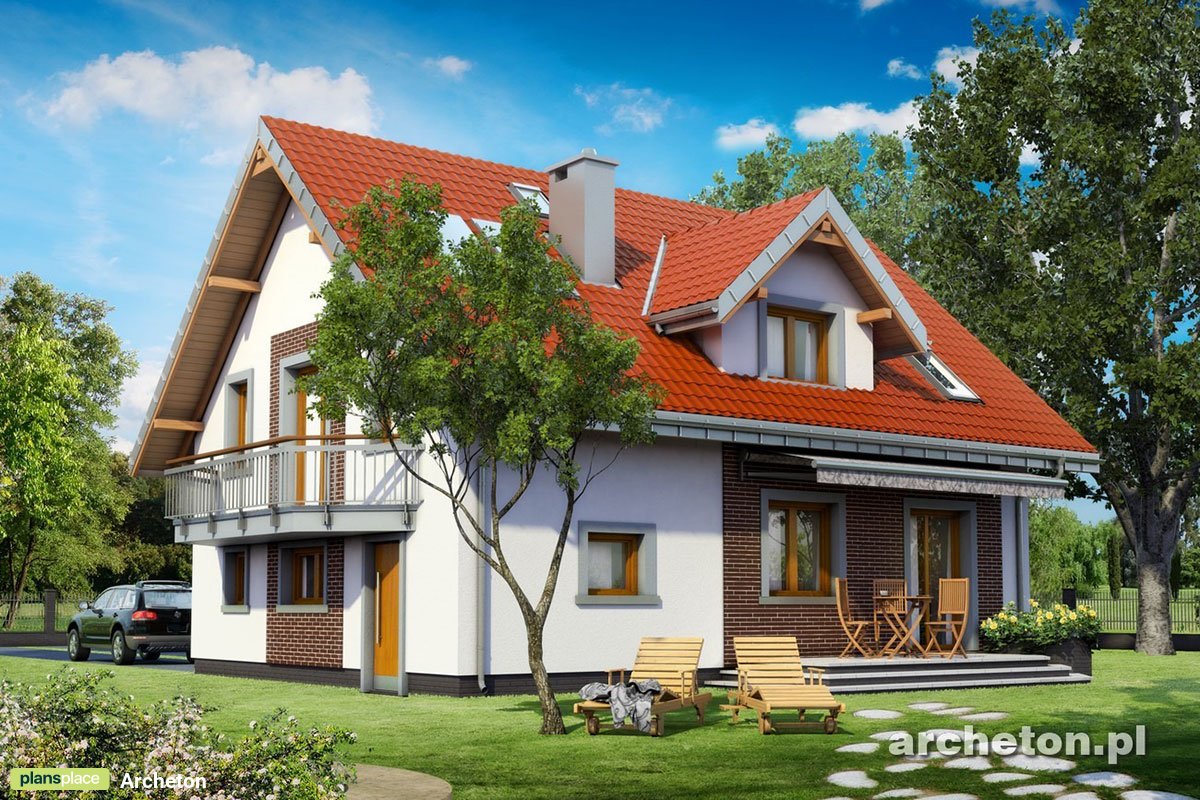

Outside, a balcony and a deck extend the home into the open air: one for a quiet moment with a book, the other for summer dinners and long afternoons. The house includes a garage for one car. Without a basement, it rests on strip footings, and a slab foundation is also available on request. This European house plan with fireplace pairs traditional materials with a practical, well-zoned layout for family life all year round.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
