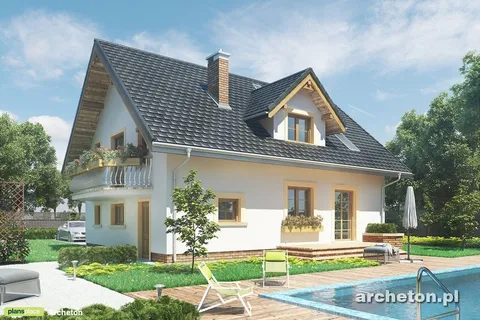

Main Images 1 – One Level Plan with Master Bedroom Upstairs
Main Images 1 – One Level Plan with Master Bedroom Upstairs Main Images 1 – One Level Plan with Master Bedroom Upstairs
8
Construction documents are prepared for the following countries:

One Level House Plan with 1-Car Front Entry Garage and 5 Beds

Plan
52907R
Complete
Signed & Sealed
DC None
Key Specs
1626
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
1
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

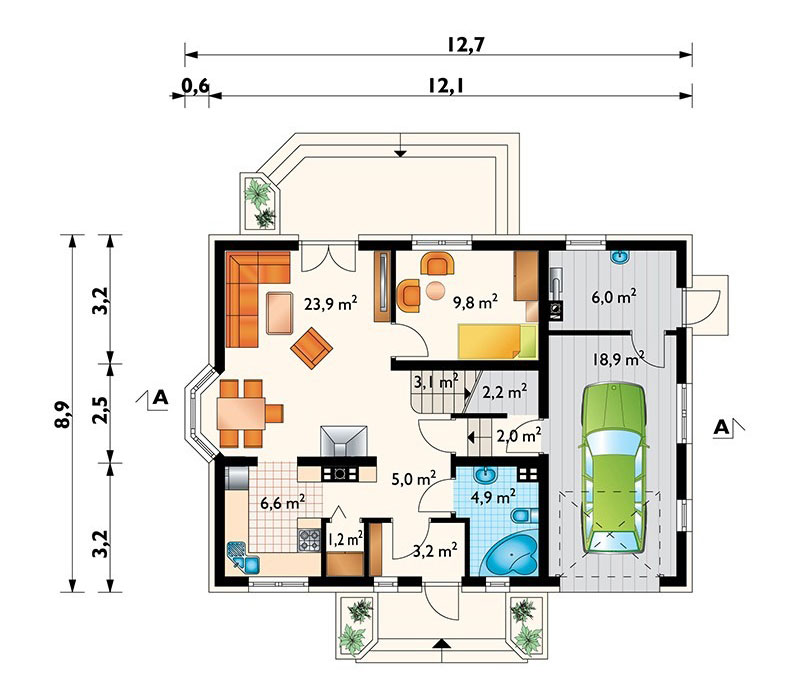

Main Floor
Main Floor 1 – One Level Plan with Master Bedroom Upstairs

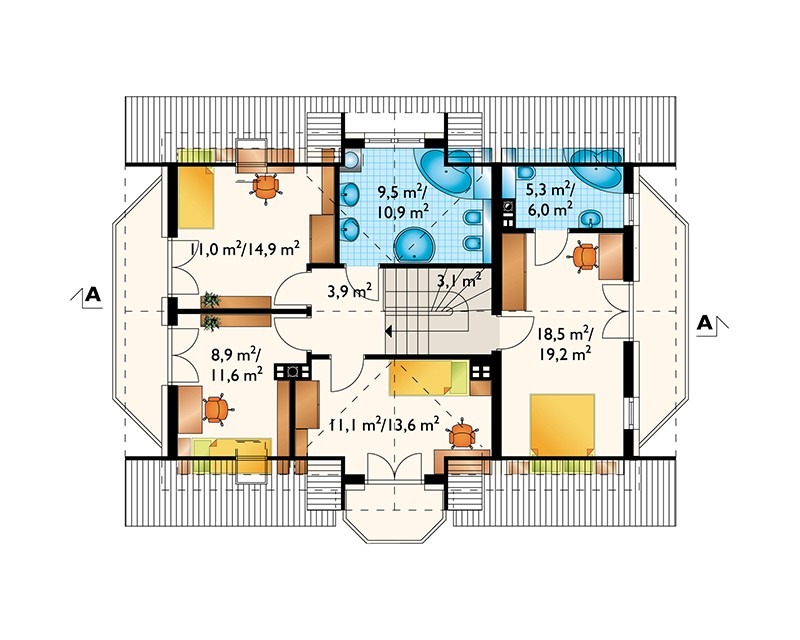

Second Floor
Second Floor 1 – One Level Plan with Master Bedroom Upstairs
Full Specs & Features
Area
Total Unheated: 203.44 ft²
Total Heated: 1626.43 ft²
Dimensions
Depth: 27'1" ft
Width: 38'7" ft
Height: 26'2" ft
Garage
Area: 203 ft²
Cars: 1
Garage with Upstairs
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block
Wood-framed (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
In-Law Suite
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Exterior Features
Balcony
Deck
Bay Window
Architectural Style
European
Traditional
Roof
Roof Area: 2195.84 ft²
Gable
Skylight
Dormer
Roof Pitch: 11/12 (42°)

Plan 52907R is a 4-bedroom 2 story house plan in the European and Traditional style, offering 1626 ft² of living space under a steep gable roof with dormers and a skylight. Stucco exterior walls and a bay window give the facade a classic, composed look, and the home measures 38'7" wide and 27'1" deep, with a height of 26'2". The roof pitch is 11/12 (42°), which shapes the upper floor and lets the dormers bring daylight into the rooms beneath the gables.

The house is laid out as a closed floor plan, so each room keeps its own character and purpose. You step in through a defined entry, then reach the family room, where a fireplace makes a natural gathering point on cold evenings. The kitchen is set apart from the living area and comes with a walk-in pantry for bulk storage and a breakfast nook for quick morning meals, while the bay window adds depth and light to the interior. For anyone looking for a house plan with fireplace and a traditional room arrangement, this layout keeps cooking, dining and relaxing comfortably separated.

There are 4 bedrooms and 3 full bathrooms. The bedrooms are clustered together, which keeps family life close and practical, and the master suite sits on the second floor. An in-law suite gives a parent, a grown child or long-staying guests their own private quarters, a real advantage in a home of this size. A utility room handles laundry and household equipment, keeping the main rooms tidy, and a balcony gives the upper level an outdoor spot of its own.

Outside, a deck extends the living space for summer dinners and lazy weekends. The 1-car front-entry garage comes with space upstairs, useful for storage, a hobby room or a home office. The house is designed without a basement and stands on strip footings, and it is also available with a slab foundation. The main exterior walls are aerated concrete, with clay block or wood frame construction available on request.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
