Home / House plans / 19184R
Print
Main Images 1 – 2-Story Floor Plan with Covered Rear Porch
Main Images 1 – 2-Story Floor Plan with Covered Rear Porch Main Images 1 – 2-Story Floor Plan with Covered Rear Porch
5
Construction documents are prepared for the following countries:

2-Story European Floor Plan with Covered Rear Porch

Plan
19184R
Complete
Unsigned & Unsealed
DC None
Key Specs
1451
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars
Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

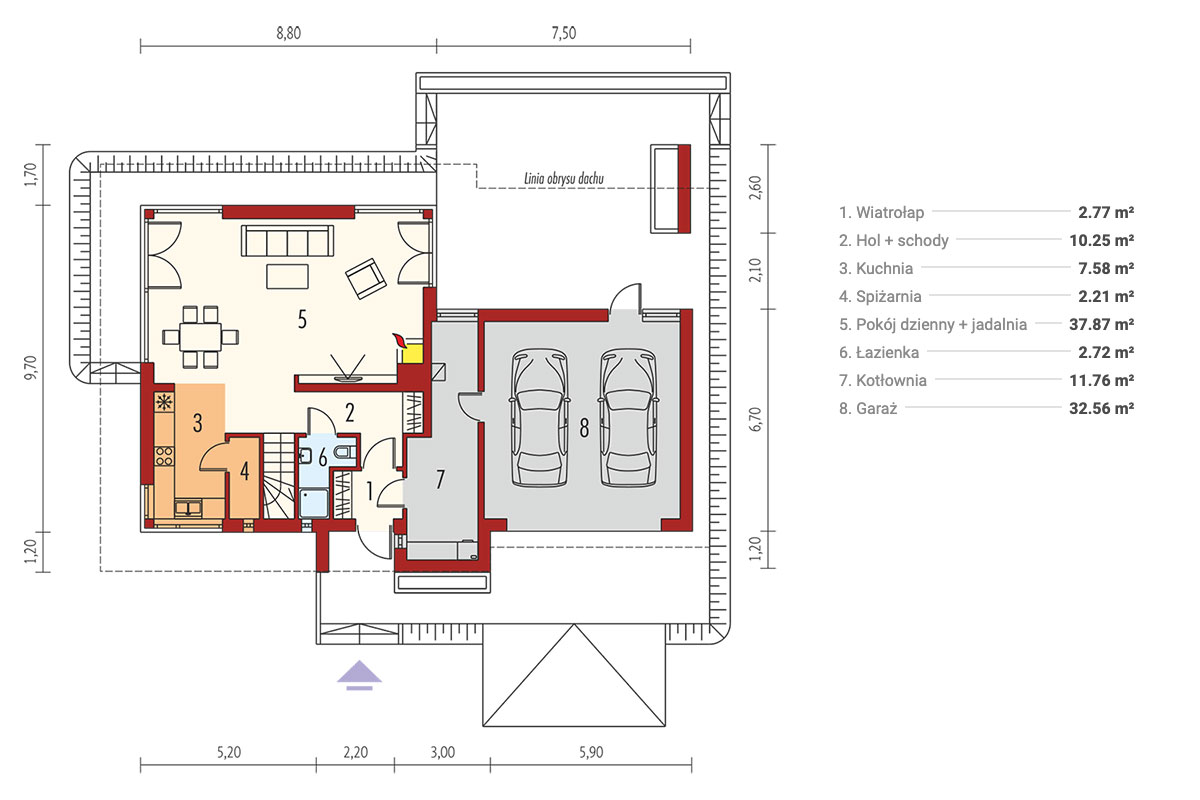

Main Floor
Main Floor 1 – 2-Story Floor Plan with Covered Rear Porch

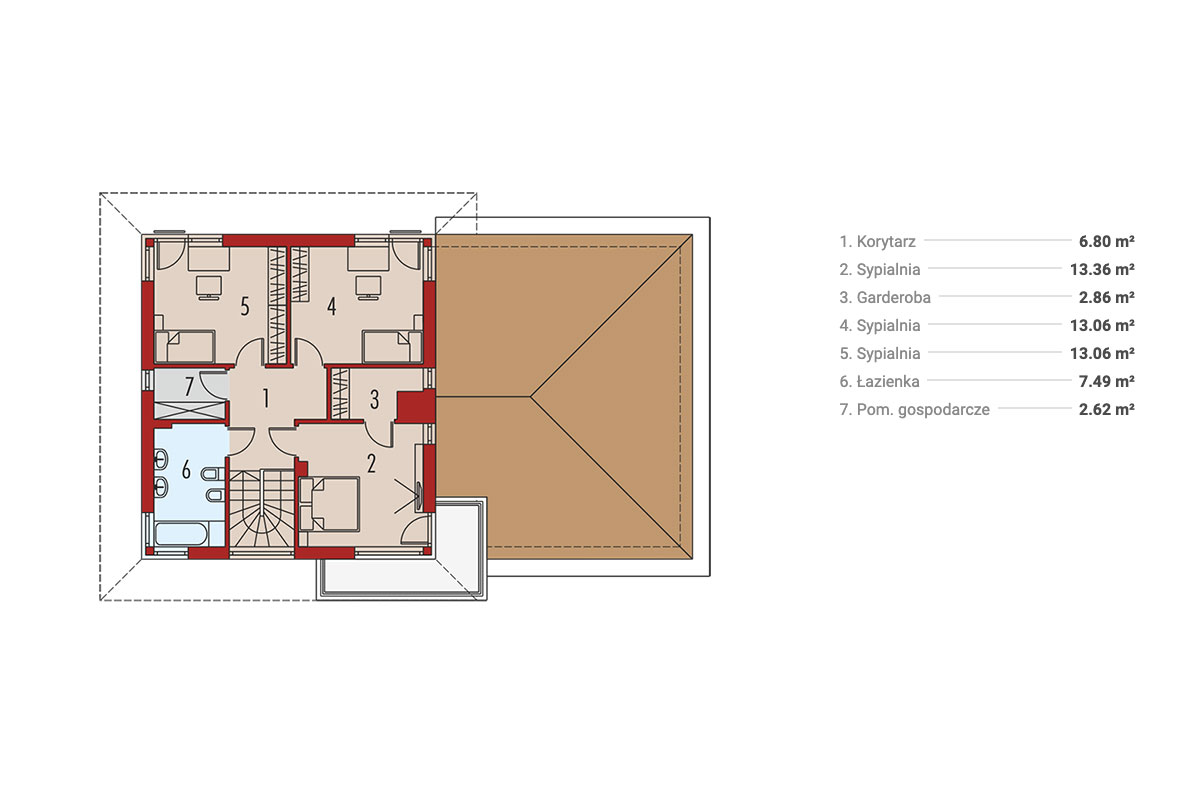

Second Floor
Second Floor 1 – 2-Story Floor Plan with Covered Rear Porch
Full Specs & Features
Area
Total Unheated: 351.66 ft²
Total Heated: 1451.08 ft²
Dimensions
Depth: 38'4" ft
Width: 49'7" ft
Height: 26'6" ft
Garage
Area: 352 ft²
Cars: 2
Attached
Front Entry
Foundation
Concrete Stem Wall (Optional)
Slab (Optional)
Bloczki keramzytobetonowe
Exterior Wall Framing
Ceramic Block
Aerated Concrete Block (Optional)
Wood-framed (Optional)
Exterior Wall Materials
Stucco
Natural Stone
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Entry
Storage
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Corner Window
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Balcony
Covered Rear Porch
Deck
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Traditional
Transitional
Roof
Roof Area: 2174.31 ft²
Hip
Roof Pitch: 5/12 (22°)

Plan 19184R is a 3-bedroom three-story house plan that blends European, Traditional and Transitional design under a hip roof with a 5/12 (22°) pitch. With 1451 ft² spread over three levels, this single-family home keeps its footprint compact while giving every part of family life its own place. Stucco and natural stone cover the exterior walls, and the house measures 49'7" wide, 38'4" deep and 26'6" high. The walls are built of ceramic hollow block, and aerated concrete or wood frame construction is also available on request.

An entry receives guests and leads into an open floor plan centered on a large family room with a fireplace. This makes the plan a natural choice for anyone searching for a house plan with fireplace, and the room is sized for long winter evenings with the whole family together. Large windows and floor-to-ceiling windows bring daylight deep into the living area. The kitchen is planned for everyday cooking: a walk-in pantry keeps supplies organized and out of sight, and a breakfast nook beside a corner window is a bright spot for morning coffee. Because the spaces flow into one another, whoever is cooking stays part of the conversation in the family room.

The master bedroom sits on the second floor, and the bedrooms are clustered so that parents and children sleep close to one another. Two full bathrooms serve the three bedrooms. A utility room and a dedicated storage room keep laundry, equipment and seasonal items out of the living areas, which helps a house of this size stay calm and uncluttered.

The house stands on a foundation of expanded clay concrete blocks and has no basement; strip footings or a slab are also available on request. An attached two-car garage with front entry gives direct access from the driveway. Outdoor living is spread across several spaces: a covered rear porch offers shade and shelter, a deck extends the room for summer meals, and a balcony gives the upper level its own place in the fresh air. For a family that wants a 3 bedroom house plan with a refined European look, a 2-car garage and plenty of daylight, plan 19184R offers a well-balanced layout.

Architect
ARCHIPELAG ARCHIPELAG Architecture Firm country with code pl Poland
country with code pl Poland
Lower Silesian Voivodeship, Wrocław, ul. Aleksandra Ostrowskiego 9/318
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
