Renderings 2 – 1,958 Sq Ft Bungalow Single-Story Family House Plan with 2 Bedrooms and 2 Bathrooms – 23072C
Renderings 3 – 1,958 Sq Ft Bungalow Single-Story Family House Plan with 2 Bedrooms and 2 Bathrooms – 23072C Renderings 4 – 1,958 Sq Ft Bungalow Single-Story Family House Plan with 2 Bedrooms and 2 Bathrooms – 23072C
6
Concept
Construction documents are prepared for the following countries:

1,958 Sq Ft Bungalow Single-Story Family House Plan with 2 Bedrooms and 2 Bathrooms

Plan
23072C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1958
Total Heated ft²
2 + 0
Baths + 1/2 Baths
2 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

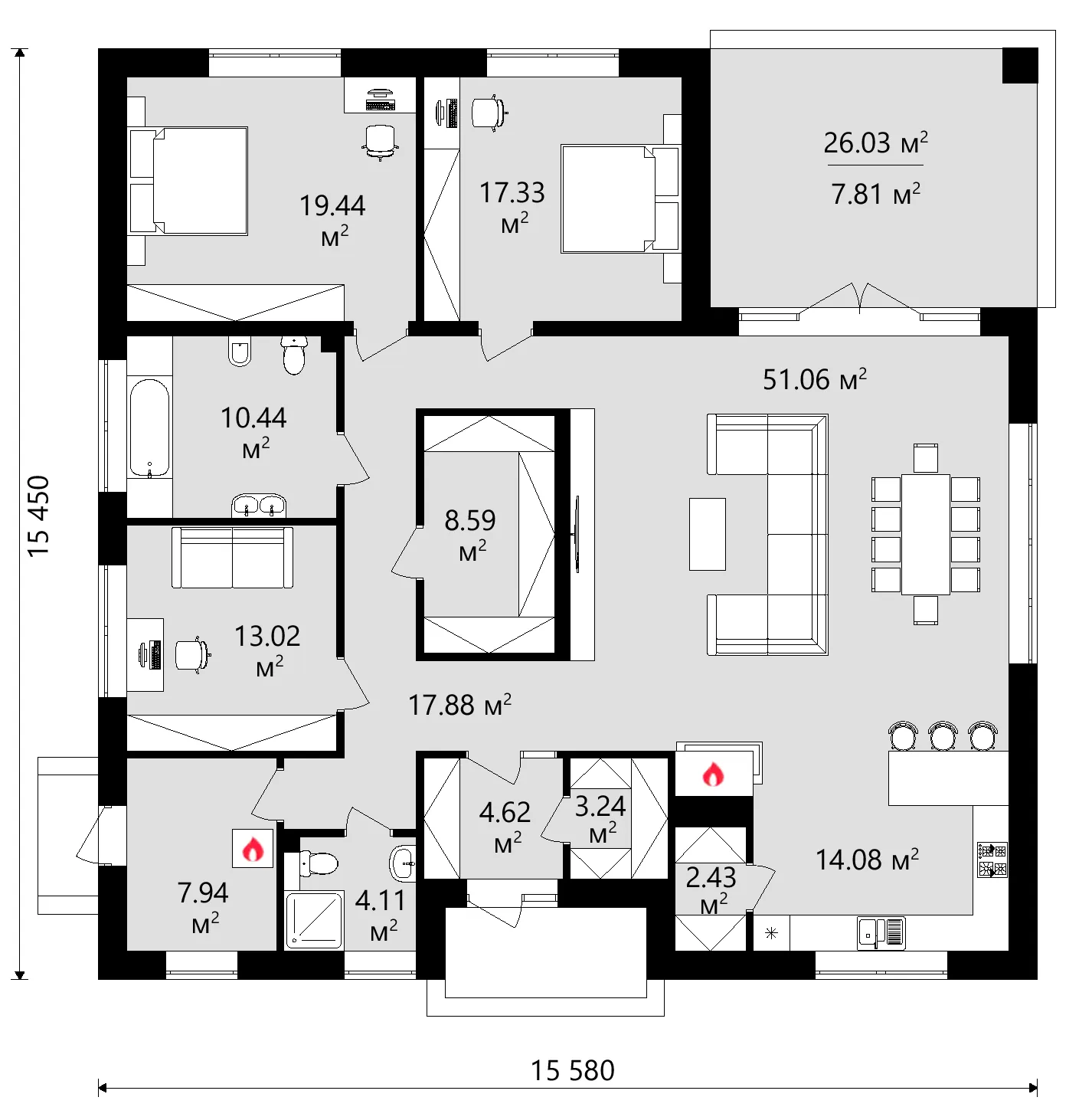

Main Floor
Main Floor 12 – 1,958 Sq Ft Bungalow Single-Story Family House Plan with 2 Bedrooms and 2 Bathrooms – 23072C
Full Specs & Features
Area
Total Heated: 1957.96 ft²
Dimensions
Depth: 47'1" ft
Width: 47'5" ft
Height: 22'8" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 2
Utility room
Entry
Home Office
Storage
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Interior Features
Fireplace in Family Room
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Bungalow
European
Traditional
Roof

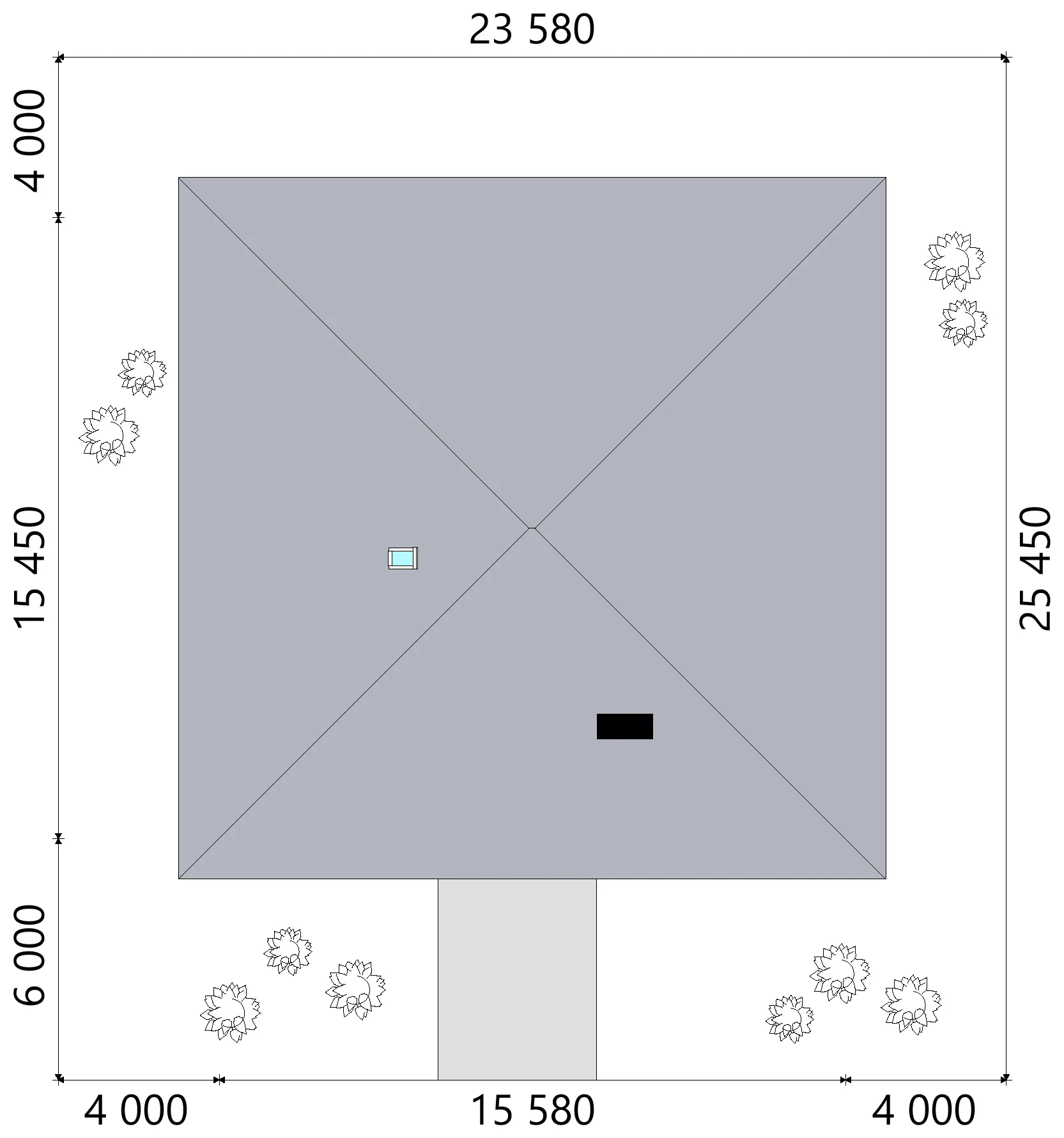

Roof Area: 3641.32 ft²
Pyramid
Roof Pitch: 6/12 (26°)

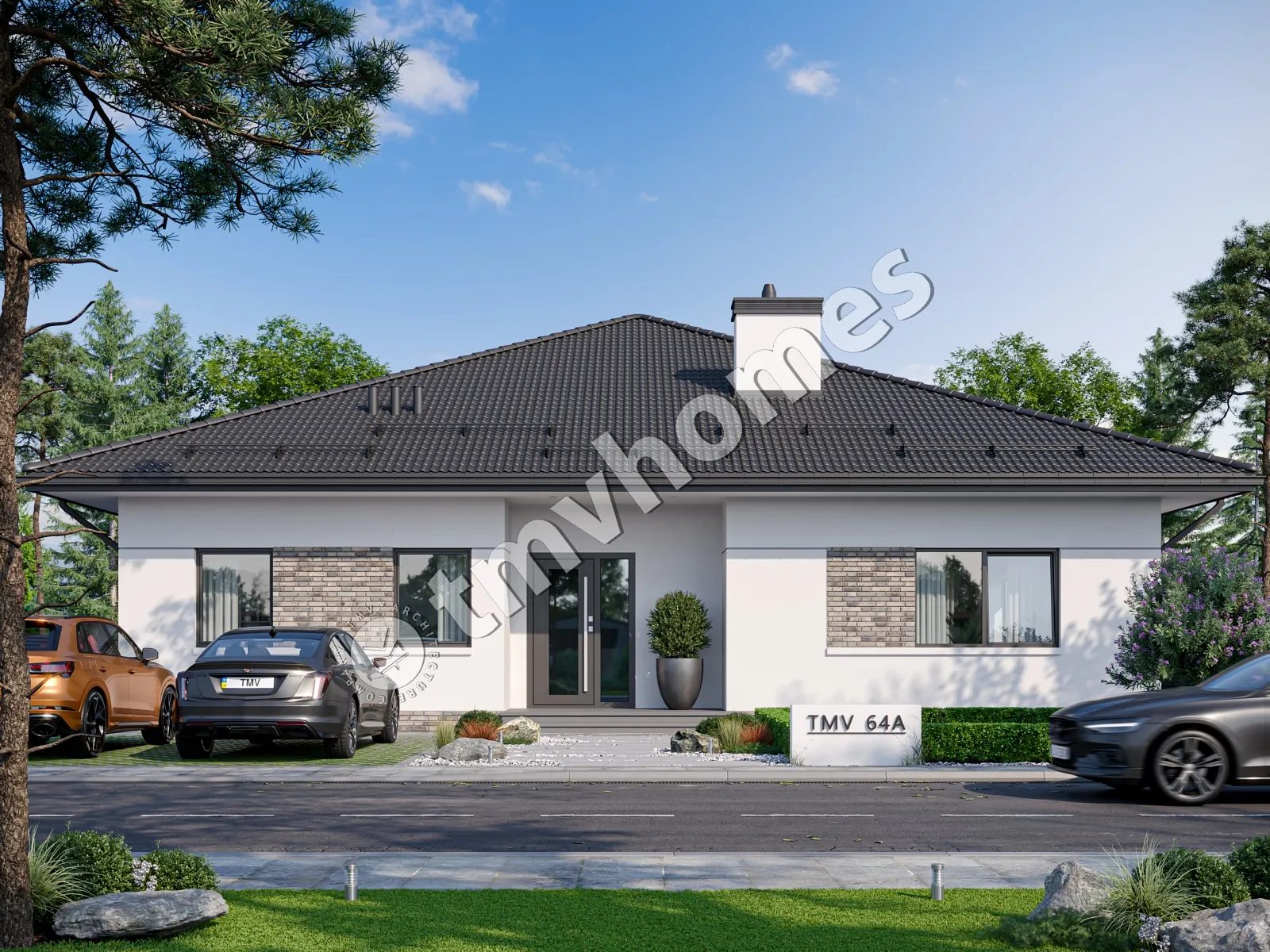

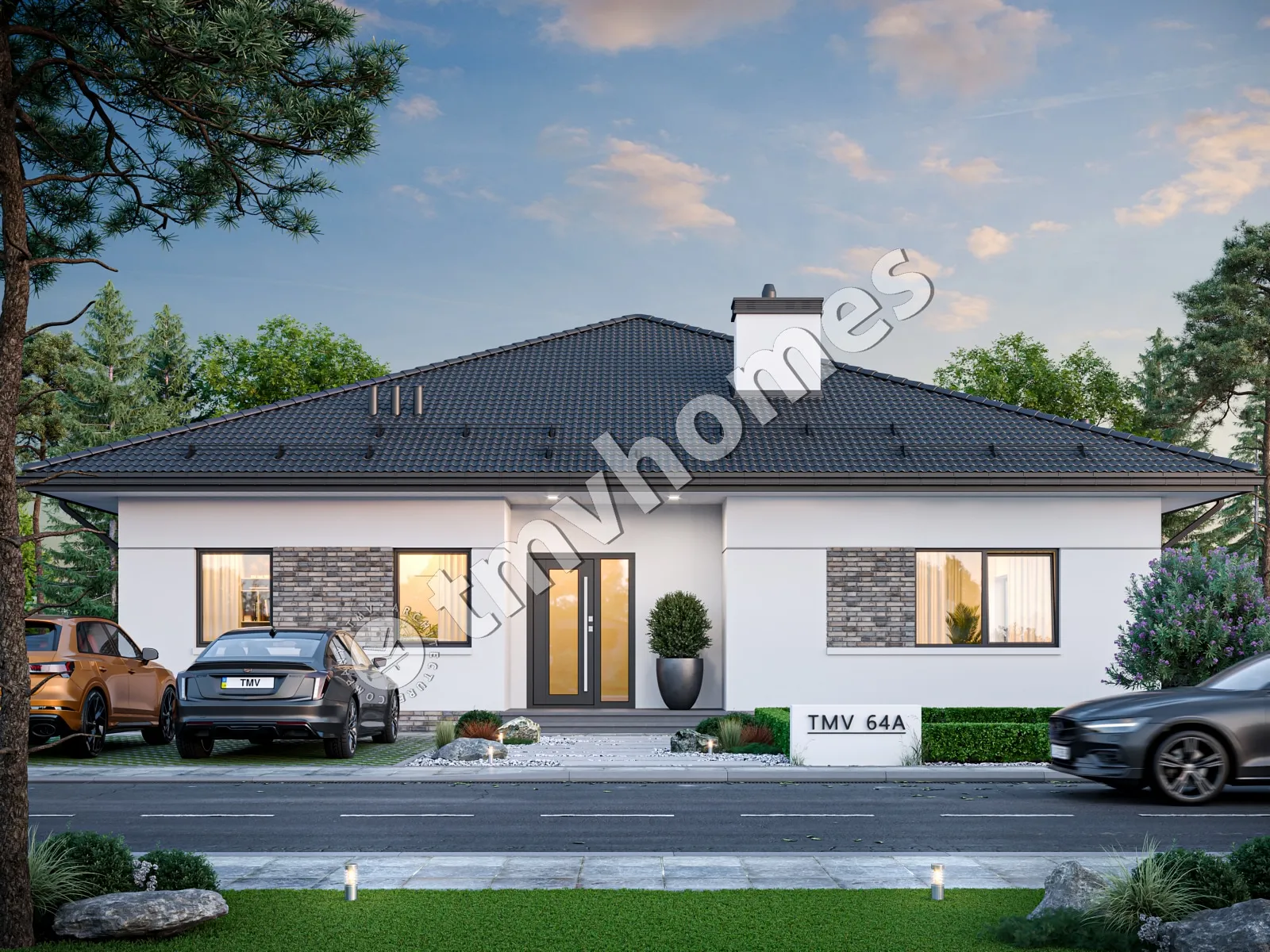

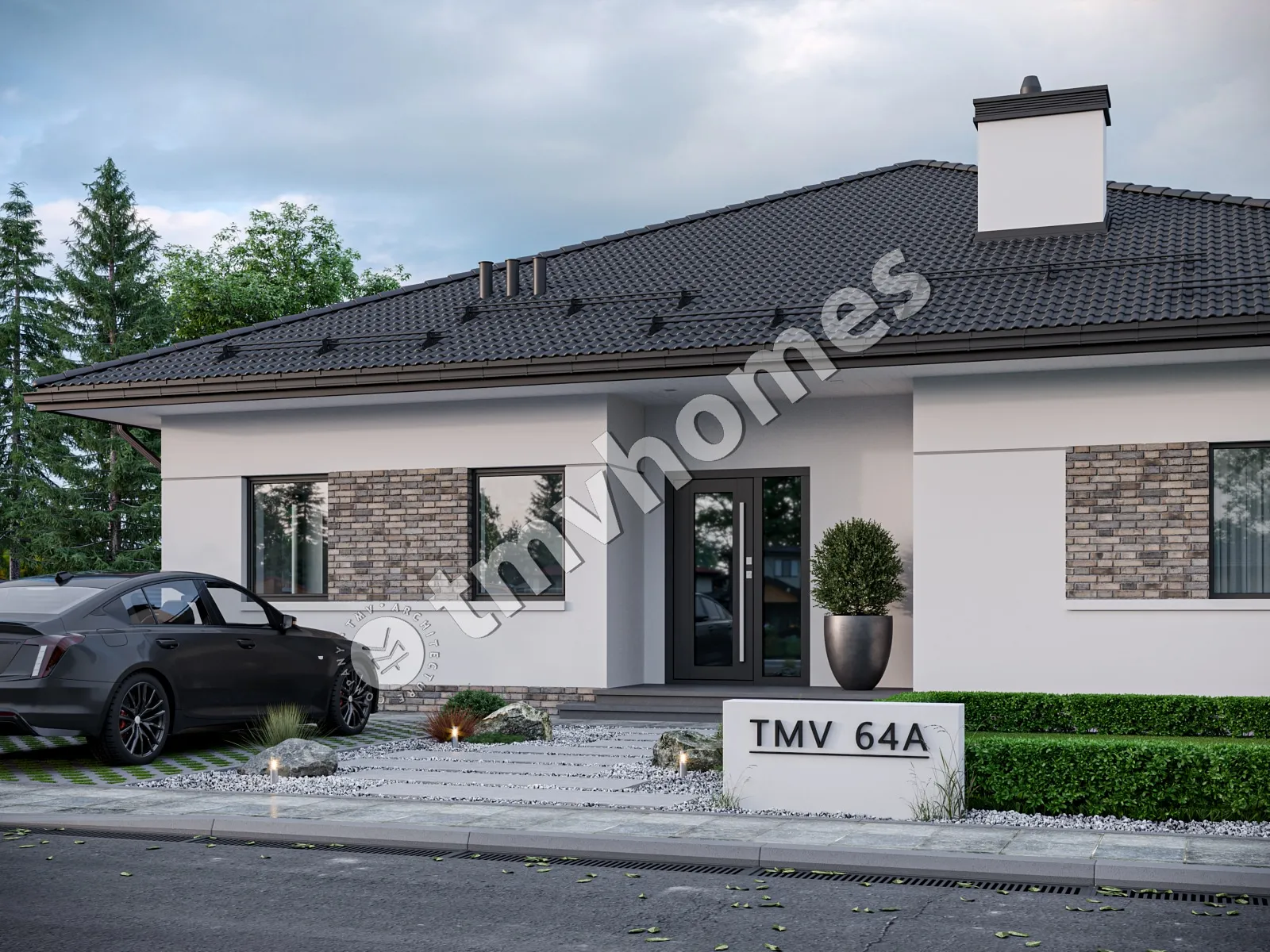

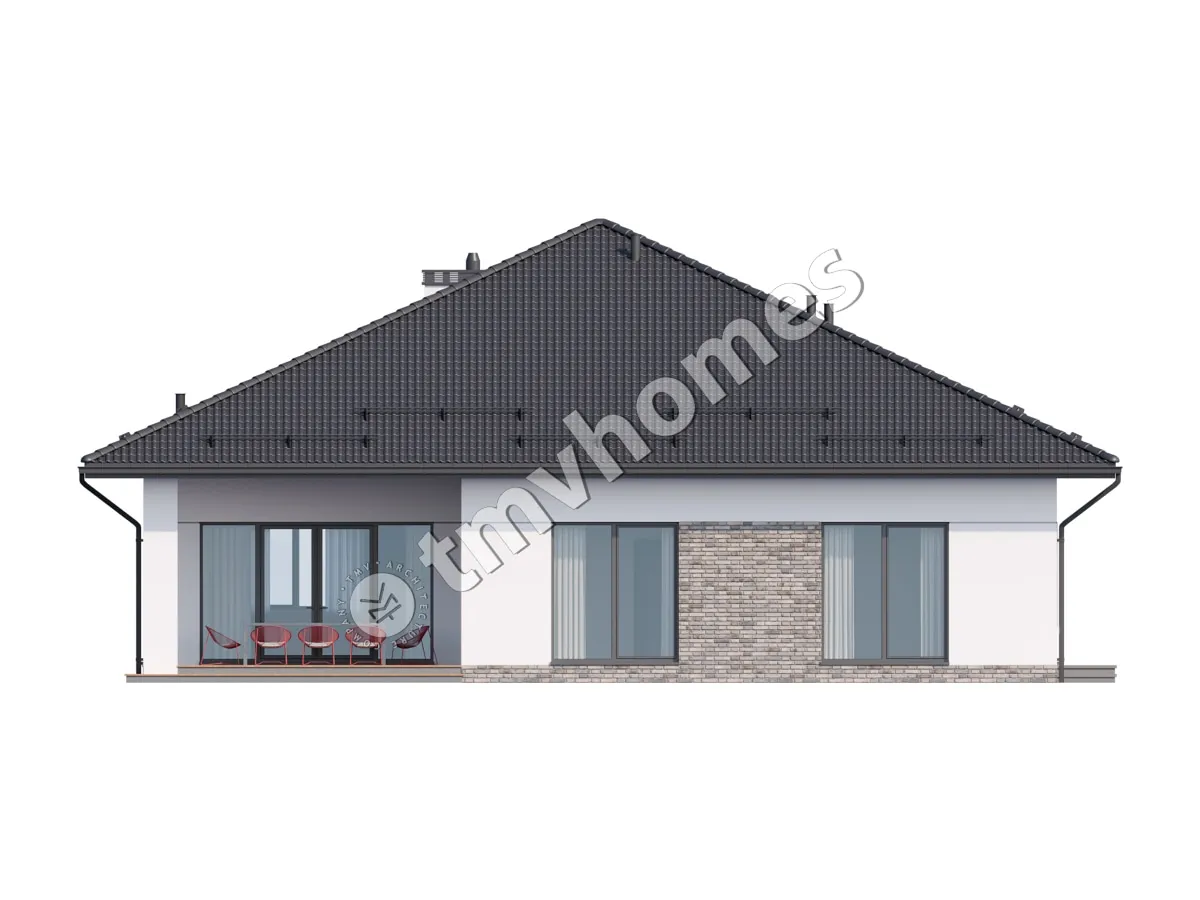

The 23072C digital house design concept describes a Bungalow single-story family house with Total Heated 1,958 Sq Ft, 2 bedrooms and 2 bathrooms, sized for 2-3 people. A pyramid roof with a 6/12 (26°) pitch gives the house a compact silhouette, and the facade pairs stucco with stone/brick veneer that protects the walls from weather.

The entry keeps coats and shoes away from the living space and opens into an open floor plan, where the large family room with its fireplace flows into the large kitchen, so whoever cooks stays part of the conversation. A breakfast bar handles quick meals, the breakfast nook hosts everyday dinners, and the walk-in pantry keeps supplies out of sight. Large windows and floor-to-ceiling windows fill the great room with daylight. A dedicated home office gives you a quiet place to work from home.

The two bedrooms are clustered together, keeping parents close to a child at night, and two full bathrooms end the morning queue. A storage room holds seasonal items, while the utility room takes household chores out of the living area.

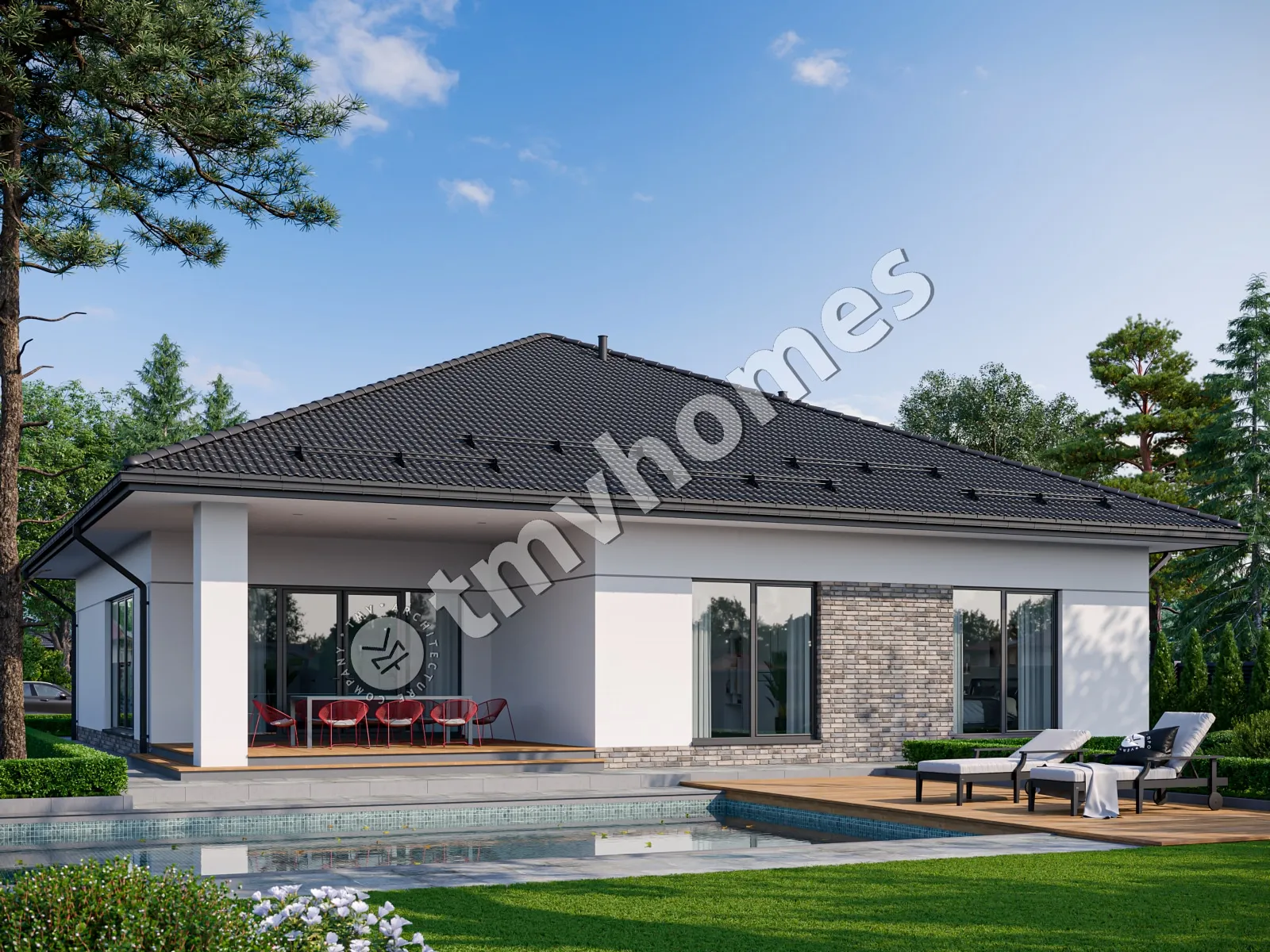

The covered rear porch lets you spend time outdoors even in the rain. With a width of 47'5" and a depth of 47'1", the house is easy to check against your lot. The main foundation is a strip footing, with a slab or a concrete block foundation as options, and the walls are planned in autoclaved aerated concrete, which holds heat well, with hollow clay block or calcium silicate block as alternatives. In figures: Total Heated 1,958 Sq Ft, 2 bedrooms and 2 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
