Renderings 2 – 1,718 Sq Ft Bungalow Single-Story Family House Plan with 3 Bedrooms and 2 Bathrooms – 78739C

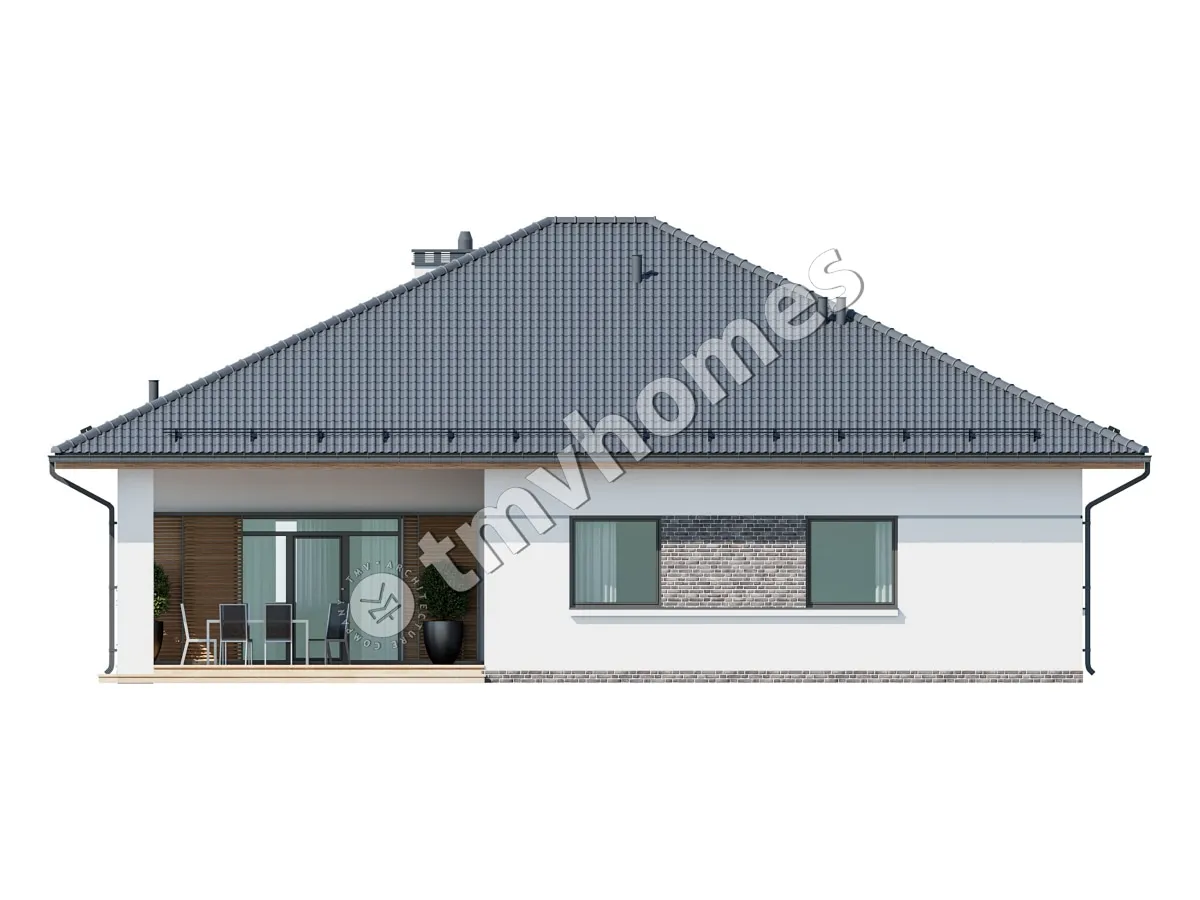

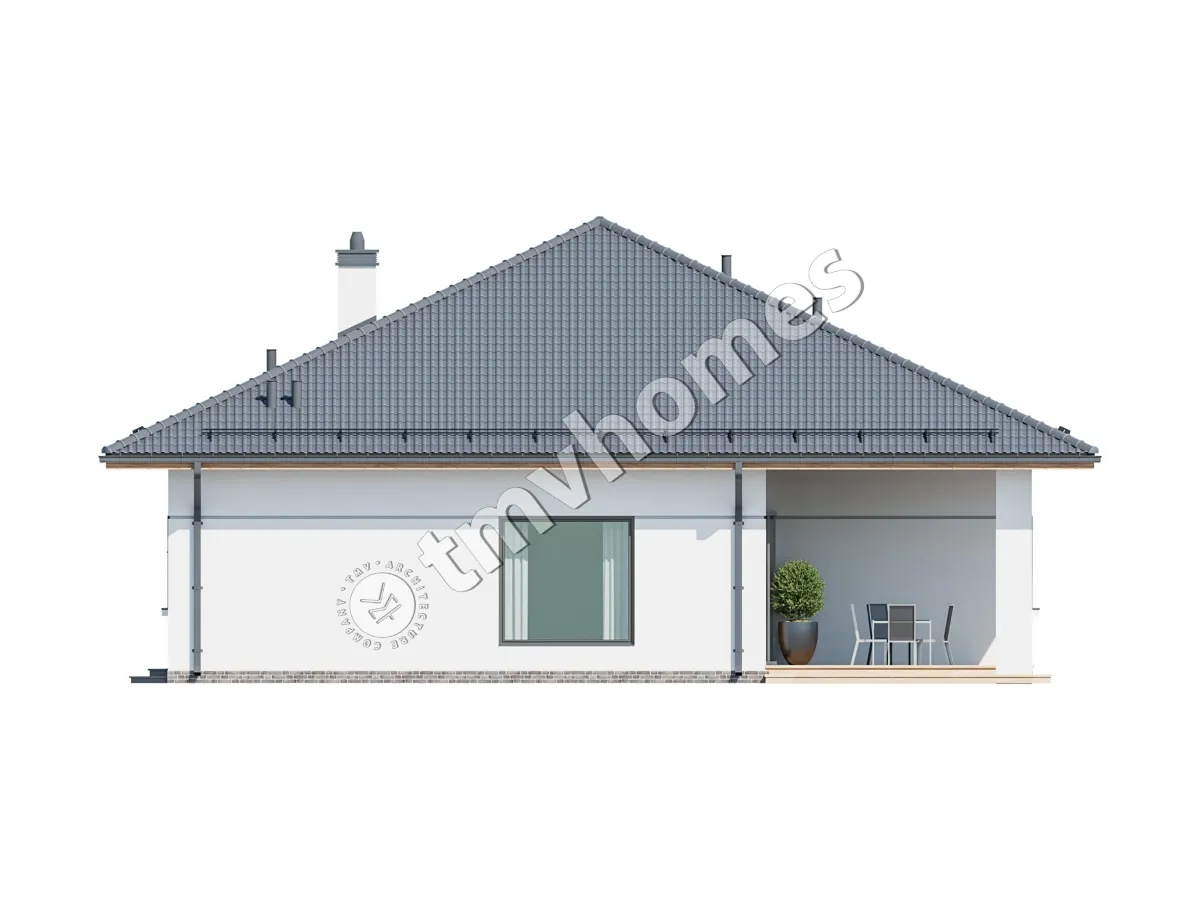

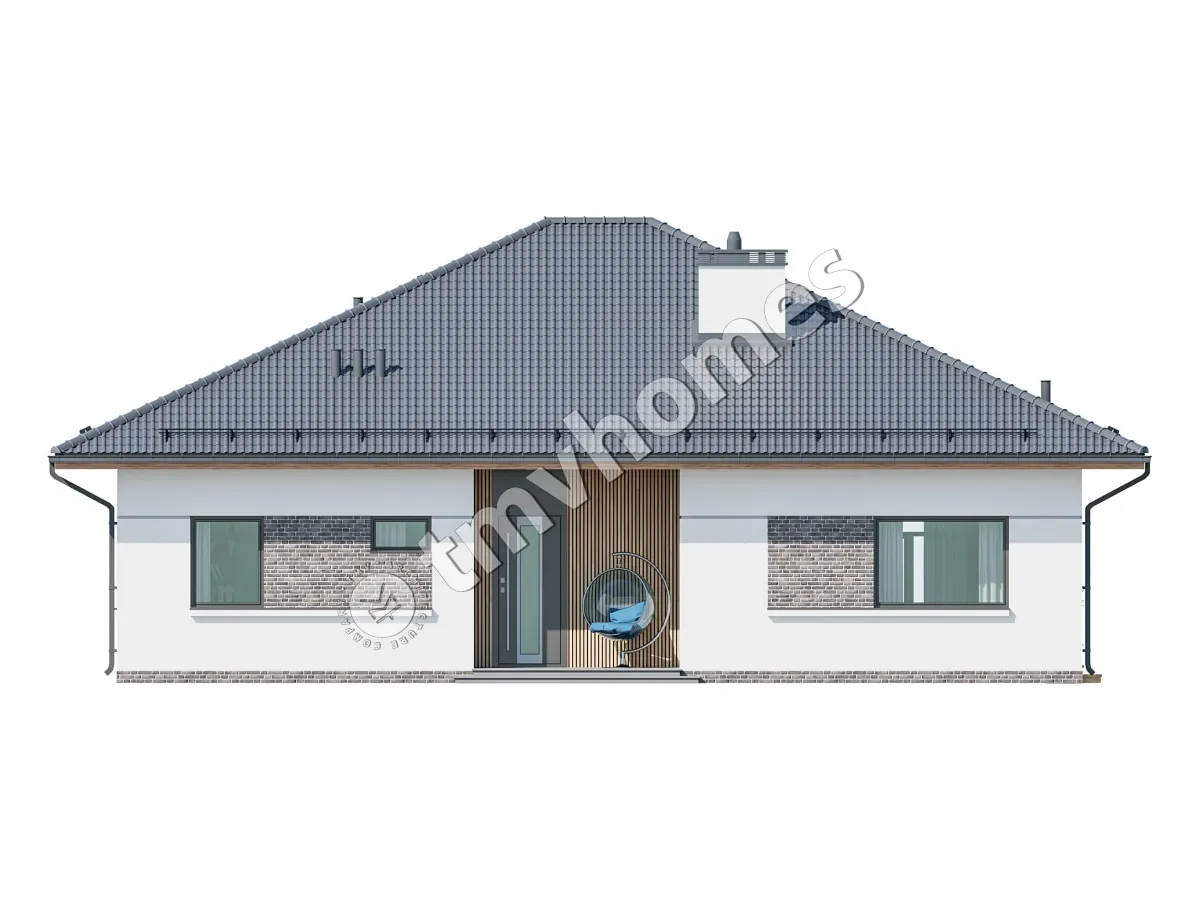

Renderings 3 – 1,718 Sq Ft Bungalow Single-Story Family House Plan with 3 Bedrooms and 2 Bathrooms – 78739C Renderings 4 – 1,718 Sq Ft Bungalow Single-Story Family House Plan with 3 Bedrooms and 2 Bathrooms – 78739C
6
Concept
Construction documents are prepared for the following countries:

1,718 Sq Ft Bungalow Single-Story Family House Plan with 3 Bedrooms and 2 Bathrooms

Plan
78739C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1718
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

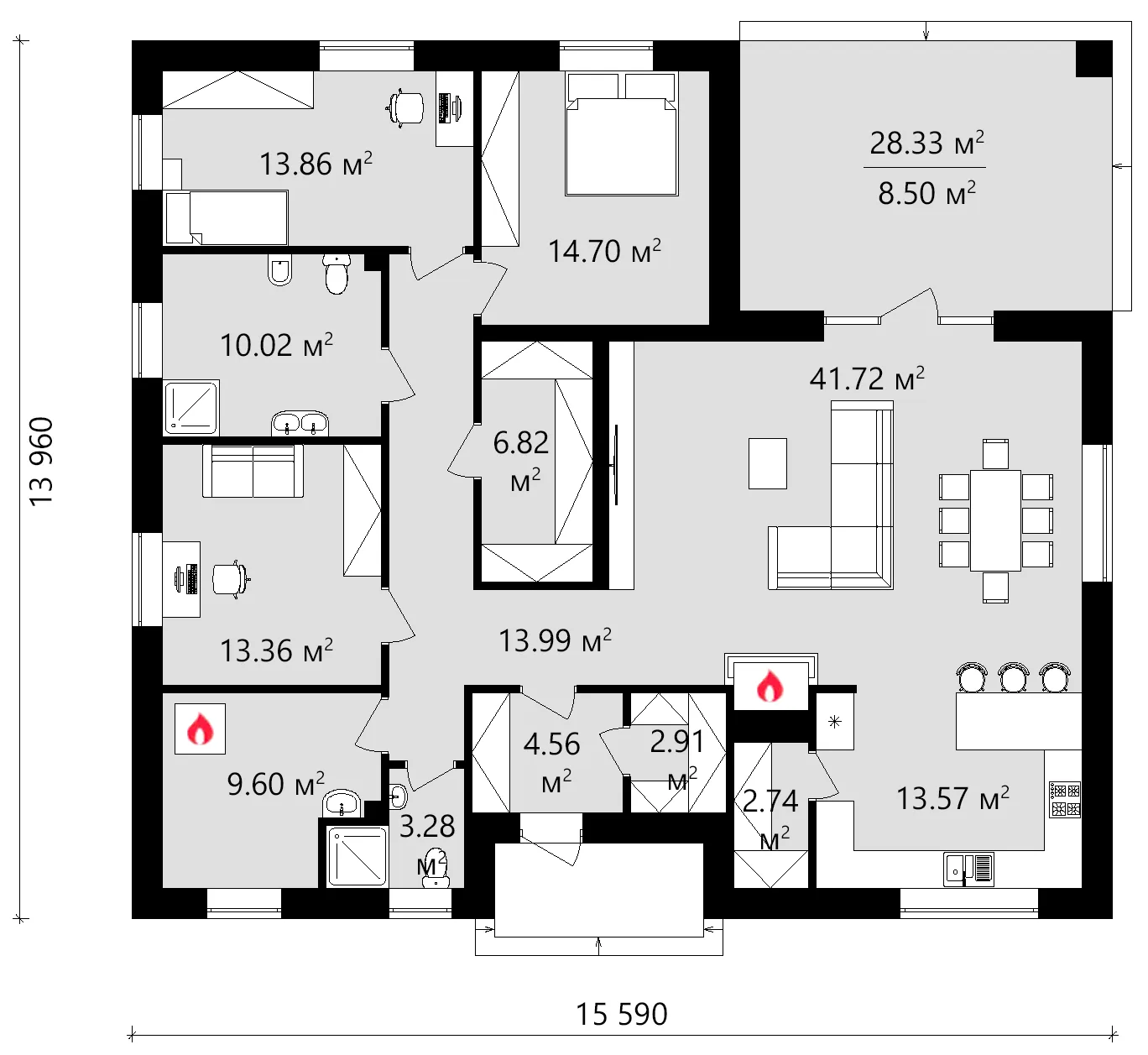

Main Floor
Main Floor 12 – 1,718 Sq Ft Bungalow Single-Story Family House Plan with 3 Bedrooms and 2 Bathrooms – 78739C
Full Specs & Features
Area
Total Heated: 1718.24 ft²
Dimensions
Depth: 42'6" ft
Width: 47'5" ft
Height: 22'8" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Entry
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Interior Features
Fireplace in Family Room
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Architectural Style
Bungalow
European
Traditional
Roof
Roof Area: 3329.06 ft²
Hip
Roof Pitch: 6/12 (26°)

House design concept 78739C, available for purchase as a digital house design concept, is a single-story Bungalow family home with Total Heated 1,718 Sq Ft, 3 bedrooms and 2 bathrooms, designed for 3-4 people. A hip roof with a 6/12 pitch and stucco walls give the house a compact, balanced silhouette. The footprint measures 47'5" wide by 42'6" deep.

The entry leads into an open floor plan where the large family room with its fireplace flows into a large kitchen, so cooking and relaxing share one space. A breakfast bar handles quick meals, the breakfast nook gathers the family for everyday dining, and a walk-in pantry keeps supplies organized and out of sight.

The three bedrooms are clustered together on one level, which keeps the children's rooms close to the parents. Two full bathrooms shorten the morning queue, and a separate utility room keeps household chores apart from the living space.

At the back, a covered rear porch extends daily life outdoors in any weather. The main foundation is strip footings, with a slab or a block foundation as options; the exterior walls are framed in aerated concrete, with clay hollow block or sand-lime block as alternatives. In figures: Total Heated 1,718 Sq Ft, 3 bedrooms and 2 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$847
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
